Swisslog Software USA Inc.    North Billerica, MA 01862
Oct 06, 2003 WAYRTS software, suited for operative planning and optimization of logistics networks, enables synchronization of production and distribution processes as well as efficient use of resources. Software provides users with general account of entire planning situation. Using consistent model, product provides graphical, interactive production planning and control; mapping of pull-oriented processes; and simulation of alternative planning scenarios.

Xicor, Inc.    Milpitas, CA 95035
Oct 06, 2003 Series X79000 integrates single channel, 12-bit non-volatile DAC, voltage reference with selectable gain and level shift, configurable output buffer, and 64 Bytes of general purpose EEPROM into single chip. Initial-value DAC-register restores values during power up. Push-Pot control allows for incrementing or decrementing from initial DAC value in either one LSB or byte or word steps. Converters are suited for bias and calibration applications.

IronRhino Development    Austin, TX 78746-6464
Oct 06, 2003 Series DL 1300 transmits operating data on mobile powered equipment over 2-way wireless pager network. Units collect asset data such as run time, lift time, battery voltage, oil pressure, boom-lift override counts, and GPS location. Eight signal inputs connect to asset sensors and user configures inputs to be duration timers, event counters, or analog sensors. Operator Interface Module controls access to equipment through Driver Identification and Password approval.

Network Simplicity    Richmond, BC V7A 5H9
Oct 06, 2003 Visual Asset Manager (VAM) 2004 supports barcode scanning and printing, employee import from Outlook or network domain, and database export functions. It also includes language translation capabilities, help desk call management, and customizable interface themes. Able to track all active users, software offers workstation audits, category search forms, ability to track office information, and asset linking functionality.

iQvolution Inc.    Richboro, PA 18954
Oct 06, 2003 Continuous wave Model iQSun 880 is divided into 4 interchangeable modules including distance sensor, mirror axis, pan axis, and Pentium III PC. Data is recorded on internal hard disk drive, which can be removed and plugged into docking station. Contained in 15.7 x 6.3 x 11 in. unit, iQSun 880 captures 360° field of view in less than 160 sec. It scans over 240,000 3D measurements/sec with accuracy of less than 3 mm of error at 30 m range.

Olympus Industrial America, Inc.    Orangeburg, NY 10962
Oct 06, 2003 Model i-Speed utilizes CMOS chip technology and computer enhanced motion analysis. Portable, high-speed system captures images from 60-32,000 fps optimized at 800 x 600 resolution. Image storage is directly to internal camera memory, with downloading to compact flash card on camera, or to PC via Ethernet. User can operate camera with hand-held, wired remote control pendant.

RockySoft Corp.    Fort Collins, CO 80526
Oct 06, 2003 Suited for mid-sized distributors, Advanced Distribution Requirements Planning Suite v4.3 contains Demand Management, Inventory Sizing, Economic Order Management, and Optimum Procurement algorithms. Demand-driven procurement solution set works with any accounting or warehouse management system. Other areas of application include buyer productivity, price break optimization, and advanced freight analysis.

TE Connectivity Ltd.    Berwyn, PA 19312
Oct 03, 2003 Double-row, dual-barrier strips are based on 9.5, 11.0, 11.1, and 14.3 mm centerlines. Rated at 20 A/300 Vac, 9.5 mm model accepts 12-22 AWG and comes in 2-30 positions. Rated at 25 A/300 Vac, 11.0 and 11.1 mm products accept 14-22 AWG wire and are available in 2-26 positions. Rated for 30 A/300 Vac, 14.3 mm unit accepts 10-22 AWG wire and comes in 2-18 positions. All have UL 94V-0 thermoplastic housing, tin plated brass terminals, and nickel-plated steel screws.

Lenox Instrument Co.    Trevose, PA 19053 3427
Oct 03, 2003 AUTOSCOPEâ„¢, suited for inspection of reciprocating engines on fixed-wing aircraft, gives mechanics bright, clear, magnified image of existing or potential problems. Handheld optical diagnostic tool provides probe diameter of 6 or 8 mm, field of view of 70°, focus from ¼ in. to infinity, and working lengths of 9–15 in. Complete visual diagnostic kit includes eyepiece and probe with internal lens and light system, battery pack, and extension cord.

Hilti Inc.    Tulsa, OK 74121
Oct 03, 2003 Model WSR 900-PE incorporates smart power system that combines efficient gearing and load management sensor to continually monitor blade speed when under load, resulting in elimination of stalling during cutting. Product's D handle with multifunctional grip allows users to change hand position to maximize cutting efficiency. Additional features include 6-speed stroke rate regulator (0-2700 SPM), vertical motor mount, and 7-position shoe with open face design.

Airguard Industries, Inc.    Louisville, KY 40218
Oct 03, 2003 Airguard filters use media that resists moisture, will not sag, and is coated with non-drying adhesive for optimum particle collection without sloughing. Internal wire frame is self-gasketing and self-sealing. Products maintain shape in all airflow conditions and install without clips or latches. They do not shed and will not support microbial growth. Styles include Uni-Cube and Tri-Cube filters and VA-420 (2-ply) and VA-440 (3-ply) Multi-Pocket filters.

Flexicon Corporation    Bethlehem, PA 18020 8006
Oct 03, 2003 Available in carbon steel or stainless steel, automated bulk bag discharger is equipped with activated surge bin and flexible screw conveyor that allow continuous loss-of-weight discharging directly from bulk bags. During bag changes, system software switches to volumetric mode for uninterrupted operation. Bag-to-surge-bin interface consists of Spout-Lockâ„¢ clamp ring positioned atop pneumatically actuated telescoping tube.

Revvo Caster Co., Inc., The    West Seneca, NY 14224
Oct 03, 2003 Flexello UTP Series twin-wheel caster is suited for use on equipment requiring periodic rolling and level, stationary positioning. Adjustable stem and foot provide leveling that is concentric with caster spindle. Body is constructed of high-impact nylon, and stem is made of carbon steel. Series has load capacity of 330 lbs and 2 5/8 in. dia wheels. Features include ball raceway bearing, swivel radius of 2 1/8 in., and tread width of 11/16 in.

Deltronic    Santa Ana, CA 92704
Oct 03, 2003 Model DH 216-200 LCD features Part-View Screen that shows picture of part as it is being measured and can provide printed copy. It includes motorized XYZ stage travel up to 6 x 18 x 3 in., automatic edge sensing, electronic screen protractor, RS232 interface to printer for hard copy documentation, and choice of PC-based or computerized geometric readouts. Software provides non-contact 50-millionths-step measuring system. Optical accuracy is 0.05%.

Extech Instruments Corp.    Nashua, NH 03063
Oct 03, 2003 MultiScope(TM) Model 381285 combines handheld Graphical Storage Oscilloscope with True RMS Multimeter. Graphical mode display with EL backlighting allows observation of actual voltage waveforms. Multimeter 4,000 count dual display includes analog bargraph. DC to 5 MHz oscilloscope offers sample rate of 25 million samples/sec. MultiScope includes frequency counter, adjustable 5 V square wave output from 2.5 Hz to 78 kHz, and graphical logic analyzer function.

Clark Solutions    Clinton, MA 01510

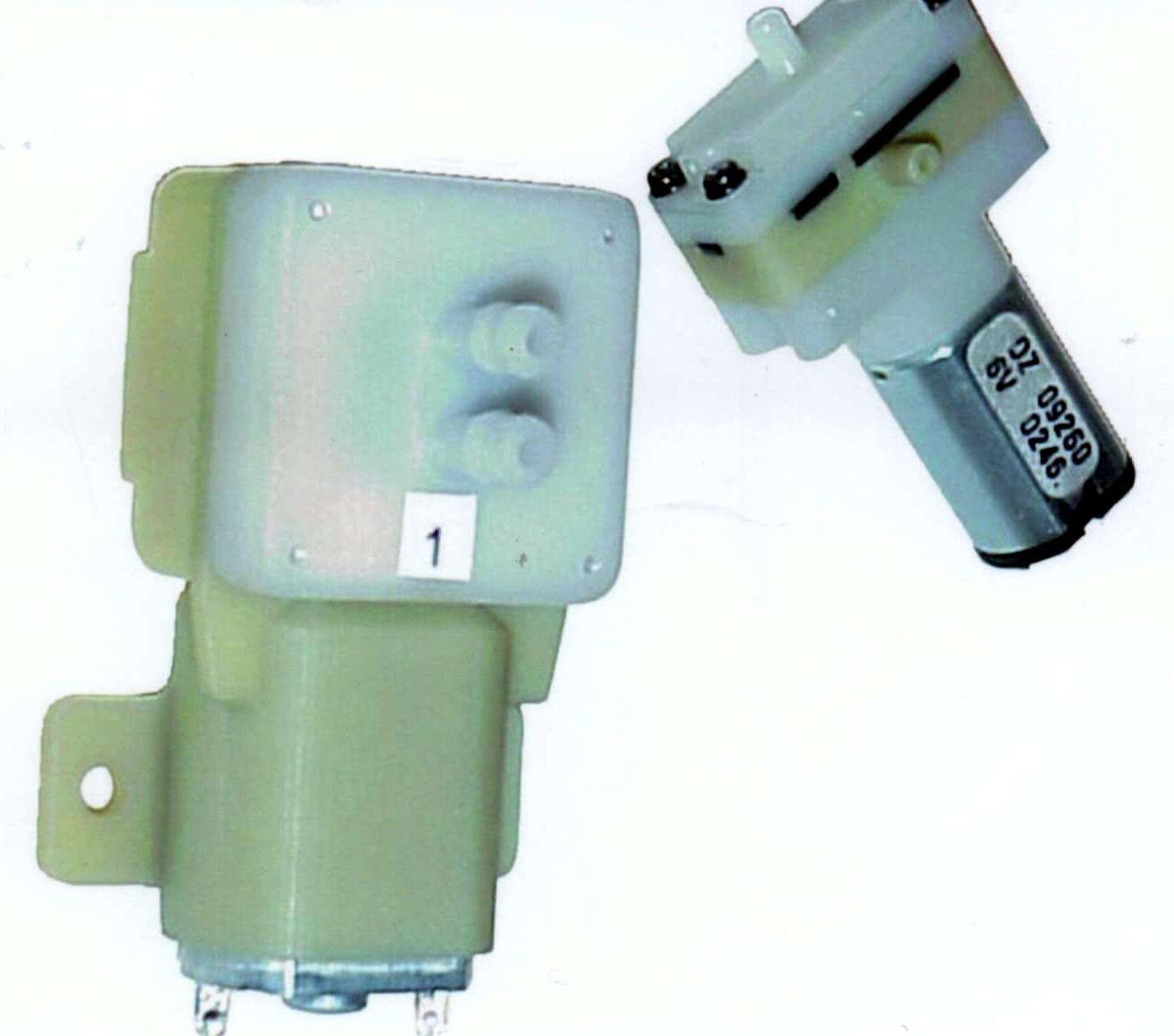

Oct 03, 2003 Series KPV Miniature Gas Vacuum Pumps incorporate 2 mini-bellows operated by rocker arm attached to eccentric motor shaft. Model KPV-14A features max flow rate of 0.40 l/min, while Model KPV-20B offers max flow rate of 1.0 l/min. Wetted components are POM, ABS plastic, and rubber, suiting them for air and gas sampling as well as OEM medical and analytical applications.

Lin Engineering    Santa Clara, CA 95054
Oct 03, 2003 Simple Step 17 with Designer's Kit includes integrated motor, RS485–RS232 converter card, db-9 female connector cable, switch push button, Opto Sensor, 4-pin connector for converter card, extra wiring for I/O, and CD-ROM. Motor offers automatic execution of stored commands upon power up, fully programmable ramps and speeds, bipolar control, 2 digital I/O and 2 fixed input channels, and up to 85 oz-in. torque.

Lift Products, Inc.    Elm Grove, WI 53122 0349
Oct 03, 2003 Available in manual or electric versions, TILT and LIFT combines portable tilter with vertical travel functionality to precisely position workloads. With independent control of each function, operator can tilt load at correct angle and raise load up or down to create most comfortable ergonomic position. Workload is accessible without need for bending, reaching, stooping, or stretching. Unit is equipped with casters and can be moved throughout plant.

Transducer Techniques    Temecula, CA 92590
Oct 03, 2003 System, comprised Low Profile Universal Load Cell and DPM-3 Panel Mount Meter, is suited for industrial and OEM force measurement and weighing applications. DPM-3 can be scaled to full 5 digits, samples 60 readings per second, and offers analog output and true peak reading capability. LPU tension or compression Load Cell is offered in 14 ranges from 100–50,000 lbs. Hold down is via outside diameter counter bored thru holes, and loading is thru center at either end.

Komatsu America International Company    Vernon Hills, IL 60061

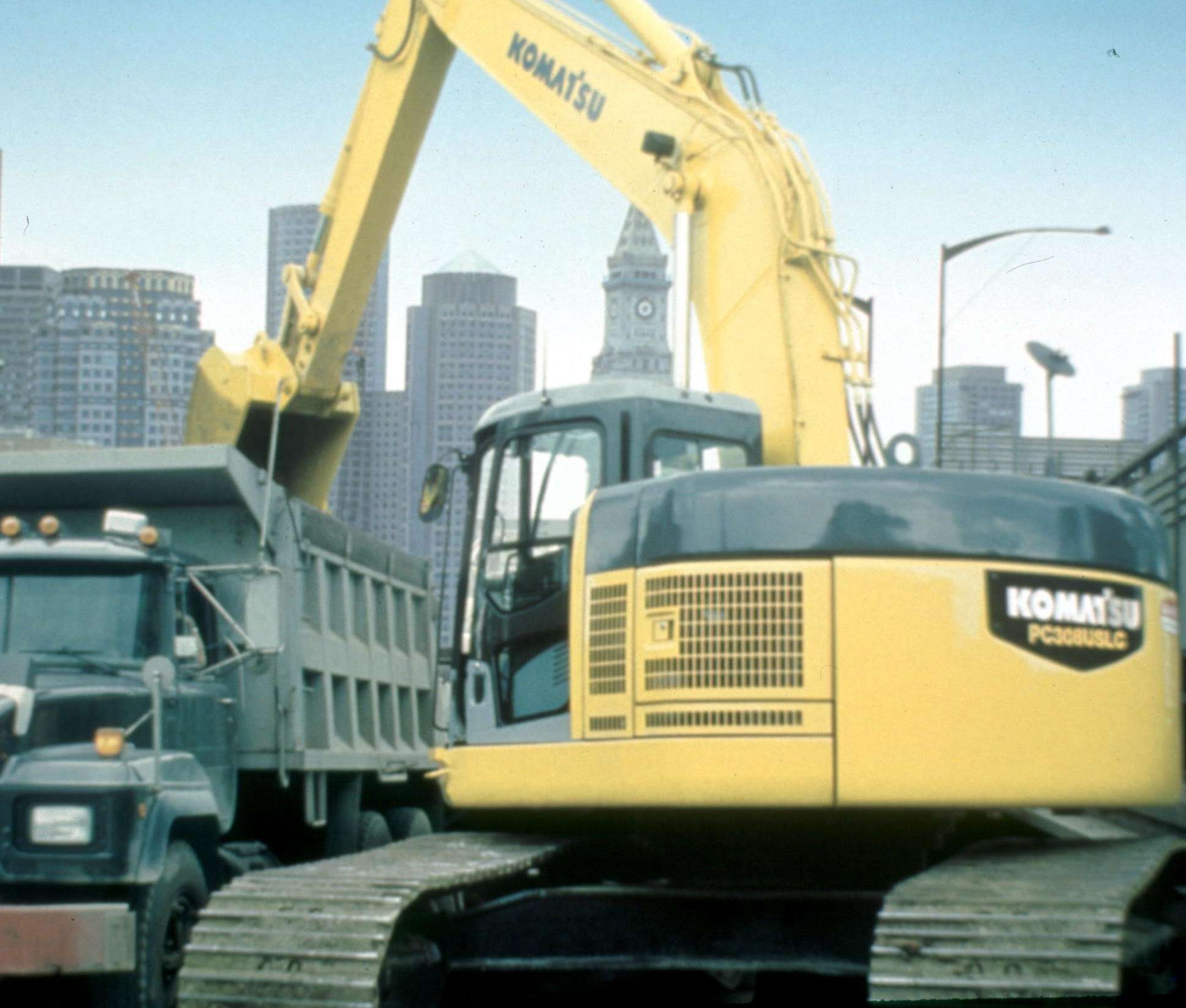

Oct 03, 2003 Tight-tail swing excavator, model PC308USLC-3, weighs in at 73,146 lbs and offers 59,180 lbs of drawbar pull and steering force. When equipped with 33.5 in. shoes, 179 hp machine occupies 10 ft 9 in. width, and 17,857 lb counterweight protrudes 1 ft 5 in. past track shoes. Product offers max ISO-rated digging force of 44,530 lbs and arm crowd force to 33,290 lbs. Max digging height is 33 ft 8 in., and max digging depth is 24 ft 9 in.
