R & W America L.P.    Bensonville, IL 60106
Sep 05, 2003 Series BK2 Couplings have stainless steel bellow, which exhibits high torsional rigidity and can simultaneously compensate for axial, angular, and lateral misalignment. Shaft hubs are custom-bored on each side for shaft sizes from 0.38–3.13 in. with or without keyways. Sizes are available for torque capacities from 133–13,275 lb-in.

Eurotherm Controls    Leesburg, VA 20175

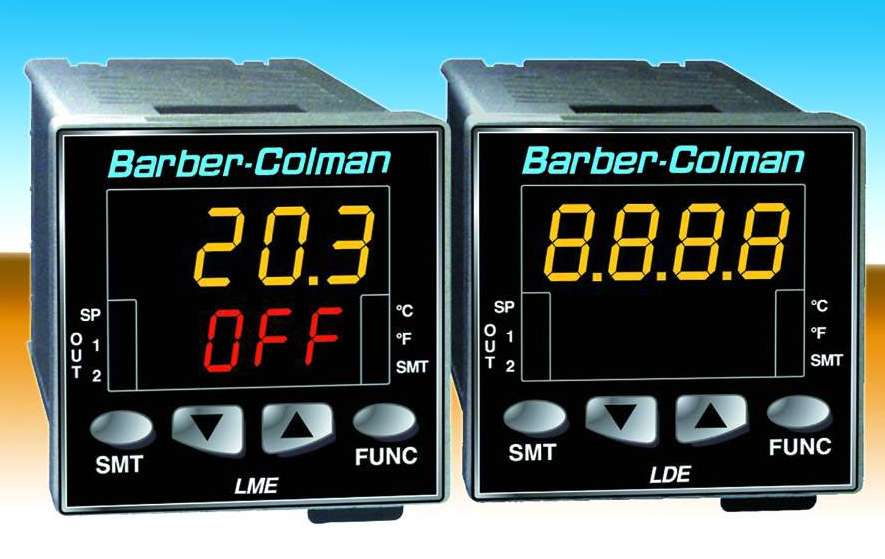

Sep 05, 2003 Models LDE and LME of Series 7 are 1/16 DIN controllers with single line display and dual line display, respectively. In addition to closed-loop PID control, they have 4 different timer functions that are programmable from front of instrument. INSTANT ACCURACYâ„¢ feature ensures consistent performance under variety of conditions. Units are suited for small ovens, thermostatic baths, and incubators.

Brawn Mixer Inc.    Holland, MI 49424
Sep 05, 2003 Mixers deliver optimal flow pattern and velocity in applications where stratification, solidification, and heat transfer are a concern. Belt-driven and gear-driven designs can be equipped with stuffing boxes or mechanical seals. For ease of maintenance, mixers feature optional shutoff device that permits work on seals without emptying tank contents. Products are suited for pulp and paper, petroleum, chemical, food processing, and large tank processes.

QuadTech, Inc.    Maynard, MA 01754

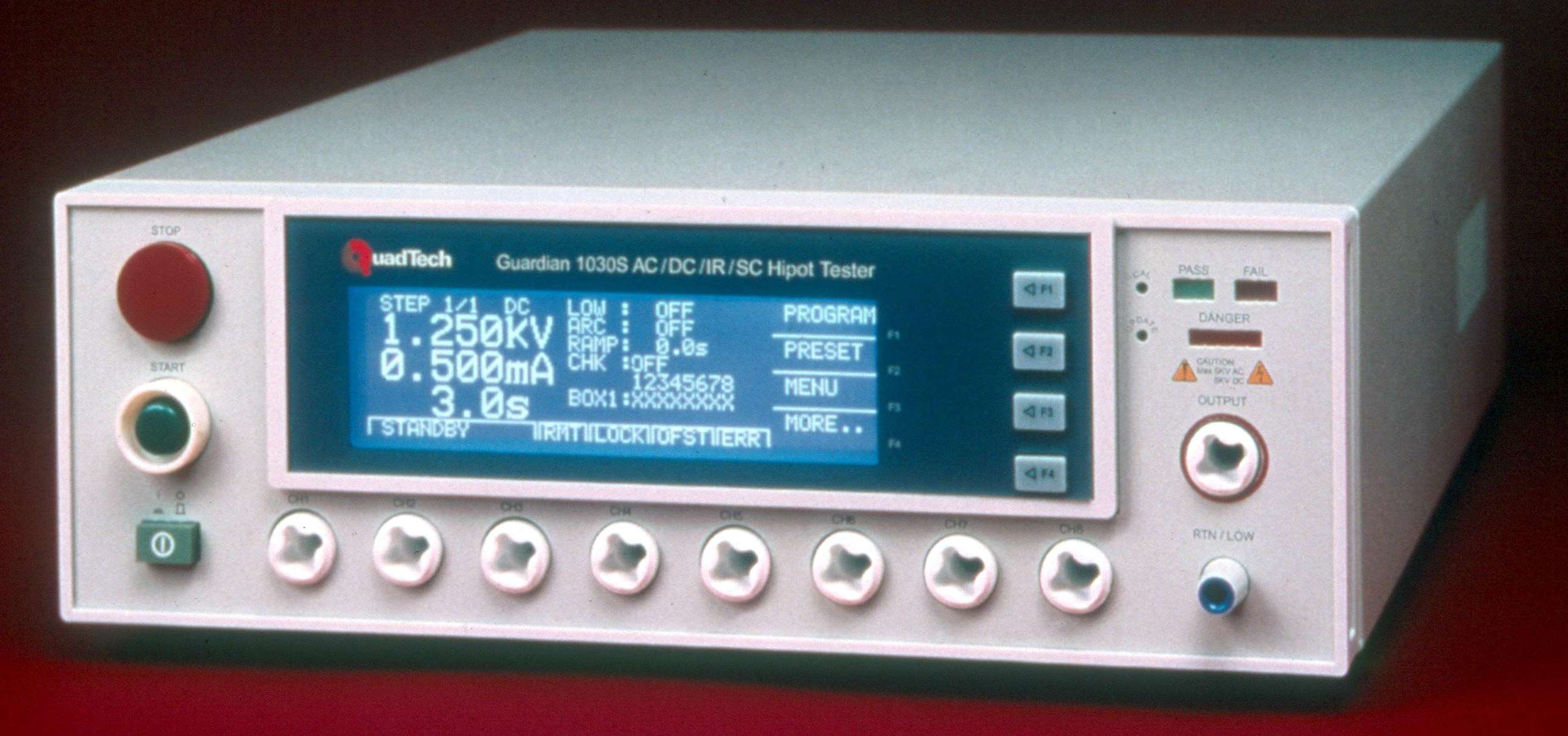

Sep 05, 2003 Guardian 1030S can perform AC Hipot tests from 50–5,000 V with leakage current detection from 1 µA to 30 mA, DC Hipot tests from 50–6,000 V with leakage current detection from 0.1 µA to 10 mA, and Insulation Resistance measurements from 100 Kohm to 50 Gohm with programmable test voltage from 50 to 1,000 Vdc. All functions can be programmed via front panel or remotely via RS-232. Tester includes LCD display, GFI circuits, and 500 internal memory locations.

WinSystems, Inc.    Arlington, TX 76011

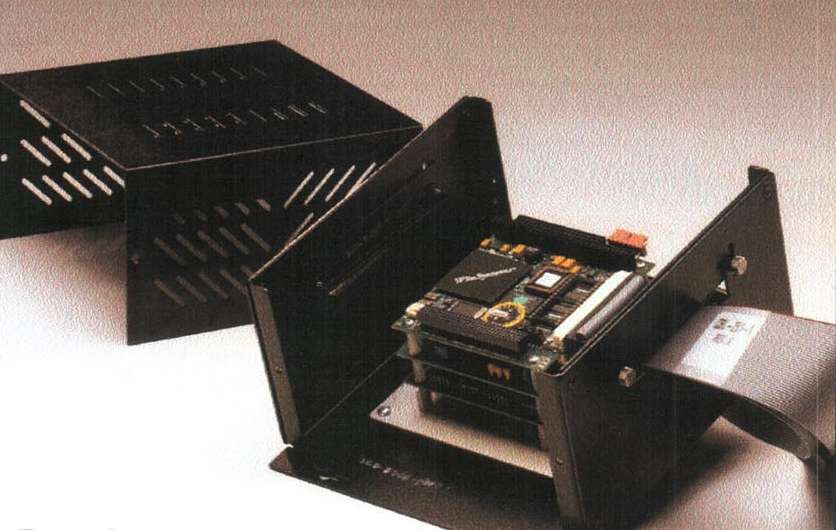

Sep 05, 2003 Fabricated from 0.0625 in. 5052 aluminum, Model ENC-104 measures 7.725 x 8.325 x 4.0 in. and accepts stack of up to 4 PC/104 or PC/104-Plus modules. It consists of chassis base, chassis cover, 2 end plates, square PC/104 module stack plate, and optional 40 W power supply. Chassis base attaches vertically on wall, on table, under counter, or inside equipment. Enclosure suits embedded applications requiring mounting inside NEMA boxes, OEM machinery, wiring closets, and equipment rooms.

Simonds Industries, Inc.    Fitchburg, MA 01420

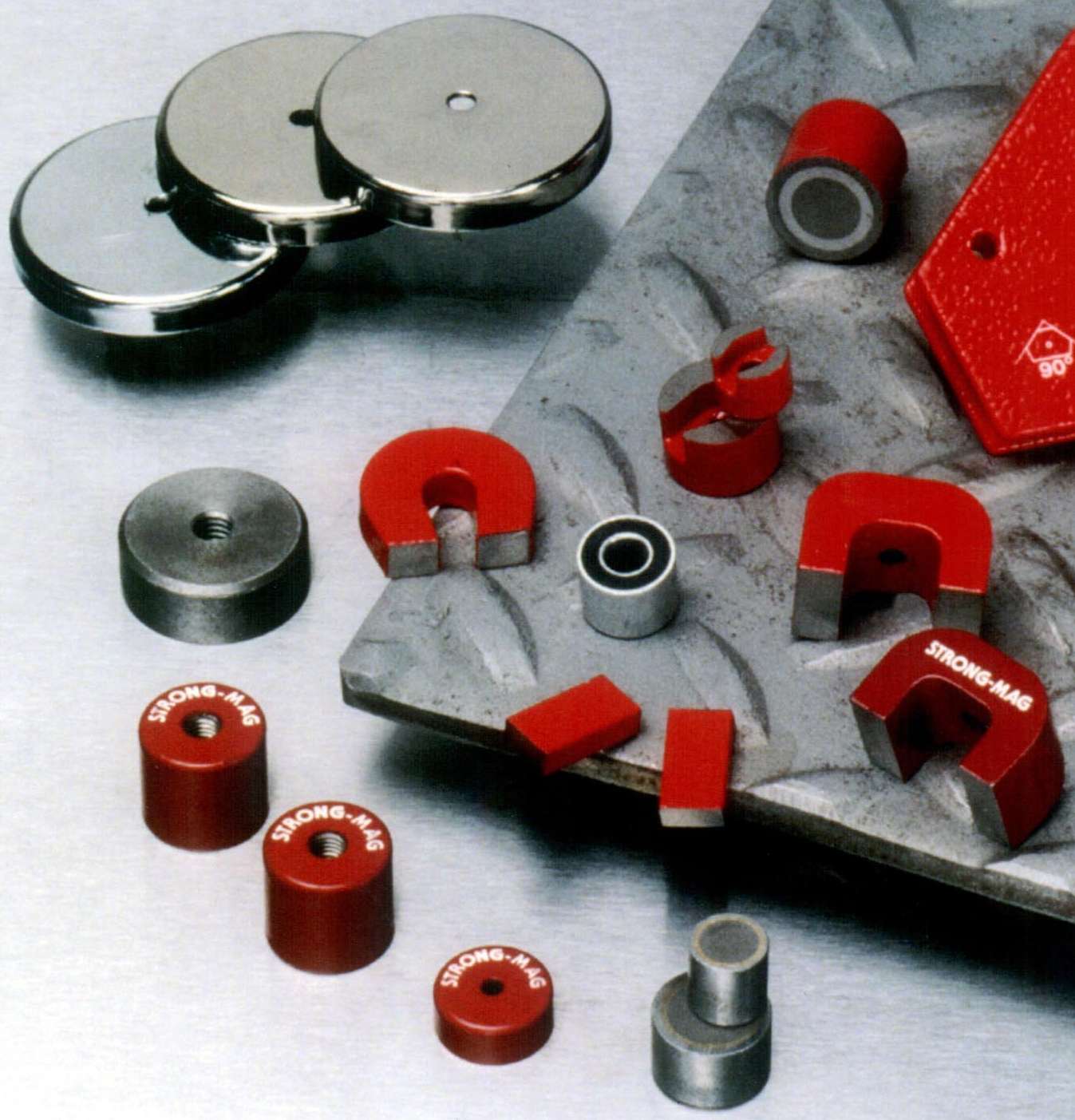

Sep 05, 2003 STRONG-MAGâ„¢ Magnetic Products eliminate manual clamping and perform tasks such as jigging, positioning, work holding, lifting, moving, and gripping. Permanent magnets are available in button, cylindrical, flat, round, rectangular, and horseshoe shapes in various sizes. Materials range from ceramic and alnico to neodymium iron boron and samarium cobalt. Tools include permanent magnet chucks, lifters, retrievers, grips, brushes, brooms, and sweeps.

Sharp Microelectronics    Camas, WA 98607 9489

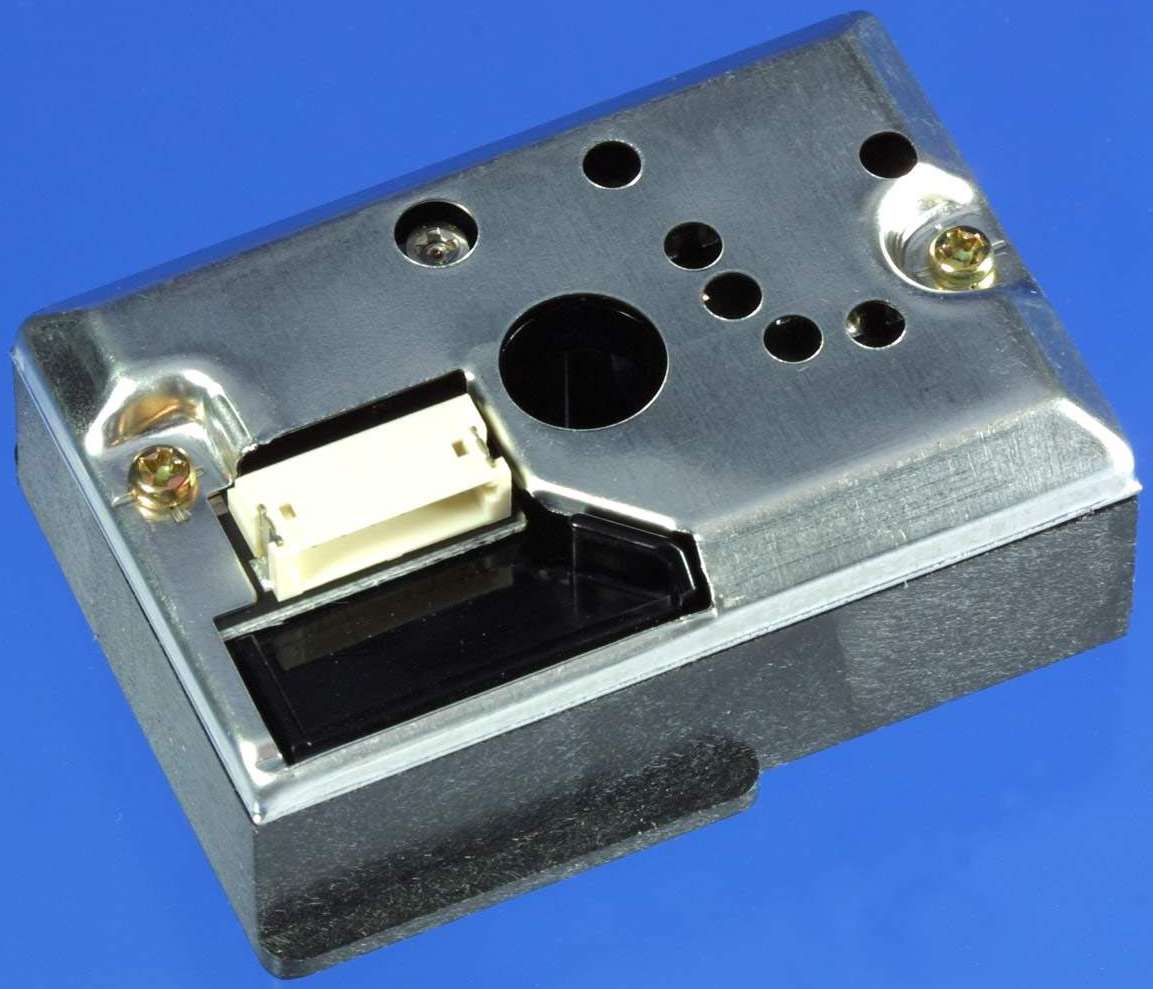

Sep 05, 2003 Model GP2Y1010AU detects particulate matter, smoke, or dust suspended in air. Unit measures 46 x 30 x 17.6 mm, operates on 5.0 V, and has current dissipation of less than 20 mA. Suited for air purifiers and air cleaning systems, device may also be used in various industrial applications. When used in smoke detection system, unit triggers alarm or system shut-down in case of burning or overheating conditions to prevent damage to automated equipment.

Dow Corning Corp.    Midland, MI 48686 0994

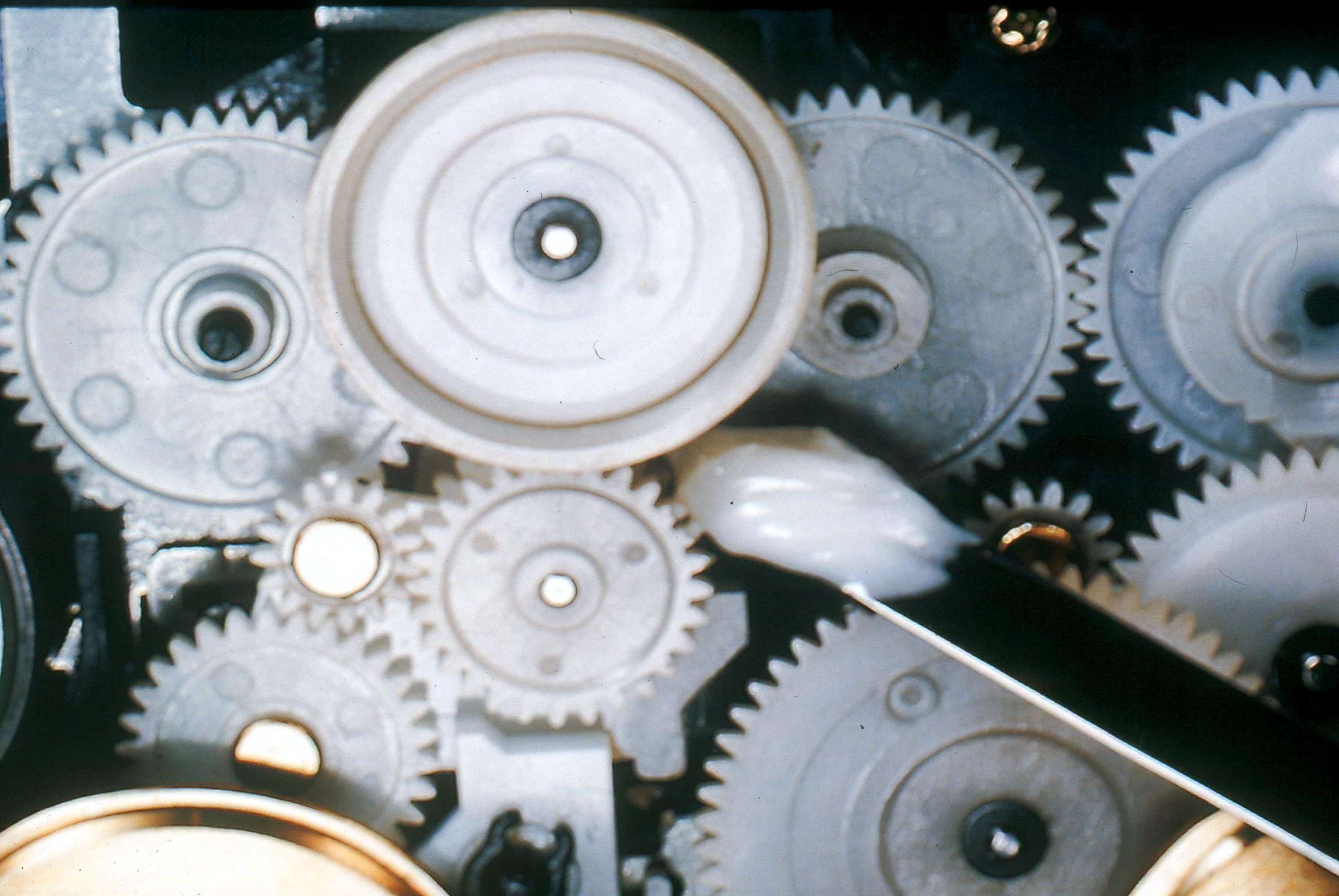

Sep 05, 2003 Molykote G-0100 mineral-based grease offers corrosion- and oxidation-prevention for motor bearings. Mineral oil-based Molykote G-0101 is suited for high-speed applications. Mineral oil-based Molykote G-0102 resists water washout. Multipurpose Molykote G-1001 suits most roller bearing applications. Synthetic oil-based Molykote G-2001 provides protection against wear and corrosion. Molykote G-6000 phenylether synthetic oil-based grease provides stability in high mechanical stress environments.

Loma International    Elk Grove Village, IL 60188

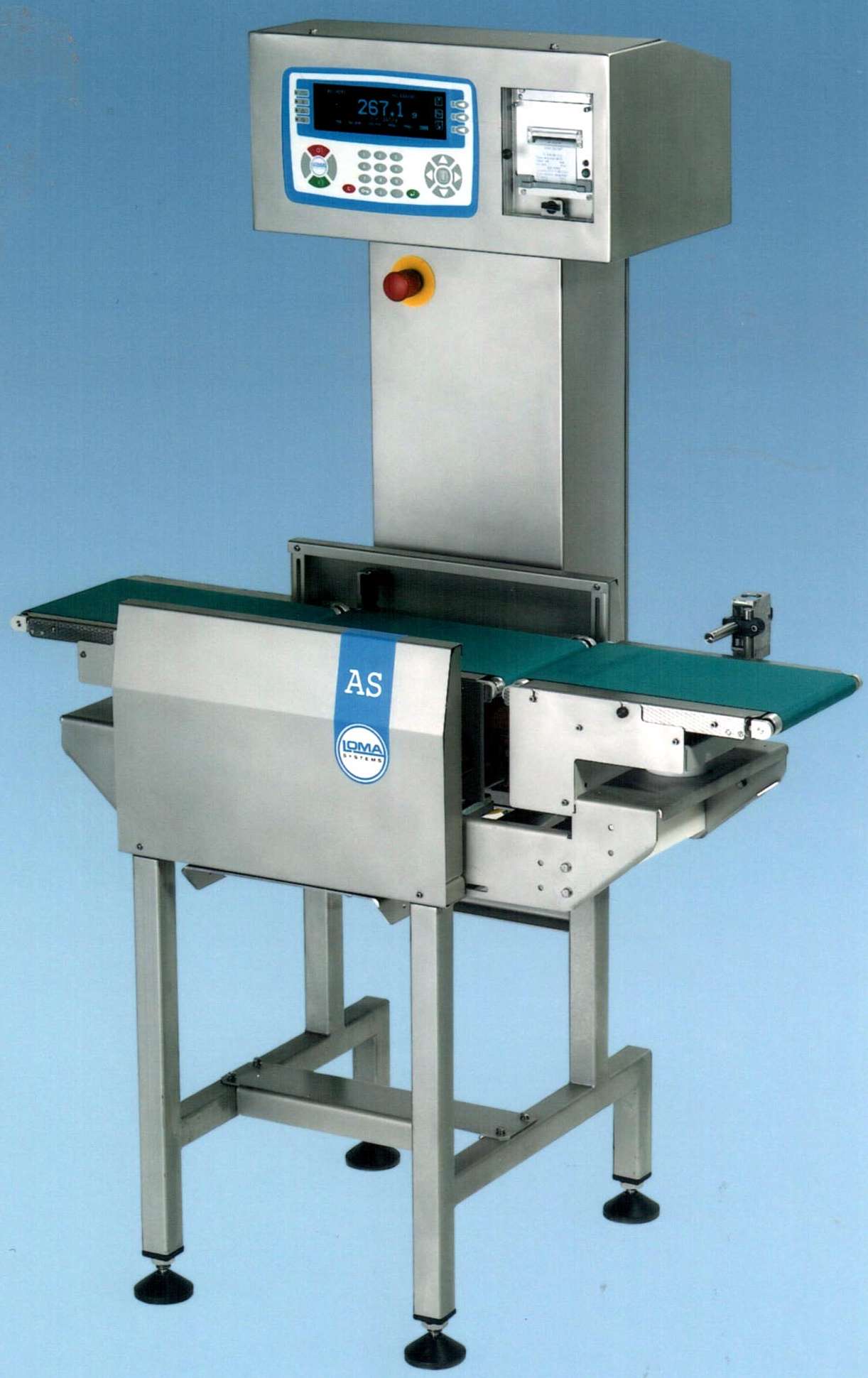

Sep 05, 2003 Modular AS1200C offers stainless steel construction and production line speeds of up to 260 fpm. Target weight range is 12–1,200 g, and accuracy is to 0.5 g. Unit's memory holds up to 100 product specifications, while RS output to host computer facilitates data management and provides communication link for printers and other devices. Control panel has vacuum fluorescent display, selection keys, and multiple notification functions.

Premier Pneumatics, Inc., A Member of the K-Tron Process Group    Salina, KS 67402

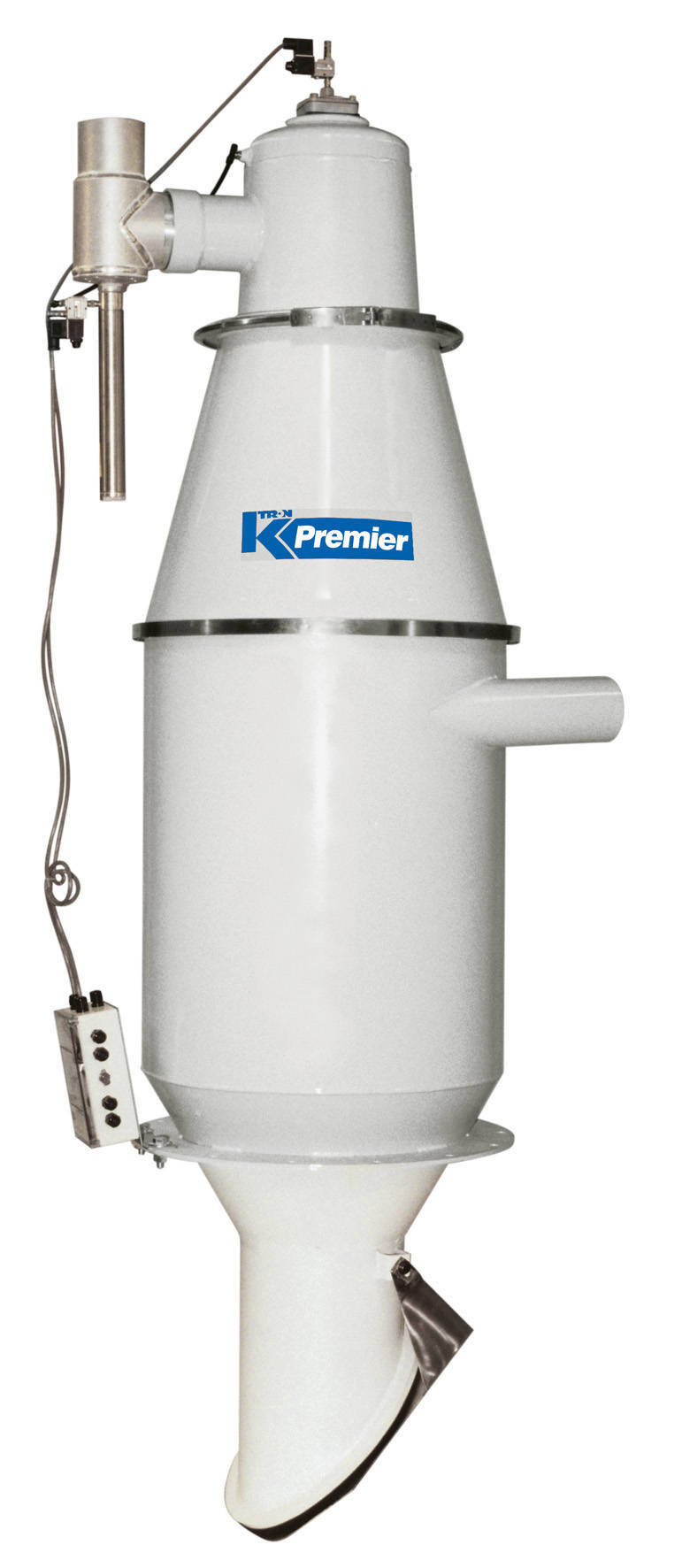

Sep 05, 2003 With high-capacity sequencing system, 4 in. Series³ 2424 Powder and Pellet Vacuum Receiver handles powder, pellet, regrind, and granular materials. Unit offers carbon steel construction with optional stainless steel material contact areas. Its 22 in. dia housing has 4 in. inlet, single cartridge with 50 ft² of washable polyester filter medium, and 10 in. gravity discharge gate. Hopper capacity is 5 ft³.

DPAC Technologies    Garden Grove, CA 92841

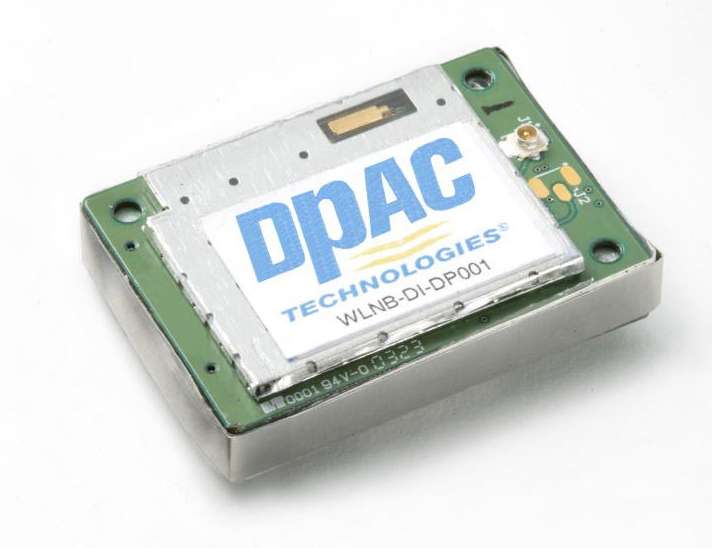

Sep 05, 2003 Airborneâ„¢ fully integrated Wi-Fi module includes radio, base-band processor, application processor, and software to provide LAN and Internet connectivity to non-consumer electronic applications. Measuring 38 x 27 x 12 mm, module is easily embedded into existing designs and is interoperable with 802.11b access points. Equipment with embedded Airborne module can be monitored and controlled by handheld device, PC in central location, or over Internet.

ErgotecH, Inc.    Danbury, CT 06810

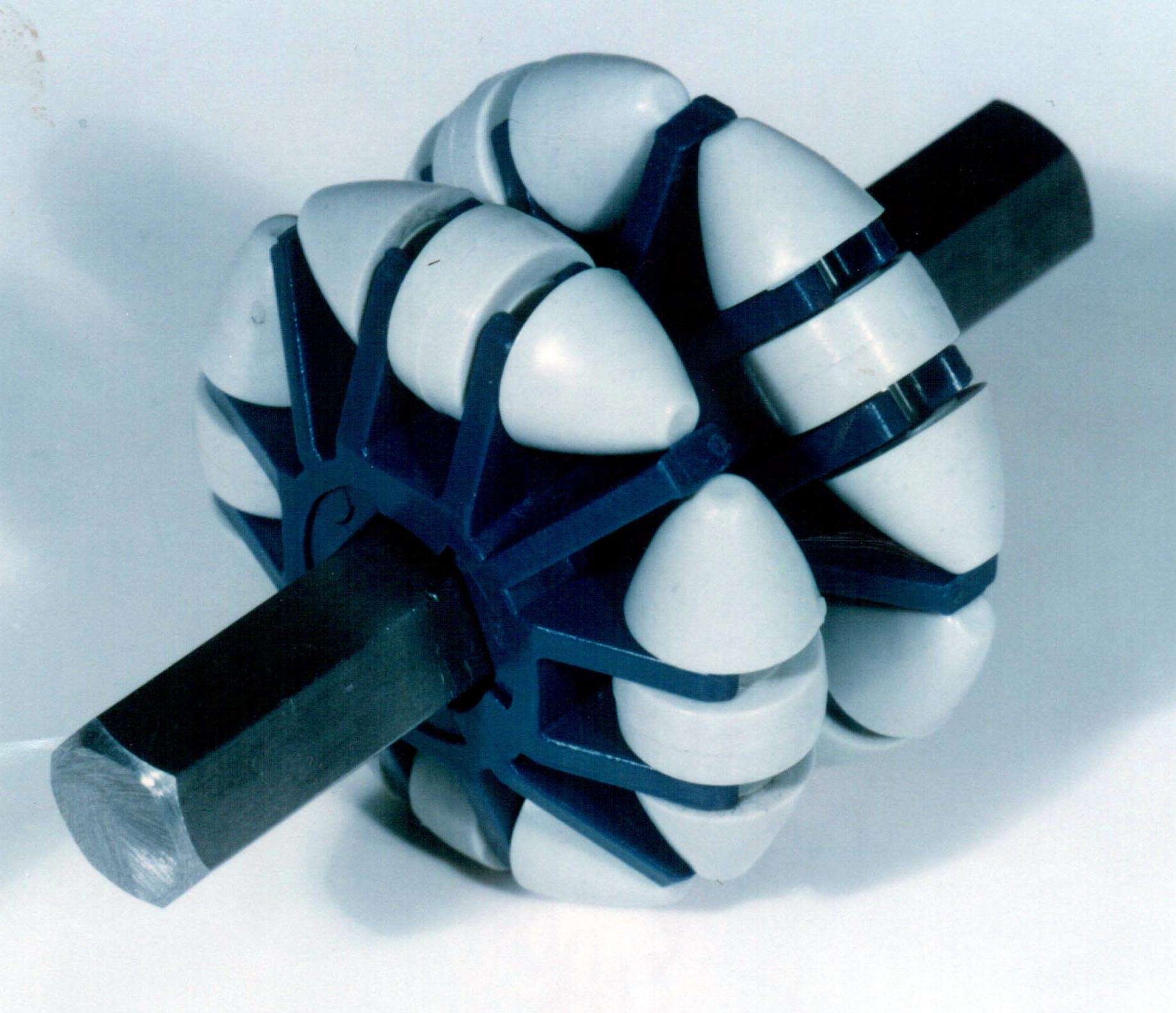

Sep 05, 2003 Multi-directional ERGO-ROLL is structured around 4 free-turning, football-shaped roller elements, positioned in 90° staggered pattern around perimeter of main wheel hub. Arrangement provides 9 individual rotating turning axles when paired in duplex-wheel configuration. Made of self-lubricating plastic composite, roller works in wet applications. ERGO-ROLL is 1.90 in. dia and comes in 7/16 in. hex, 1/2 in. round, 5/16 in. hex, and 5/16 in. round axle configurations.

Quatech, Inc.    Akron, OH 44311
Sep 05, 2003 Switch-selectable for RS-232, 422, and 485, model SSE-410D supports baud rates up to 230 K and comes with direct driver support for Windows® 98, Me, NT4, 2000 and XP. It may be accessed using TCP/IP socket commands and supports serial tunneling applications. Model SSE-200/300D, RS-422/485-to-Ethernet single-port serial device server supports baud rates up to 921 K. It is configurable for RS-422 or RS-485 communication in full- or half-duplex, 2- or 4-wire modes.

Fishbowl Inventory    Orem, UT 84097
Sep 05, 2003 Fishbowl Inventory v2.0 inventory control and manufacturing software enables businesses to integrate non-accounting functions such as Sales Order/Purchase order creation, inventory control, and light manufacturing to their accounting system using QuickBooks. Software tracks unlimited part numbers and products at multiple locations; generates work orders, purchase orders, and sales orders; and works over Internet.

Picker Components Inc.    Carrollton, TX 75006
Sep 05, 2003 Low-profile PC302 and PC302S relays measure 5 mm high and are available in .300 in. pitch DIL through hole or gull wing surface mount configurations. They are offered in 2 form C contact configuration with single side stable (.140 W), single coil latching (.100 W), or dual coil latching (.200 W) coils. Constructed with Bifurcated Gold clad contacts, polarized design conforms to the FCC Part 68 regulatory requirements. Products are sealed for automatic soldering processing.

Ocean Optics, Inc.    Dunedin, FL 34698

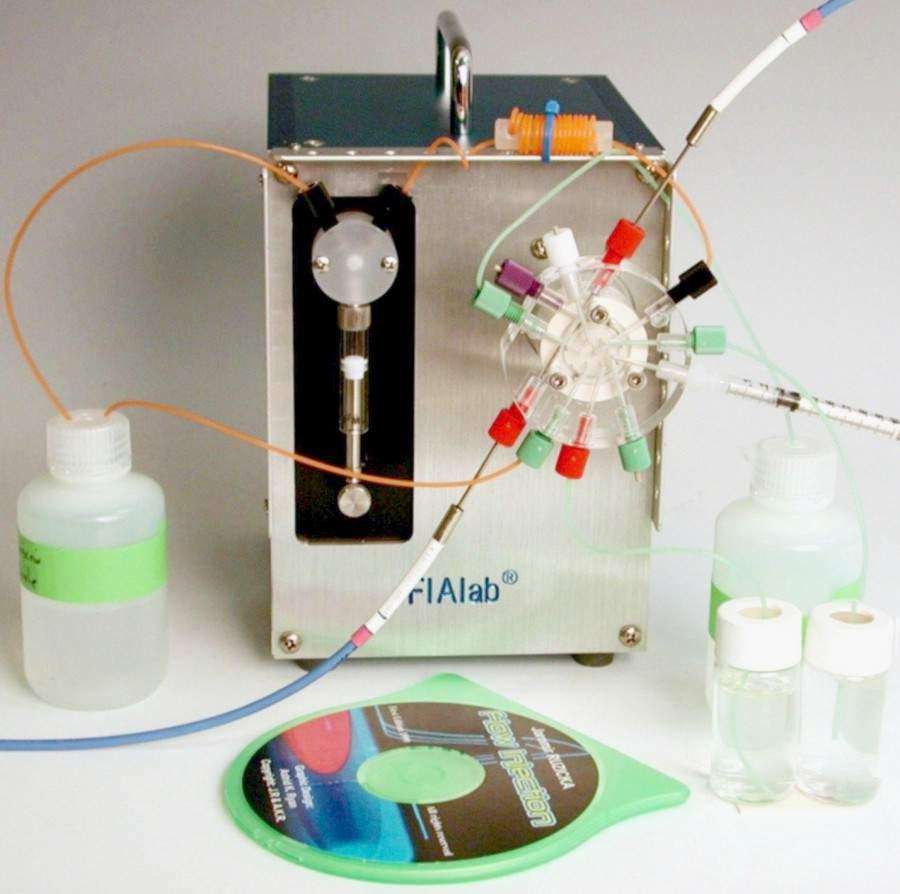

Sep 05, 2003 Able to automate wet-chemistry procedures, FIA-SIA-LOV Lab-on-Valve system is suited for all-in-one chemical analyses. Product combines computer-controlled, 6-position selector valve; precision syringe pump; and spectrophotometric flow cell in 12.7 x 15.3 x 15.3 cm package. Software controls procedures with commands to sequence through sample dilution, addition of reagents, and mixing and routing of sample through flow cell for continuous or stopped-flow measurements.

Volpi Manufacturing USA    Auburn, NY 13021
Sep 05, 2003 Poly Optical Fiber Device(TM) allows camera to see up to 8 different views through flexible coherent fiber-optic image guides. Thinner than camera cable, device can image in locations where cameras cannot fit. Each fiber leg is 0.080 in. in diameter and can be up to 20 ft long. Image guides can be either 10,000 or 30,000 pixel resolution. Fiber legs may transmit light via illumination fibers arranged in ring around image guide for smaller fields-of-view.

Cooke Corp.    Auburn Hills, MI 48326 2670
Sep 05, 2003 Suited for scientific/medical inspection and machine vision applications, PixelFlyQE 12-bit camera features Digital Temperature Compensation and is available in 5 CCD sensor types, including VGA, SVGA, HiRes, UV, and QE. All camera functions are remotely controlled with imaging software. Measuring 2.5 x 1.5 in., product has exposure time of 1/100,000–10 sec. System includes camera head, PCI board, and high-speed serial link.

Arcom Control Systems    Kansas City, MO 64145

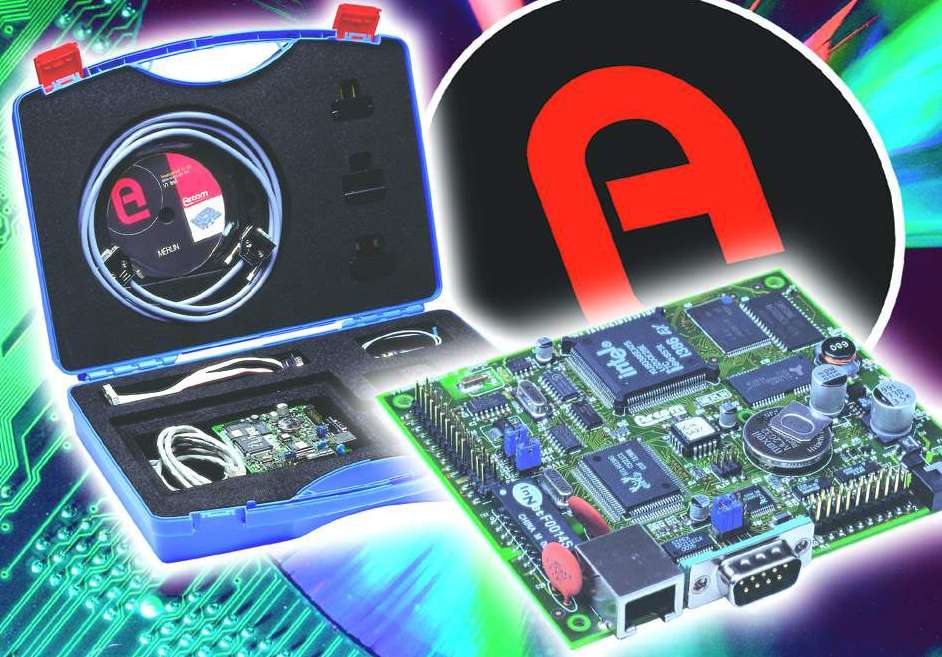

Sep 05, 2003 Addressing demand for controllers with network enabled communications and I/O control, eCos open-source, real-time OS works with 25 MHz 386EX-based MERLIN SBC. Product is built with TCP/IP stack and selection of network applications such as HTTP server, FTP client, TFTP client/server, and SNMP agent. Kit includes MERLIN SBC, power supply, Ethernet and serial cables, and CD loaded with all application development tools for Windows- and Linux-based host systems.

PSI Peripheral Solutions Inc.    Mississauga, ON L5N6C6  Canada
Sep 05, 2003 Large Capacity In-Feeder 3000 intelligently dispenses large volumes of materials including catalogs of different sizes, brochures, paper, small cards, and CDs. Capacity is 48 in. for catalogs or up to 4,000 sheets of paper. Based on average feed time of 4 sec/catalog, user can stack up to 384 catalogs that are 1/8 in. thick in one load for disbursement, which would provide running time of over 25 min.
