ACCPAC International Inc.    Pleasanton, CA 94566
Sep 16, 2003 Advantage Seriesâ„¢ supports DB2® Universal Database running on IBM® eServerâ„¢ iSeriesâ„¢. It provides foundation for end-to-end business management applications that include accounting, customer relationship management, e-commerce, point-of-sale, human resources, and warehouse management. Support for IBM DB2 UDB for iSeries and DB2 UDB for Linux on iSeries enables companies to extend benefits of IBM eServer iSeries by using it as database server for Advantage Series.

SDRC    Milford, OH 45150
Sep 16, 2003 Unigraphics® NX 2 enables companies to incorporate their processes, best practices, and knowledge into product design and development. Software offers integrated digital simulation and complex milling and integrated machine tool simulation. It also includes structural and motion analysis tools integrated with NX Knowledge Fusion and management of extended CAM, CAE, and I-deas NX Series data in Teamcenter® PLM portfolio.

Autodesk, Inc.    San Rafael, CA 94903
Sep 16, 2003 Autodesk® Vault provides workgroup management capabilities for Autodesk Inventor® Series and Autodesk Inventor Professional software users. Management tool also allows teams of 1–10 users to immediately and securely track documents and changes, locate documents, manage libraries, and support concurrent engineering.

Altera Corp.    San Jose, CA 95134-1941
Sep 16, 2003 Field Programmable Gate Array, Cycloneâ„¢ Model EP1C4, offers up to 301 I/O pins and 4,000 logic elements. Built on 0.13 micron, all-layer copper process, unit includes embedded RAM blocks and is intended to facilitate use of FPGA technology by designers developing volume-driven applications in communications, industrial, consumer, computing, and automotive markets. It is specified for -40 to +100ºC temperature range.

Cygnal Integrated Products, Inc.    Austin, TX 78746-6564
Sep 16, 2003 Offered with on-chip debug circuitry, C8051F120 microcontroller family features 100 MIPS (peak) 8051 CPU; 2-cycle, 16 x 16 Multiply-Accumulate unit; and 12-bit ADC and DACs. Suited for mixed-signal embedded control applications that require signal processing, series includes 128 Kbyte Flash memory, 8448 bytes RAM, and is packaged in 100- and 64-pin TQFP. On-chip peripherals include 2% internal oscillator, temperature sensor, voltage reference, and 2 UARTs.

MSC.Software Corporation / MSC.Mechanical Solutions    Costa Mesa, CA 92626
Sep 16, 2003 SimDesigner Suspension consists of one vertical CATIA v5 module that allows ADAMS/Car-based dynamic motion simulation to be performed on CATIA v5 suspension assemblies. Engineers can view animations and XY plots of resulting motion and make design changes without need for physical prototyping. Features include bi-directional interface with ADAMS/Car, support of Standard and Expert User modes, customizable events and post processing, and compliant suspension analysis support.

Yaskawa Drives    New Berlin, WI 53151
Sep 16, 2003 Generation 7 AC Drives, suited for industrial applications, are available with DeviceNet communication interface. Drive models available include F7 drive for conventional applications, P7 drive for fans and pumps, and V7 microdrive family for operation in V/Hz or open loop vector modes. DeviceNet-equipped drives provide access to all of drive's monitors and I/O, including digital and analog inputs and outputs.

Emhart Teknologies, A Black & Decker Co.    Shelton, CT 06484
Sep 16, 2003 Enabling auto-feed riveting, AutoSetâ„¢ features one-touch cycle mechanism allowing one hand to be free to hold application while riveting. Capable of setting approximately 30 rivets per min, product can be reloaded in less than 10 sec. Additional features include tape loaded rivets, vacuum rivet-holding system, built-in mandrel collection system, and 3-piece jaws. Instrument uses POP® pre-loaded rivets in sizes from 1/8–3/16 in.

SPSS Science, Inc.    Chicago, IL 60606
Sep 16, 2003 SPSS® v12.0 for Windows® allows user to conduct survey research, database analysis, and scientific reporting. Reporting capabilities are based on graphics system that enables user to produce presentation-quality graphs. Visual Bander data manipulation tool creates bands for numeric data. Users can import and describe data files with extended names and cleanse data by identifying and filtering duplicate records. SPSS Complex Samples add-on module analyzes survey data.

Textron Fastening Systems    Rockford, IL 61104
Sep 16, 2003 Cherry® Rivetless Nut Plate features retainer that does not require flaring to meet NASM25027 torque-out and push-out requirements. Uniform expansion of sleeve during installation enhances fatigue life of parent material. Nut plate applies in less than 2 sec in aluminum sheets as thin as 0.062 in. Operator inserts mandrel into predrilled hole and actuates tool. As fastener sleeve is pulled into hole, mandrel expands sleeve, completing installation.

Water King    Duson, LA 70529

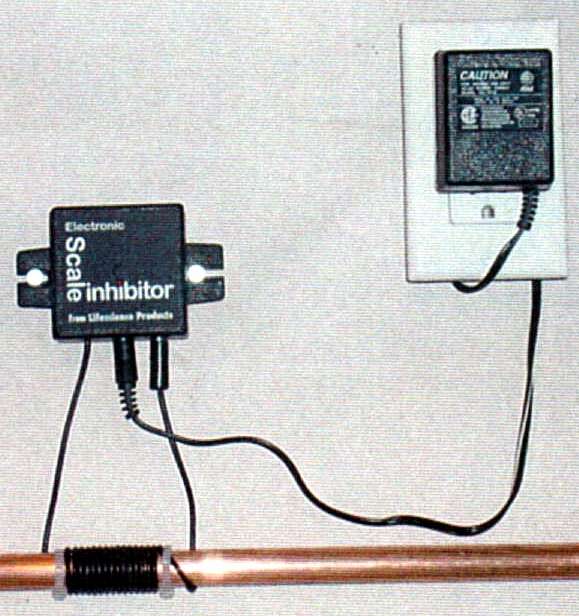

Sep 15, 2003 Unit removes existing limescale from equipment and appliances and prevents formation of new limescale, which results in longer life and energy savings for commercial and domestic appliances such as boilers, hot water heaters, vending machines, and coffee makers. Unit works most effectively on cold water pipe closest to place where scale forms.

Norgren    Littleton, CO 80120

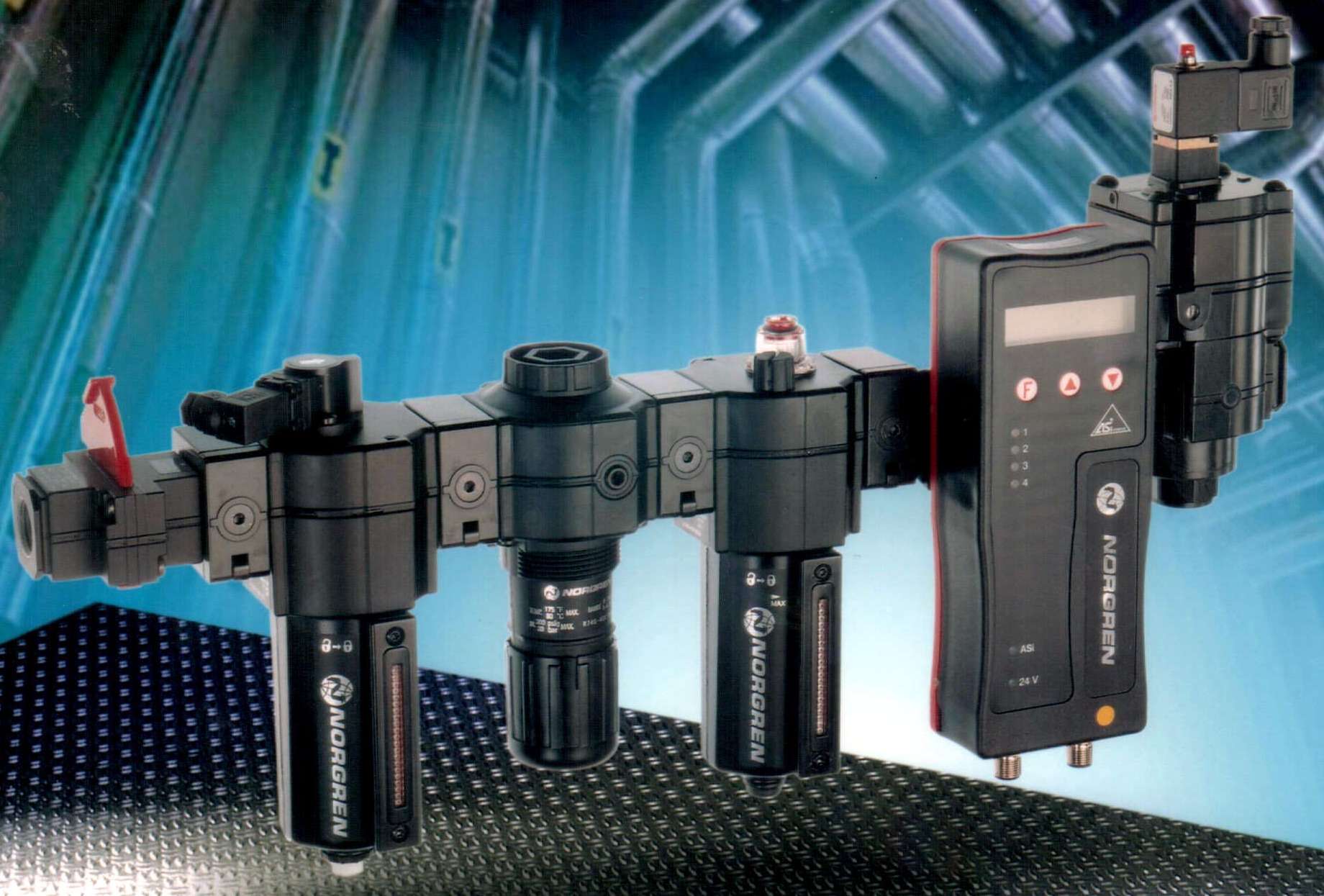

Sep 15, 2003 Products continuously monitor air preparation equipment and warn users of low upstream/downstream pressure, low lubricant levels, when filter elements need replacing, and when faults occur. Interfacing with ASi Fieldbus technology, products can be used for fault finding and monitoring of operating performance through programmable display panel. Up to 31 units can be connected per ASi network for central monitoring of large compressed air systems.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Sep 15, 2003 Digital Data Storage Generation 5, for xSeries® servers, has 5.25 in. half-high form factor and provides up to 36 GB native capacity and 3.5 MB/s native backup rate. It uses xSeries enclosure that supports Ultra2 low-voltage differential SCSI connections at up to 80 MB/s. Tape Drive offers error rate optimization verification across all media types, streaming operation, and backward read/write compatibility to DDS 4 and DDS 3 tape-drive media.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Sep 15, 2003 Suited for small businesses, xSeries® 205 server utilizes 3.06 GHz Intel® Pentium® 4 processor with 512 KB L2 cache and 533 MHz front-side bus speed. It is also equipped with 256 MB of PC2100 CL2.5 ECC DDR SDRAM UDIMM system memory and comes with integrated dual-channel (ATA-100) EIDE bus-mastering or single-channel Ultra160 controllers. Accommodating 5 PCI slots and 7 bays, product also offers 2 USB ports and Integrated Gigabit Ethernet with RJ-45.

Limitorque Corp.    Lynchburg, VA 24506
Sep 15, 2003 Limitorque Master Station II plug-and-play solution provides real-time status of field units through continuous cyclical polling. Touch panel provides network status, actuator status, and control of all actuators on network as well as valve emergency shutdown. Design includes built-in webserver with options for actuator control. Control unit is offered in rack enclosure, mountable enclosure, or standalone cabinet enclosure.

Optical Gaging Products, Inc.    Rochester, NY 14621 4839

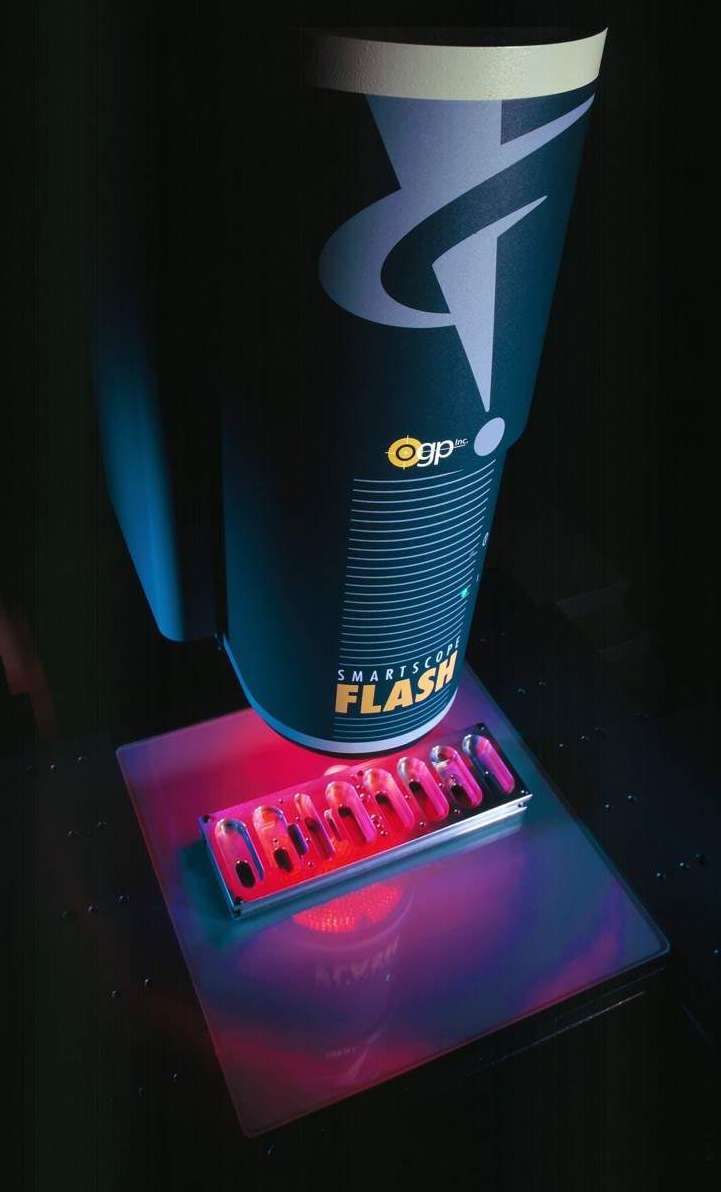

Sep 15, 2003 SmartScope® Flash 500 floor stand system employs optical assembly that moves in X-axis across angled steel crossbeam while part moves in Y-axis on precision, servo-driven stage. Granite platform ensures proper damping and structural integrity, and AccuCentricâ„¢ 12x zoom lens is automatically calibrated at every magnification change. Illuminators includes LED SmartRing® light, coaxial (TTL) surface illuminator, fiber optic ring light, and LED back light.

Gaumer Process Heaters    Houston, TX 77040
Sep 15, 2003 Series IDH utilizes heavy-duty incoloy heating elements, which allow air temperature up to 800°F. Flange lengths range from 5 5/8-15 5/8 in. Heaters include stainless steel frame, potted terminals, and moisture resistant terminal housing. They are suited for applications where high temperature air is required, such as ovens, dryers, rotary gravure presses, and heat treating.

Balluff, Inc.    Florence, KY 41042-0937

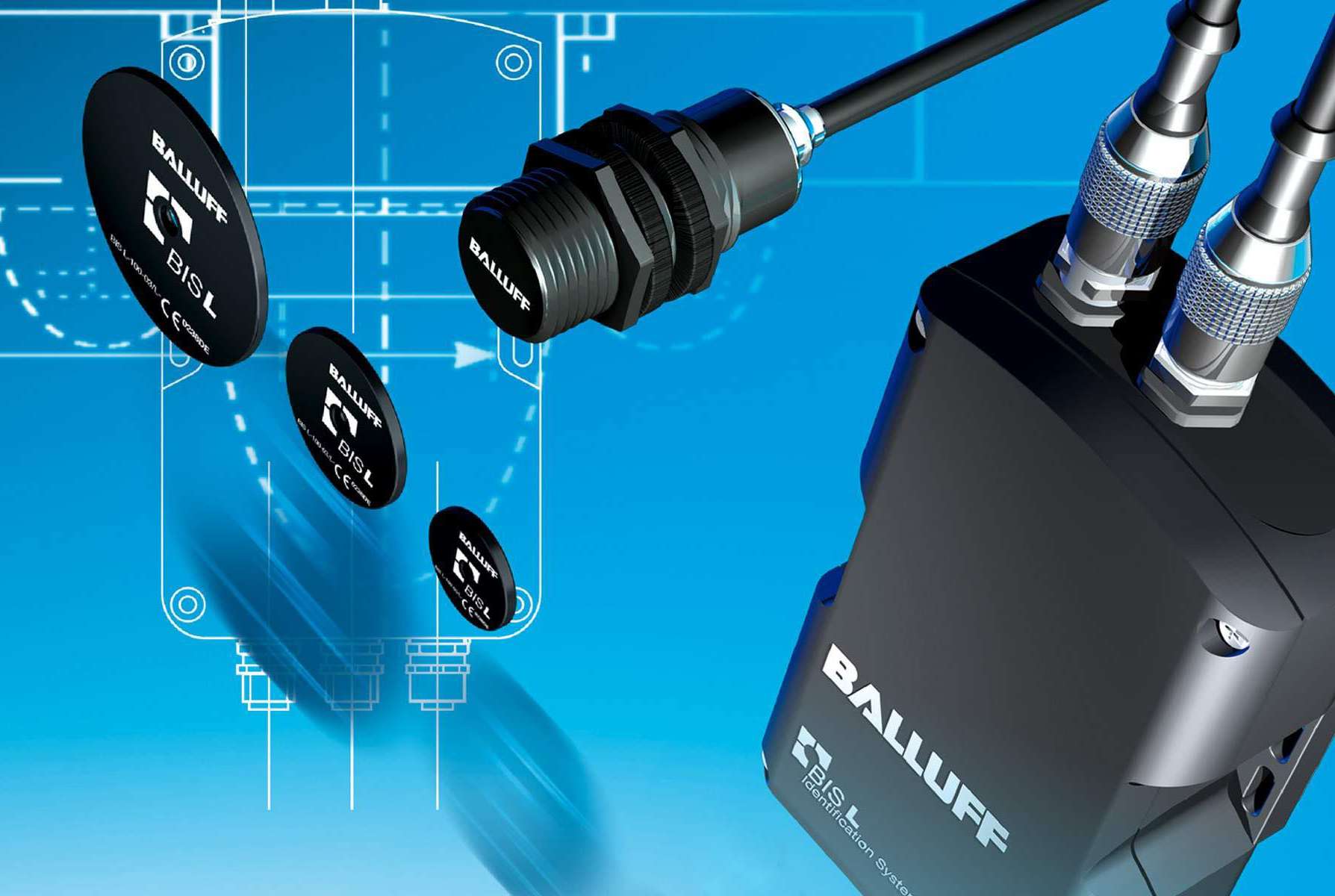

Sep 15, 2003 Model BIS-L Pallet RFID System consists of read/write head, data processor, and data carriers. It offers read-write range of 24–100 mm. Data carriers are available in 20, 30, and 50 mm diameters, with each size offered in 40-bit read-only and 192-byte read/write versions. During operation, data carriers’ real-time communication parameters are redundantly monitored. Data processor communications options include Interbus, Profibus, and Devicenet.

Stewart Ergonomics, Inc.    Furlong, PA 18925

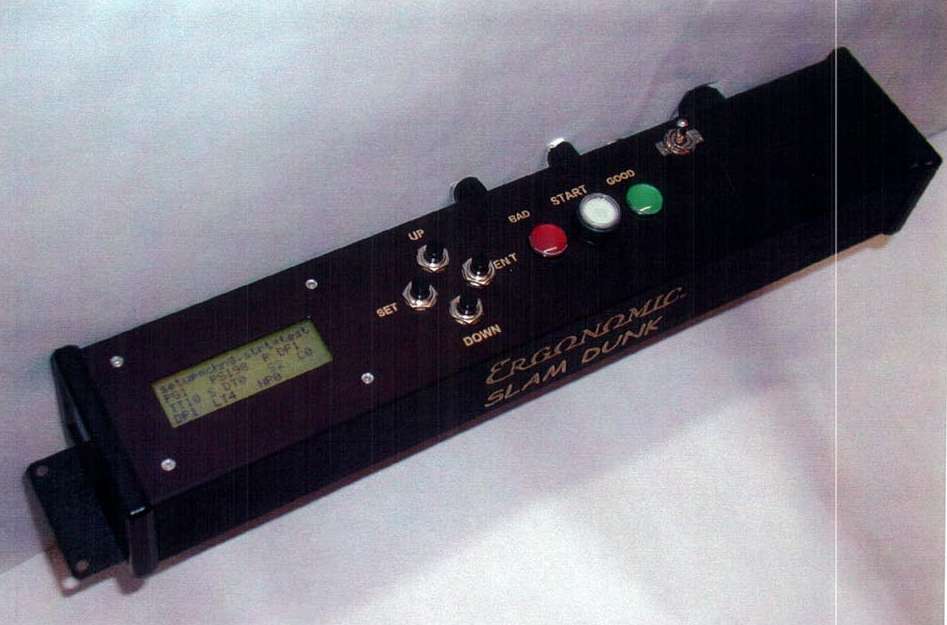

Sep 15, 2003 Slam Dunk® Testers offer pressure decay leak testing to .00001 psi resolution, which permits test time of 2.0–15 sec on most parts of .1 to 1 liter volume. All models are available to 14.7 psi vacuum. Units are immune to temperature, pressure, or volume fluctuations. They store up to 99 programs and perform up to 98 sequential tests. Automation plug provides remote start, E-stop, and sourcing of good or bad outputs. RS232 port sends test profile data to computer.

TURCK, Inc.    Plymouth, MN 55441

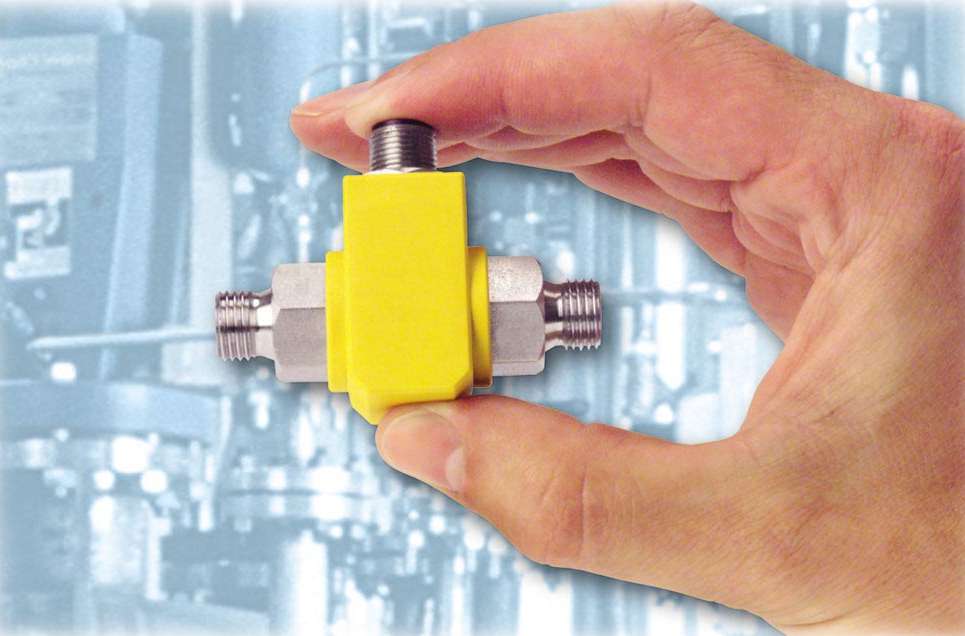

Sep 15, 2003 Remote-mounted, in-line flow sensors feature stainless steel wetted parts that are available with 4 or 10 mm inner diameter. They can be installed into new and existing applications. Flow detection is accomplished without moving parts so there is nothing to obstruct fluid flow. Sensors offer choice of AC or DC operation, as well as analog, discrete, and relay outputs. They are suited for flow detection in limited space applications.
