Bunting Magnetics Company    Newton, KS 67114 0468

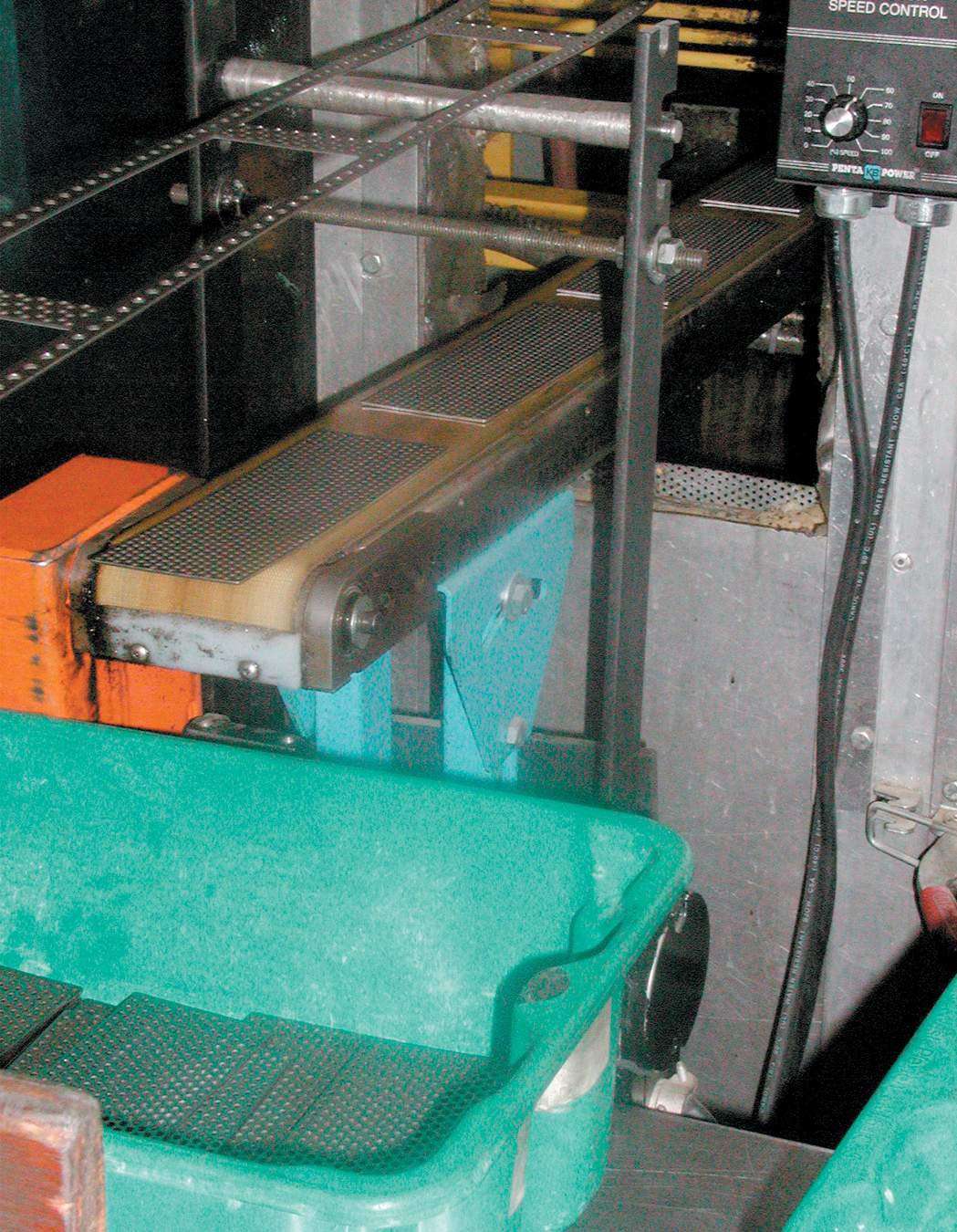

Sep 24, 2003 Low-Profile and Special-Purpose Conveyors, offered in magnetic and nonmagnetic models, incorporate quick-change belt design that allows for on-line tension and tracking adjustments. Bunting Medium-Frame Conveyors measure 3½ in. high and are 2¾ in. wider than belts, which range from 2–36 in. wide. Bunting Magnetic Lawnchair Conveyors automate part and scrap removal from underneath machinery. They employ Z-shaped, cantilevered design and have wheeled bases.

Prinzing Enterprises Inc.    Warrenville, IL 60555
Sep 24, 2003 Maintenance Lockout Kit contains 17 components to ensure equipment is either de-energized or locked out. Suited for maintenance departments that do frequent lockout jobs, kit includes breaker lockouts, electrical plug lockouts, and gate valves. Additional components include AC voltage sensor that locates blown fuses, defective breakers, and neutral/live wires. Hasps provide double check system and reduce chance of unwanted start-ups.

Advance Transformer Co.    Rosemont, IL 60018 5625

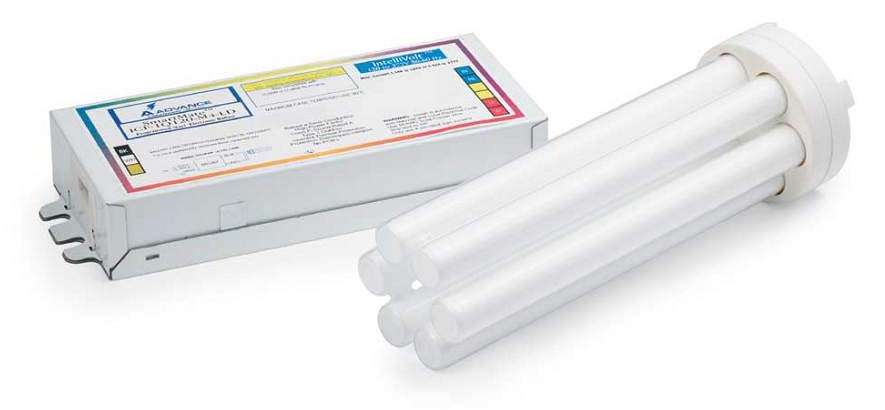

Sep 24, 2003 SmartMate® Ballasts offer programmed lamp ignition for extended lamp life in frequent switching applications. Model ICF2S70-M4-BS has bottom studs and single-entry connector, while Model ICF2S70-M4-LD features length mounting feet and dual-entry connector. Maximum case temperature is 90°C. Intellivolt® technology allows operation at any input voltage from 120–277 V, 50/60Hz. Units include color-coded connectors and end-of-lamp-life protection.

Chemineer, Inc., A Unit of Robbins & Myers, Inc.    Dayton, OH 45401

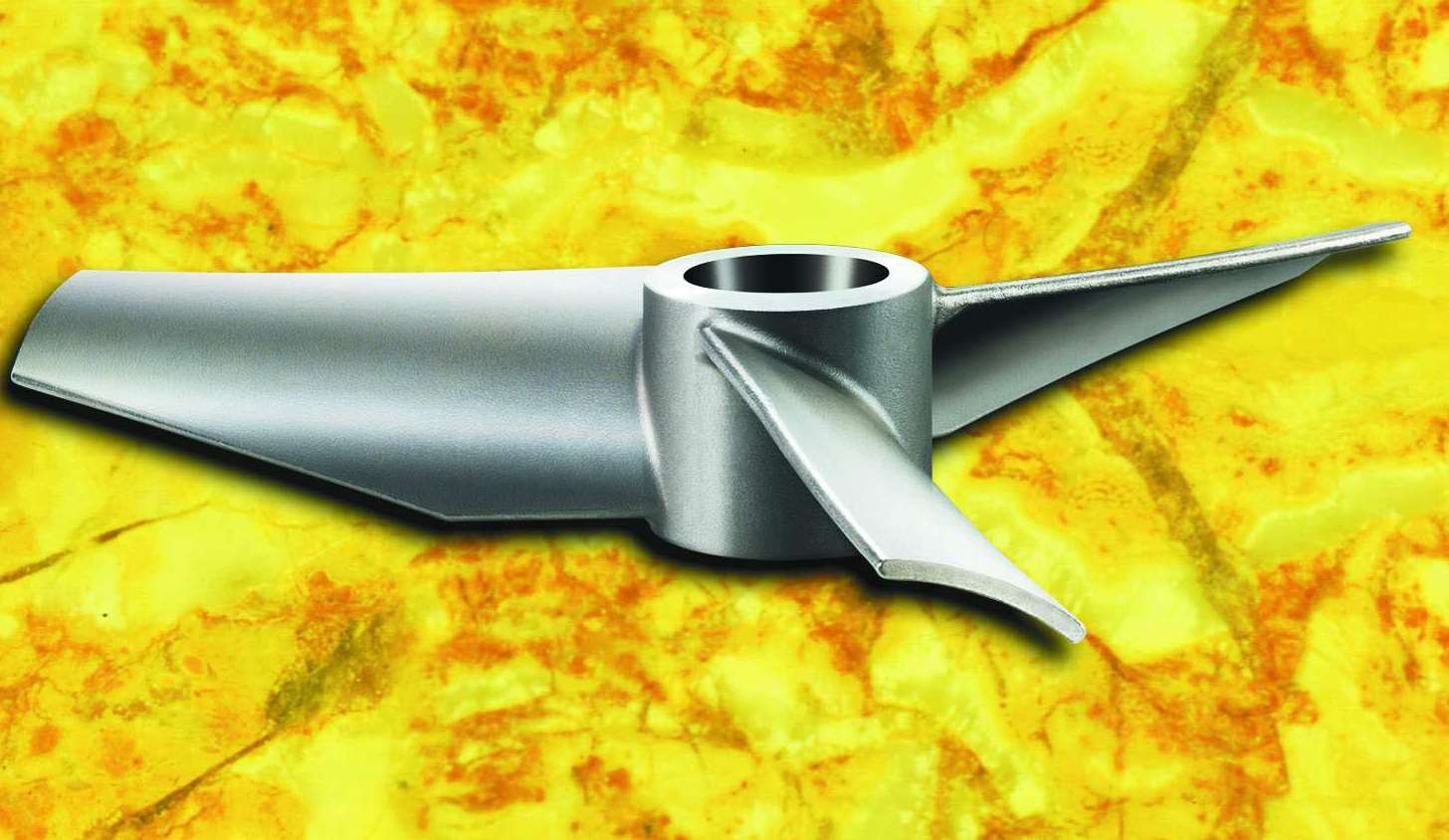

Sep 24, 2003 Model SC-3 Impeller produces flow characteristics of larger impellers, without added weight or resulting loss in pumping efficiency. Cast version is suited for smaller impellers and is available on Model DT top-entering mixers. Rubber covering and coatings are available for corrosive applications.

Agilent Technologies, Inc.    Santa Clara, CA 95051

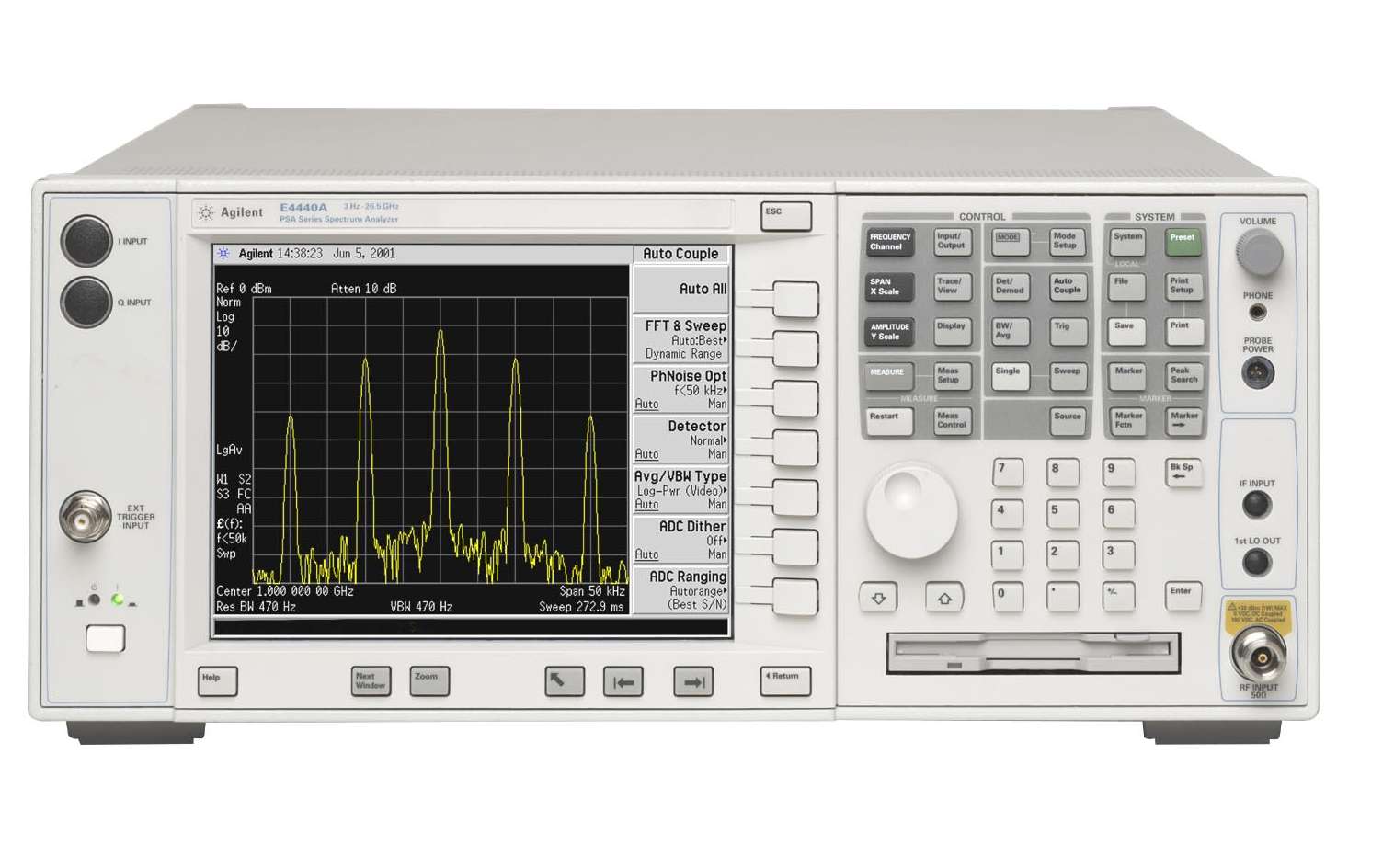

Sep 24, 2003 Series PSA provides measurement range to 325 GHz with use of Option AYZ external mixers. With harmonic mixers, analyzers utilize image shift and image suppression to perform signal identification. Image-shift method moves signals by factor of intermediate frequency divided by user-specified harmonic number. Image-suppression blocks out all images that are not true signal. Option AYZ allows bias to be adjusted locally or over IEEE-488 bus.

TURCK, Inc.    Plymouth, MN 55441

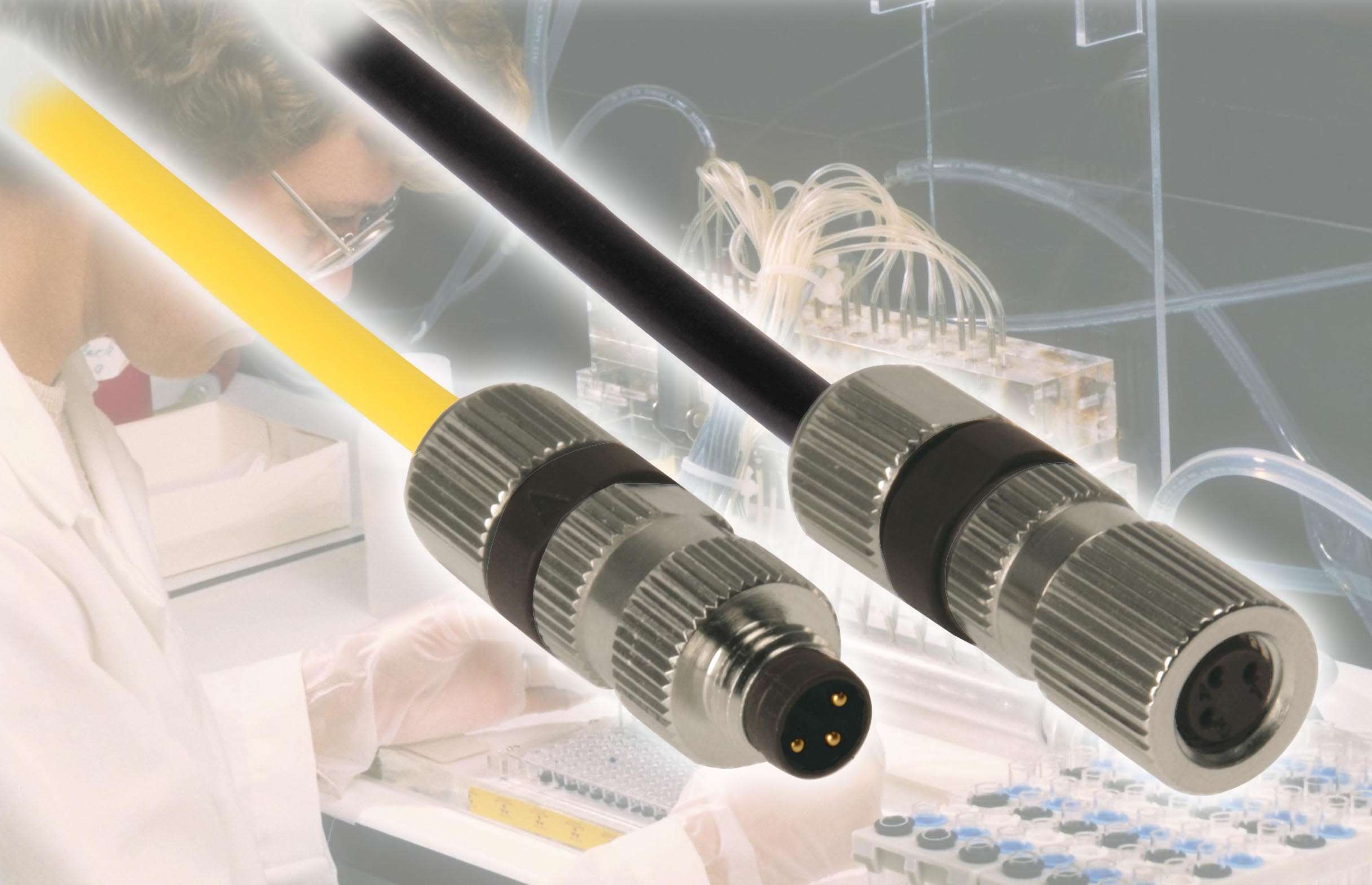

Sep 24, 2003 Quick-disconnect, picofast M8 Insulation Avoidance Connectors include 3- and 4-pin units that handle 22–26 AWG conductors and are rated for 4.0 A at 60 Vac/75 Vdc. Male or female configurations are available with cage clamp strain relief that provides IP 68 seal. Connectors require no soldering and can be installed almost anywhere. Contact holders are color coded to match standard conductor colors.

BAND-IT IDEX Inc., A Unit Of IDEX Corp.    Denver, CO 80216 0307
Sep 24, 2003 Series ID200 identification tag imprinter creates custom tags for valves, cable runs, hoses, pipes, and other equipment. Bench-mount or portable, device is available with imprinter wheels in 5 character sizes from 1/16–1/4 in. high. Features include interchangeable letter wheels and spring-loaded tag securing system. Tag position adjuster optimizes character placement and spacing on tag, while mounting platform locks tags or bands in place.

Unilux, Inc.    Saddle Brook, NJ 07663

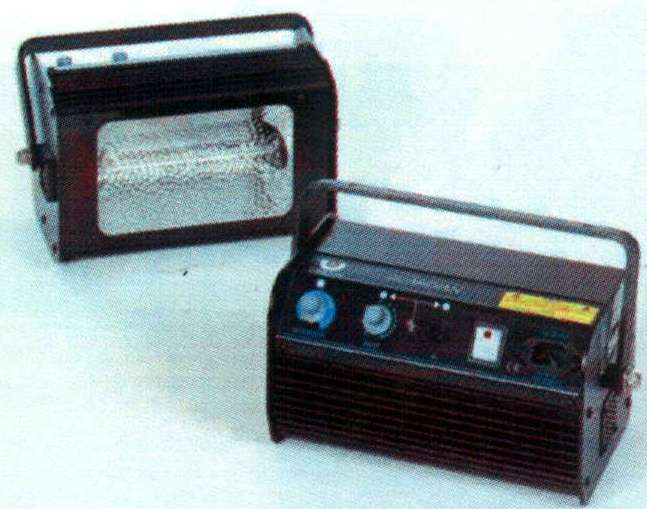

Sep 24, 2003 Stroboscopic surface inspection lights include Sentry, suited for real-time product examination at full production speeds; compact, self-contained, 200 W Cadet; and Guardian linear light, which is suited for tight locations. All operate with Unilux Surface Inspection Lighting Controllers. Intensity adjusts to match ambient light and color of product being inspected, and flash rate adjusts to match line speed. Lights operate from 90–250 V, 50–60 Hz.

Northwire, Inc.    Osceola, WI 54020

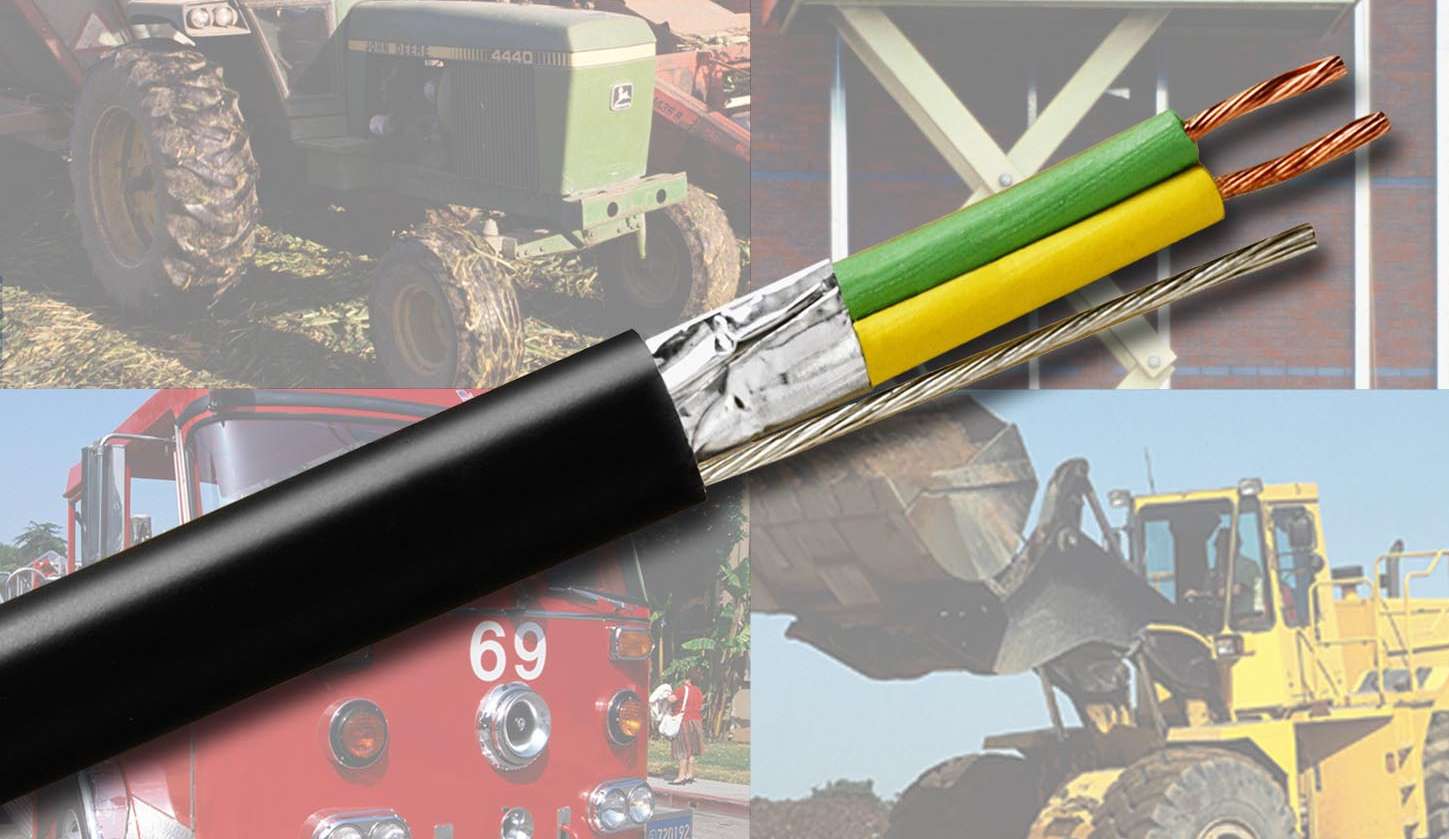

Sep 24, 2003 DataCELL 1939â„¢ SAE CAN-BUS data cable meets and exceeds SAE J-1939/11 physical and functional specification. Utilizing proprietary DataCELLâ„¢ manufacturing technology, cable features velocity of propagation of 78%. Convolution-free product has round, uniform diameter and resists abrasion, vehicle fluids, moisture, and harsh chemicals. Rated 125°C, product is available in 2 versions: standard-duty DataCELL 1939 TFâ„¢ and extra-duty DataCELL 1939 CRâ„¢.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243

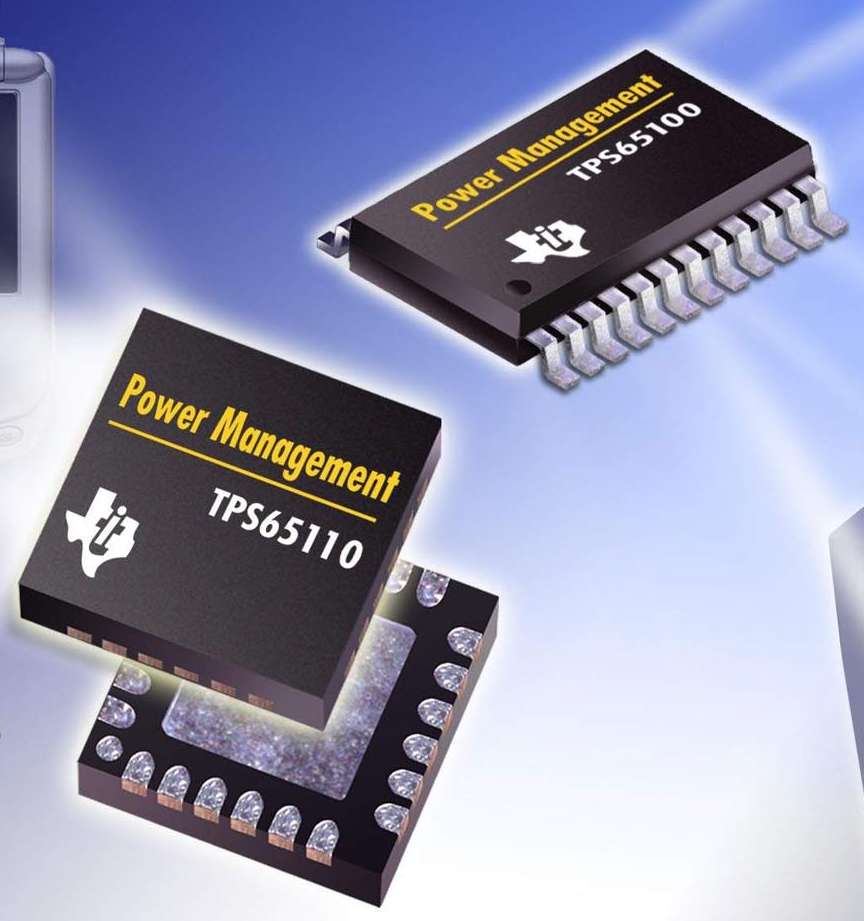

Sep 24, 2003 Integrated TPS65110 and TPS65111 triple output power supply charge pumps manage 3 bias voltages required in low-temperature poly silicon LCDs. Devices provide 5 mV ripple at 5 mA and feature internally set power-up and power–down sequencing. Model TPS65100 inductive DC/DC power supply manages all voltages required by TFT LCDs. It uses fixed-frequency boost converter at 1.5 MHz and includes adjustable charge pump and external adjustable negative charge pump.

Gilway Technical Lamp    Woburn, MA 01801 1005

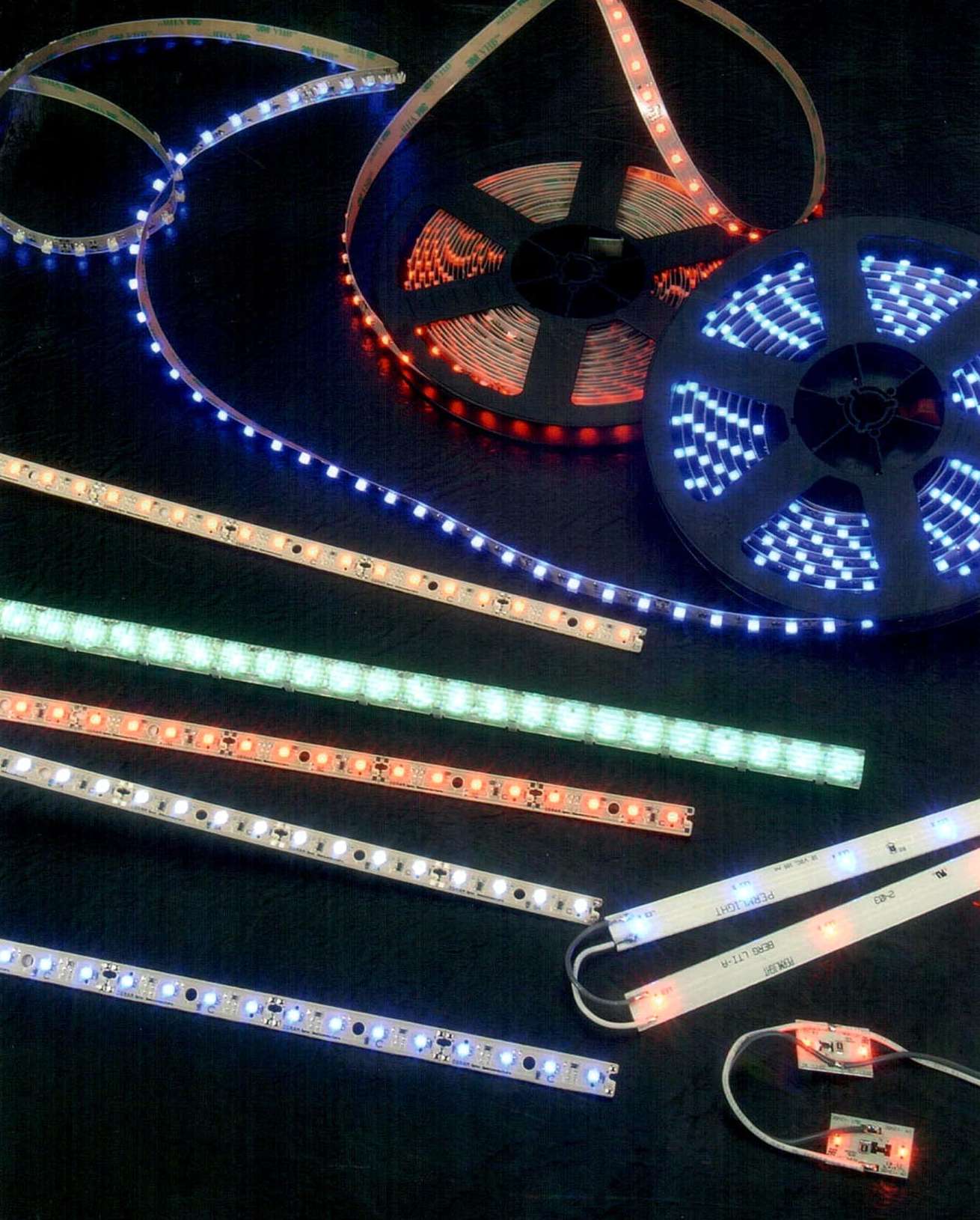

Sep 24, 2003 Linear/Strip LED Modules allow users to place white or brightly colored lighting almost anywhere using PCB modules that operate on 10 or 24 Vdc. Rigid version offers low profile, top LEDs and uses screws or adhesive for installation. Flexible module can direct light to top and/or sides and has pressure-sensitive tape backing. Modules are suited for edge-lighting, backlighting, complex contours, marking paths, task lighting, and commercial signage.

Supercon, Inc.    Shrewsbury, MA 01545

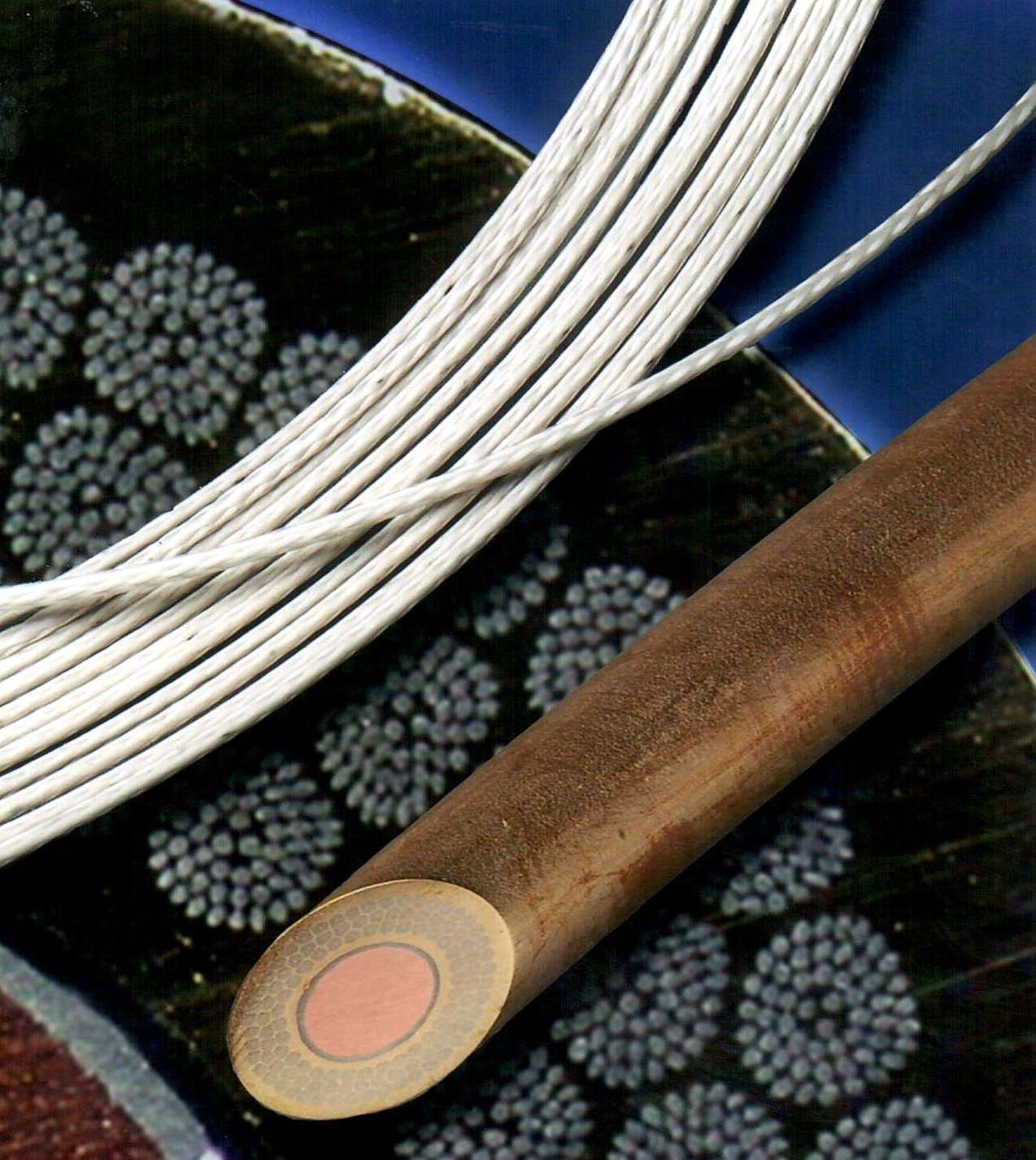

Sep 24, 2003 Available as stabilized or non-stabilized conductors, Supercon High Field Superconducting Wire provides 16-18 K transition temperature and high critical magnetic field for applications greater than 10 Tesla. It can be supplied as bare or braided fiberglass insulated wire or cable and features 4,500-15,000 Nb or NbTa filaments in CuSn matrix. Product is offered in various configurations and sizes from 0.5-1.25 mm dia. packaged on spools.

Clark    Hudson, MA 01749
Sep 24, 2003 Series TMFR Magnetic Drive Rotary Vane Pumps provide flow rates to 150 gph at pressures up to 230 psi. Five models are available, each with brass or AISI stainless steel pump housings. Pumps achieve compact size by integrating magnetic drive with pump motor. Series TMFR is suited for fluid transfer applications including beverage vending machines, welding machine-cooling loops, and reverse osmosis systems.

Chromalox    Pittsburgh, PA 15238
Sep 24, 2003 SSR Series Power Controllers feature ruggedized construction, touch safe exterior, back-to-back SCR design, ambient ratings of 40ºC, and DIN rail mounting. Products are rated for 25, 50, and 75 A at voltages up to 600 Vac and provide zero-fired single phase control with control signals of 4.5-32 Vdc, 24-265 Vac, or 24-190 Vdc. Other features include self-lifting terminals, LED status indicator, and removable IP20 touch protection cover.

Emerson Process Management, Intellution Division    St. Louis, MO 63136 8506

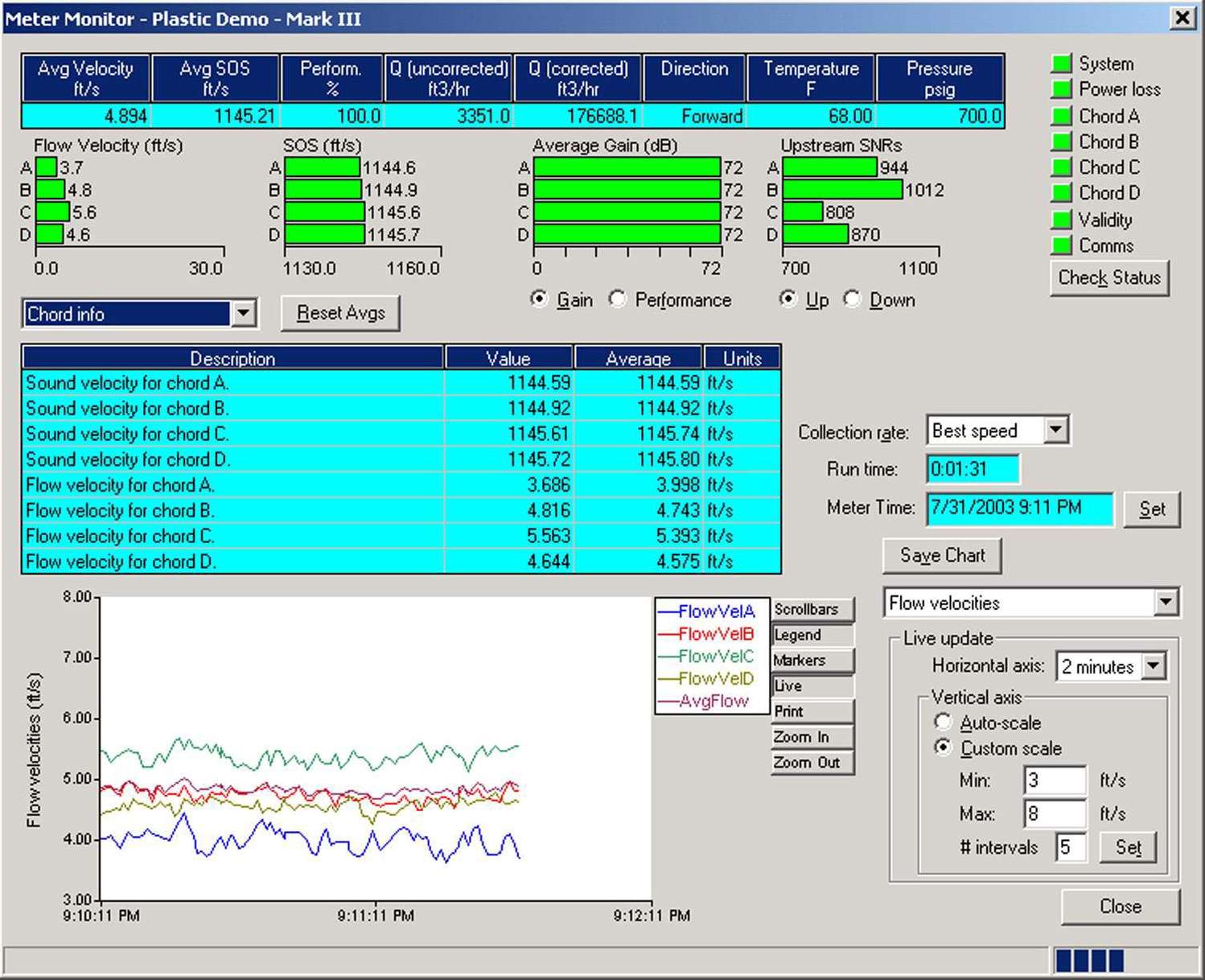

Sep 24, 2003 Daniel® Ultrasonic Gas Flow Meters are equipped with Daniel Mark IIIâ„¢ Electronics platform, which enables linear metering, delivers operations data, and provides access to alarms, events, and configuration changes. Audit trail meets American Petroleum Institute Standard 21.1 and is supported by 8 MB non-volatile memory. Platform also supports Customer Ultrasonic Interface (CUI) v3.0, which provides one monitor for viewing operational information.

Men Micro Inc.    Lago Vista, TX 78645-4160

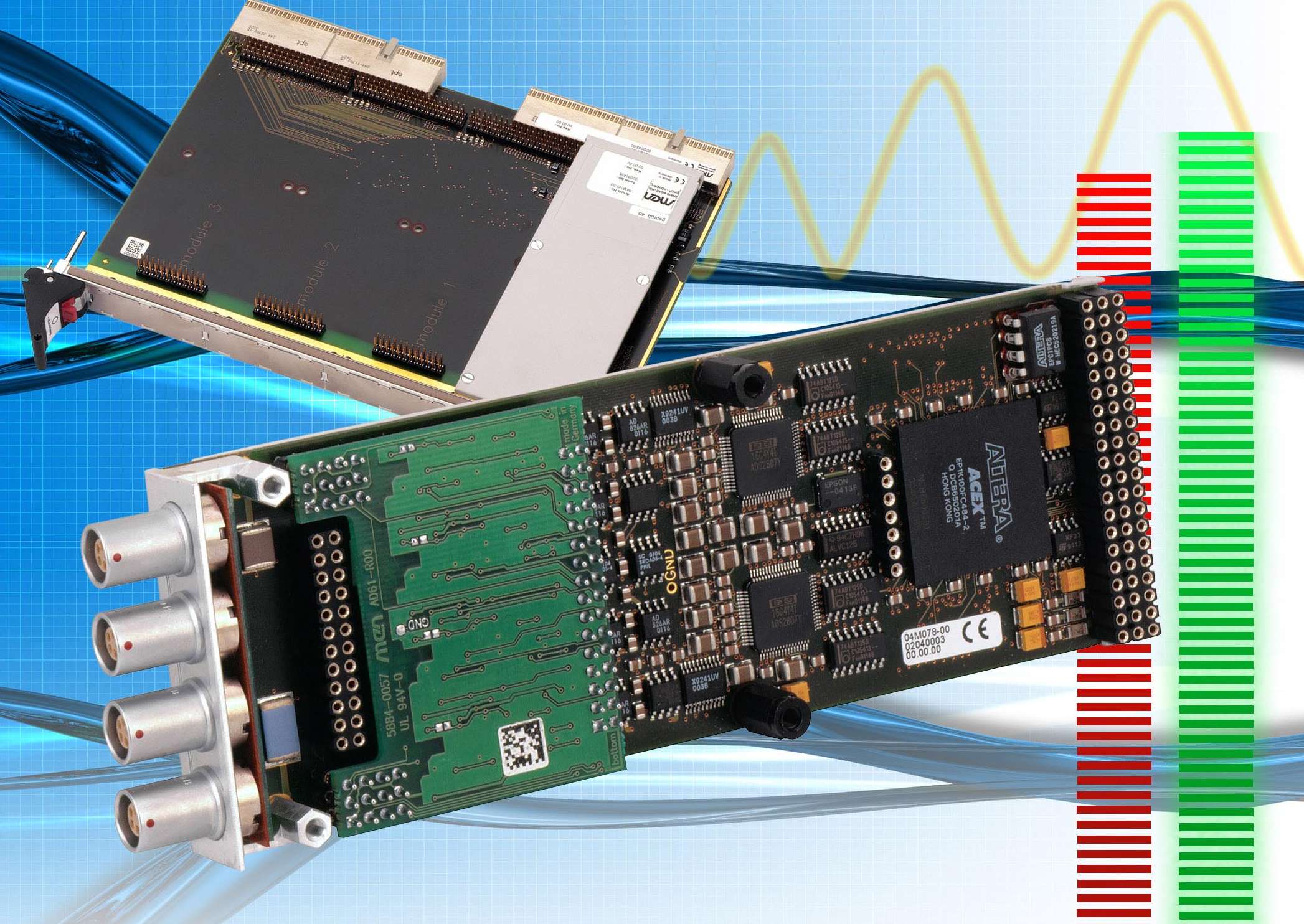

Sep 24, 2003 Model M78 is a 4-channel oscilloscope in 50 x 150 mm ANSI standard, M-Module form factor. It has 12 bits of resolution, bandwidth of 10 MHz, and sampling speed of 50 MS/s simultaneously on all 4 channels. Unit buffers converted values into 16 MB of on-board RAM, which is allocated in 4 MB blocks to each channel. Model M78 can be mounted on 3U or 6U carrier card and adds oscilloscope functionality to Compact PCI, PXI, and VME systems.

E-Mon Corp.    Langhorne, PA 19047

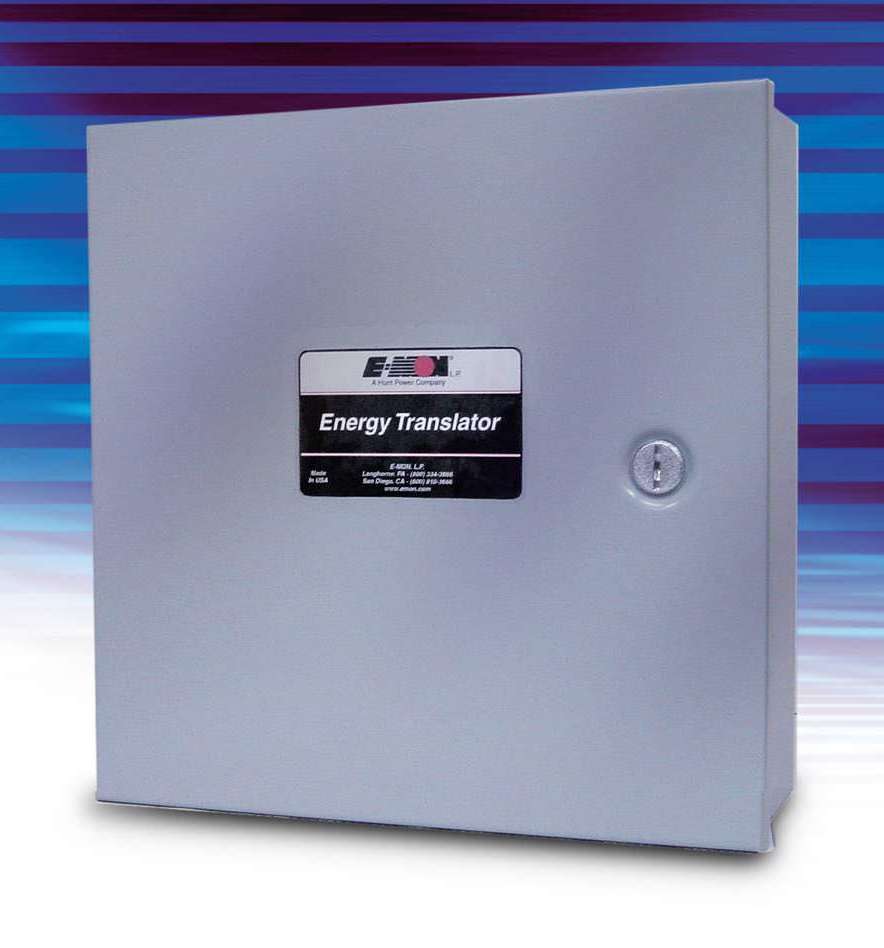

Sep 24, 2003 Energy Translatorâ„¢ is an intelligent hardware interface that translates energy data from multiple meters, sensors, and other inputs into single output format that is compatible with energy management and distributed generation systems. Onboard Pentium-class CPU enables energy data to be uploaded to Internet. Energy Translator feature ruggedized steel enclosure, handles 0–70°C and 90% non-condensing RH, and requires 24 Vac for operation.

Tru-Connector Corporation    Peabody, MA 01960 5099

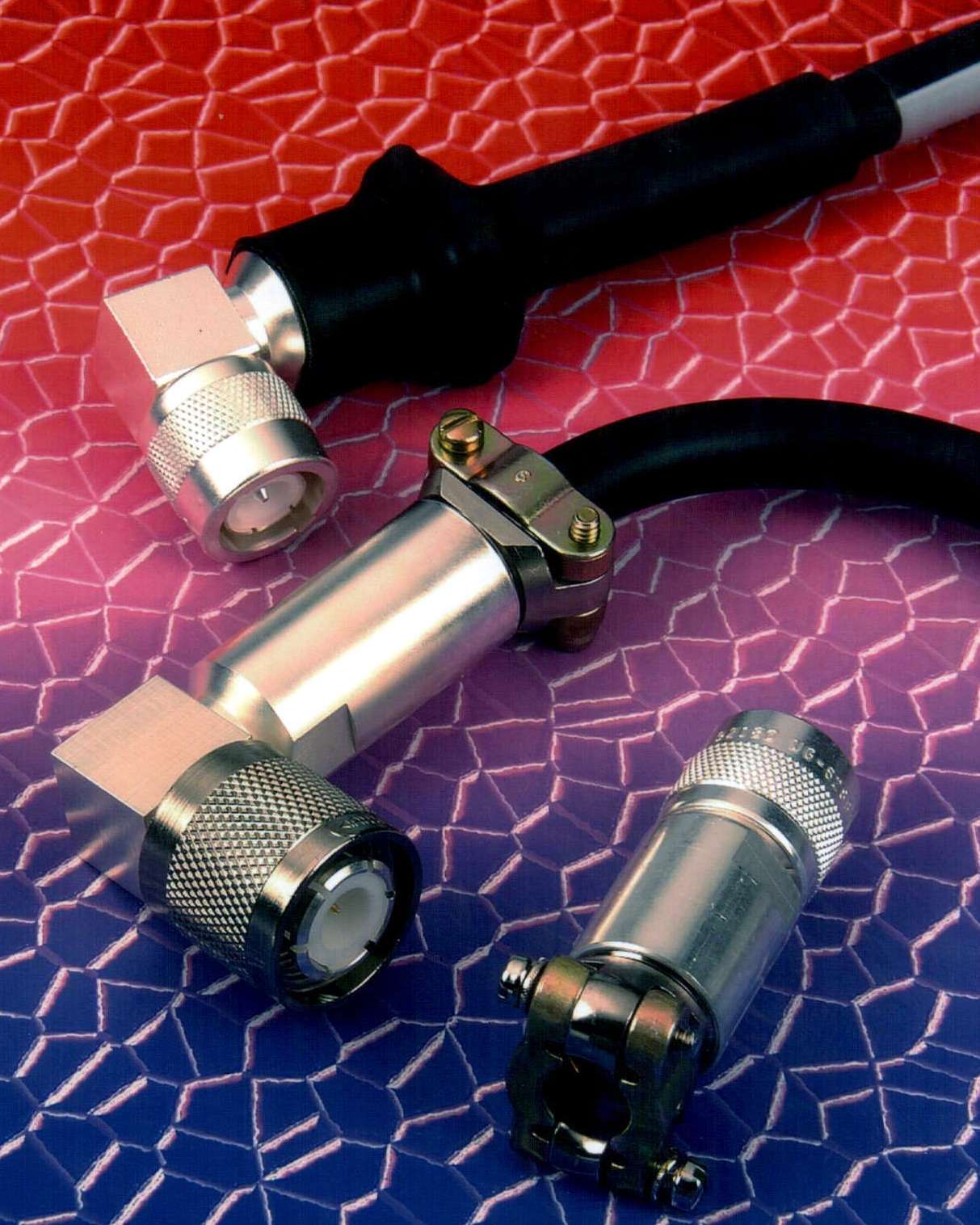

Sep 24, 2003 SR-Series Clamp Attachment fits onto back end of RF coaxial connectors to reinforce cable assemblies subjected to excessive twisting and flexing. Product features rolling clamp nut design that provides axial and rotational support and prevents distortion of cable caused by over-tightening. Suited for cables from ¼â€“¾ in. OD, product is fully compatible with RG214, RG393, and RG217 connectors and is constructed from nickel- or silver-plated brass.

Crystek Corp.    Fort Myers, FL 33913
Sep 24, 2003 Crystals and Oscillators operate at frequency of 49.152 MHz to meet Texas Instrument's specifications for use with TSB41BA3 Chipset, which is geared toward Long Haul or Long Range applications. A 98.304 MHz, 1.8 V oscillator with critical start-up feature is available for TSB81BA3 Chipset designed for 1394b FireWire® 800. All products are offered in 5 x 7 mm SMD package specified for 0 to 70, -40 to +85, and -55 to +125°C operating temperature.

ITW Vortec    Cincinnati, OH 45242-4719
Sep 24, 2003 Using only factory compressed air, Vortex Tubes generate temperatures down to -30°F for spot cooling in industrial applications, equipment, and processes. Tubes separate compressed air into hot and cold air streams, lowering supplied air temperature by as much as 100°F and delivering refrigeration up to 6,000 BTUH. Control valve at one end of tube controls temperature and low pressure airflow. Models range from 6–13 in. long.
