Schweitzer Engineering Laboratories Inc.    Pullman, WA 99163
Nov 03, 2003 Model SEL-3010 Event Messenger automatically telephones on-call personnel, delivering text alarm messages via voice to convey important data. It can deliver measurements that communicate time and severity of event and help direct remedial actions. Unlike standard auto-dialers that send prerecorded alarm messages, SEL-3010 uses text-to-speech technology. Direct communications of unit provide decentralized backup to SCADA systems.

Schurter, Inc.    Petaluma, CA 94975
Nov 03, 2003 Thin-film, chip fuse USF 0603 measures 1.6 x 0.8 mm, is built according to UL 248-1, and is cURus approved. Suited for sensitive electronic devices that require reliable over current protection, lead-free fuse has legend marking that provides visible indication of ampere rating. Product is suited for hand-held devices such as cell phones, PDAs, laptops, 2-way radios, and digital cameras.

Baltimore Aircoil Co.    Jessup, MD 20794
Nov 03, 2003 Suited for industrial refrigeration applications, BAC Aircoilâ„¢ Evaporators incorporate hinged fan housings, aluminum or stainless steel drain pan construction, and integral coil/frame constructed of rectangular steel members. Housing materials are available in galvanized steel, stainless steel, or with BALTIBOND® Corrosion Protection System. They can be configured to meet performance requirements of specific applications.

Crystek Corp.    Fort Myers, FL 33913
Nov 03, 2003 Voltage Controlled Oscillators are offered in 3 different packages. Model CVC055 measures 0.500 x 0.500 x 0.140 in. with frequency range of 50–3,500 MHz. Model CVC045 is 0.400 x 0.496 x 0.165 in. with 50–2,000 MHz frequency, and Model CVC033 measures 0.300 x 0.300 x 0.079 with 50–2,000 MHz frequency range. Units offer low harmonic suppression and low phase noise to -115 dBc/Hz. Extended operating temperatures of -40 to +85°C are available.

Regin HVAC Products, Inc.    Shelton, CT 06906
Nov 03, 2003 Smoke Pen provides specific amount of test smoke when and where it is needed. Smoke-emitting wick is inserted into pen, adjusted to provide 3/8 in. of exposed wick, and lit with match or lighter. It provides continuous trail of smoke and is extinguished by replacing protective cover. Non-toxic, cool burning emitter is suited for verifying ventilation, testing smoke alarms, and tests for negative or positive pressure.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Nov 03, 2003 MICROTRON© Model 7290A measures low-level accelerations. It uses hyperFLEX® coaxial cable assemblies that offer resistance to chemicals, solvents, and liquids. Frequency response is 0-15 Hz through 0-1,000 Hz for different ranges. Unit operates from 9.5-18.0 Vdc and provides high level, low impedance output with operating temperature of -65 to +250°F. Model 7290A is suited for applications requiring measurement of whole body motion after being subjected to shock.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Nov 03, 2003 Model 7270AM6 features mechanical filter with damped output and linear phase shift for shock measurements. Filter assembly mitigates frequency content of shock pulse to provide protection from high frequency inputs, and mechanical isolator provides same response to positive and negative accelerations. Unit is available in FS ranges of 6,000, 20,000, and 60,000 g; is usable over frequency range from DC to 10 kHz; and has temperature range of -30 to +150°F.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338
Nov 03, 2003 Battery-operated Catalog No. 21G29 Digital Pocket Stroboscope provides non-contact speed measurement from 30–12,000 rpm and makes objects which are moving at high speeds appear to stop or move in slow motion. This allows users to analyze motion, check for cracks or damaged parts, ensure proper registration, and determine sources of unwanted vibration or machine misalignment without having to stop equipment or production process.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338
Nov 03, 2003 Measuring 2.71 x 1.22 x 4.29 in., portable Model PAL-1 requires users to apply 2–3 drops onto prism surface to determine Brix % or concentration %. Unit has Brix 0.0–53.0% measurement range with minimum indication of 0.1%, measurement accuracy of ±0.2%, and measurement temperature of 10 to 40°C with automatic temperature compensation. It has waterproof protection rating of IP65 and can be cleaned under running water.

Kaeser Compressors, Inc.    Fredericksburg, VA 22404
Nov 03, 2003 Series KBS Systems allow compressed air to be used as source of purified air. Portable units offer capacities of 10 scfm, and stationary units range from 12–880 scfm. Systems remove excessive moisture, dirt, dust, oil and oil vapor, carbon monoxide, and other hydrocarbons from compressed air to prevent worker health and safety risks. Options include switching failure alarm, carbon monoxide monitor, and electrical NEMA rated enclosures.

Zettler Magnetics, Inc.    Aliso Viejo, CA 92656
Nov 03, 2003 Model ACST-260 monitors current up to 30 amperes at frequencies to 200 Hz. Constructed with UL recognized, Class B insulation system, unit meets dielectric strength of 3 kV and features turns ratio of 1:500.

Marsh Bellofram    Newell, WV 26050
Nov 03, 2003 Type 79 relay uses rolling-diaphragm technology and pilot pressure to control output pressure over range of flow and supply variations. Supply and output ports are available in 3/8, ½, ¾, and 1 in. NPT. Pilot and output gauge ports are ¼ in. NPT. Low-bleed and non-relieving versions are available, as well as tapped exhaust, supply gauge port, and external corrosive-resistant epoxy paint. T79 can be used with supplies up to 400 psig and output range of 0-200 psig.

Camfil Farr    Riverdale, NJ 07457
Nov 03, 2003 With compact design, 5P Glide/Pack® air filtration housing accommodates 2 in. HVAC grade prefilter and 4 or 6 in. deep HVAC grade final filter. Fin seal on filter track limits leakage of unfiltered air across filter assembly to less than ½ of 1% at rated airflow. Neoprene door gasket and UV-resistant, star-style door handles ensure housing-to-filter seal. Unit's 16-gauge galvanized steel construction has dual-access, swing-open doors.

LDPI Lighting    Eau Claire, WI 54703
Nov 03, 2003 Class I Div. 1 explosion-proof, low-profile 380 Series fixtures are available in 2- or 4-lamp configurations with standard- or high-output T12, T8, or T5 lamps in 2 or 4 ft lengths. Designed for wall or ceiling installation, cast aluminum fixtures are available with optional stainless steel guards and/or polycarbonate shields. All models are UL and cUL listed.

Banner Engineering Corp.    Minneapolis, MN 55441
Nov 03, 2003 WORLD-BEAM® QS30 Series 10-30 Vdc Sensors provide maximum excess gain for sensing in applications with heavy fog, dust, and industrial process contamination. Models QS30EX and QS30RX emitter and receiver, opposed-mode, infrared sensors are sealed to IP69K rating for 1,200 psi washdown protection. Maximum rating for each output is 100 mA. Light Operate and Dark Operate outputs are available which offer 2 outputs per sensor that switch simultaneously.

Lee Company, The    Westbrook, CT 06498 0424
Nov 03, 2003 Dual Metering Flow Control Valves are available in .187 and .281 in. diameter models with nominal weight of 1.5 and 5 g, respectively. Different metered flow rates for forward and reverse flow directions, within specific range, can be specified. All metal components are stainless steel.

Schneider Packaging Equipment Co., Inc.    Brewerton, NY 13029 0890

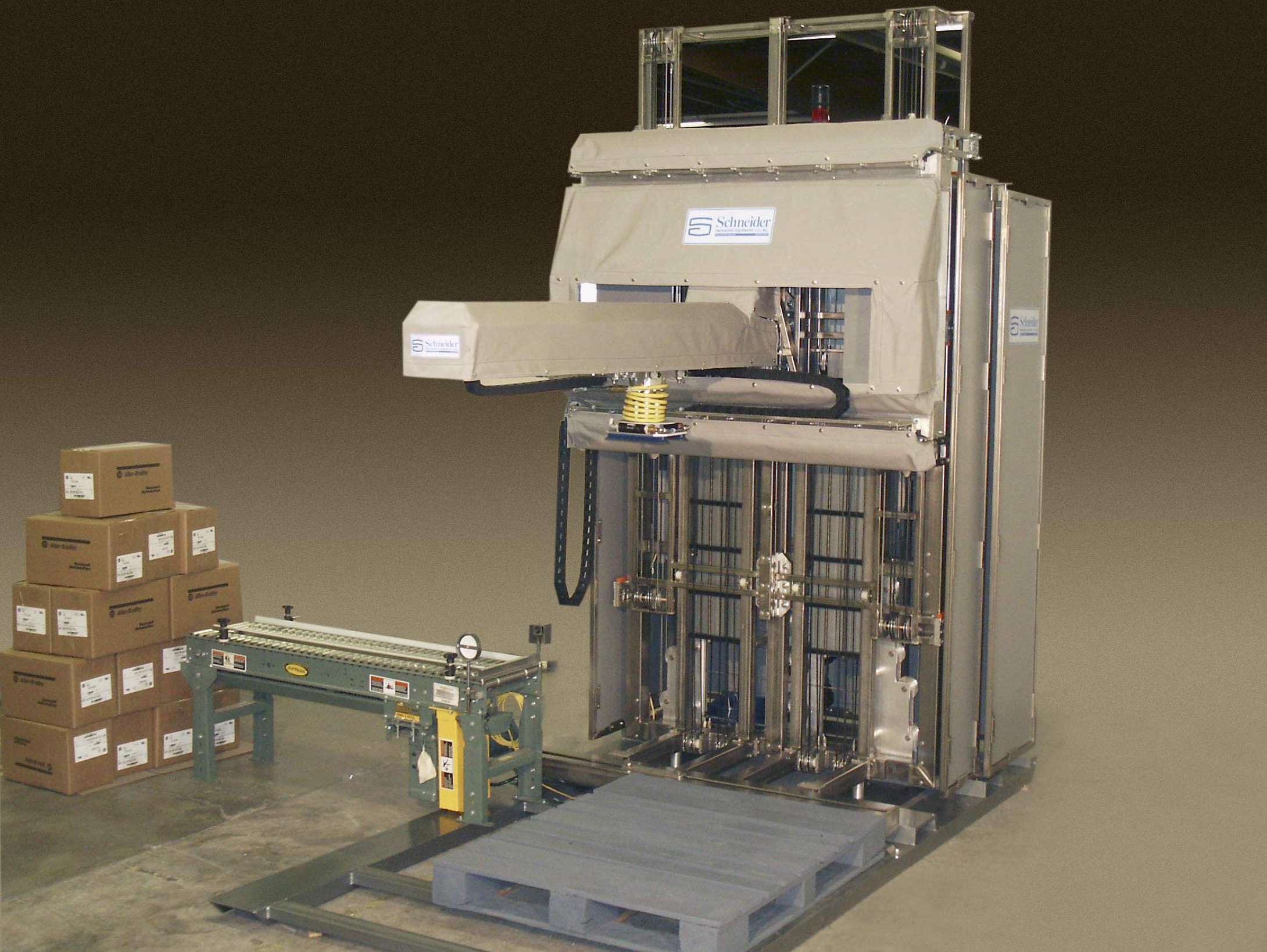

Nov 03, 2003 K-Bot 4-axis, floor-level palletizer/de-palletizer is capable of running single or dual line applications at up to 10 cycles/min. Compact 62 x 104 in. footprint allows for pallet sizes up to 48 x 48 in. and unit loads up to 72 in. high. Operator interface is programmed with pre-defined pack patterns. K-Bot includes stationary motors and power encoder cables, protecting machine for long life.

Textron Fastening Systems    Rockford, IL 61104
Nov 03, 2003 AutoRiv 100® connects to any stamping press, installing up to 360 fasteners per minute from any angle to accommodate different part geometries and tolerances. It simultaneously sets up to 6 self-clinching and self-piercing nuts and studs in transfer or progressive die tools during stamping operations. Unit installs pins, rivets, and bushings and includes die protection system that monitors every step in process.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Nov 03, 2003 TotalStorage® FAStT EXP100 Storage Expansion Unit supports up to 14 FAStT 250 GB SATA disk drive modules, offering up to 3.5 TB of capacity per enclosure. Coupled with FAStT900 Storage Server, it lets users configure RAID protected storage solutions up to 56 TB. This 3U, 19 in. enclosure offers redundant 2 Gbps Fibre Channel connections to FAStT Storage Servers and redundant, hot swappable power and cooling components.

Software Horizons, Inc.    North Billerica, MA 01862
Nov 03, 2003 InstantHMI v4.0 employs Windows PC based Launch Pad to design project screens and Tag database, which can then be deployed on any target platform with appropriate InstantHMI Runtime engine. Launch Pad allows pre-testing of tags and screens on PC before deploying on target PC, PDA, or CE platform. Software lets users view raw data in different graphic formats, customize interactive troubleshooting scripts, and utilize real-time and historic trend plots.
