Klein Tools, Inc.    Lincolnshire, IL 60069
Oct 08, 2003 PowerLine(TM) Series Tape Measure Pouch holds most 35 ft tape measures, fasteners, nails, or wire nuts. Two inside elastic loops fit screwdrivers, pencils, markers, or other necessary items for job site. Pouch is made of double-layered 1,000 denier Cordura® Plus with double nylon-stitched seams. Tunnel loop allows it to be positioned anywhere along belt.

ITEDO Software LLC    Millbrae, CA 94030
Oct 08, 2003 IsoDraw 6 has macro language, which can record and play back drawing steps. Callout tool automates single work steps involved with technical illustration, and Magnifier and Navigator windows enable working with complex and large illustrations. IsoDraw 6 CADprocess 4 grants users direct access to single zones within objects or selected subassemblies. Link2Source functionality allows single assemblies to be imported selectively and placed in different illustrations.

Porta-King Building Systems    Earth City, MO 63045 1211
Oct 07, 2003 Custom Mobile Trailer Units are galvanized steel or anodized aluminum and suited for temporary as well as long-term applications where security is critical. Gas or diesel generators make booths self-supporting. Custom paint is available.

Saint-Gobain Performance Plastics, Omniseal    Garden Grove, CA 92841
Oct 07, 2003 OmniLipâ„¢ XT and OmniSeal® XT Seals utilize Fluoroloy PTFE compounds and stainless steel spring and case material. They provide chemical resistance and reduced friction over elastomer seals. Both types range from 12–65 mm and can handle surface speeds up to +20 m/s. Max pressure is 200 KPa for OmniLip XT and 55 Mpa for OmniSeal XT. Seals are suited for electrical driven tools and equipment, engines, shock absorbers, transmissions, fuel pumps, and gear boxes.

ARINC, Inc.    Annapolis, MD 21401 7465
Oct 07, 2003 Compact iMUSE Expressâ„¢ sets up in minutes at any location with standard Internet connection, allowing passengers to pick up boarding passes and check baggage before coming to airport. Available as standard workstation or portable suitcase version, iMUSE Expressâ„¢ uses scaled-down version of iMUSEâ„¢ check-in system found at major airports. It supports peripherals such as printers used for baggage tags and passenger boarding passes.

Vishay Intertechnology, Inc.    Malvern, PA 19355 0988
Oct 07, 2003 With sizes from 0.020 in.² to 0.060 in.², NC Series single-value chip and wire capacitors offer capacitance values from 0.5–1,000 pF. NCA, NCB, NCC, NCD, and NCE devices are available with combination silicon dioxide/silicon nitride dielectric or silicon dioxide dielectric. Tolerances down to ±2.5% are available. All models feature semiconductor silicon substrate, aluminum bond pad, and gold backing. Dimensions and stable performance reduce signal drift.

ExxonMobil Coal & Minerals Co.    Houston, TX 77063 2005
Oct 07, 2003 SpectraSynâ„¢ synthetic polyalphaolefin basestocks feature viscosity ranges between 2–100 cSt at 100°C, and provide lubrication capabilities for car and diesel engines, gear boxes, and industrial applications. SpectraSyn Ultraâ„¢ Hi VI PAO products exceed 100 cSt viscosity. Synessticâ„¢ AN Blendstock consists of API Group V category fluids manufactured to deliver hydrolytic, thermal and oxidative stability. Esterexâ„¢ ester basestocks are used in demanding applications.

TURCK, Inc.    Plymouth, MN 55441
Oct 07, 2003 Cylindrical styles in analog+ series consists of 12, 18, and 30 mm units with extended linear sensing range (up to 100% longer). Repeatability of all styles is specified at less than 1%, and temperature drift is specified at 0.06% per °C. Self-contained 6.5 and 8 mm dia sensors are available along with 4 and 5 mm styles with remote amplifiers. Rectangular Q-pak® sensors offer sensing ranges to 40 mm.

Blancett Flow Meters    Racine, WI 53406
Oct 07, 2003 Stainless steel FloClean(TM) offers flow ranges from .3 to 400 gpm with accuracy up to ±1%. Signal output is sine wave proportional to volumetric flow. Sanitary clamp end connections range from ¾ to 2½ in. NEMA 6 magnetic pick-up works on temperatures from -150 to 300°F. Flow meter withstands clean-in-place and sterilize-in-place environments, and complies with FDA requirements making it suited for food, beverage, and pharmaceutical applications.

Omron Electronics, LLC    Schaumburg, IL 60173

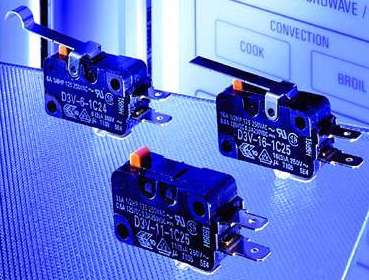

Oct 07, 2003 Using same physical form, D3V miniature snap-action switches are available with contact ratings of 0.1, 6, 11, 16, and 21 A. Products incorporate self-cleaning wiping contacts and are available with internal or external levers. Suited for applications from home appliances and office equipment to HVAC systems and vending machines, switches are offered with choice of terminal options suited for rating and application.

Sensotec, Inc.    Columbus, OH 43228
Oct 07, 2003 Microprocessor-based Model SC2000 AM provides 1 or 2 channels and is calibrated against 8.5-digit, traceable digital voltmeter. Conditioner presents test and reference load cell measurements on split-screen display. Its 22-bit processor offers 19 bits of resolution that measures signals from up to 2 load cells. Unit connects to computer running load cell calibration software to generate certificates and store and retrieve calibrated load cell data.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243

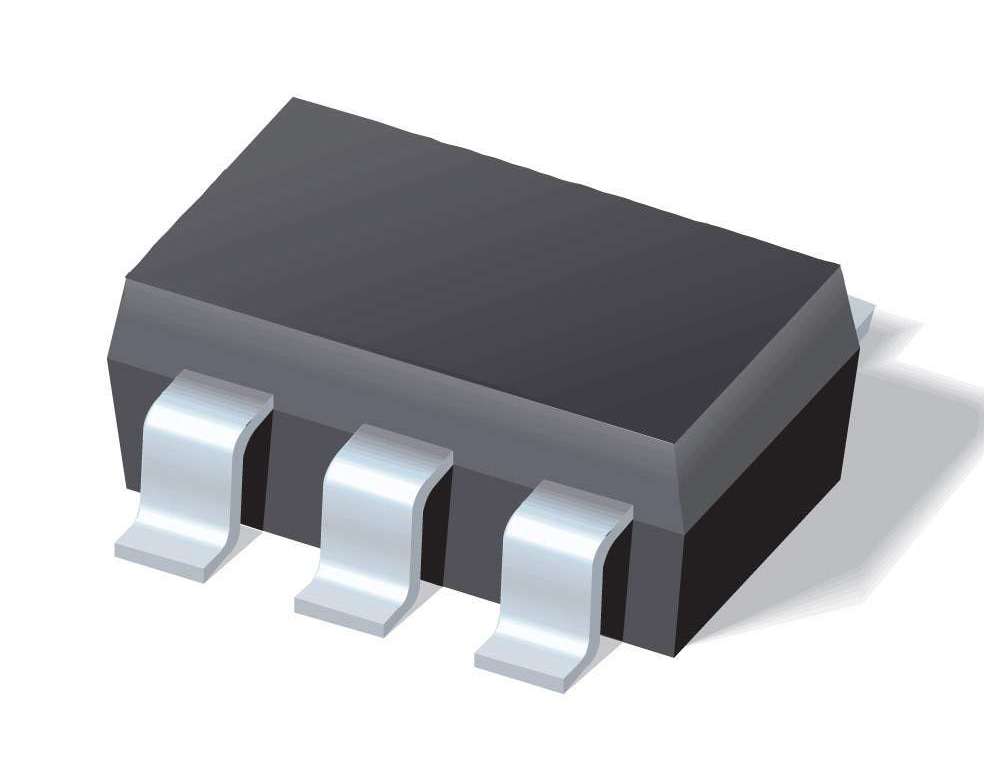

Oct 07, 2003 Models OPA725 and OPA726 are 12 V, high-speed operational amplifiers that achieve 20 MHz bandwidth, 30 V/µs slew rate, and 0.0003% harmonic distortion with 16-bit settling time. Input common-mode range extends to ground for true single-supply operation, and output swings to within 150 mV of rails, maximizing dynamic range. Both are specified for operation from -40 to +125°C, and are suited for optical networking and portable audio applications.

Tyco Electronics/Raychem.    Menlo Park, CA 94025-1164

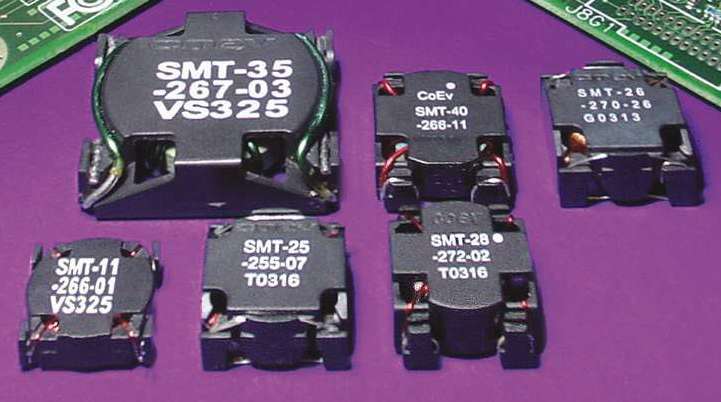

Oct 07, 2003 SMT series products suppress and filter AC ripple current in DC output circuit and can also be used for energy storage and common mode noise attenuation. Equipped with toroidal cores, header design aids installation via wire-clamping feature. Units occupy minimal circuit board real estate in switch mode power supplies, telecommunications equipment, computers, and cable modems. Products are also suited for 150 and 260 kHz National Semiconductor SimpleSwitcherâ„¢ applications.

Bustronic Corp.    Fremont, CA 94538

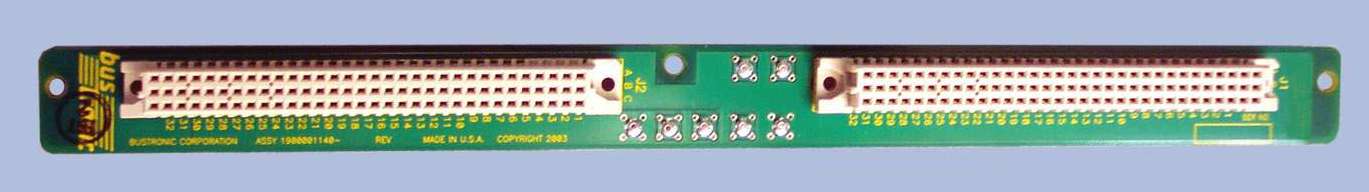

Oct 07, 2003 Power and ground only backplane with VME architecture is suited for use in industrial applications for powering up one card. Single-slot, 6U backplane measures 10.312 in. long x 0.800 in. wide and features 4-layer stripline design. Power distribution capabilities are attributed to product's utilization of 2 oz of copper for +5 V and ground planes.

International Surface Preparation    Houston, TX 77054

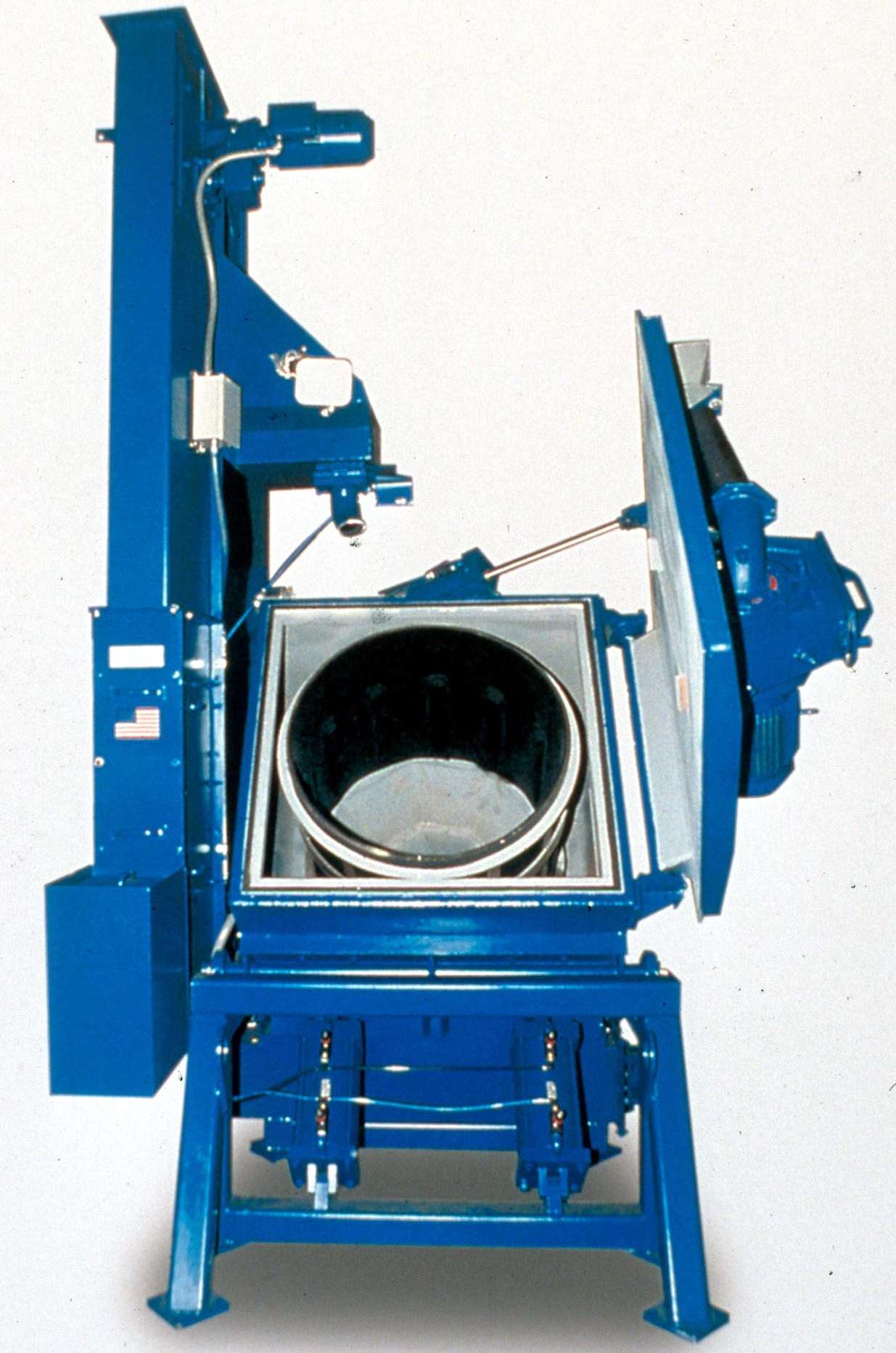

Oct 07, 2003 Wheelabrator® Barrel Blaster consist of 13½ in. diameter, 12 bladed wheel unit, powered by 15 hp, 3,600 rpm, NEMA T-frame, direct mounted motor. Barrel is 32 in. diameter and 37 in. deep, providing 3 ft³ tumbling capacity for up to 600 lb. Adjustable, pneumatically-operated butterfly valve allows for positive media flow control. System provides contaminant removal, peening, and surface finishing of small parts.

Trico Mfg. Corp.    Pewaukee, WI 53072 3954
Oct 07, 2003 Watchdog® particle filtration and water removal systems prevent contaminants from entering equipment as air is breathed in and out due to thermal expansion or fluid level changes. Designed to replace vent caps on gearboxes, reservoirs, and storage tanks, they feature visual indication of silica for replacement by turning from gold to dark green. Allowing only clean, dry air into industrial equipment, products prolong fluid life and reduce abrasive wear.

International Surface Preparation    Houston, TX 77054
Oct 07, 2003 Trublast® Spinner Hanger provides deflashing, descaling, peening, profiling, and surface cleaning of parts that can not be adapted to table or tumble machines. Parts rotate at 22 rpm during blast cycle and are cleaned from multiple angles. Unit supports max load weight of 500 lb/hook and max work envelope of 24 in. dia x 24 in. high. After being thrown by wheel, abrasive media is returned to separator where it is cleaned and conditioned, and then to storage hopper for reuse.

Valenite, Inc.    Madison Heights, MI 48071 9636

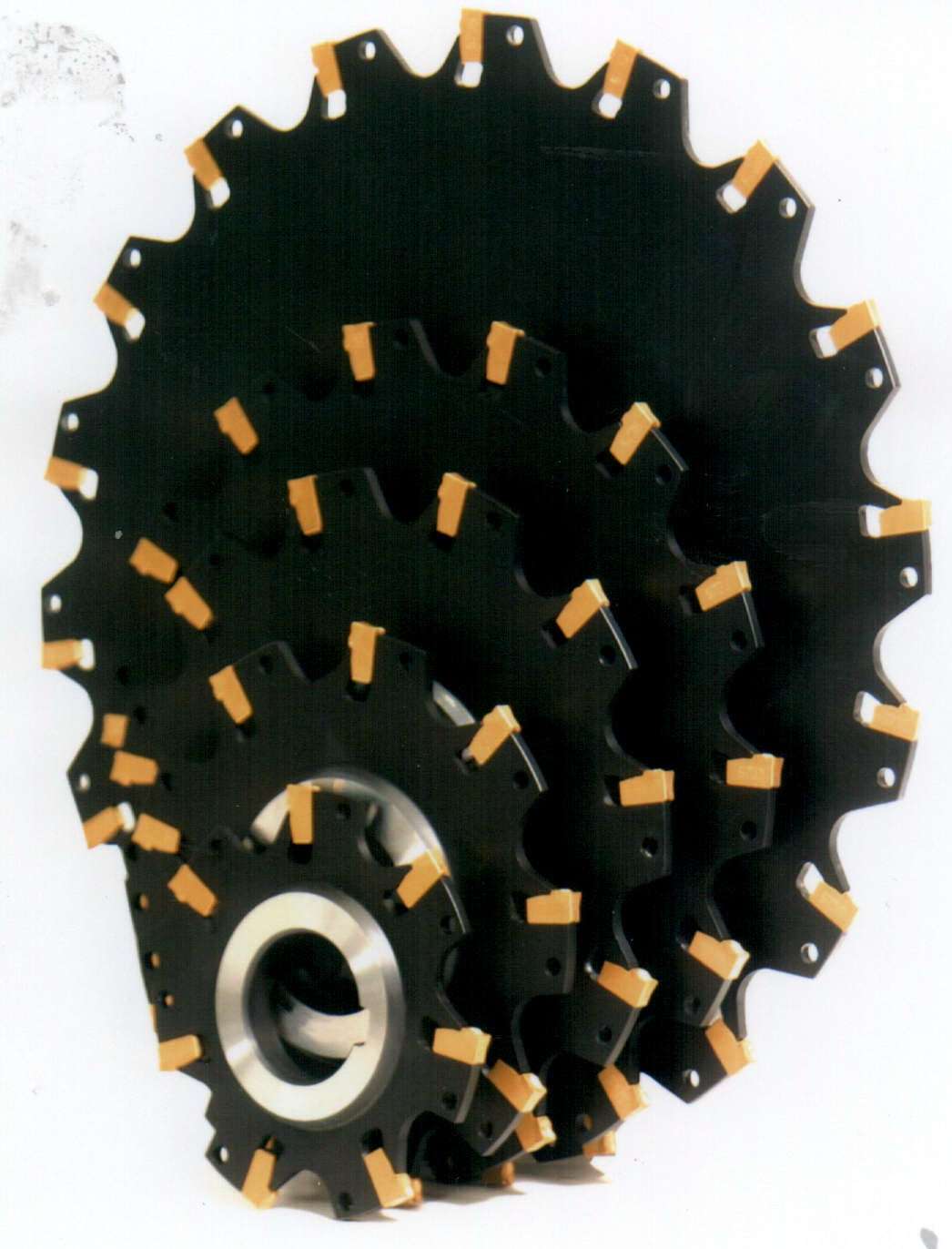

Oct 07, 2003 ValMILL™ 350 Cutters feature close pitch design with all inserts positioned in line for chip evacuation. Two coated carbide grades are available. VP5815 general purpose, PVD TiAlN coated finishing grade is for machining steel, stainless steel, cast iron, and aluminum. VP5845 roughing grade has TiN/TiCN CVD coating for machining steel and stainless steel. Cutters range in dia from 3–10 in. They cover slot widths from .084–.243 in. and slot depths from .659–3.545 in.

Dresser Instrument Headquarters, Ashcroft Pressure & Temperature Instrument Operation    Stratford, CT 06614 5145

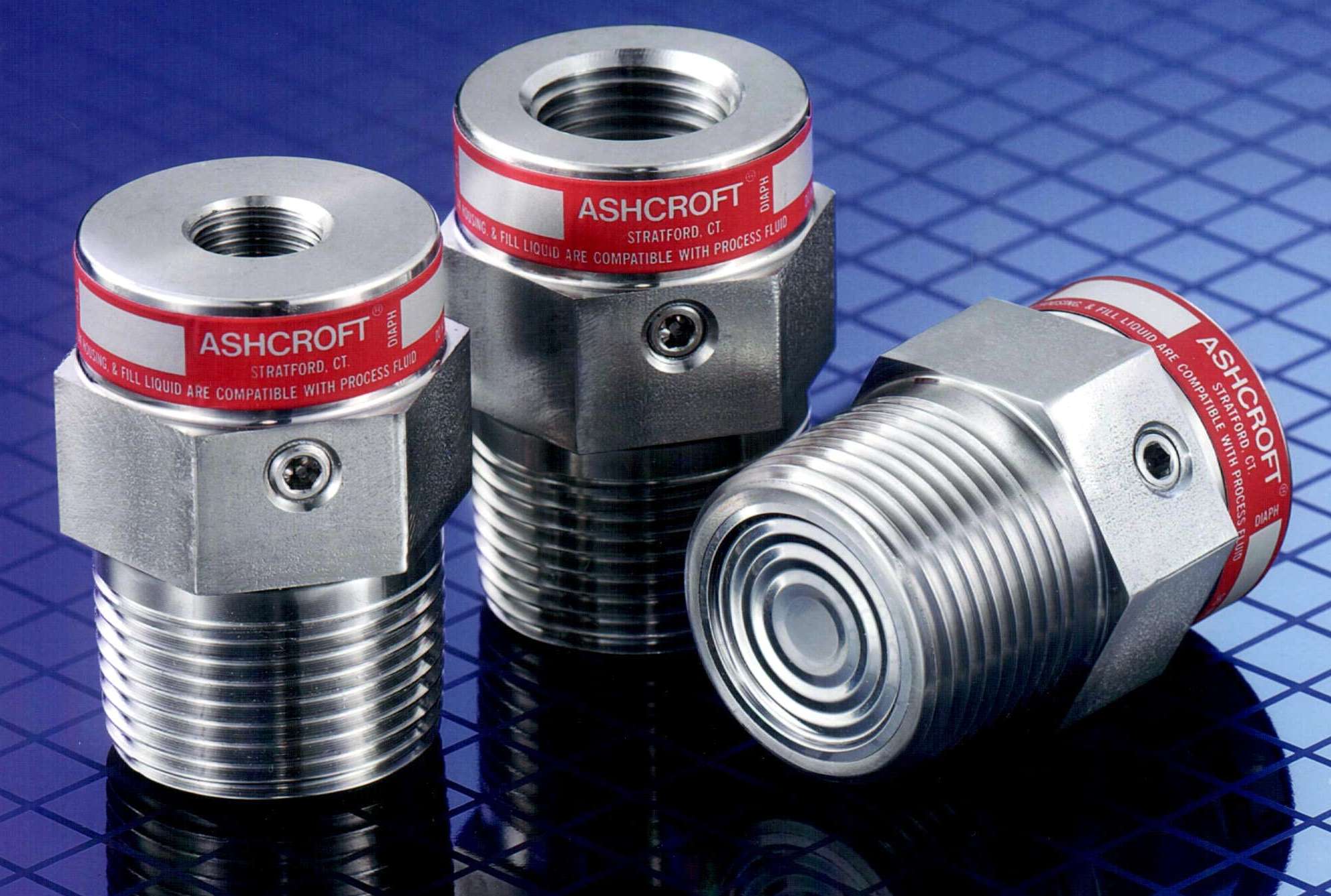

Oct 07, 2003 Ashcroft® Type 330 Seal features 316L stainless steel top housing and diaphragm, and all-welded construction, which prevents leakage of process media. Diaphragm is flush with end of 1 in. male NPT process connection, eliminating any pocket or dead-leg. Unit is compatible with switches, transducers, digital gauges, or analog pressure gauges from 60–1,000 psi. Diaphragm can be easily cleaned, making seal suited for applications where process media changes.

Promess Inc.    Brighton, MI 48116 0748

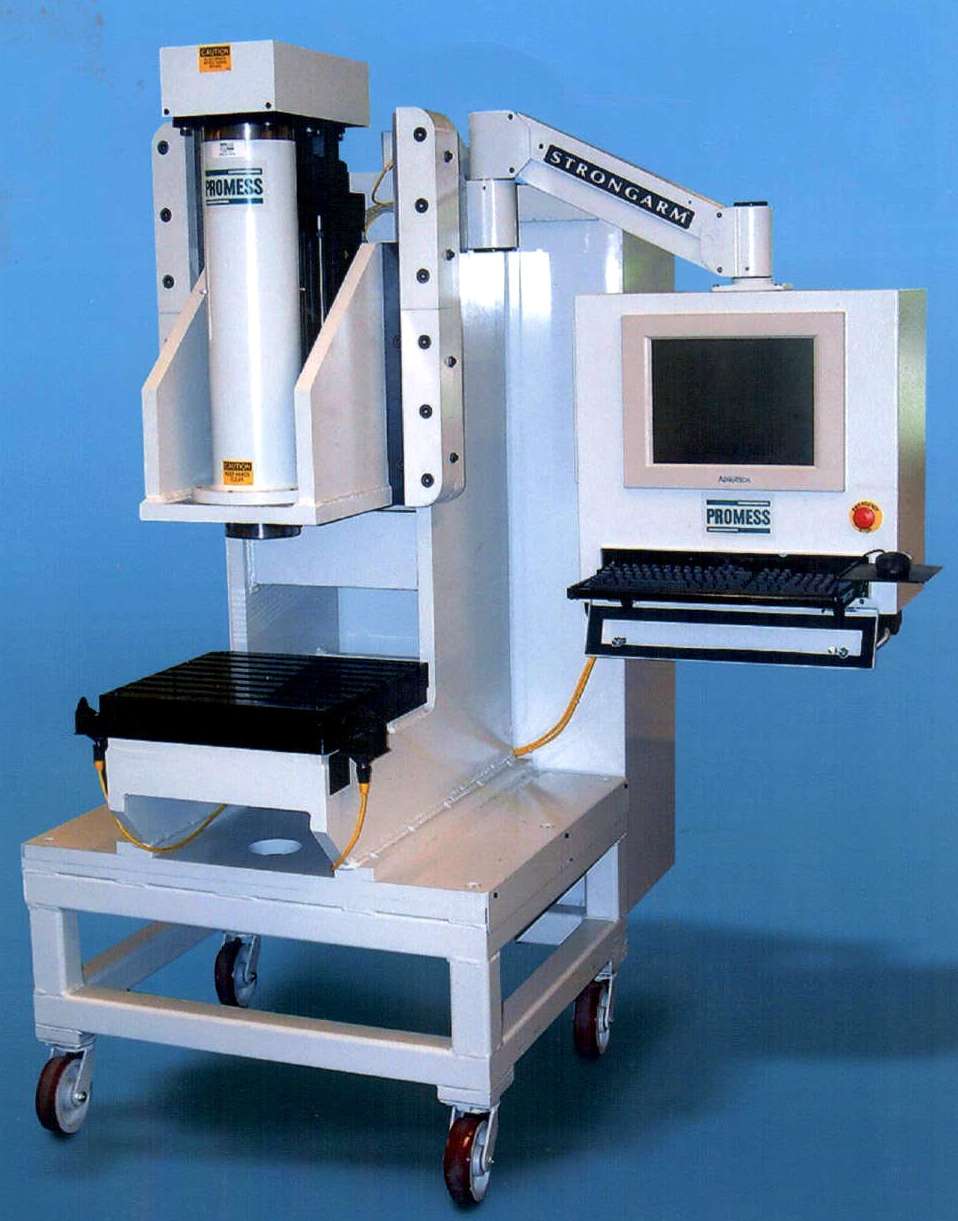

Oct 07, 2003 Great White stand-alone, CNC electro-mechanical assembly press has built-in, on-board force and distance sensors and offers 27,000 lb capacity. Encoder-equipped servo motor drives ball-screw ram with intelligence to accept signals from external sensors and gages. Press can simultaneously monitor and control force and position, as well as take in other external sensor information. It operates on Promess software and includes GUI for set-up.
