IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 16, 2003 The eserver pSeries® High Performance Switch uses technology based on SPâ„¢ Switch and SP Switch2. It augments eserver pSeries 690 and 655 clustered servers by increasing communication bandwidth between servers and partitions within cluster. All network connections pass through interface card packaged as either 2 or 4-Link Switch Network Interface. Switch can be incorporated within p690 system rack, p655 system rack, or as stand-alone multi-switch rack.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 16, 2003 PCI-X Dual Channel Ultra320 SCSI units and PCI-X Dual Channel Ultra320 SCSI RAID units are 64-bit, 3.3 V adapters with 320 MBps data rate. Former includes 2 SCSI channels and internal/external busses and supports target mode. Latter consists of bootable adapters that include RAID 0, 5, or 10 capability that can address up to thirty 16-bit SCSI physical disk drives on 2 independent SCSI buses. All adapters use low-voltage differential drivers and receivers.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 16, 2003 With 1U form factor, Distributed Power Interconnect products are built on IBM Interconnect Rack Architecture. They support power requirements of IBM xSeries® and high-end servers and are offered in 60 and 63 A single-phase and 32 and 60 A 3-phase versions. Modular approach to power distribution allows products to be directly attached to servers or used as front-end units. PDUs include all mounting hardware and cable brackets.

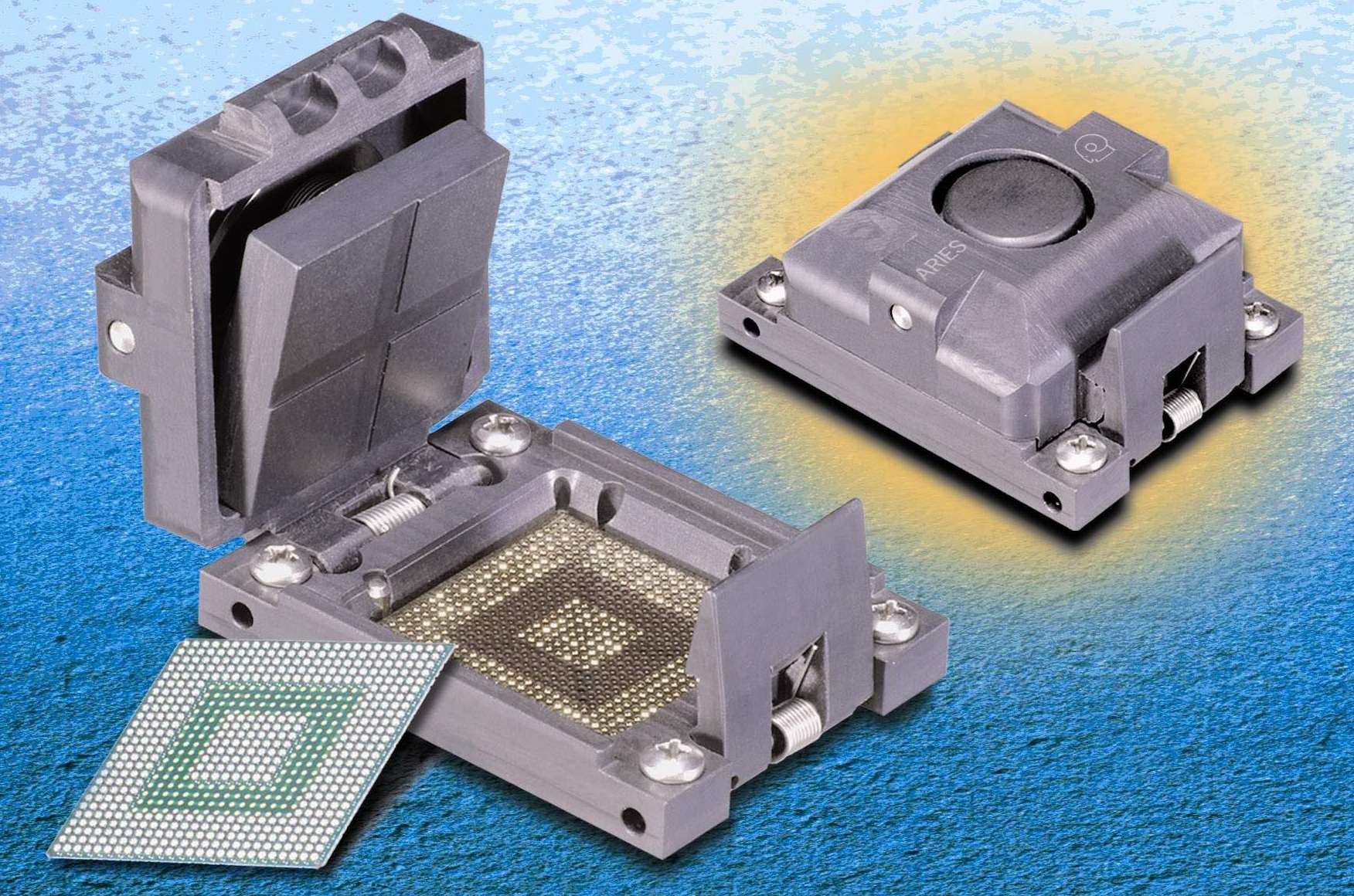

Aries Electronics, Inc.    Bristol, PA 19007-6810
Oct 16, 2003 RF Center Probe Test Socket provides manual testing of devices with pitches down to 0.50 mm in applications with speeds from 1-10 GHz. Four-point spring probe crown ensures scrub on solder ball oxides. With signal path of .077 in., socket provides minimal signal loss. Solderless, pressure-mount, compression spring probes are accurately located by 2 molded plastic alignment pins and secured with 4 stainless steel screws. Operating temperature is -67 to 302°F.

Waukesha Engine    Waukesha, WI 53188
Oct 16, 2003 Included in company's CFR (Cooperative Fuel Research) product line, Fuel Ignition Tester determines ignition delay and derived cetane number of diesel fuel. Using constant volume combustion chamber equipped with sensors that collect data during ignition and combustion phase, product simulates conditions of combustion process of actual diesel engine. Electronics and process control software enable automatic operation.

RAE Systems    San Jose, CA 95134
Oct 16, 2003 Connectivity solution, consisting of AreaPORT and AreaConnect industrial Ethernet-enabled data management platform, provides wireless online monitoring of 4-20 mA sensors and industrial Ethernet data management. AreaPORT consists of remote online monitoring product that accepts data from up to 4 channels from monitoring devices with 4-20 mA analog inputs. It delivers real-time sensor data and alarm states via wireless communications in dashboard view.

Aladdin Systems, Inc.    Watsonville, CA 95076 4159
Oct 16, 2003 SpamCatcher(TM) v3.0 applies 4 detection engines to incoming messages, with each engine applying 1,000-100,000 anti-spam rules. Users control filter strength and spam disposition. SpamCatcher lets user block people, domains, or countries. It Fingerprints(TM) every email, and matches fingerprint against SpamCatcher's database of emails. If other people have rejected fingerprint as spam, then that evaluation is reflected in individual user's spam filter.

Rockwell Automation    Milwaukee, WI 53204
Oct 16, 2003 Series XM® offers distributed protection and monitoring using modules for EtherNet/IP(TM) communication, low-speed vibration, and spike energy measurements. Gathered information allows maintenance personnel to identify developing faults and correct problems before downtime events occur. Hot-swappable modules communicate with programmable controllers or distributed control systems through network architecture.

IDEAL Scanners & Systems, Inc.    Rockville, MD 20852
Oct 16, 2003 WiseImage v6.0 for Windows enables Reprographers, Contractors, Engineers, and Cartographers to use intelligent raster editing tools to create, edit, and update raster-vector drawings in same manner as in traditional CAD package. Able to handle color, grayscale, and monochrome images, software utilizes Intelligent Raster and hybrid technology to provide complete environment for graphics editing regardless of object type.

EnWorkz, Inc.    Austin, TX 78731
Oct 16, 2003 PlantWorkzâ„¢, built on Lagrangian Relaxation and dynamic programming algorithm, helps power plants manage fuel costs. Suited for daily or weekly optimal generation dispatch, PC-based software allows user to simulate operation planning scenarios over multiple year period. Sophisticated financial analysis, risk management, and portfolio optimization are possible when PlantWorkz is used in overall EnWorkz software framework, known as EnWorkz PowerUpâ„¢.

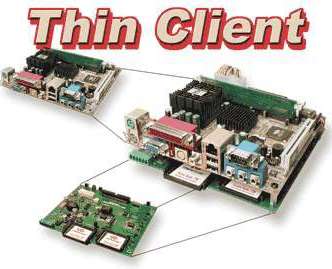

JK Microsystems Inc.    Davis, CA 95616
Oct 15, 2003 Thin Client is built around Mini-ITX motherboard and operates like desktop PC with multimedia, operating system and device support, and hardware features for embedded environments. It includes 8–30 Vdc input power management system, status LEDs, 2 onboard IDE Compact Flash slots, and Watchdog timer. Driven by 533 MHz VIA Eden ESP 5000 microprocessor, motherboard provides VGA port, 10/100 Ethernet LAN port, serial port, parallel port, PS/2 mouse and keyboard ports.

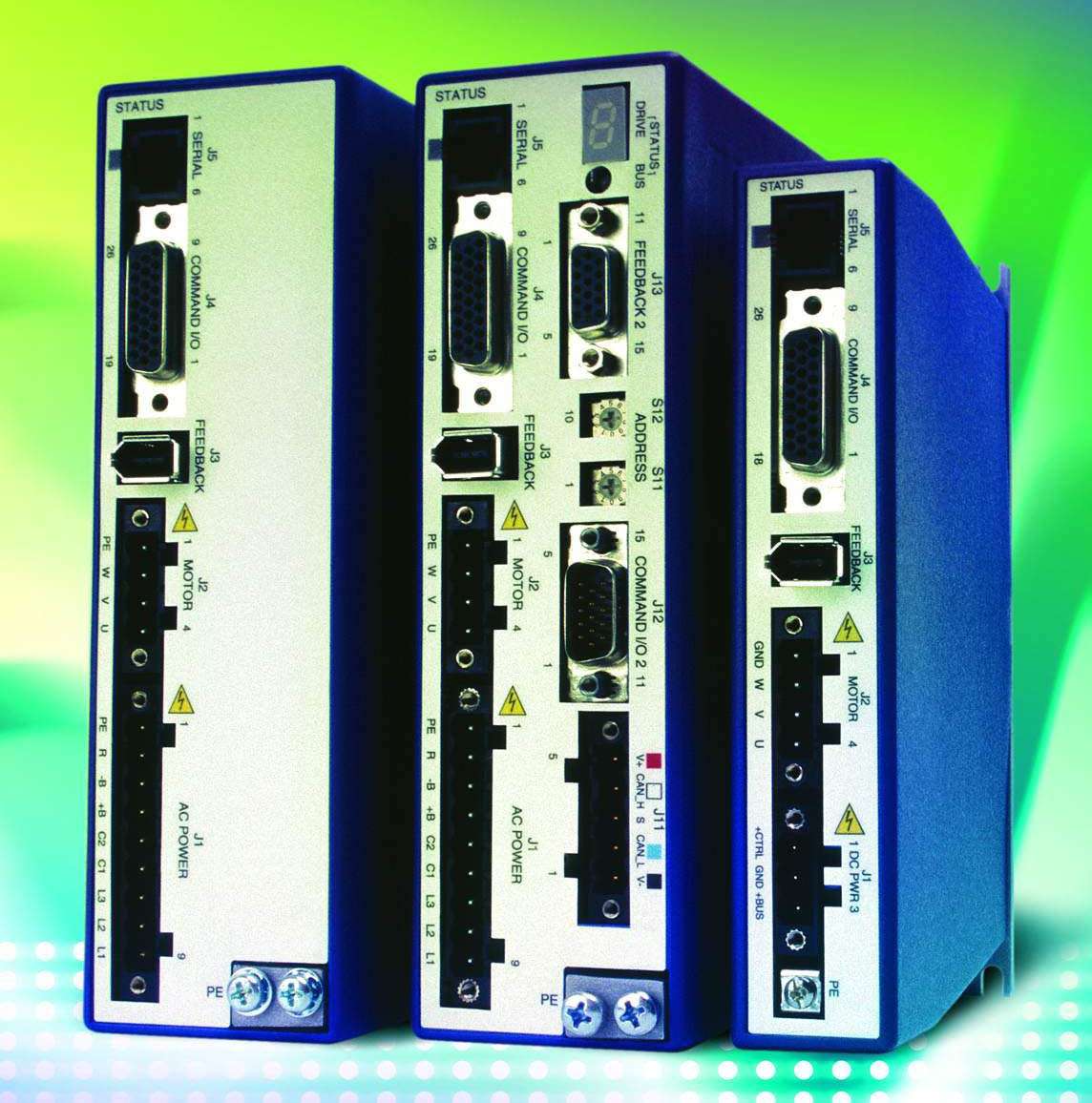

Danaher Controls    Gurnee, IL 60031
Oct 15, 2003 Series S200 Brushless Digital Servo Drives offer 24-bit feedback and 3-5 kHz current loop bandwidth for smooth motion and rapid start and stop. Units are available for AC or DC operation with current ratings from 1 A rms continuous to 18 A rms peak. Keep Alive power input allows rapid recovery from emergency stop conditions. Optically isolated inputs/outputs, positive locking connectors, and full fault protection provide immunity to accidental damage.

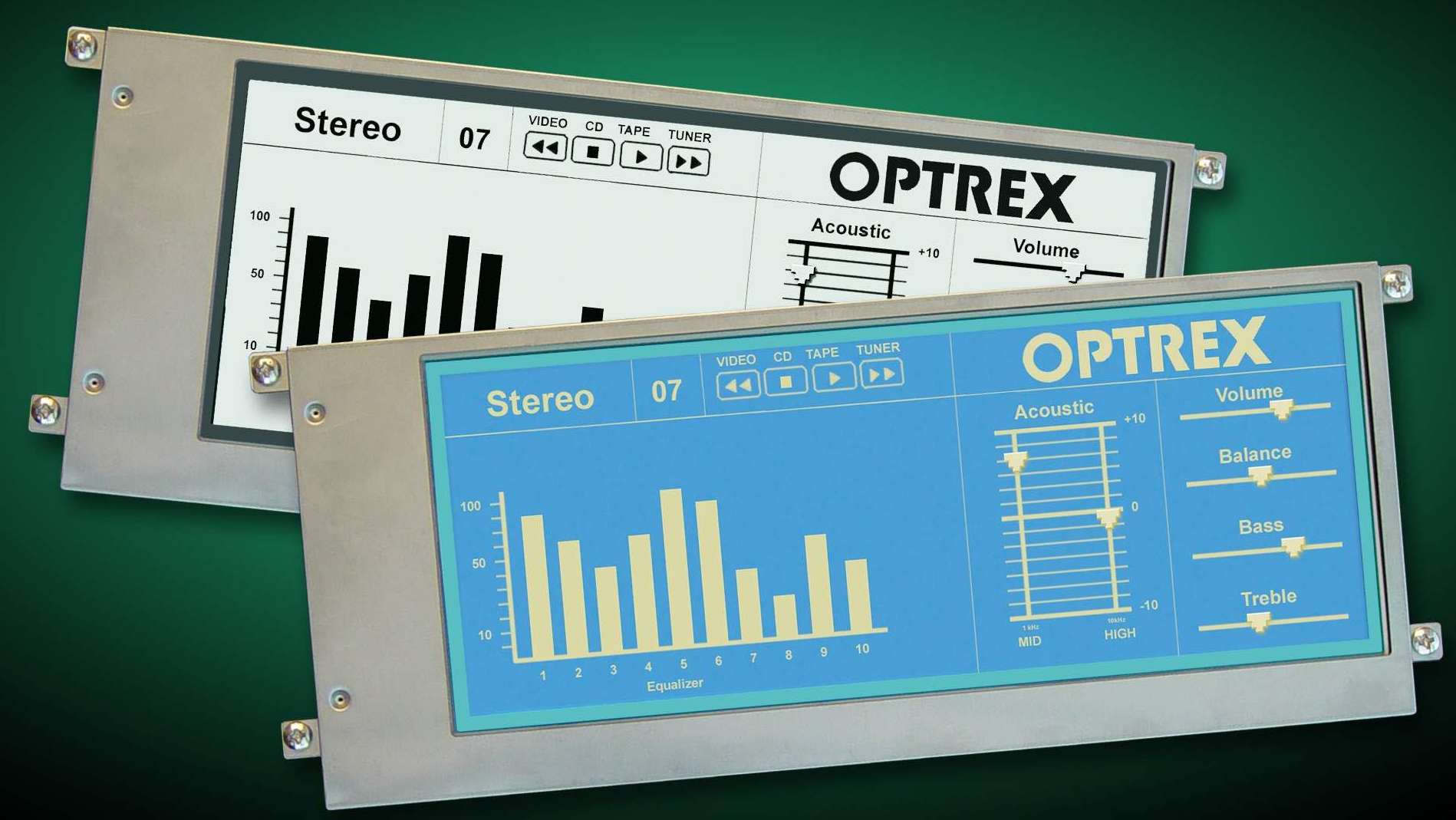

Kyocera Display America, Inc.    Plymouth, MI 48170
Oct 15, 2003 F-51451 Series 8.1 in. diagonal LCDs feature chip-on-glass construction and are available in two display modes: black-on-white and white-on-blue. Modules provide 640 x 240 dot resolution, high brightness (170 nits at 5.0 mA) CCFL backlight, and operating temperature range of 0 to 50°C. Measuring 9.1 x 3.84 x 0.39 in. and weighing 227 g, products have typical contrast ratio of 15:1. Applications include medical diagnostic equipment and industrial controls.

Contemporary Control Systems, Inc.    Downers Grove, IL 60515

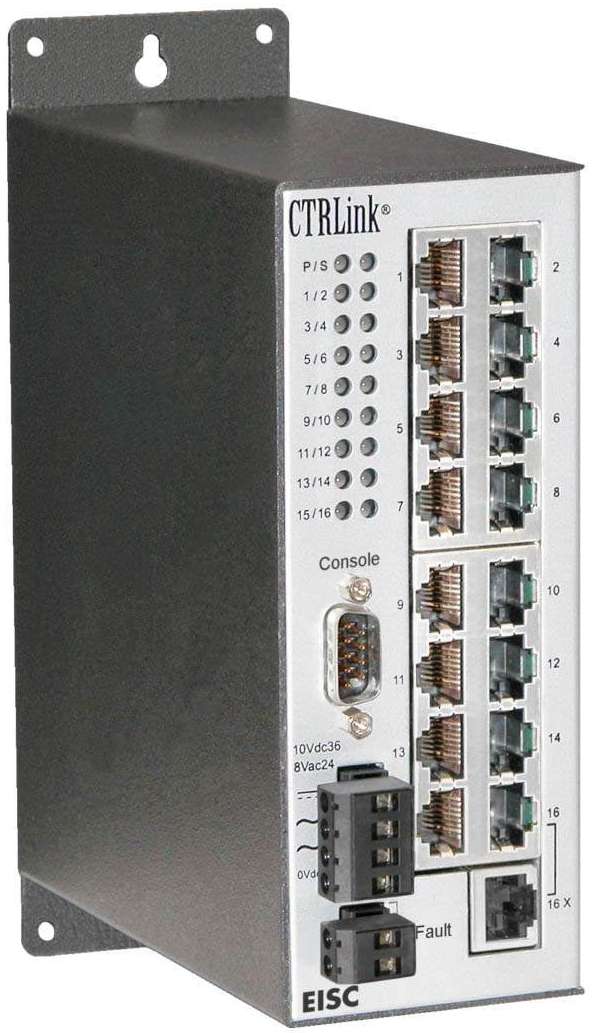

Oct 15, 2003 CTRLink® EISC16-100T has 16 10/100 Mbps twisted-pair ports, one RJ-45 connector, and programmable fault relay that interfaces to annunciator devices or acts as input to controller. In addition to auto-negotiation of data rate, duplex, and flow control, these settings can be manually configured for each port. EIA-232 serial port is used for configuration of unit. Parameters can be saved and restored, and port status can be monitored.

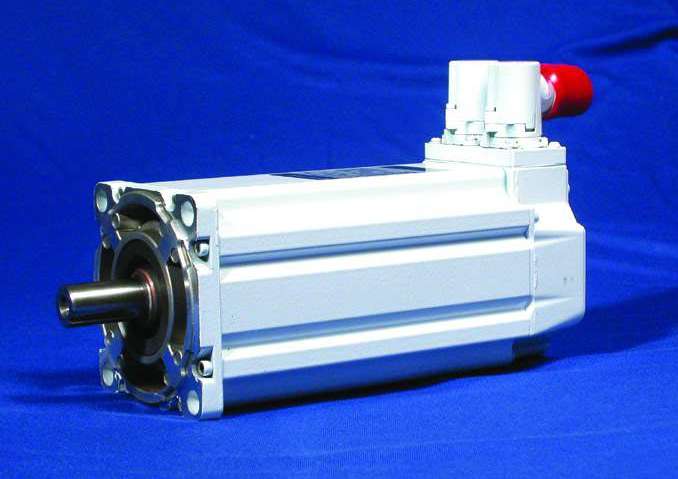

Rockwell Automation    Milwaukee, WI 53204
Oct 15, 2003 Food-grade MP Series Motors offer continuous stall torque of 14-176 lb-in. and include shaft seal with hardened wear sleeve. They are IP66- and IP67-rated with stainless steel motor shaft and fasteners providing corrosion resistance and protection against liquid contamination. IP67-rated connectors can be rotated 180° without tools for optimum positioning. Food-grade grease and chip-resistant food-grade epoxy paint allow mounting above food line.

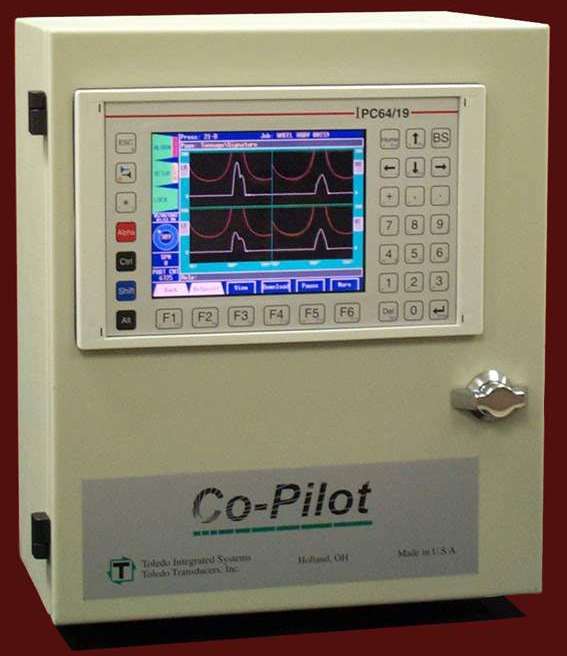

Toledo Transducers Inc.    Holland, OH 43528
Oct 15, 2003 Co-Pilot integrated press automation and monitoring system provides die protection, tonnage monitoring with reverse load, programmable limit switches, and brake monitoring in one resolver-based package. All functions have alarms if settings are violated. Features include debounce, motion detect, counters, job storage, speed compensation, 3 password levels, serial ports, and flash card for job copying. Analog inputs and other options available.

D-M-E Company    Madison Heights, MI 48071-2383
Oct 15, 2003 Multi-Parting Line (MPL) Systems double cavitation of standard single-face molds. They can be configured as turnkey systems with mold bases, hot runner systems, temperature controllers, and centering devices. Stack Mold Components enable system customization. Dual Mold Carrier enables MPL molding utilizing existing single-face molds. Tandem Molding employs 2 mold faces with staggered processes, doubling output of injection molding presses.

Acme Cryogenics, Inc.    Allentown, PA 18103
Oct 15, 2003 EZ Block Carbon Dioxide and Nitrous Oxide Fill Manifolds, made of one-piece machined brass barstock, offer alternative to traditional pipe header configurations. Modular design facilitates set-up, reconfiguration, and expansion for changing needs. EZ Blocks can be connected together using flexhose or pipe nipple. Accessories include wall mount bracket and floor stand.

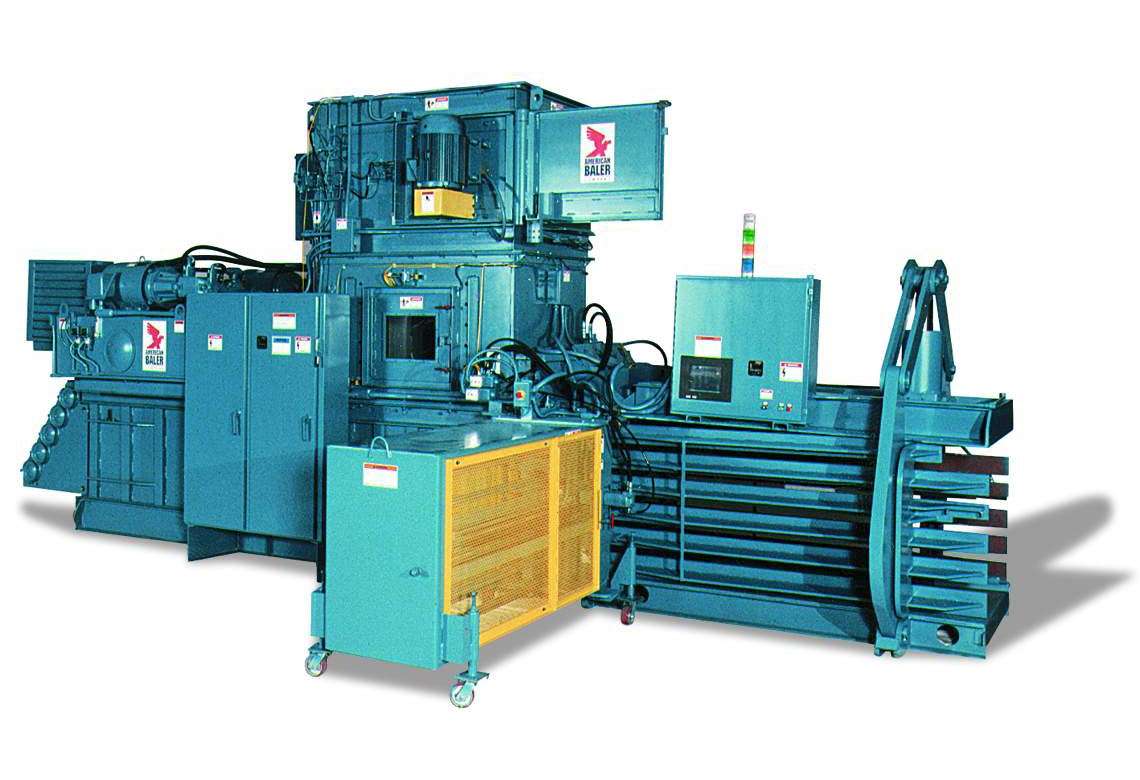

American Baler Co., The    Bellevue, OH 44811
Oct 15, 2003 Series 42H and 43H, suited for continuous use in high-volume operations, include Pathfinder Plus color touch screen, automatic tensioning controls, and 5-tie auto-tier that swings away from baling unit for access to components. Three-stage replaceable shear blade eliminates need for pre-shredding. Feed openings range from 41 x 50 in. to 41 x 80 in. Compression forces up to 339,000 lb produce bales weighing up to 3,000 lb.

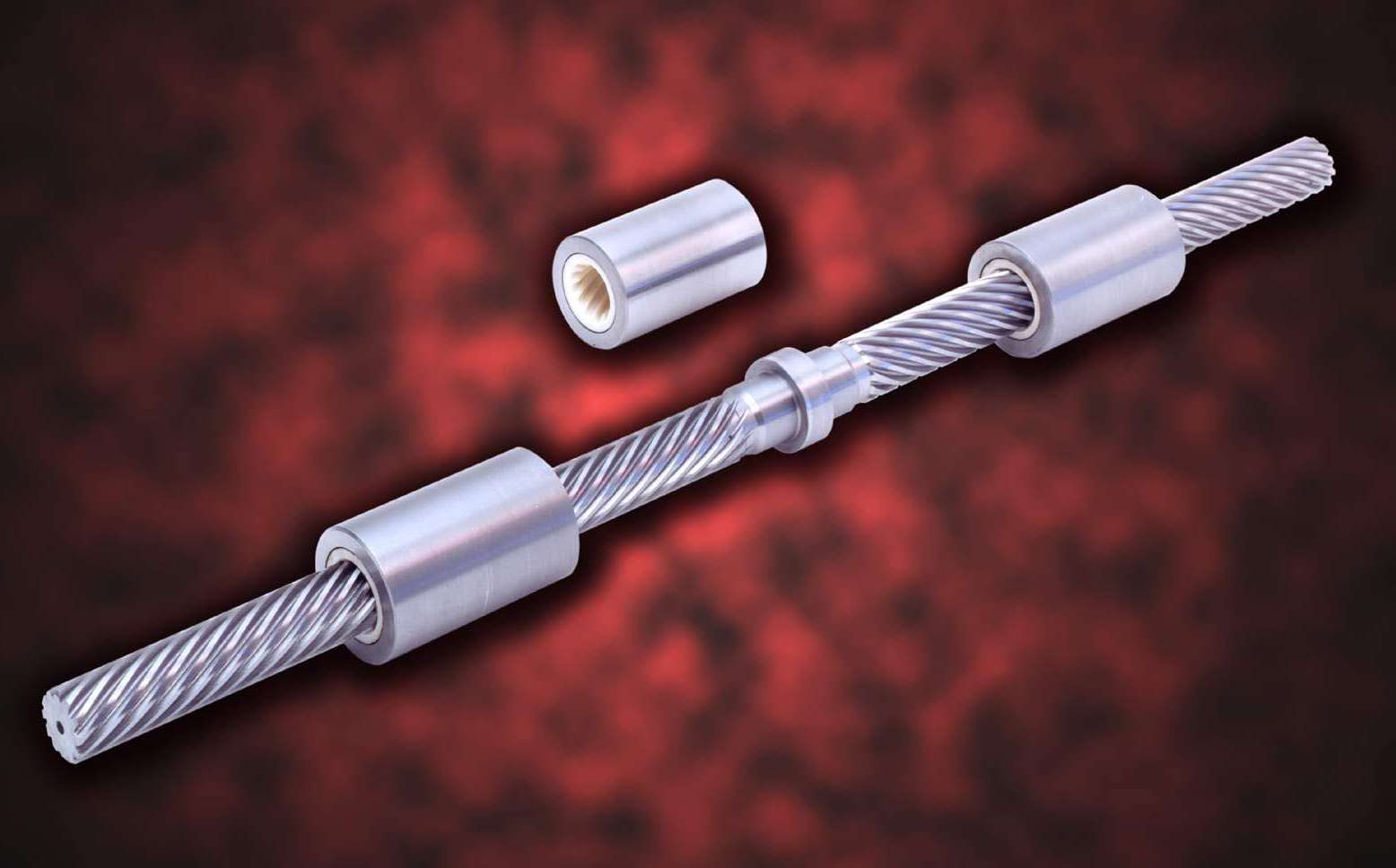

Kerk Motion Products, Inc.    Hollis, NH 03049

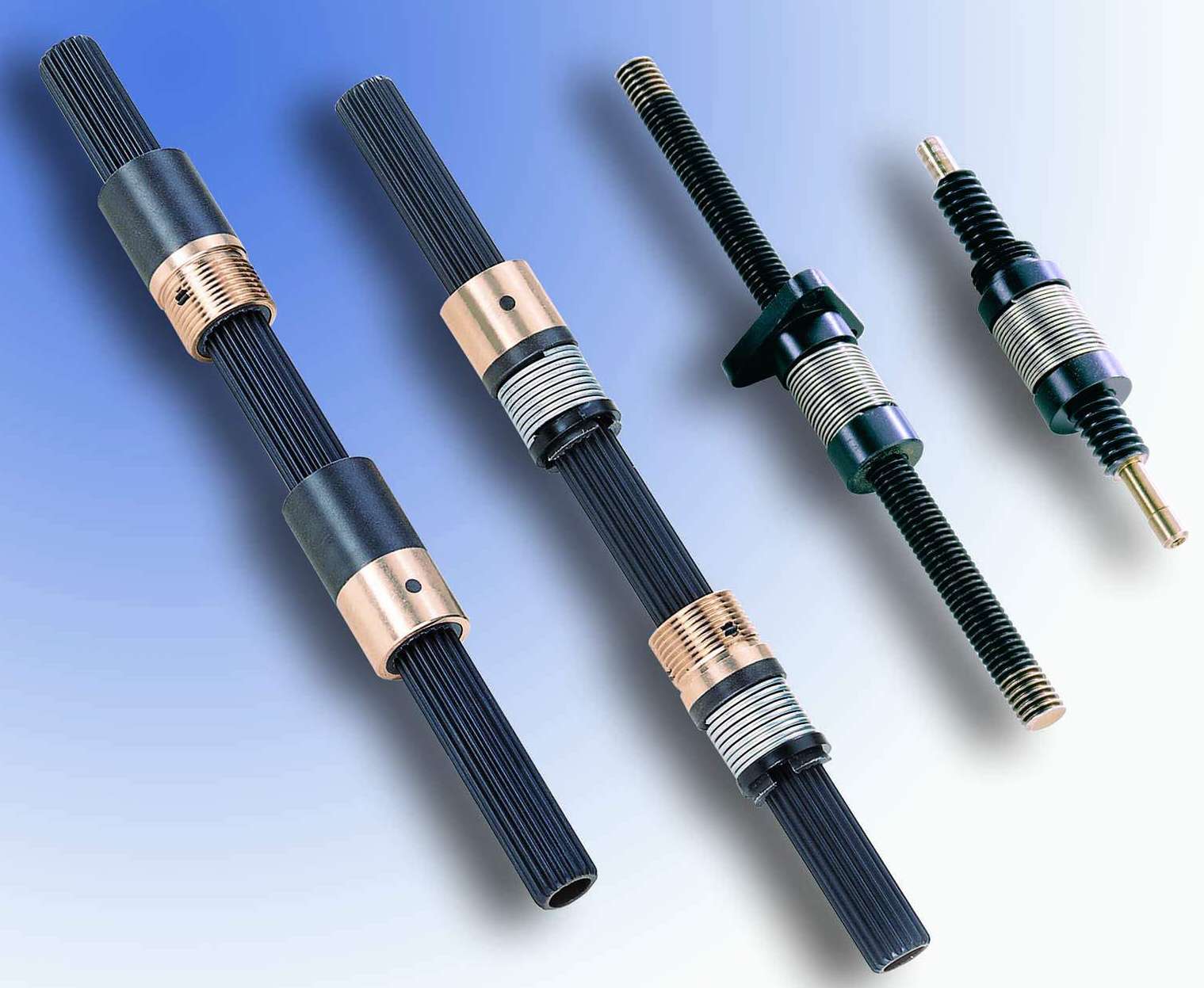

Oct 15, 2003 Lead screw, linear rail, spline shaft, and ScrewRailâ„¢ actuator assemblies are available with Kerkoteâ„¢ TFE coating, which reduces friction and extends life of maintenance-free assemblies. Coating decreases erratic drag torques and unpredictable wear and provides maximum level of self-lubrication. Dry lubricant will not become paste-like and attract dirt or debris. Assemblies are suited for motion control applications in various industries.
