FCI/Burndy Products    Manchester, NH 03108
Oct 16, 2003 HYREDUCER and HYSPLICE Kits provide in-line reduction or splice of 2 conductors. They are pre-packaged with connector and length of heavy-duty black or clear heat shrink tubing that has passed Telcordia GR-347-CORE Abrasion and Cut Test. Inspection holes in connectors ensure conductor has been fully inserted. All connectors are UL listed.

VSK Photonics, Inc.    Lake Forest, CA 92630
Oct 16, 2003 Receiver Optical Sub-Assemblies optimize performance of 10 Gbps transceivers using electronic dispersion compensation. Multi-mode Model VSK10R07-06 incorporates photodetector with linear pre-amplifier for 1310 and 1550 nm systems. It features bandwidth of 8 GHz, sensitivity of -13 dBm, and dynamic range greater than 15 dB. Single-mode Model VSK10R09-06 operates at 1310 and 1550 nm and achieves sensitivity of -17 dBm, 19 dB dynamic range, and bandwidth of 8 GHz.

PennEngineering® (Penn Engineering)    Danboro, PA 18916
Oct 16, 2003 R'ANGLE self-clinching fasteners include self-tapping and steel threaded types that install permanently in metal sheets as thin as .040 mm. Self-tapping Type RAAª aluminum clinch fasteners require thread-forming screws and come in sizes No. 4-40, 6-32, 8-32, M3, or M4. Threaded Type RASª steel clinch fasteners come in No. 4-40, 6-32, and 8-32, M3, and M4 sizes; install in aluminum or steel sheets; and accept standard machine screws.

Balluff, Inc.    Florence, KY 41042-0937
Oct 16, 2003 Laser BGL thru beam fork sensor consists of one-piece, plug and play BGL sensor with pre-aligned optics integrated into metal fork-style body. It uses Class 2 Laser that delivers precision resolution down to 0.03 mm. Laser sensor is available in 30, 50, 80, and 120 mm sizes. Always in alignment, sensor is accurate over entire length of beam, which enables it to detect minute deviations over entire area of product being manufactured.

Videx, Inc.    Corvallis, OR 97330

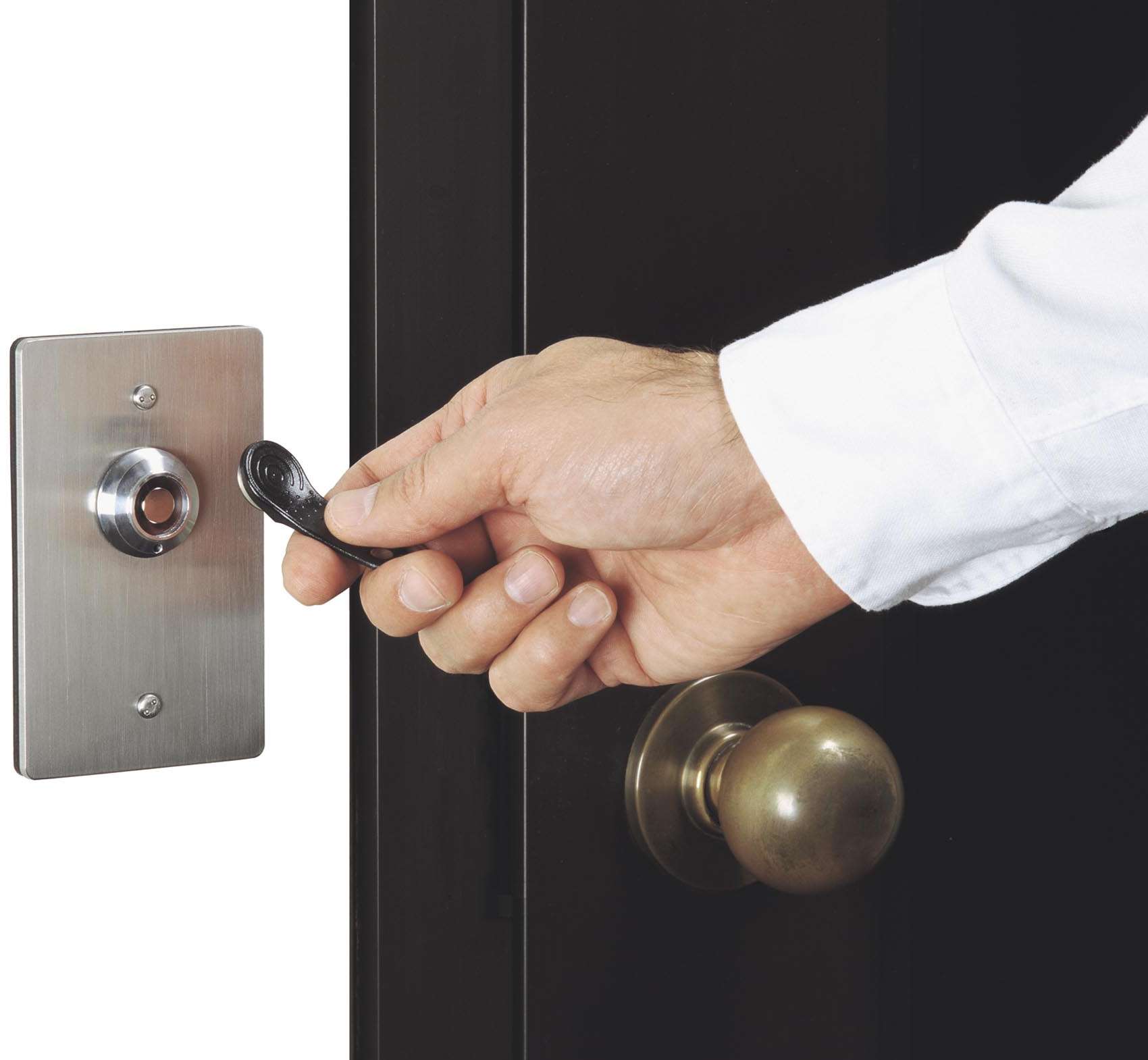

Oct 16, 2003 TouchAccess 300 monitors and restricts access to electric powered doors and gates. Recorded information such as user's ID, location, date, and time is transferred via infrared connection to Palm handheld organizer, and then to PC using AuditLink access control software. In addition to audit trail of entries, denied entries, and tamper events, TouchAccess 300 provides key control by using iButton electronic keys that cannot be duplicated.

Crouzet    San Diego, CA 92154

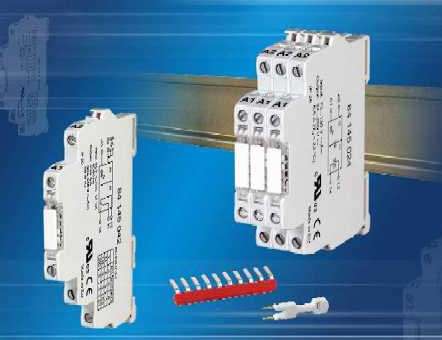

Oct 16, 2003 SIMM I/O Modules provide electromechanical relays and solid state output that enables high-frequency switching. By electrically isolating load and control circuit, they enable low-level outputs to control power components. Units feature 0.5-6 A outputs up to 250 Vac and 5 Vdc to 230 Vac/Vdc inputs. Outputs can be NO, SPDT, Transistor, or Triac.

Elmo Motion Control, Inc.    Westford, MA 01886

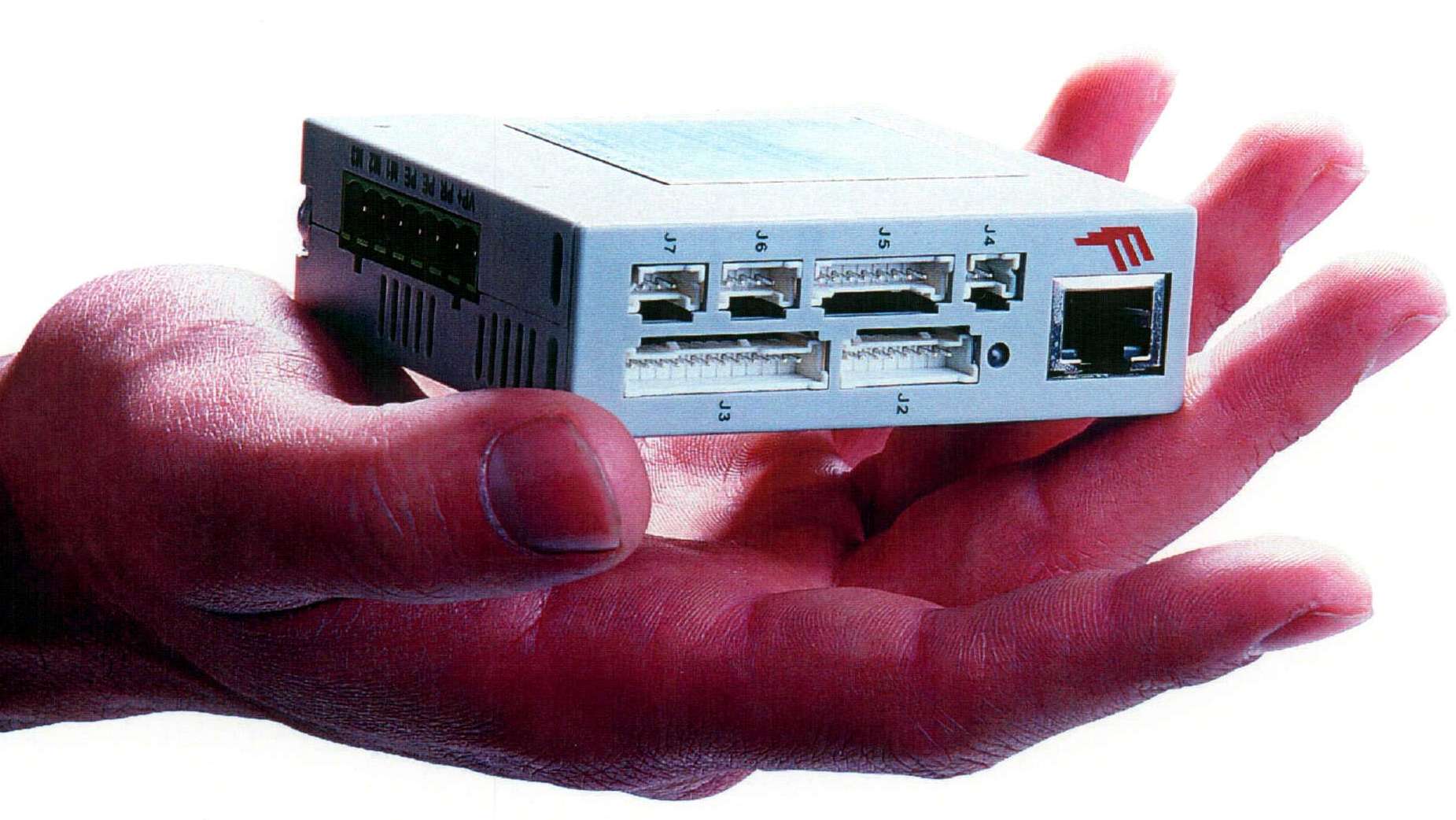

Oct 16, 2003 HARmonica intelligent servo drive provides max current output of 750 W in 82 x 25.4 x 75 mm package and features sinusoidal vector control, trapezoidal vector control, trapezoidal six-step, and DC commutation methods. Unit integrates power switching technology aligned with implementation of CANopen DS-301 and DSP-402 protocols. SIN/COS feedback with integrated interpolation provides interpolation with 4x-4096x range; scaling factor adjustable through software.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 16, 2003 The eserver pSeries® High Performance Switch uses technology based on SPâ„¢ Switch and SP Switch2. It augments eserver pSeries 690 and 655 clustered servers by increasing communication bandwidth between servers and partitions within cluster. All network connections pass through interface card packaged as either 2 or 4-Link Switch Network Interface. Switch can be incorporated within p690 system rack, p655 system rack, or as stand-alone multi-switch rack.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 16, 2003 PCI-X Dual Channel Ultra320 SCSI units and PCI-X Dual Channel Ultra320 SCSI RAID units are 64-bit, 3.3 V adapters with 320 MBps data rate. Former includes 2 SCSI channels and internal/external busses and supports target mode. Latter consists of bootable adapters that include RAID 0, 5, or 10 capability that can address up to thirty 16-bit SCSI physical disk drives on 2 independent SCSI buses. All adapters use low-voltage differential drivers and receivers.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 16, 2003 With 1U form factor, Distributed Power Interconnect products are built on IBM Interconnect Rack Architecture. They support power requirements of IBM xSeries® and high-end servers and are offered in 60 and 63 A single-phase and 32 and 60 A 3-phase versions. Modular approach to power distribution allows products to be directly attached to servers or used as front-end units. PDUs include all mounting hardware and cable brackets.

Aries Electronics, Inc.    Bristol, PA 19007-6810
Oct 16, 2003 RF Center Probe Test Socket provides manual testing of devices with pitches down to 0.50 mm in applications with speeds from 1-10 GHz. Four-point spring probe crown ensures scrub on solder ball oxides. With signal path of .077 in., socket provides minimal signal loss. Solderless, pressure-mount, compression spring probes are accurately located by 2 molded plastic alignment pins and secured with 4 stainless steel screws. Operating temperature is -67 to 302°F.

Waukesha Engine    Waukesha, WI 53188
Oct 16, 2003 Included in company's CFR (Cooperative Fuel Research) product line, Fuel Ignition Tester determines ignition delay and derived cetane number of diesel fuel. Using constant volume combustion chamber equipped with sensors that collect data during ignition and combustion phase, product simulates conditions of combustion process of actual diesel engine. Electronics and process control software enable automatic operation.

RAE Systems    San Jose, CA 95134
Oct 16, 2003 Connectivity solution, consisting of AreaPORT and AreaConnect industrial Ethernet-enabled data management platform, provides wireless online monitoring of 4-20 mA sensors and industrial Ethernet data management. AreaPORT consists of remote online monitoring product that accepts data from up to 4 channels from monitoring devices with 4-20 mA analog inputs. It delivers real-time sensor data and alarm states via wireless communications in dashboard view.

Aladdin Systems, Inc.    Watsonville, CA 95076 4159
Oct 16, 2003 SpamCatcher(TM) v3.0 applies 4 detection engines to incoming messages, with each engine applying 1,000-100,000 anti-spam rules. Users control filter strength and spam disposition. SpamCatcher lets user block people, domains, or countries. It Fingerprints(TM) every email, and matches fingerprint against SpamCatcher's database of emails. If other people have rejected fingerprint as spam, then that evaluation is reflected in individual user's spam filter.

Rockwell Automation    Milwaukee, WI 53204
Oct 16, 2003 Series XM® offers distributed protection and monitoring using modules for EtherNet/IP(TM) communication, low-speed vibration, and spike energy measurements. Gathered information allows maintenance personnel to identify developing faults and correct problems before downtime events occur. Hot-swappable modules communicate with programmable controllers or distributed control systems through network architecture.

IDEAL Scanners & Systems, Inc.    Rockville, MD 20852
Oct 16, 2003 WiseImage v6.0 for Windows enables Reprographers, Contractors, Engineers, and Cartographers to use intelligent raster editing tools to create, edit, and update raster-vector drawings in same manner as in traditional CAD package. Able to handle color, grayscale, and monochrome images, software utilizes Intelligent Raster and hybrid technology to provide complete environment for graphics editing regardless of object type.

EnWorkz, Inc.    Austin, TX 78731
Oct 16, 2003 PlantWorkzâ„¢, built on Lagrangian Relaxation and dynamic programming algorithm, helps power plants manage fuel costs. Suited for daily or weekly optimal generation dispatch, PC-based software allows user to simulate operation planning scenarios over multiple year period. Sophisticated financial analysis, risk management, and portfolio optimization are possible when PlantWorkz is used in overall EnWorkz software framework, known as EnWorkz PowerUpâ„¢.

JK Microsystems Inc.    Davis, CA 95616
Oct 15, 2003 Thin Client is built around Mini-ITX motherboard and operates like desktop PC with multimedia, operating system and device support, and hardware features for embedded environments. It includes 8–30 Vdc input power management system, status LEDs, 2 onboard IDE Compact Flash slots, and Watchdog timer. Driven by 533 MHz VIA Eden ESP 5000 microprocessor, motherboard provides VGA port, 10/100 Ethernet LAN port, serial port, parallel port, PS/2 mouse and keyboard ports.

Danaher Controls    Gurnee, IL 60031
Oct 15, 2003 Series S200 Brushless Digital Servo Drives offer 24-bit feedback and 3-5 kHz current loop bandwidth for smooth motion and rapid start and stop. Units are available for AC or DC operation with current ratings from 1 A rms continuous to 18 A rms peak. Keep Alive power input allows rapid recovery from emergency stop conditions. Optically isolated inputs/outputs, positive locking connectors, and full fault protection provide immunity to accidental damage.

Kyocera Display America, Inc.    Plymouth, MI 48170
Oct 15, 2003 F-51451 Series 8.1 in. diagonal LCDs feature chip-on-glass construction and are available in two display modes: black-on-white and white-on-blue. Modules provide 640 x 240 dot resolution, high brightness (170 nits at 5.0 mA) CCFL backlight, and operating temperature range of 0 to 50°C. Measuring 9.1 x 3.84 x 0.39 in. and weighing 227 g, products have typical contrast ratio of 15:1. Applications include medical diagnostic equipment and industrial controls.
