Continental Fan Mfg. Inc.    Buffalo, NY 14215
Oct 13, 2003 Series EXT Fans are sidewall mounted on exterior of home to allow for easy access. Installation space can be as little as 4 in. to provide room to connect ducting through wall. Units feature permanently lubricated ball bearing motors and enclosed motor housing for dust and lint. They are 100% speed controllable and are suited for bathroom ventilation, range hood exhaust, tight attic mountings, and clothes dryer boosting.

Polymer Laboratories, Inc.    Amherst, MA 01002
Oct 13, 2003 GPC-FTIR interface couples gel permeation chromatography (GPC)with fourier transform infra-red spectroscopy (FTIR) in continuous flow mode. Flow cell, which slots directly onto optical bench of spectrometer, minimizes band broadening and is available with choice of window materials. Cell assembly can operate at ambient temperature or be controlled up to 175°C. Interface is compatible with any GPC system and most industry standard FTIR spectrometers.

Glenro, Inc.    Paterson, NJ 07501 1799
Oct 13, 2003 Stainless steel electric infrared oven, rated at 58.32 kW, measures 9.75 x 5.5 x 5.5 ft and is mounted on casters. Its 36 in. wide wire conveyor belt moves product through oven at rates from 4-40 fpm, while 36 medium wave quartz tube IR heaters with gold reflective backing provide cleanroom-quality heat transfer. There is 22 in. of conveyor at entrance and exit ends, and double-wall construction provides air cooling for oven enclosure.

Saelig Co., Inc.    Pittsford, NY 14534

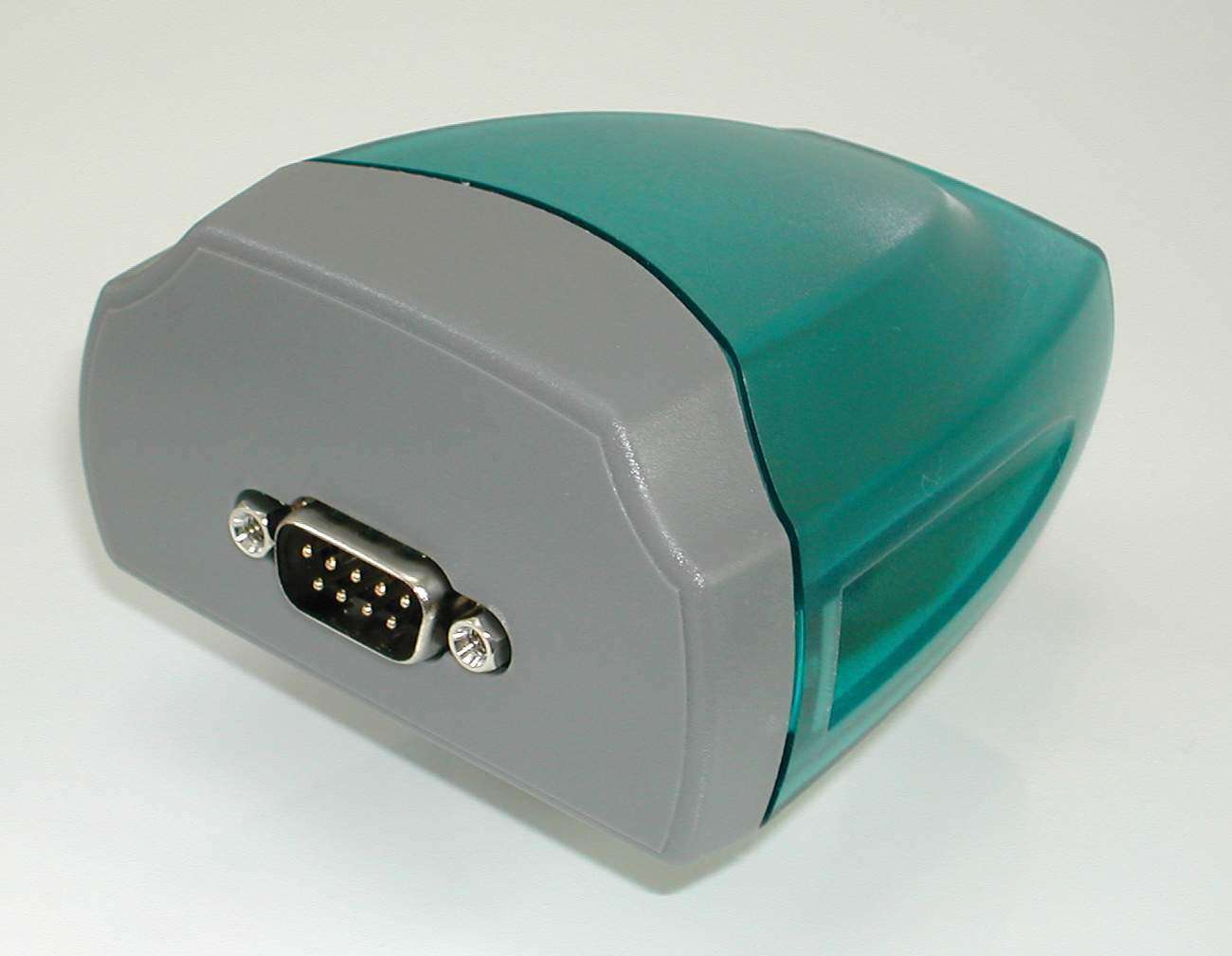

Oct 13, 2003 USB-COMi serial-port USB Adapter adds RS422/485 Windows Serial Com port using laptop's USB connection. Supporting data transfer rates up to 1 million bps, unit features internal 128 byte transmit buffer FIFO and 384 byte receive buffer FIFO. Connection to USB is via 0.9 m detachable USB cable. Internal jumper strip allows configuration in either RS-422 or RS-485 mode. Since USB-COMi takes power from USB bus, no external power supply is required.

Wanner Engineering, Inc.    Minneapolis, MN 55403
Oct 13, 2003 Hydra-Cell Series D35 Pumps use monitor to detect oil level changes, minimizing process interruptions and potential damage. Five Hydra-Cells in pentaplex design allow pumps to provide steady, pulse-free flow. Seal-less, self-priming units include Timken® roller bearings and can run dry without damage. They are suited for remote or critical pumping applications, such as automotive plants, oil refineries, chemical processing plants, and paper mills.

Scientific Technologies Inc.    Fremont, CA 94555
Oct 13, 2003 Tamper-resistant, non-contact MC-S Series compact coded magnetic safety interlock switch operates with its own control unit, which provides motor contactor monitoring and/or manual reset function. Available in 3 sizes with plastic or stainless steel NEMA 6 enclosure, series is suited to harsh environments. Single control unit can provide monitoring and indication for up to 6 MC-S switches in applications with multiple guard doors.

Astro-Med, Inc.    West Warwick, RI 02893

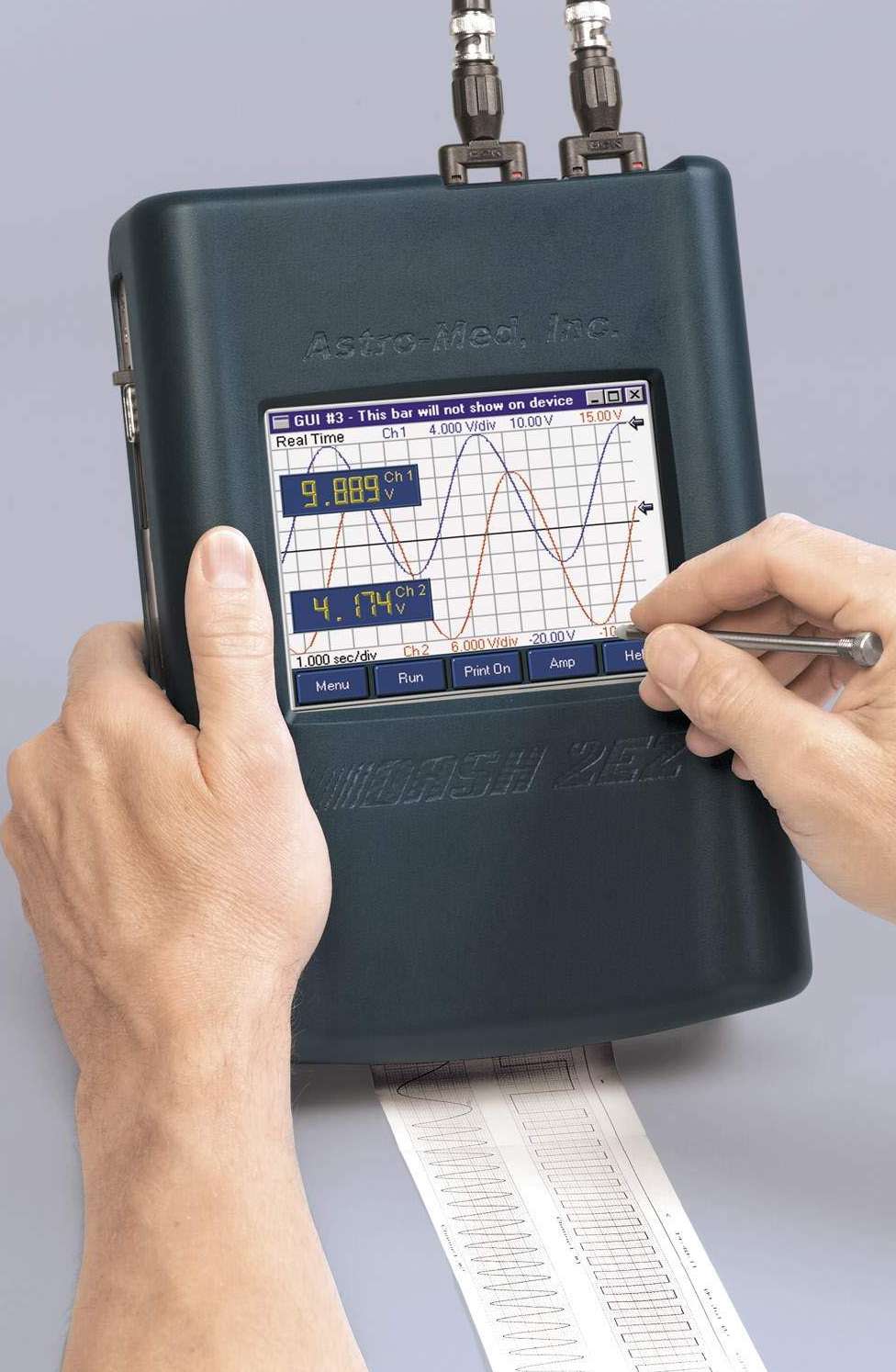

Oct 13, 2003 Hand-held Dash 2EZ includes real-time color display for waveform viewing and intuitive touch-screen control, Compact Flash memory, and integral 3 in. thermal printer. It can record 2 channels at sample rate of 10 kHz per channel while displaying waveforms on customizable display. Windows-based AstroVIEW X shareware allows data to be reviewed and analyzed on PC. Isolated, high voltage input modules accept inputs up to 250 Vrms.

InfoSight Corp.    Chillicothe, OH 45601
Oct 13, 2003 Carried by release film, FoamTagâ„¢ consists of .008 in. thick, stainless steel, laser-markable tag atop foam adhesive. Marking of tag is accomplished via low-power CO₂ laser printer. Product survives in temperatures to 400°F and liquids typical in machining operations. It is possible to append additional laser markings after tag has been affixed, enabling cradle to grave traceability.

Agfa NDT, Krautkramer Ultrasonic Systems    Lewistown, PA 17044
Oct 13, 2003 Models USN 58L, USN 58R, and USN 60 will run for at least 8 hours using Lithium Ion battery pack, which is contained in same battery tray and can be installed in the field via 4 knurled screws. Battery pack does not have to be removed to recharge and can be charged externally if spares are needed for continuous use. Charger also serves as AC power supply.

Videx, Inc.    Corvallis, OR 97330

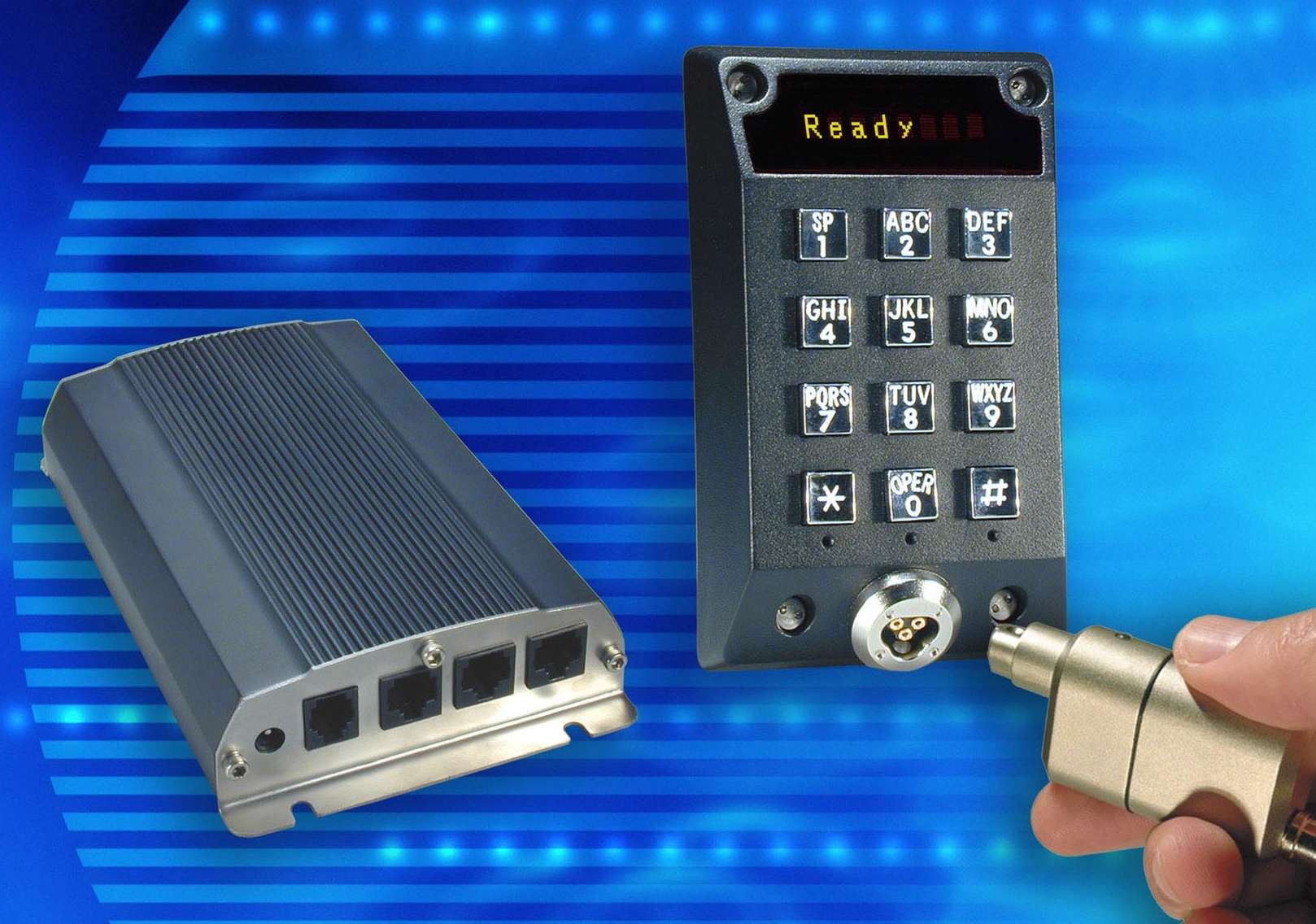

Oct 13, 2003 CyberKey Authorizerâ„¢ brings network and modem capabilities to Cyberlockâ„¢ Access Control System, allowing management to control access and audit remote site activity from one central location. Users can receive access privileges and entry authorization daily at exterior of building by inserting key into Authorizer. Audit trail of all activity is stored in both locks and keys. Keys can be set to expire automatically at specific times and dates.

Miura Boiler West, Inc.    Wheeling, IL 60090
Oct 13, 2003 EX gas/oil series high-pressure steam boilers produce dry, 99+% saturated, steam through 3-stage process. Process includes initial separation in vertical water tubes, second separation in upper header and baffle plate, and final separation in cyclone separator. Design minimizes carryover, while low water content water-tubes accelerate steam production (5 min from cold start).

Label-Aire Inc.    Fullerton, CA 92833
Oct 13, 2003 Inline Series 6000 open-frame labeling system can be outfitted with Generation 3100 Series wipe-on, air-blow or tamp-blow applicators. It features delrin chain conveyor in lengths of 6–12 ft with choice of 4.5 or 6.0 in. conveyor widths. Options include extruded aluminum or stainless steel side plates, digital/PLC controls, single or dual feedscrews with soft start, and Automatic Speed Following for surface profiling.

Fox Electronics    Fort Myers, FL 33905 5022
Oct 13, 2003 Measuring 3.2 x 1.2 x 0.95 mm, FSN watch crystal suits applications such as portable and handheld devices. With 32.768 kHz frequency, surface mount device is optimized for 12.5 pF load capacitance. Frequency tolerance at 77°F is -20 to +20 ppm, and frequency stability is -0.045 ppm/(delta C°)² over operating temperature of -40°C to +85°C. Max equivalent series resistance is 50 kohms, and insulation resistance is 500 Megohms at 100 Vdc.

Litco International Inc.    Vienna, OH 44473
Oct 13, 2003 Inca Gold Exporter meets all requirements of ISPM 15 (International Standard for Phytosanitary Measures) for export wood packaging. Wood-fiber pallet is molded under high heat and pressure, which burns out all infestation and eliminates need for fumigation or heat treatment prior to export. End product has nestable, unibody design that is clean, dry, and pest and odor free.

Megger    Dallas, TX 75237
Oct 13, 2003 Auto-ranging, fault-finding Model TDR900 measures power, telephony, CATV, and LAN cable lengths and finds distance to open or short. It includes internal library of 39 standard cable types and can be used for any cable with at least 2 insulated metallic elements, one of which may be sheath or shield of cable. Unit has automatic output impedance control of 25, 50, 75, 100, 125, or 150 ohms. Measurement range is 15–10,000 ft with minimum resolution of 20 in.

Environmental Support Solutions Inc.    Tempe, AZ 85282
Oct 13, 2003 Built on Microsoft®.NET-based Web architecture, Essential Performance Manager collects, tracks, and reports key performance indicators for benchmarking compliance efforts and environmental health and safety goals. Browser-based enterprise performance module provides digital dashboard displays and graphical analyses of environmental business metrics. It enables active communication between professionals through automated e-mail alerts and web-enabled tasking.

Gam Enterprises, Inc.    Mount Prospect, IL 60056
Oct 13, 2003 UPL series in-line planetary gear box features fixed input for ease in mounting to standard NEMA 23, 34, or 42 motors. Rated for 10,000 hrs, series offers ratios up to 100:1 and low backlash of less than 15 arc-min. Product is suited for applications where low-cost synchronous or stepper motors are used. UPL-H Linear Mount Series is also available.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Oct 13, 2003 NanoStarâ„¢ wafer chip-scale packaging (WCSP) has no molding compound, lead frame, wire bonds, or leads. Using surface-mount technology assembly procedures, packaging can be mounted to PCB without additional under fill. Available power management ICs include RF LDO regulator; DC/DC buck converter; dual operational amplifier; audio power amplifier; and digital-to-analog converter with serial interface. WCSP products are available in lead and lead-free ball options.

Wittenstein, Inc. (formerly Alpha Gear Drives, Inc.)    Bartlett, IL 60103

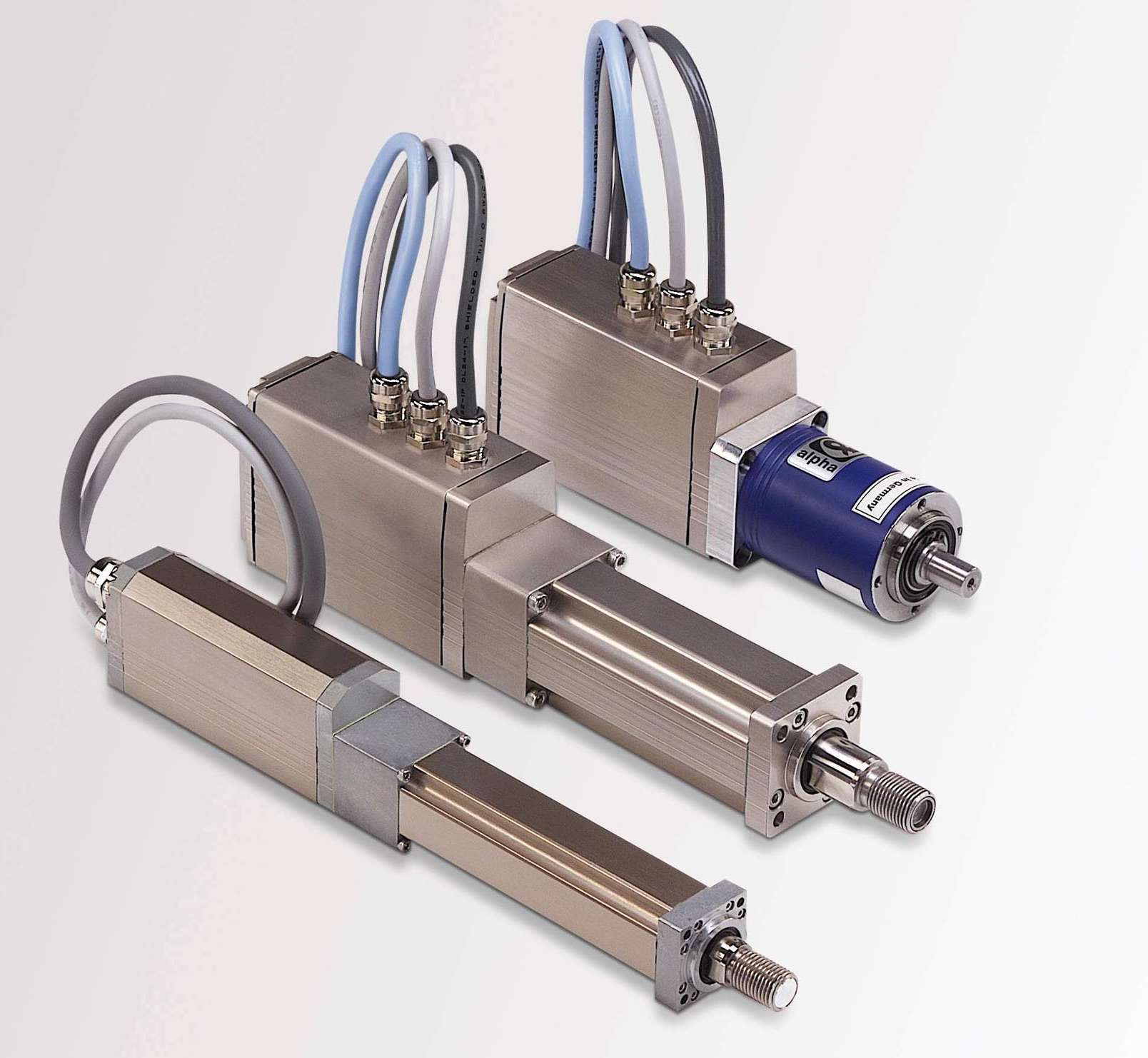

Oct 13, 2003 Ternary® Actuators can be programmed with position, velocity, acceleration, deceleration, and force/torque commands. With stroke lengths of 25-300 mm, 46 mm frame size units feature speeds to 450 mm/sec and forces to 600 N. Rotary version offers gear ratios from 5:1-25:1 and torques up to 6.9 Nm. Featuring stroke lengths of 25-300 mm, 32 mm frame size actuators offer speeds to 900 mm/sec with forces up to 190 N. Specific position can be defined via software.

Sensor Products Inc.    Madison, NJ 07940
Oct 13, 2003 Thermex® temperature indicating sensor paper reveals temperature distribution between any 2 heated contacting surfaces. Paper permanently turns varying intensities between light blue to black. Response time is 0.1 sec or less, and heat sensing range is 200-300°F. Product provides non-destructive solution in R&D and QC/QA for assessing heat distribution between 2 surfaces. It can be trimmed with scissors and is available in 17 x 14 in. sheets.
