Danfoss VLT Drives    Loves Park, IL 61111

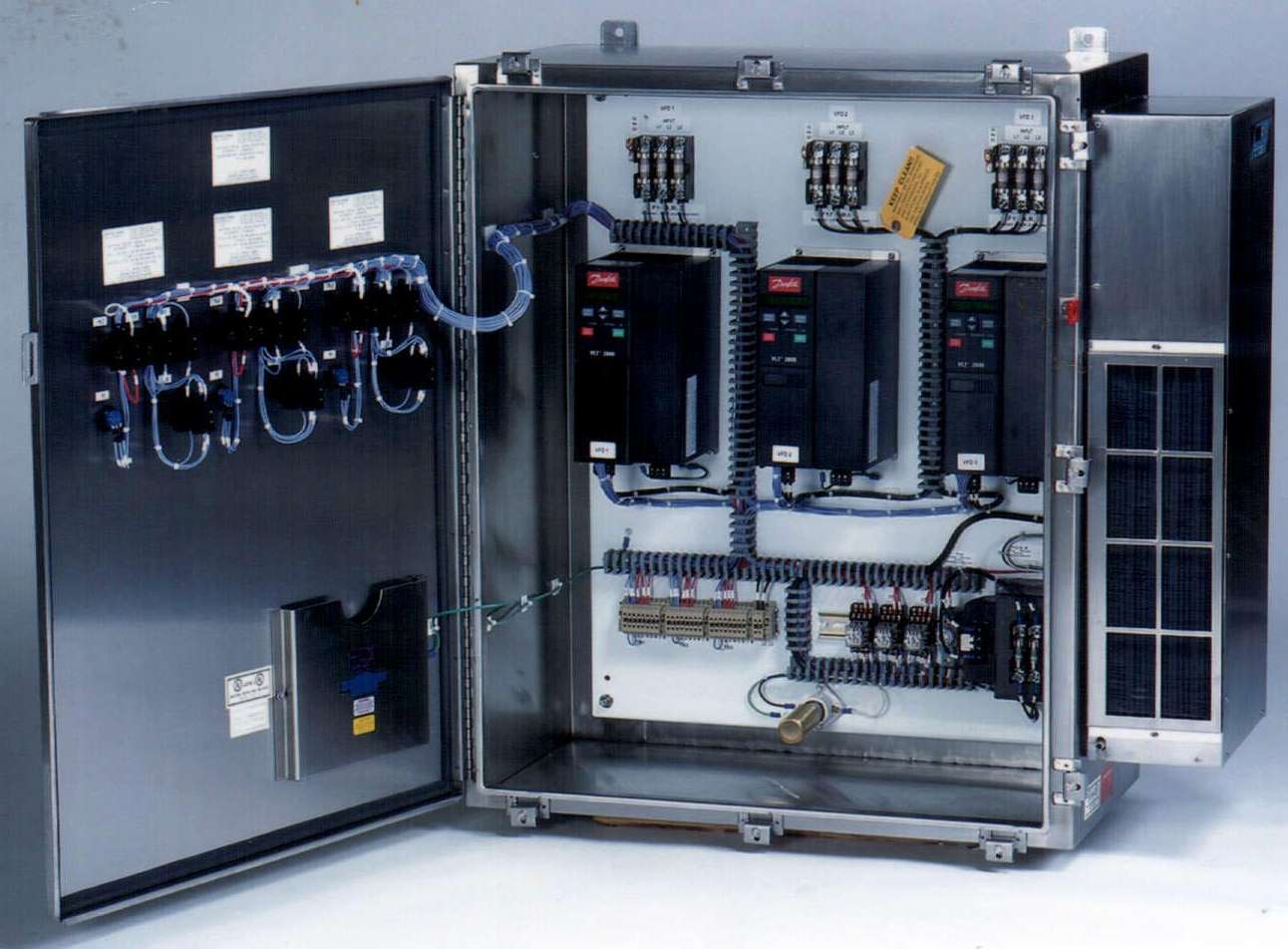

Oct 17, 2003 Engineered Panel Solutions provide control in industrial applications that utilize adjustable frequency drives. Pre-engineered panels feature fused/disconnect panel and bypass panel configurations, 2 and 3 contactor bypasses, and start/stop functionality. Additional features include undervoltage relay, dual motor selection, fuse and disconnect options, control switches, indicator lights, I/O filters, and meters. Custom engineering also available.

Intech Corp.    Closter, NJ 07624 1333
Oct 17, 2003 Power-Core™ Gears feature crystalline, non-hygroscopic, composite material that is gravity-cast around metal core. Gear teeth are hobbed into outer plastic portion of gear material. Bore machined into metal core secures temperature-resistant, metal-to-metal shaft connection. Metal core helps restrain thermal expansion of plastic portion of gear. It comes in carbon steel, stainless steel, or aluminum with OD from 0.75–8 in. in 3/8 in. increments.

Ortronics, Inc.    New London, CT 06320
Oct 17, 2003 Based on MPO 12-fiber connector technology, Momentum® modular, pre-terminated systems combine ribbon backbone cabling with optical cassettes. They are available with 62.5/125 and standard 50/125 fiber for legacy and low speed applications, as well as laser-enhanced 50/125 and singlemode fiber for extended distance when running high data rate applications such as 10 Gigabit Ethernet and Fibre Channel.

Agilent Technologies, Inc.    Santa Clara, CA 95051

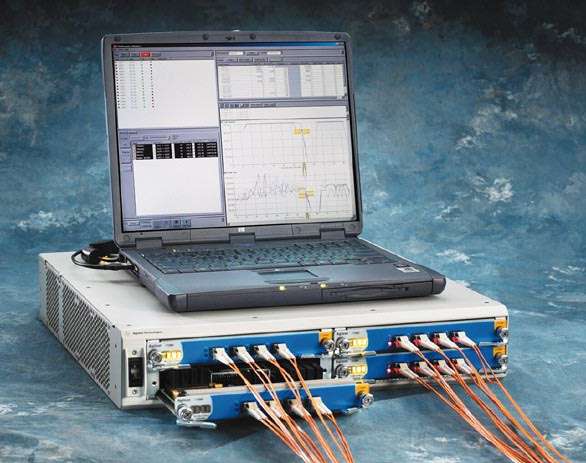

Oct 17, 2003 SAN Tester 1730B supports arbitrated loop technology, allowing emulation of up to 126 virtual devices behind each port. Engineers can characterize behavior of each device by specifying how it logs into fabric and registers to name server, and how name server is queried. Real-time protocol analyzer with triggers and filters provides protocol debugging. Each test port has 32 MB capture buffer behind it, allowing simultaneous trace on multiple ports.

RGB Spectrum    Alameda, CA 94501
Oct 17, 2003 Compatible with all PCs and workstations, SuperView 3000 video windowing display processor combines up to 12 computer signals and/or video signals on single monitor or projector. It supports up to 36 input signals, which may be NTSC, PAL, S-Video, FLIR, or computer signals up to 1600 x 1200 pixels. All image windows can be positioned, scaled from icon size to full screen, overlaid with computer graphics, or overlapped with other windows.

Upchurch Scientific, Inc.    Oak Harbor, WA 98277
Oct 17, 2003 Confluent IPV Integrated Pump and Valve, available to laboratory and diagnostic equipment OEMs, provides direct plug-in replacement for use on Cavroâ„¢ XP-3000 drivers. It delivers comparable precision and accuracy to glass barrel/Teflon® syringes.

Devcon    Danvers, MA 01923

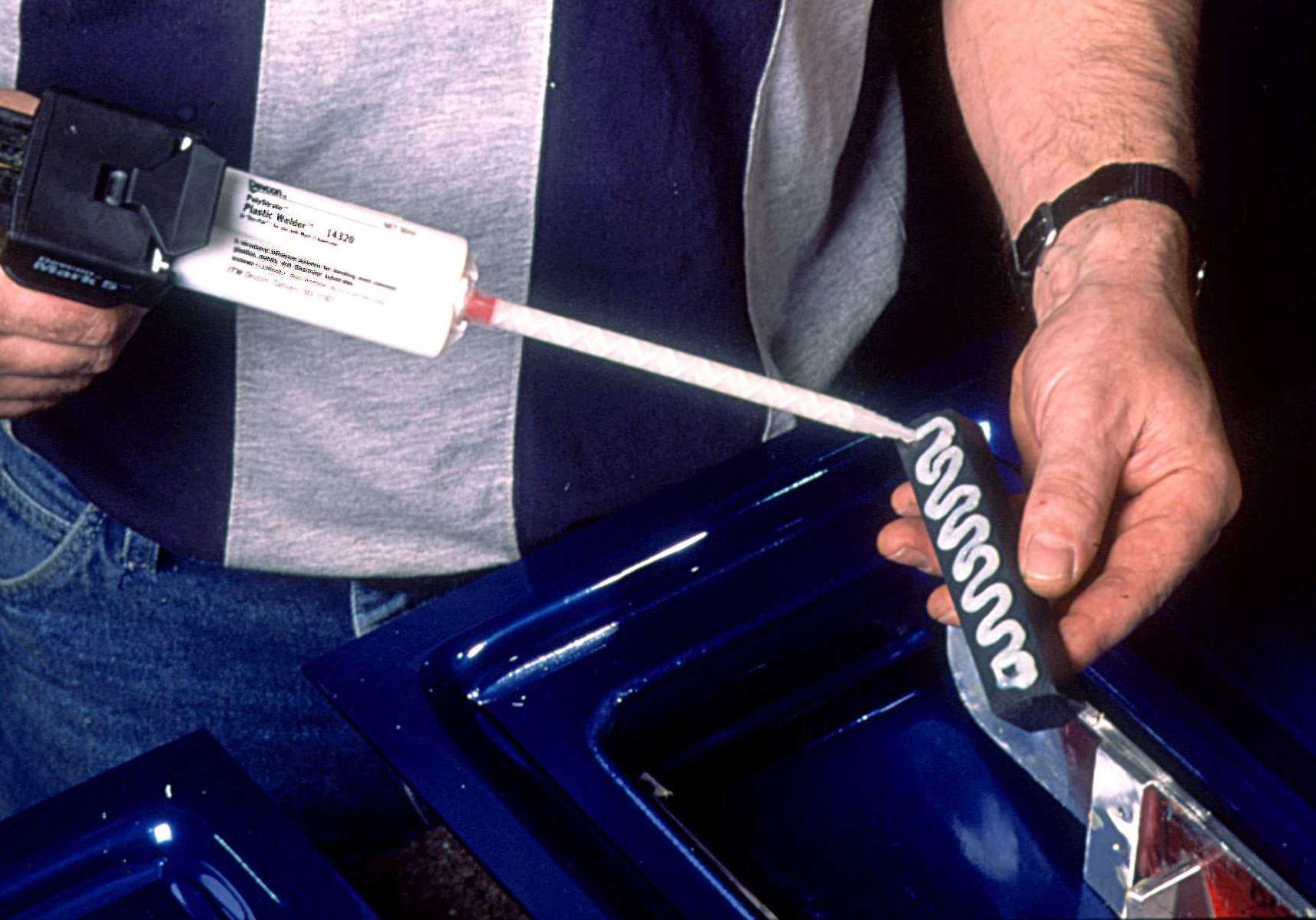

Oct 17, 2003 Self-leveling, 100% solids 10 Minuteâ„¢ Epoxy adhesive is formulated for bonding, potting, and cosmetic repairs in various OEM applications. Able to adhere to varied substrates, it is available in clear and black and has fixture time of 20 min. Functional cure is attained in 90 min. Cured product has 2,400 psi tensile shear strength, 20–25 pli peel strength, and 10 lb-ft/in² impact resistance. Bonds withstand service temperatures from -67 to 200°F.

Coto Technology    Providence, RI 02907

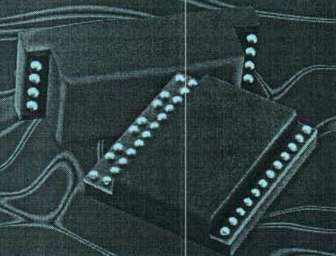

Oct 17, 2003 Models B10 and B40, featuring ball-grid-array packaging, offer RF impedance close to 50 ohms. Single channel, Form A Model B10 uses 0.1 in.² board space and includes 3.3 or 5 V coils. RF insertion loss is >10 GHz. Model B40 features 4 independent form A channels in one quad package requiring 0.215 in² of board space. Both 3.3V and 5V coils are available and RF insertion loss is >11 GHz. Interchannel RF crosstalk is minimized by coaxial and magnetic shielding.

Mikron Instrument Co., Inc.    Oakland, NJ 07436
Oct 17, 2003 Model MI-GA5-TV is designed for non-contact temperature measurement of temperatures from 482 to 5,432°F. TV camera module facilitates optical alignment and enables continuous observation, via remote video monitor, of measurement area. Model MI-GA5 is also available with laser targeting or thru-lens sighting with analog and digital outputs. Each model includes software for data logging and real-time process temperature trending.

Electroswitch, Unit Of Electro Switch Corp.    Weymouth, MA 02188 2913
Oct 17, 2003 Series 24 Lock-Out Relays (LORs) feature manual-, electric-, or self-reset capabilities. Manual-reset LORs have trip speeds of less than 8 msec, while electric- and self-reset models have standard-speed (12–15 msec) or high-speed (8 msec or less) trip configurations. Products have up to 10 decks in one relay, providing up to 40 independent contacts. Contacts are rated at 60 A for 1 min and 30 A for continuous current in range of 125–250 Vdc or 120–600 Vac.

Scientific Technologies Inc.    Fremont, CA 94555

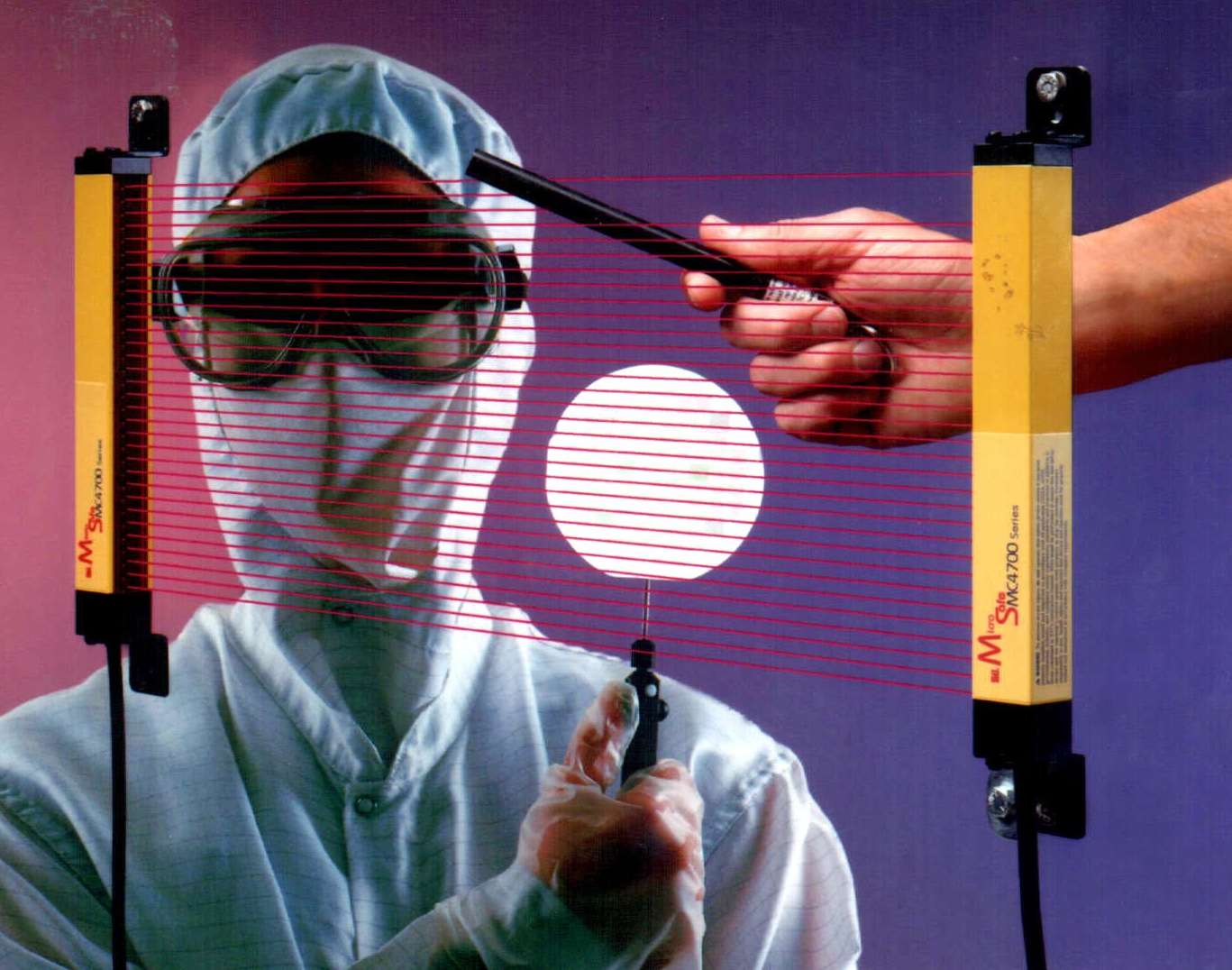

Oct 17, 2003 MicroSafe MC4700-14, available in protected heights from 150–1,800 mm, features 5 m sensing range. Response time of 6.5 msec allows unit to be mounted close to pinch points of hazardous equipment. Suited for small automatic assembly and material handling equipment, light curtain provides MPCE monitoring, exact channel select, and floating blanking. It includes 2-digit diagnostic display, 2 solid-state safety outputs, and start/restart interlock mode.

Wanner Engineering, Inc.    Minneapolis, MN 55403
Oct 17, 2003 Stan-Cor Teflon® Series non-metallic, ANSI Pumps feature solid Teflon® pump head for chemical compatibility and corrosion/abrasion resistance with fluid temperatures up to 325°F. They provide total dynamic head to 90 ft and flow rates to 500 gpm. Heavy-duty drive shaft and duplex contact thrust bearings ensure low maintenance. Pumps are suited for dirty, abrasive, corrosive, and reclaim process fluids in harsh, industrial applications.

Columbia Machine Inc.    Vancouver, WA 98661
Oct 17, 2003 Load Transfer Product Line allows transfer of product to alternate load base for shipping or storage. Alternate load base includes pallet-to-pallet, pallet-to-sheet, or pallet-to-floor or truck deck. Fork lift driver places load onto receiving deck and pulls chord to start machine. After transfer, forklift driver can pick up load from any of 3 available sides.

Motorsoft Inc.    Lebanon, OH 45036
Oct 17, 2003 Set of 4 same-size motors, measuring 80 mm OD by 35 mm stack length, includes 3-phase ac induction motor, 3-phase brushless PM synchronous motor, 3-phase switched reluctance motor, and 3-phase synchronous reluctance motor. Each is housed in aluminum die-cast frame with common mounting bracket. Optical encoder is provided for commutation events. Continuous output power ranges from 100–250 W depending on motor, and shaft speeds reach 4,000 rpm in some models.

EDS PLM Solutions    Milford, OH 45150
Oct 17, 2003 Teamcenter® Consumer and Packaged Goods enables clients to collaborate with suppliers, business allies, and customers at all stages of product lifecycle. Software helps accelerate artwork and package design and approval process and promotes best practices via process templates. Phases and gates within process template provide management framework from which team members understand overall product initiative and automatically receive individual assignments.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 17, 2003 With 5.25 in., half-high form factor, Digital Linear Tape (DLT) VS80 internal SCSI tape backup subsystem supports data transfers up to 6 MB/s in compressed mode, Ultra2 SCSI controllers, and Ultra160 SCSI adapters. With up to 100 GB native capacity per cartridge, LTO Half-High Tape Drive has 7.5 MB/s native backup rate and 8-channel read-while-write functionality. It supports Ultra2 or Ultra160 SCSI controllers.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 17, 2003 TotalStorage® Enterprise Storage Serverâ„¢ (ESS) offers Peer-to-Peer Remote Copy (PPRC) over Fibre Channel, enabling use of Fibre Channel Protocol as communications link between ESS PPRC primary and secondary machines. Features include ESS Application Programming Interface support for Copy Services configuration and use, Arrays Across Loops, asynchronous cascading PPRC enhancements, rpm intermix support, and Turbo II Processor option.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 17, 2003 TotalStorage® SAN Switches include mainframe FICONâ„¢ switching support on 2109-M12 Enterprise Director, including FICON switching, Open/FICON intermix, and FICON Director cascading between 2 Directors. Fiber optic transceivers operate at distances up to 35 km and 80 km to help disaster tolerance solutions without separate gateway integration. Secure Fabric OS activation provides security and is required to run FICON on IBM SAN Director in cascaded mode.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 17, 2003 TotalStorage Expandable Storage Plus 320 enclosures accommodate up to 14 hot-swappable SCSI Ultra320 drives for pSeries® servers. Rackmountable Model DS4 and deskside tower Model TS4 offer 10 K capacities of 36.4, 73.4, and 146.8 GBs and 15 K options at 36.4 and 73.4 GBs. They provide up to 320 MB per second synchronized data transfer speeds when attached to Ultra320 host adapter. Each offers option for second power supply.

Finmatica, Inc.    Atlanta, GA 30328
Oct 17, 2003 FINeCHAIN v3.0 addresses customer Collaborative Supply Chain Planning issues from demand forecasting to collaborative manufacturing and production scheduling. It includes industry-specific solutions for Control Laboratory and Manufacturing, Service Parts, and Complex Manufacturing. Software facilitates key routines such as month-end, scheduling calculations, exception retrieval, and net forecast population. Language support for French and Italian also included.
