Pacific Image Communications, Inc. (PIC)    Alhambra, CA 91803 4742
Oct 21, 2003 PrimeFilm 3650u operates at 3,600 dpi optical resolution, producing digital image of approx 17.9 million pixels. With 3.2 dynamic range and 48-bit color capability, unit delivers scanned images up to 10 x 14 in. Digital ICE3â„¢ allows user to clean, correct, and restore film images, while LED light source assures consistent and exact color conformity. Scanner includes Photoshop Elements editing tool and uses USB 2.0 interface for data transfer at 480 MB/sec.

Excalibur Equipment LLC    Fairfield, NJ 07004
Oct 21, 2003 Gregory EX Explosion Proof Trucks offer sanitary, non-corrosive, stainless steel construction for chemical, pharmaceutical, and food industries with high hygienic requirements. Designed for stacking, transporting, and bulk storage placement in explosive and hazardous environments, they aid in fulfilling bulk material handling and safety needs. Units also transport oversized, heavy vats from processing to mixing areas.

Dorner Mfg. Corp.    Hartland, WI 53029 0020
Oct 21, 2003 AquaPruf 7200 Conveyors feature 28 mm sealed bearing, belt speed of 300 fpm, and can be cleaned with soap and water using less than 100 psi. AquaPruf 7300 models feature 44 mm sealed bearing and can withstand bleach or chlorine cleaning solutions at up to 1,500 psi. Belt speed is 500 fpm. Suited for food, pharmaceutical, and medical applications, both are stainless steel with 60 lb capacity. Widths range from 2–18 in. and lengths from 2–18 ft in 1/8 in. increments.

STAPLA Ultrasonics Corp.    Wilmington, MA 01887 1014
Oct 21, 2003 Terminal Welder System can weld and crimp over 20 mm² of wire to ground lug in single operation. Generator/controller combines quality and process control capabilities including preventive maintenance, troubleshooting, and calibration. Electronics are incorporated in controller to maintain variables such as compression of wires before welding, weld time, energy, and final weld height within tight tolerances.

Indco, Inc.    New Albany, IN 47151
Oct 21, 2003 Variable Speed Electric Dispersers feature 10, 15, or 20 hp, 3-phase motors that are Totally Enclosed Fan Cooled or Explosion Proof. Speed range is 640–3,300 rpm and controlled by hand wheel. Digital tachometer is optional. Each disperser includes stainless steel 10, 12, or 14 in. diameter Cowles type dispersion blade and 43 in. 316 stainless steel shaft. Airlift raises or lowers blade 48 in.

Grove Worldwide    Shady Grove, PA 17256 0021
Oct 21, 2003 Equipped with 38–142 ft, 5-section MEGAFORMâ„¢ boom, model RT800E has max tip height of 150 ft and includes hydraulic counterweight. Standard 31–56 ft offsettable lattice swingaway extension offsets 0°, 20° and 40°. Cab seat incorporates armrest-mounted, hydraulic, single-axis controllers and tilts to 20° for view of load. Features include Graphic Display load moment and anti-2 block system with audio-visual warning and control lever lockout.

Leica Microsystems, Inc.    Buffalo Grove, IL 60089
Oct 21, 2003 Leica EM IGL automated Immunogold labeling system addresses needs of researchers who want to visualize specific proteins within cells. System eliminates need for manual labeling of grids when preparing tissue and cell samples; it automatically applies reagents to ultra-thin sections held on grids in humidity-controlled environment using one of 99 possible preset programs.

Worksaver Inc.    Litchfield, IL 62056
Oct 21, 2003 SmoothCutâ„¢ PTO grinder models SG-26 and SG-36 cut from 18 in. above ground to 10 in. below with swing arc of 45° and max horizontal cut of 28 or 33 in. Both models feature replaceable, carbide-tipped, bolt-in cutting teeth and hardened bushings and grease zerks at major pivot points. SureFootâ„¢ stabilizer bar provides solid footing during operation, and rubber deflector helps control debris during grinding.

Nemal Electronics International, Inc.    North Miami, FL 33161
Oct 21, 2003 Terminated using industry-standard crimping tools, NE8000 Series connectors have knurled body design and contact captivation to insure proper contact placement. Brass-bodied connectors are nickel-plated, have gold-plated contacts, and Teflon insulation. Characteristics include 75 ohm impedance, 5,000 megohm insulation resistance, and return loss from -25 db to 2 GHz. Contact retention is 6 lb min, and engagement force is 2.5 lb max.

RIDGID    Elyria, OH 44035
Oct 21, 2003 Model R2500 operates on 2.4 A motor, which provides quiet power source with little vibration. Oversized, quick release tabs secure standard paper onto sander. Dust collection is provided by active through-the-pad collection and screw on dust bag. Dust-sealed slide switch allows user to verify if tool is on or off, preventing accidental start-up. Sander includes 12 ft flexible rubber power cord, lighted plug, and Velcro(TM) cord wrap.

RIDGID    Elyria, OH 44035
Oct 21, 2003 RIDGID® heavy-duty, ½ in. Model R5010 has 2 dials that control torque and speed. When it senses need for slow, high-torque drilling, it switches into pulse mode. Drill uses 9 A Extended Motor Life motor; impact-grade, keyless chuck with spring-loaded internal clamp; and RIDGID auto-stop brushes. Drill features automatic safety clutch and has 2 variable speeds: 0-1,000 and 0-3,000 rpm. For hammer drilling, it runs at 0-19,000 rpm or 0-57,000 bpm.

RIDGID    Elyria, OH 44035
Oct 21, 2003 Model R1000 Heavy Duty 4½ in. Angle Grinder features die-cast gearbox and 8 A motor, which allows grinder to operate in dusty, abusive jobsite conditions. Motor has auto-stop brushes that halt grinder's operation when brushes are worn, before they damage motor. Automatic safety clutch protects user from sudden kickback if wheel accidentally binds. Grinder includes spindle lock, 2-position side handle, and 12 ft cord with lighted plug.

RIDGID    Elyria, OH 44035
Oct 21, 2003 Model R7100 Heavy Duty ½ in. Drill features hardened steel gears and 9 A motor that handles operation in dusty, abusive jobsites. Auto-stop brushes halt drill's operation when brushes are worn, before they damage motor. Automatic safety clutch protects user from kickback if bit accidentally jams. Two variable speeds, 0-1,000/0-3,000 rpm, permit screw driving and drilling. Model R7100 includes lock-on button and 12 ft cord with lighted plug.

RIDGID    Elyria, OH 44035
Oct 21, 2003 Model R3000 features 9 A of power, variable speed trigger switch, and 3 bi-metal blades for cutting through wood and steel. User can change speed in middle of cut, even when running at 2,800 strokes/min. Pivoting shoe adjusts with Allen wrench and can be moved in and out, depending on application. Saw includes overmolded front and rear rubber grips, die-cast gear housing, double insulation, and 12 ft rubber cord with lighted plug.

CINTEC America Inc.    Washington, DC 20015

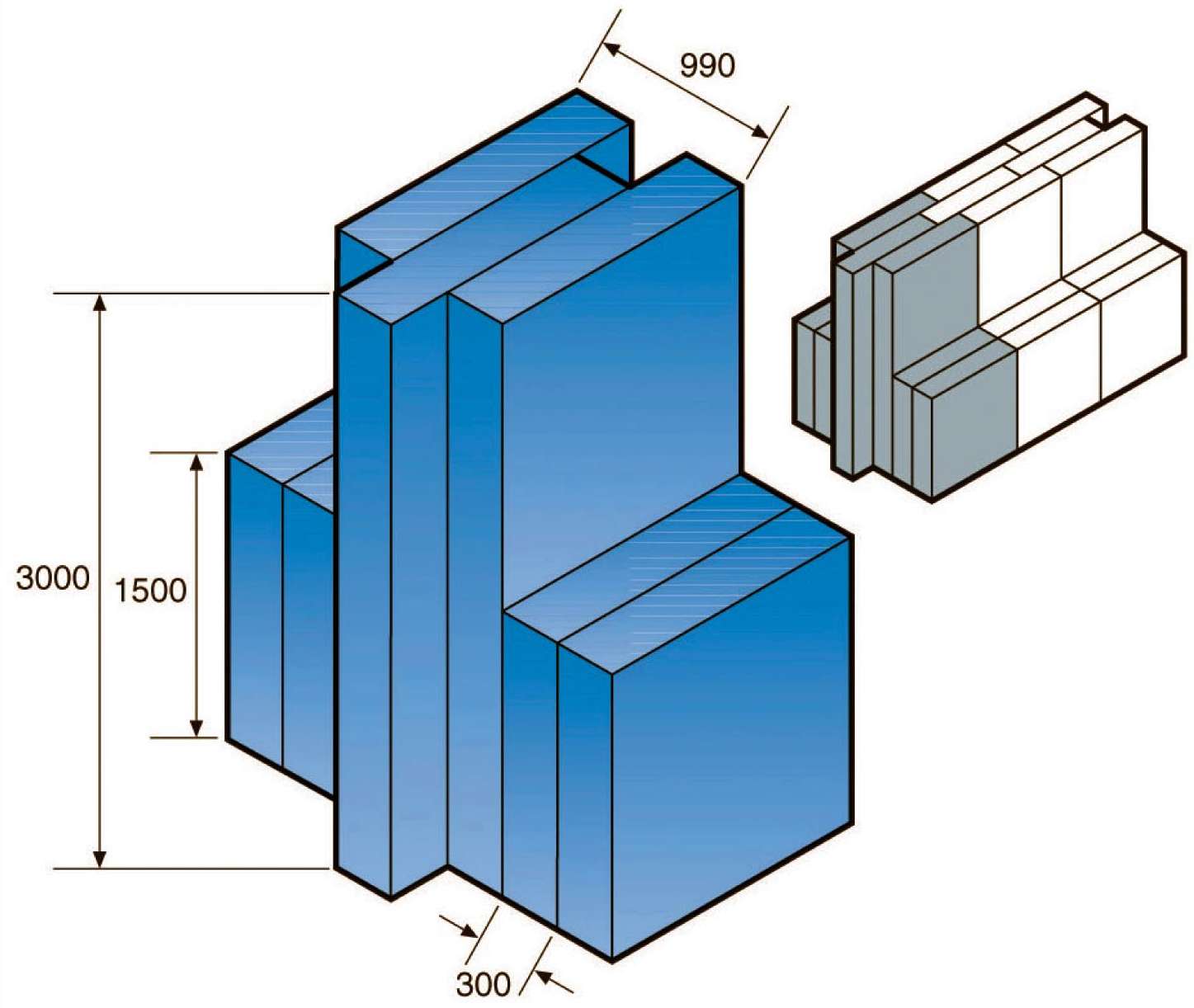

Oct 21, 2003 Self-inflating Waterwallâ„¢ provides temporary blast mitigation and fragment retention from vehicle-born improvised explosives up to 500 kg. It also enables safe disposal of unexploded ordinance. Made from PVC or neoprene-coated internally-reinforced fabric, it is deployed manually and filled with air then water. Units interlock to create stable, unbroken wall. Each unit measures 9.8 x 4.8 x 5.4 ft and weighs 145 lb (empty) and 5.7 tons (full).

American Coolair Corp.    Jacksonville, FL 32203 2300

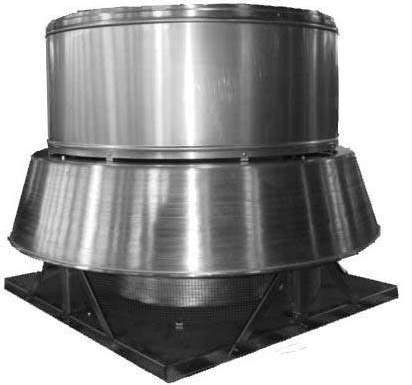

Oct 21, 2003 Model CRBA 52 in., spun aluminum downblast power roof ventilator includes aluminum motor-compartment cover and out-of-air-stream open motors that are isolated from exhaust air. Centrifugal wheel has non-overloading, backward-inclined design and is computer-balanced. Overlapping wheel and deep-spun venturi minimize noise and air turbulence, while permanently affixed wheel-balance weights provide vibration-free operation.

Hamilton Caster & Mfg. Co., The    Hamilton, OH 45011 4087

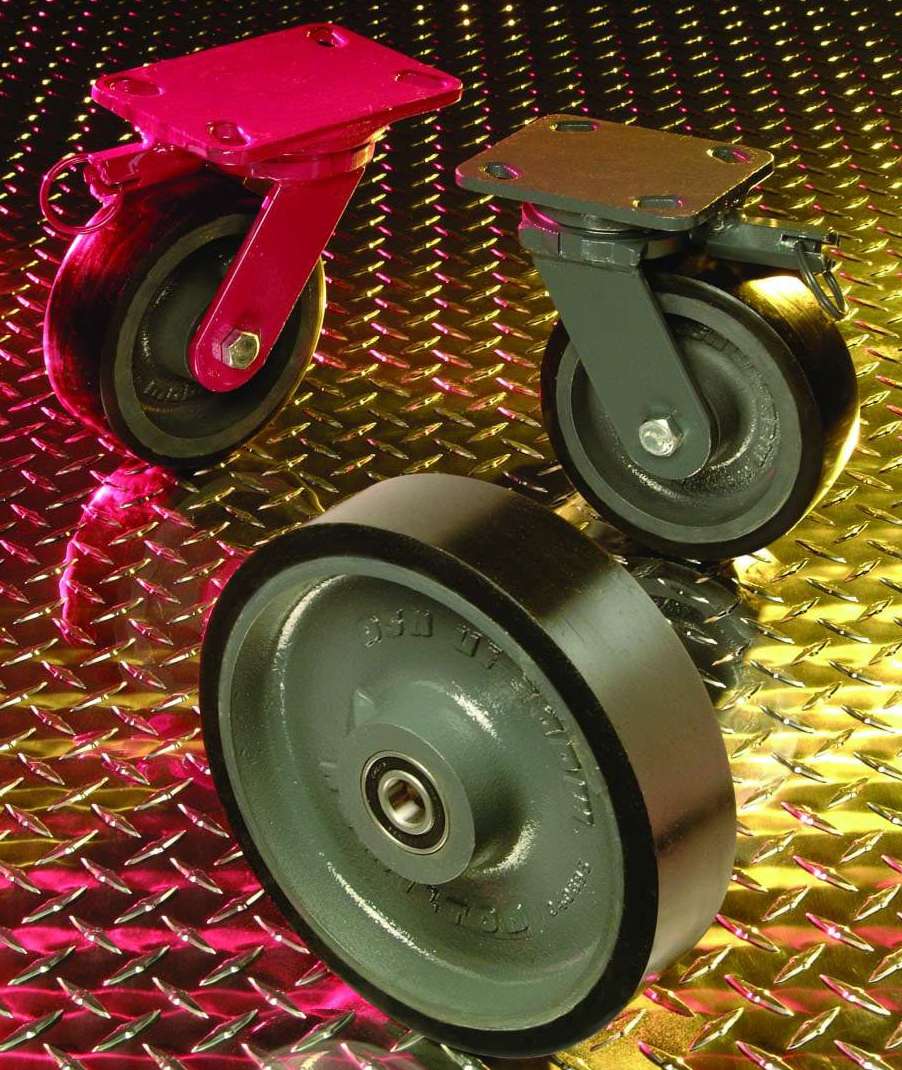

Oct 21, 2003 Superlast® XC wheels have 1 in. tread chemically bonded to forged steel centers and are offered in sizes from 8 x 3 in. with capacity of 4,550 lb to 12 x 4 in. with 7,800 lb capacity. All wheels have precision-tapered roller bearings. Duralast® XC wheels have ½ in. tread chemically bonded to cast iron centers and come in 4 x 2 in. to 12 x 3 in. sizes with capacities from 975–4,550 lb. Wheels have precision bearings or precision ball bearings.

Cypress Computer Systems    Lapeer, MI 48446
Oct 21, 2003 DataBenders(TM) imports, converts, and exports card access control system file types, enabling multi-site access with one card. Data can be converted to utilize or replace existing hardware, allowing organizations to update card access systems, or change or add vendors. DataBenders is suited for system integration and retrofit applications for access card uses in many industries.

ITT Standard    Buffalo, NY 14227 1233
Oct 21, 2003 Series C200® features fixed tubesheet with removable channel or bonnet. Tube side is readily accessible for ease of cleaning. Available with shell expansion joint, units come in 1, 2, or 6-pass models for heating or cooling oil, water, and chemical process fluids.

Cooper Hand Tools Div., Cooper Industries    Raleigh, NC 27612
Oct 21, 2003 Pro Series Tapes, available in 100, 200, and 300 ft, are double-sided with engineer scale decimal markings on one side and in./ft on the other. They feature 3:1 crank handle gear ratio and fiberglass blade that is double-coated to repel moisture and preserve blade graphics. Flexible tape has tensile strength of over 400 lb. End hook is protected by bumper, and molded guides reduce blade twist.
