Motorola, Inc.    Schaumburg, IL 60196 4041
Oct 20, 2003 Call Boxes use push-to-talk operation and can provide instant access between individuals in remote locations and personnel connected with system. Powered by single 12 V/12 A-hr battery, units are recharged using solar or ac/dc power source. Built-in voice chips give audible instructions to users requiring assistance. Suited for indoor and outdoor applications, models include automatic Call Box ID and location identifier.

Tra-Con, Inc.    Bedford, MA 01730

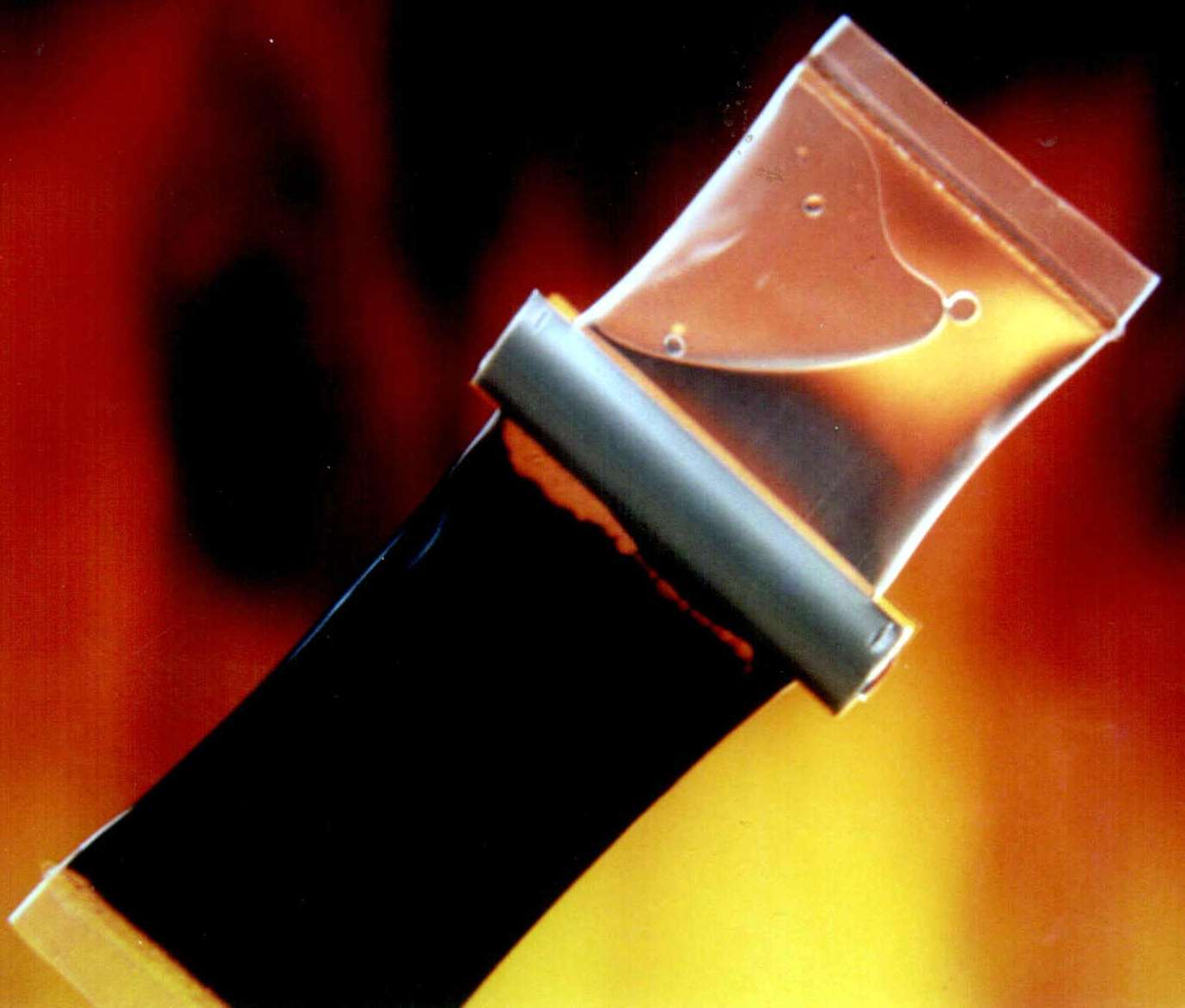

Oct 20, 2003 Tra-Bond 970-1N1 sag resistant epoxy adhesive develops aluminum-to-aluminum lab shear strength of 3,000 psi, can reach glass transition temperature of 83°C, and cures to 75 shore D hardness. Available in sizes and packaging to match unique application needs, product is offered in pre-mixed and frozen syringes or in Bipax for room temperature storage.

Tra-Con, Inc.    Bedford, MA 01730

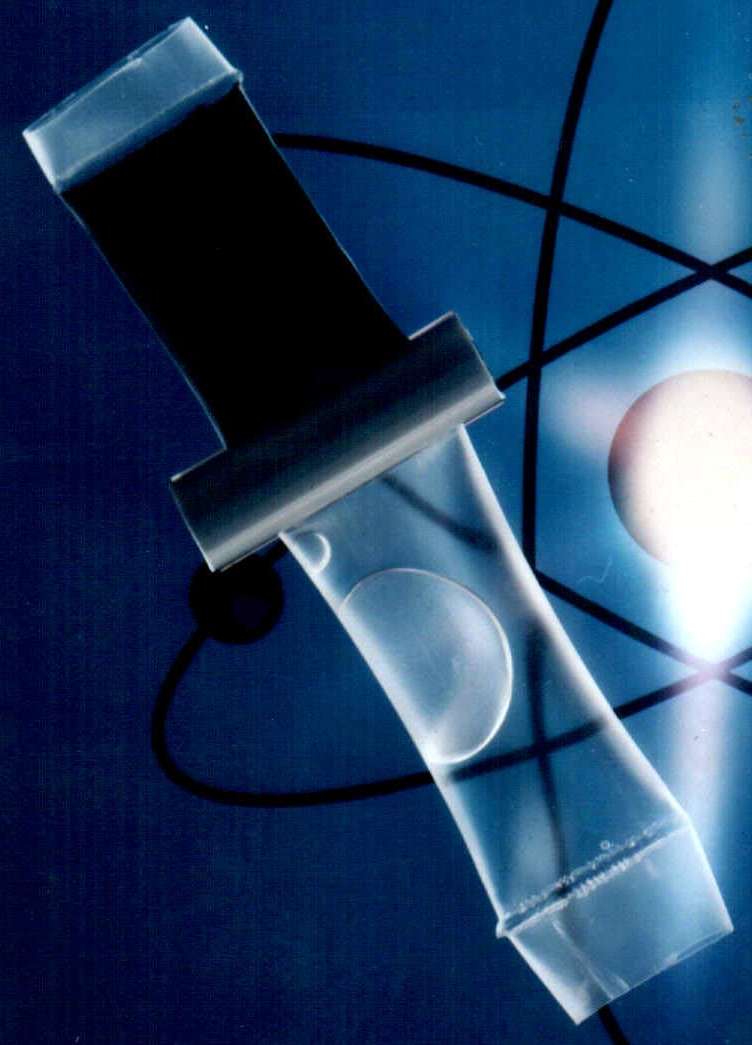

Oct 20, 2003 Heat-resistant, one-part, solvent-free TRA-BOND 77-1S has glass-transition temperature of 200°C and withstands 1,000 hr at 100°C and 95% RH. It has working life of 3 months at 25°C and smooth consistency. Dispensed through fine-diameter needles, adhesive does not sag or tail. Cured product has lap shear strength of 2,400 psi and 94 Shore D hardness. Applications include attaching surface-mounted devices to circuit boards or other electronic devices.

Computer Conversions Corp.    East Northport, NY 11731
Oct 20, 2003 Series PC104-DS Synchro/Resolver Output Modules feature 2 channels of digital-to-synchro and digital-to-resolver conversion in standard stack-through PC104 footprint. They offer 16-bit resolution, transformer isolated reference inputs, and short-circuit proof outputs capable of driving up to 1.2 Va load per channel. Reference inputs are 2-11 5 Vac at 57–3,000 Hz. External output transformers are available for driving 90 V L-L signals on 60 Hz applications.

Computer Conversions Corp.    East Northport, NY 11731
Oct 20, 2003 Reference-powered Digital-to-Synchro Converters require +5 Vdc input power and have internal transformer isolated outputs. They accept 14-bit natural binary angle and convert it into 3-wire synchro signal. Output is short circuit proof, and current limited with transient protection and thermal cutoff. The 400 Hz units have 4.5 Va load capability, while 60 Hz units offer 2 Va capability. All utilize thermally conductive encapsulant and metal top plate.

LEDopto, div. of AZ Displays, Inc.    Aliso Viejo, CA 92656

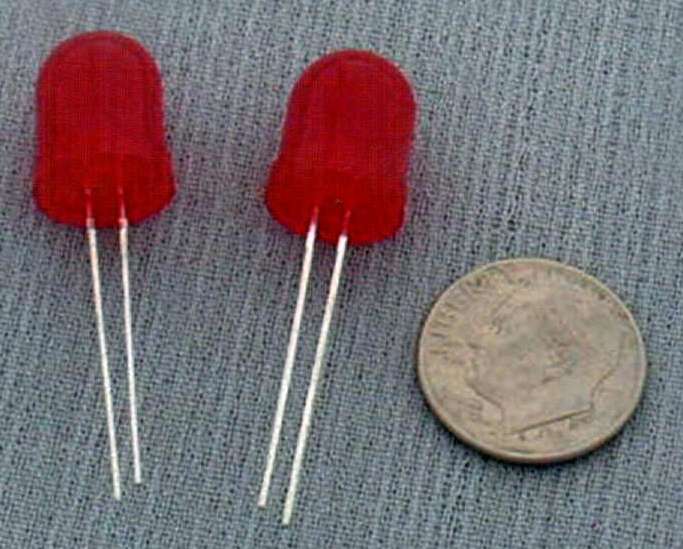

Oct 20, 2003 Offered in high-intensity green, AlInGaP die, L-151VG1W surface-mount LED comes in 2.0 x 1.25 x .8 mm package and is suited for replacing existing green LED's with 0805 package size. Model L-833HURD-TBS210 is offered in high-intensity red, AlInGaP die and has 10 mm dia. When clustered, product is suited for use with signboard applications or similar products.

SWF Machinery    Sanger, CA 93657

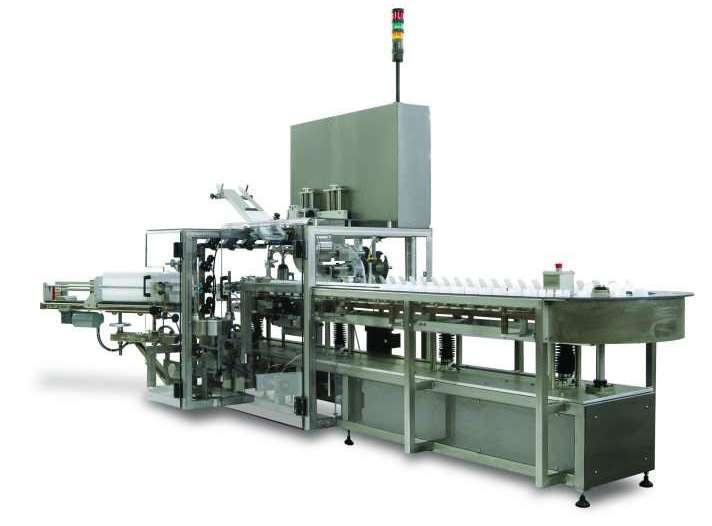

Oct 20, 2003 Semi-automatic Victory 100 features stainless steel frame with single chain carton track, and 40 in. of carton loading space on each side of system. Standard carton closing is straight or reverse tuck. System includes set of sized carton pockets on 10 in. centers, 48 in. powered magazine with rotary placer, flat-belt discharge conveyor with lay-down tooling, electrically interlocked guarding, and PLC controls.

Omron Electronics, LLC    Schaumburg, IL 60173

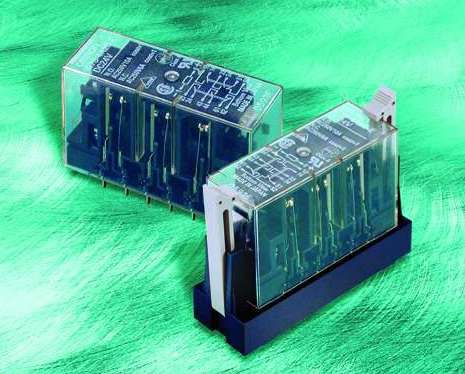

Oct 20, 2003 Forcibly-guided Model G7S-E offers 4 NO and 2 NC or 3 NO and 3 NC pole configurations. Operate and release times are 50ms, max. DIN rail and PCB mounting sockets are available with quick-release holding clamps for installation and removal. Tested to EN, UL, and CSA standards, relay is suited for safety applications such as controllers for power presses, injection molding and extruding equipment, conveyor systems, and packaging lines.

Amphenol Corp., Amphenol Aerospace    Sidney, NY 13838
Oct 20, 2003 Star-Line EX Series Zone 1-rated Connectors eliminate hard wiring to terminal blocks, providing safe interconnections to modular equipment. They offer interchangeable and reversible contact inserts for power up to 1,135 A at 1,000 V and signal up to 143 contacts. Aluminum housings are finished with hard anodized coating to 40 points on Rockwell C scale. Connectors are IP68-8 rated with dielectric strength of 1,800 V and heat resistance up to 750°F.

Doran Scales Inc.    Batavia, IL 60510 1460

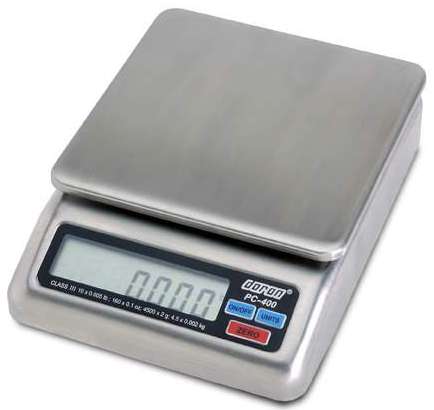

Oct 20, 2003 Stainless steel PC-400 measures 8.75 x 6.5 x 2 in. and is available in maximum capacities of 2, 5, or 10 lbs. Unit shows weight in LCD display, and power is supplied by internal rechargeable battery pack or AC adapter. Suited for small spaces or where portable scale is required, product utilizes Quad Spring design in base that eliminates damage from shock and overload. Tactile feel keypad includes ZERO, ON/OFF, and UNITS buttons.

PITTMAN    Harleysville, PA 19438 0003

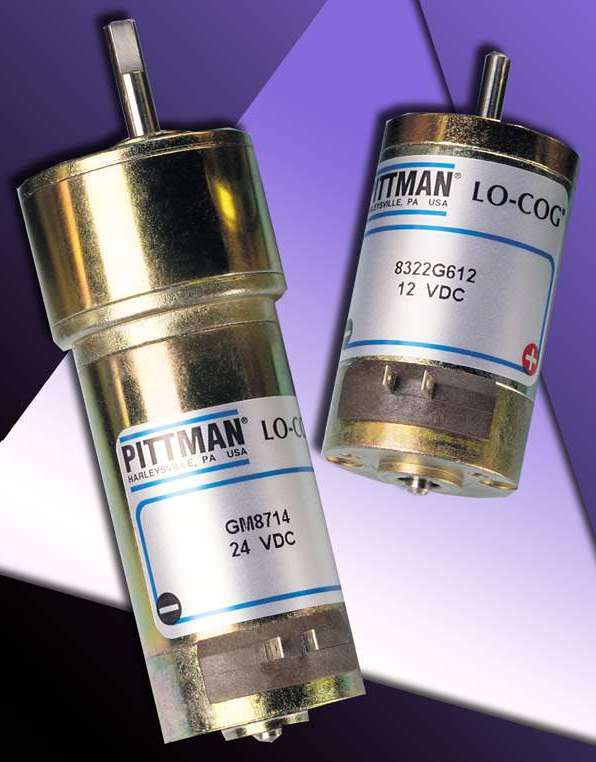

Oct 20, 2003 LO-COG® Series 8000 brush-commutated DC motors and gearmotors minimize magnetic cogging, promoting smooth, quiet operation. Motors come in 3 lengths and achieve peak torques up to 16.4 oz-in. and speeds to 10,650 rpm. Series GM8000 gearmotors are offered in 3 lengths with 11 ratios from 6.3:1 to 1803.6:1. They achieve peak torques to 100 oz-in. standard or 160 oz-in. with high-torque wide-face gears. Modular construction of products enables customization.

ABB SSAC    Baldwinsville, NY 13027
Oct 20, 2003 CM-MPS Series voltage monitor provides 3-phase motor protection in euro-style enclosure with built-in finger safe, double chamber, and terminal blocks that allow positive connections when 2 different wire sizes are used. Series monitors phase-to-phase voltages and protects against failure caused by phase loss, phase reversal, undervoltage, overvoltage, and unbalanced voltages. Features include adjustable trip points, time delay, and trip delay.

Glacier Computer    Amherst, NH 03031
Oct 20, 2003 Model M5™ features Pentium III 700 MHz to 1.0 GHz processors, 12.1 in. display, 256–512 MB DRAM, and 20 gig hard drive. I/O capabilities include 3 serial, 1 parallel, VGA, audio, 10/100 Ethernet, dual PC slots, and 2 USB ports. CPU, display, power supply, and keyboard are separate components, allowing for flexible installation in vehicles where space is limited. Computer is suited for marine, construction vehicles, utility vehicles, dockyards, and crane environments.

Siemens Building Technologies Ltd.    Sudbury, ON P3A 2A3  Canada

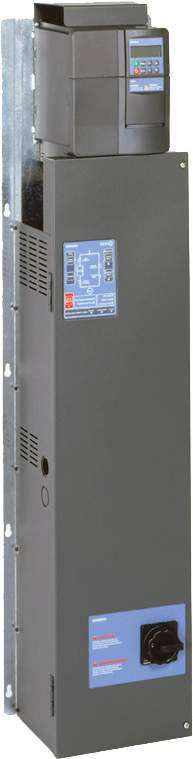

Oct 20, 2003 Offered with Electronic Bypass option, SED2 variable frequency drives (VFDs) are used in HVAC variable torque applications for fans, motors, blowers, and pumps. Electronic Bypass option streamlines installation, simplifies control devices, and reduces wiring. It includes 6 relay outputs, multiple inputs, 2 safety inputs, remote start, and interlock. Touch-sensitive electronic keypad is provided for operator monitoring and diagnostics.

Continental Fan Mfg. Inc.    Buffalo, NY 14215

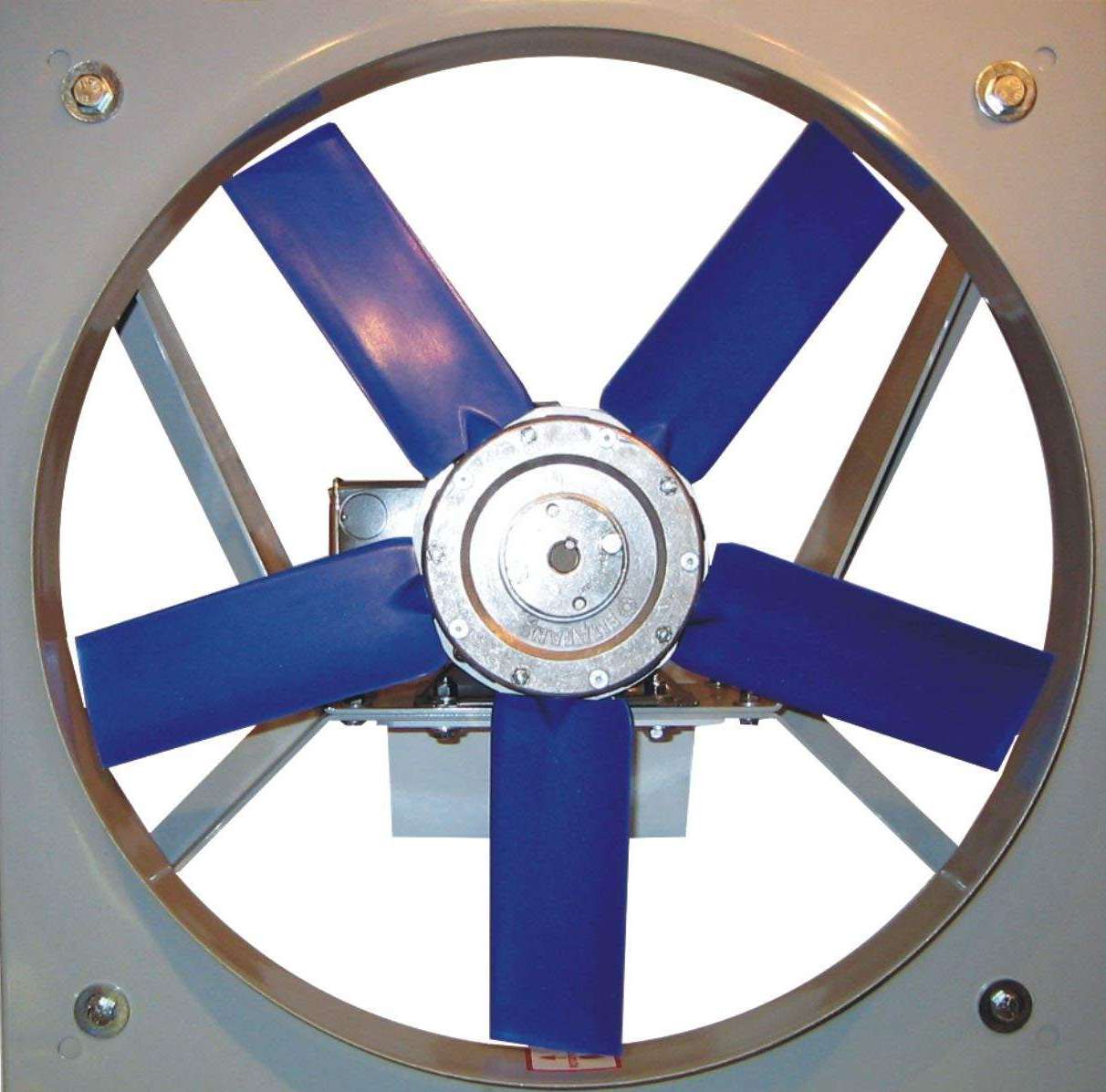

Oct 20, 2003 Model APK ranges in diameter from 12–78 in. with capacities to 100,000 cfm. It features airfoil adjustable pitch impeller and deep drawn venturi. Fan blades are pressure cast aluminum or glass-reinforced polypropylene. Options include all-aluminum design and fully reversible airflow.

International Light, Inc.    Newburyport, MA 01950 4092

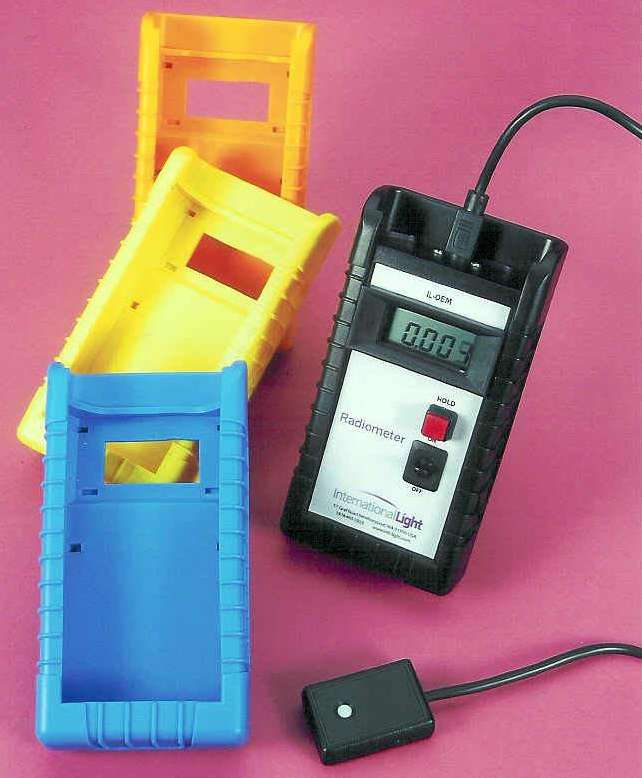

Oct 20, 2003 Equipped with 4.5-digit LCD, IL-OEM NIST-traceable radiometer can be customized with application-specific detectors, labeling, graphics, and colors. Unit can be hand-held or wall- or shelf-mounted and customized with feature sets including hold function, dose reading, and automatic shut-off. Other features include low battery indicator and protective rubber boot. Unit is available with UVA, UVB, photopic, germicidal, and other custom plug-in detectors.

Control Company    Friendswood, TX 77546
Oct 20, 2003 Traceable® Infrared Thermometer Gun takes instant, less than 1 sec, temperature readings of any surface. Equipped with laser-sighting beam, design permits one-handed, point-and-shoot readings. Range is -20 to +420°C and -4 to +788°F with 1° resolution, and accuracy is ±2°C or 2% of reading for 20 to 100°C and ±3°C or 3% of reading above 100°C. Emissivity is fixed at 0.95, and field of view is 8:1. It includes backlighting, data hold, and °C/°F button.

Andax Environmental    Rutherford, NJ 07070

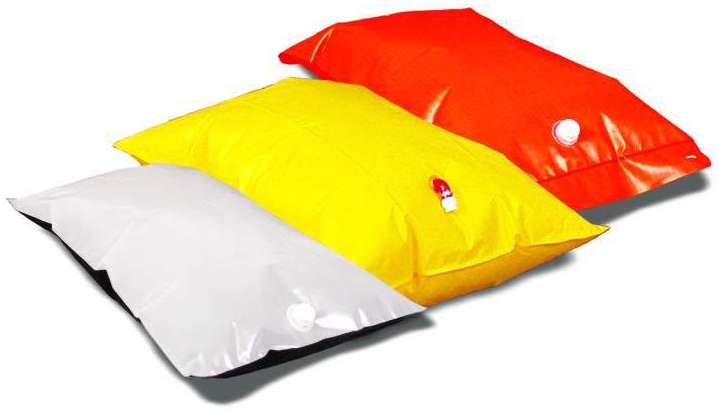

Oct 20, 2003 Flexible Pillow Tanks offer chemical- and puncture-resistance. Products can be made from over 10 different materials including polyurethane, polyethylene, and reinforced polyethylene. Users may also choose fitment for unique fill or discharge needs. Various styles of seals are also available.

Advantech Technologies, Inc.    Irvine, CA 92618
Oct 20, 2003 Modular OFPC-215 Series includes touch panel monitor with computer system box joined together. Unit is scalable from Pentium III CPUs up to 1.26 GHz for Multimedia support to VIA low-power processor. Unit simplifies cabling issues, I/O configuration, and chassis design. Function set includes support for SDRAM up to 512 MB, two 3.5 in. HDD bays, PCI and PC/104 expansion, two USB ports, parallel port, four serial ports, and 100Base-T Ethernet.

Eagle Parts & Products    Augusta, GA 30906

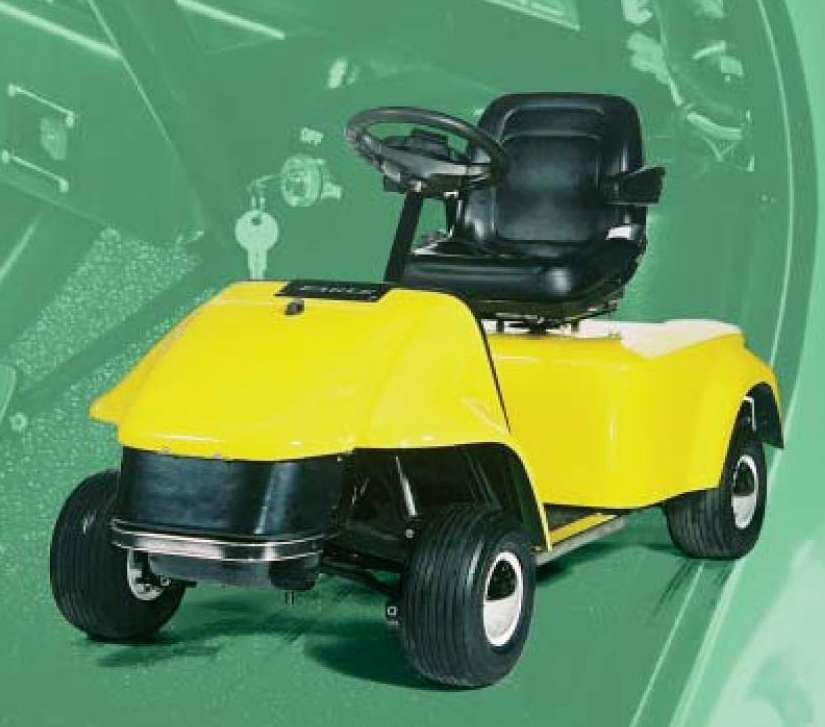

Oct 20, 2003 Single Rider Vehicle offers choice of conventional foot-pedal operation or ambidextrous hand controls mounted on steering wheel. Factory-preset control allows plant managers to select vehicle speed within 8–12 mph range. Swivel seat offers 360° rotation and extends to allow operator to perform tasks without leaving vehicle. SRV features 650 lb capacity and dual rear wheel disc brakes with regenerative assist. It complies with ADA of 1990.
