Texas Instruments, Inc., Semiconductors    Dallas, TX 75243

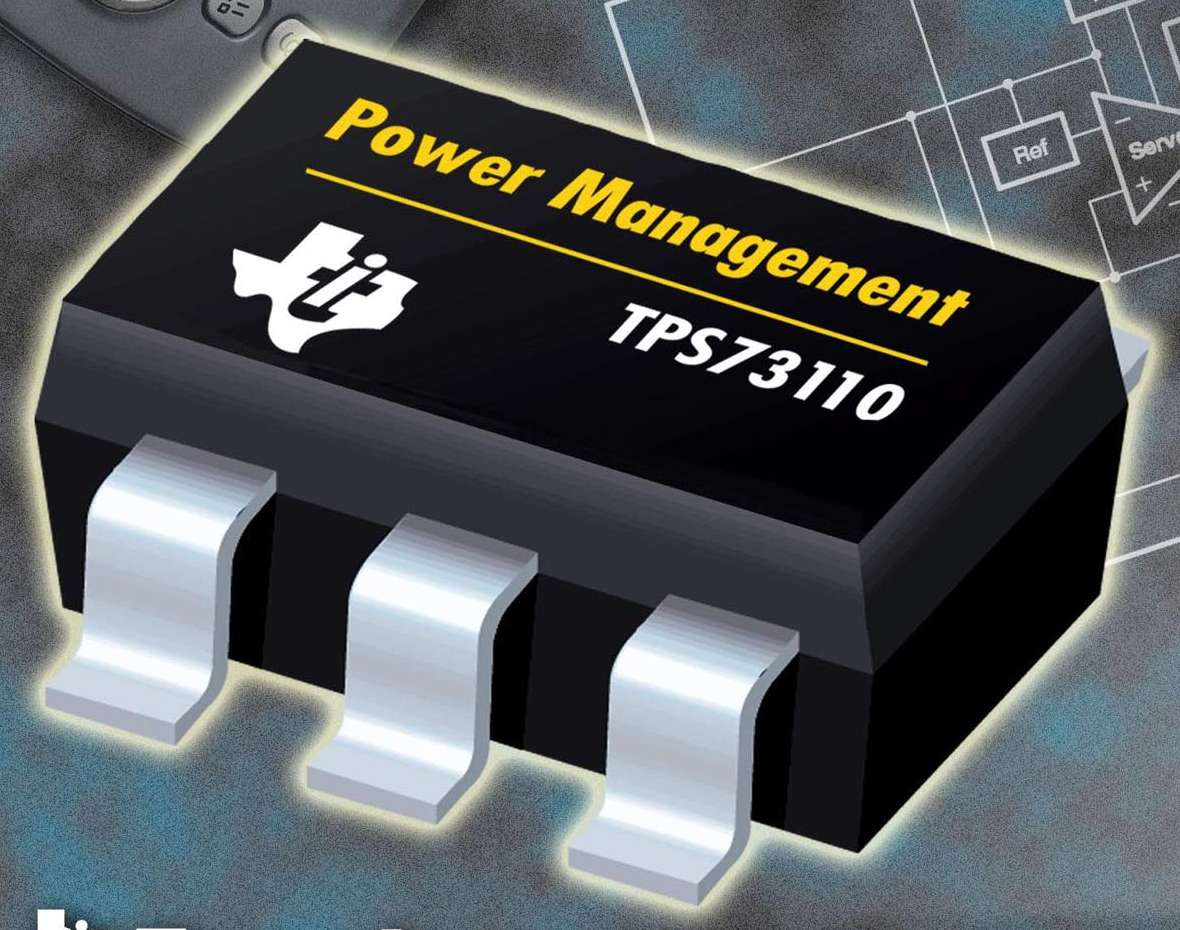

Oct 28, 2003 Series TPS731xx, TPS732xx, and TPS736xx linear regulators come in 5-pin, SOT-23 packages. Units do not require output capacitor for stability and consume less than 1 µA in shutdown mode. Characteristics include low-dropout voltage of 30 mV, low noise of 30 µVrms from 10 Hz to 100 kHz, and standard output voltages from 1.5–5 V. Products incorporate NMOS Topology and thermal-shutdown and current-limit protection. Applications include 150 mA, 250 mA, and 400 mA devices.

Leslie Controls, Inc.    Tampa, FL 33637
Oct 28, 2003 Safety Shower Water Heater System provides required volume of precisely heated water in any ambient condition, without heated storage tanks. Skid-packaged unit utilizes Constantemp Feedforward Steam Hot Water Heater that is accurate to ±3°F. Continuous recirculation maintains water temperature and prevents lines from freezing. Capacities to 120 gpm are available.

API-Delevan, Inc.    East Aurora, NY 14052 0449

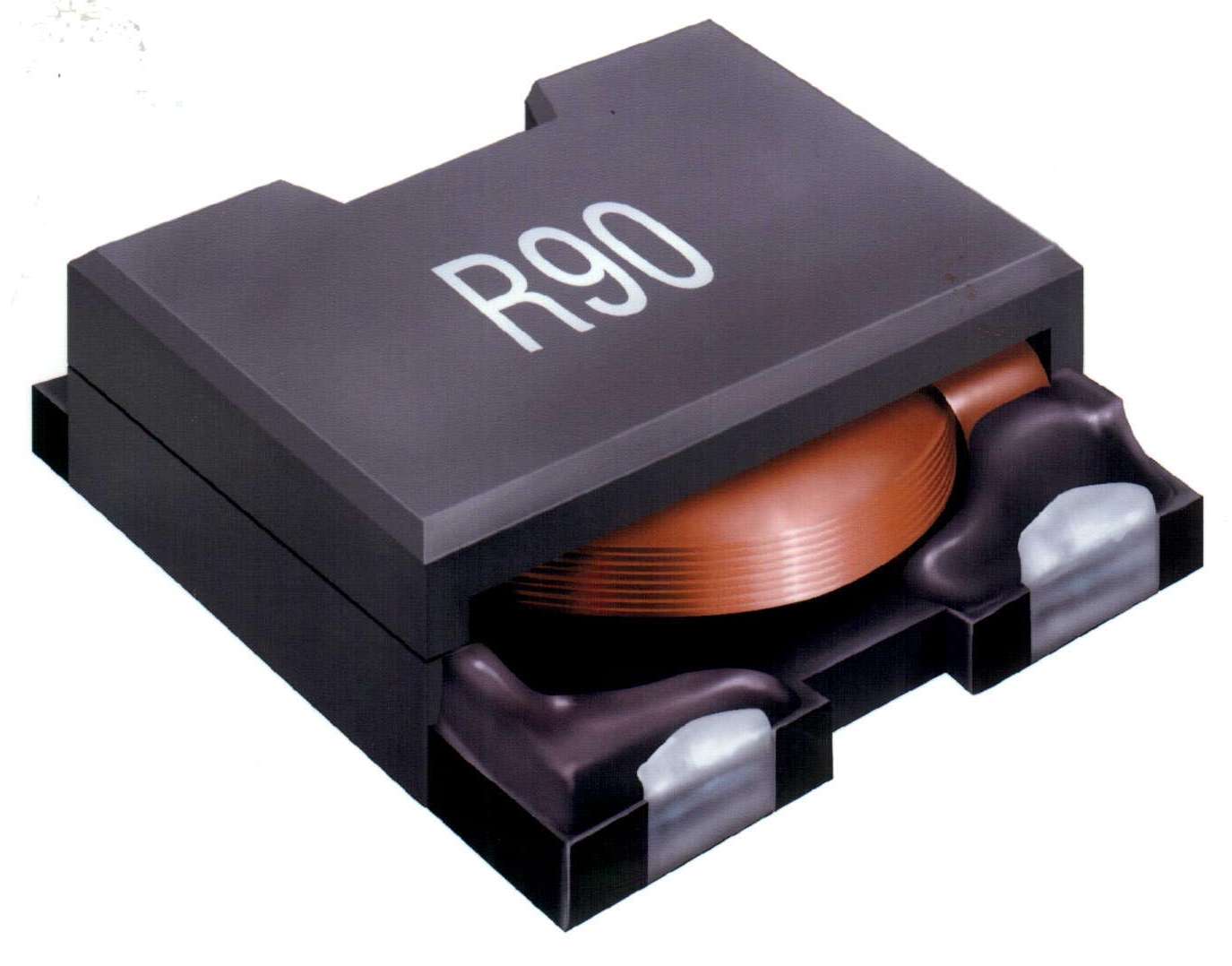

Oct 28, 2003 Surface-mount Series FW1405 utilizes rectangular copper wire, edge-wound on thermoset epoxy bobbin base, and high-saturation ferrite core. Base features integral 3-terminal design for optimal part adhesion when soldered to pcb. Inductance values range from 0.40–3.9 µH and operating temperature is -25 to +80°C. Standard packaging is 24 mm tape.

Torrey Pines Scientific, Inc.    Carlsbad, CA 92010

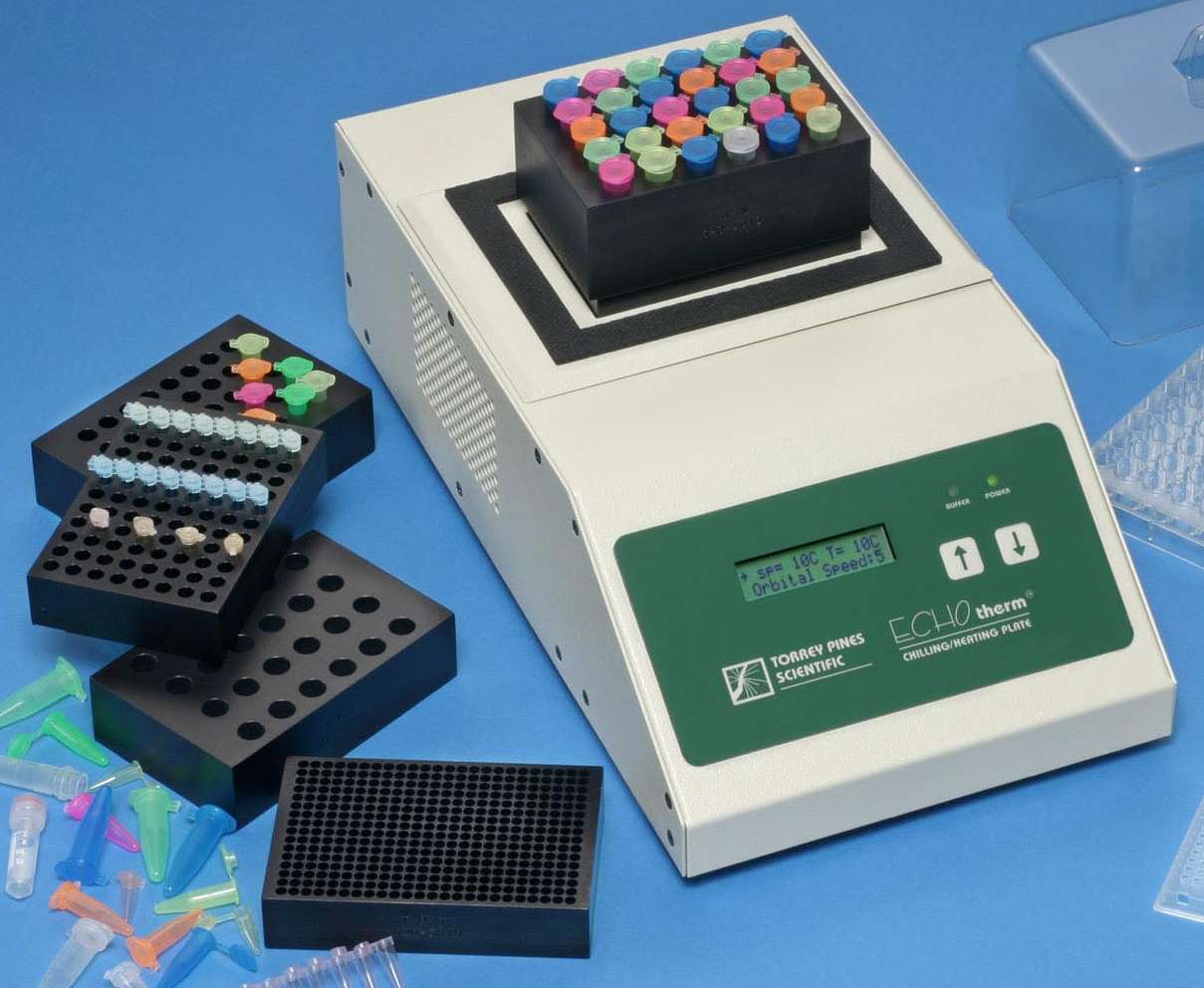

Oct 28, 2003 Suited for use with biological and other samples, EchoTherm(TM) SC20 Digital and SC25 Fully Programmable Dry Baths are Peltier driven. They offer control to 1°C; mix speeds from 200-1,000 rpm; and backlit, 2-line, alphanumeric display. Variable-speed orbital mixer allows for simultaneous mixing and controlling of sample temperatures. Features include 30-day count down timers with alarm and Auto-off, data logger, and RS232 I/O port.

Diversified Technology Inc.    Ridgeland, MS 39157
Oct 28, 2003 Suited for carrier-grade solutions, ATC-4130 is based on Intel® E7501 Chipset with 400 MHz front-side bus, utilizes 2.0 GHz LV Intel Xeon® Processor, and is compliant with PICMG® 3.0/3.1 specifications for AdvancedTCA platforms. System memory of up to 4 GB is supported via 2 ECC-protected DDR SDRAM modules. Unit uses Pigeon Point's management architecture, and offers 10/100 Ethernet, serial, USB, and IDE ports.

Pactiv Corp.    Lake Forest, IL 60045

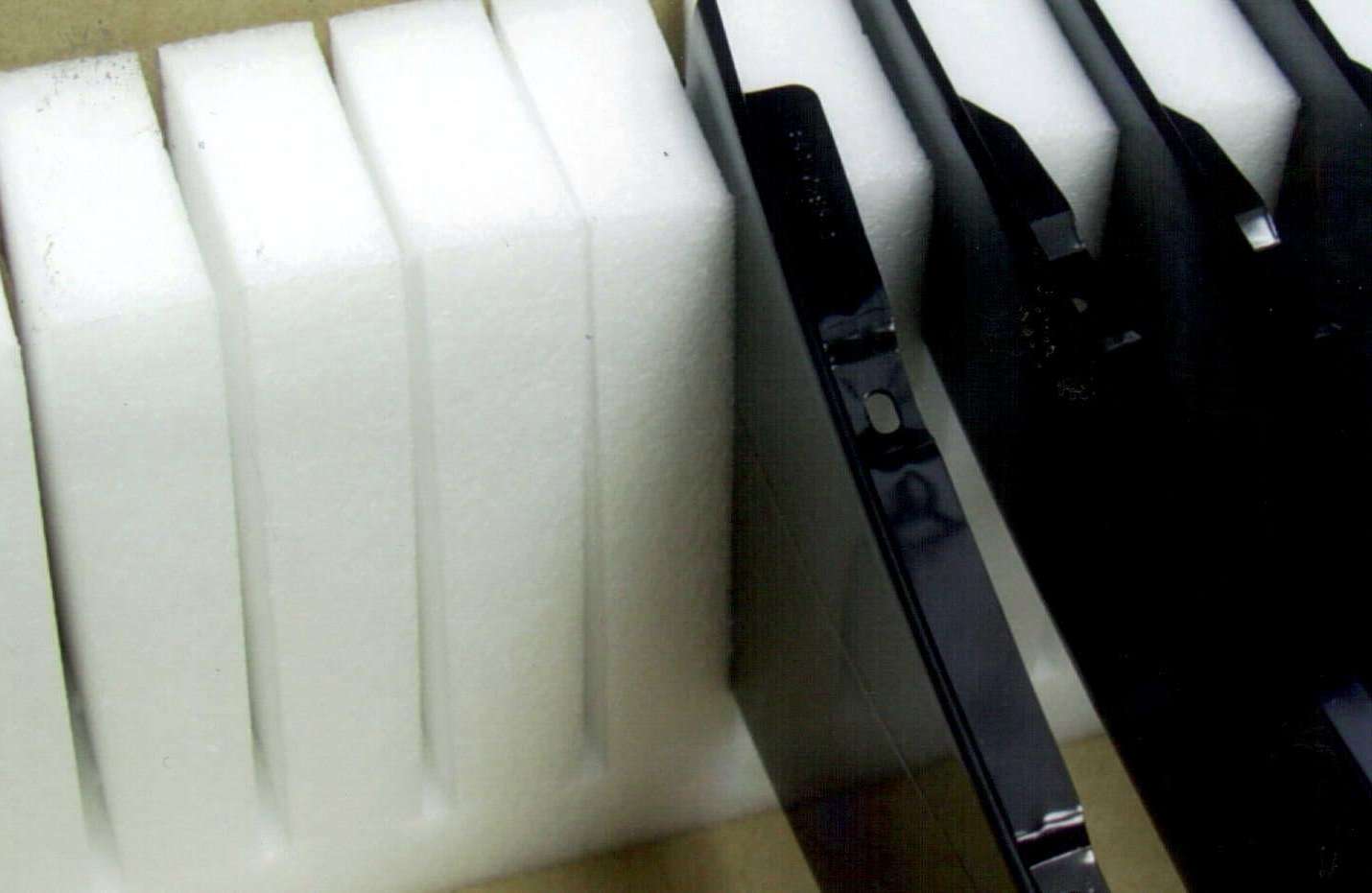

Oct 28, 2003 PolyPlank® SFT offers softness properties derived from combination of polyethylene plank and additives. Extruded foam is suited for Class A sensitive surfaces. It can be die-cut, skives with little resistance, and does not grab slicing blade. Cell structure results in neat routing and helps maintain shape following fabrication. It is available in sizes of 108 x 24 x 2 in. and 108 x 24 x 3 in., with density of 2 lb/cu ft.

Burnham Corp.    Lancaster, PA 17604
Oct 28, 2003 RTC Return Temperature Control monitors boiler return water temperature and operates 3-way diverting valve and boiler circulator to maintain minimum return temperature of 135°F or greater. RTC kit provides set-point control, outdoor reset, and LCD display. It counts boiler run time and number of boiler cycles and provides off-season pump and valve exerciser.

Flexible Steel Lacing Co.    Downers Grove, IL 60515-4200
Oct 28, 2003 Clipper® Duralinkâ„¢ and DuraStainlessâ„¢, for wire-hook splices, feature nylon coating that provides 10x more abrasion resistance compared to nylon-covered pins. Coating lubricity reduces wear on inner radius of fastener loops. Duralink pins, with coating extruded over braided stainless steel cable, provide flexibility to accommodate troughing conveyors or crowned pulleys. DuraStainless pins, built on solid stainless wire core, help prevent ripple. Diameters range from .065–.125 in.

Honeywell Sensing and Control    Golden Valley, MN 55422
Oct 28, 2003 Suited for use by automotive manufacturers, 1X Magnetoresistive Wheel-Speed Sensor senses multipole ring magnets found in smart bearings, offering industry-standard one pulse per pair. This 2-wire digital current output sensor incorporates one IC that provides digital output in response to very low magnetic fields. Unit interfaces with typical electronic control unit modules for antilock braking systems.

Honeywell Sensing and Control    Golden Valley, MN 55422
Oct 28, 2003 Series 942-T Sensors offer scan ranges from 5.9-137.5 in. and analog output with 2 switching outputs in M30 chemical-resistant, plastic housing. Over-range counter monitors target's presence and output remains constant unless target is outside specified range for longer than programmed period of time. Analog output range, offset, and slope are programmable by software on standard PC. Outputs include 4-20 mA or true 0-10.0 Vdc.

Honeywell Sensing and Control    Golden Valley, MN 55422
Oct 28, 2003 Series SE and XE Basic Switches feature corrosion-resistant aluminum housing and watertight seal per Symbol 3 to Mil-PRF-8805. SE models measure 0.75 x 0.34 x 0.88 in. with 5 A load capacity, while XE models are .75 x .32 x .62 in. with 7 A load capacity. Both types withstand applications up to 300°F. Switches are suited for non-pressurized aircraft installations, ordnance, and moist or dusty environments. Choice of termination types is available.

Honeywell Sensing and Control    Golden Valley, MN 55422

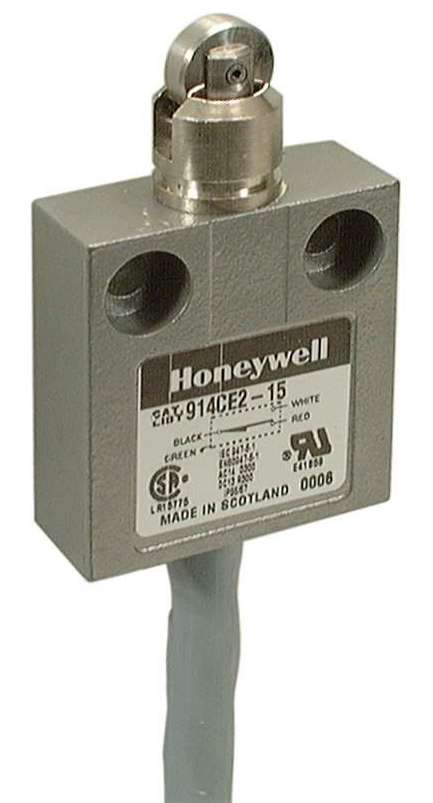

Oct 28, 2003 Series 914CE limit switches incorporate fluorocarbon diaphragm seal that protects against oil, water, detergent, and cutting fluid, even after 5 million operations. They meet sealing requirements of NEMA 1, 2, 3, 3R, 4, 6, 6P, and 13 as well as IP66, IP67, and IP68. If NEMA 12 is required, seal-boot version is available.

Joslyn Hi-Voltage Corp.    Cleveland, OH 44105 4398

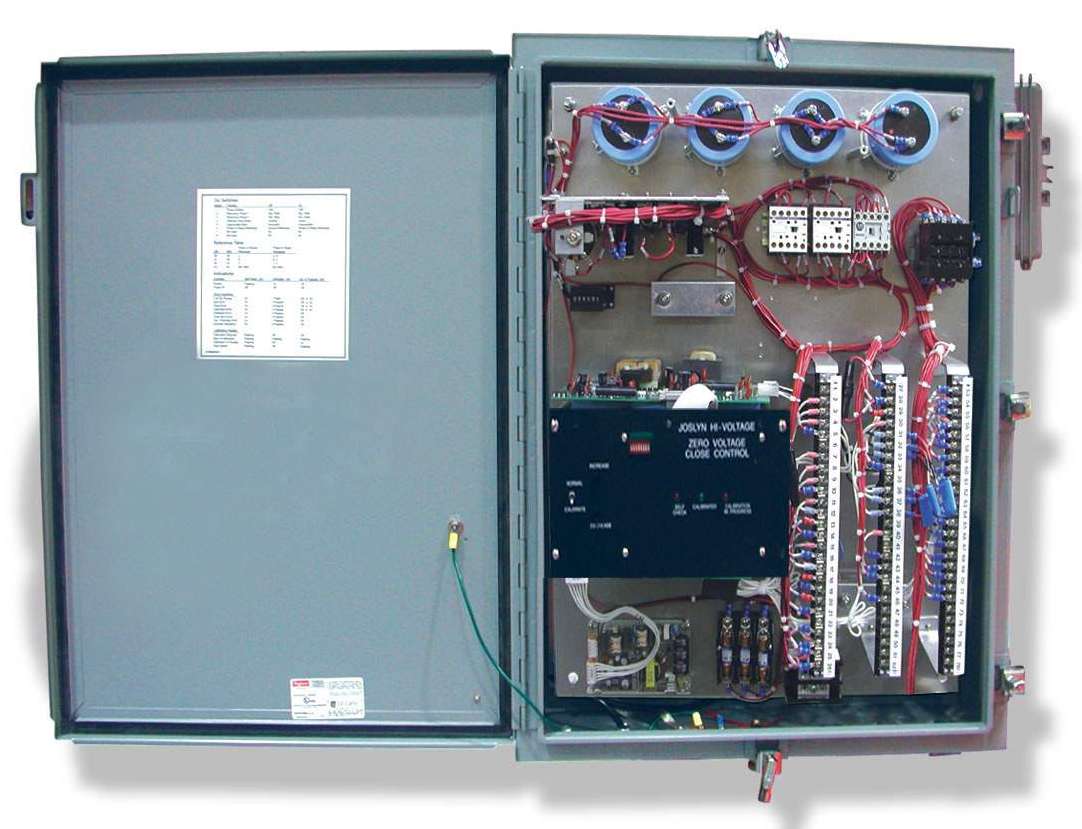

Oct 28, 2003 Digital Zero Voltage Closing (ZVC) control mitigates transients associated with bringing capacitor banks online and eliminates damage and downtime resulting from voltage spikes. It automatically calibrates with Joslyn VBM switches and is continuously self-adjusting for temperature. Closing is synchronized with zero voltage in each phase, and 3 poles are closed independently. It works with Joslyn Varmaster VBM switching package for 15–69 kV applications.

Hypertherm, Inc.    Hanover, NH 03755 0010

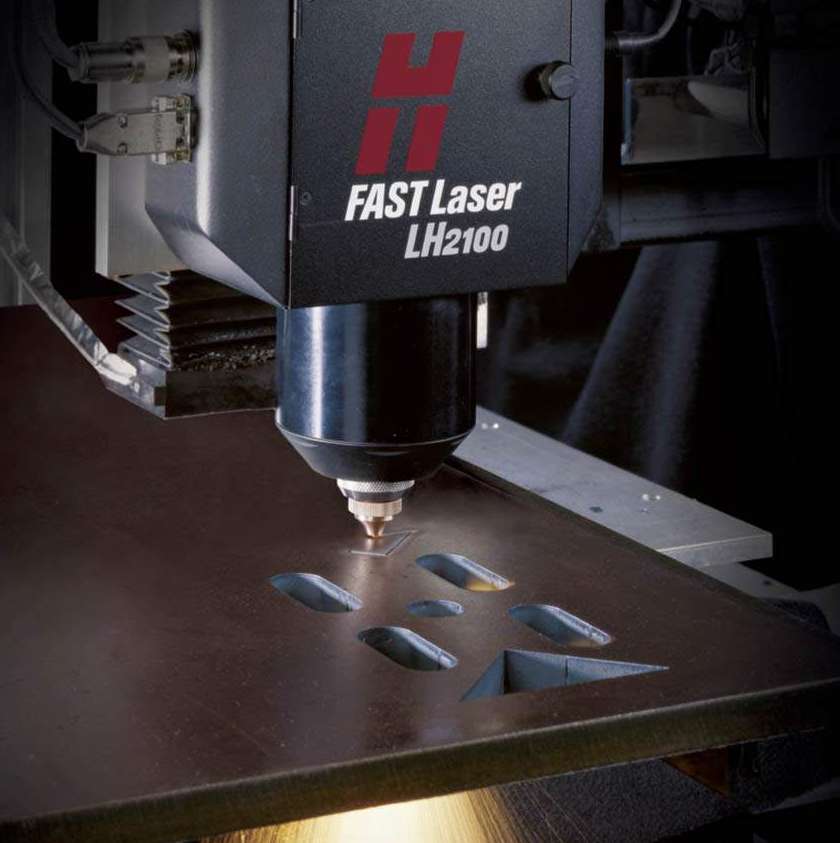

Oct 28, 2003 FAST Laserâ„¢ creates dual-flow zone allowing high oxygen assist gas pressures in tightly defined cut zone established by beam geometry. Accelerated oxygen flow along beam path increases cut speed by fueling exothermic reaction. Laser cutting head Model LH2100â„¢ offers 7.5 and 10.0 in. focal lengths, and Model LH2125 adds 12.5 in. focal length option for thicker plate. Optional Marinerâ„¢ CNC controller with on-board FAST Laser process intelligence is available.

Electro-Sensors, Inc.    Minnetonka, MN 55343 9108

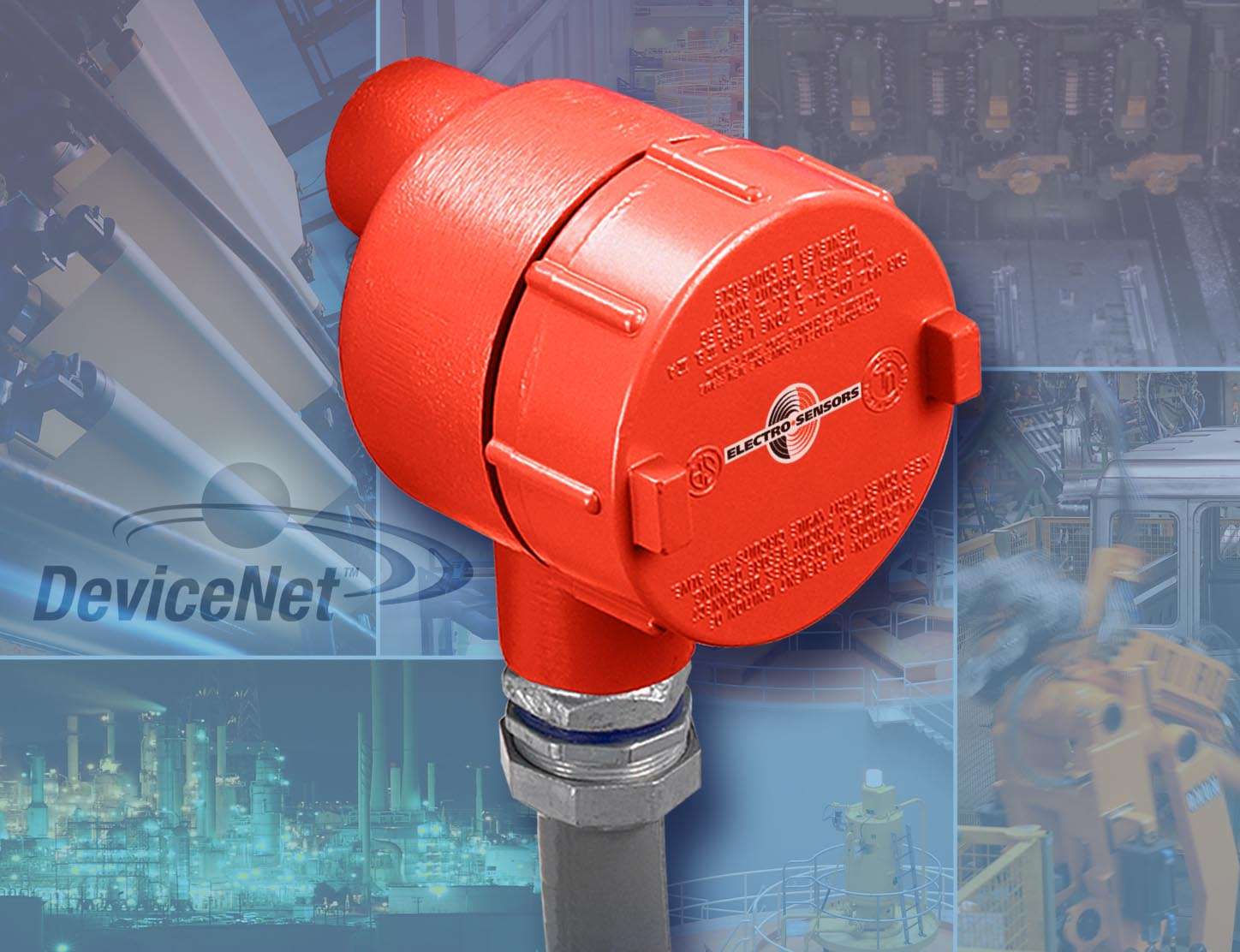

Oct 28, 2003 SpeedTalker DN Sensor with speed switch functionality detects operating speed as well as under-speed and over-speed of rotating shafts via DeviceNet. Suited for hazardous environments, sensor is enclosed in explosion-proof housing with plated steel mounting bracket. It features open style connector and operates in any DeviceNet network without additional I/O terminals or adapters.

Linear Technology Corp.    Milpitas, CA 95035
Oct 28, 2003 Model LTC4440 N-channel 80 V MOSFET driver, housed in SOT-23 and 8-lead MSOP packages, offers peak pull-up output current of 2.4 A and 1.5 ohm pull-down output impedance. Unit reduces MOSFET gate drive fall and rise times to 7 ns and 10 ns, respectively, when driving 1,000 pF loads. Input logic signal is internally level-shifted to bootstrapped supply, which may function at up to 115 V above ground. Driver is rated for -40 to 85°C ambient temperatures.

Bosch Rexroth Corp., Linear Motion & Assembly Technologies Div.    Buchanan, MI 49107 1801

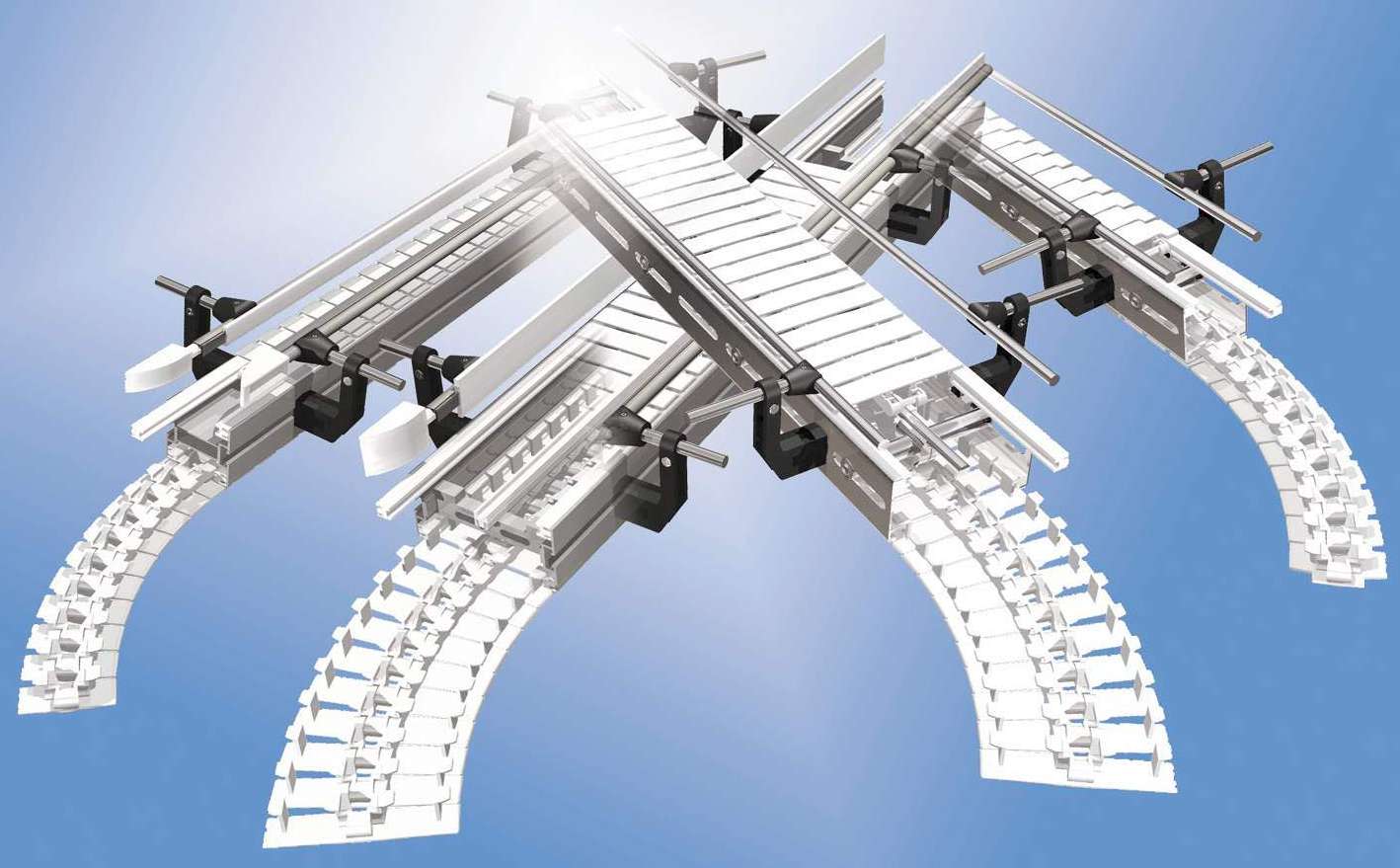

Oct 28, 2003 VarioFlowâ„¢ chain conveyors, offered in 80, 100, 160, 240, and 320 mm widths, provide solutions to material handling in production and storage. They are available with aluminum profiles and side guide rails or in stainless steel version with leg sets made of same material. Cleated chain types include universal, accumulation roller, and roller cleat. Modular systems also include connectors for lateral guides and two types of functional holders.

Zeiss, Carl, Industrial Measuring Technology (IMT) Corp.    Minneapolis, MN 55428

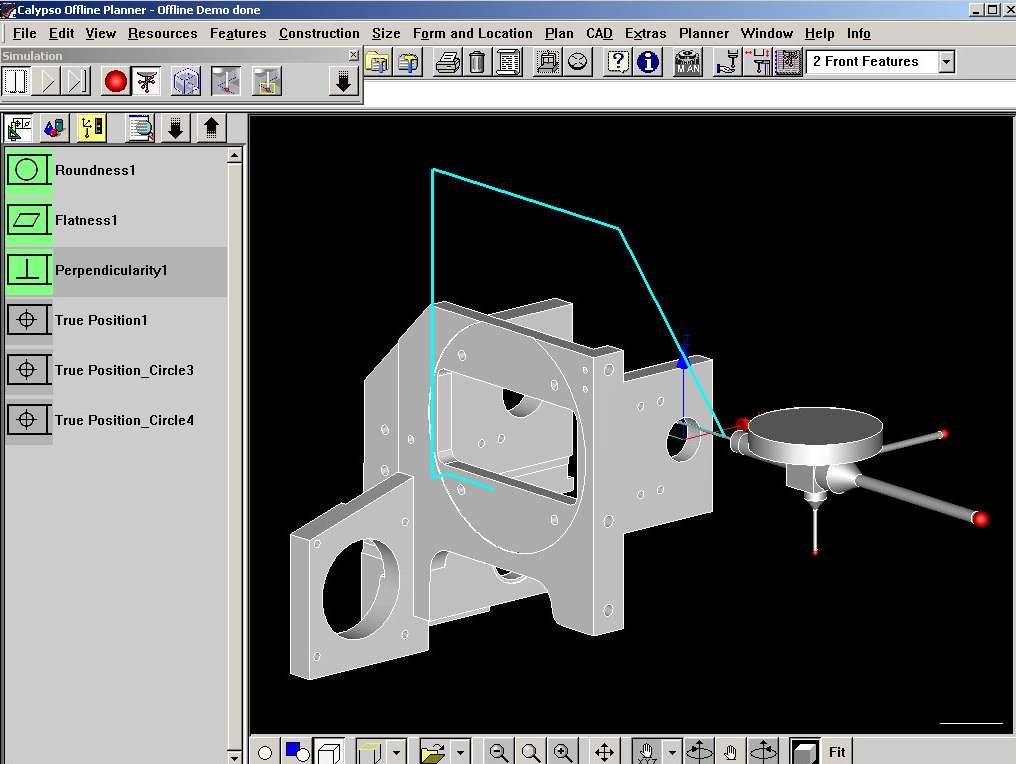

Oct 28, 2003 CALYPSO® Planner allows CAD data to be transferred via standard interfaces or imported from CAD systems. Measurement programs are created based on CAD model stored in CAD core of software. Square safety zone provides automatic definition of probe paths. With simulation option, programmed travel paths and stylus can be displayed as animation. Characteristic Input option allows import of dimensional and tolerance information from CAD model and re-assignment of geometric elements in CALYPSO.

Zeiss, Carl, Industrial Measuring Technology (IMT) Corp.    Minneapolis, MN 55428

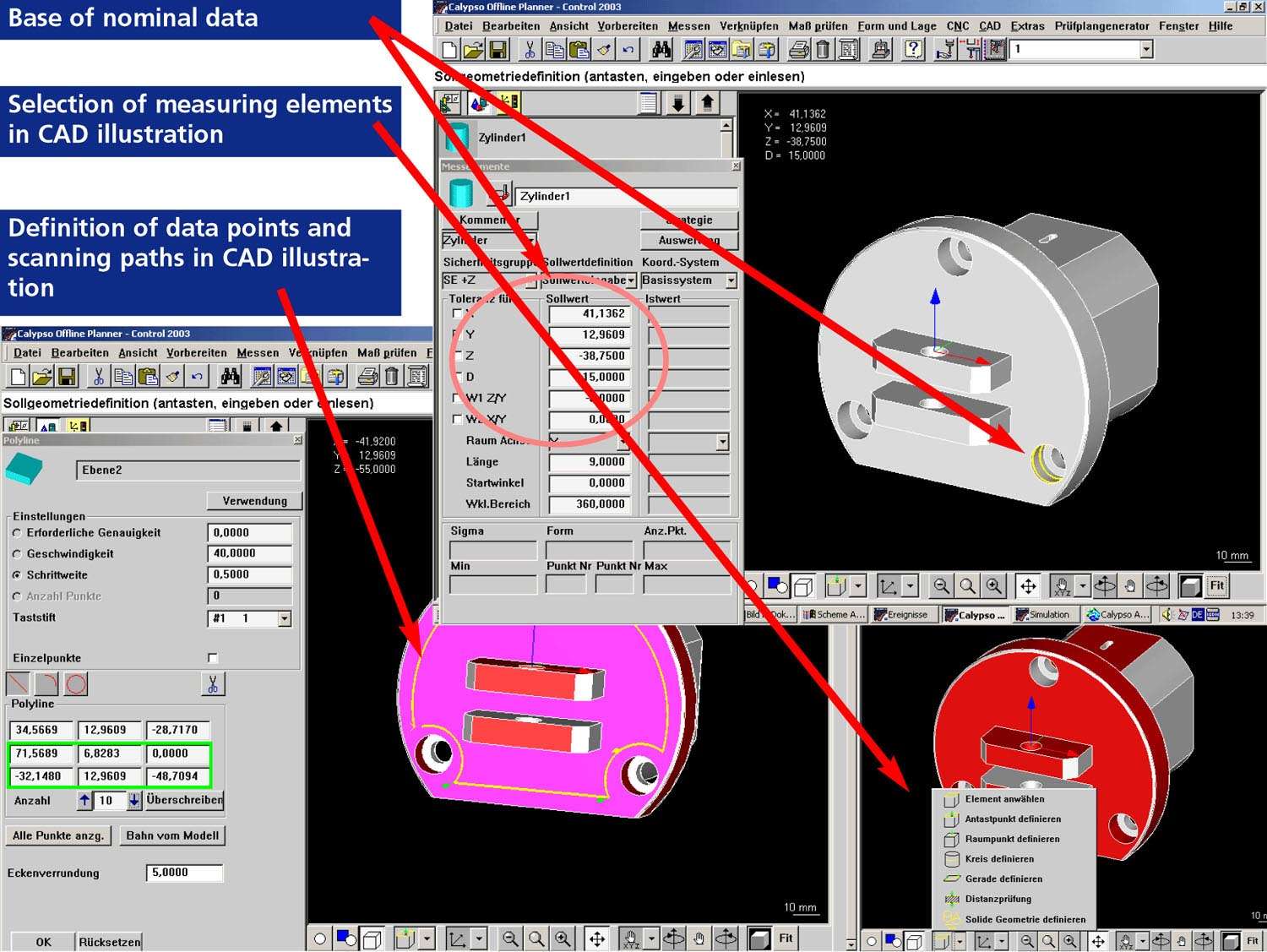

Oct 28, 2003 CALYPSO® v3.8 provides CAD engine, analysis tools, evaluation methods for 2D best fit function, and graphics output including parallelism and perpendicularity. Users can measure plane and curve features using scanning procedure with rotation of rotary table, eliminating need for multiple probes. VAST Navigator option, available for CMMs equipped with VAST GOLD probe head, optimizes travel paths and adapts scanning speeds to preset accuracy values.

Coppus Ventilation, Tuthill Energy Systems    Millbury, MA 01527 8000

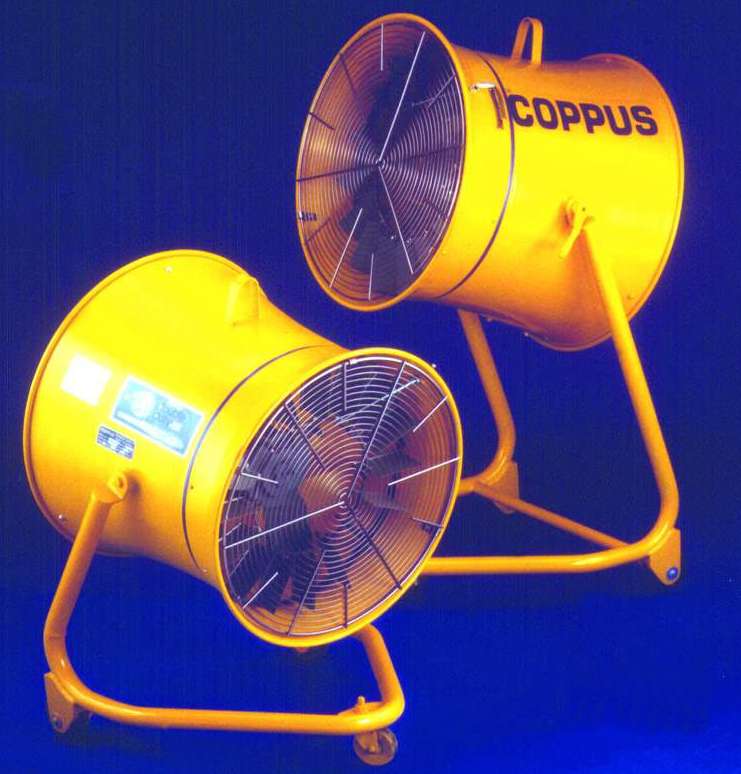

Oct 28, 2003 Double Duty Heat Killer (DDHK) employs adjustable vane design that allows varied airflow patterns with capacities to 17,000 cfm. Product allows adjustment from gentle breeze for worker comfort in high-heat areas to concentrated jet blast for product and process cooling. Available in 18, 24, and 30 in. models, it is offered with high or low floor stand or as stationary or oscillating wall mount unit.
