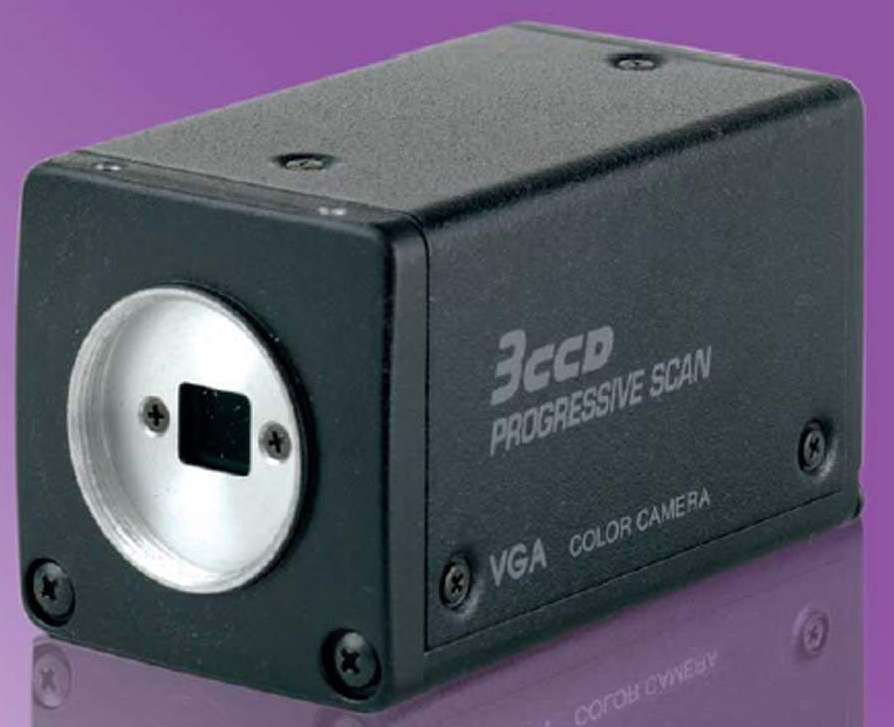

Toshiba America Information Systems, Inc.    Irvine, CA 92618-1697
Oct 28, 2003 Measuring 1.7 x 1.7 x 3.1 in., IK-TF5 color camera employs three 1/3 in. progressive scan CCDs with 659 x 494 effective square pixels. Design eliminates image-jitter and RGB shift. Features include partial scan mode that reads out up to 180 fps in partial scan mode; RS-232C remote control port; electronic shutter (1/100–1/100,000); 1- or 2-pulse random trigger; and C-mount. It also offers 64 dB signal-to-noise ratio and automatic/manual white balance.

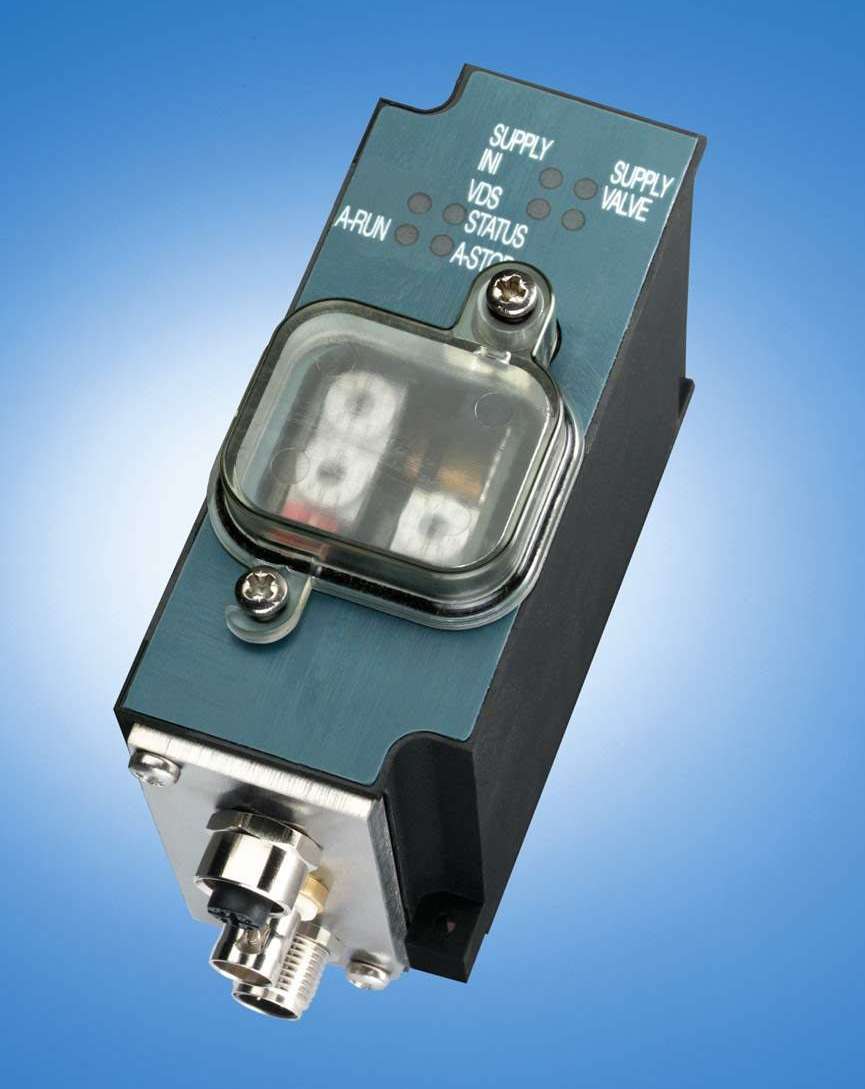

Bosch Rexroth Corp., Pneumatics Div.    Lexington, KY 40511
Oct 28, 2003 DDL Drive Diagnostic Link System facilitates basic operation of valves and offers detailed monitoring of electrical control system. It checks every valve for tolerance of supply voltage, recognition of solenoid coil, and short circuit display. From results of tests, control system can generate and display appropriate text messages. Check can be done when machine is switched on to determine if pneumatic subsystem is functioning correctly.

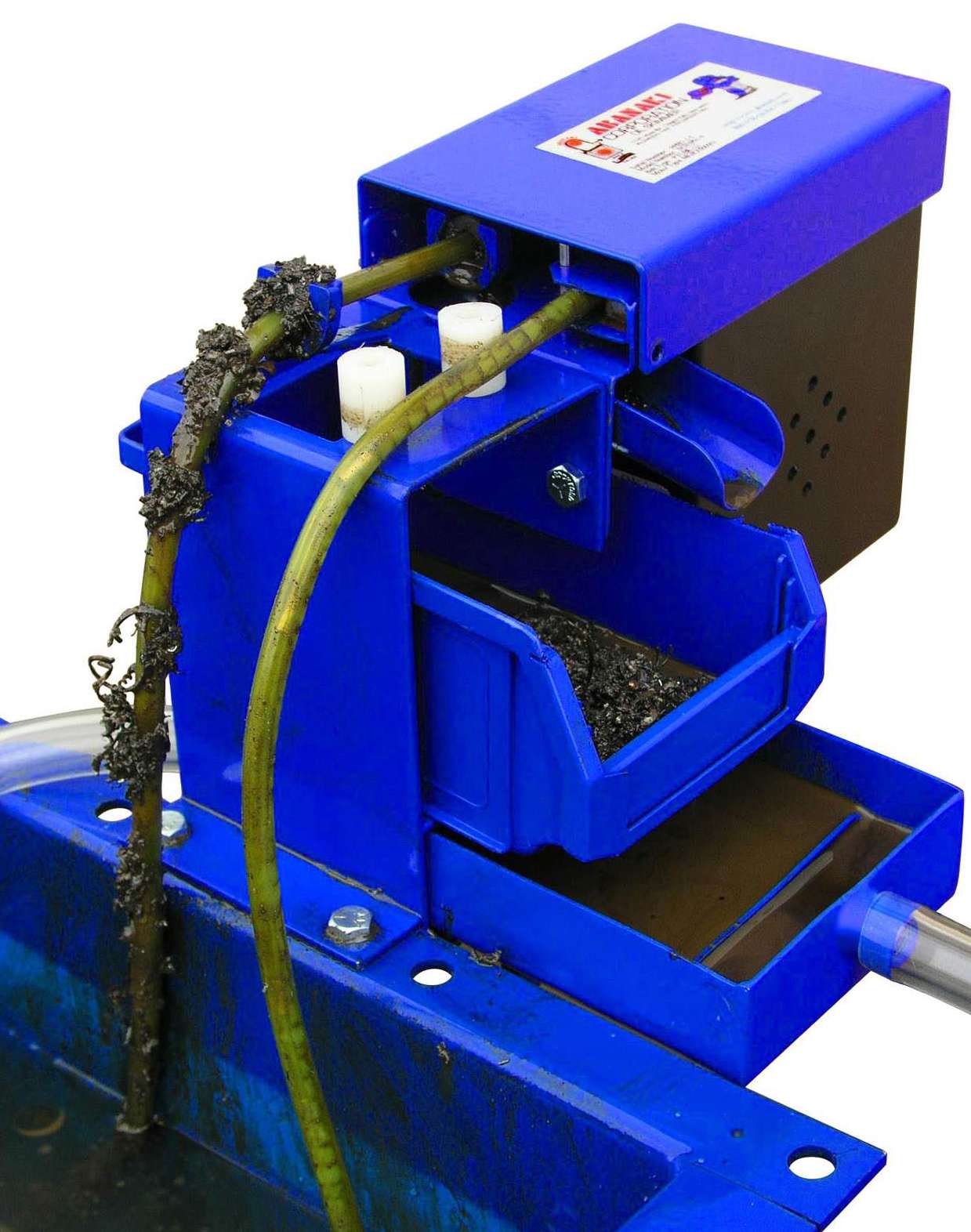

Abanaki Corp., Oil Skimmer Div.    Chagrin Falls, OH 44023
Oct 28, 2003 Suited for limited access locations, ChipGrabberâ„¢ mounts on side of machining center coolant sumps. Measuring 4 ft long, collector tube uses existing opening or small access cutout and runs through surface of coolant to collect tramp oil. It then snakes along tank bottom to collect fallen steel chips and swarf. Chips are collected in removable tray, and oil is discharged into waste container. Unit employs fan-cooled, continuous-duty motor.

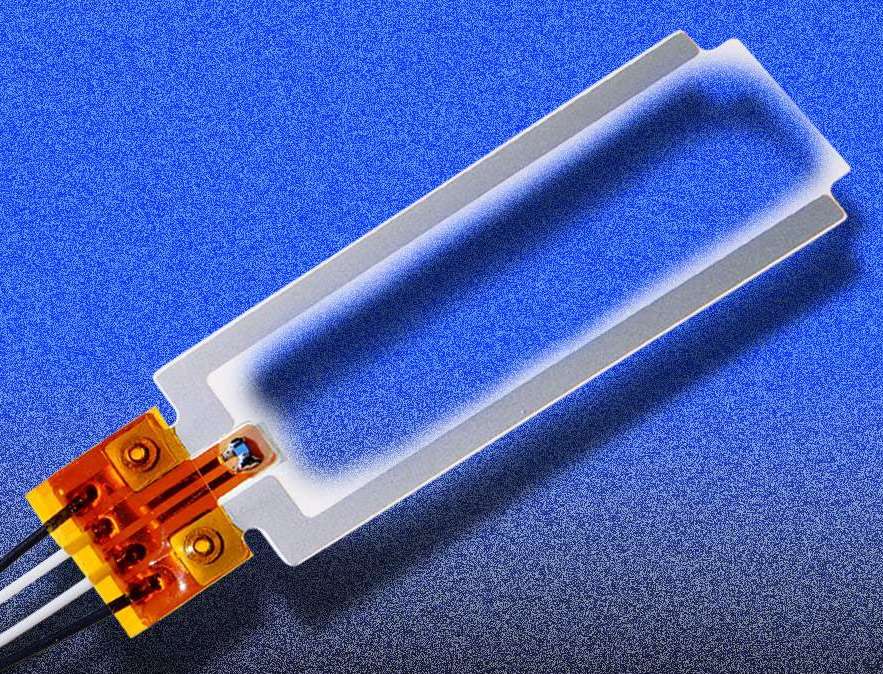

Honeywell Sensing and Control    Golden Valley, MN 55422
Oct 28, 2003 With no wires in clear view area, 78000 Series heater uses Indium Tin Oxide (ITO) technology to allow for maximum visible light transmission (VLT). Used to warm LCD panels found in cold, moist environments down to -40ºF, it offers 85-90% VLT when applied to application. Features include transparent, pressure-sensitive adhesive; electrically-conductive transparent film; optical grade, thin-film polyester; and 0.155 W/cm² energy-consumption.

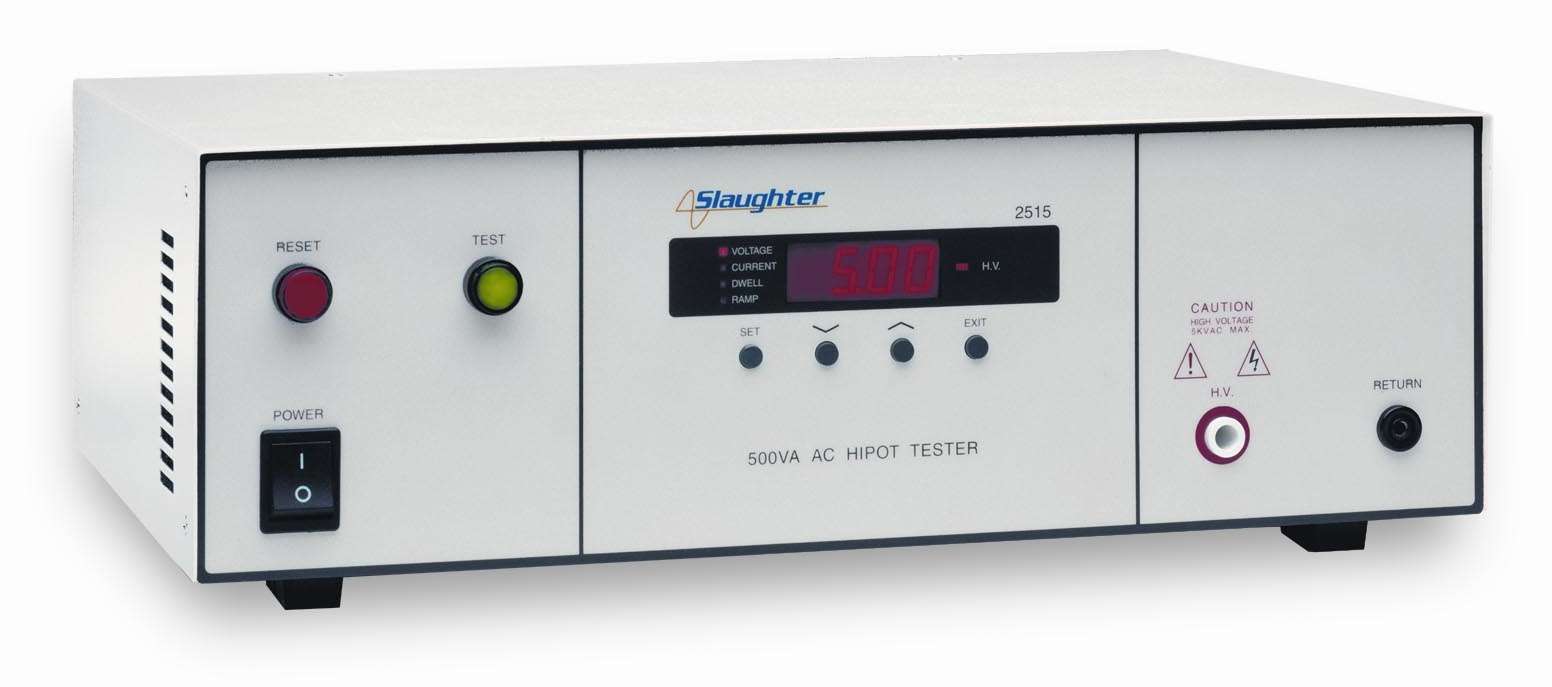

Slaughter Co. LLC    Ardmore, OK 73401
Oct 28, 2003 Models 2512 and 2515 are 250 and 500 Va Hipot Testers with max output of 2,500 Vac and 5,000 Vac, respectively. Both offer 100 mA test current and can be interconnected to Model 2630 or 2660, 30 or 60 A ground bond testers to form complete test system that will perform AC Hipot and Ground Bond tests through single DUT connection. Microprocessor-controlled hipot testers can be used as stand-alone units and include memory storage of test parameters.

PFU Systems, Inc.    Santa Clara, CA 95051-3501
Oct 28, 2003 Plug-N-Run G3 System-on-Modules enable OEM designers to adopt Intel Pentium M processors into embedded system solutions. Modules support intelligent power management, secure computing, and diskless operation. They include Intel® Pentium® M Processor, Intel® 855GME graphics and memory controller hub, and Intel® ICH4 I/O controller hub. Units offer expansion up to 1 GB of DDR SDRAM memory, gaming-like 3D graphics, and mezzanine interface connector.

BinMaster    Lincoln, NE 68507
Oct 28, 2003 Noiseless SmartWave adjusts microwave pulse amplitude and width to target distance and target reflection properties. Receiver changes sensitivity with amplitude of received echoes and analyzes their shape. By eliminating echoes coming from obstructions, it tracks any target from tip of rod antenna to bottom of tank regardless of tank shape or environmental conditions. Transmitter provides continuous 4-20 mA output and optional RS-485 communication.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Oct 28, 2003 High-activity, VOC-free Multicore® MF300 is effective on low-solderability surfaces, such as oxidized copper. Non-flammable, halide-free, low-residue flux meets US air-quality legislation and is compatible with most commonly used preservative materials. It passes Bellcore electromigration and J-STD-004 surface insulation resistance tests without cleaning, and IPC-TM-650 copper mirror testing. Flux is suitable for foam or spray application.

Profibus Trade Organization    Scottsdale, AZ 85260
Oct 28, 2003 Soft Real Time (SRT) PROFInet extension achieves cycle times of 5-10 msec and is compatible with TCP/IP Ethernet protocol. PROFInet integrates existing fieldbus systems without change. Use of established Ethernet-based IT technologies allows connection of automation/plant level with corporate management level, including direct exchangeability of order and production data.

Scapa North America    Windsor, CT 06095
Oct 28, 2003 Double-coated, woven-cotton Dubifilm® 274 is coated on liner side with aggressive rubber adhesive and on exposed side with rubber adhesive that leaves no residue upon removal. Tape handles carpet installation applications, print-plate mounting, and temporary mounting in assembly or machining operations. It is supplied on easy-release polyethylene liner.

Exergen Corp.    Watertown, MA 02472
Oct 28, 2003 Model IRt/c.07 self-powered, lensed thermocouple features sensing range of -50 to 550°F and ambient temperature of -40 to 160°F. It is calibrated at 7 different temperature ranges to obtain true accuracy compared to K type thermocouples. Unit has no electronics, is hermetically sealed, and intrinsically safe. MTBF is greater than 1,000 years.

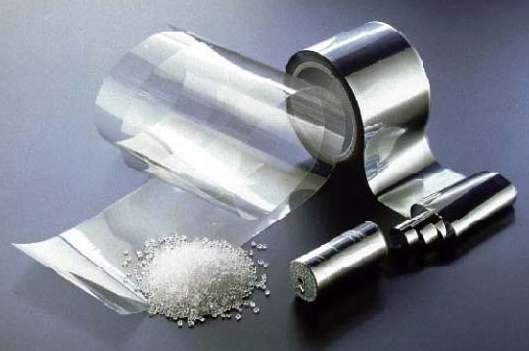

Ticona Engineering Polymers    Florence, KY 41042
Oct 28, 2003 Containing no halogen compounds, Topas® Cyclo-olefin copolymer (COC) blends enable blister packaging to withstand steam sterilization at 121°C for 20 min. Blends enable Topas COC-based film to be used as barrier material for sterile products. They combine Topas 6013 COC and polyolefin to create heat-resistant films that do not distort when heated and provide even wall thickness throughout. Ductility results in absence of sharp edges or whiskers when die cut.

Syware, Inc.    Cambridge, MA 02142
Oct 28, 2003 FoneDB lets users work within Windows Mobile environment to create full-color, data-driven applications for mobile phones. Applications created via software support collection, display, and modification of data and are driven by forms designed on desktop PC. Data can be formatted as text, integer, floating point, currency, date, or time, and applications do not have to be digitally signed before they can be run on Smartphone devices.

Nilfisk Industrial Vacuums    Morgantown, PA 19543
Oct 28, 2003 Safe-Pak disposable mini-drums help manufacturers safely collect and dispose of pharmaceutical powders, including potent compounds. They integrate with CFM 3156 vacuum cleaner, enabling users to continuously collect ultra-fine powders and other materials, which are then filtered and retained within containment unit. When Safe-Pak is full, users dispose of unit without opening it, further safeguarding against contamination.

Teklynx    Whitefish Bay, WI 53217
Oct 28, 2003 CODESOFT® v7.0 is suited for multi-national enterprises that have complex, networked, multi-language label management requirements. It employs UNICODE standard to ensure cross-platform and cross-language compatibility. Sprint version provides simple design interface and supports virtually any printer. Premier version adds database access, data, and math calculation functions and ODBC. Enterprise version adds systems integration tools.

ARO - Ingersoll-Rand Fluid Products    Bryan, OH 43506
Oct 27, 2003 Air-operated EXP delivers up to 123 gpm and has 1½ in. fluid ports. Unbalanced major shift valve provides stall-free operation, and air-motor design features corrosion-resistant housing with anti-ice and trip-rod valve designs to avoid pump stall-out while insuring positive shift. Suited for use in corrosive applications and environments, pump incorporates stainless steel wetted materials and corrosion-resistant polypropylene air section.

Conveyor Technologies Ltd.    Milford, OH 45150

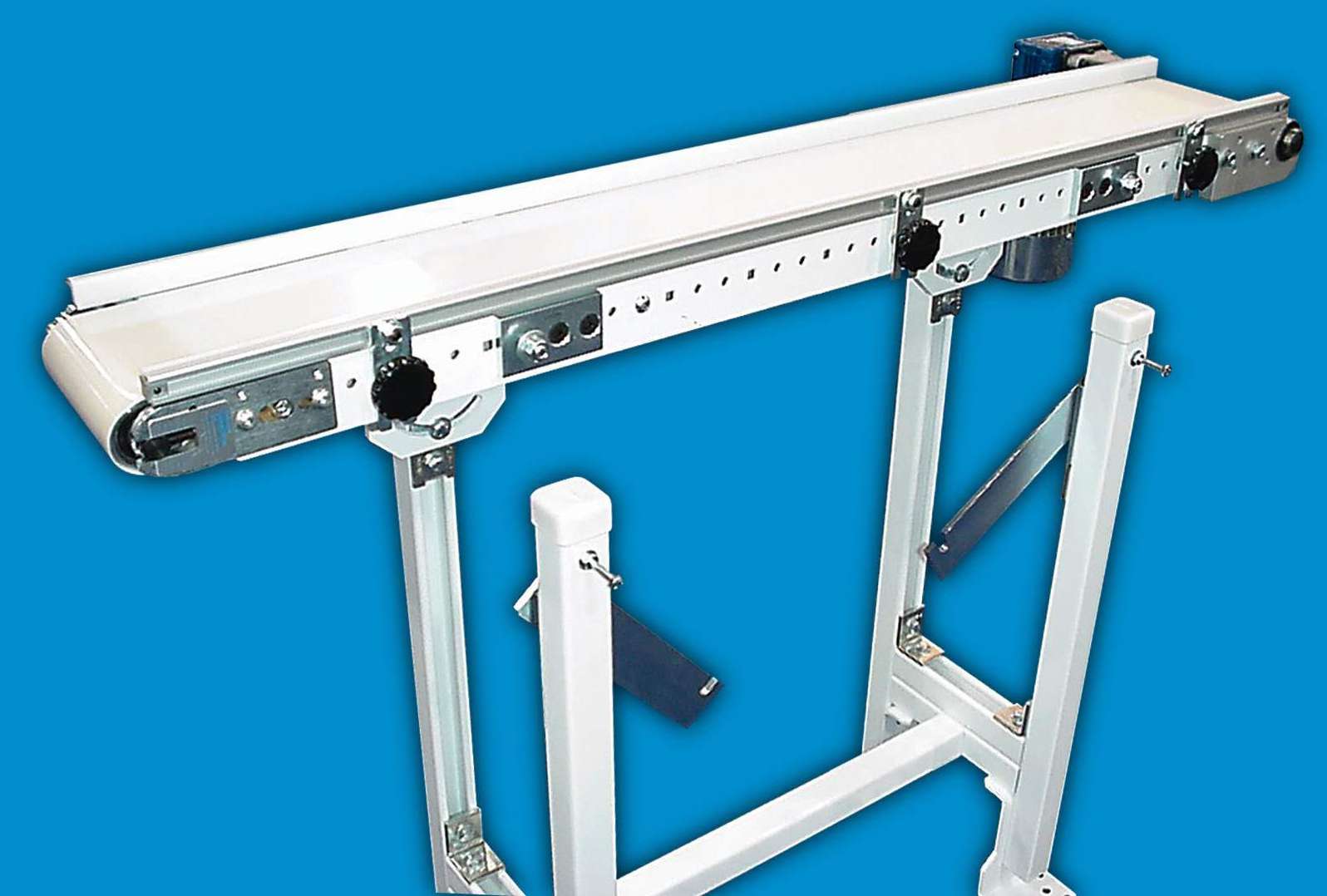

Oct 27, 2003 Conveyors have one-piece steel frame which allows cantilever-style construction with single side support to enable belt change without removing conveyor or stand mounts. Open-side stand design enables belt change in 2 min or less on small- to medium-size conveyors, and supports full conveyor capacity on widths of 7½ in. or less. Swing away supports are offered for larger conveyors and loads.

Datakey Electronics Inc.    Savage, MN 55378
Oct 27, 2003 Keytroller II, Slimtroller II, and Unitroller II use serial memory key and/or serial memory token, and connect with RS-232, RS-485, or USB interface. They allow designers to integrate capabilities such as access control/user authentication and data transfer or storage. Panel-mount devices work in PLC- or PC-controlled applications and withstand rugged environments where it would be inconvenient to have hard-wired connection.

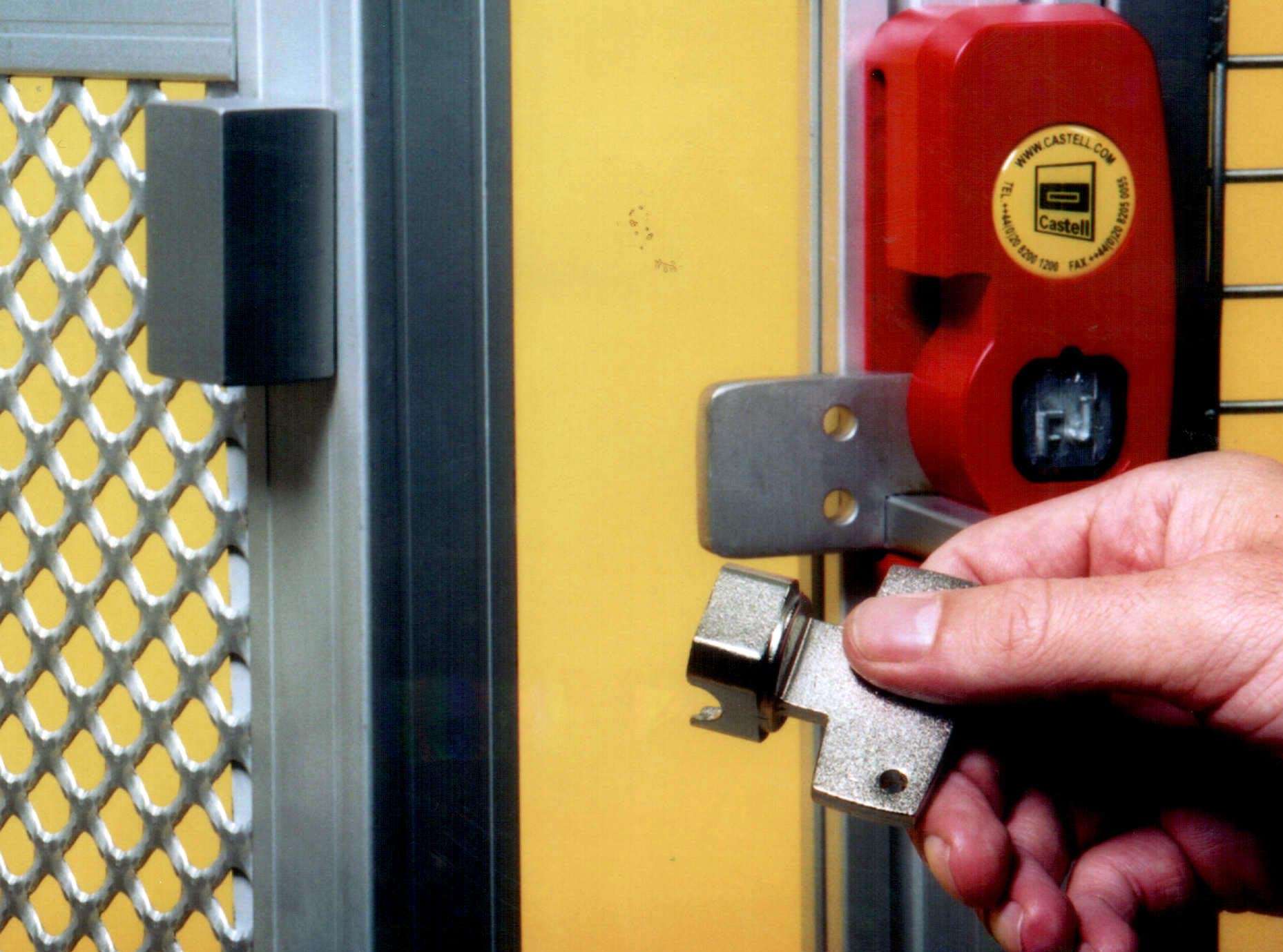

Castell Interlocks, Inc.    Chicago, IL 60601
Oct 27, 2003 Entry Safe prevents closing of machinery access doors while operator is still inside, preventing start-up of machine by inhibiting operation of switching mechanism. It can also stop door from unintentionally shutting behind personnel entering potentially hazardous spaces. Unit retrofits to existing door frames and is compatible with hinged and sliding doors. It may be used in conjunction with hinge, magnet, coded, reed, and non-contact switches.

Perkins Engines Inc.    Mossville, IL 61552 0610
Oct 27, 2003 Series 1100 ElectropaK engines, models 1104C-44TAG1 and 1104C-44TAG2, incorporate open-top deck cylinder blocks that help reduce transmitted noise. These 4-cylinder turbocharged and air-to-air intercooled units address 60 Hz standby market nodes of 80 and 100 kWe and 50 Hz prime power nodes of 80 and 100 kVA. Engines offer 1.1 liter cylinder capacity and aggressive development of combustion system.
