Datron Dynamics, Inc.    Milford, NH 03055

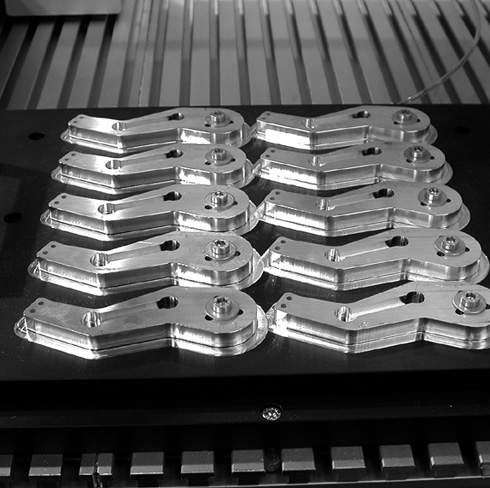

Oct 31, 2003 Quick-Palletsâ„¢ modular universal workholding system uses vacuum to hold special templated plates or pallets for part setups and changeovers; changing pallet requires no tooling or clamping. On machine bed, units are located in same spot every time because they are registered using beveled-boss in cavity system. Configurations include T-nut with pneumatic short-stroke clamps, Vacumate vacuum-table setup, retro-fit kits, and empty pallet.

Baker Co., The    Sanford, ME 04073

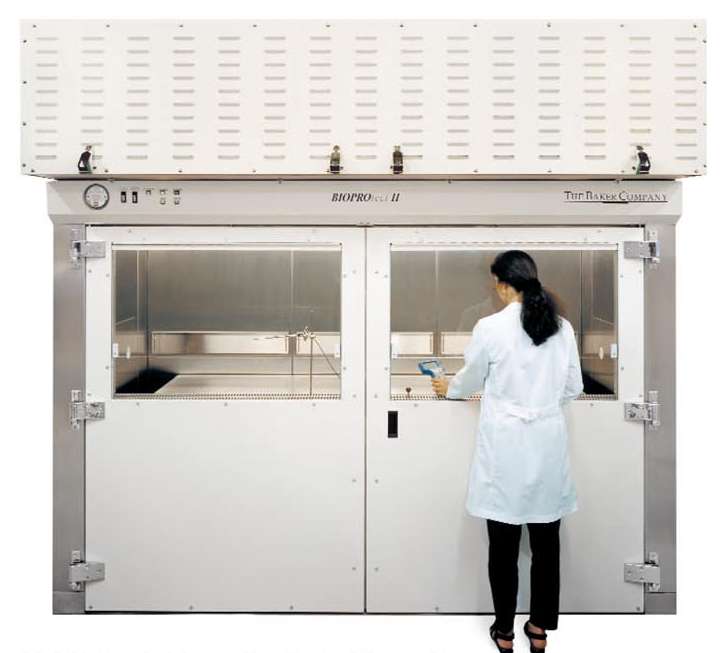

Oct 31, 2003 BioPROtect® II and BioPROtect® Jr. are Class II-style clean air and containment enclosures that provide HEPA-filtered, particulate-free airflow throughout work area, protecting personnel, product, and environment. Enclosures accommodate robotic systems, ultra-centrifuges, flow cytometers, aerosol generators, and other pieces of laboratory equipment. Applications include high-throughput screening, combinatorial chemistry, immunology, and clinical research.

HSS RentX    Denver, CO 80222
Oct 31, 2003 CabinZ Storage and Accommodation Units are made of polyethylene and can be assembled by 2 people in 10 min without special tools. Panels go through doorways, up stairs, into elevators, and even underground. Assembled units measure 8 ft 6 in. x 5 ft 11 in. x 7 ft 5 in. Multiple units can be linked to create larger storage spaces. They are suited for on-site security, hazardous materials storage, and temporary jobsite offices.

Selco Products Co.    Reno, NV 89521-5908

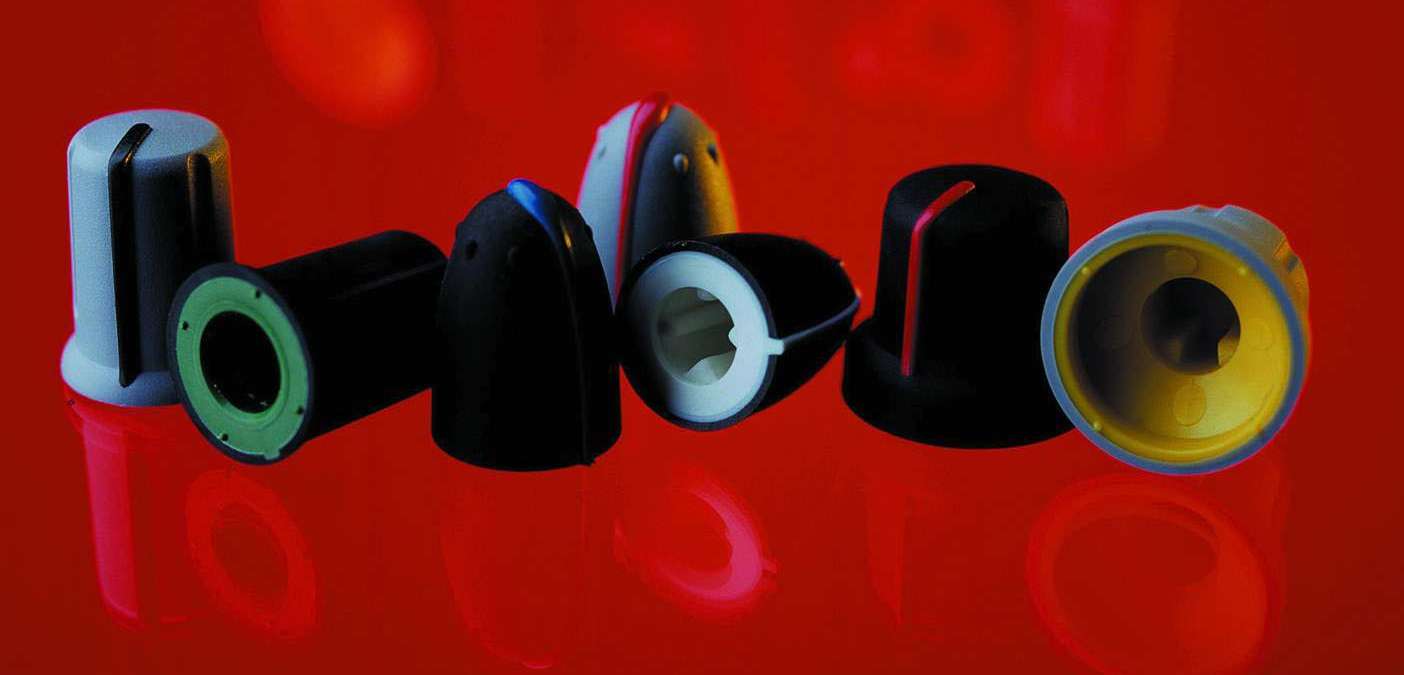

Oct 31, 2003 Soft Touch Bullet Knobs are manufactured using 2-shot molding process that merges pointer as integral part of knob body. Thermoplastic elastomer material provides rubberized, soft-touch feel, while polypropylene material provides hard-finish feel. Available in range of color combinations, rotary knobs feature 11.6 mm OD and are suited for compact control panels in audio and broadcast equipment, lighting, communications, and test equipment.

Greene, Tweed Technologies, Inc.    Kulpsville, PA 19443-0305
Oct 31, 2003 Series ST-DRYâ„¢ HP and FC-DRYâ„¢ HP connectors, adapters, and permanent bulkhead feedthroughs are 300 Series SS, while ST-DRYâ„¢ and FC-DRYâ„¢ connectors and adapters are nickel-plated brass. Corrosion-resistant products are environmentally sealed to protect fiber optic terminations from liquids, gases, and particulate that can interfere with transmission. Permanent bulkhead feedthroughs offer hermetic sealing with or without connections.

Flexsim Software Products    Orem, UT 84097

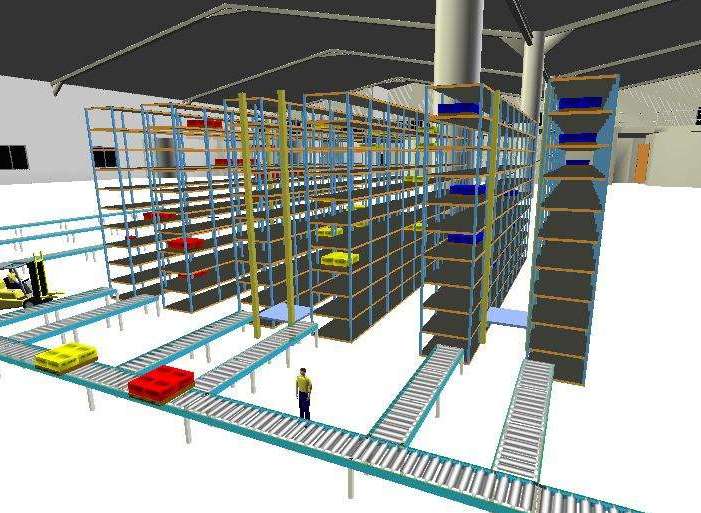

Oct 31, 2003 Flexsim v2.5 gives customers ability to accurately simulate and improve processes. It features hundreds of pick-list options for model logic and provides user-defined options as well. Software incorporates 3D models, slides, text, graphs, and charts for presentation. Animation uses OpenGL standard and will import any standard 3D formats, enabling user to develop models that truly reflect process and illustrate proposed changes.

KIP Incorporated    Farmington, CT 06032 3140
Oct 31, 2003 Available in 2-way NC configuration, isolation valves employ elastomer diaphragms and are suited for control of corrosive and aggressive media. Able to be equipped with low-wattage (0.65 W min) coils, 2 valves may be combined on common base for 3-way operation. Custom manifold assemblies include fittings, tubing, and other accessories. Valves may be combined on manifold block to simplify pneumatic or liquid circuit.

Silent Knight    Maple Grove, MN 55369 4927
Oct 31, 2003 Six-zone Model 5104 provides digital fire reporting over telephone lines. It can be used as stand-alone system or incorporated into existing system. As stand-alone unit, it monitors sprinkler systems for waterflow, supervisory, and gate valve tamper conditions. Unit offers fuseless overload protection with automatic reset circuitry and fault indicator. Dual phone line interface automatically self-tests every 24 hr with report sent to central station.

Fire Control Instruments, Inc.    Waltham, MA 02451 1122

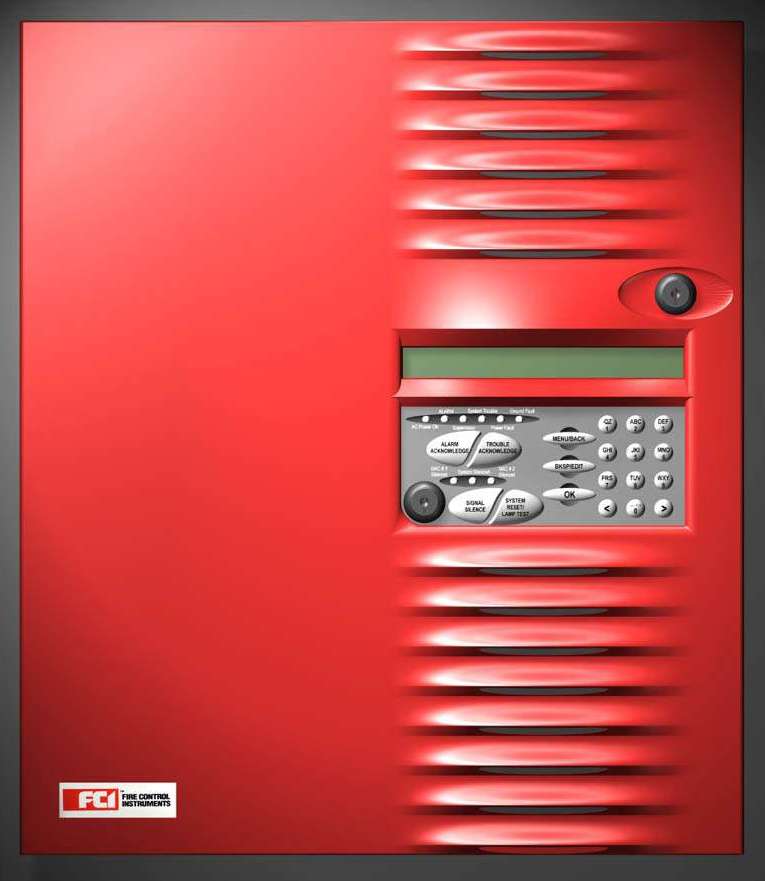

Oct 31, 2003 Series 7100 multiprocessor-based fire control panel system comes with Windows®-based Field Configuration Program (FCP-7100)/System Operating Software (SOS) v6.1. It enables control panel to read specific sensitivity level of each sensor and allows system to compensate for changes due to age, dust accumulation, or other environmental factors. Software includes 4 conditions viewable on display to aid in isolating DACT FAULTS conditions.

Reading Thermal Systems    Robesonia, PA 19551

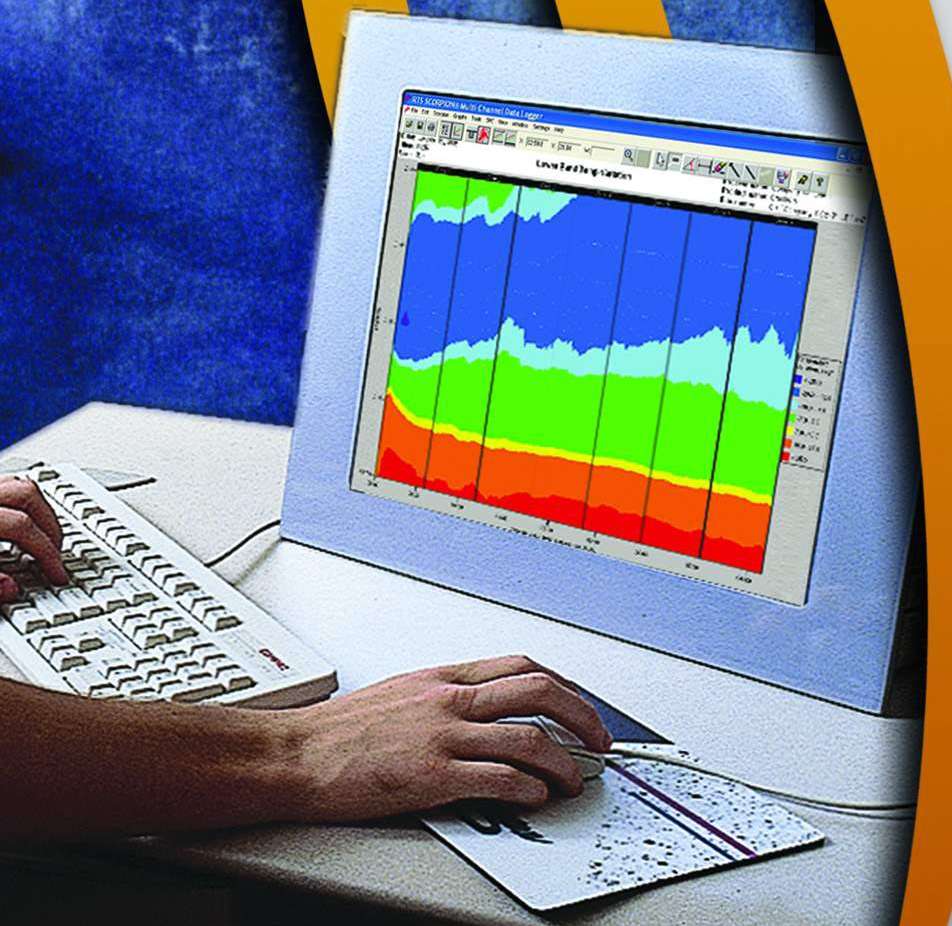

Oct 31, 2003 Scorpion Software v7 helps maintain quality, consistency, and efficiency in thermal processes. Offered with graphic SPC function, it supports Scorpion datalogger. Software enables users to manage and analyze total process data on critical parameters, resulting in exact picture of complete oven or other thermal processes. It also allows multiple-user keyless access for data analysis, and lets users manipulate data displayed in 2D and 3D graphs.

Tru-Connector Corporation    Peabody, MA 01960 5099

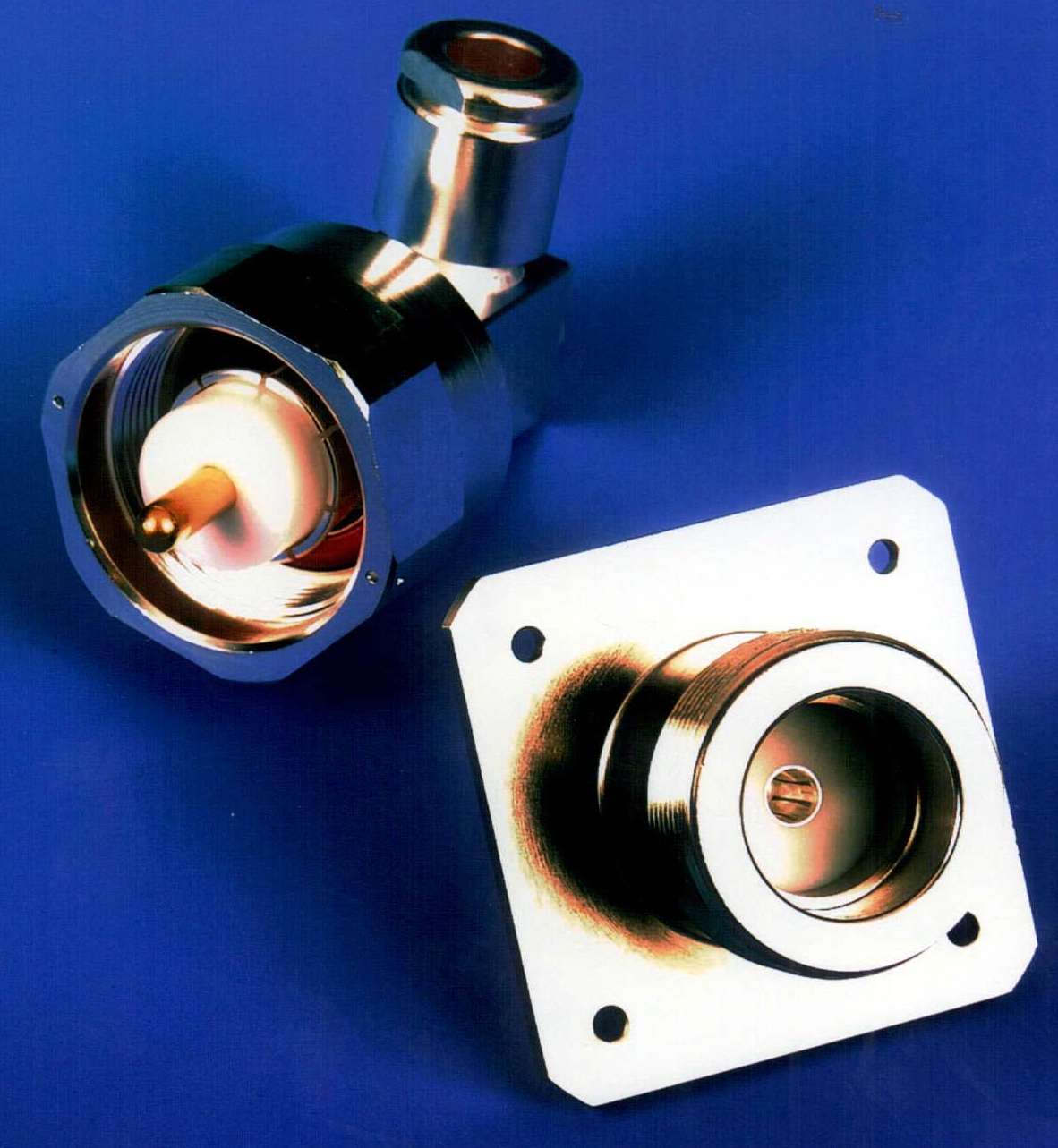

Oct 31, 2003 Suited for military and commercial applications, LC Series connectors feature female with closed-slot center contact and male version with rounded center pin. They are available as straight thru or right angle plugs and female receptacles, and as between series adapters. Rated for 50 ohm impedance, DC to 1 GHz, and 5,000 V, they are constructed with brass body, beryllium-copper female contact, brass male contact, and choice of insulator materials.

Littelfuse, Inc.    Des Plaines, IL 60016

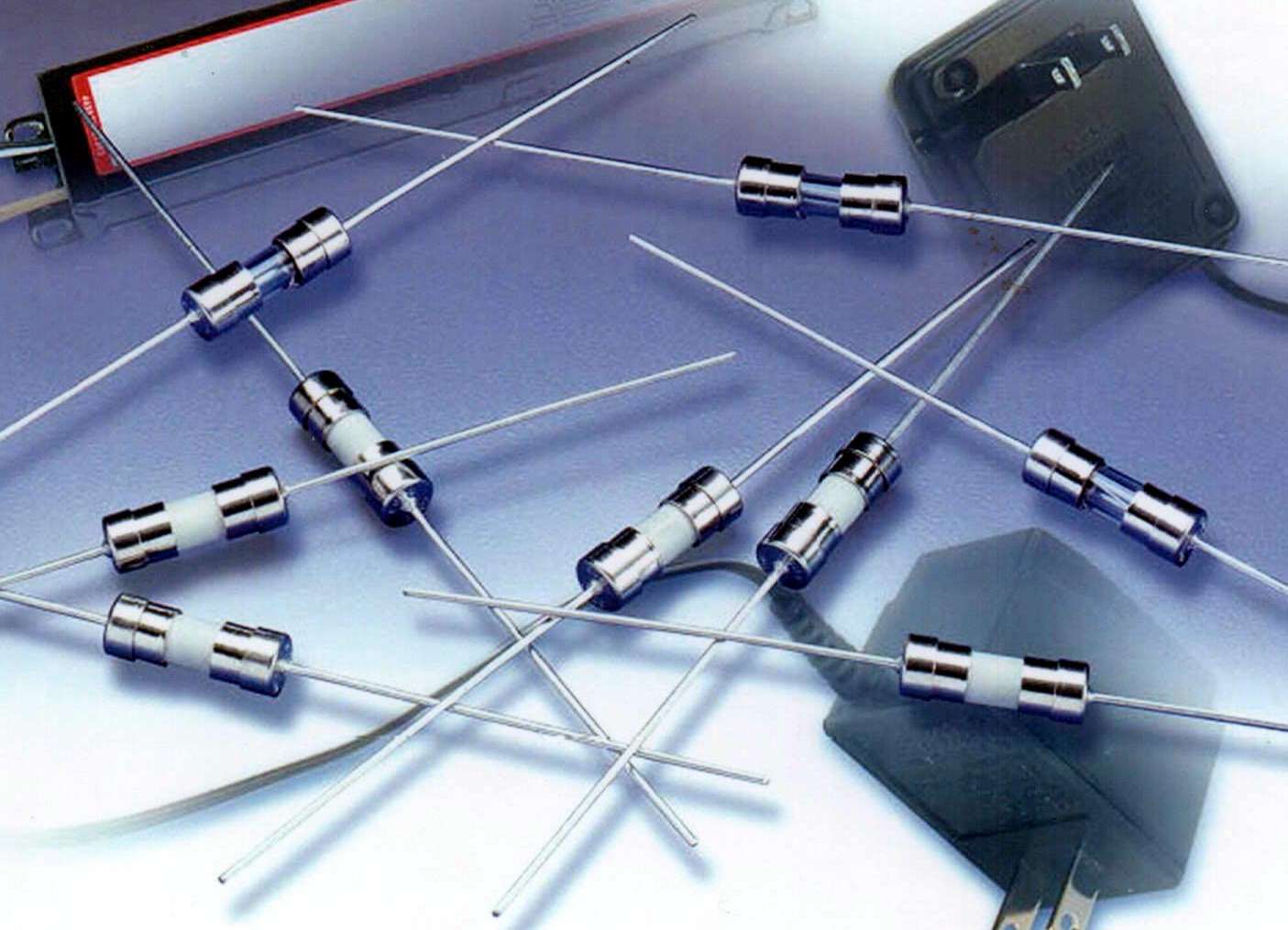

Oct 31, 2003 Measuring 3.6 in diameter x 10 mm long, 600 Series offers voltage rating of 250 V and includes 2 ceramic models designed to IEC 60127-3 standard. Model 676 fast acting fuse has 0.05–6.3 A current rating, and 677 time delay fuse has 0.25–6.3 A current rating. Versions designed to UL/CSA 248 standard include 2 glass and 2 ceramic models that have respective current ratings of 0.10–10 A and 0.10–8 A or 0.10–5 A.

Adaconn & Inserta Products, Inc.    Blue Bell, PA 19422
Oct 31, 2003 ADACONNâ„¢ Port Connectors, when used with ADAFLANGEâ„¢ adapters and/or ADAFLANGEPORTâ„¢ adapters, give flexibility in plumbing compact SAE Four Bolt Flange connected systems without welding. Fluid is confined to inner bore where supporting wall thickness is greatest. Connectors are proof tested with Code 62 ADAFLANGEâ„¢ and ADAFLANGEPORTâ„¢ adapters to proof pressure of 18,000 psi and are offered in sizes up to 3½ in.

Hilti Inc.    Tulsa, OK 74121
Oct 31, 2003 HUS Screw Anchor System is manufactured using 2-step heat treatment process and Delatone coating. It features hardened tip for cutting into concrete, and ductile shank to reduce risk of hydrogen embrittlement. Available in 3/8 and ½ in. sizes, HUS System installs using ANSI drill bits. It is suited for permanent indoor and temporary outdoor fastening applications including racking, shelving, hand and guard rails, seating, window frames, and conveyers.

Ringfeder Power Transmission USA Corporation    Westwood, NJ 07675

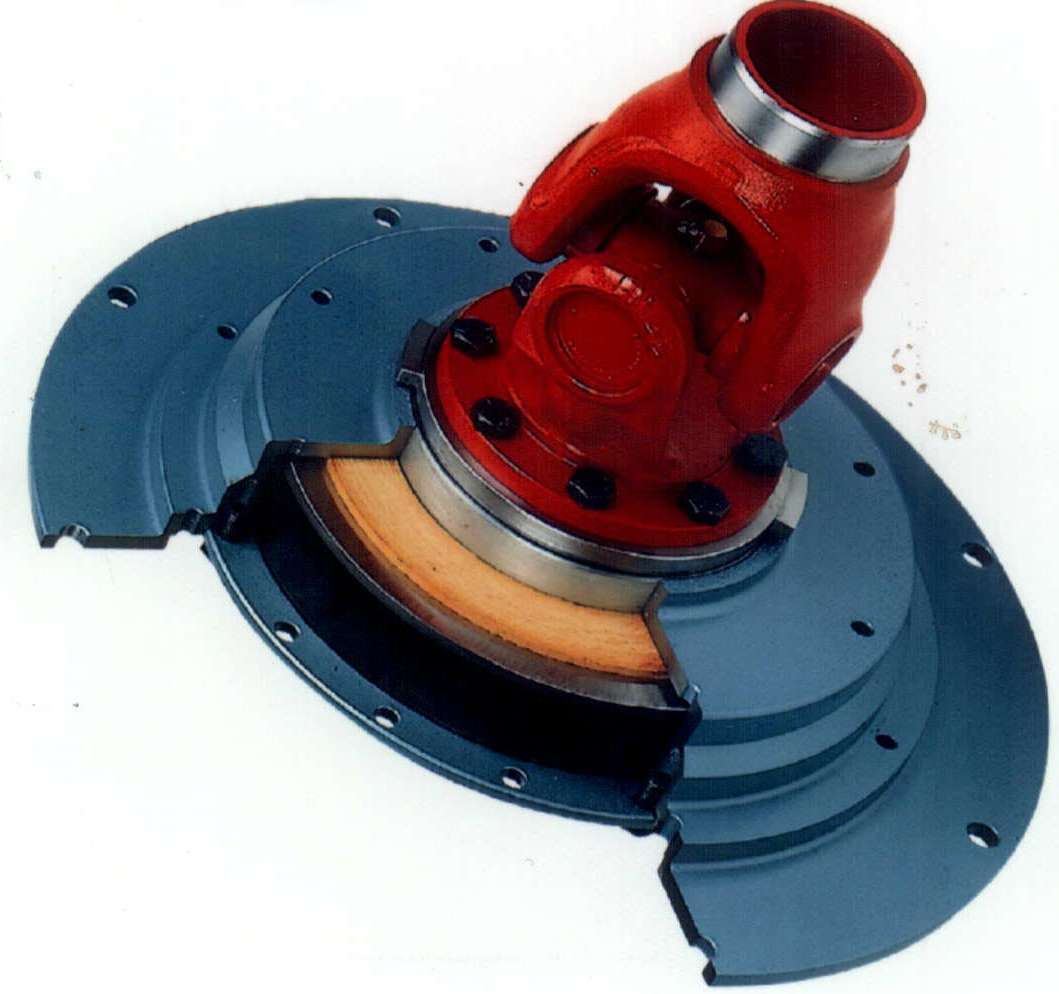

Oct 31, 2003 Reich Arcusaflex® VSK U-joint couplings provide torsional dampening for connections between combustion engines and driven components. They mount to flywheel of combustion engine and attach through Cardan shaft connection. Couplings absorb and attenuate reactive forces acting on U-joint connection. They protect drive train against excessive mechanical strain by reducing resonance frequencies below operating speed and keeping torque spikes within limits.

Scientifics, A Division of Edmund Scientific    Tonawanda, NY 14150-6711

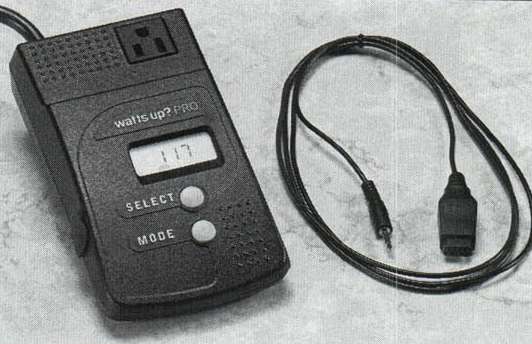

Oct 31, 2003 Watts Up? uses digital electronics to precisely measure power consumption of any 120 Vac appliance. It records min/max watts, power factor, cumulative cost, average monthly cost, and 12 other energy consumption parameters. Stored data can be downloaded to PC and turned into spreadsheets and graphs. Device includes serial port and software on CD-ROM.

Uniwest    Pasco, WA 99301

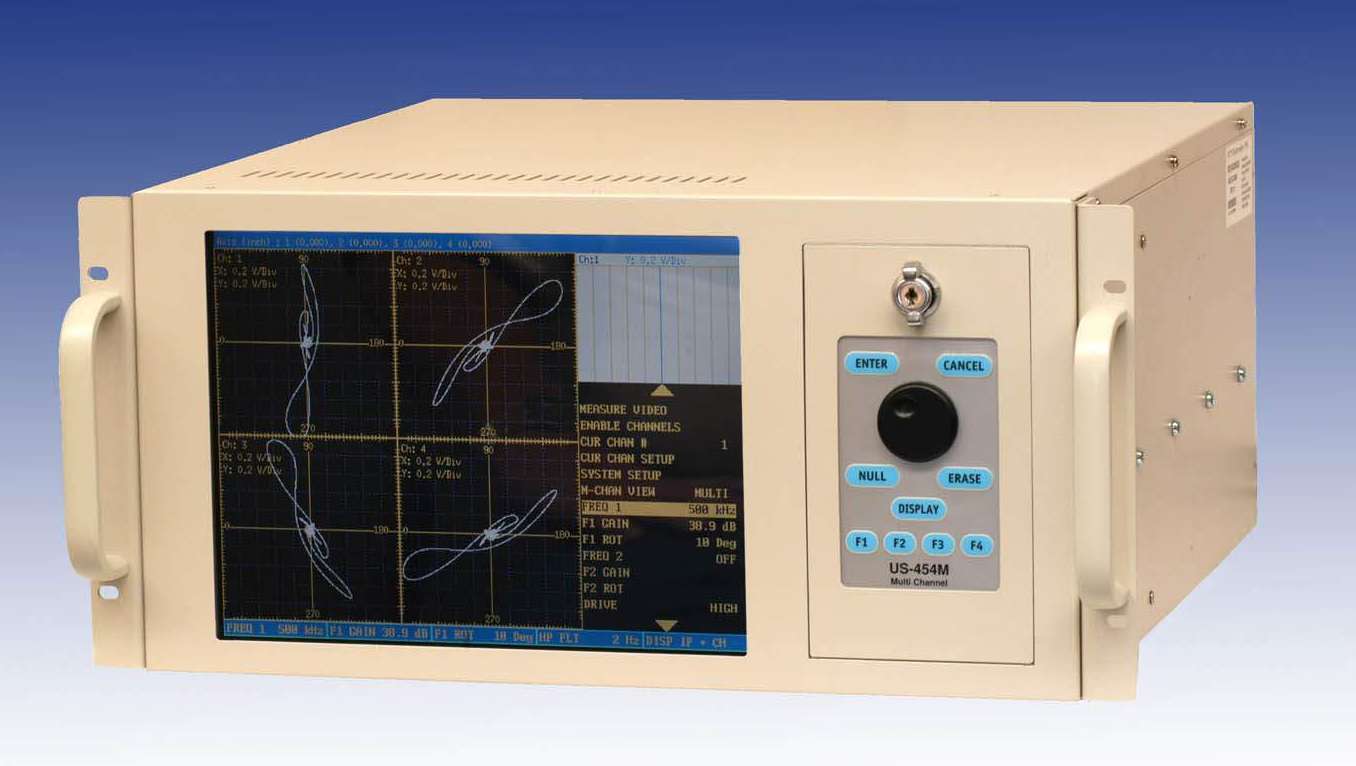

Oct 31, 2003 Model US-454M multi-channel, eddy current inspection instrument can be configured as 1 channel with 4 frequencies, 2 channels with 2 frequencies per channel, or 4 channels with 1 frequency per channel. Encoder knob enables technician to scroll through menus and select testing parameters. Four function keys allow set up of repetitive inspection criteria such as gain, frequency, rotation, and filters. Internal memory stores up to 100 test setups.

Aromat Corp.    New Providence, NJ 07974 1507

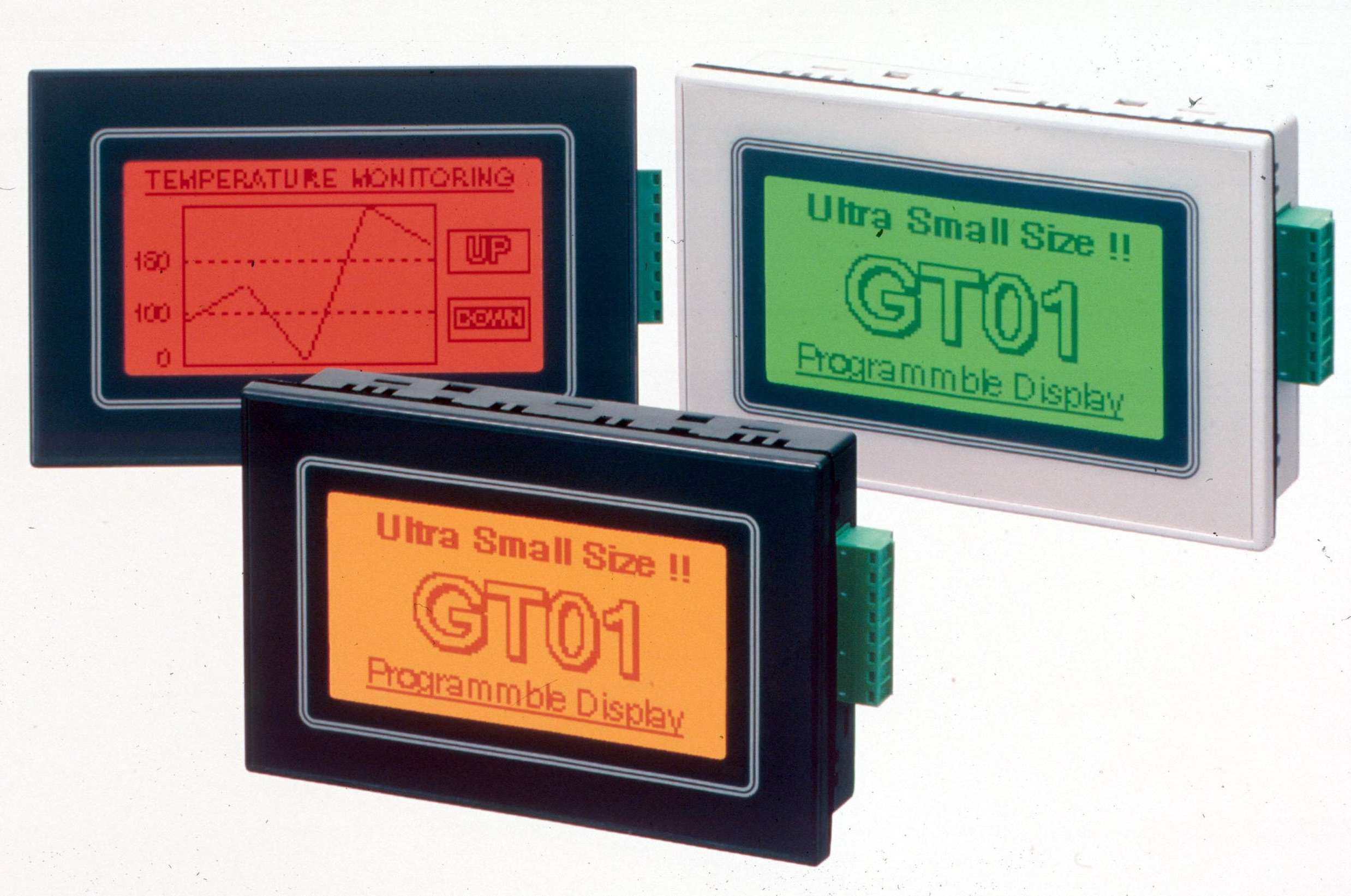

Oct 31, 2003 Model GT-01 has 3-color, LED backlit LCD screen with 384 KB of memory. Programming software supports bitmap graphics, true type fonts, key switches, function keys, lamps, multiple message texts, bar graphs, data entry points, and individual keyboard screens. Unit contains multiple PLC drivers and can be connected to custom board controller or PC through General-Purpose Serial mode. Modem capability allows remote programming of display and PLC.

R.P.M.C.    St. Charles, MO 63301

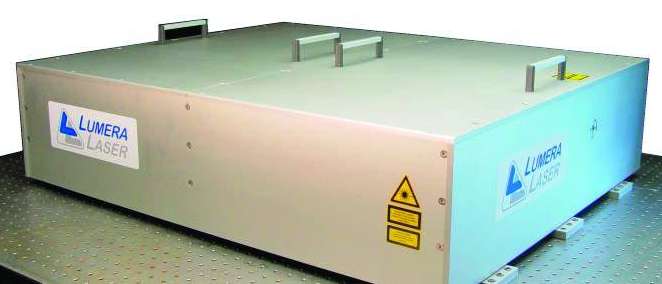

Oct 31, 2003 With fundamental wavelength of 1 micron, Staccato laser delivers 13 psec long, diffraction-limited pulses with peak power of 38 megawatts. It is available in harmonic wavelengths of 532, 355, and 266 nm. With UV wavelength, laser can have beam focused to spots of ~2 microns. Laser does not leave behind heat affected zone, operates at rates to 100,000 pps, and has 1 x 0.8 m laser head. Electronic rack is 5 ft tall and houses controller, power supply, and chiller.

Vocollect Inc.    Pittsburgh, PA 15235 4559
Oct 31, 2003 Talkman® T2 holds and tests up to 5 Talkman T2 Lithium-Ion batteries. Tabletop design with LCDs for each battery, unit shows final capacity when test and charge are complete. If full charge measurement falls within ranges specified for specific environment, battery can be expected to hold charge for entire work cycle. If battery is not fully charging, managers know before shift begins and can replace battery with fully charged unit.
