RAE Systems    San Jose, CA 95134

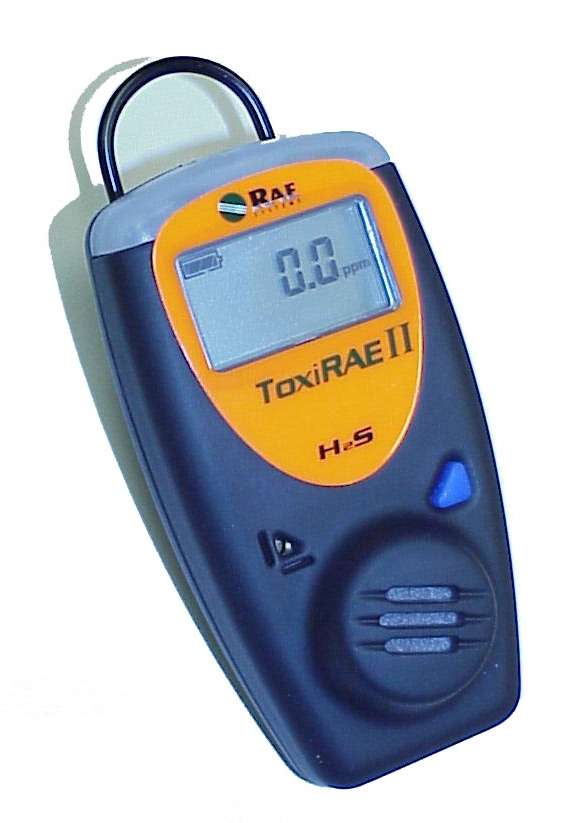

Dec 03, 2003 With impact-resistant, carbon-loaded ABS housing, ToxiRAE II single-gas personal monitor provides continuous readouts of toxic gas concentrations. Alarms can be modified to meet specific requirements. Battery-operated unit features LCD screen with digital display of gas concentration, STEL, TWA, and Peak values, along with high, low, TWA, and STEL alarms. It resists RFI interference and corrosion.

ifm efector, Inc.    Exton, PA 19341

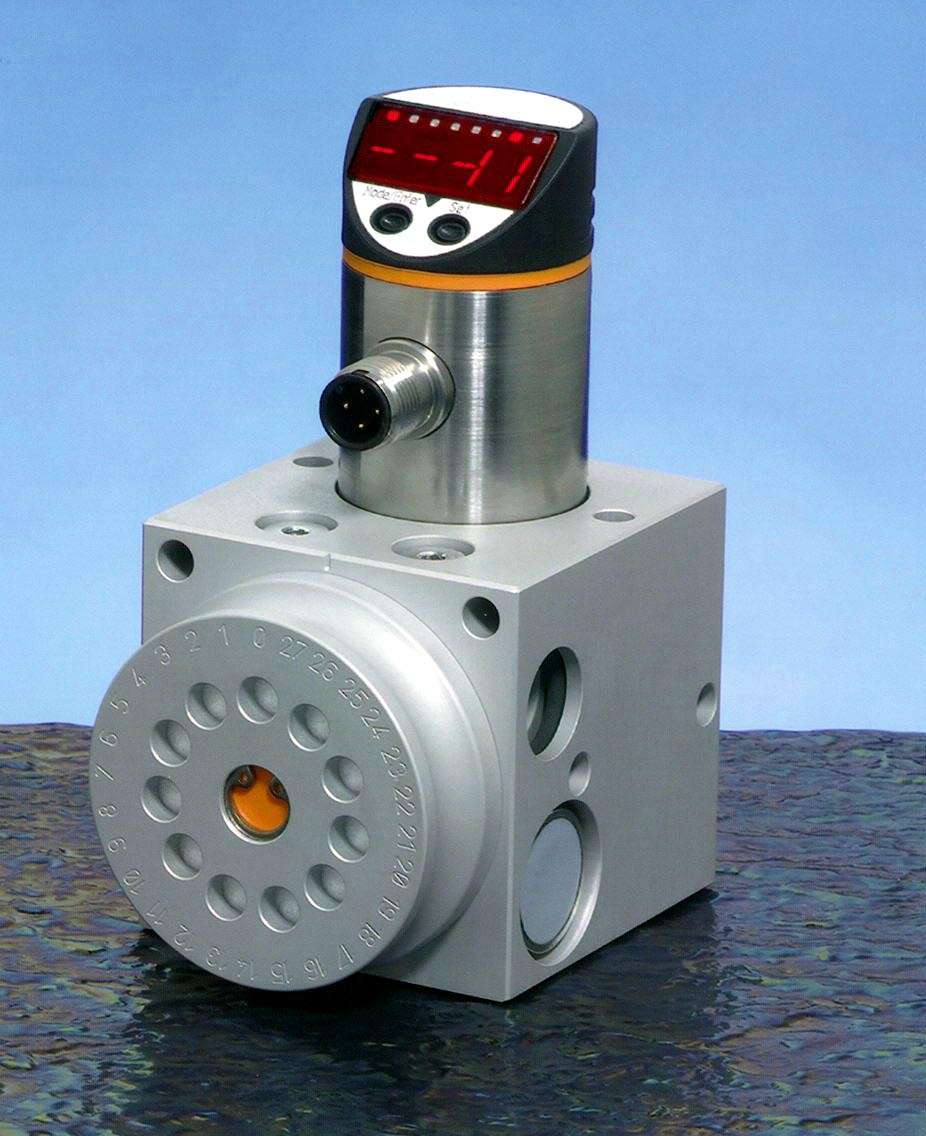

Dec 03, 2003 Series PS monitors nozzle-to-part distance in applications such as gap detection, workpiece positioning, and part present. It detects gap distance as small as 0.02 mm, while integrated 4-digit LED display provides nozzle-to-part distance indication. Monitor delivers dual switching output, programmable NO or NC, PNP or NPN. It has one output for part present and second output for warning indications, including nozzle blockage or wirebreak.

ASACA/Shibasoku Corp. Of America    Golden, CO 80401
Dec 03, 2003 Equipped with up to 6 Sony PD drives, Sony Professional Disc for Data (PD)-enabled series of TeraCart optical libraries include InveStore v4.12 and are based on Blue Laser technology. Random access PD-based libraries record up to 23.3 GB of data on one PD media cartridge for up to 9.8 TB of storage per library with up to 9 and 11 MB/sec write and read speeds, respectively. Using pass-through and infrared communications, libraries can be managed as one physical unit.

Niagara Plastics Co.    Erie, PA 16509
Dec 02, 2003 Series EP-305 features push-in design that allows one part size to fit and protect different size flanges, as well as other classifications of flanges. Low-density, polyethylene protectors come in 16 sizes to fit nominal pipe sizes ranging from 3/8 to 16 in.

Handling Specialty, Inc.    Niagara Falls, NY 14304 0279
Dec 02, 2003 Specialty Lift utilizes self-locking, electro-mechanical drive to smoothly move and hold copper coils. It features open-center platform where diameter of opening increases with size of coil as copper is wound. Measuring 80 x 80 in. with vertical travel of 138 in. and capacity of 20,000 lb, lift is installed in pit, allowing worker to remain at floor level.

Bosch Rexroth Corp., Pneumatics Div.    Lexington, KY 40511
Dec 02, 2003 Series ND-5 electro-pneumatic pressure control valves convert electrical signal into pneumatic pressure, allowing users to change pneumatic pressure/force. With analog or serial link control options, valves allow electronic remote control of pneumatic force or pressure. Characteristics include flow rate of 28+ scfm, output pressure to 150 psi, and hysteresis under 1 psi. Universal pneumatic port threads accept ISO G ¼ or ¼ in. NPT connections.

Yes Controls LLC    Irving, TX 75062
Dec 02, 2003 Fully enclosed switching power supplies, UL listed and CSA approved, are comprised of 4 families: 45, 75, 120, and 240 W. They feature 12 DIN rail mounted models, measuring 2.19-3.94 in. along the rail. All supplies have over-voltage protection as well as overload and short-circuit protection with automatic recovery. Overall efficiency, ranging from 72-85%, minimizes heating, and LED indicator provides status verification for operator.

Devar, Inc.    Bridgeport, CT 06605
Dec 02, 2003 Model 3660 monitoring, alarming, and controlling device can be used anywhere analog-to-contact closure control is needed. Push-button configuration provides for simplex/duplex/triplex modes of operation utilizing auxiliary relay that can be employed as independent alarm, control relay, or level-within-limits alarm. Security code enables prevention of unauthorized changes. Operating on 115 Vac, controller also provides 25 Vdc to power external transmitters.

Interpower Corporation    Oskaloosa, IA 52577-0115
Dec 02, 2003 Interpower(TM) Australian power cords and cordsets include partially insulated pins to minimize safety hazards and to comply with AS/NZS 3112:2000 fifth edition standard. They are rated up to 10 A with service at 230 Vac. Custom lengths and packaging options available.

TURCK, Inc.    Plymouth, MN 55441

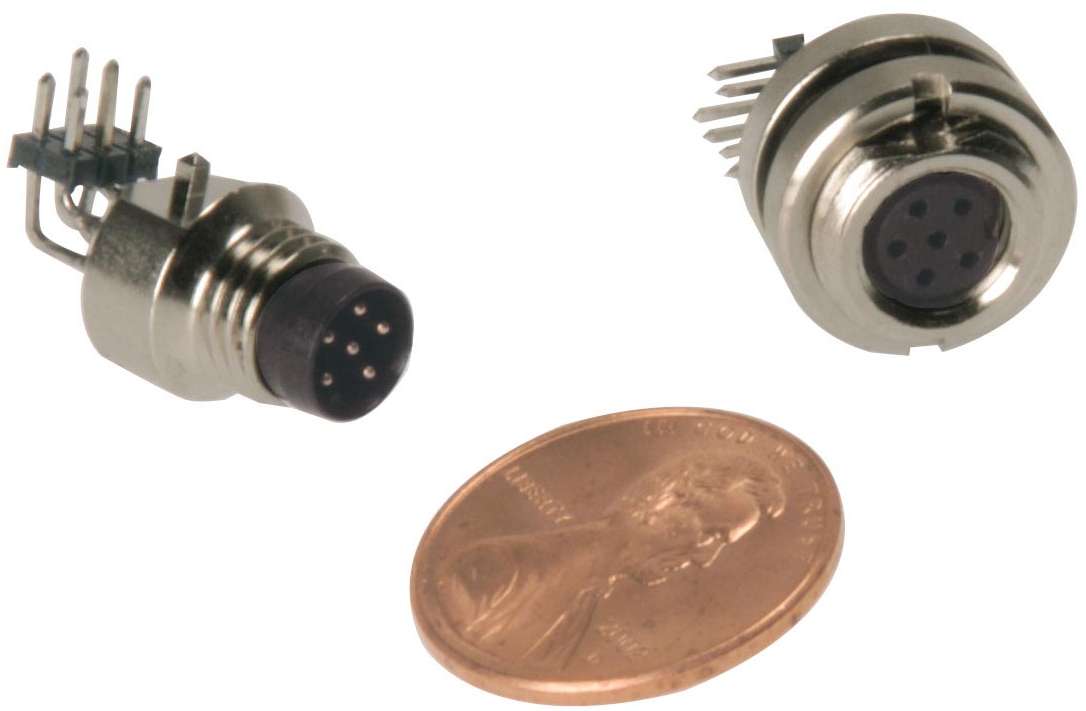

Dec 02, 2003 Attached to brass housings that provide watertight seal, 3-, 4-, and 6-pin M8 picofast receptacles and mating cordsets are suited for power and signal transfers. Male and female PCB receptacles are available; former mates with threaded and snap-lock picofast cordsets, while latter works with picofast threaded cordsets. All versions provide protection that meets IEC IP 67. Voltage and current limits range from 1 A @ 24 Vdc to 4 A @ 75 Vdc.

Label-Aire Inc.    Fullerton, CA 92833
Dec 02, 2003 Compatible with any OEM printer, 3138-N utilizes proprietary New Generation technology. It includes automatic setup with multiple programmable label pages for change-overs to labels of different sizes, rate compensation for label placement accuracy, and user-configurable I/O connectivity. Stainless steel and anodized aluminum construction is corrosion-resistant, providing durability in hostile environments.

N-TRON Co.    Mobile, AL 36609

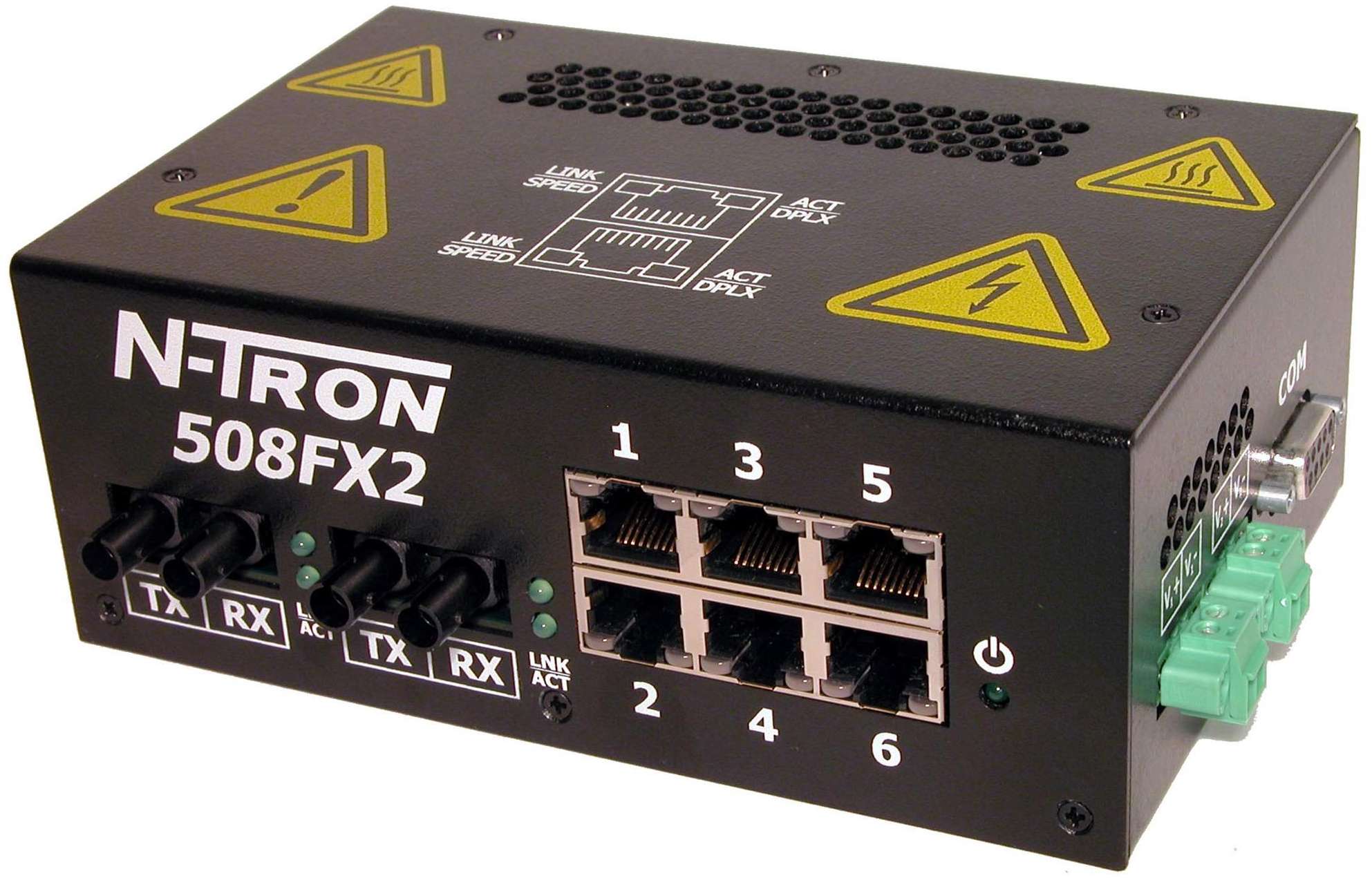

Dec 02, 2003 Designed to operate in industrial environments, 508FX2 Series Industrial Ethernet Switch provides Ethernet and fiber optic switching technology, extended port capacity, and advanced management functions. It is equipped with two 100BaseFX Ports and six 10/100BaseTX RJ-45 Ports. Former support 200Mb/s communications, while latter are auto sensing and auto configuring. Unit is housed in DIN-RAIL or Panel Mounted steel enclosure.

N-TRON Co.    Mobile, AL 36609

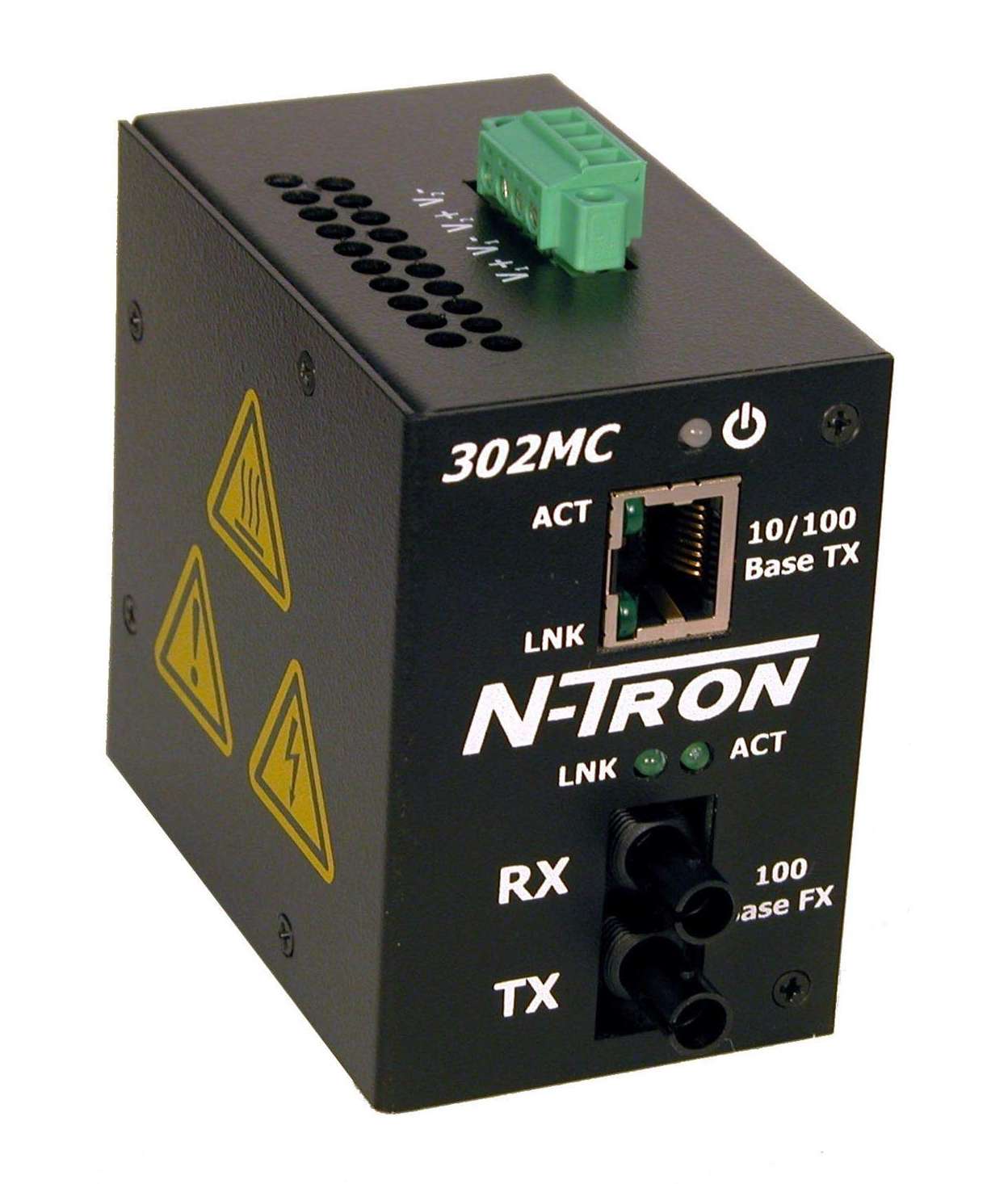

Dec 02, 2003 Model 302MC provides one RJ-45 Auto-sensing 10/100BaseTX port and one 100BaseFX port, allowing connection of 10/100BaseT Ethernet devices to fiber cabling infrastructure. Converter auto-negotiates speed and flow control capabilities of TX copper port connection, and configures itself automatically. It supports up to 4,000 MAC addresses, has full IEEE 802.3 compliance, and withstands extreme temperature, noise, shock, and vibration. Unit can be DIN-rail or panel-mounted.

Trine Labelling Systems    Turlock, CA 95381
Dec 02, 2003 Model 2160 offers full-body or neck band labeling at speeds up to 60 containers/minute. Stainless steel and aluminum machine is rust-resistant and suited for variety of environments. In less than 10 minutes, it can be converted from one container requirement to another.

Raindrop Geomagic    Durham, NC 27713
Dec 02, 2003 Cadmus Fashion reverse engineering software produces trimmed NURBS models from polygon models or 3D point-cloud data from physical part. Suited for surfacing and industrial design, it enables recreation of original surface aesthetics. Free-form shapes are decomposed into independent primary surfaces and dependent feature surfaces. Software generates color maps for comparison and analysis, and supports all import and export formats.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472

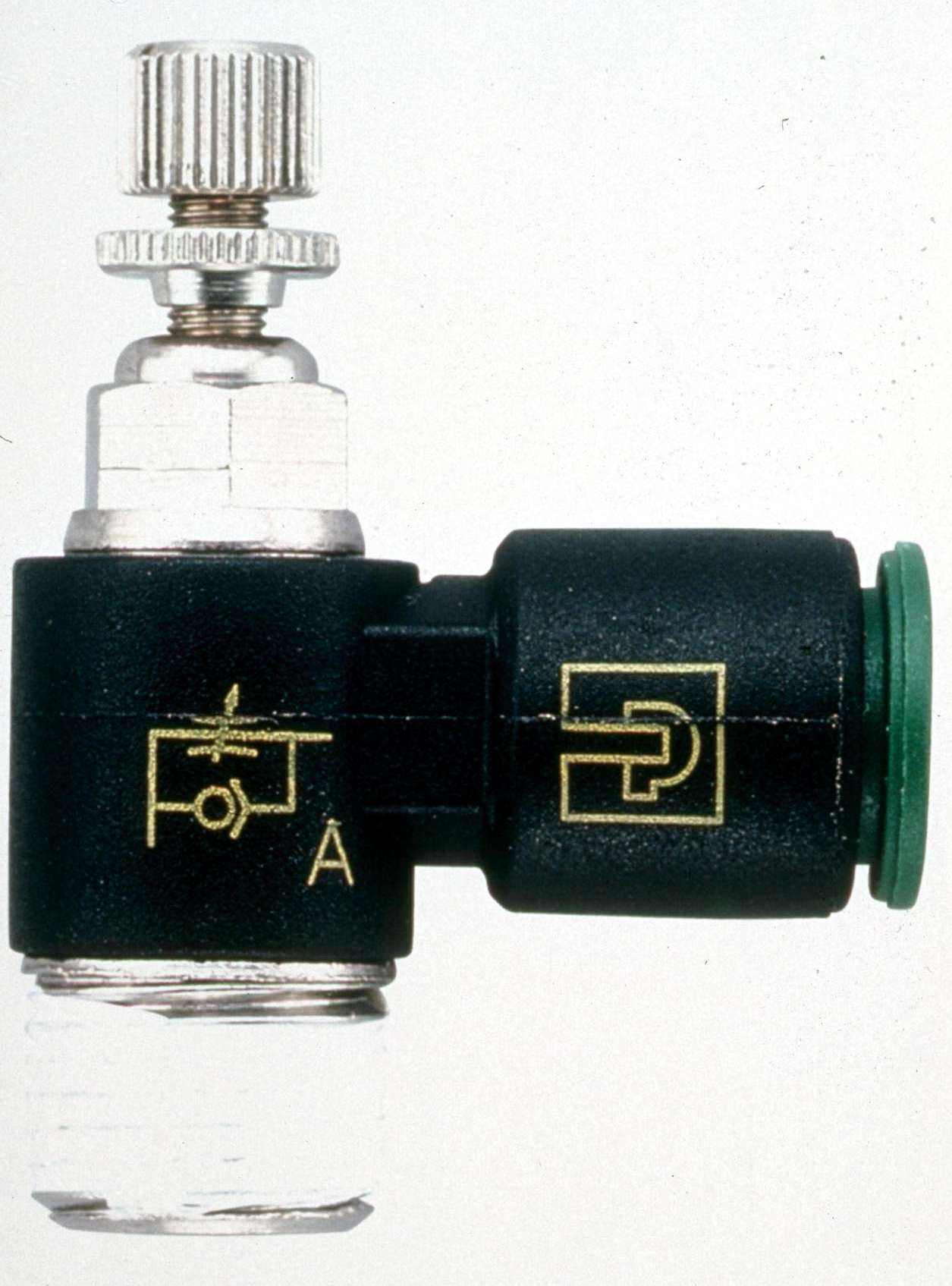

Dec 02, 2003 Flow Control Regulators mount directly on air cylinder and come in meter out versions. Adjustment screw provides precise airflow control, and locking nut resists effects of vibration. Regulators are offered with NPT threads and push-to-connect fittings or NPT threaded ports. All have solid brass body treated for chemical resistance, SS tube gripping ring, and nickel-plated brass adjustment screw. Working pressure is 15–145 psig and working temperature is 30–160°F.

Parker Hannifin Corp., Pneumatic Div.    Richland, MI 49083 0901
Dec 02, 2003 Miniature Flow Control Regulators control speed of small-bore cylinders such as pancake/flat types. Fine adjustment screw allows precise settings, while lock nut ensures that settings are maintained. Units have push-to-connect tube ends with NPT threads. All feature glass-reinforced nylon composite body, SS tube gripping ring, and nickel-plated brass adjustment screw. Working pressure is 15-145 psig, and working temperature is 30-160°F.

Norgren    Littleton, CO 80120

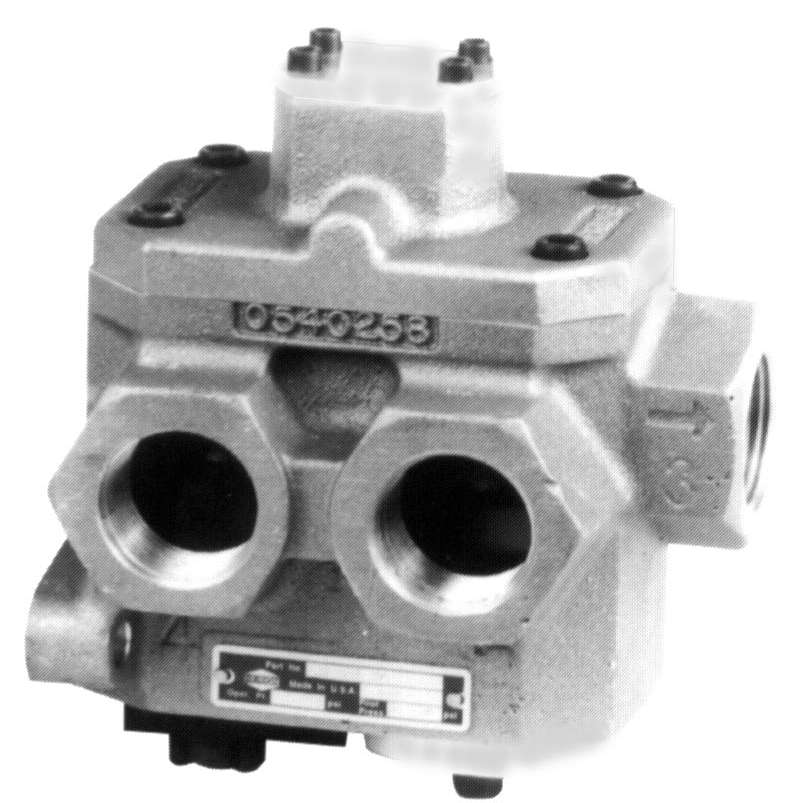

Dec 02, 2003 Four-way, in-line Poppet Valves are offered in solenoid-actuated models with either internal or external pilot supply and air-actuated versions. They have lightweight, aluminum bodies with port sizes ranging from 3/8 to 1 in. NPT, ISO 228/1. Valves handle lubricated or non-lubricated filtered air media.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Dec 02, 2003 Meter out versions of Miniature and Compact Flow Control Regulators allow vertical or angle tube exit where access is restricted. Fine adjustment screw and locking nut provide precise, maintainable settings. Mounting directly on air cylinder, compact versions measure 2 in. high at full extension and are offered with fractional inch push-to-connect ends and NPT or UNF threads; Miniature versions measure 1 in. All regulators feature working pressure from 15–145 psig.

Yaskawa Electric America, Inc.    Waukegan, IL 60085

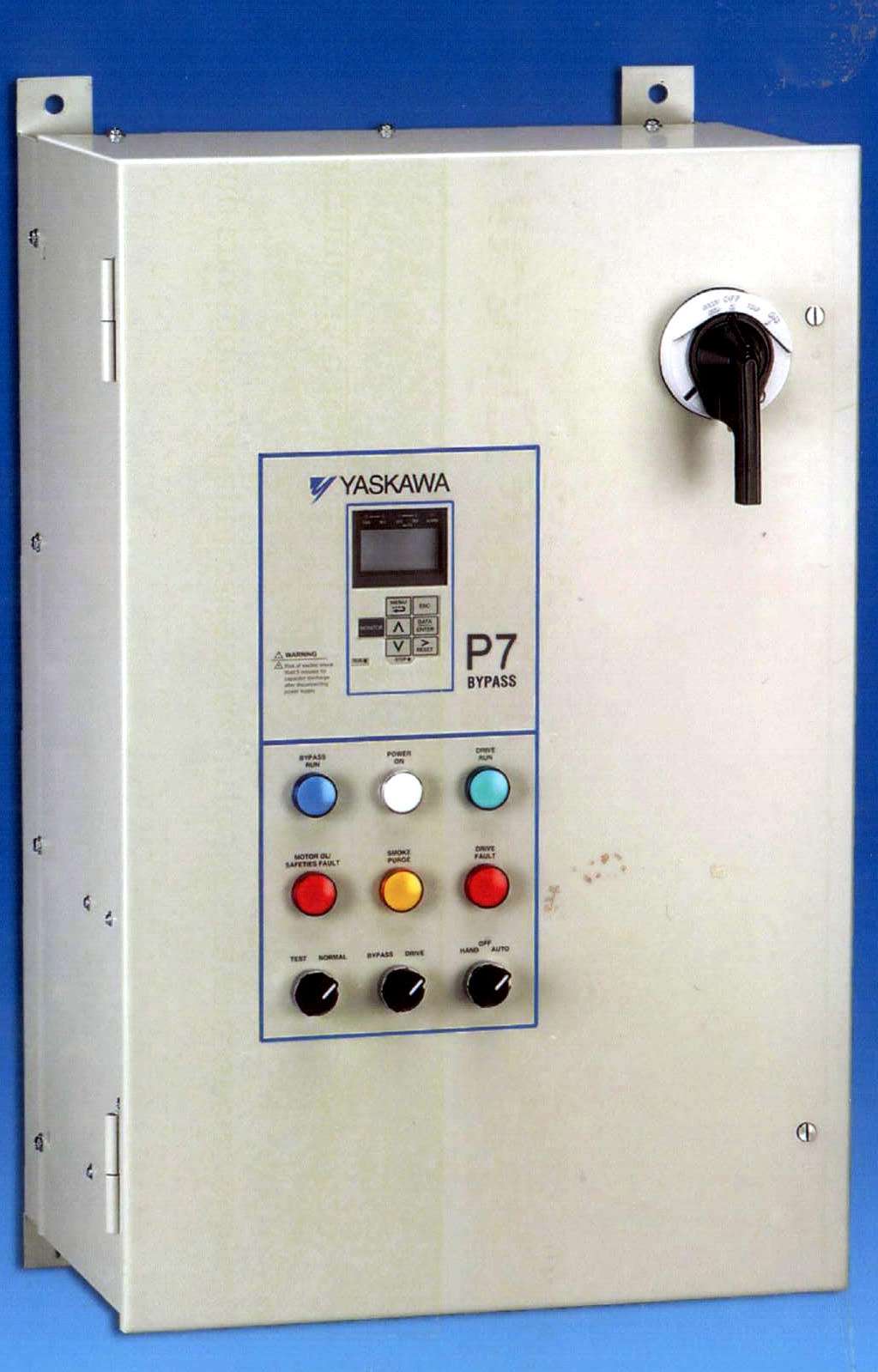

Dec 02, 2003 Model P7/Bypass Drive permits motors to be run from either drive or line current. Three electrically-interlocked, IEC-rated contactors isolate drive when operating in bypass mode. Available in ratings from 5–500 hp at 208/230/240/480 Vac, unit provides 110% overload capability. It supports open architecture standards with embedded Modbus serial communication. Drive coordination is simplified with 4–20 mA and 0-10 V inputs and outputs.
