VXI Technology Inc.    Irvine, CA 92614
Nov 05, 2003 VME-based, high-density, hermetically sealed SVM switches are available in solid-state and electromechanical designs and support VME32/64 operation. Intelligent switching features, achieved in hardware, include scan list operation, programmable delays, interrupt driven triggering, and internal confidence checking. Safety interrupt is programmable fail-safe feature. Products address power, DC, signal, and RF applications.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214
Nov 05, 2003 Series VFP, for large containers and vessels, provides instant attach and release from top surface, preventing damage from fork lift prongs, chains, and belts. With custom handle bar and suction pad arrangement, lifter allows one person to lift awkward loads and can be modified to handle loads from side. Vacuum guard automatically monitors system and has audio-visual alarms. Lifter can pick parts from molds and lift trailer-size containers up to 10,000 lb.

MSA    Pittsburgh, PA 15230 0426
Nov 05, 2003 Ultima® Custom 4-Gas Detection System continuously monitors and displays concentrations of oxygen, hydrogen sulfide, carbon monoxide, and combustible gas. System comes in NEMA 4x stainless steel enclosure and includes over-range protection, automatic adjustments for calibration, date of last calibration, and over-LEL protection. Internal dc sample pump features built-in flow sensor, fault indicator, fault relay, and sample draw capability up to 100 ft.

Rotex, Inc.    Cincinnati, OH 45223 1845
Nov 05, 2003 ROTEX® Minerals Separatorâ„¢ is designed for mined minerals and abrasives and maximizes product recovery at material temperatures to 400°F. Elliptical-linear motion provides equal feed distribution to all screen decks, uniform bed-depth across entire screen surface, and aggressive blinding control. Features include stacked, multiple-deck, tray access design; lift-rail system with non-binding stainless steel cam activation; and screen deck slope of 6°.

Bushman AvonTec    Butler, WI 53007-0309
Nov 05, 2003 Vehicle Rover, with pushbutton control, slips under any car or truck up to 6,000 lb and enables users to move it through parking lot or factory floor without starting engine. With 5 in. profile, unit locks onto wheels of vehicle and lifts it off the ground. Variable-speed electronic drive system pulls vehicle at speeds up to 3 mph. Powered by 24 Vdc battery, rover has self-contained hydraulic system and safety features such as posi-grip controls and clamp/lift interlocks.

Berkeley Varitronics Systems    Metuchen, NJ 08840-1217
Nov 05, 2003 Hanheld Yellowjacket(TM) PLUS has built-in spectrum analyzer that sweeps, analyzes, optimizes, and secures 5 GHz Wi-Fi WISPs and hot spots. Calibrated receiver measures all 8 OFDM 802.11a channels for identification of MAC, SSID, and RSSI signal levels of Access Points AND NIC Client cards on or off network. It interfaces with embedded iPAQ and includes options for direction finding antenna and indoor mapping coverage software.

WinSystems, Inc.    Arlington, TX 76011
Nov 05, 2003 Single Board Computers, offered in variety of sizes and capabilities, range from 3.6 x 3.8 in. PC/104 bus 486DX to 5.75 x 8.0 in. EBX-compatible Pentium III with integrated video and Ethernet controllers. Units include multiple data storage choices, digital and analog I/O support, and expansion options. Embedded Linux provides solution for applications in heavy manufacturing, COTS/military, communications, transportation, networking, and machine control.

Roll-A-Way Conveyors, Inc.    Gurnee, IL 60031 1212
Nov 05, 2003 Customizable for applications that include harsh, acidic, and clean room environments, Ultra Wash stainless steel conveyors come with Delrin bearings or can be upgraded to all stainless bearings. Widths range from 4–36 in., and frame capacity is available up to 2,000 lb. Washdown conveyor is suitable pharmaceutical and food processing industries, specialized packaging implementations, hospitals, and laboratories.

Pacific Bearing Co.    Roscoe, IL 61073
Nov 05, 2003 Based on Simplicity bearing liner technology, Mini-Rail® self-lubricating, screw-driven, miniature linear guides/slides provide compact, smooth, and quiet linear motion control. Precision ball bearings support lead screw and pre-loaded drive nut. Mini-Rail with lead screw requires no sealing, emits no particulates, and is corrosion-resistant. Applications include semiconductor processing, clean rooms, medical devices, and material handling.

Extech Instruments Corp.    Nashua, NH 03063
Nov 05, 2003 Model 200 measures ac current to 400 A, ac/dc voltage to 600 V, and resistance to 20 Mohm, with measurements displayed on 3½ digit LCD. Unit offers high resolution for current measurements, continuity, and diode tests. It includes max hold, data hold, auto power off, and overrange and low battery indicators. Jaw size of 0.9 in. accommodates conductors up to 300 mcm.

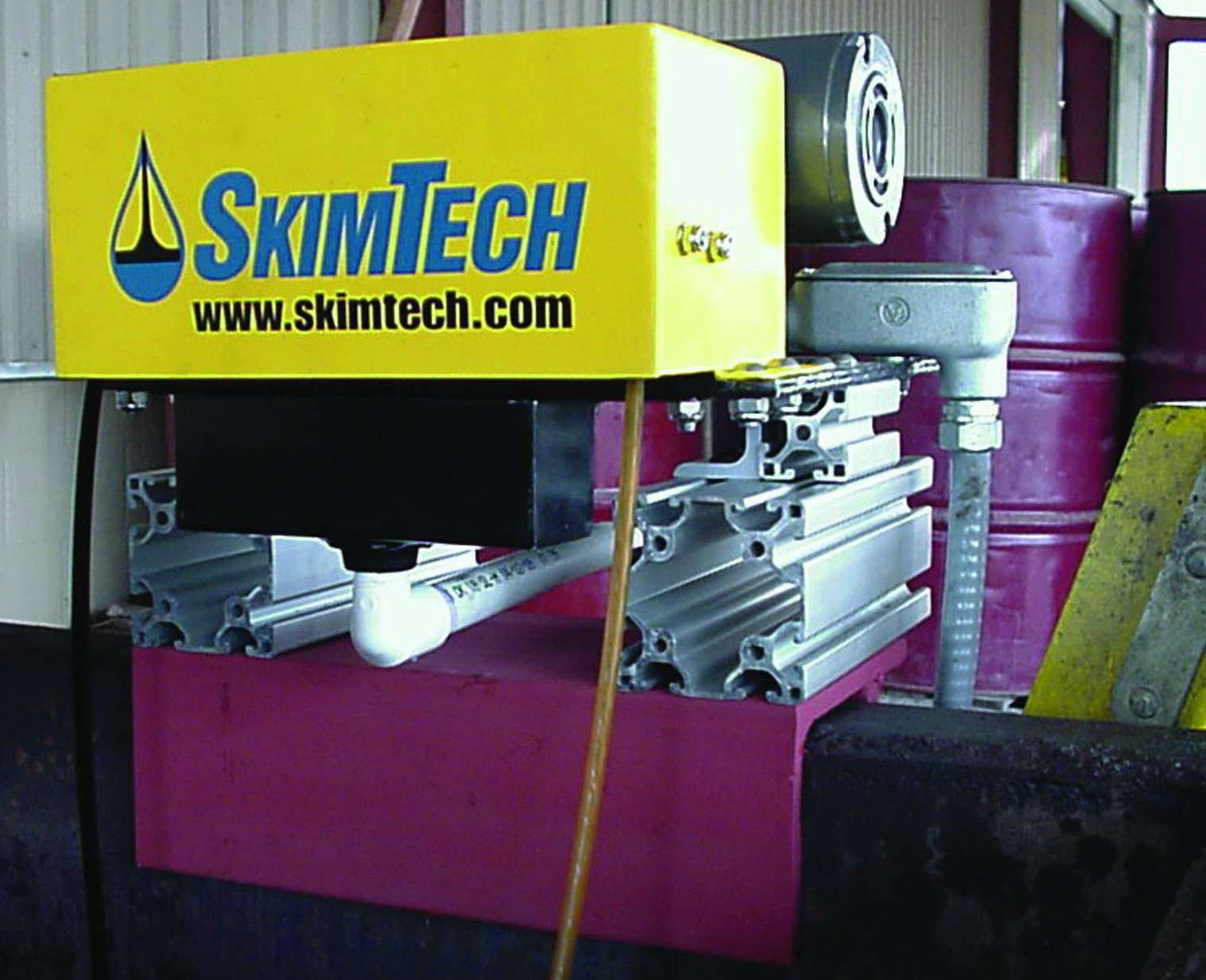

SkimTech, Inc.    Youngstown, OH 44514
Nov 05, 2003 Model AG25 Mini David Skimall(TM) Oil Skimmer removes tramp oil from machine coolant systems, parts washers, pre-filtration tanks, and other process and environmental industrial water applications. Compact design makes product suited for applications where space and access are limited. Unit incorporates safety guarding that eliminates pinch points and releases all energy from collector tubing when removed.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 05, 2003 OmniBER XM Network Simulator supports multi-channel, multi-port testing at SONET/SDH Virtual Tributary/Tributary Unit level. Modular, chassis-based system can scale from entry-level systems for testing single line card, to very large multi-chassis systems able to simulate complete metro network. Multiple ports of VT/TU traffic can be combined to create network stress tests that exceed Multi-Service Provisioning Platform switching capacity.

Industrial Scientific Corp.    Oakdale, PA 15071 1500
Nov 05, 2003 Model M40 measures carbon monoxide, hydrogen sulfide, oxygen, and combustible gases and displays any configuration of 1–4 gases. Composite case, immune to RFI and EMI, houses 4 discrete sensors, LCD display, and rechargeable lithium-ion battery. Unit alerts users to exceeded limits via visual, 90 dB, and vibrating alarms. Features include continuous-loop datalogger, peak/hold functions, STEL and TWA readings, and Quick Cal calibration.

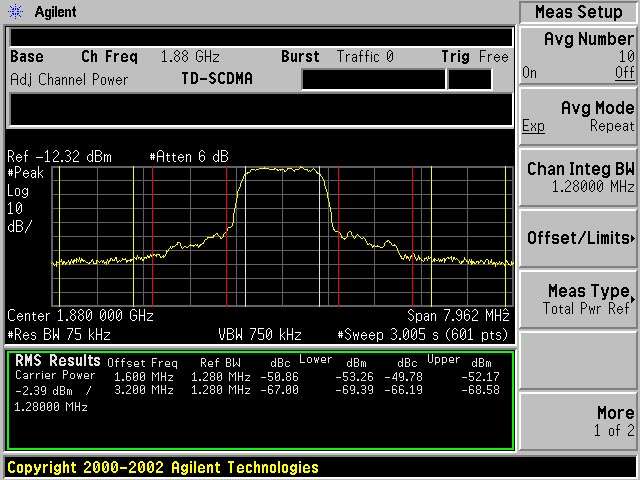

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 05, 2003 PSA Series characterizes components and systems for base and mobile stations based on TD-SCDMA (time division synchronous CDMA) and 1xEV-DV (1x evolution, data and voice) wireless access methods. It offers standards-based measurement personalities and 89601A vector signal analysis software, which includes troubleshooting tools for analyzing various signals. Software can also demodulate TD-SCDMA signals.

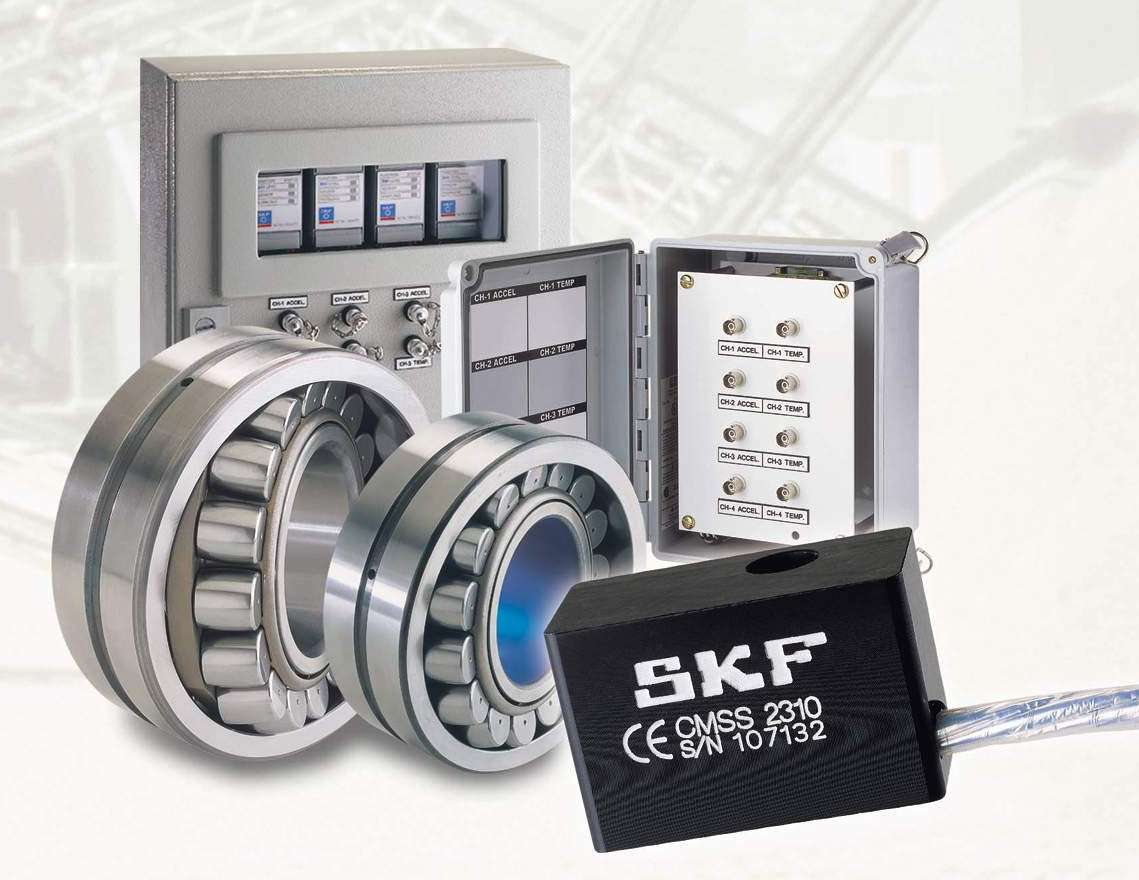

SKF USA, Inc.    Lansdale, PA 19446
Nov 05, 2003 SKF® Copperhead for Industrial Fans, enables users to monitor fan vibration and temperature on continuous or periodic basis. It provides early warning of fan unbalance, mechanical looseness, bearing misalignment, inadequate lubrication, and other problems that can lead to premature bearing failure. Applications include process fans employed in cement, mineral processing, steel, metal refining, glass, pharmaceutical, and automotive industries.

TE Connectivity Ltd.    Berwyn, PA 19312
Nov 05, 2003 Singlemode AMP NETCONNECT LightCrimp Plus connectors allow for precision alignment of cabled fiber to factory-polished, stubbed ferrule. To terminate fiber, installer strips fiber, cleaves fiber, and crimps connector. Connectors exceed TIA/EIA 568 B.3 and ISO/IEC 11801 Insertion Loss and Return Loss specifications and are suited for direct termination applications and backbone or horizontal cabling. Metal bodies withstand temperatures from -10 to +60ºC.

Linear Technology Corp.    Milpitas, CA 95035
Nov 05, 2003 Models LTC2921 and LTC2922 utilize N-channel MOSFETs to assure that multiple power supplies ramp up at same time and same rate, protecting ASICs, processors, and other circuitry from lock-up or more severe damage. Following successful ramp-up, remote sense switches allow regulators to close loop around MOSFETs and compensate for voltage drop. Adjustable electronic circuit breaker monitors primary supply for over-current faults. Threshold accuracy is ±1%.

Linear Technology Corp.    Milpitas, CA 95035
Nov 05, 2003 Housed in 6-lead ThinSOT(TM) package, LT3461/A combines 40 V, 300 mA (ISW), low VCESAT (260 mV) switch that delivers efficiencies to 84% with onboard Schottky diode and soft-start capability. Using constant frequency and current mode architecture, it operates from 2.5-16 V input voltage. Constant switching frequency of 1.3 or 3 MHz enables low noise operation and use of ceramic capacitors and inductors. It has 2.8 mA Quiescent Current (less than 1 µA in shutdown).

Linear Technology Corp.    Milpitas, CA 95035
Nov 05, 2003 Model LTC3408 synchronous, 1.5 MHz buck regulator uses constant frequency, current mode architecture, which operates from input voltage range of 2.5-5 V. Integrated bypass MOSFET can deliver up to 600 mA of continuous output current from tiny 8-lead DFN package. Output can be dynamically programmed from 0.3-3.5 V. At output voltages above 3.6 V, internal bypass P-Channel MOSFET transistor connects VOUT directly to VBATTERY with dropout of less than 50 mV.

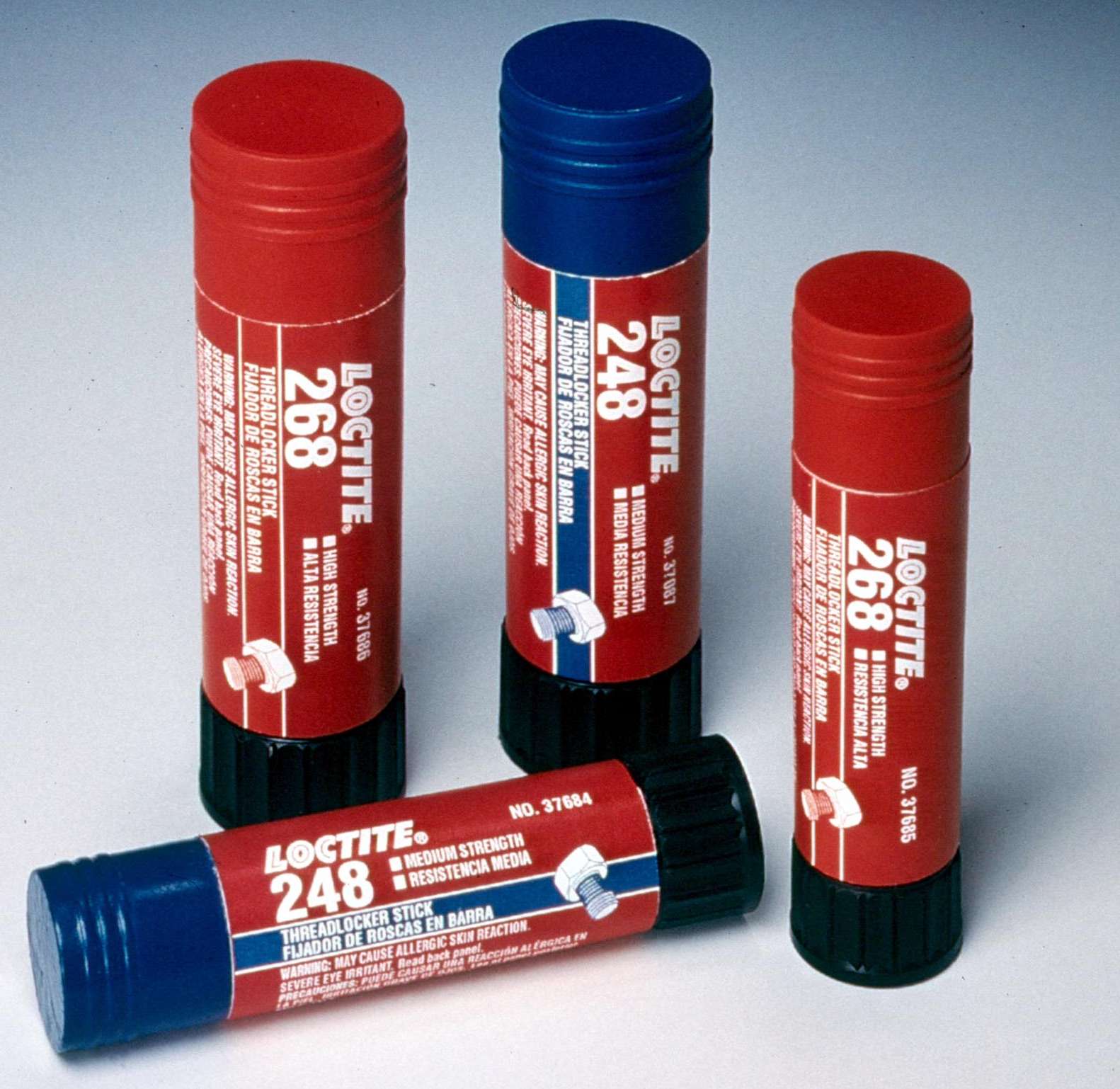

Henkel Loctite Corporation    Rocky Hill, CT 06067
Nov 05, 2003 Semi-solid Loctite® 248 and 268 offer performance characteristics of liquid threadlockers, yet will not leak or drip and can be easily transported and stored. Medium-strength Loctite 248 Blue is suited for threaded metal fasteners, especially those with diameters from ¼ to ¾ in. High-strength Loctite 268 Red is suited for applications where resistance to heavy shock, vibration, and stress is required. Both come in 19 and 9 g self-feeding stick applicators.
