EDS PLM Solutions    Milford, OH 45150
Nov 12, 2003 Solid Edge v15 value-based 3D CAD system for mainstream PLM market supports Microsoft Windows SharePoint Services and SQL Server 2000. View and mark-up tools are provided from within Insight Connect, and intelligent design capabilities provide insight into original design intent via knowledge built directly into model. Features for automated parting edge, parting surface, and draft face analysis for mold design are also included.

LMS North America    Troy, MI 48098
Nov 12, 2003 Based on CAA v5 open middleware for PLM, LMS Virtual.Lab v3 covers all process steps and technologies to perform end-to-end assessment of design. It provides simulation environment for functional performance engineering and offers integrated software suite to simulate performance of mechanical systems on various attributes. Features include hybrid simulation capabilities, interactive wizards, and application-specific modules.

Aerotech, Inc.    Pittsburgh, PA 15238
Nov 12, 2003 Model ALS1000, driven by Series BLMC direct-drive linear motor, incorporates sealed linear motion guide bearings with integral wipers, non-contact linear encoders with micron-level repeatabilities, and 2-axis internal cable management. Non-magnetic forcer coil provides high force with zero cogging. Magnetic field of motor is totally self-contained within U-channel design. Metal waycover and tabletop are treated with scratch-resistant, Teflonâ„¢ impregnated hardcoat.

Sentran, LLC    Ontario, CA 91761 2225
Nov 12, 2003 Utilizing Dual Shear Beam design, LA Series Load Pins tolerate angular, end loading, and side loading effects with minimal sensitivity. Able to measure radial forces in pinned union, they measure compression or tension loads in capacities from 500–200,000 lb. Force transducers are constructed of alloy tool steel or stainless steel and have minimum sealing rating of IP67. Composite barriers are integrated into all environmentally sensitive areas.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Nov 12, 2003 McDATA Sphereon 4300 offers from 4 to 8 to 12 non-blocking ports, providing 1 and 2 Gbps Fibre Channel ports utilizing auto-sensing and auto-negotiating operation with Fabric and Public Loop attached devices. Optional Full-Fabric Activation enables support for Inter-Switch Link and full bandwidth extended distance operation up to 10 Km at 2 Gbps. Features include zoning support, SANpilot Web-based management tool, HotCAT non-disruptive microcode update, and McDATA FlexPort support.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Nov 12, 2003 Remote Supervisor Adapter II-EXA, for xSeries® 445 Servers, is a half-length, 32-bit PCI adapter containing 2 serial ports, Ethernet port, and interconnect port. It enables seamless console redirection with text and graphics, keyboard, and mouse support over system management LAN connections. Common Line Interface supports program control of server management functions using scripts. Unit includes built-in video compression hardware, and remote diskette and CD-ROM drive support.

Scientific Technologies Inc.    Fremont, CA 94555

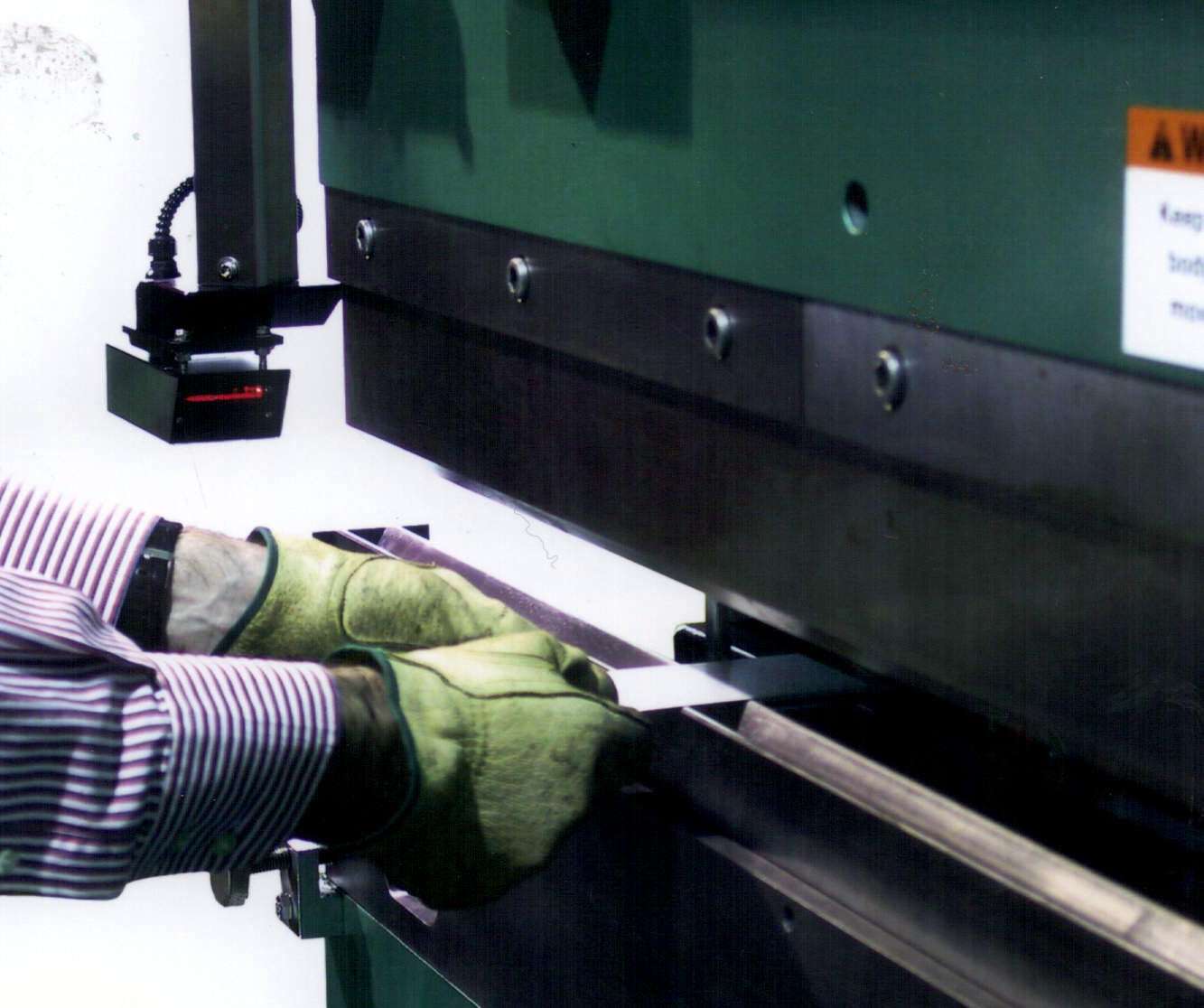

Nov 11, 2003 LazerSafe LZS-003’s flat band of laser light covers zone below punch over 40 mm width. Operator works within 20 mm of front of punch and 10 mm of rear with no disruption to approach speed or bending process. Optical design detects obstructions down to 4 mm, and tolerates vibration. Machine performs failure detection by real-time monitoring of process under control and hydraulic, electrical, and machine controller software logic fault detection.

Advance Transformer Co.    Rosemont, IL 60018 5625
Nov 11, 2003 Compact Core Ballasts utilize 4¼ x 4¾ in. core and are available for 1,000 W probe-start, 1,000 W pulse-start, and 875 W pulse-start metal halide lamps. Units comply with ANSI, UL, and CSA standards. Multi-tap formats include 120/208/240/277 quadri-volt® and 347/480 dual-volt with 120 V output tap. Ballasts are suited for high bay industrial fixtures, outdoor flood and area lighting, roadway highmast lighting, and indoor sports arenas.

Stop & Go International Inc.    Crystal Lake, IL 60012
Nov 11, 2003 Pocket Tire Plugger repairs tires from inside out. Mushroom shape of rubber plugs seals off puncture on inner wall of tire, while stem expands under pressure to completely fill hole. Allen Wrench inserted in Plugger pushes plug through nozzle and into tire. Kit includes vinyl zippered pouch that measures 7.5 x 3 x 1 in., 15 plugs, probe tool, rasp, retractable blade, and instructions.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Nov 11, 2003 Subminiature Model WJ102 provides high-sensitivity switching with .15 W coil option. Small, lightweight relay has gold-plated, bifurcated contacts that provide reliable switching. It is manufactured and quality controlled to ISO-9002 and QS-9000 standards.

Conntrol International Inc.    Putnam, CT 06260 0645
Nov 11, 2003 Series 300 Potentiometer Control Foot Switch is a variable-speed control pedal with slip-resistant surface. Featuring 2 W potentiometer drive mechanism with virtually no backlash, electric foot control offers adjustable tension and stroke, and maintains position when user's foot is removed. Unit has cast-aluminum housing, full size pedal surface, and skid-resistant base. It is suitable for any equipment with variable-speed motor.

Kanguru Solutions    Millis, MA 02054
Nov 11, 2003 Stand-alone Model iNAS-100S enables users to store and share files across network or over Internet. It includes up to 250 GB internal storage and 4-port cable/DSL router. For added security, unit comes with built-in firewall and administration interface that enables administrator to control access by defining users and setting passwords. Device can store images, software updates, graphic files, word documents, and scanned documents.

Sola/Hevi-Duty    Skokie, IL 60077
Nov 11, 2003 Series STV25K consists of DIN rail mount, narrow-sided suppressors that handle damaging spikes up to 25 kA at dedicated equipment levels of input ratings up to 20 A. They have screw terminals for installation and are suited for quick mounting and connection in control cabinets. Diagnostics such as LEDs and Form C contacts provide status indication. Units feature UL 1449, 2nd Edition, and cUL approvals.

SICK, Inc.    Minneapolis, MN 55438
Nov 11, 2003 Model L 4000 system safety photoelectric switch system safeguards hazardous areas on machinery and access to restricted areas. Type 4, non-contact safety device includes UE 401 evaluation unit, which monitors functioning of sensor and generates cut-off signal if light path is interrupted. Up to 4 individual sensor pairs or 8 cascaded pairs can be connected to unit. Switches are available with metal or plastic bodies and operating ranges from 0-60 m.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Nov 11, 2003 Wideband voltage limiting amplifiers set hard limit to output voltage excursion. Packaged in pinout SO-8, OPA698 features unity-gain stability, 250 MHz gain bandwidth product, and 1,100 V/µsec slew rate, while OPA699 features high-gain stability, 1 GHz gain bandwidth product, and 1,400 V/µsec slew rate. Both offer ±120 mA output current, ±4 V output swing, and dual (±5 V) or single (+5–+12 V) supplies. They also offer internally set default levels to bipolar limiting function.

J. W. Winco, Inc.    New Berlin, WI 53151
Nov 11, 2003 Countersunk washers are secured to face of shaft end with countersunk-head screw, forming clean-look end cap. Featuring black oxide finish, washers are suitable for retention of handwheels with hub keyed to shaft.

SWF Machinery    Sanger, CA 93657

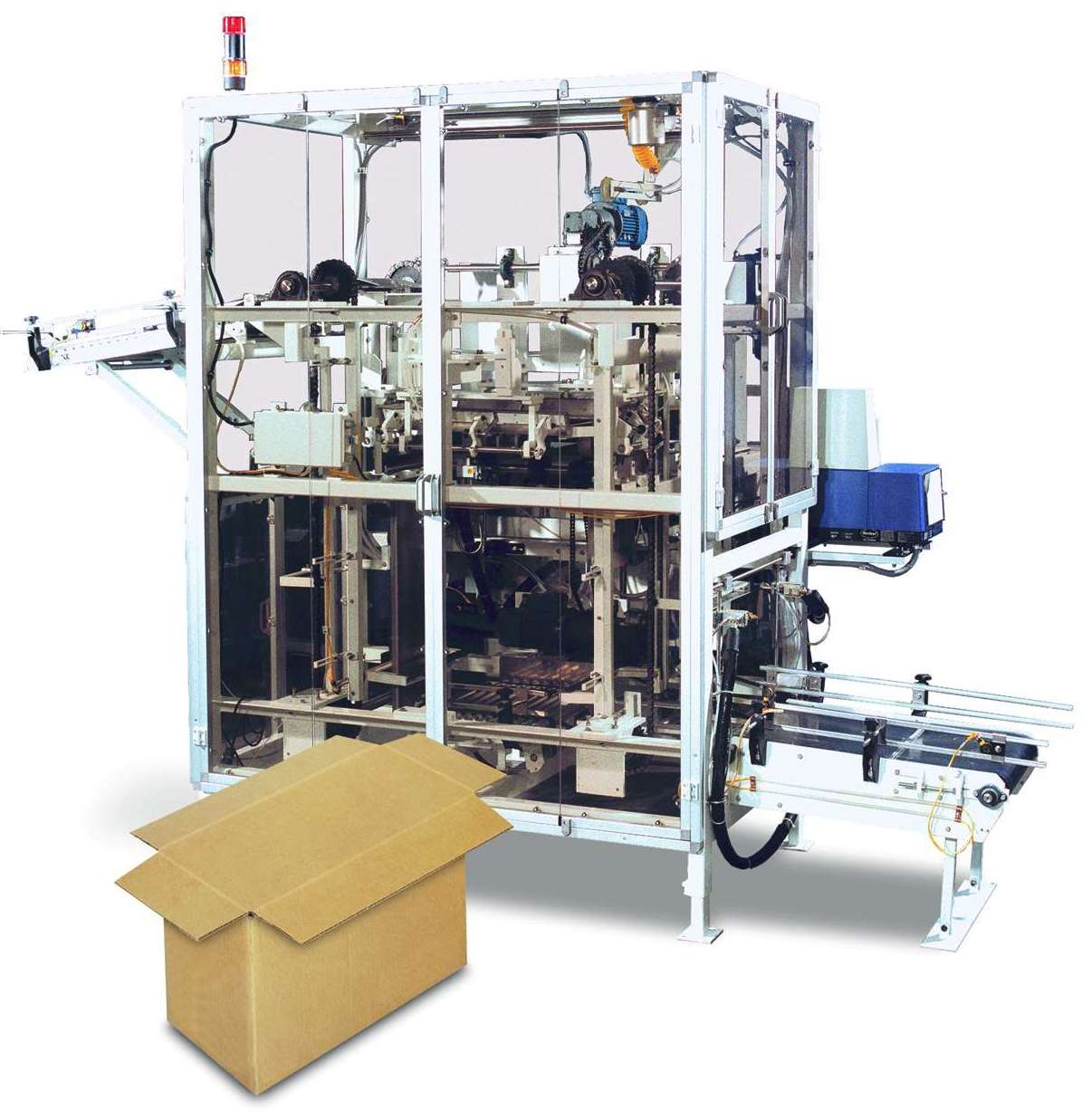

Nov 11, 2003 Compact VL Model 480 seals standard, design-style, and bliss-style corrugated trays. It compliments existing tray forming and packing systems and provides fast, strong, 4-sided seal. Timesaving lid hopper can be filled while machine is in operation. Programmable logic controller provides easily accessible control switches. Standard features include Allen Bradley components, gravity roller discharge, and pressurized hot-melt glue unit.

Fairchild Semiconductor    South Portland, ME 04106

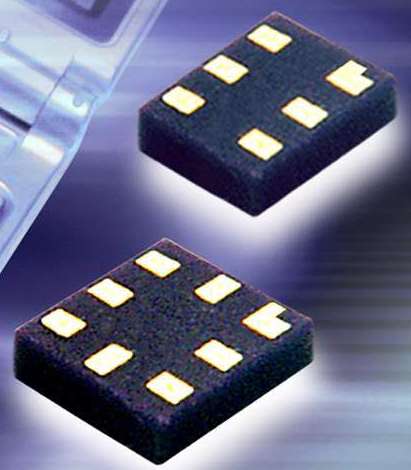

Nov 11, 2003 Switches offer ON Resistance from 1.0–1.35 ohms which preserves signal integrity and lowers drive necessary to support audio and signal processing. Operating voltage ranges from 1.65–5.5 V, Total Harmonic Distortion is 0.002% typ, and RON flatness is 0.2 ohm typ. Offered in SPDT, SPST/NO, and SPST/NC configurations, they accommodate overcharges of up to 4.6 V, have greater than 350 MHz bandwidth, and provide ESD protection better than 7,500 V (HBM).

Akro-Mils, A Div. Of Myers Industries, Inc.    Akron, OH 44301
Nov 11, 2003 BossKartâ„¢ rotationally-molded carts, available in 65-gal and 96-gal models, incorporate plated panel design and deep latch bar pocket for secure hook up with semi-automated lift systems. Deep ribs in domed lid allow over packing, while channels between ribs drain rainwater. Axles are plated solid steel and provide load rating of 335 lb in 96-gal size and 230 lb in 65-gal model. Carts include 10 or 12 in. molded HDPE wheels, depending on capacity.

Akro-Mils, A Div. Of Myers Industries, Inc.    Akron, OH 44301

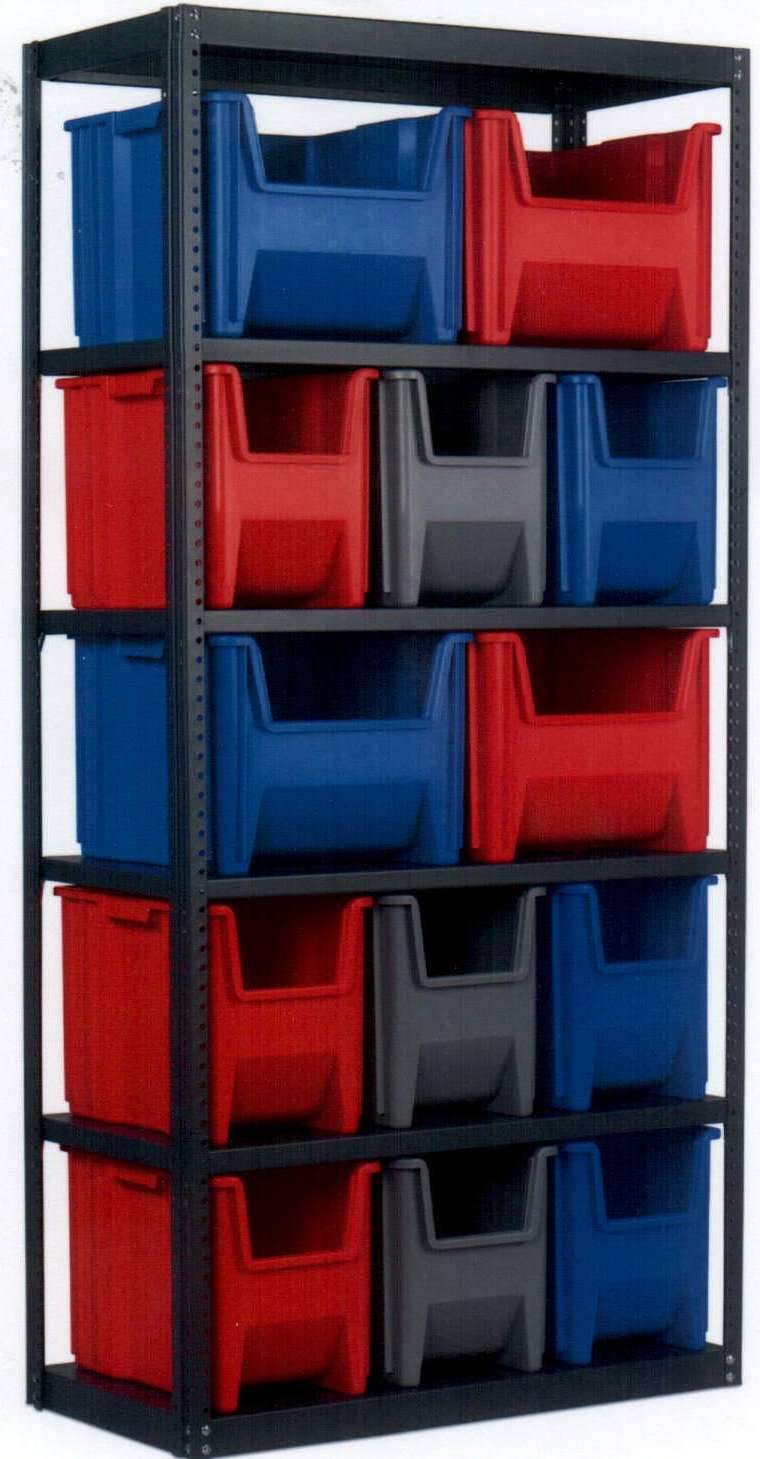

Nov 11, 2003 Able to help organize heavy, bulky items in storage and work areas, Stak-N-Store containers are available in 17 ½ x 10 7/8 x 12 ½ in. and 17 ½ x 16 ½ x 12 ½ in. sizes to deliver shelf and floor storage solutions. They allow 2 or 3 containers per shelf on 36 in. wide shelving units, and form tall, stable stacks on floor. Molded from high-density polypropylene, bins feature side handles, reinforced side ribs and max weight capacity of 75 lb.
