STMicroelectronics    Lexington, MA 02421

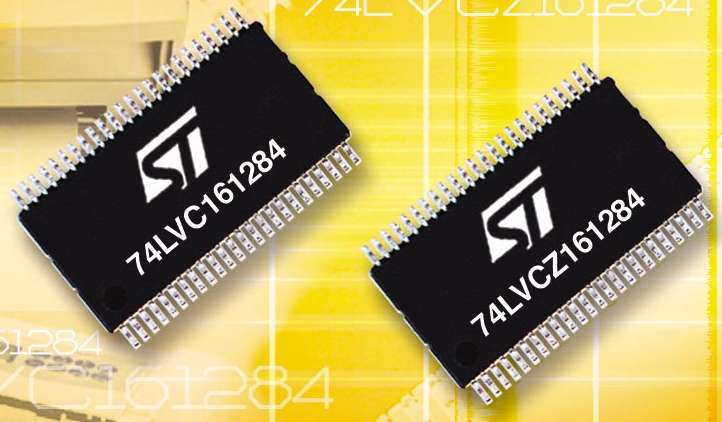

Nov 12, 2003 Low-voltage (3-3.6 V), high-speed transceiver IC model 74LVC161284TTR conforms to IEEE1284 parallel port interface standard, while model 74LVCZ161284ATTR also offers error-free power-up function. Each supplies IEEE1284-I and -II bi-directional parallel communications and has translation capability that allows outputs on cable side to interface with 5 V signal. The A port pins have 4 mA totem-pole outputs, while B port pins source or sink up to 14 mA.

Calex Mfg. Co., Inc.    Concord, CA 94520

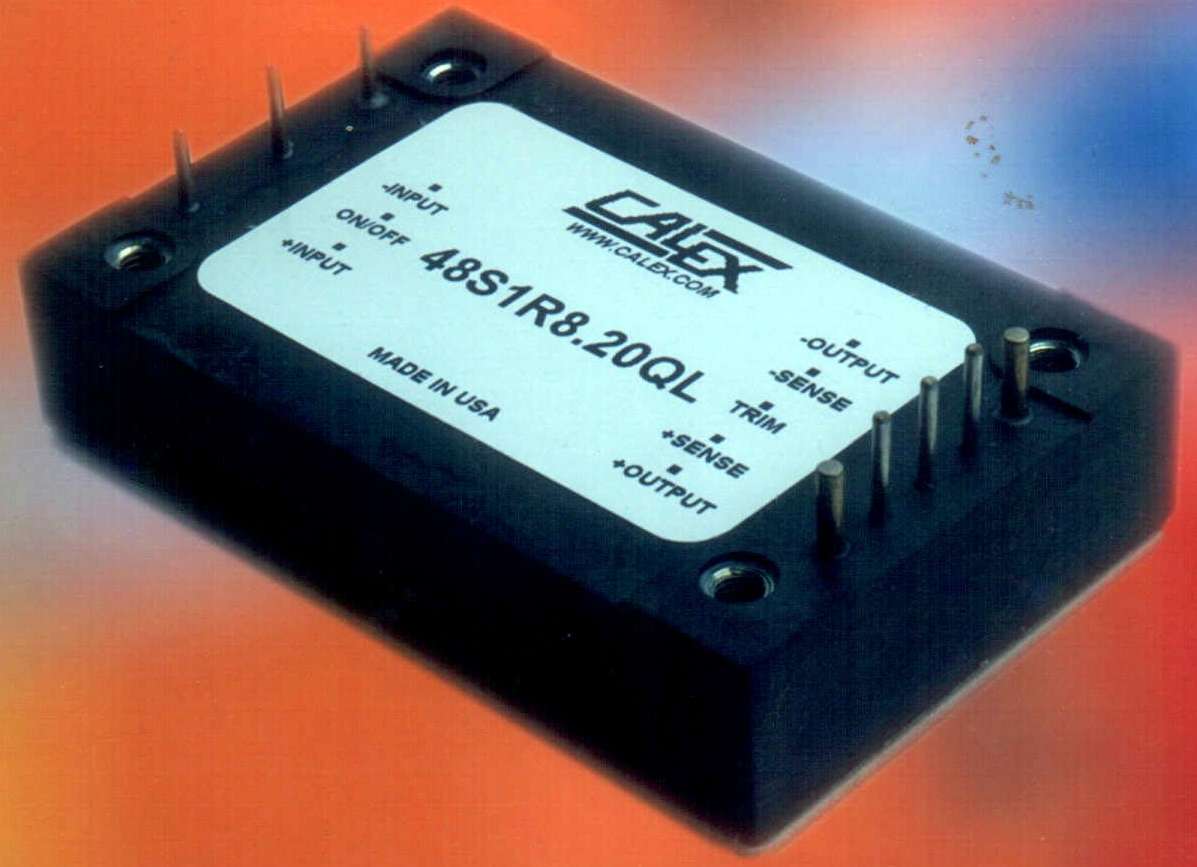

Nov 12, 2003 Potted with thermally conductive compound, QL Series utilizes aluminum baseplate that enables it to perform in still air or limited airflow environments. Utilizing synchronous rectification, unit offers efficiencies in excess of 90%. It has 2:1 input range, 18–36 or 36–75 Vdc, and output voltages are 1.5, 1.8, 2.5, 3.3, and 5 Vdc. Output noise runs down to 30 mV peak to peak, and features include remote sensing, output trim, and remote on-off.

Rotex, Inc.    Cincinnati, OH 45223 1845

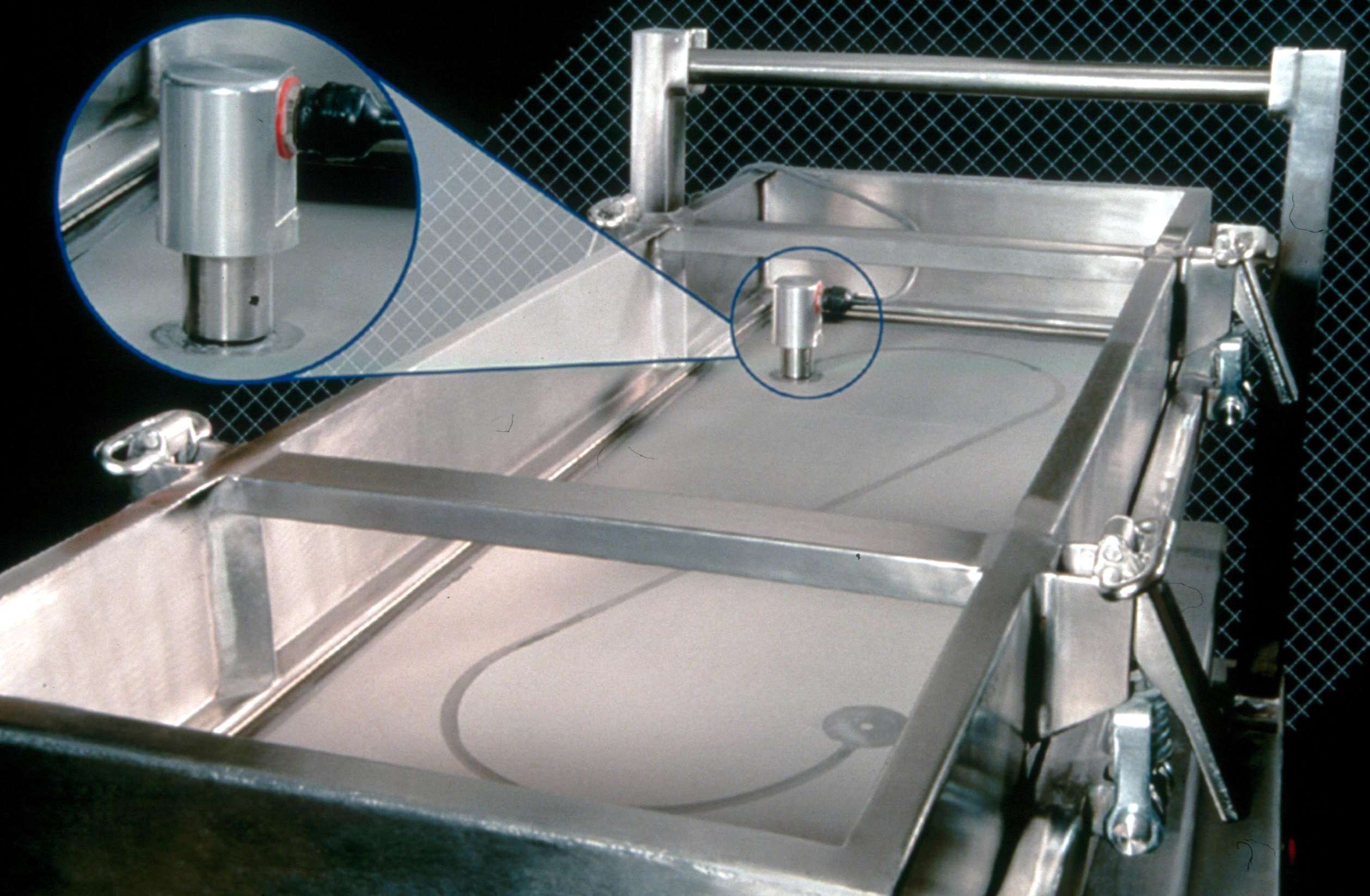

Nov 12, 2003 Ultrasonex System uses detachable transducer probe with titanium core to apply ultrasonic vibration directly to screening mesh via S-shaped resonator. Its action injects secondary, high-frequency, low-amplitude vibration to minimize mesh blinding and bridging and ensures that powders are screened through correct aperture size required. System screens powders through meshes as fine as 20 µm, while constant feedback from separator screen to control unit monitors throughput.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608

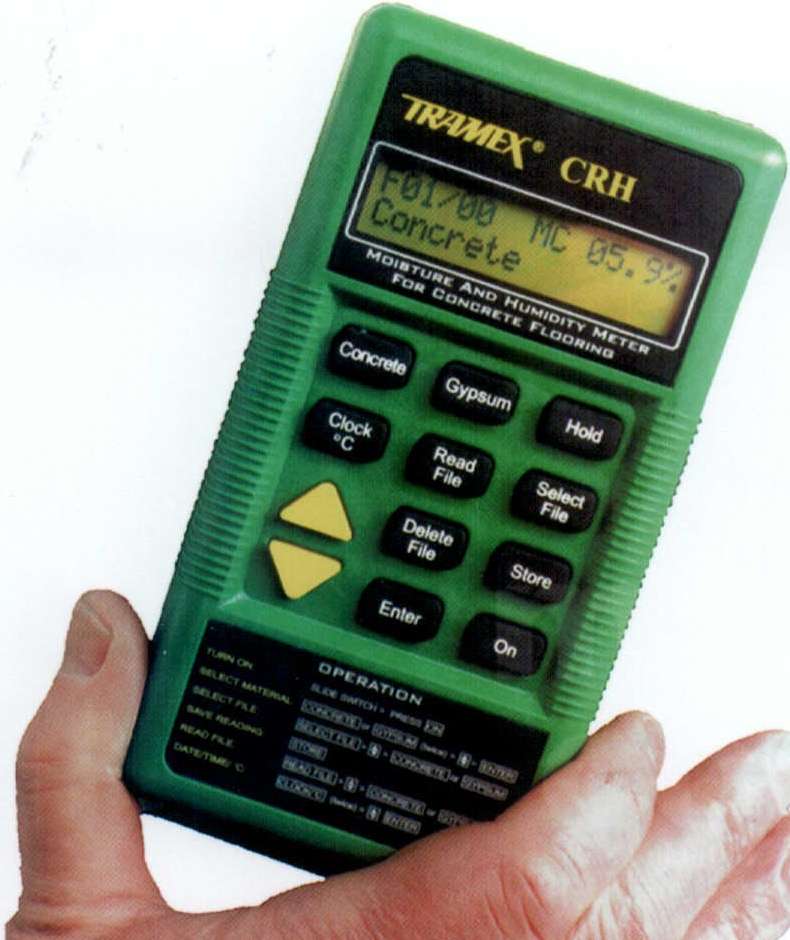

Nov 12, 2003 Designed for use with concrete and gypsum flooring, CRH meter measures moisture content, relative humidity, temperature, and dew point. Micro controller processes information received, calculates outputs, and shows them on clear, digital display. Non-volatile memory chip stores and retains data, which can be recalled at any time or downloaded to PC for storage and inclusion on spreadsheet or report.

Mark-10 Corp.    Copiague, NY 11726
Nov 12, 2003 Spring Test System consists of TSF force measurement test stand, CG1000 digital force gauge with ±0.2% accuracy, digital travel display with 0.0005 in. resolution, and implements. It tests tension and compression of springs up to 17 in. long and over 8 in. in diameter. Tester features side-mounted hand wheel, rigid 3 x 3 in. column, removable steel loading surface, and solid metal base. Max travel is 4 in., and travel rate is 0.013 in./hand wheel revolution.

Sealevel Systems Inc.    Liberty, SC 29657

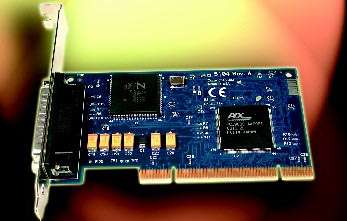

Nov 12, 2003 ACB-Ultra.LPCI low-profile, PCI bus RS-232/422/485 serial interface board is based on Zilogâ„¢ Z16C32 IUSC and includes on-board DMA controller to eliminate bus bandwidth constraints. It features 256 K of on-board RAM, 32-byte FIFO buffer, and Universal Bus as required by PCISIG specification 2.3. SeaMAC v4.1 driver software is included, which supports protocols under Windows 2000/XP. Adapter is suited for satellite, radar, and banking applications.

SKF Motion Technologies    Lansdale, PA 19446
Nov 12, 2003 Type LLR profile rail guides feature pre-lubricated carriages incorporating foam inserts that act as lubrication reservoirs. Plastic ball separators reduce vibration and unwanted noise. Standard, long, and narrow carriages are available with or without ball separators. Standardized rails, with or without rail seal cover strips, enable limitless interchangeability for all carriage versions.

TE Connectivity Ltd.    Berwyn, PA 19312

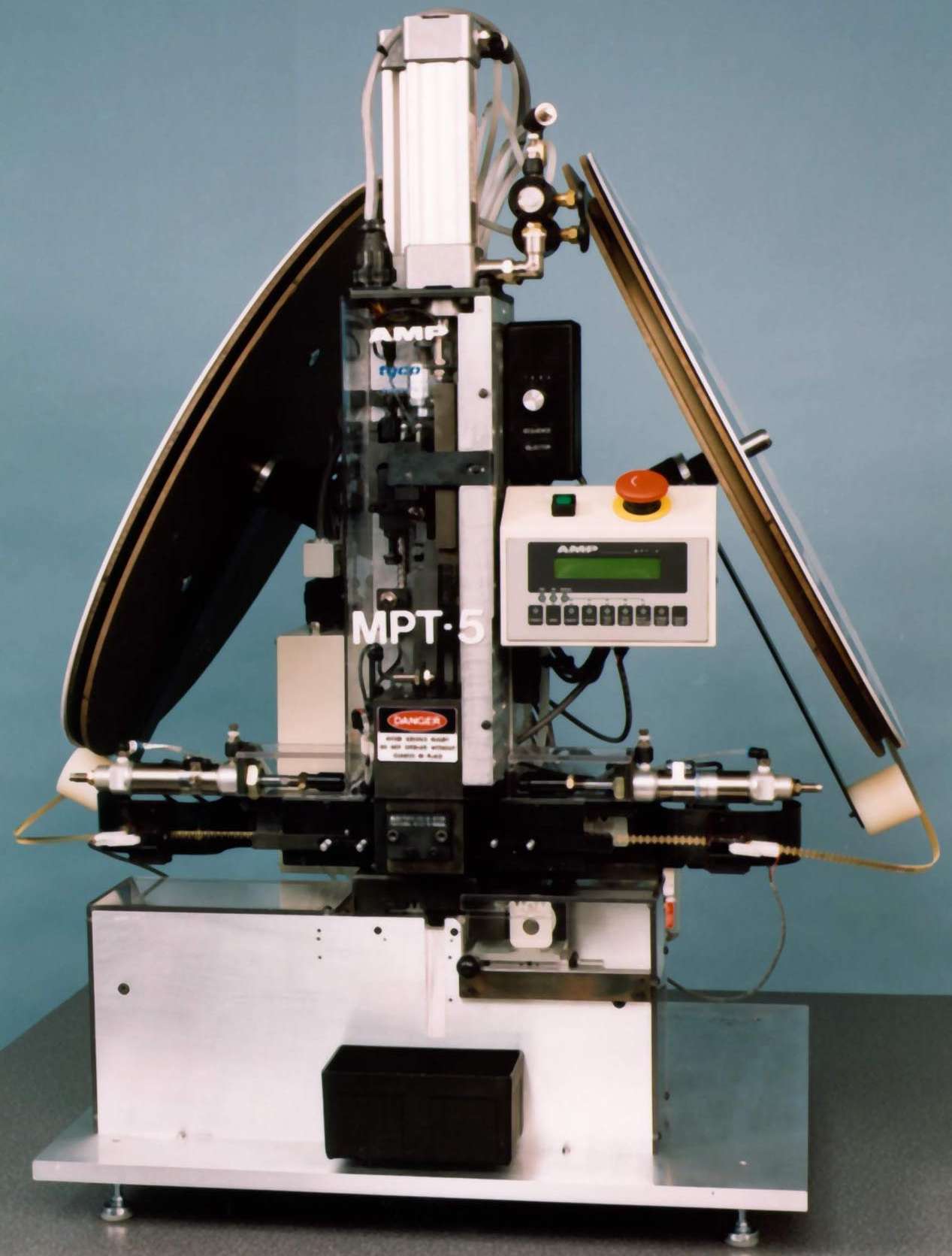

Nov 12, 2003 Equipped with electronic controls, model MPT-5LS is capable of inserting SIAMEZE magnet wire terminals and Lead Lok terminals. Air-operated machine inserts SIAMEZE magnet wire terminal into bobbin. Lead Lok terminal is then installed to secure lead wire in coil cavity and provide strain relief for lead wire. Terminals are fed through on reels positioned at 45° angles to minimize machine's footprint.

Omron Electronics, LLC    Schaumburg, IL 60173

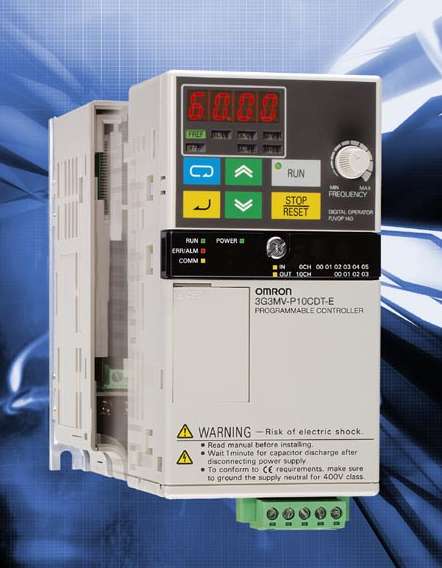

Nov 12, 2003 Model 3G3MV Inverter with 3G3MV-P10CDT-E PLC eliminates delay of point-to-point wiring. On-board controller features RS-232 and hostlink communication. Direct, dual-port RAM connection gives access to inverter parameters, as well as providing encoder input, interrupt inputs, and digital, pulse, and PWM outputs. Single point programming uses Omron PLC software, and RS-232 serial port enables direct connection to on-board, 10 I/O, non-expandable PLC.

Linear Technology Corp.    Milpitas, CA 95035

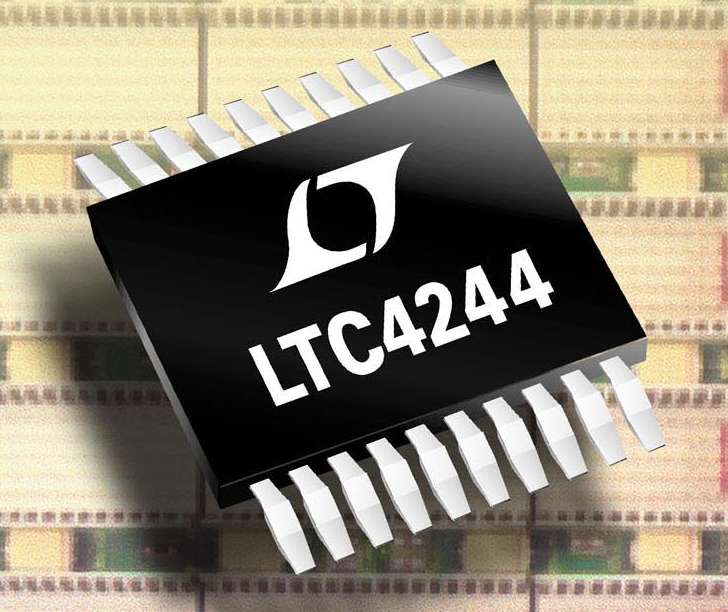

Nov 12, 2003 Model LTC4244 CompactPCI(TM) Hot Swap(TM) Controller turns board's supply voltages on and off in controlled manner, allowing board to be safely inserted or removed from live CompactPCI connnector without glitching system power supplies. IC controls 5 and 3.3 V supply voltages with external N-channel FETS, while internal switches control ±12 V supplies. Absolute maximum supply voltage of 14.4 V provides extra protection against voltage spikes.

Algor Inc.    Pittsburgh, PA 15238

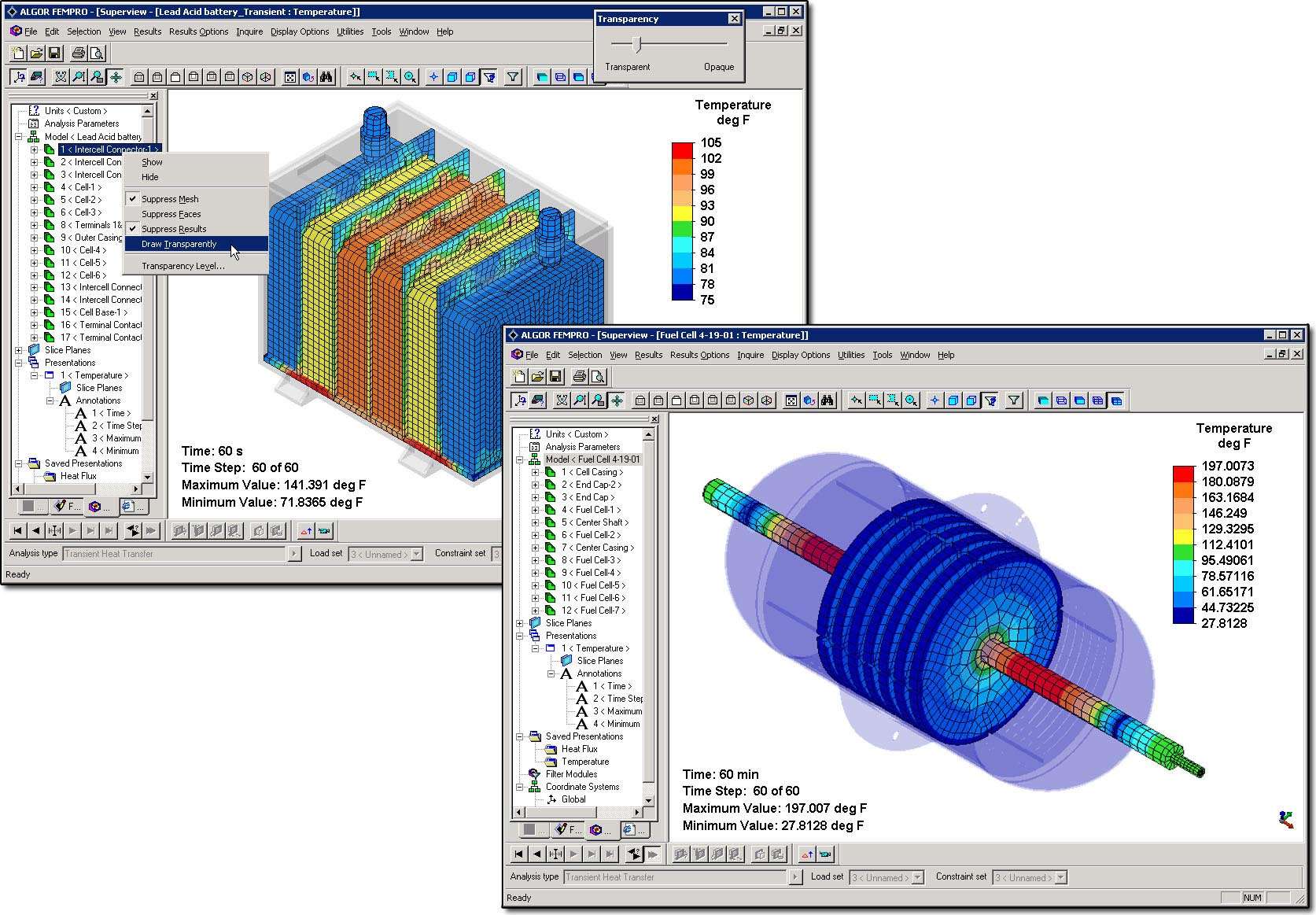

Nov 12, 2003 ALGOR v14.1 Finite Element Analysis (FEA) software enables users to create solid FEA meshes of thin CAD parts and assemblies. It features transparent display capabilities in Superview IV Results environment and adaptive contact stiffness calculation for convergence of Mechanical Event Simulation (MES) surface-to-surface contact. Mesh generation includes part matching for assemblies, surface meshing, and ability to identify where parts contact each other and unconnected parts.

Colder Products Co.    St. Paul, MN 55114

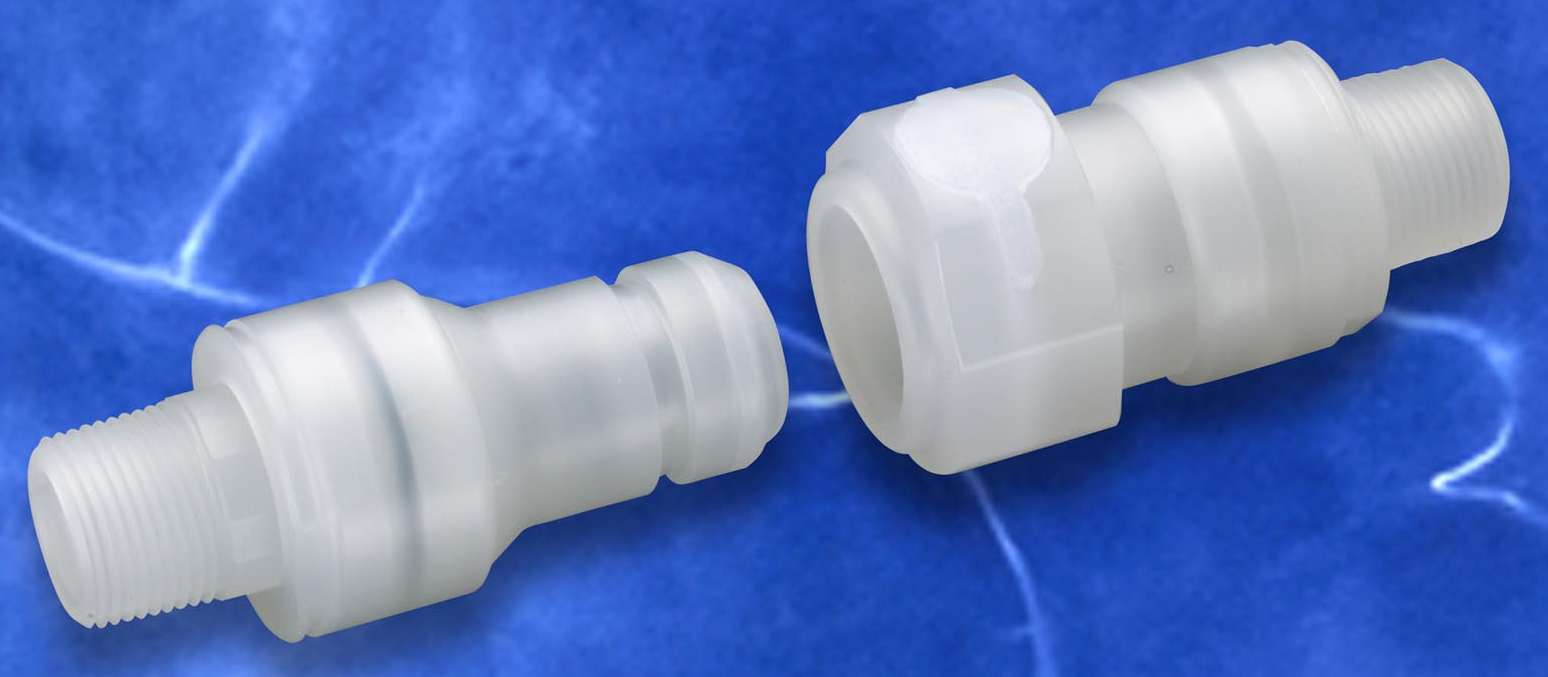

Nov 12, 2003 Manufactured with injection-molded virgin polypropylene, ChemQuik® series CQG06 provides instant, safe disconnections and reconnections. Non-spill, pressure-balanced design allows for safe transfer of fluids, eliminating chemical contact. Physical keying system offers limitless configurations to prevent accidental misconnections, while shut-off valves remove need to drain lines or vent fumes before service. Product has metal-free flow path and does not contain lubricants.

Vishay Intertechnology, Inc.    Malvern, PA 19355 0988

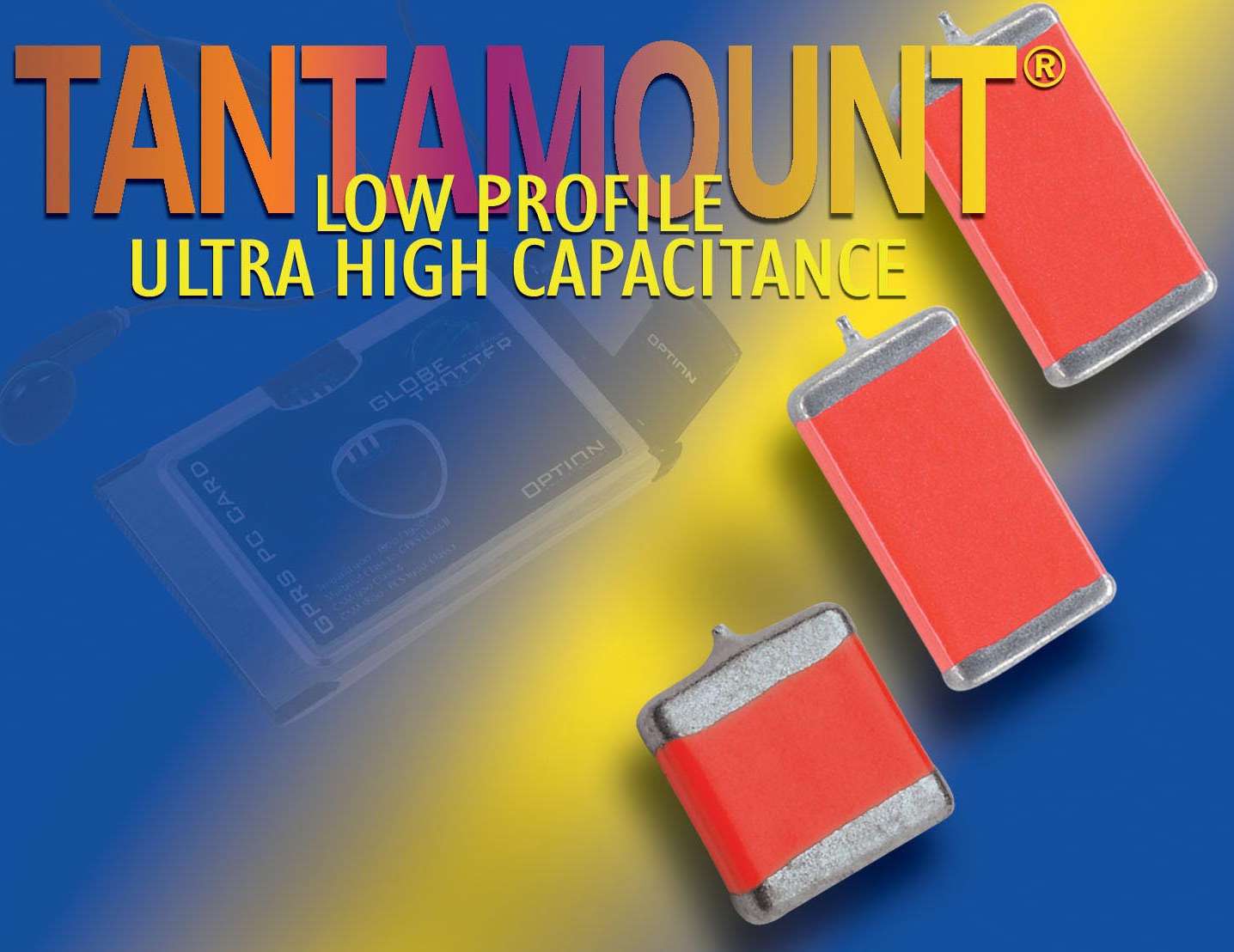

Nov 12, 2003 Tantamount® Series 592D Capacitors are available in X and Y cases with dimensions of 0.570 x 0.290 in. and height profiles of 0.079 and 0.098 in., respectively. Model 592D228X_6R3X2_ in X case features capacitance of 2200 µF and max current leakage of 139 µA. In Y case size, Model 592D338X_6R3Y2_ offers capacitance of 3300 µF and max current leakage of 208 µA. At 6.3 WVdc, both devices offer max dissipation factor of 35% and low ESR of 0.055 ohm.

Samtec, Inc.    New Albany, IN 47151 1147

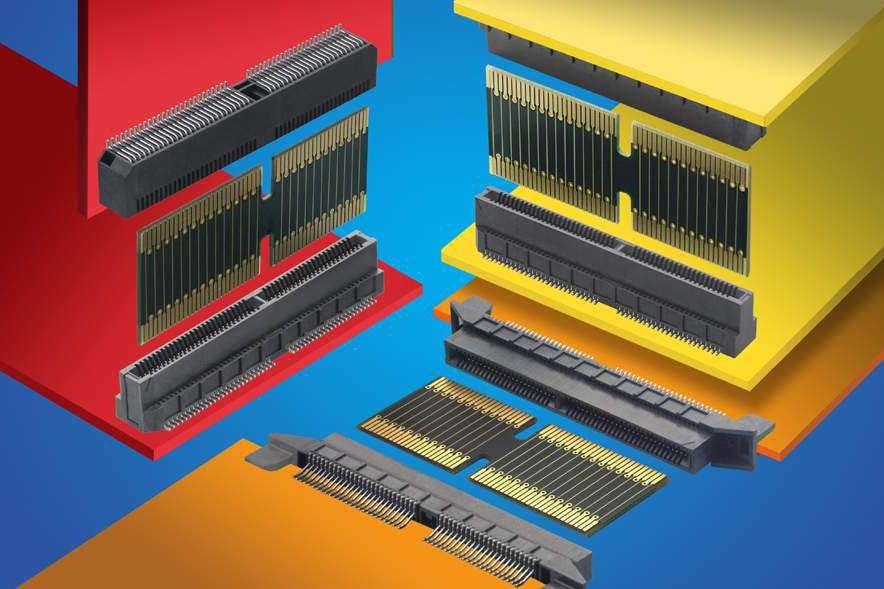

Nov 12, 2003 RISE-UPâ„¢ Series HSC8 uses controlled impedance PCB with embedded ground plane. Units are capable of transmitting data in excess of 6.25 Gb/sec and operate at up to 3.5 GHz/differential pair in 25 mm board stacking applications. Series HSEC8/MEC8 interfaces allow parallel board stacking, as well as perpendicular daughtercard type applications, and horizontal or coplanar applications. Single-ended systems offer 50 or 70 I/Os, while differential pair systems have 33 or 46 I/O pairs.

FARO Technologies, Inc.    Lake Mary, FL 32746 6204
Nov 12, 2003 Laser ScanArm 7-axis contact/non-contact measurement device has integrated laser scanner and LED range finder. Hard probe and laser scanner digitize interchangeably without having to remove either component. Portable unit has open architecture and allows users to collect simple point variations with hard probe with rates of up to 13,000 points/sec. Users can then laser scan sections requiring larger volumes of data.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Nov 12, 2003 With data transfer rates of up to 3.0 MB/sec, 7206 Model 336 stand-alone, 4 mm streaming tape drive incorporates technology that uses fifth generation (Gen5) Digital Data Storage (DDS) tape media. It offers media recognition features, ability to read and write on various DDS technology tape cartridges, and external, self-powered packaging. It also provides users with save, restore, and archive functions.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Nov 12, 2003 TotalStorage® 7212 Model 102 Enclosure with DDS Gen5 SCSI streaming tape drive provides save, restore, and archiving functions. It offers media physical storage capacity of 36 GB and data transfer rates up to 3 MB/sec. Tape drive provides migration and interchange path from other DDS 4 mm tape technology drives. Half-high, 5.25 in. DVD-ROM drive reads 640 MB CD-ROM and 4.7 GB DVD-RAM media, and is suited for Alternate IPL and program distribution.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Nov 12, 2003 Powered by XA-64 Enterprise X-Architectureâ„¢ and 64-bit Itanium 2 processors, eserver xSeries® 455 server is available in three 16-way, SMP-capable models. Processing power ranges from 1.3 GHz (single) to 1.5 GHz (dual) with up to 6 MB L3 cache and 2 GB system memory. Server has Active Memory with hot-swap support, six 64-bit Active PCI-X slots, and PC2100 CL2.5 ECC DDR SDRAM system memory with Chipkill, memory mirroring, and Memory ProteXion.

The Modal Shop, Inc.    Cincinnati, OH 45241

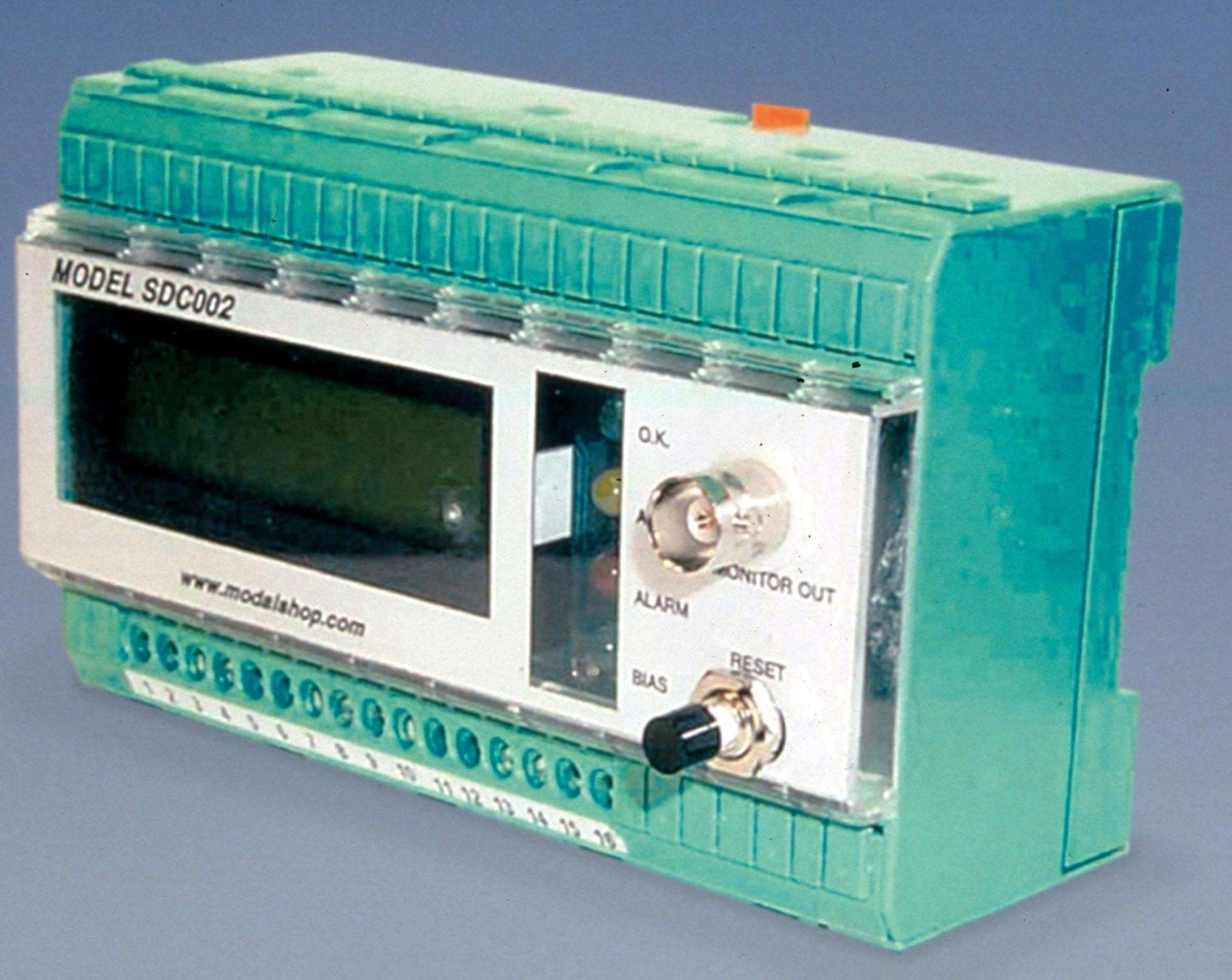

Nov 12, 2003 DIN-rail-mount VibeAlarm SDC002 warns against excessive machinery vibration levels. It provides output against user-configurable alert and alarm levels via LCD display and current loop, as well as momentary or latching contact closure. Unit offers single ICPW sensor input via screw terminal and buffered accelerometer output for connection to external monitoring system. Output can be specified in units of acceleration, velocity, or displacement.

ARINC, Inc.    Annapolis, MD 21401 7465
Nov 12, 2003 SKYLink^SM 2-way broadband data system, based on Ku-band satellite communications, provides fast connections to Internet, virtual private networks, and corporate Intranets. Off-aircraft data rate is 128 kbps, and data rate to aircraft is up to 3.5 Mbps. System weighs 35 lb, including 12 in. mechanically-steered dish antenna. Once SKYLink is installed on aircraft, it can be distributed to one or many onboard users via aircraft's wired or wireless LAN.
