Caterpillar, Inc.    Peoria, IL 61629
Dec 15, 2003 Turbocharged engines of earthmoving Caterpillar D3G, D4G, and D5G Tractors meet EPA Tier 2 and CE Stage II emission norms. Power outputs of Models D5G, D4G, and D3G are 90 hp, 80 hp, and 70 hp, respectively. Product Link system, with GPS technology, provides up-to-date information on machine location, hours, and health. Machine-monitoring package alerts operator of machine conditions without need for visual monitoring. Single joystick controls speed, direction, and steering.

Gateway Safety, Inc.    Cleveland, OH 44144
Dec 15, 2003 Odyssey(TM) Protective Eyewear weighs 1 oz. SoftFlex(TM) nosepiece, with extra-soft polymer fingertips, pivots on hinge, conforming to wearer's nose bridge. Rubberized temple tips alleviate pressure behind ears. Hard-coated, scratch-resistant lenses provide clear and distortion-free view. Glasses are available with red, white, and blue temples or standard black matte.

Saelig Co., Inc.    Pittsford, NY 14534
Dec 15, 2003 Cool Space Runner II(TM) provides Pentium Class CPU power to embedded PC applications requiring durability, low power consumption (5.5 W), and fanless operation. Features include -40 to +85°C operating range, 128 Mbyte SDRAM soldered directly to PCB, and polyimide material in inner layers. Available with up to 512 MB SDRAM, it incorporates Mobile Intel Celeron, Ultra Low Voltage Pentium technology core and VIA TwisterT chipset with Savage4 graphics accelerator.

Vexcel Corp.    Boulder, CO 80301
Dec 15, 2003 EarthFinderâ„¢ facilitates cataloging and archiving of aerial images captured by UltraCam-D camera. It includes software hosted on Windows XP server with robotic tape subsystem for data archival, and optional storage devices for data export. Entry, Mid-range, and Enterprise configurations provide respective storage capacities of 8, 52, and 168 TB. Using Web-based GUI, users can search catalog for archived images by geographic location as well as other attributes.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Dec 15, 2003 Agilent 86100C Infiniium with jitter (DCA-J) offers analysis capability that separates random and deterministic jitter and their subcomponents, such as such as data dependent jitter, pattern jitter, inter-symbol interference and duty cycle jitter, from 50-40 GB/s. It is suited for use by engineers working on standards such as CEI, XFP, Fiber Channel, Gigabit Ethernet, and PCI Express to help find and eliminate signal integrity issues.

MII Equipment, Inc.    Milwaukee, WI 53226
Dec 15, 2003 Available in 1 ft increments in lengths from 2-10 ft, Handle-It(TM) protects areas such as office walls, mezzanines, water mains, electrical boxes, and personnel walkways. Manufactured with 10 gauge steel square tube mounted on 10 in.² base plates, columns are available as single (18 in. high) or double (42 in. high). To achieve maximum protection from forklift damage, system withstands 10,000 lb at 4 mph with 12 in. deflection or less.

American Aldes Ventilation Corporation    Sarasota, FL 34234
Dec 15, 2003 Series MPV Multiport Ventilators prevent mold growth caused by activity-based indoor humidity levels. Silent and low continuous background ventilation rates are controlled by self-regulating air duct system. Single unit can ventilate up to 16 bathrooms with single fan and penetration to outside. Pre-calibrated, self-balancing systems eliminate need for fire dampers and shaft enclosures per IBC for up to 4-story construction.

Peter Paul Electronics Co., Inc.    New Britain, CT 06050
Dec 15, 2003 UL-approved, explosion proof Series 50 ELW and ELLW, with encapsulated coil, work as general-purpose valves for pneumatic and hydraulic conditions. Former operates on 1.8 W ac and dc, while latter operates on 0.5 W dc. Response times are from 4–16 msec and operating cycles can be intermittent or continuous at speeds up to 600 cpm. Valves meet hazardous location standards and have -0 to +140°F ambient temperature range (0 to 150°F media).

Camfil Farr    Riverdale, NJ 07457
Dec 15, 2003 Series FB fluid-seal, bag-in/bag-out housings use PVC bag-enclosure system to isolate personnel from hazardous materials and prevent spread of infectious contaminants. Housings, in several different sizes and stacking arrangements, meet various airflow requirements. They accept variety of HEPA filters; gas adsorbers; 2, 4, or 6 in. deep prefilters; and choice of optional components.

TAC Rockford    Rockford, IL 61103
Dec 15, 2003 Positive Lock system creates form-locking connection between vise jaws and workpiece. Indentations on workpiece interlock with corresponding serrations on vise jaws, resulting in hold that will not shift. Only 0.12 in. of material is in vise, and near-complete 5-sided access is made available without re-clamping. Rough hot-rolled and saw-cut stock can be used in place of pre-milled pieces.

CUI, Inc.    Tualatin, OR 97062
Dec 15, 2003 With 1U height, convection-cooled, 120 W VSUU120 u-frame series and open PCB VSBU120 series switching power supply models feature power factor correction. Voltage outputs range from 3.0-50.0 Vdc on 11 single-output models. V-Infinity models also offer 7 dual output and 18 triple output models. Products produce full output power from 0 to 50°C and are suited for information technology, datacom, wireless, and industrial applications.

Precidia Technologies Inc.    Kanata, ON K2L 2P4  Canada
Dec 15, 2003 Leveraging Ether232 product technology, iPocket232 Compact RS232-to-Ethernet adapter features DIN Rail mounting and modem replacement capability. Smaller than a credit card and offering plug-and-play installation, product connects serial equipment to Ethernet via RS232 interface for real-time access from any location on user’s network. Product also helps to eliminate cumbersome cabling and dedicated PCs.

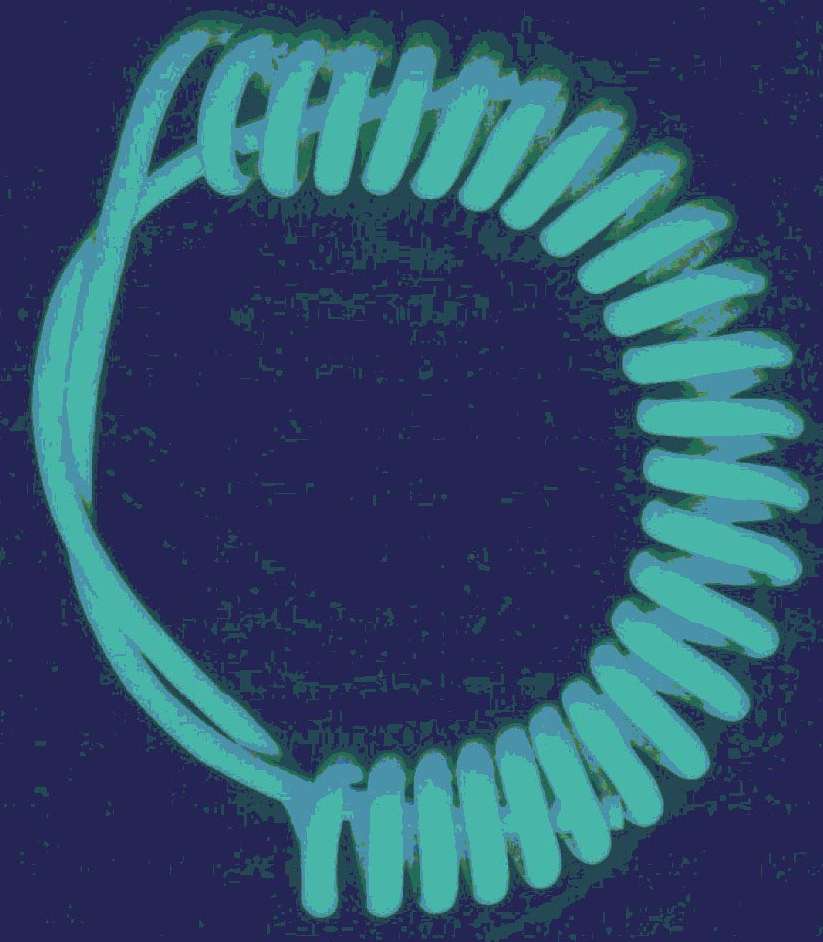

Autac, Inc.    North Branford, CT 06471
Dec 15, 2003 Cords are designed with glow-in-the-dark material to improve safety for those working in dark areas. With 1 hr of light exposure, products glow for 8 hr. They are available in PVC and TPE, in 14 gauge 3 conductor and 16 gauge 3 conductor, which extend on 1:5 ratio. Cords extend only as far as necessary and have lighted plugs to alert users of live wire. Safety features include Nema 515, twist-lock, and molded plugs and strain release.

RoadWired, Division of Three Point Ventures, LLC    Henrietta, NY 14467
Dec 15, 2003 Travelockâ„¢ Security Kit allows single lock to be used for luggage, laptops, sporting goods, and other items. It uses mechanically-coded cards in place of small metal keys or numeric combinations. Thin slot on narrow edge of lock accepts plastic KeyCards, which have discrete hole patterns punched into corners. When correctly coded card is pressed into slot, lock is opened. Kit includes long coated braided steel cable, short cable, and laptop attachment.

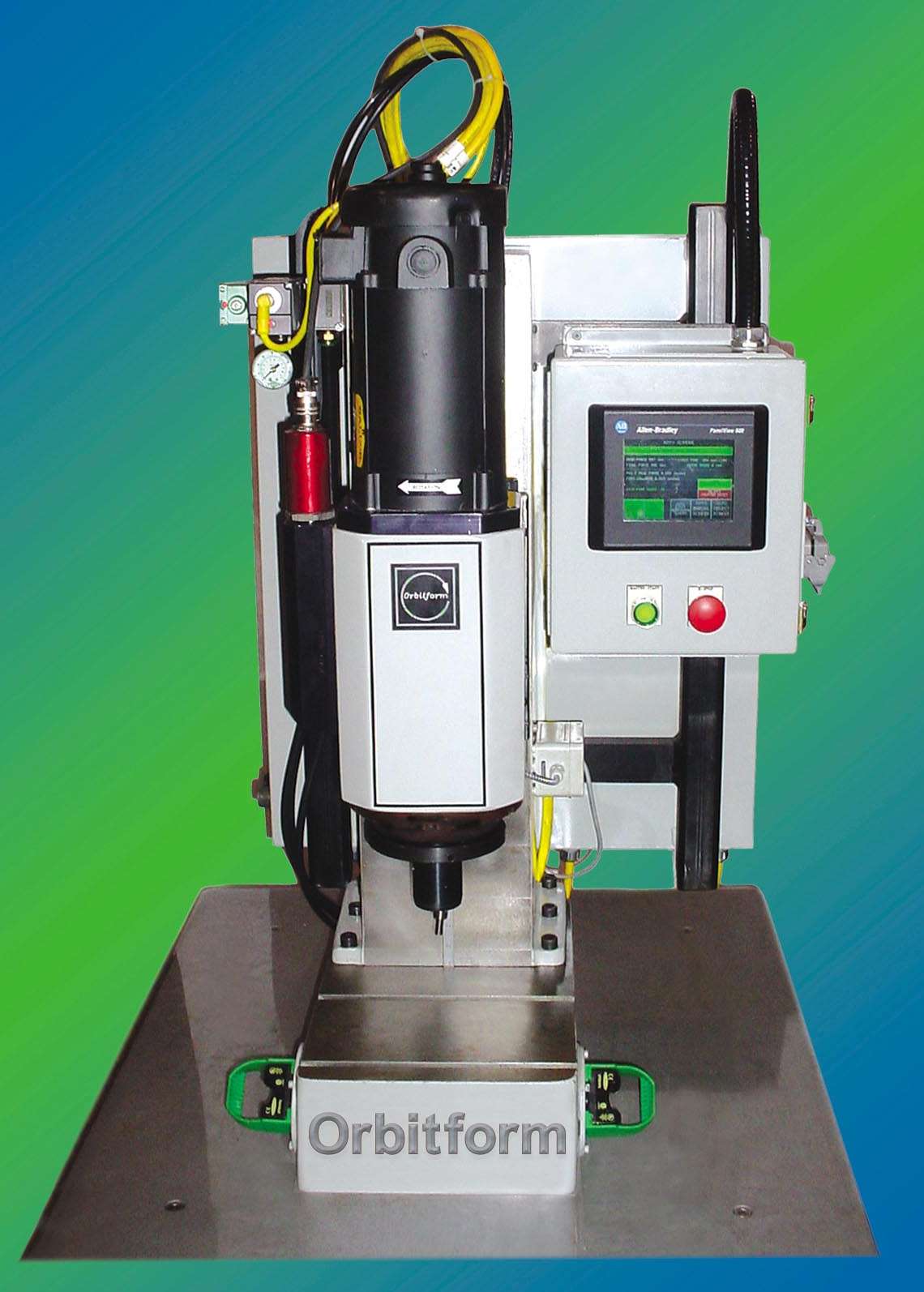

Orbitform    Jackson, MI 49204
Dec 15, 2003 Model B-310 Pneumatic Orbital Riveting Machine provides visual status and precise adjustment of orbital forming process. Available with real-time process monitoring and process control, machine orbitally forms parts up to .312 in. diameter or equivalent area in tube, square, or other form. Tool stroke is adjustable from .06 to 1.75 in. in .001 in. increments. Standard throat depth is 6 in. and max downward force is 2,120 pounds at 100 psi.

Ingersoll-Rand Co., Tool & Hoist Div.    Annandale, NJ 08801
Dec 15, 2003 QE Series dc electric tools incorporate user-oriented ergonomic designs and motors that employ resolver-based commutation and sine drive. Series platform includes angle, inline, and custom configurations. Insightâ„¢ torque management controllers include digital communication links, tool recognition, and advanced algorithms and torque strategies.

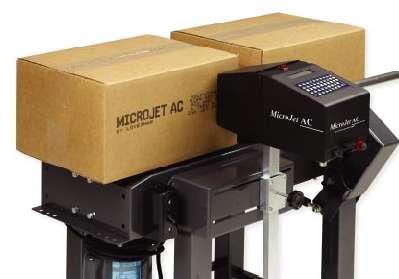

Loveshaw, An ITW Co.    South Canaan, PA 18459
Dec 15, 2003 MicroJet Alpha Coder (AC) prints alphanumeric characters on corrugated and other porous material and has throw distance exceeding that of high-resolution printers. It provides up to 45 messages in one- to 5-line format with total print height of 1.9 in. and max single-character height of .9 in. Able to produce millions of characters from one bottle of ink, printer is suited for factory environments that require higher-resolution printing.

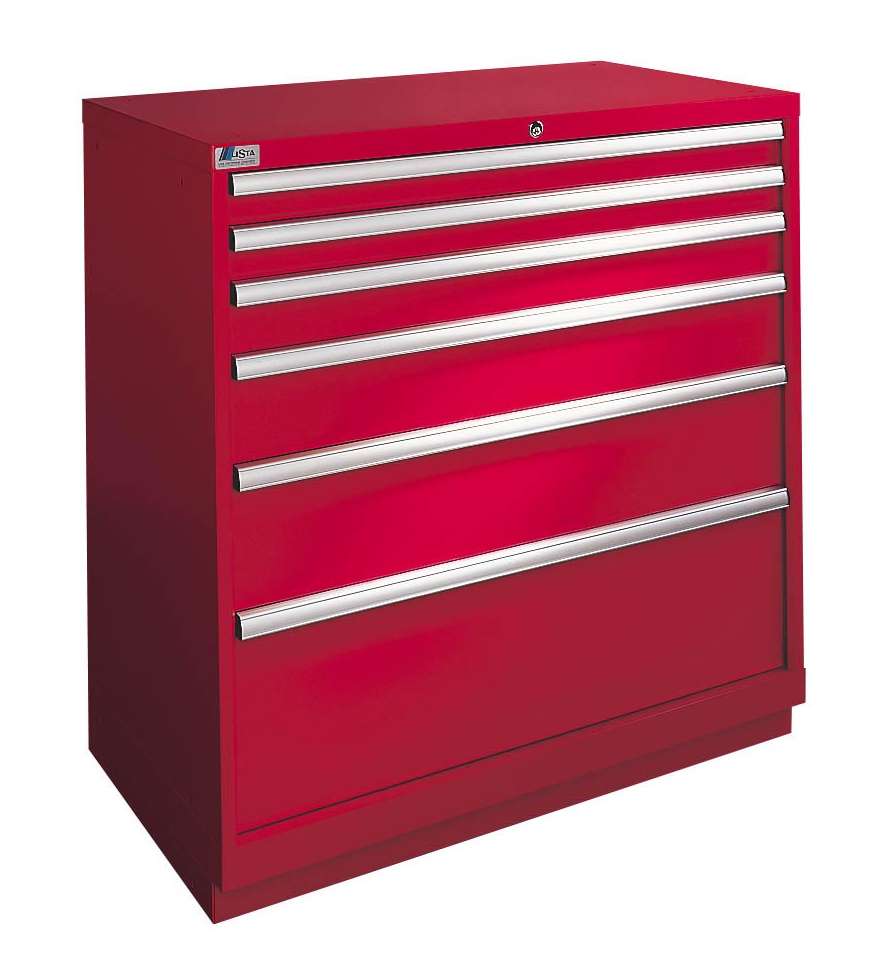

Lista International Corp.    Holliston, MA 01746
Dec 15, 2003 HyperSpace Cabinet, made of heavy-gauge steel, is 22½ in. deep with 18 in. deep drawers and 4½ ft² of surface area per drawer. By extending 100% from housing, drawers allow use of furthest corner and accessibility to all contents. Each drawer features 440 lb capacity and comes in 7 sidewall heights. Handles are flush with face of housing, and one-drawer-at-a-time safety system prevents tipping. Shallow depth of cabinet allows maneuverability in tight spaces.

Beckhoff Automation LLC    Minneapolis, MN 55337
Dec 15, 2003 Rated IP67, Ethernet Fieldbus box allows users to directly mount Ethernet I/O modules on machine or plant floor. Unit, totally protected against dust, also withstands being submersed under 1 m of water for 30 min. Functionality and capabilities are same as cabinet mount BK9000 and BC9000 Bus Terminal products, including capability of having Modbus TCP/IP, ADS, and Beckhoff Real-time Ethernet communicating on same Ethernet module in one application.

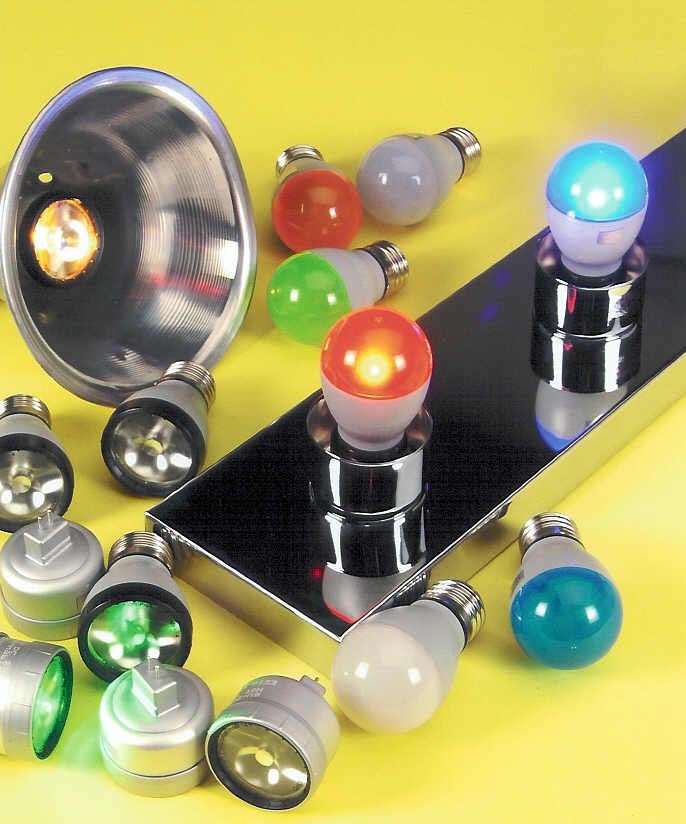

Gilway Technical Lamp    Woburn, MA 01801 1005
Dec 15, 2003 Decorative LED Lamps, available in blue, green, amber, red, and white, use only 20% electricity of standard incandescent lamps. Cool to the touch, they include temperature and current control circuitry, operate at 2.5 W, and yield 15-30 lumens/W. Bulb and spotlight styles are offered in 110/230 V universal line voltage and will last up to 10 years. Spotlight styles incorporate shaping diffusers for adjustable beam patterns from 2–80°.
