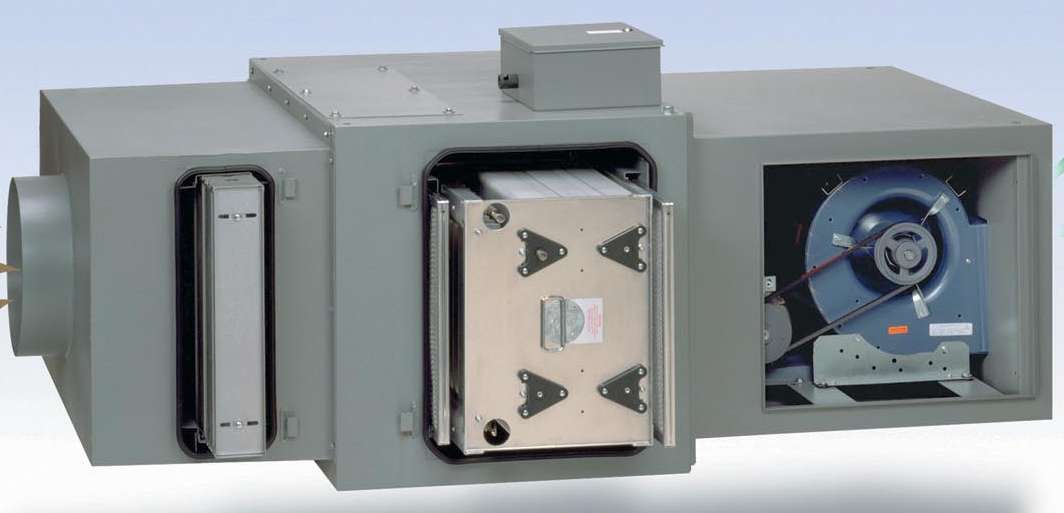

United Air Specialists Inc.    Cincinnati, OH 45242
Dec 15, 2003 Combining 1 in., heavy-duty, aluminum mesh and 2 in. coalescing pad, SHN Series Mist Stop Filter removes 99% of oil smoke and coolant mist pollutants before reaching electrostatic ESP collection component, which then filters up to 98% of remaining pollutants. Filter design utilizes washable media mounted in metal frame, and filter cleaning cycle is 2–3 months. Pressure drop is 0.75 in. w.g. at nominal airflow.

WAGO Corp.    Germantown, WI 53022
Dec 15, 2003 Enabling users to terminate and re-terminate solid and stranded wire sizes from 28-12 AWG, 222 Series compact, 3-conductor splicing connector is UL listed for 600 V/20 A. CAGE CLAMP® spring pressure connection technology provides vibration proof, corrosion/temperature cycling resistant, and maintenance-free wire connection. Unit also offers integrated orange lever actuator for tool-less wiring and test point for testing/trouble shooting circuits.

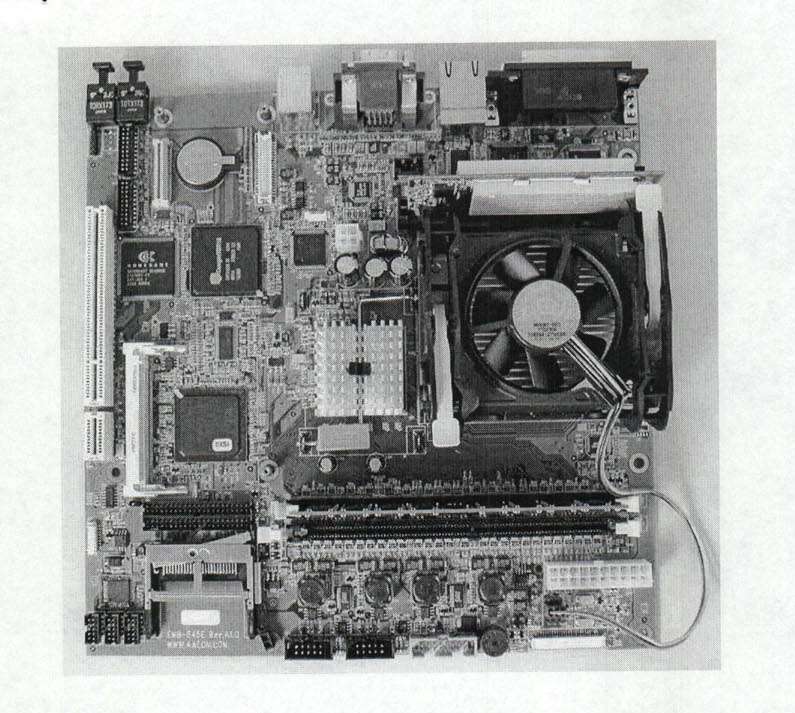

Aaeon Electronics, Inc.    Hazlet, NJ 07730
Dec 15, 2003 Model EMB-845E features Intel® 845E chipset, which supports frequencies up to 3.06 GHz. Support for UDMA 100 IDE devices is facilitated through Intel® ICH4 Controller Hub. EmbeddedATX board includes AC '97 audio, 24/48-bit dual channel LVDS interface, and 16 user-programmable GPIO pins. Silicon Motion Cougar3DR16 3D graphics engine with AGP 4X bandwidth displays up to 1600 x 1200 resolution. Network connectivity is provided by Intel® 82562EM 10/100Base-T Ethernet controller.

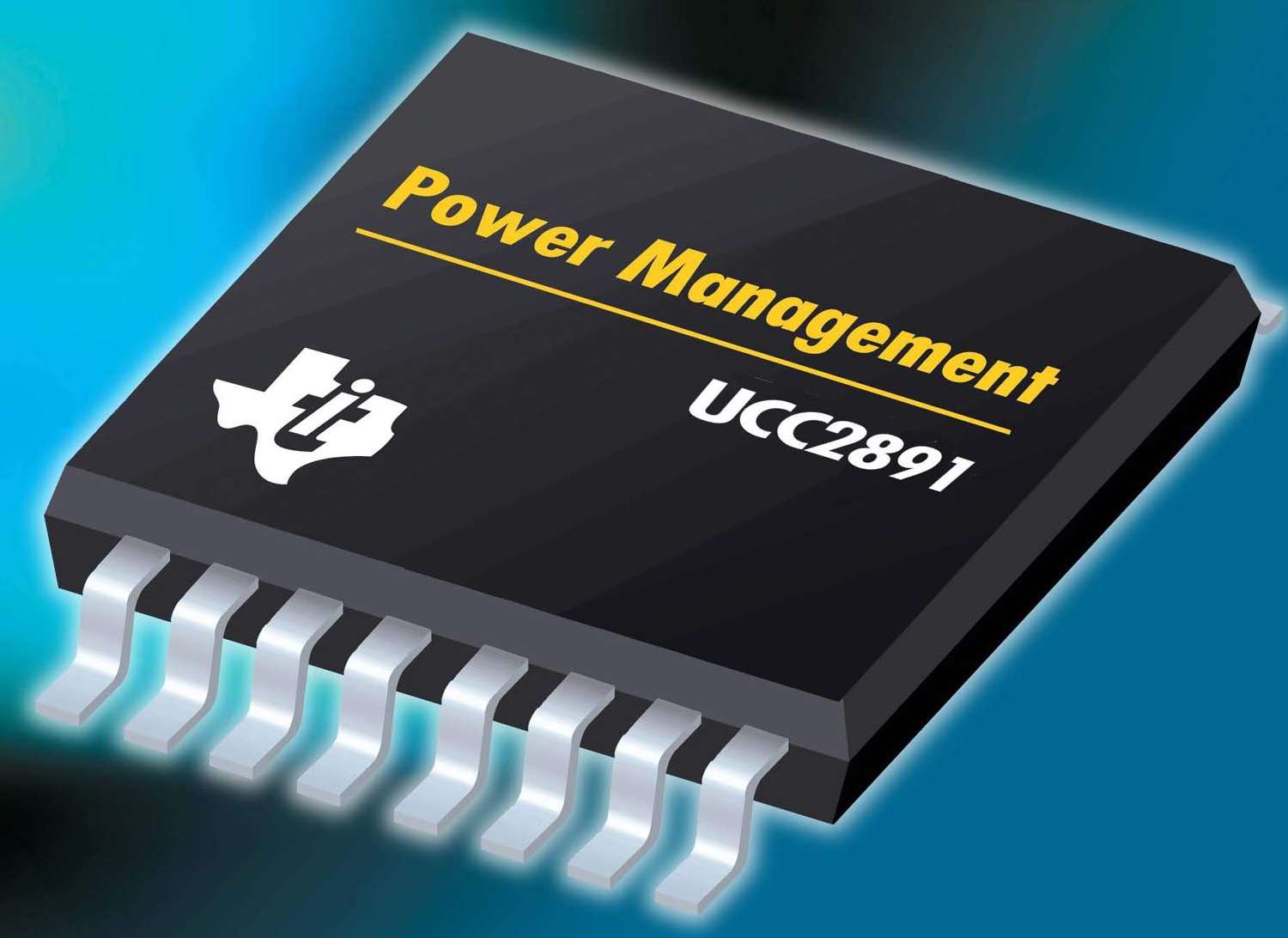

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Dec 15, 2003 Soft-switching PWM controllers simplify implementation of active clamp/reset topologies and include auxiliary active clamp output driver. Peak current-mode units program critical delays to achieve proper active clamp operation and deliver zero-voltage switching to primary side MOSFET switches. Devices include internal programmable slope compensation circuit, maximum duty cycle limit, and 1 MHz synchronizable oscillator with internal timing capacitor.

Lapeyre Stair, Inc.    Harahan, LA 70123
Dec 15, 2003 Industrial egress stairs or fixed industrial stairs are designed and built to order according to called-in building codes and specifications. Conventional stairs comply with OSHA and BOCA codes. Available in carbon steel with various finishes, stairs may be ordered with grip, diamond treadplate, bar grating, or concrete pan treads. Aluminum and stainless steel stairs are also available.

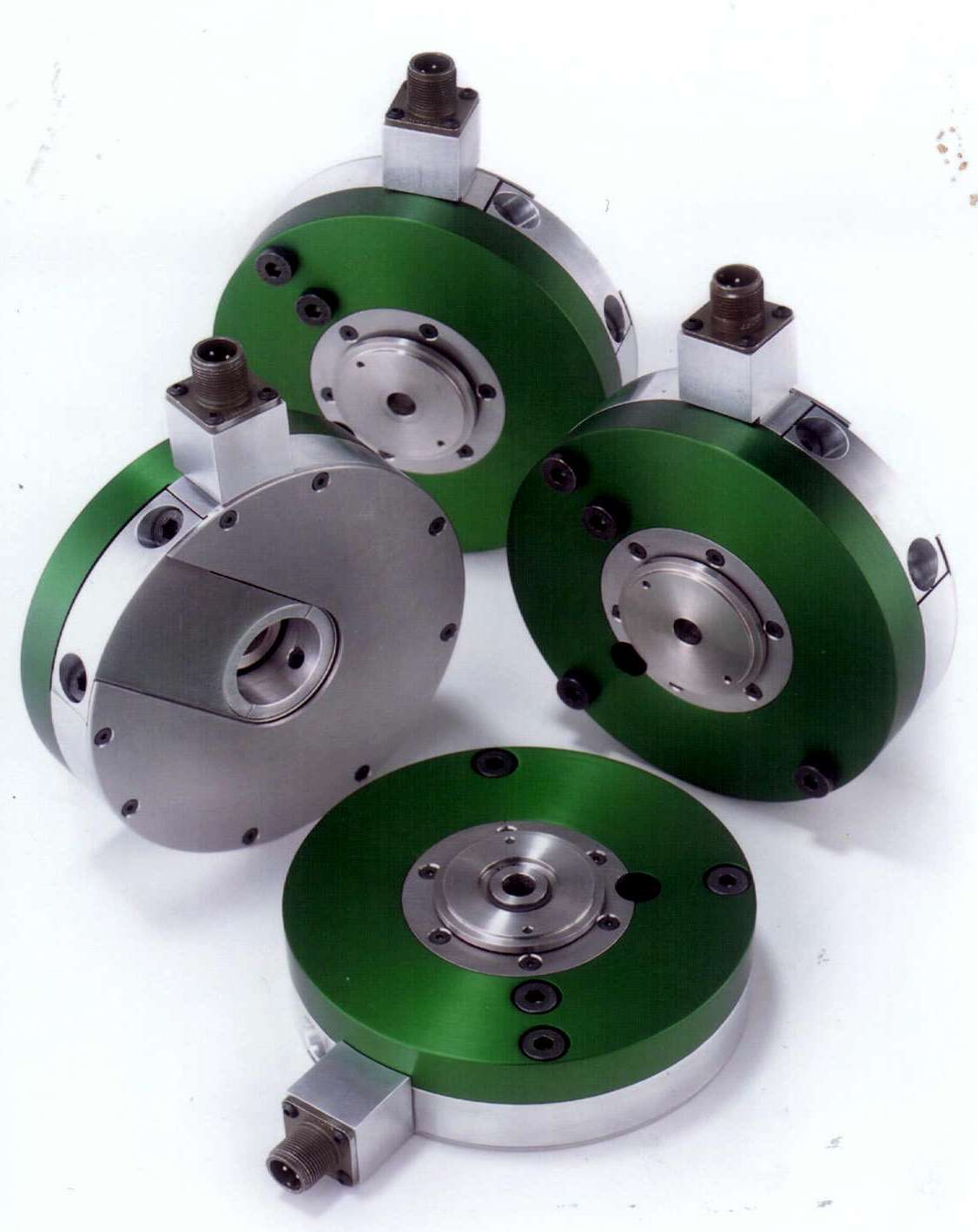

Dover Flexo Electronics, Inc.    Rochester, NH 03867
Dec 15, 2003 Based on dual-beam design, Model C transducer, THN is a strain-gauge, tension-measuring device used in pairs that mount opposed in machine web path. Each end of idler roll shaft fits securely into THN transducer coupling to create tension-sensing idler roll. Made of stainless steel and aluminum, transducer offers single-bolt mounting and load ratings from 25–800 lb. It is 1¾ in. wide and available in dead-shaft and live-shaft versions.

Admotec, Inc.    Lebanon, NH 03766 1500
Dec 15, 2003 Available with wheels from ½â€“10 in., K Series encoders incorporate magnetoresistive chip sensor and on-board interpolator with up to 2 mm wheel/sensor gap. They produce high resolution, up to 7,200 cpr, and operate in harsh environments with shock, vibration, sawdust, oil, grease, salt spray, excessive moisture, and condensing humidity. Custom units are available for unique requirements.

Hewlett-Packard Co. (Corporate Headquarters)    Palo Alto, CA 94304-1185
Dec 15, 2003 Server Console Switch family consists of scalable and integrated keyboard, video monitor, and mouse system. Intended for staffed datacenters, switches are available in 8- and 16-port versions and can be connected in tiered fashion to increase server access from 8 to 128 servers. User can manage all attached computers via single, integrated, on-screen display interface. Interface adapters are available for PS/2 and USB, and connect to UTP CAT5 cable.

SMSactive Technologies Corp.    Vancouver, BC V6C 1H2
Dec 15, 2003 Reply Recognition™ is suited for individual subscribers, corporate clientele, and mobile operators who send messages from PCs to mobile devices. It provides true 2-way messaging capabilities over GSM, CDMA, or TDMA networks. Replied message can be delivered to original sender’s PC or any designated mobile device chosen by sender.

Spredgar Software    Sacramento, CA 95819-4608
Dec 15, 2003 ValuStox(TM) allows professionals, advisors, and investors to select and maintain stock portfolios with user-specified buy, hold, and sell criteria. It includes 8,000 stocks, with fundamentals updated weekly. SPREDGAR® v4 computes and graphs 70 standard financial ratios for 8,000 stocks and Standard Industrial Classification composites. It determines cash flow using indirect method, including sources and uses of funds, dual cash flow, and cash generation cycle.

Create!form International (CFI)    Canoga Park, CA 91303
Dec 15, 2003 Create!form® v3.0 PSE1 Edition is certified by PeopleSoft for EnterpriseOne users. It provides intelligent tables for formatting and management of repeating line-item data. Data-calculation function is provided for items such as page subtotals in repaginated documents and tax-rate conversion. Variable subforms enable dynamic utilization of variable images and data within document. Localizable dates and formats enable customized date, numeric, and currency formatting.

BroadSpace Corporation    New York, NY 10023
Dec 15, 2003 BroadSpace Superfast® delivers full-motion, full-screen, television-quality video as well as business applications over existing low-speed IP networks in real-time. It allows multimedia content to be optimized and broadcast to Internet users over global networks without bandwidth and memory limitations or reductions in quality. Data transport protocol eliminates need for conventional content distribution mechanisms and allows unlimited transmission capacity.

Motorola, Inc.    Schaumburg, IL 60196 4041
Dec 15, 2003 GPS-enabled Model i305 adheres to Military Standards 810 F, for rugged construction and rain-resistance. Handset features rubber encasing, sculpted grip, and brushed chrome lens guard. Interior lining and seals protect against exposure to rain, sleet, and snow. Services include digital cellular, Nextel's Nationwide Direct Connect, Online Web, email, and text messaging. Product is speakerphone-capable and offers assignable ring tones, 600-entry phonebook, and SIM card.

ADMET    Norwood, MA 02062
Dec 15, 2003 MegaForce automatic loading valve works with hydraulically actuated materials testing machines that operate to 10,000 psi. It enables automatic testing on ELE/Soiltest, Forney, and TestMark Industries load frames and is controlled by proprietary digital indicator or MTESTWindows Materials Testing System. Unit eliminates load rate variability and reduces test times via user programmable preload and ability to precisely control rate of loading to failure.

Cape Clear Software Inc.    Waltham, MA 02451
Dec 15, 2003 Web-Services-based, Cape Clear Data Interchange provides visual environment for transforming diverse data sources, such as text files, spreadsheets, and ZIP files into XML Schema. Wizards intelligently analyze new data and suggest appropriate XML Schema-based representations and mappings. Once mappings are created, subsequent files are automatically transformed and routed to appropriate applications as they arrive.

Sumitomo Electric Carbide    Mount Prospect, IL 60056
Dec 15, 2003 Premium grade BNC150 combines heat-resistant, fine-grain PcBN with wear-resistant, TiCN ceramic coating to extend tool life and ensure consistent surface finishes. All corners are brazed individually to strengthen cutting edge. Available in negative, positive, and wiper styles, BNC150 is suited for continuous high-speed machining, as well as light interrupted cutting.

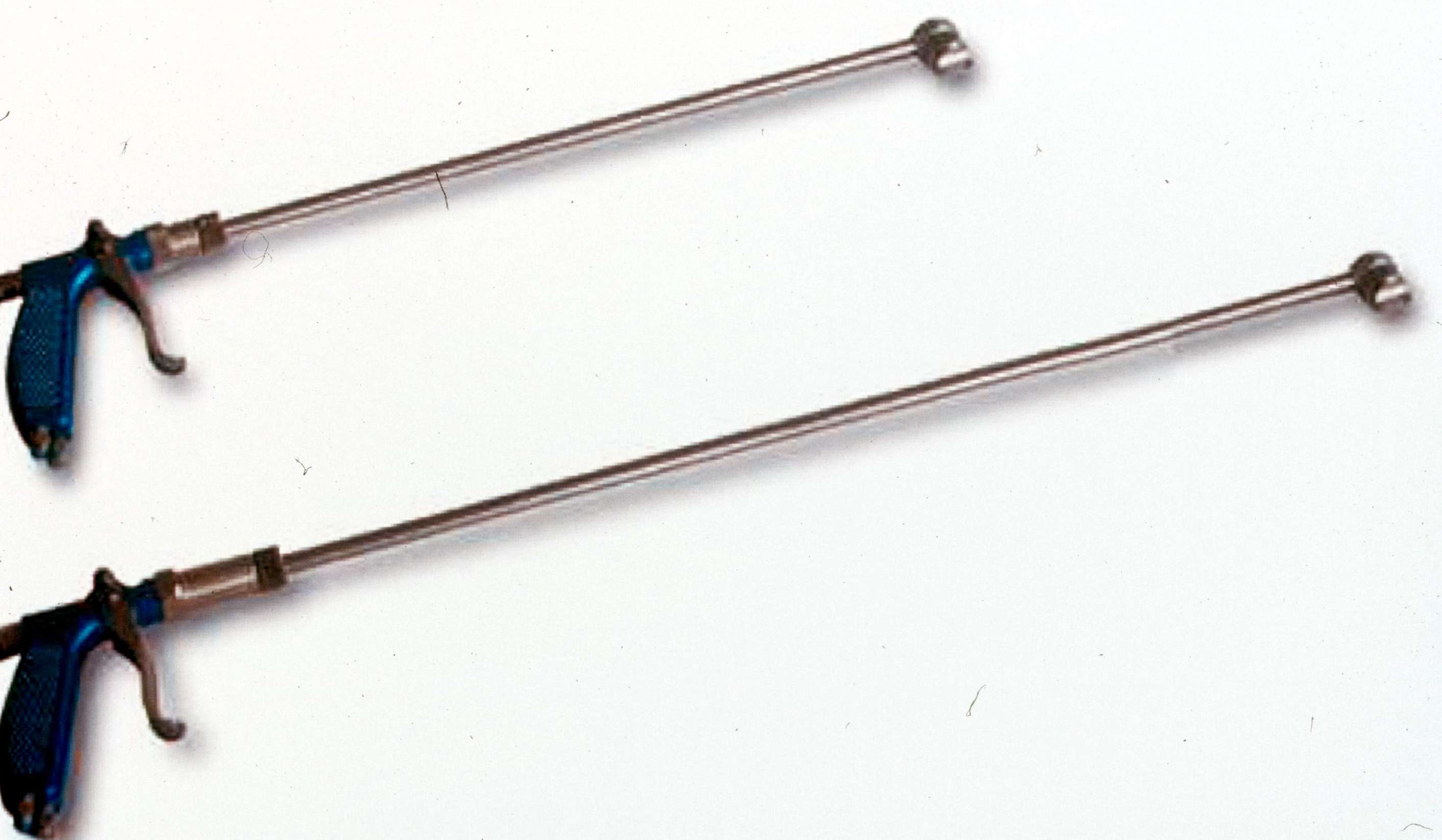

Henkel Loctite Corporation    Rocky Hill, CT 06067
Dec 15, 2003 Loctite® Fine Spray Applicators feature preset, very fine atomization setting that eliminates operator adjustment. Rotation of spray extension allows 360° application. Units include 90° air cap and 5 or 10 liter SS pressure tank. Loctite® Adjustable Spray Applicators feature forged aluminum body and SS needle and extension. Variable fluid adjustment allows high volumes of release agent to be applied. Applicators include 90° air cap and 2.5 gal pressure tank with air regulator.

Caterpillar, Inc.    Peoria, IL 61629
Dec 12, 2003 Natural-gas-fueled Series G3500 generators, for extended-duty distributed generation service, are driven by reciprocating engines in 12-, 16-, and 20-cylinder configurations. Engines operate at 1500 rpm/50 hz, 1200 rpm/60 hz, or 1800 rpm/60 hz, with ratings up to 2.1 MW. They deliver up to 43.5% mechanical efficiency with NOx emissions of less than 0.5 g/bhp-hr and 250 mg/Nm³. Features include open-protocol, SCADA-compatible ADEMâ„¢ III digital microprocessor control.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Dec 12, 2003 NIST-traceable PosiTector 200 allows non-destructive measurement of coating thickness on wood and concrete. Handheld, battery-operated gage resists solvent, acid, oil, water, and dust. Features include internal memory to store 1000 readings, flip display for right-side-up viewing, and wireless infrared printer. PosiSoft® analysis software enables notes and annotations, prints and displays basic charts and histograms, and exports to document or spreadsheet.

Automatic Timing & Controls    Lancaster, PA 17605
Dec 12, 2003 NEMA 4x, set-point Model APC100 suits submersible pump applications when analog sensors are used for level detection. Signal selection ranges are 4–20 mA, 0–5 V, and 0–10 V. Controller offers full duplexing action for pump-up/pump-down functions, 2 relay outputs for level alarm indication, 2 meters to log hours of operation, run and fail status contacts, 2 runtime meters, 2 local HOA switches, and programmable time-delay function to sequence restart after power failure.
