E-Switch Inc.    Brooklyn Park, MN 55428 1514

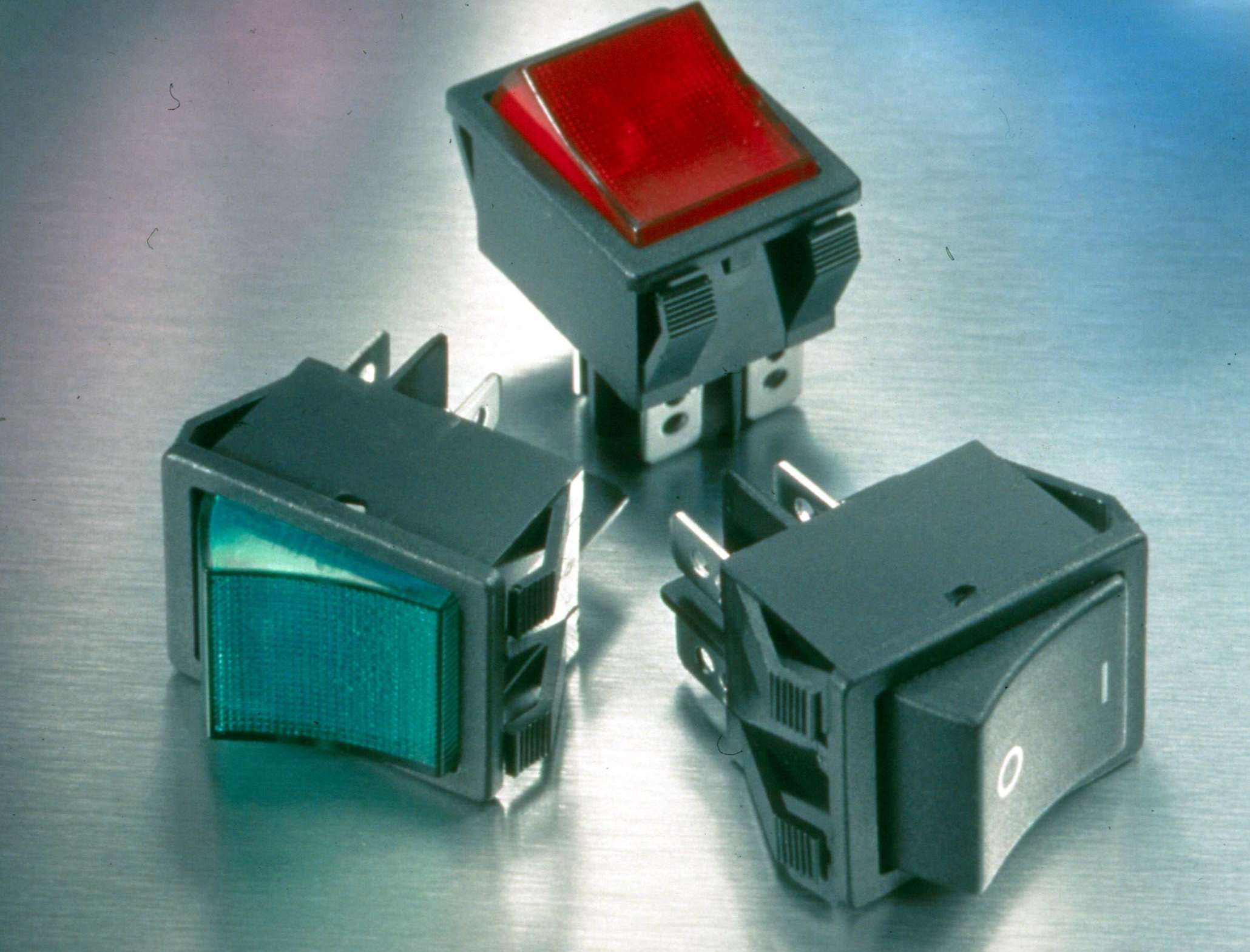

Nov 18, 2003 Series R5 illuminated, rectangular, panel-mount DPDT rocker switches are constructed from Nylon 66. Two-position switches are rated at 20 A @ 125 Vac and 15 A @ 250 Vac, with initial contact resistance of 0.2 ohms. Non-illuminated, 3-position switches are rated at 15 A @ 125 Vac and 10 A @ 250 Vac. Switches have silver-plated contact surfaces and terminals, and snap-mount in 30.6 x 22.3 mm rectangular hole on panels up to 3 mm thick.

Executive Manufacturing Technologies Inc.    London, ON N6A 5P2  Canada
Nov 18, 2003 VisualPlant(TM) v4.0 provides real-time collection, analysis, and reporting of manufacturing data from multiple sources such as CNC equipment, sensors, PLCs, and gauges. Based on Microsoft .NET architecture, software offers seamless enterprise-wide visibility of plant-floor production data. Optional add-in modules integrate data collected by VisualPlant with ERP systems such as SAP.

SKF USA, Inc.    Lansdale, PA 19446
Nov 17, 2003 Miniature ball transfer units are utilized to perform material-handling and positioning functions for transfer of small parts or installed inside sensitive equipment to serve as alternatives to rollers. They allow for 360º movement and have steel housings with steel/stainless balls and flat/angled tops. Depending on type, units are available with ball sizes from 4.8-9.6 mm, weigh from 0.003-0.06 kg, and are offered with load ratings from 10-70 kg.

AeroComm Inc.    Lenexa, KS 66219

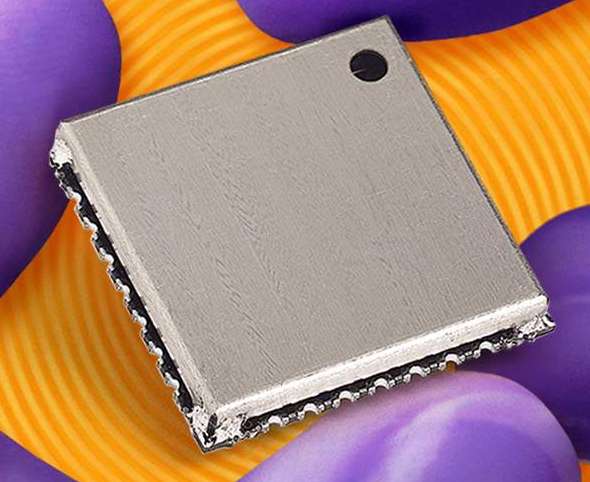

Nov 17, 2003 Using proprietary FHSS technology, miniature 900 MHz AC4490-1x1â„¢ measures 1 in.² and enables engineers to design-in full wireless capability. All components are integrated into multi-chip module design. Transceiver includes proprietary RF232â„¢ embedded protocol for plug-and-play installation and TTL serial interface that provides bi-directional communication. With up to 115.2 Kbps serial interface data rate, product provides interference rejection and maintains data integrity.

Access Control Group    Mountainside, NJ 07092
Nov 17, 2003 Vigilant^G2 offers paperless pre-shift safety checklist to comply with OSHA 1910.178. Reports can be e-mailed or printed as necessary. Solid-state G Watch Impact Detector records shock on X- and Y-axis, time, date, and operator, to reduce property damage and injuries. In addition to Key On hours, system offers Traction, Lift, and Idle hours, indicating true utilization of equipment. System comes with keyless entry system, HID proximity, or magnetic reader.

JLG Industries, Inc.    McConnellsburg, PA 17233 9533

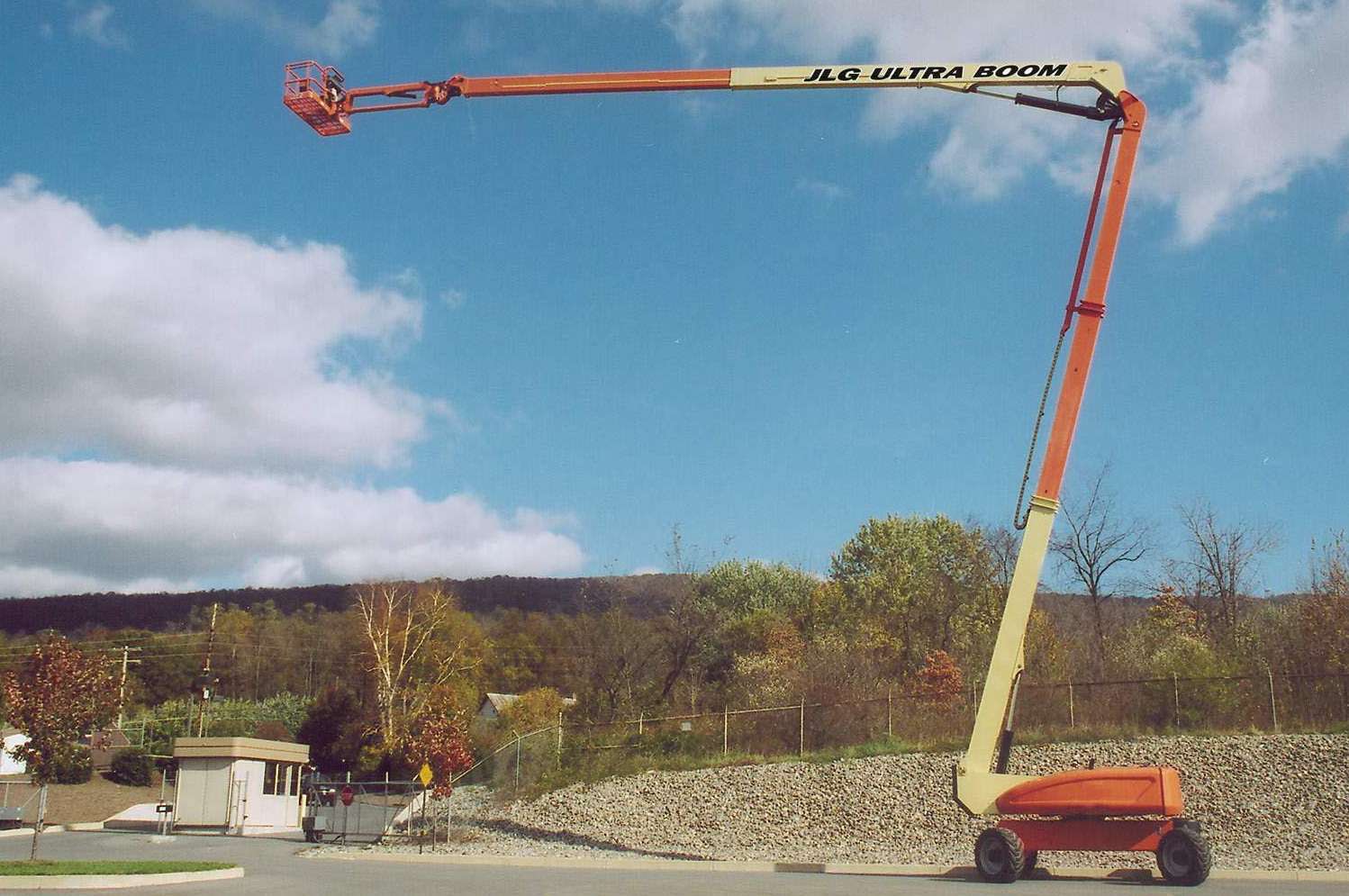

Nov 17, 2003 Model 1250AJP Ultra Boom Work Platform is articulating and telescoping with 63 ft, 2 in. horizontal reach and 60 ft, 7 in. up and over capability. JibPLUS® jib boom rotates 130° vertically and 125° horizontally for maneuverability in hard to access areas. Platform capacity in majority of work envelope is a restricted 1,000 lb. Unrestricted platform capacity is 500 lb. Standard SkyPowerâ„¢ package, with 7,500 W generator, provides power to welders and accessories.

Mimot - California, LLC    Irvine, CA 92618 2326

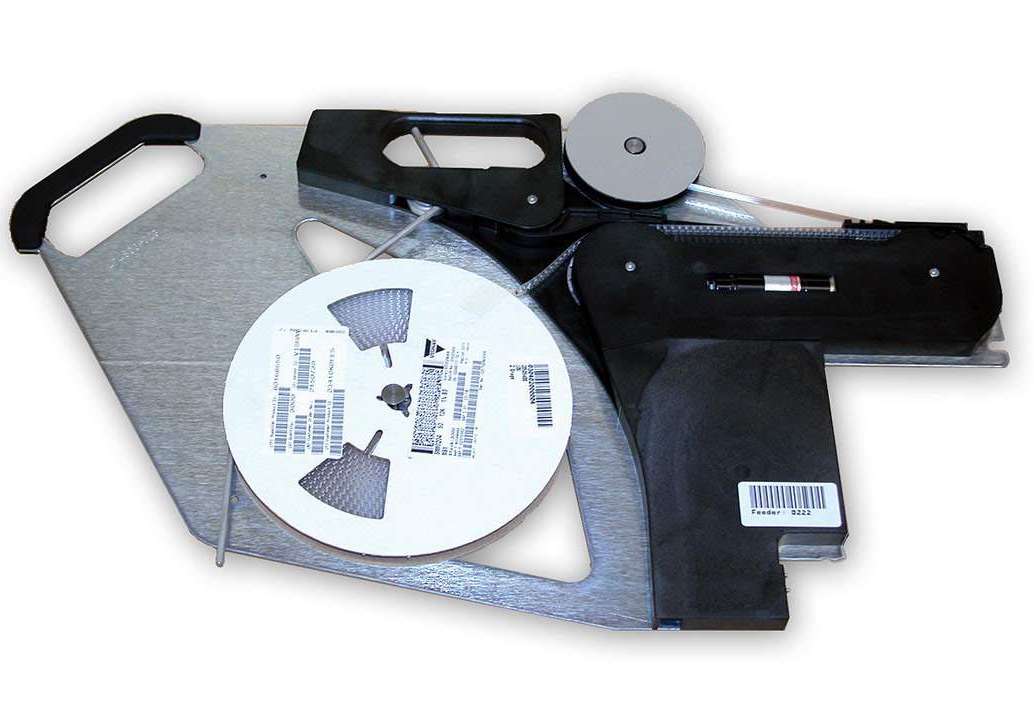

Nov 17, 2003 Triligent Triple Intelligence Feeders, available in tape and stick configurations, maintain uninterrupted high-speed communication with pick-and-place machine. Multiple-LED status indicator and operator signaling display are provided on each unit. Data transmission between Feeder and pick and place system is accomplished via optical interface. Closed-loop servo tape-advance mechanism can be programmed and ensures fast, accurate component pick-up.

Kadant, Inc.    Queensbury, NY 12804
Nov 17, 2003 Unigy smart hydraulic power supply uses motor controller combined with control algorithms to provide ripple-free, hydraulic power from virtually zero to full rated flow. All compensation is done on motor controller allowing motor to generate full torque at zero speed with no heat. Motor controller can be interfaced with variety of analog, digital, or communications inputs.

Sola/Hevi-Duty    Skokie, IL 60077

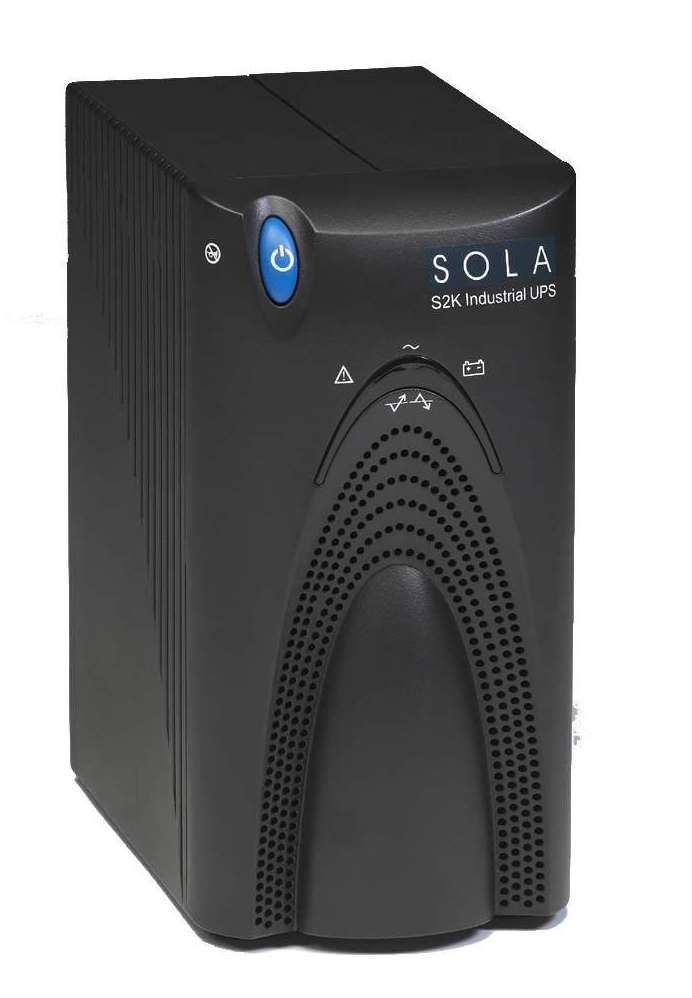

Nov 17, 2003 Series S2K prevents sensitive equipment from being damaged in event of surges, spikes, lightning strikes, blackouts, and other power disturbances. Automatic Voltage Regulation saves battery power for deep sag situations when input voltage is below 78 V. Units feature intelligent battery management and hot-swappable batteries that do not require shutdown for replacement. They come in 120 and 230 Vac models with power ratings from 300-1,000 Va.

Applied Production, Inc.    Milford, OH 45150
Nov 17, 2003 Working directly with CAD systems, ProFab v3.7 eliminates need to export and import data. An icon added to CAD system automatically transfers data into ProFab, giving users access to tools for programming CNC turret machines. It includes direct interfaces to SolidWorks 2004, SolidEdge 14, CADKEY v21.5, AutoCAD, and Mechanical Desktop. It also offers Tool Library in Access database, Tool Wizard, and capability to program Wilson Wheel.

Dadco, Inc.    Plymouth, MI 48170-2598

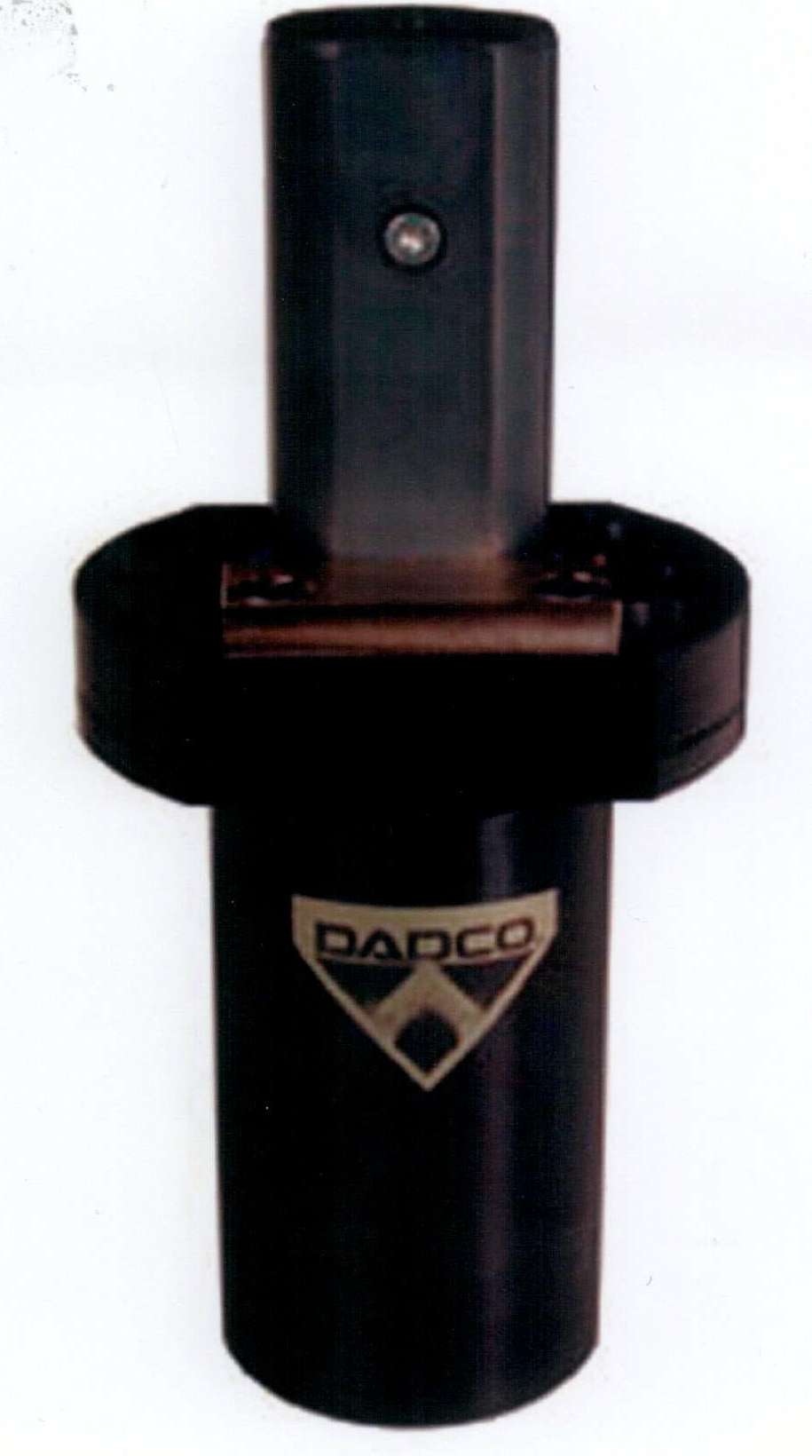

Nov 17, 2003 Model SLN.300 Non-Rotating Nitrogen Gas Lifter features keyed guide rod that prevents rotation during lift applications, and incorporates an extension for attaching lifting structures. Extended guide rod bushings provide increased stability, and inverted gas spring housed inside guide rod provides adjustable force. Lifter is available in 1/3 ton force model, with stroke lengths from 50-150 mm.

Teemark Corp.    Aitkin, MN 56431 9604

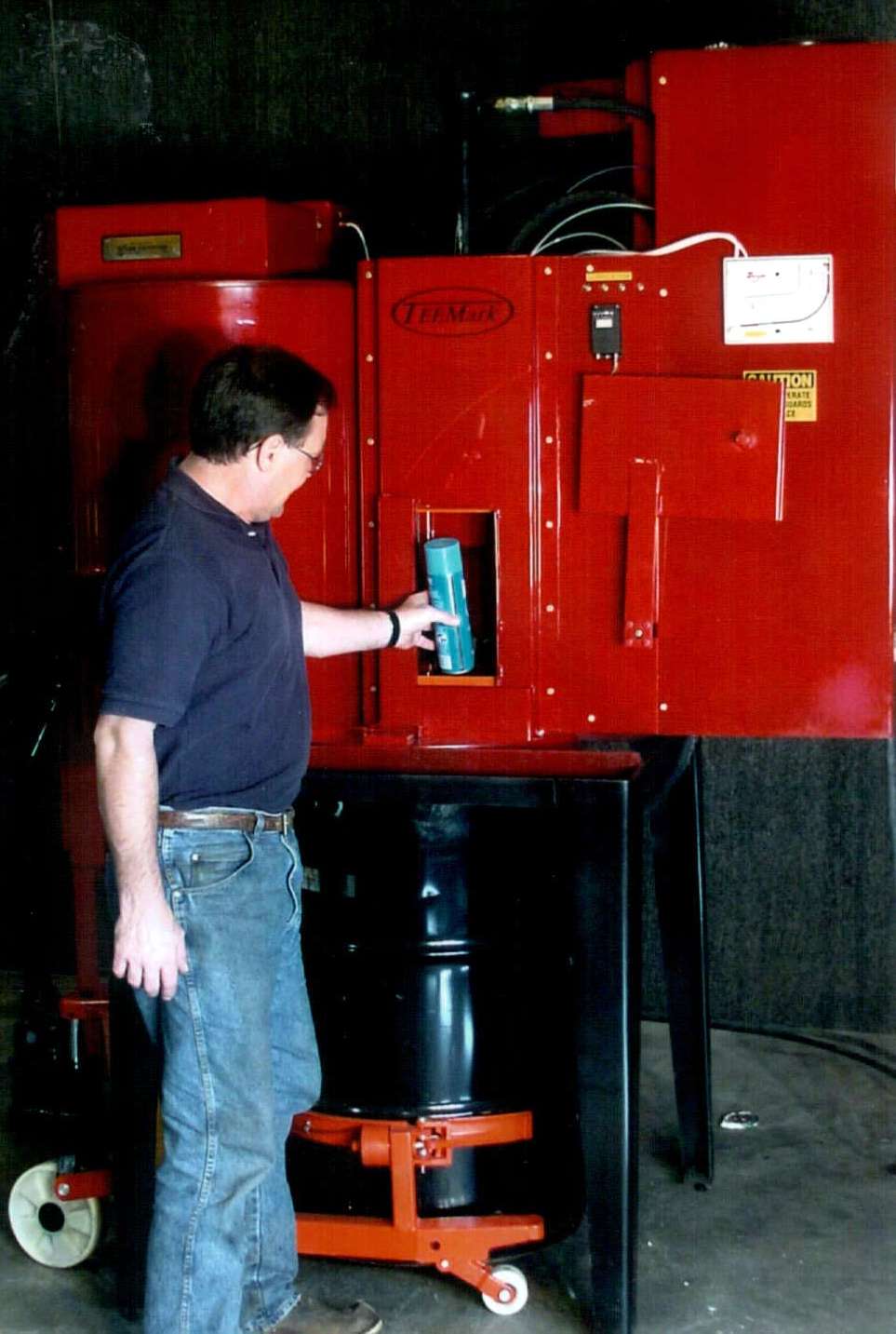

Nov 17, 2003 Able to process up to 800 aerosol cans per hour, explosion-proof Super 800 has air/hydraulic logic control system with minimal moving parts. Machine opens, empties, and crushes full or partially full cans of various sizes. VOCs can be collected by optional carbon filter built into crusher.

Woodhead L.P., Woodhead Electrical    Northbrook, IL 60062

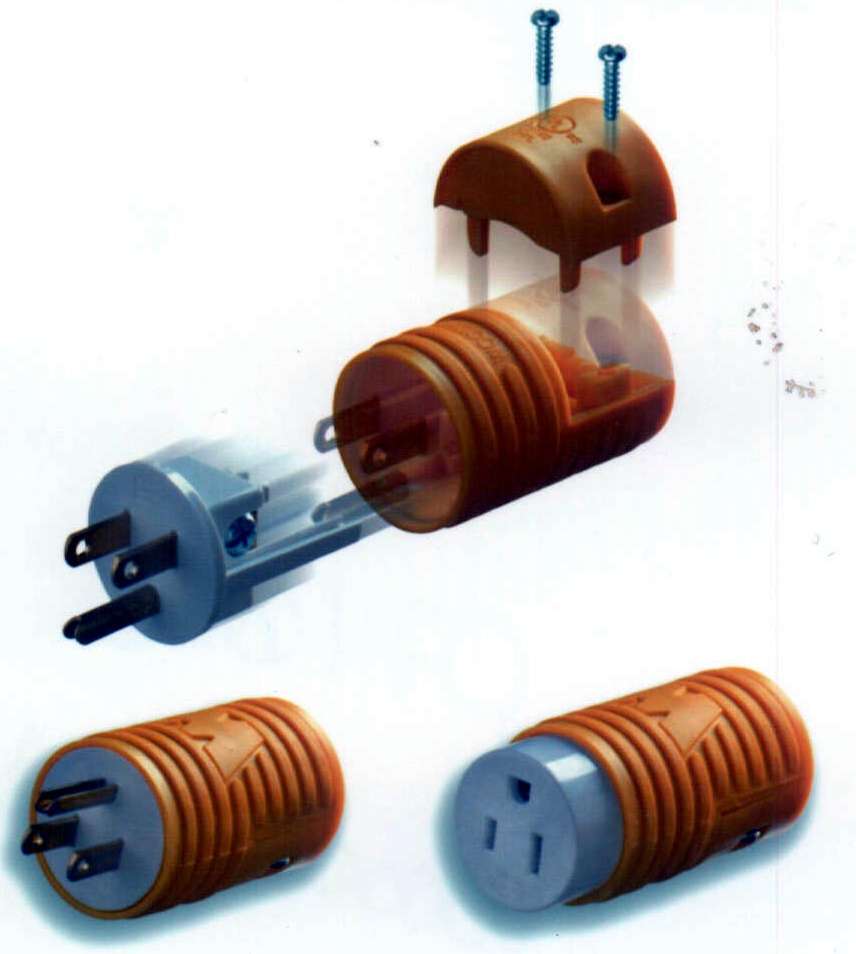

Nov 17, 2003 Safeway+ Wiring Devices consist of plugs and connectors with 3-piece Core-Lock™ rubberized-nylon assembly, engineered for general-purpose wiring device applications. They lock together with 2 screws, while reversible cord clamp accommodates cords from 12–18 gauge. Nylon core is surrounded by protective rubber coating, providing impact resistance without marring. They are UL/CUL LISTED and come in 15 and 20 A configurations.

Smith, T.M., Tool International Corp.    Mount Clemens, MI 48043 1065
Nov 17, 2003 Tabletop G5 Shrink Fit induction-heating machine includes 3-station rotary tool holder that allows operators to heat and cool 3 tool holders simultaneously. Manual vertical column raises and lowers heating coil over tool holder nose, while 400 V, 3-phase heating system produces temperatures from 500 to 600°F that expands tool holder bores in 6 sec. No shop air is required for operation. Integrated refrigerant cooling also provided.

Spiroflow Systems, Inc.    Monroe, NC 28110

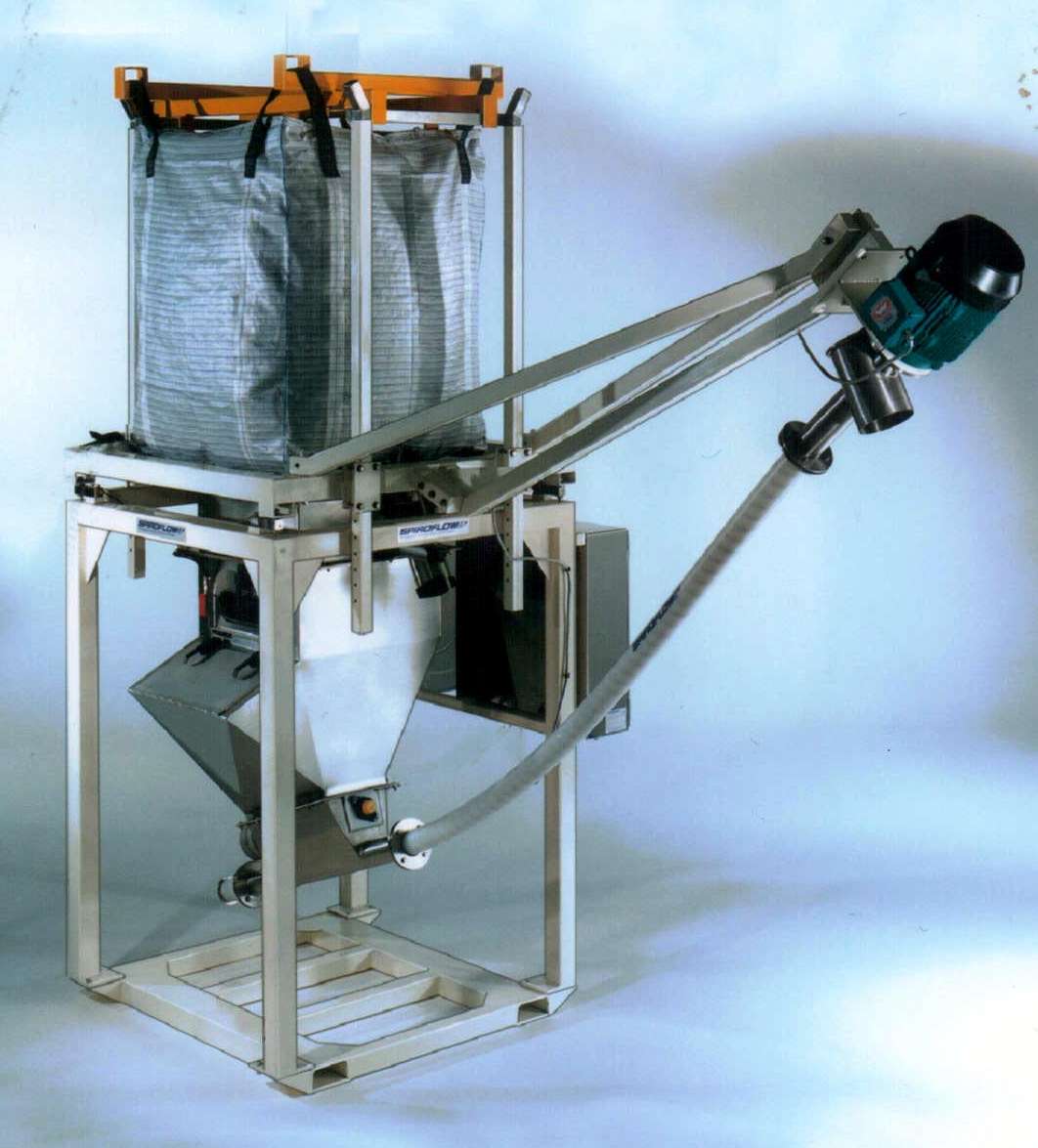

Nov 17, 2003 Type 3 Bulk Bag Discharger places sensitive loss-in-weight load cells between top bag holding frame and lower chute assembly to reduce possibility of load cell damage and faulty scale readings. Yoke bar closure ensures bag neck is fully closed during tying and untying of bag spout, while bag stretching arms lengthen and keep bag tensioned as more powder is discharged. Pneumatic bag massagers gently promote powder flow with little or no degradation.

United Grinding Technologies, Inc.    Miamisburg, OH 45342

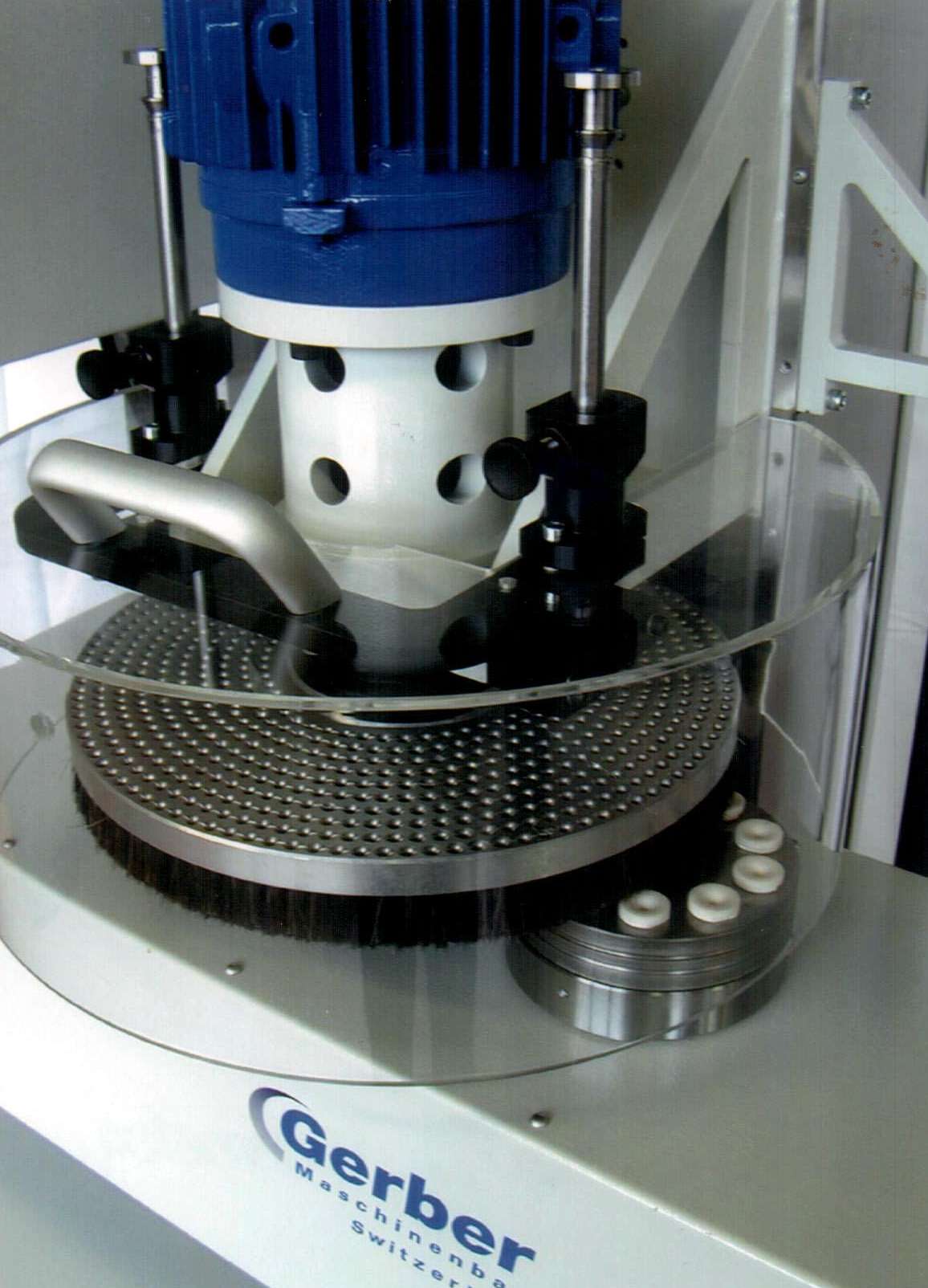

Nov 17, 2003 BP-Smart provides steady deburring, edge preparation, and polishing of hard materials such as CBN, PCD, ruby, sapphire, and industrial ceramics. It can be operated with abrasive-loaded nylon brushes for simple shapes and/or with natural bristles with diamond paste for complicated shapes. Flat components are brushed on planetary polishing table. Rotary motions of polishing table, workpiece holders, and brush produce equal controlled radius on edges of component.

PCB Piezotronics Inc.    Depew, NY 14043 2495

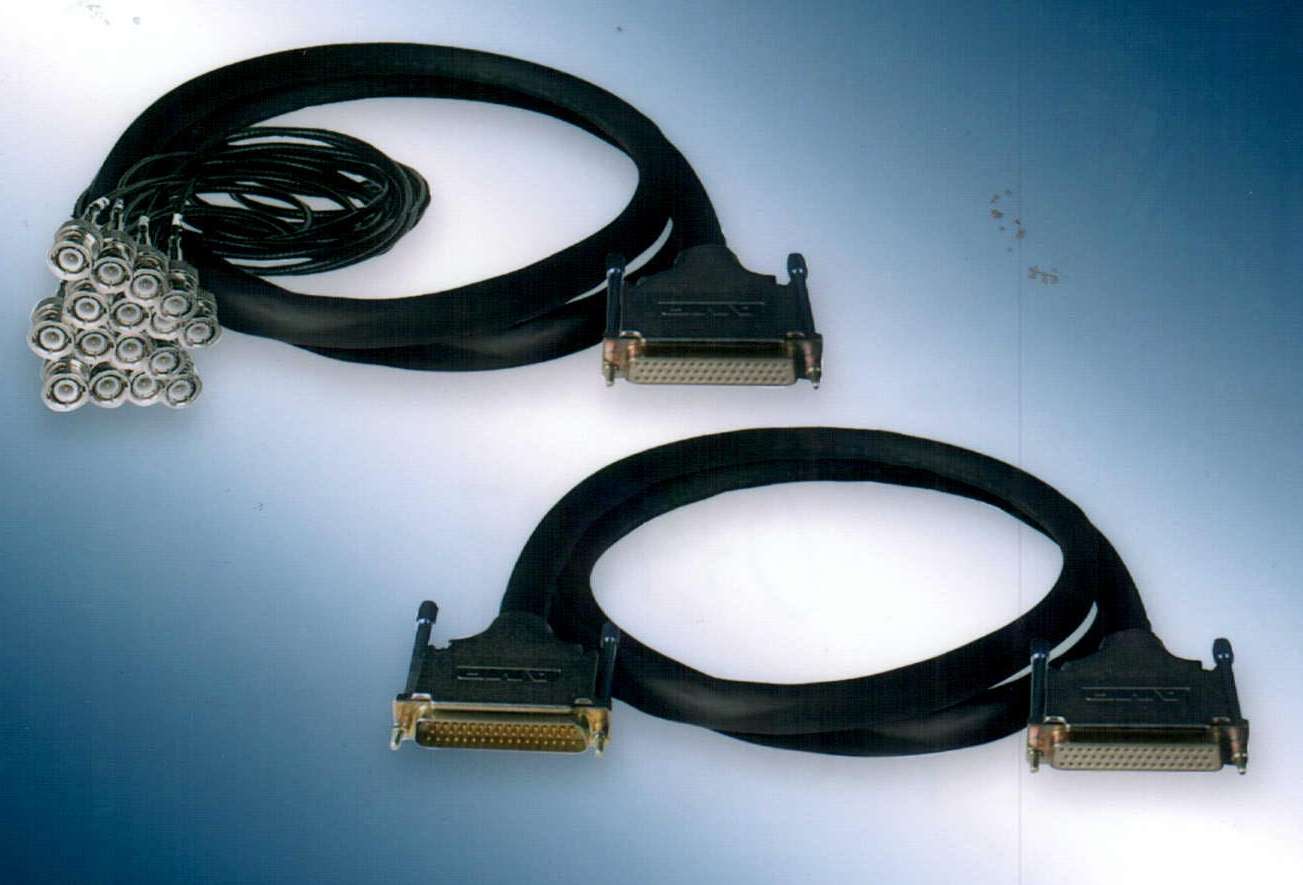

Nov 17, 2003 Multi-Conductor Models 0009B and 0009A consist of 16 twisted shielded pairs. Model 0009B incorporates DB50 female on one end and DB50 male on other, while Model 0009A features DB50 female on one end and 16 BNC plugs on other. Both come in standard lengths of 10, 25, 50, 75, 100, and 150 ft, with custom lengths available. Typical uses include connecting sensors, signal conditioners, and patch panels.

Gore, W. L., & Associates, Inc., Industrial Filtration Technologies    Elkton, MD 21921

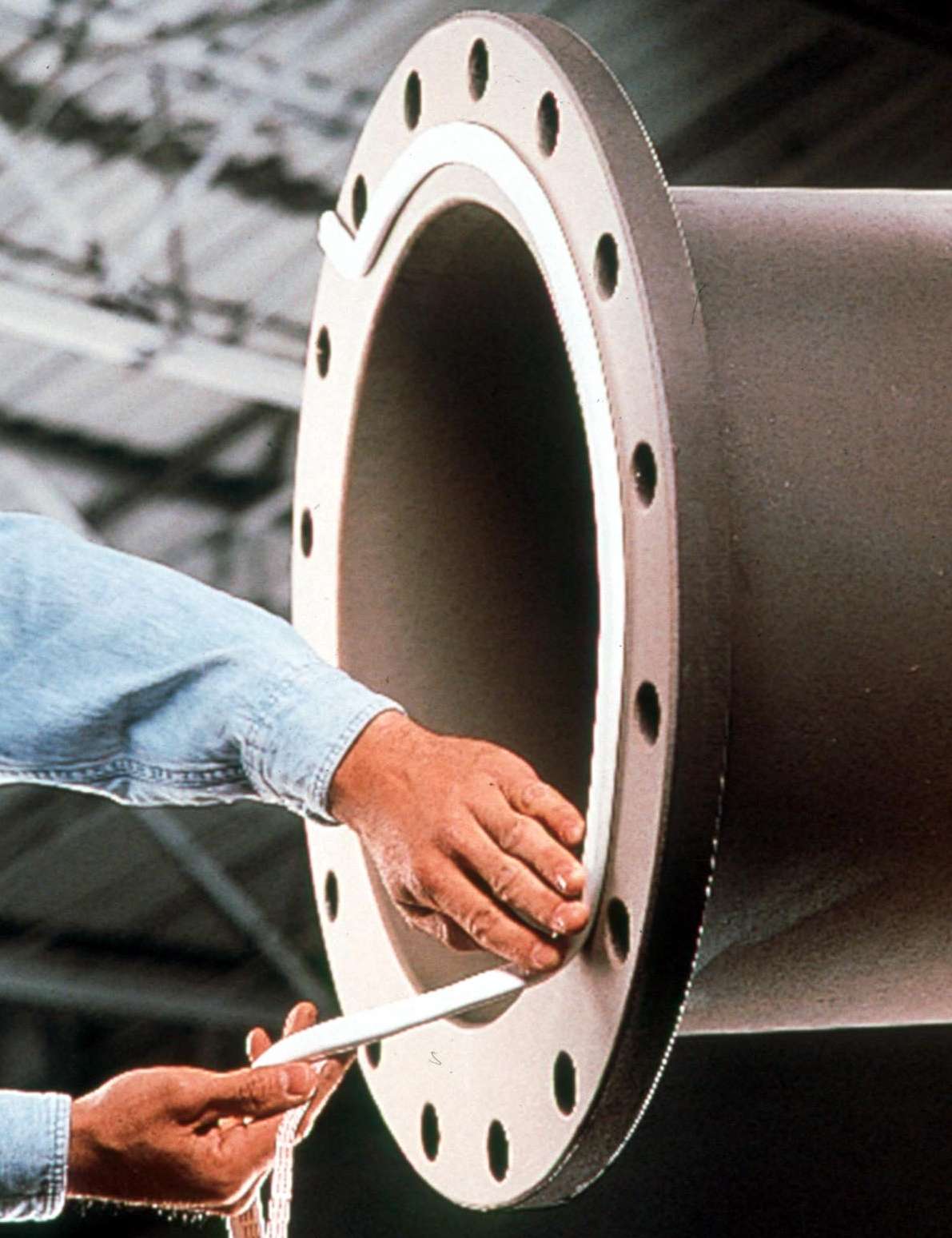

Nov 17, 2003 GORE-TEX® creep-resistant, form-in-place gasketing material is made from GORE-TEX® expanded PTFE, which is impervious to most chemicals, suitable for use from -450 to +600°F, and able to withstand pressures to 3,000 psig. Tight-sealing product, suited for most types of sealing applications, is also suited for use in chemical processing plants.

Astec America Inc.    Carlsbad, CA 92008

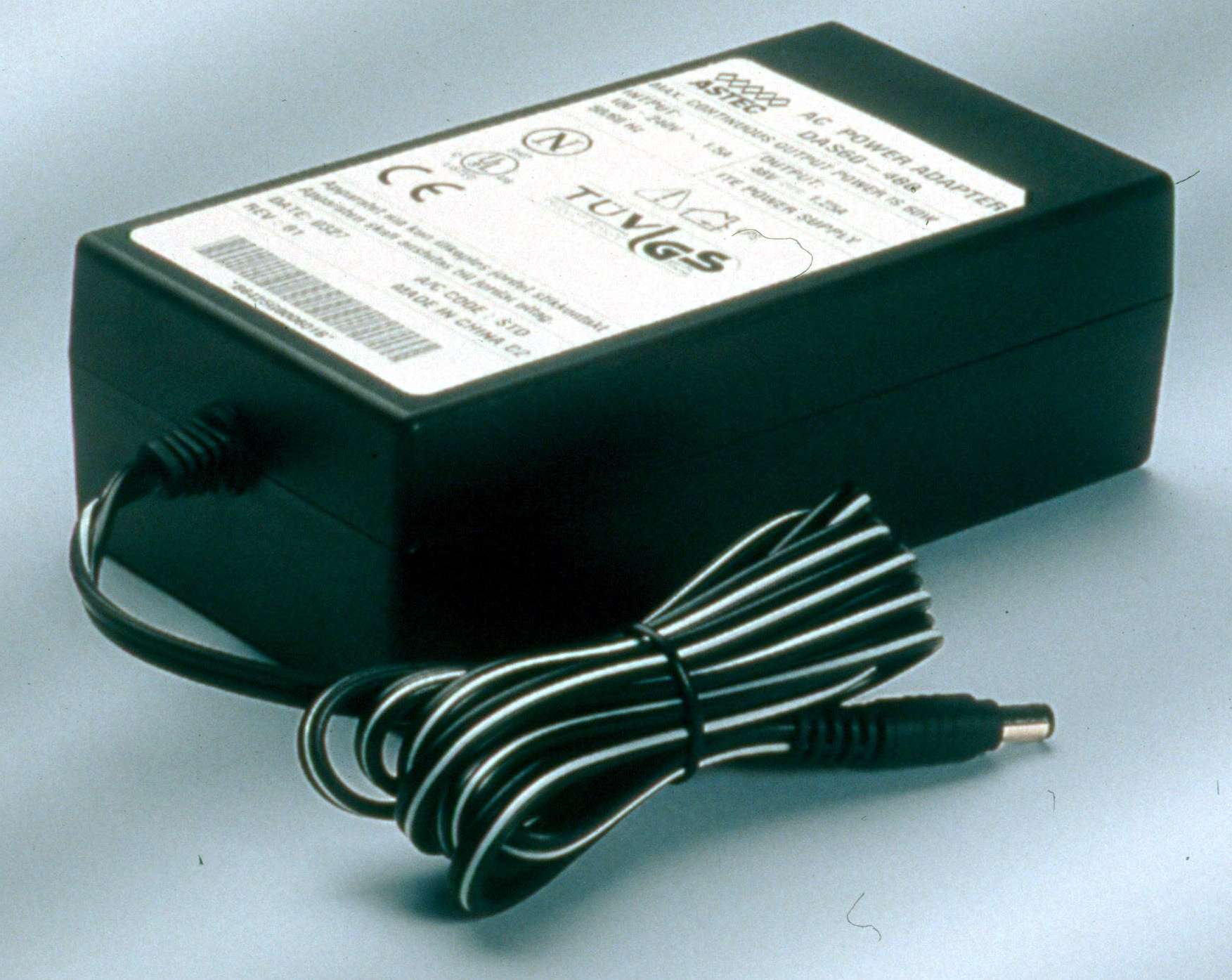

Nov 17, 2003 External desktop adapter model DAS60 delivers 48 Vdc with 60 W total power and features 20 ms hold-up time. Accepting universal AC input from 85-264 Vac, it operates in -5 to +50°C temperature range and operates with 80% efficiency. Product has overload, over-voltage, short circuit, and thermal protection as well as built-in Class B EMI filter. It demonstrates mean time between failures of 550,000+ hr at full load in 25°C ambient conditions.

Kanguru Solutions    Millis, MA 02054
Nov 17, 2003 KanguruWireless LAN merges USB Flash Drive storage with USB Wireless LAN adapter. By combining technologies, product can be used to store images, Word documents, and PowerPoint presentations as well as connect to wireless network. Available in 64 and 128 MB capacities, adapter offers network transfer rates up to 11 Mbps, automatic rate fallback, and 40, 60, or 128-bit WEP encryption. It has plug and play capabilities and requires no external power.
