Rockwell Automation    Milwaukee, WI 53204
Dec 17, 2003 Allen-Bradley® E1 Plus Electronic Overload Relays feature self-powered design, standard AC15/B600-rated isolated NO and NC contacts, and direct contactor mounting. ASIC continually processes motor current data to accurately maintain time-current status of motor loading. Thermal memory circuit helps ensure accurate protection for hot and cold motors. Relays include dedicated phase loss detection ciruit and offer typical reaction time of 3 sec.

Onset Computer Corp.    Bourne, MA 02532

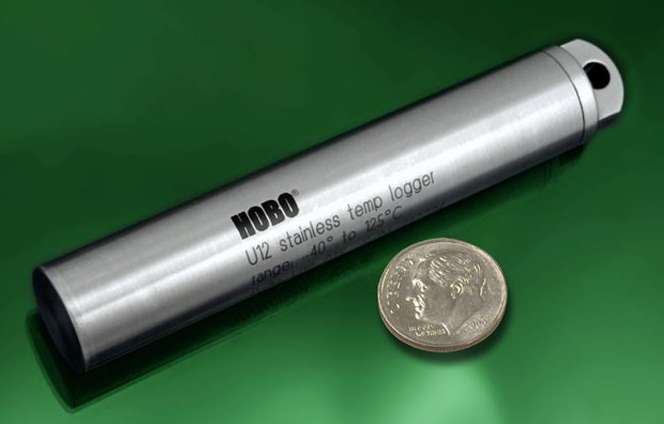

Dec 17, 2003 Stainless Steel HOBO® U12 fits into standard-sized beverage bottleneck, and measures and records temperatures from -40 to 125°C. Unit can withstand process conditions ranging from pasteurization to flash freezing and wash down. Logger incorporates internal glass bead thermistor for stable readings and direct USB interface for high-speed data offloading. It offers 43 K measurement capacity and pressure rating of 2,200 psi for autoclave and underwater applications.

Kanguru Solutions    Millis, MA 02054
Dec 17, 2003 Kanguru Encryptor utilizes silicon-based, real-time encryption/decryption processor that encrypts entire disk’s content bit-by-bit, including boot sector and operating system. Available in 40-bit DES or 128-bit TDES encryption, unit fits in 5.25 in. bay, works with all operating systems, and does not require device driver. Encryptor includes 2 access keys for authentication and encryption operations, and is backwards compatible with PIO, DMA, and Fast ATA Drives.

CUI, Inc.    Tualatin, OR 97062

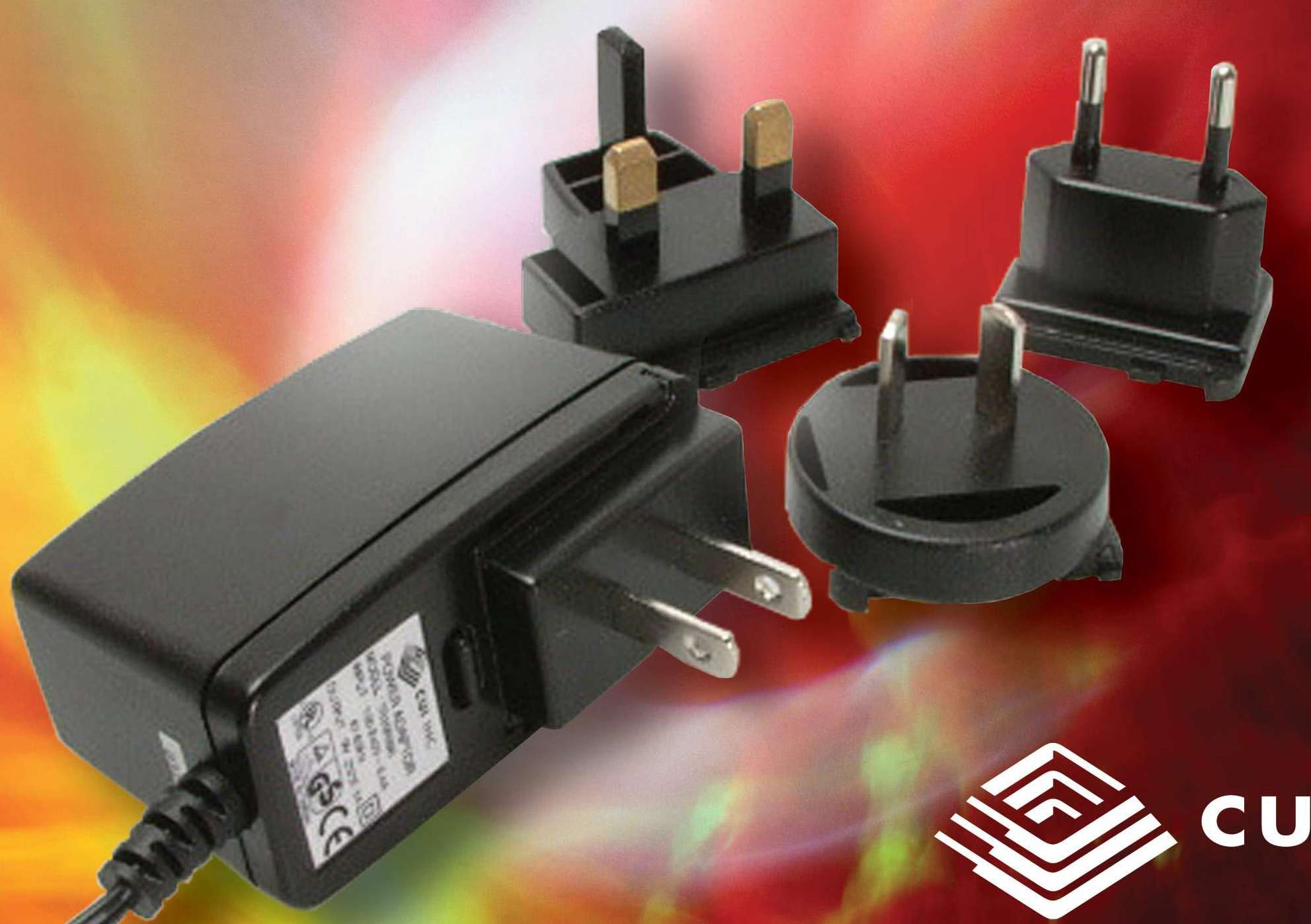

Dec 17, 2003 Featuring 4 interchangeable input plugs designed for international compatibility (U.S./U.K./European/Australian), Diplomat series switching power supply comes in 2.83 x 1.81 x 1.38 in. package with perpendicular orientation. Plugs securely lock into place and release with push of button. Rated at 10 W, series has 3.3-24 Vdc voltage output range and short-circuit and over-voltage protection; accepts universal input voltage; and is UL/cUL/TUV/CE approved.

JP Sercel Associates, Inc.    Manchester, NH 03102

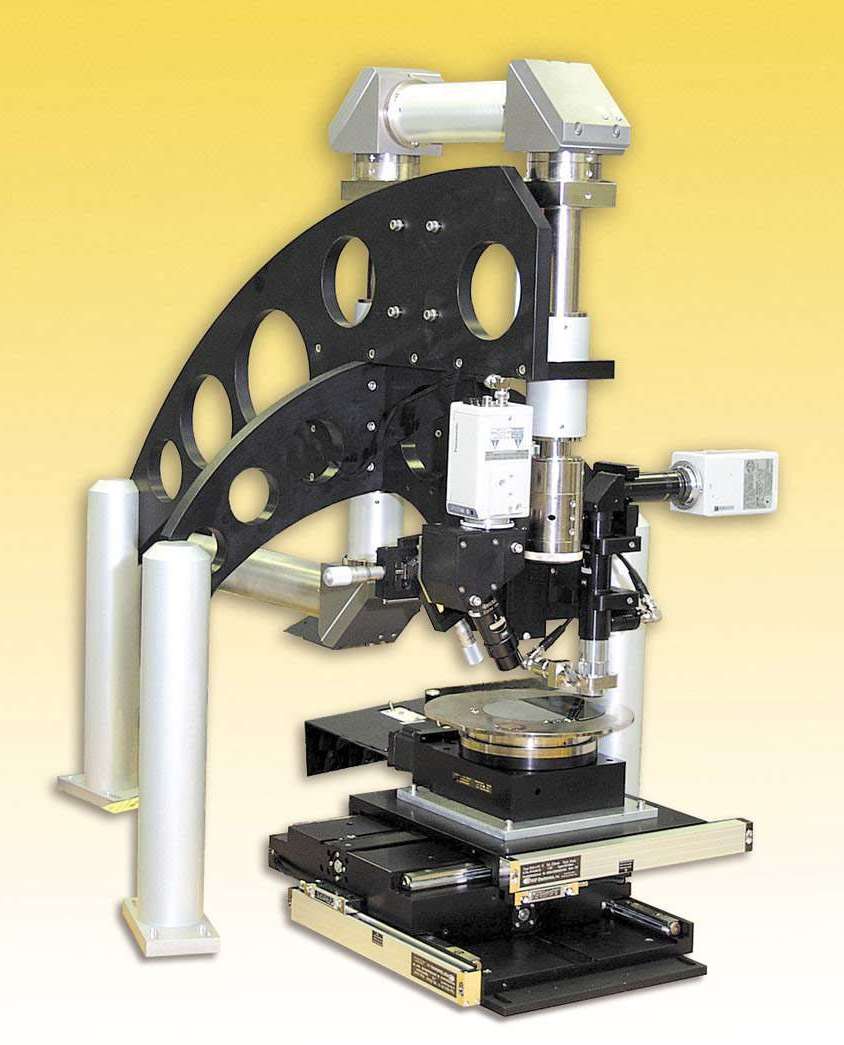

Dec 17, 2003 Microtech UV laser beam delivery and microscope camera system mounts on standard optical breadboard. It includes on-target process viewing with zoom control and beam homogenizer for intensity profile control. Demagnification of laser imaging system is continuously variable from 4-20 x. Variable laser image magnification can be fine-tuned for exact mask overlay. Modular, tabletop unit is suited for lithography, 3-D micromachining, drilling, cutting, and marking applications.

Air Purification of Houston    Houston, TX 77040

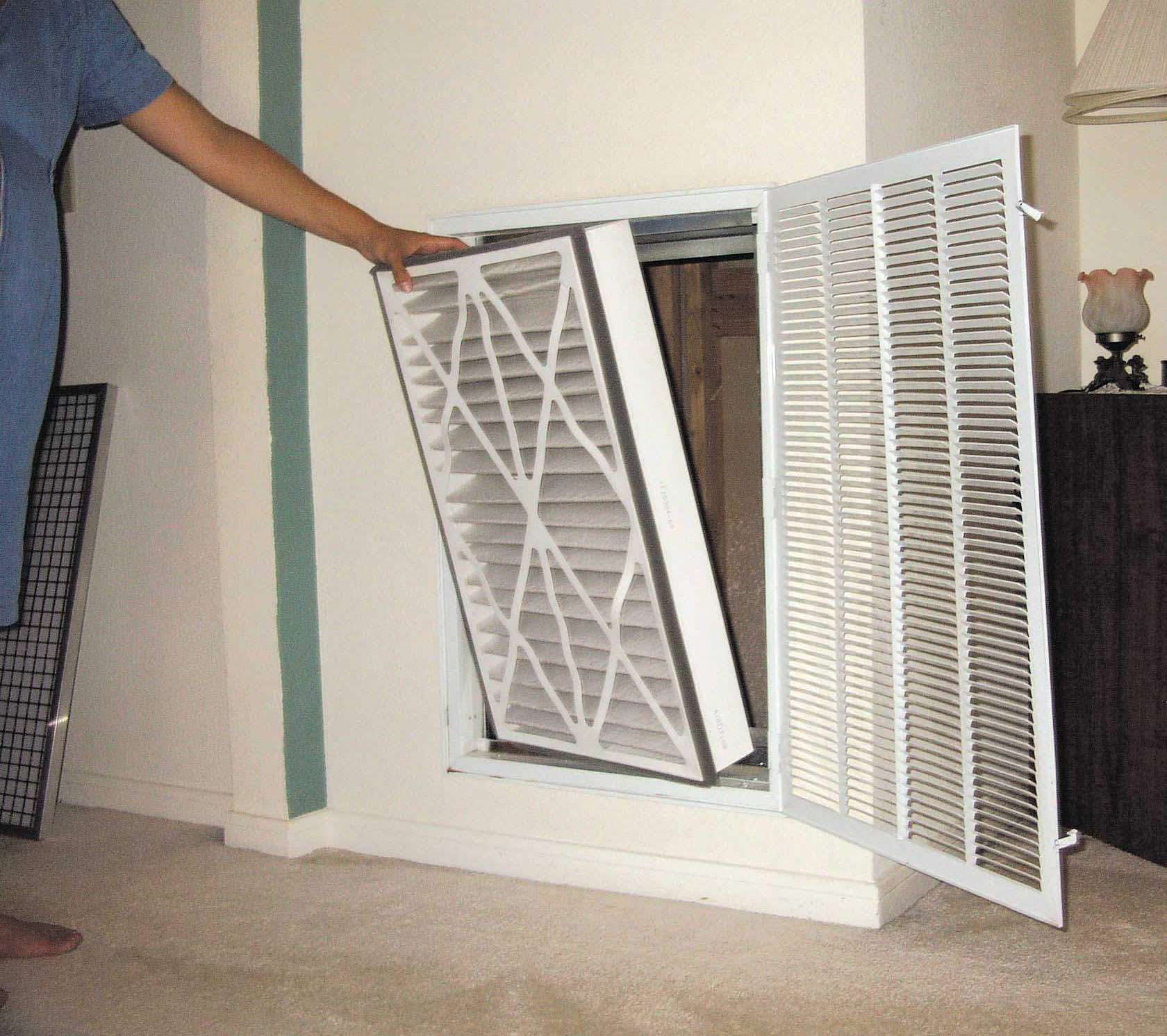

Dec 17, 2003 Enviro Max® System eliminates need to crawl into attic to install traditional 4 in. thick filter. Housing attaches directly to standard wall or ceiling return air grille with 4 self-tapping, sheet metal screws. Offering 98% efficiency at 5 microns, system requires no electricity and keeps entire duct system clean. Lowest pressure drop is .05 at 1,200 cfm.

ERNI Electronics, Inc.    Midlothian, VA 23112

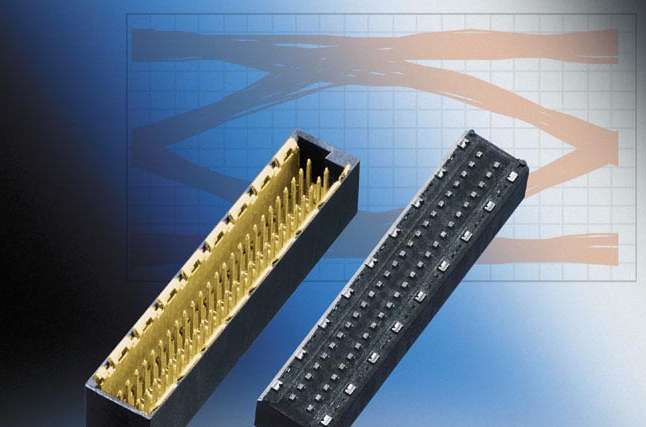

Dec 17, 2003 Modularly-designed, MicroSpeed shielded connector system consists of 2 terminal banks and 2 outwardly-arranged shield plates. Longitudinal pitch is 1.0 mm and transverse pitch is 1.5 mm. Connectors are intended for board-to-board connections with 5 mm circuit board distance. Impedance is 100 ohms for differential signals and 50 ohms for single-ended signals. Applications include telecommunication and data transmission systems with speeds to 10 GBit/s.

Compuware Corp.    Detroit, MI 48226
Dec 17, 2003 Compuware Vantage 9 Application Performance Management Software helps IT organizations identify and resolve problems before they impact business. It unites mangement-level views with end-to-end performance analysis capabilities. Summary views highlight performance by application and location, while detailed heat charts allow IT to identify service violations and application outages by time of day, day of week, and transactions affected.

Sipex Corp.    Miliptas, CA 95035-1701
Dec 17, 2003 Available in 10-pin MSOP package, Models SP6134 and SP6137 offer frequencies of 600 and 900 kHz, respectively, and include all provisions for loop stability and soft-start. PWM architecture drives dual NFET switches with efficiencies up to 94%. Controllers feature programmable output voltage down to 0.8 V and maintain 1.5% accuracy over wide range of line, load, and temperature conditions. Internal 2 A gate drivers provide load current capability to 15 A.

WAGO Corp.    Germantown, WI 53022

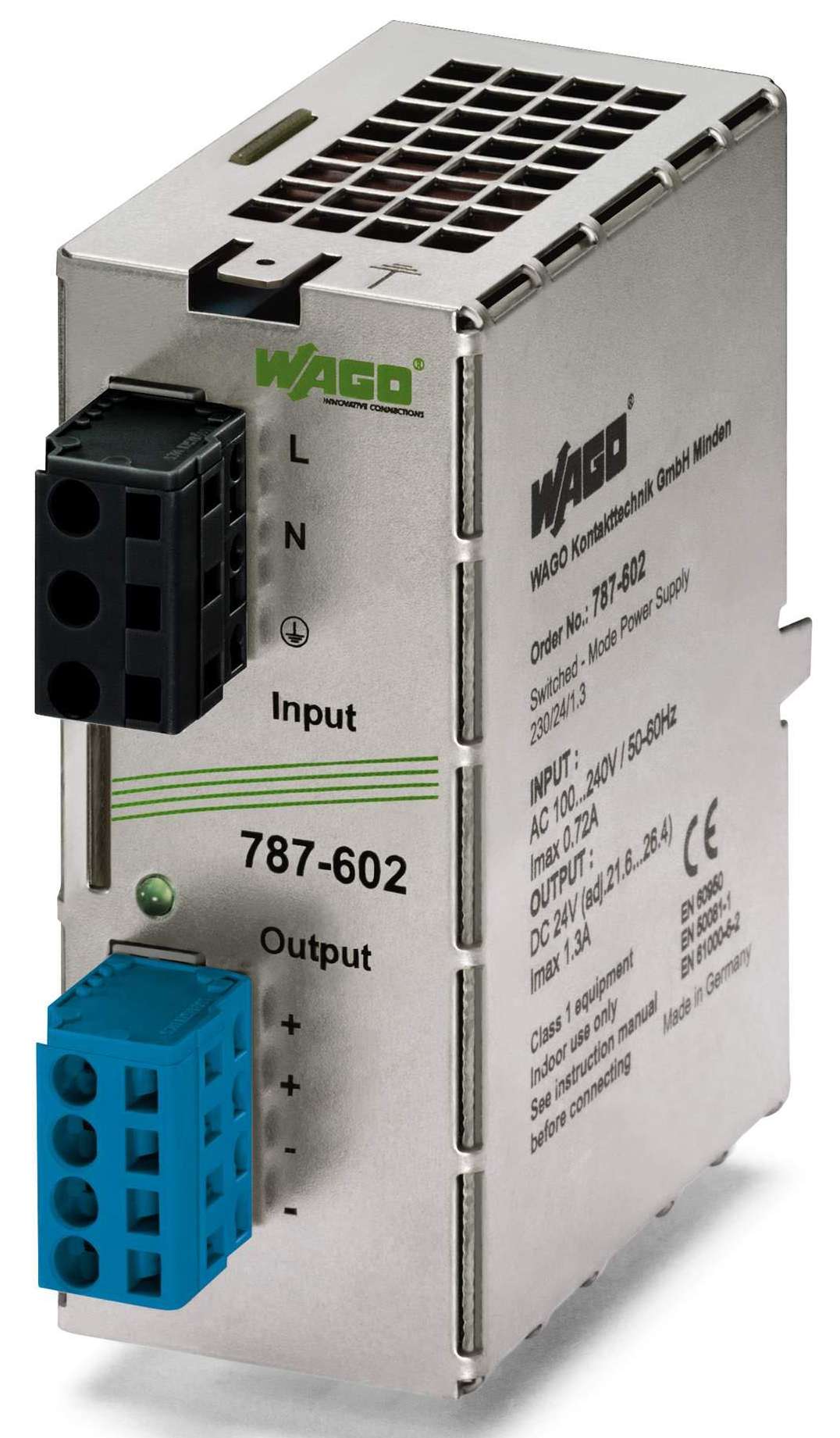

Dec 16, 2003 Series 787 Switch-Mode Power Supply offers single- and 3-phase versions with input voltages of 90-264 or 325-550 Vac, and output voltages of 12 or 24 Vdc. Current ratings include 1.3, 2, 2.5, 4, 8, 10, and 20 A. Output voltage is adjustable via potentiometer to compensate for voltage drop. Featuring shockproof, metal-clad housing, DIN-rail mount unit includes over-voltage, short-circuit, and surge protection. In-rush current limiting is provided via NTC resistor.

Keithley Instruments, Inc., Test Instrumentation Group    Cleveland, OH 44139 1891
Dec 16, 2003 Model 4200-SCS, with integral Keithley Test Environment-Interactive v5.0 software, runs stress-measure and reliability tests for device lifetime analysis and quality assurance. Running in Windows® NT or XP environments, KTEI v5.0 brings point-and-click simplicity to current-voltage measurements of devices such as transistors, resistors, and dielectrics, on up to 8 independent channels. It provides test definition, parameter analysis, graphing, and automation capabilities.

Jewell Instruments LLC    Manchester, NH 03103

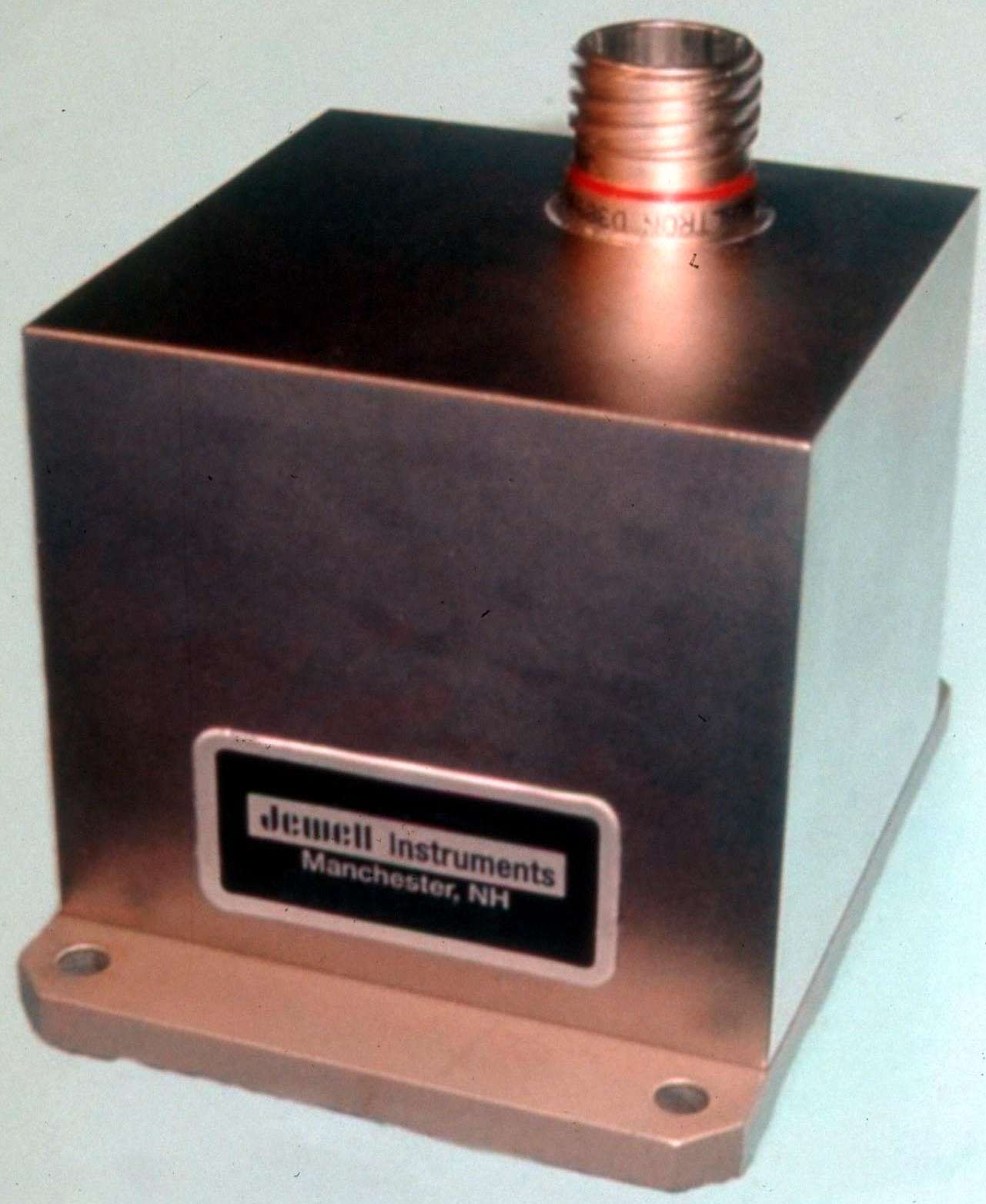

Dec 16, 2003 Suited for outdoor use and harsh environments, LCF-2310 Series biaxial, fluid-damped, flexure-suspension servo inclinometer handles industrial, commercial, and aerospace sensing requirements. It has ±5.0 Vdc ±0.50% Full Range Output, -40 to +80°C operating temperature, and -60 to +90°C survival-temperature range. Able to withstand shock to 1500g, 1 msec, ½ sine, product is suited for antenna leveling and barge leveling and control.

Bustronic Corp.    Fremont, CA 94538

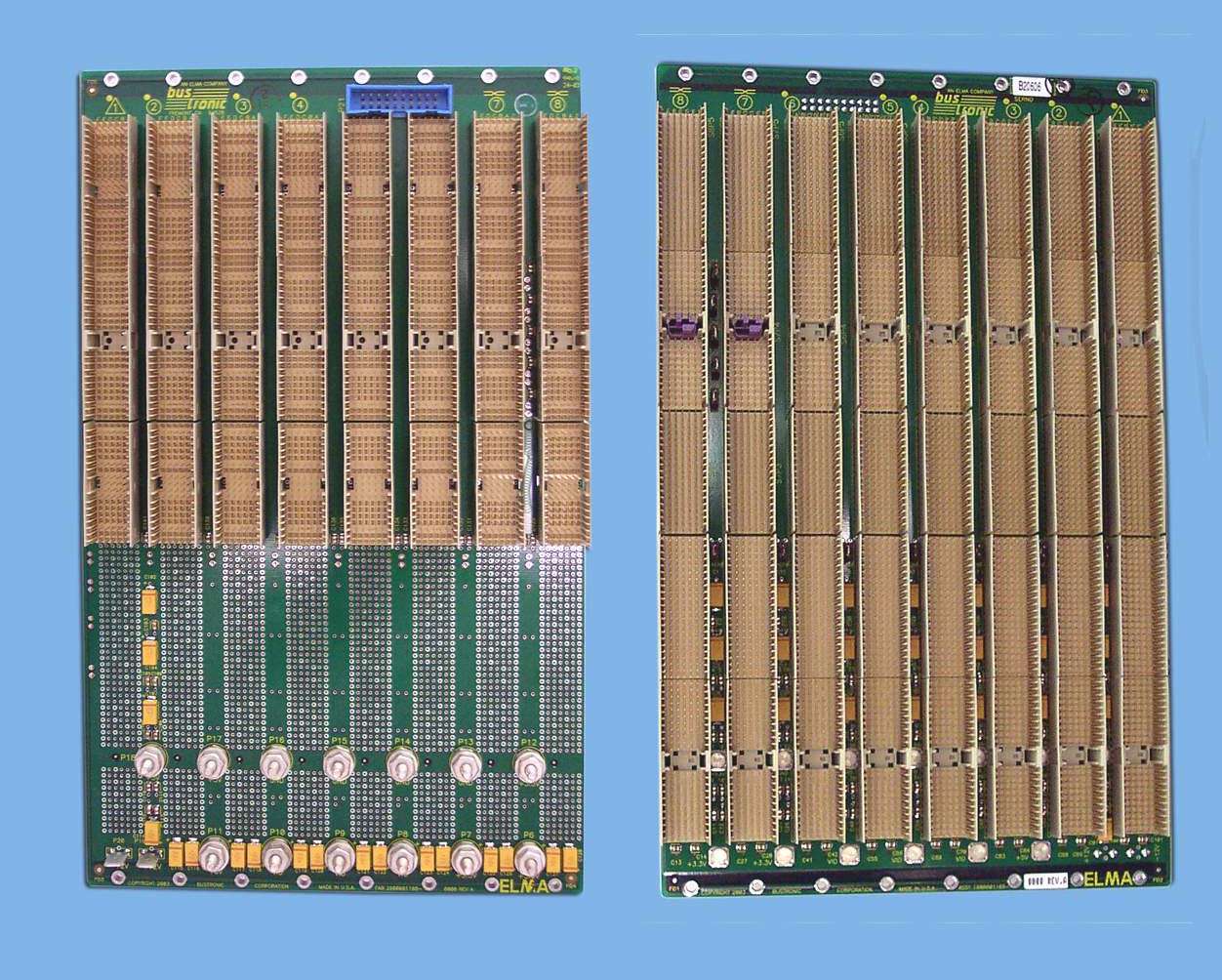

Dec 16, 2003 PICMG 2.16-compliant, 8-slot Compact Packet Switching Backplane incorporates connection for shelf managers specifically geared for High Availability applications. Pins for Intelligent Platform Management Bus are provided in 20-pin header. Backplane includes dual fabric slots for redundancy and 6/32 power studs that allow power interface boards to be hooked up for dual-redundant power supply swapping. One slot is convertible to system slot via CPU Enable resistor.

Zero-Max, Inc.    Plymouth, MN 55441 5509

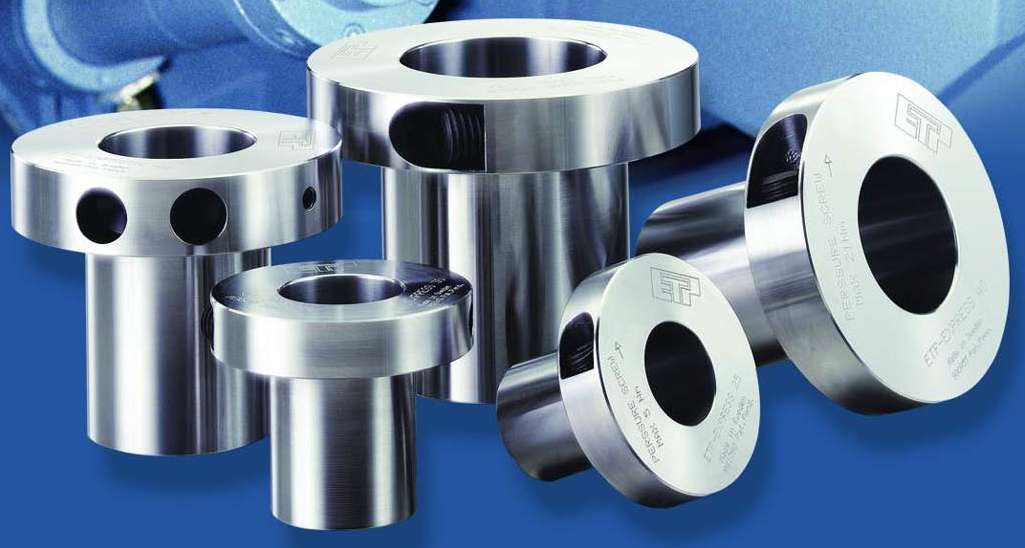

Dec 16, 2003 Suited for systems requiring frequent washdowns, stainless steel ETP Express Shaft Locking Bushings require no maintenance, handle temperatures from –22 to +180°F, and have sealed, clean lines that resist debris collection. Corrosion-resistant products provide concentricity to .001 in. TIR and handle torque from 40–1,500 lb-ft. They are available in 5/8–2 in. and 15–50 mm shaft sizes. Applications include food, beverage, and dairy processing equipment

Sakor Technologies, Inc.    Okemos, MI 48864
Dec 16, 2003 DynoLABâ„¢ PT Dynamometer Test Cell Supervisory System includes combustion analysis package and DynoLAB Test Executive software v4.1, which provides support for high-speed wireless communications between test cell sensors and control console. DynoLAB system with Accudyne AC dynamometer recreates torsional transients generated by running engine. Powertrain components can be tested under real-world conditions, without engine and required test cell facilities.

Brady Corp.    Milwaukee, WI 53201 0571

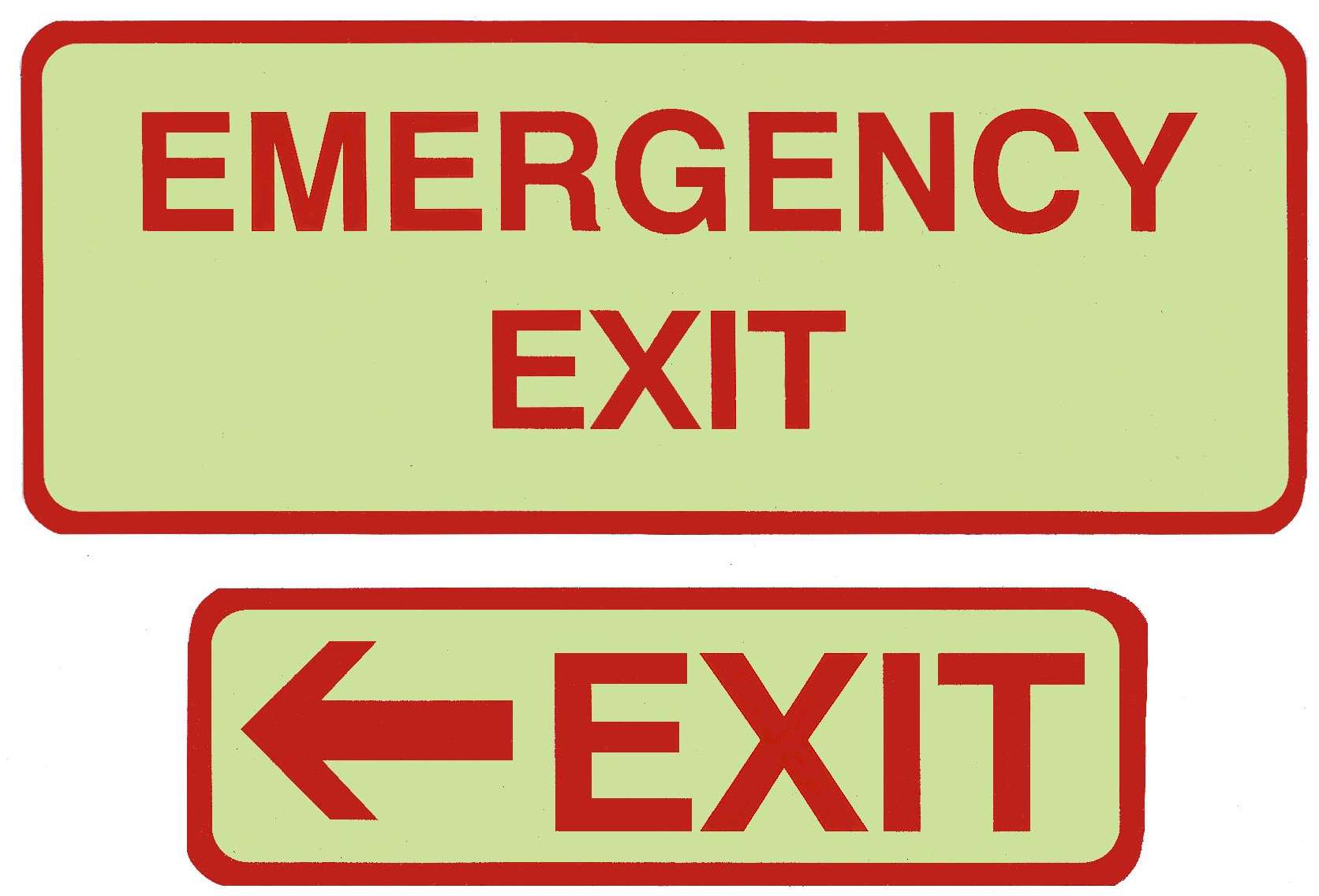

Dec 16, 2003 BRADYGLOâ„¢ glow-in-the dark signage facilitates safe and orderly exit of people from passenger rail cars when power goes out by providing solution for clearly marking egress and access signs. Materials exceed APTA requirements for lighting pathways in complete darkness; are safe and non-toxic; and exceed all safety standards, including ASTM, OSHA, and NFPA.

Advanced Thermal Products, Inc.    St. Marys, PA 15857

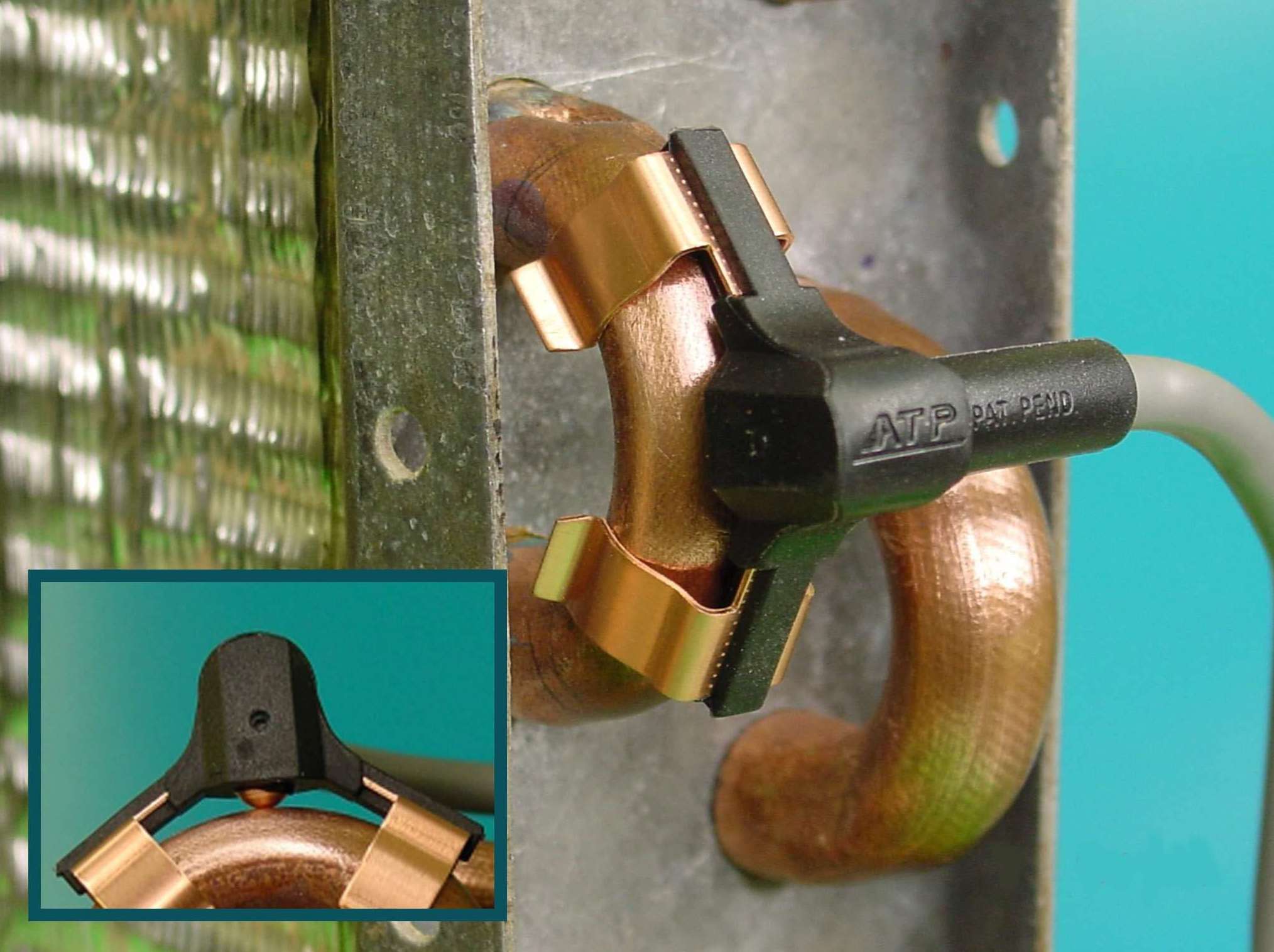

Dec 16, 2003 Sens-A-Coil integrates fast-response thermistor element into plastic overmolded copper clip, designed to snap onto 3/8 in. return bends. Because sensor is housed in small bulb attached to copper clips, Sens-A-Coil maximizes sensing surface area, enabling sensing element to quickly react to changes in refrigerant temperature. Unit comes with 10 ft of AWG No. 22 PVC jacketed cable and is suited for HVAC diagnostic equipment and tools.

Rockwell Automation    Milwaukee, WI 53204

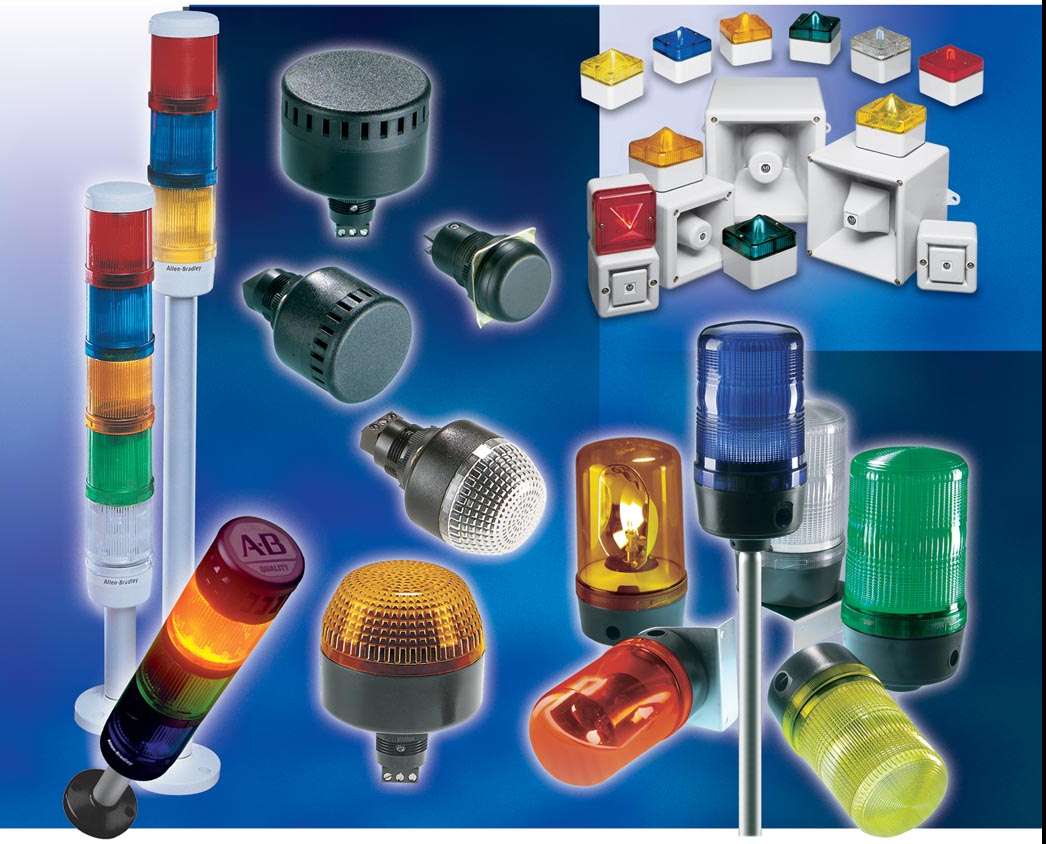

Dec 16, 2003 Allen-Bradley® Bulletin 855P Panel Mount Alarms and Bulletin 855B Round Industrial Beacons communicate machine status and emergency conditions. Rated 4/4X/13 and IP65, they can operate in wet, oily, dry, or corrosive environments. Alarms have sound outputs ranging from 80-105 dB at 1 m and can be mounted in 22.5 or 30 mm holes. Beacons come in 160 and 120 mm diameters with steady halogen, flashing halogen, strobe, and rotating halogen options.

B & B Electronics Mfg. Co.    Ottawa, IL 61350

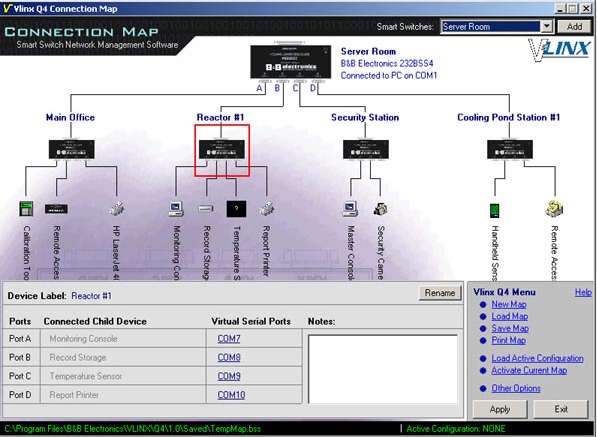

Dec 16, 2003 Together with Buffered Smart Switch 232BSS4, Q4 Smart Switch software manages communication of 4 serial devices, including baud rates, handshake requirements, device names, and installation notes. It gives users total control of company-wide serial applications and eliminates need for custom programming of communication parameters. PC monitors and controls serial devices in one of 2 modes: Auto Select Mode and Smart Switch Mode.

PennEngineering® (Penn Engineering)    Danboro, PA 18916

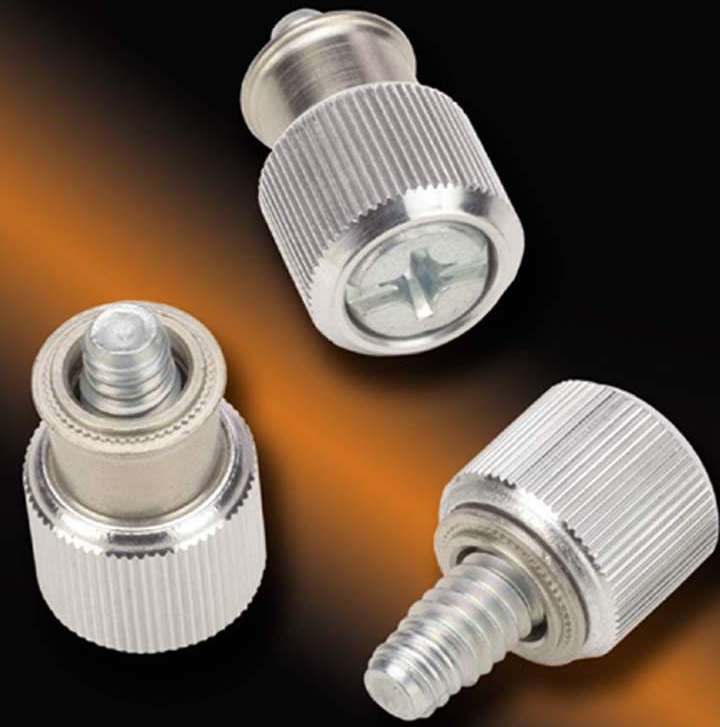

Dec 16, 2003 PEM® access hardware, with MAThread® technology, employs anti-cross-thread design that corrects off-angle installations, aligns components, and slides through clogged internal threads. Design speeds assembly and eliminate failures, repairs, scrap, and downtime associated with thread damage. Hardware includes self-clinching, broaching, flare-in, floating, and surface-mount styles, in unified and metric thread sizes.
