congatec AG    Deggendorf   Germany
Mar 08, 2012 Based on cooling pipes which are integrated in standardized heatspreader of COM Express specification, Cooling System makes it possible to cool next generation processors with power dissipation of well over 35 W thermal design power (TDP). Design is available in different variants comprising passive, active, and customer-specific solutions. By eliminating mechanical stress, cooling system optimizes quality and extends life span of module.

PESA Industries, Inc.    Huntsville, AL 35805
Mar 08, 2012 Offering data rates from 50 Mbps to 3 Gbps and video transports up to 1080p/60, Model PRO-3GSDI-1616 supports SMPTE and ITU standard serial digital video signals, as well as embedded audio and other ancillary data required for HD-SDI and DVB/ASI broadcast sources. Each signal is auto-sensed and re-clocked to appropriate transport stream for SMPTE formatted outputs. Featuring 1 RU frame with front load, hot-swappable card sets, switcher is available in version with local pushbutton control panel.

Synaptics    Santa Clara, CA 95054
Mar 08, 2012 Designed for display integrated In-Cell capacitive touchscreens, ClearPad 3250 In-Cell solution integrates touch display, eliminating discrete touch sensor and enabling OEMs to develop thin smartphones. Device maximizes transmittance of display, which in turn minimizes power required for backlight. Chip is supported by Design Studio(TM)4 embedded with patented SignalClarity(TM) Technology, which optimizes tracking accuracy, finger separation, and environmental and electrical noise performance.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Mar 08, 2012 Housed in 48-pin, LQFP package, PHYTER® TLK110 Single-Port 10/100 Ethernet Physical Layer offers minimal deterministic transmit/receive latency, which provides precise control for real-time applications. Device delivers error-free cable reach of 150 m, and features fast link loss detection time of less than 10 µs. Using mixed-signal processing to perform equalization, data recovery, and error correction, TLK110 achieves optimum operation over CAT 5 twisted-pair wiring.

Websense    San Diego, CA 92121
Mar 08, 2012 Combining 4 key elements, Websense® TRITON(TM) controls mobile device security, risk, and compliance on mobile wireless networks and public Wi-Fi networks. Content aware data security features prevent confidential data loss on mobile devices, while real-time web and application security, policy controls, and reporting provide visibility into mobile risk profile. In addition, software delivers mobile device management, prevents malicious app downloads, and blocks mobile malware.

CTS North America, Inc.    Burlington, MA 01803
Mar 08, 2012 With LS150 IDC, banks can process all transactions - including previously deferred large deposits - at branch for image capture and balancing. By-pass feeder enables all-in-one device to scan ID card, create color image, and read magnetic stripe. On-board 2D barcode reader interprets card data, enabling bank to capture and verify identification of customer. TopImage processing optimizes CAR read rates while minimizing errors and non-conforming images.

Honeywell International, Inc.    Morristown, NJ 07960
Mar 08, 2012 Promoting flexibility for designs with tight space requirements, SS39ET Series comes in SOT-23 SMT package with subminiature footprint. IC responds to North and South poles and monitors magnetic fields from permanent magnet or electromagnet. Operating from 2.7-6.5 Vdc supply while consuming 6 mA at 5 Vdc, IC has thermally balanced design that provides stable operation over full -40 to +212°F operating range. Thin film resistors lend to accuracy and output stability.

Clore Automotive    Lenexa, KS 66215
Mar 08, 2012 SOLAR's 6/12 V, 1.0 A Pro-Logix battery maintainer, PL2110, controls each phase of charging process to ensure each battery serviced gets optimal charge. Compatible with various battery types, device comes in case sealed against dust/debris and features fully automatic operation as well as polarity protection. Quick attach cord on output side facilitates interface with included accessories: battery clamps, ring terminals, and 12 V male adapter.

Clore Automotive    Lenexa, KS 66215
Mar 08, 2012 Featuring 20/10/2 A, 6/12 V rating, PRO-LOGIX PL2320 combines fully automatic operation with ability to charge multiple battery types, including conventional, AGM, gel cell, spiral wound, deep cycle, and marine batteries. System adapts approach based on needs of each battery, such as activating soft start mode on deeply discharged batteries or battery repair mode on older/distressed batteries. For safety, charger includes over-voltage protection, reverse polarity protection, and fault detection.

Key Technology, Inc.    Walla Walla, WA 99362
Mar 08, 2012 Available for new and installed G6 Manta®, Optyx®, and Tegra® optical sorters as well as G6 ADR® Automatic Defect Removal Systems, FoodSafetyPRO(TM) helps food processors maintain recordkeeping in accordance with FSMA, SQF certification, and GFSI certification. Program combines comprehensive system audit, RemoteMD(TM) Premium proactive real-time equipment monitoring, unlimited online training for one year, and online HACCP training for 5 HACCP operators and 1 HACCP manager.

Honeywell International, Inc.    Morristown, NJ 07960
Mar 07, 2012 Providing flow ranges from ±50 to ±750 SCCM, Zephyr(TM) Analog and Digital Airflow Sensors offer Total Error Band as low as ±2.25% FSS, allowing accurate airflow measurement. Stability minimizes errors due to thermal effects and null shift, providing accurate readings over time and often eliminating calibration after PCB mount. Potential applications include fuel cells, gas meters, and HVAC filters as well as hospital diagnostics, patient monitoring, and ventilators.

MC Machinery Systems    Wood Dale, IL 60191
Mar 07, 2012 Featuring solid base construction and cantilever head design, MWX3 comes with S-50 KMT pump that provides 60,000 psi of water traveling up to Mach 2. Water consumption is 1.09 gpm through maximum orifice size of 0.013 in. Reciprocating hydraulic piston to ceramic water piston ratio is 20:1, pushing water into an accumulator that flows to cutting nozzle. Unit is controlled on 15 in. waterproof screen, with NC design to simplify operation.

Mitsubishi Heavy Industries America    Leetonia, OH 44431
Mar 07, 2012 Featuring boring spindle diameters of 150 and 180 mm, respectively, MAF150C and MAF180C feature rapid traverse rate/spindle rotation speeds from 15,000-20,000 mm/min and max spindle speed of 2,500 rpm. Both floor-type mills employ 420 mm square-shaped ram (Z-axis) that extends and retracts in 2 stages while supporting boring spindle, enabling horizontal milling up to 2,250 mm deep. Cutting performance is optimized by balance mechanism and 55 kW continuous spindle output.

Future Technology Devices International Limited    Glasgow G41 1HH  United Kingdom

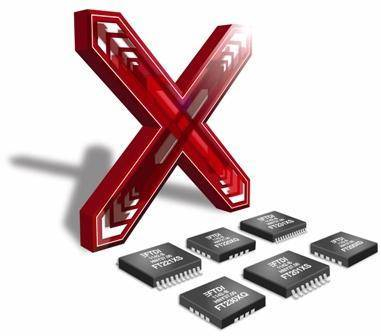

Mar 07, 2012 Housed in SSOP, QFN, and DFN packages, X-Chip Series supports broad selection of interface types, such as basic UART, full UART, FIFO, and I2C, as well as FTDI's FT1248 I/O. Devices consume less than 8 mA when fully active and less than 125 µA in suspend mode. Built-in functionality detects charging port and causes logic to switch from data transfer to charging mode. Operating from -40 to +85°C, ICs have internal multi-time programmable memory for storage and configuration of device descriptors.

Vecow    Taipei   Taiwan
Mar 07, 2012 Powered by 1.8 GHz Intel® Atom(TM) D525 processor with 1 M cache, ARS-1000 Series is equipped with 2 GigE ports, 3 RS-232 ports, and 1 RS-232/422/485 port as well as external accessible CFast, 5 USB, isolated DIO, and Mini PCIe socket. Programmable GPIO 16-step rotary switch and 4 mode/status LED display provide adaptability for various environments. Supporting 16-28 Vdc-In, fanless controller operates from 4-157°F and is suitable for factory automation, automated optical inspection, and packaging.

Meese Orbitron Dunne Co. (MOD)    Saddle Brook, NJ 07662
Mar 07, 2012 In addition to raising company's antique streetlamps by 3½ in., streetlamp riser also increases diameter of platform base to nearly 2 ft for enhanced stability in outdoor events. Product is rotationally molded in one piece from 100% polyethylene for load bearing strength, impact resistance, and durability. Waterproof, weatherproof, and resistant to fading/discoloring, riser helps accommodate changing weather conditions without changing layout of lighting, décor, or props.

Robbins & Myers Energy Services Group    Willis, TX 77378
Mar 07, 2012 Featuring metal-to-metal rotor/stator technology, Moyno HTD660(TM) suits high-temperature applications. Stator does not include elastomer, design handles downhole temperatures to 660°F, and closely controlled tolerances between metal-to-metal rotor/stator clearance promote optimal performance. Producing minimal vibration, design can also handle hot oil encountered during thermal recovery methods.

LVD Group    GULLEGEM 8560  Belgium
Mar 07, 2012 Intended for PPEB and Easy-Form® precision press brakes, Vari-VEE V30-140 CNC adjustable Vee die offers benefits of variable and adjustable bottom Vee die to range of LVD Strippit press brake models from 320-1,000 tons and up to 315 in. long. Die provides automatic adjustment of V-width in increments of 0.39 in. and allows bending of angles up to 50° for max V-width. For optimal rolling and friction reducing properties, radius is a hardened insert, machined with STONE® compound curve.

Meyda Tiffany    Yorkville, NY 13495
Mar 07, 2012 Measuring 15.5 in. tall, Amber Mica Table Lamp is designed with Mahogany Bronze frame and Amber blown-glass lighted base featuring overlaid filigree of dragonflies in matching Mahogany Bronze finish. Dragonfly Table Lamp, standing 16 in. tall, features dragonflies with jeweled eyes and metal-filigreed wings over copperfoiled blue and purple art glass. Shade rests on Mahogany Bronze base with cast dragonflies on green glass mosaic inlay. Both include inline switches and pull-chains on sockets.

Pickering Interfaces Inc    GRANTS PASS, OR 97526
Mar 07, 2012 Featuring maximum switching voltage of 110 Vdc or 250 Vac, 5 A Model 40-549 is available in variety of 32 and 64 crosspoint configurations with Y axis sizes of x4 and x8. Configured as 8 x 4 matrix that switches voltages up to 125 Vdc and 250 Vac, 10 A Model 40-551 features optional loop through facility that simplifies user cabling when matrix size is expanded through use of additional modules. Device is also available in 8 x 2 and 4 x 4 configurations.
