Niagara Plastics Co.    Erie, PA 16509

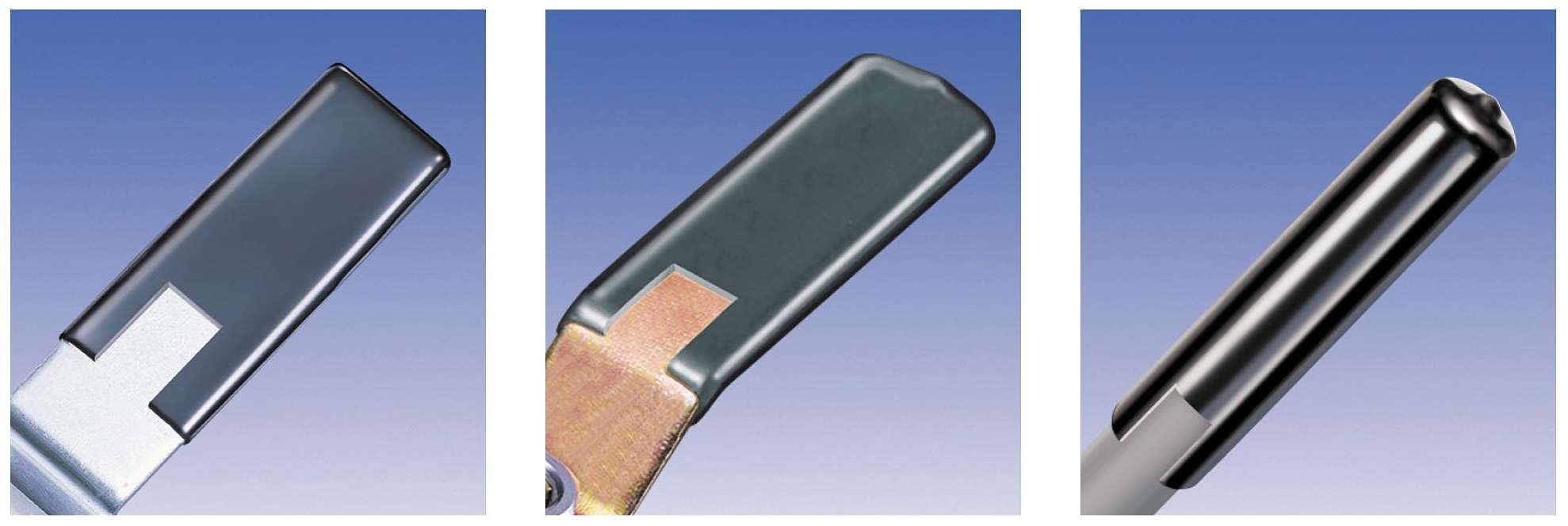

Dec 01, 2003 RF Series rectangular flat-end grips are available with inside thickness measurements from 1/16–1 in. and inside widths from 3/8 to 4 in. Max length ranges from 2–4½ in. RE Series rectangular round-end grips are offered with inside thickness measurements from 1/16–5/8 in. and inside widths from 0.31–2.115 in. Max length ranges from 1–4½ in. VC Series round grips are available with 0.187–4¾ in. inner diameters and 5.5 in. max length.

ProSoft Technology Inc.    Bakersfield, CA 93311
Dec 01, 2003 DIN-rail-mountable RadioLinx Modem operates in 2.4 GHz frequency range and offers dual antenna support for adverse locations. Unit can serve as master, remote, or repeater with local control. Industrial grade packaging and design meet CE0122, CSA, and cUL certifications. RadioLinx technology enables up to 32 network channels per site, each with up to 78 repeaters and 2,000 modems. Network security is ensured by hardened ARC4 data encryption with 40/128 bit keys.

Seco-Larm    Irvine, CA 92606-5012
Dec 01, 2003 Model E-9622-4B25 is 22 in. high with 4 beams, while Model E-9644-6B25 is 44 in. high with 6 beams. Both are programmable and will trigger when any single beam is broken or 2 adjacent beams are broken. Anti-tamper circuit triggers alarm if power is cut or end cap is removed. Units feature NO/NC 1 A relay output and LED alignment indicator. No synchronizing wires are required. L-bracket and mounting hardware is included.

Tiger Optics, L.L.C.    Warrington, PA 18976-2426
Dec 01, 2003 Model MTO-1000-CH4, based on Cavity Ring-Down Spectroscopy, detects trace amounts of methane down to 2 ppb in milliseconds. Unit offers plug-and-play operation and can measure up to 4 sample gases. Applications include semiconductor fabrication and tools, specialty gas production, UHP gas production, component and system testing, and auto emissions testing.

MicroE Systems    Bedford, MA 01730

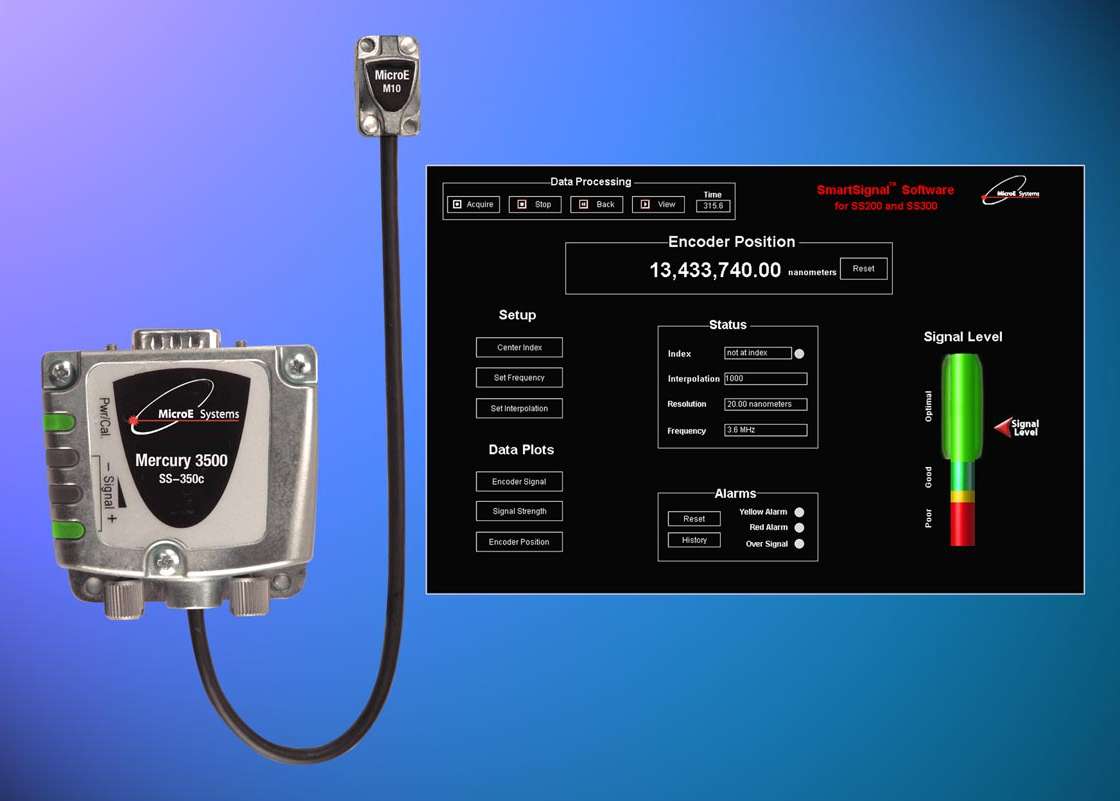

Dec 01, 2003 Mercury(TM) SmartSignal(TM) Encoders allow resolution to be set in integer steps from x4 to x4096. Max linear resolution is 5 nm and max rotary resolution is 67.1 million counts/revolution. Output is A-quad-B and high-speed serial word. Encoders provide programmable alarms, programmable output bandwidth up to 28.8 million quadrature states/sec, programmable alarm thresholds, and diagnostics. All models have miniature sensor heads and work in linear and rotary applications.

Dustvent, Inc.    Addison, IL 60101 5108

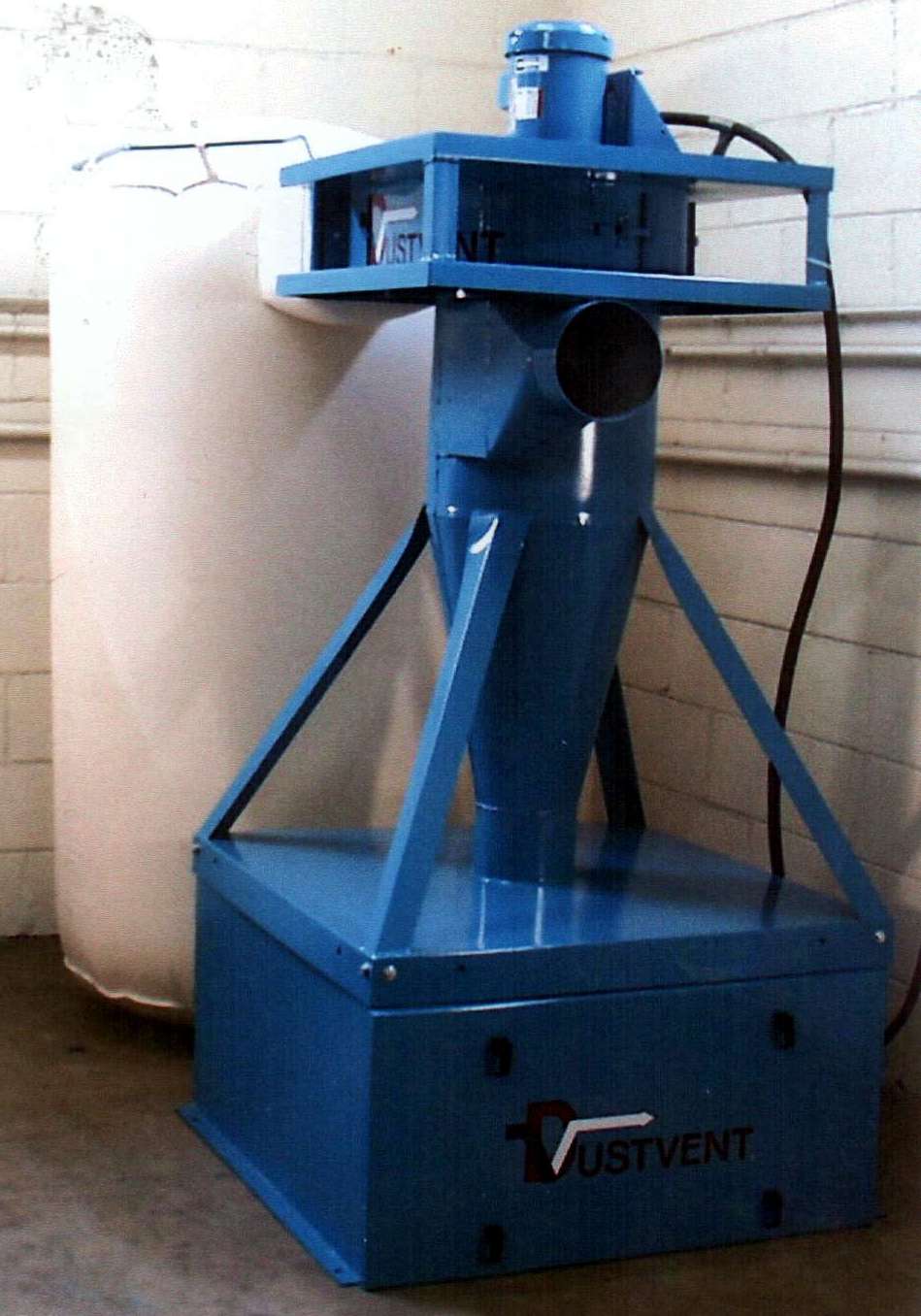

Dec 01, 2003 Cyclone Model 15Q1½ with after filter delivers 1,000 cfm under load with 1½ hp motor. SparkTrap® provides fire protection for collector and is available with cleanout drawer for access during dust disposal. Model 2.3x3S/D multi-function smoke/dust collector collects smoke from welding operation and converts to downdraft bench for finishing operations.

Aremco Products, Inc.    Valley Cottage, NY 10989

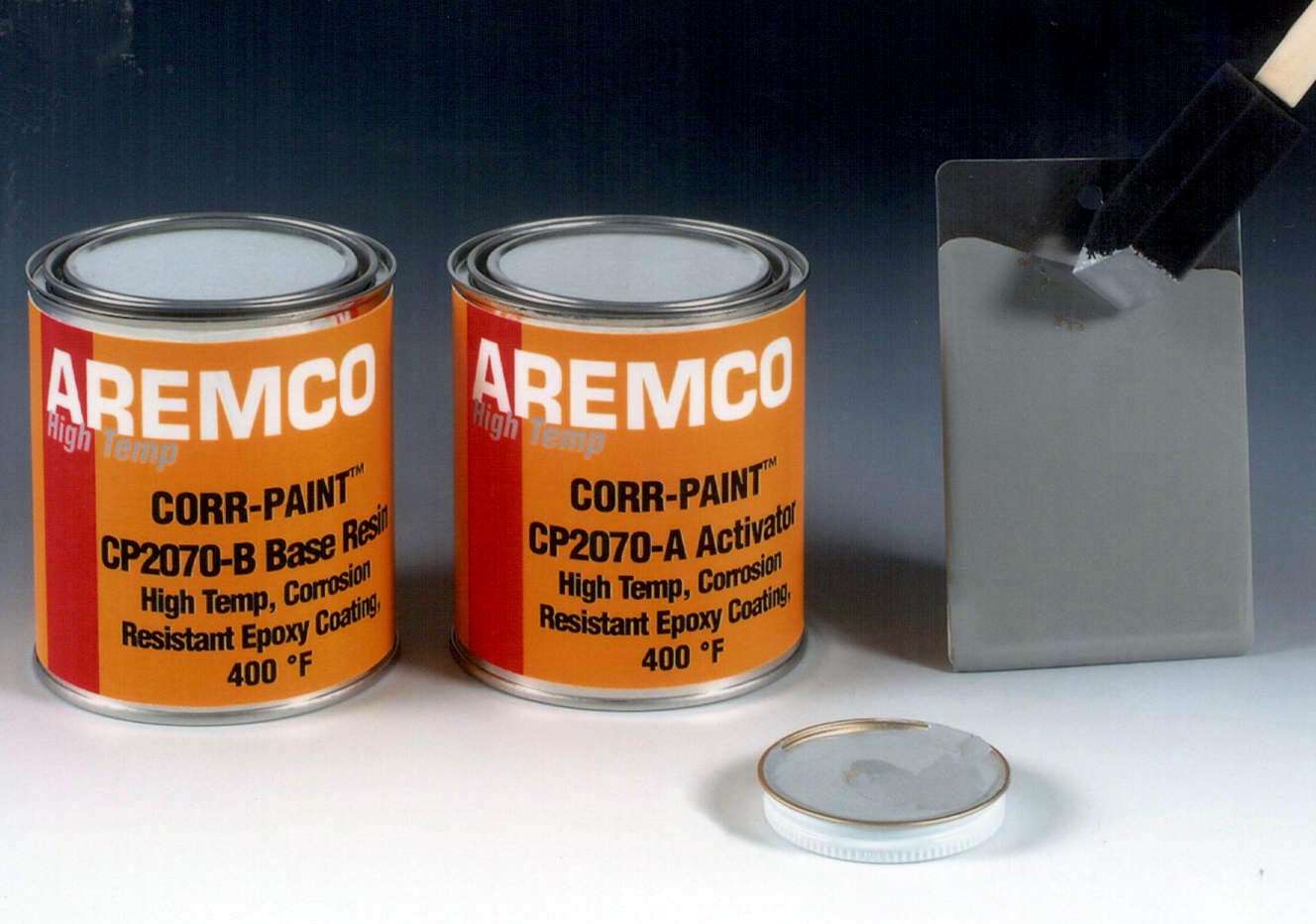

Dec 01, 2003 Corr-Paint™ CP2070 high-temperature, epoxy-novolac paint is a 2-part, gray-pigmented, 100% solids system used to protect steel components and structures. It is resistant to wide range of chemicals, and provides thermal shock, salt spray, and UV resistance. Mixed viscosity is 800–1000 cp. Applied by spray equipment, brush, or roller, coating dries and cures fully at room temperature in 24 hr. Typical film thickness is 5–7 mils for single coat.

Eriez Magnetics    Erie, PA 16506

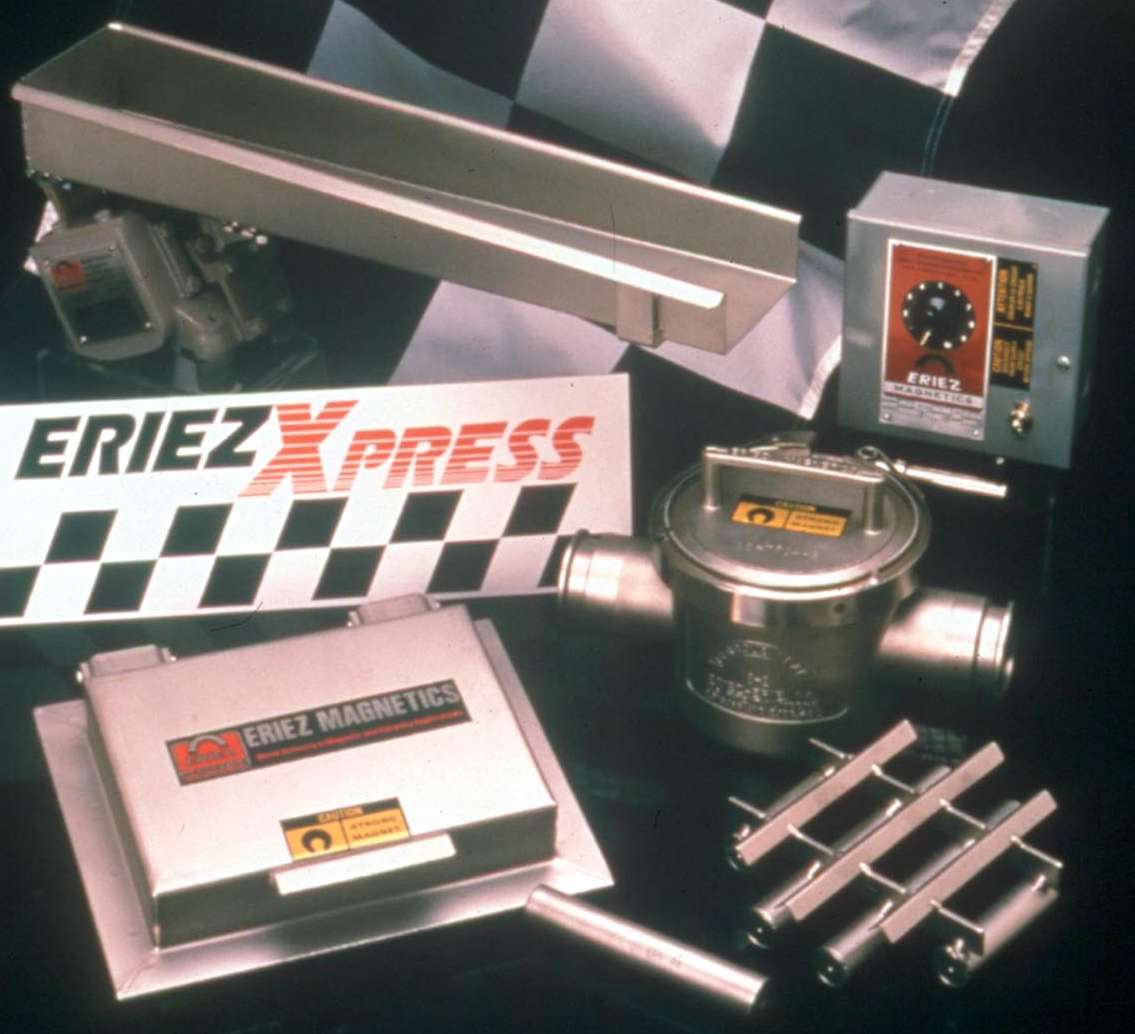

Dec 01, 2003 Superpower Plate Magnets, measuring 8 in. in size, capture large metal contamination from heavy-duty applications as material cascades down sloped chute. They project 2-3 in. field into burden to remove chunks of tramp metal such as tools or large nuts and bolts.

AEMC Instruments    Foxborough, MA 02035

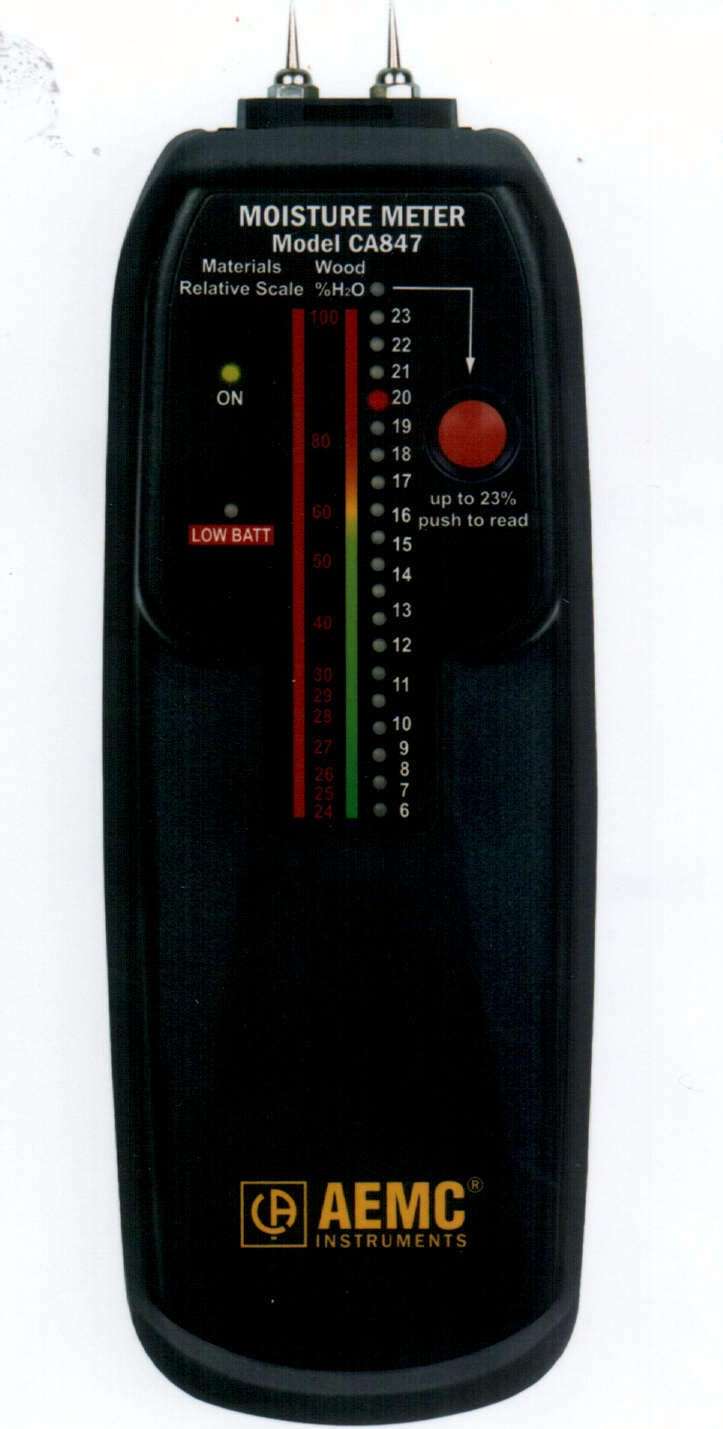

Dec 01, 2003 Model CA847 passes electric current through 2 electrodes to measure impedance variation due to moisture in material. For wood, measurement is expressed as % of H₂O between 6 and 100%. For other construction materials, such as plaster and roughcast, meter determines Wood Moisture Equivalency. Unit features two 20-LED display scales, replaceable electrodes, and auto ON/OFF. Shockproof, dirt-resistant holster is included.

CyberResearch, Inc.    Branford, CT 06405 2932

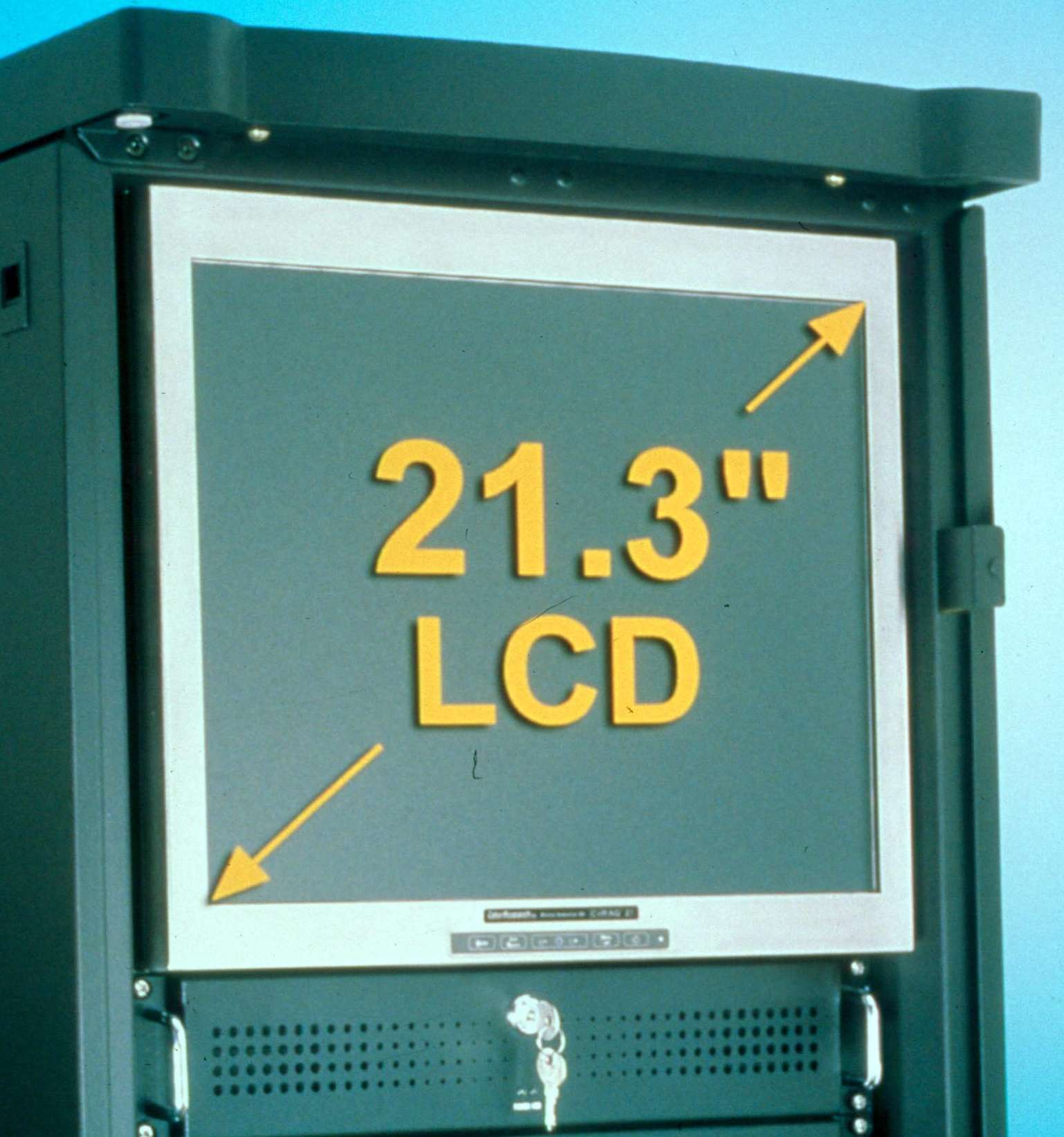

Dec 01, 2003 Via use of adapter plates, CYRAQâ„¢ 21 LCD display may be mounted in industrial 19 in. rack in landscape or portrait orientation, in panel or on swivel arm. TFT LCD display uses 1.5 in. high, stainless-steel, raised-bezel design and combines 250 nits with 1600 x 1200 pixel resolution and 500:1 contrast ratio. Pivot Pro® software is included, so users can rotate screen contents to appropriate direction.

Lantech Inc.    Louisville, KY 40299-2316

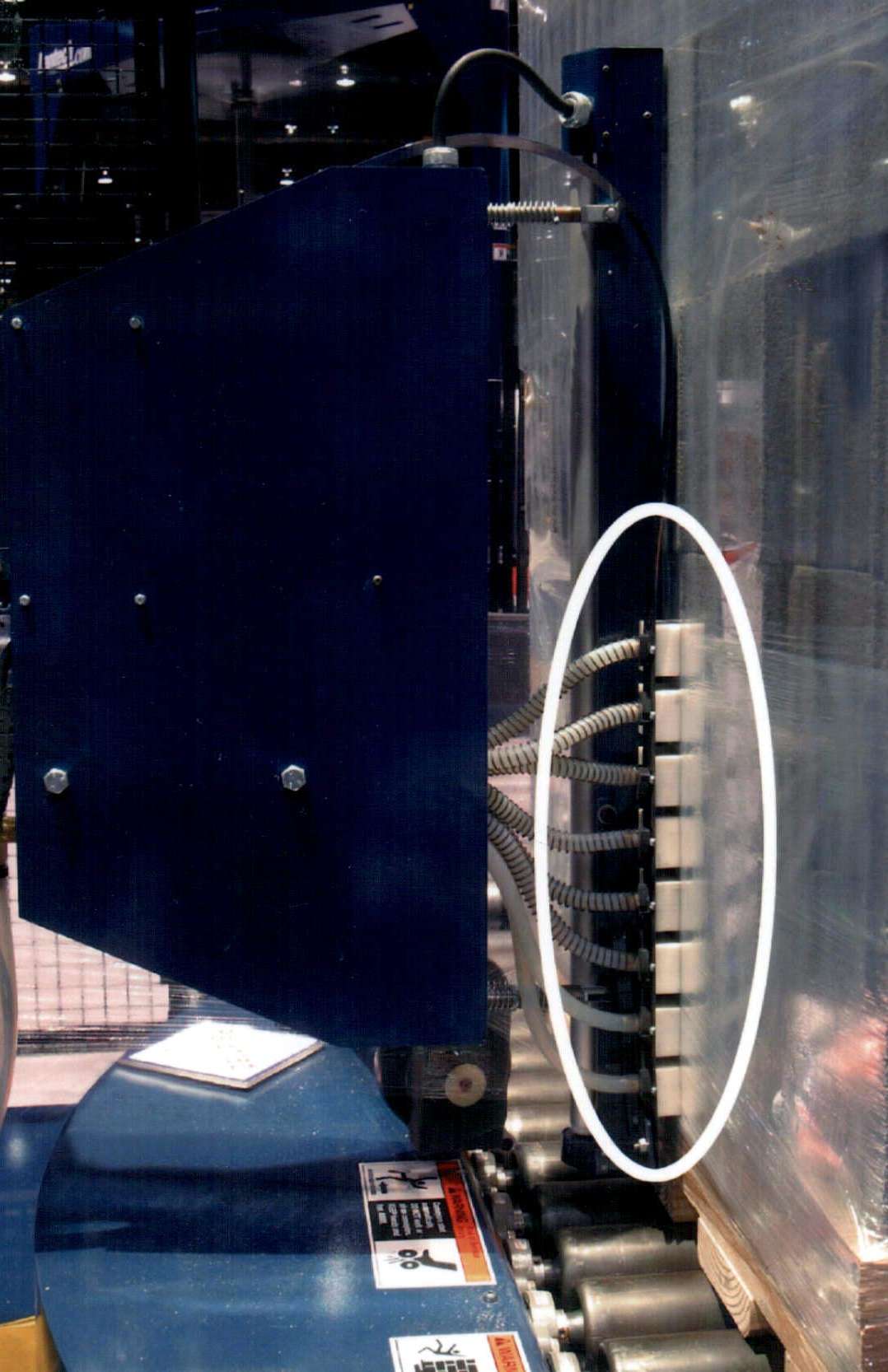

Dec 01, 2003 Film Sealing System utilizes flexible sealer head, composed of 8 independent seal blocks, that conforms to uneven surfaces to provide positive seal that eliminates film tails and prevents unraveling during handling and shipping. It focuses heated air on specific points for secure seals and operates effectively in extreme temperature or humidity conditions without adjustments. Potential for film droop is eliminated by sealing film before cutting and wiping process.

KIP Incorporated    Farmington, CT 06032 3140

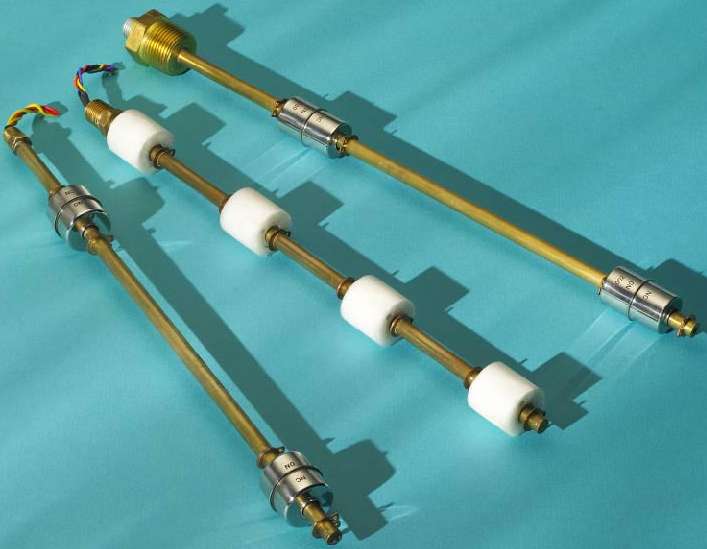

Dec 01, 2003 Using standard-sized, multi-point liquid level switches, users can customize single-point detectors for multi-point applications. Overall length of multi-point level switches reaches up to 72 in., with up to 6 actuation control points on one tank entry. Mounting styles include ½, 1¼, 1½, and 2 in. NPT; 3 in., 150 lb CS Flange; and ½ in. Tubing. Floats are offered in 316 SS, Buna N (closed cell), and PVC materials.

Terracon Corp.    Holliston, MA 01746 1460
Dec 01, 2003 TerraPharma™ non-metallic, cone-bottom process vessels, made from FDA compliant polypropylene resin, meet Class VI standards and are autoclavable. They include polypropylene cover, sealed with platinum-cured silicone gasket, and captive-clamping hardware, removable handle, and total-lock wheels. Capacities range from 50–1,500 l. Fittings, ports, and accessories are available in various styles and sizes to meet requirement.

Colder Products Co.    St. Paul, MN 55114

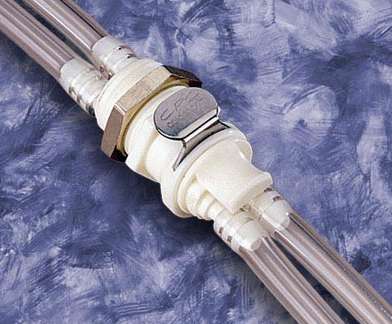

Dec 01, 2003 With panel-mount design, ABS Twin Tubeâ„¢ is manufactured with injection-molded ABS and offers chemical-resistance and dimensional stability. Operating pressure ranges from vacuum to 120 psi per line. No orientation is required for proper connection and unit features free rotation of coupling body and insert. Thumb latch provides for one-handed disconnection of two lines, while audible click confirms secure connection.

COGNEX    Natick, MA 01760 2059

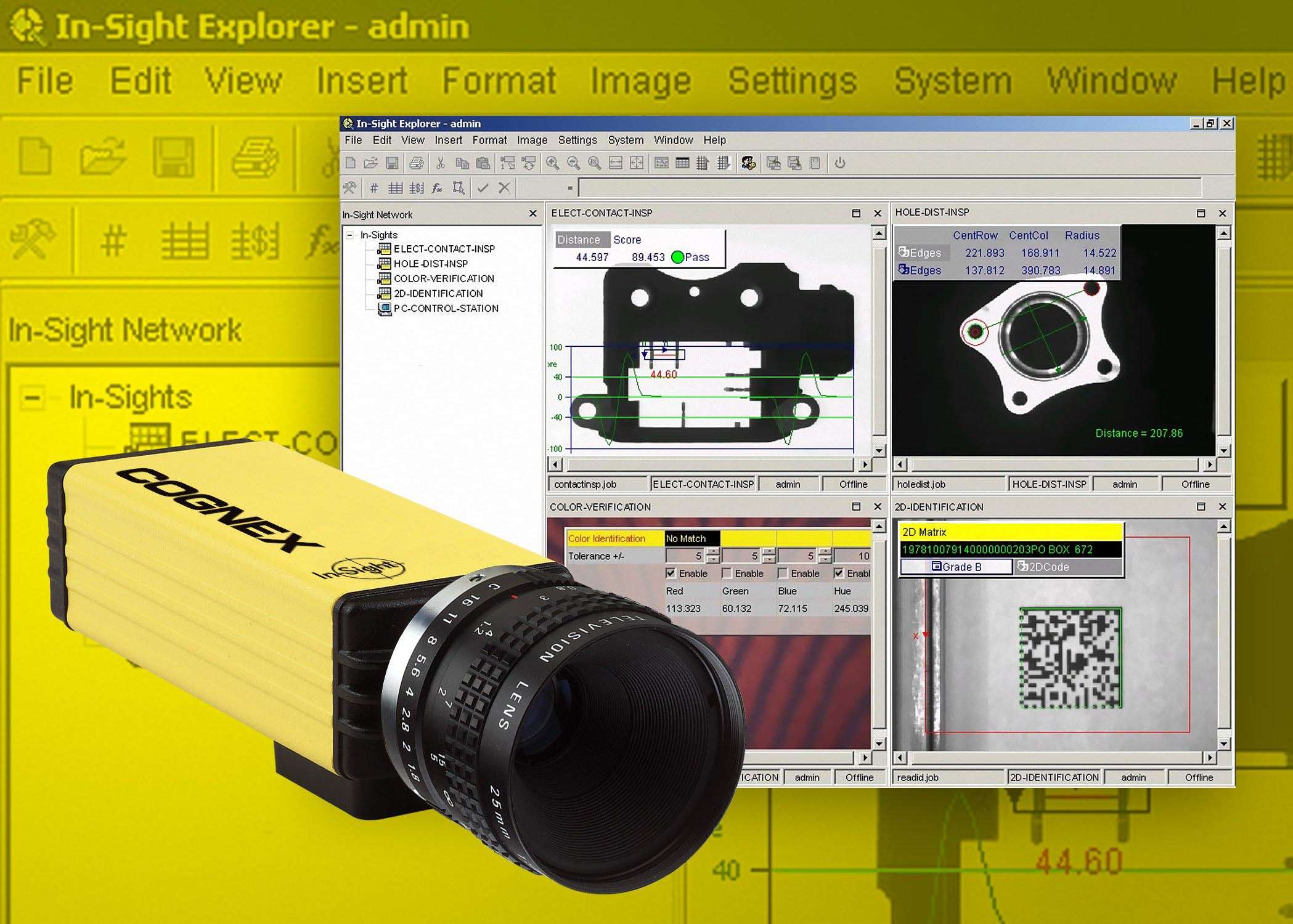

Dec 01, 2003 In-Sight® Explorerâ„¢ hastens deployment of vision applications onto factory floor with tools to handle development, integration, monitoring, and management of vision sensors on line. Interface incorporates look and feel of Windows®-based applications and offers graphical environment designed for user input. Functionality is provided for connecting vision sensor, configuring vision application, operating vision system, and expanding vision network.

Ault, Inc.    Minneapolis, MN 55428

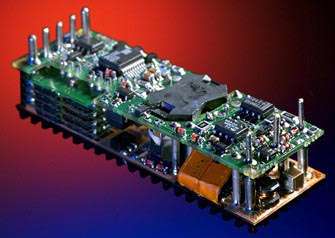

Dec 01, 2003 Housed in 1/8-brick package measuring 0.5 in. high, HDE1-75 DC-DC single output converter powers telecommunication networking products. It disperses heat evenly to integrated heat sink and utilizes FET Array design that provides power density of 100 W/in.³ by stacking parallel Mos-fets on multi-level PCBs. With 89% efficiency rating, 75 W HDE family features 36–75 Vdc input with output voltages of 3.3, 2.5, and 1.8 V.

Abloy Security, Inc.    Irving, TX 75063 2665
Dec 01, 2003 With spring free construction, ABLOY CL110 front-loaded, heavy-duty cam lock features ABLOY® EXEC cylinder mechanism, which provides maximum resistance against physical attack. Hardened, free-spinning protection plate prevents drill bits from penetrating lock, and materials and surface treatments guarantee corrosion-resistance of visible and internal parts. Component parts are resistant to wear, dirt, moisture, and freezing.

TRUMPF Inc.    Farmington, CT 06032
Dec 01, 2003 TRUMATIC L 2510 XL combines high-speed laser cutting machine with rapid in-line load/unload device, which eliminates need for pallet changer. Machine cuts up to ½ in. thick carbon steel. Cut consistency is assured by integral mounting of laser resonator to machine frame. Model TCF 1 CO₂ laser combines RF technology with diffusion-cooling technology. Machine includes programmable focus control, advanced process control, pierce-on-the-fly, and high pressure cutting.

Check Point Software Technologies, Inc.    Redwood City, CA 94065-5157
Dec 01, 2003 Aggregating up to 250 comprehensive security policies on one platform, VPN-1 VSX(TM) delivers integrated access control, network and application-level attack protection, and client security in virtual environment. It includes Check Point's Application Intelligence(TM) technology, SmartDefense(TM) attack protection, and VPN-1 SecureClient(TM) remote access and desktop security. Offerings provide integrated end-to-end protection against dynamic Internet threats.

Check Point Software Technologies, Inc.    Redwood City, CA 94065-5157
Dec 01, 2003 Provider-1(TM), with support for Application Intelligence, enables service providers and enterprises to define and monitor attack defenses for customers at both network and application level, thwarting attacks such as Code Red, Nimda, and Blaster. It delivers intelligent, intuitive and centralized management, and allows integrated services of network and application active defense. Software includes integrated reporting and one-click VPN deployment.
