CertainTeed Corp.    Valley Forge, PA 19482-0860

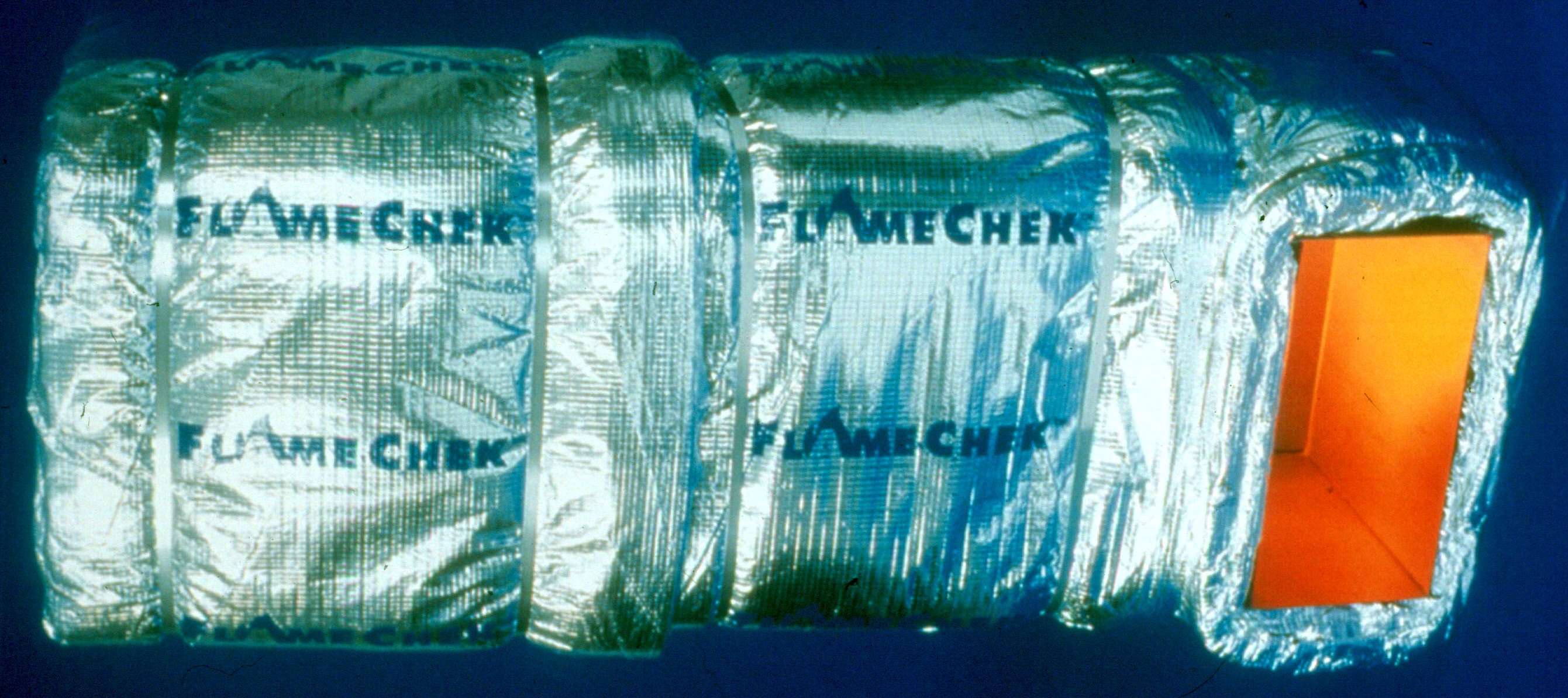

Dec 01, 2003 Non-ceramic FlameChekâ„¢ ^Plus2 blanket provides 2 hr fire rating in single-layer application. Flexible 2 in. thick wrap saves critical building space, allowing for zero clearance to combustibles at overlap or collar, and meets requirements defined by NFPA for fire-rated grease ducts. Glass-fiber blanket is completely encapsulated in UL-classified, fiber-glass-reinforced foil facing. It is available in 20 ft rolls, in 2 and 4 ft widths.

Komatsu America International Company    Vernon Hills, IL 60061
Dec 01, 2003 Offered with electronically controlled hydrostatic transmission, WA320-5 is powered by turbocharged Komatsu SAA6D102E-2-A air-to-air aftercooled engine, has net output of 166 hp, and complies with Tier II regulations. Variable Shift Control lets operator set max speed from 0–8.1 mph, while traction control reduces tire slippage in sandy or wet conditions. Other features include hydraulic braking system, equipment monitoring system, and sealed DT connectors.

Thermo Electron Corp.    Waltham, MA 02454-9046
Dec 01, 2003 SampleManager PIMS 2003 provides real-time management of laboratory and process information. SampleManager LIMS (Laboratory Information Management System) integrated with PIMS (Process Information Management Systems) enables timely delivery of quality data for plant- and enterprise-wide monitoring and analysis purposes and ensures process integrity. Results can be sent to PIMS in secure manner, allowing operator to analyze and track data trends.

Hytrol Conveyor Co., Inc.    Jonesboro, AR 72401
Dec 01, 2003 Plastic Belt Conveyor, Model PSB is utilized where conventional fabric type belts will not work. It can be used as transport belt on conveyors with right angle pusher/pull-offs to maintain belt tracking. Conveyor also provides non-marring accumulation and transport in beverage industry.

Garon Products, Inc.    Wall, NJ 07719 1924

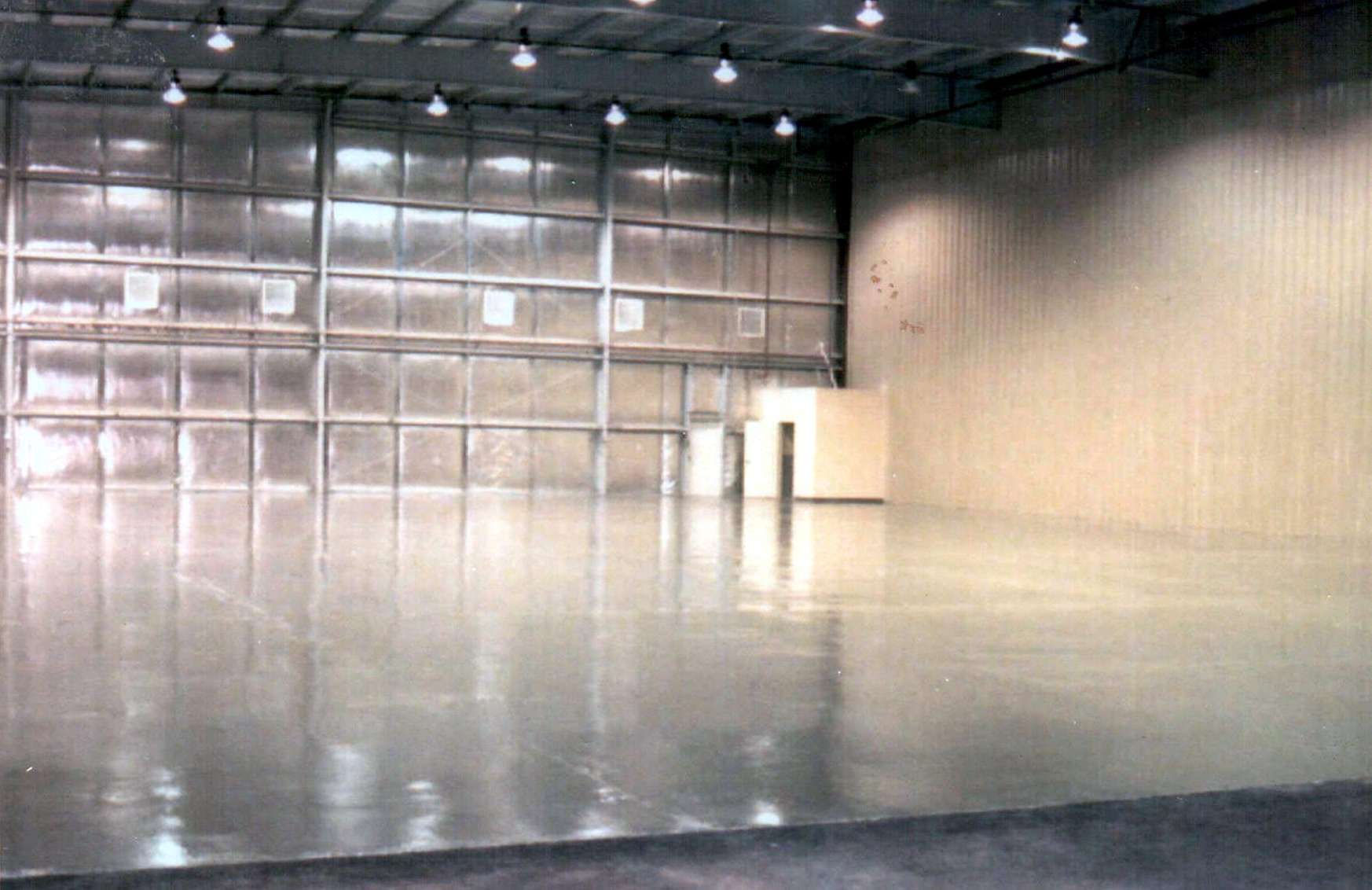

Dec 01, 2003 FASTCUREâ„¢ coating systems utilize rapid-cure formula that sets up in temperatures as low as 45°F in as little as 10-12 hr and attains full chemical-resistance in 3 days (min). Impact-resistant, low-odor epoxy systems are VOC and OSHA compliant, USDA authorized, and EPA approved. They provide glossy finish and are packaged in kits that include all necessary components and detailed application instructions.

Astrodyne Corp.    Mansfield, MA 02048

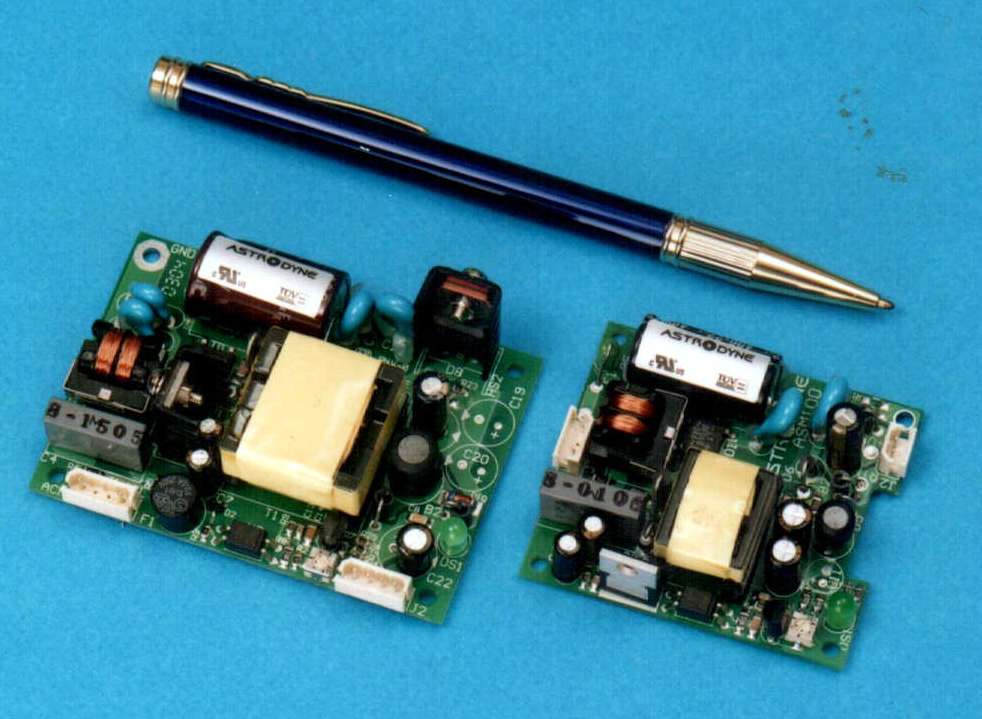

Dec 01, 2003 Open-frame, ultraminiature, Series ASL accepts Universal input from 85-265 Vac and provides single outputs of 3.3-24 Vdc. Units include integral power-good LED indicator, output adjustment potentiometer, short circuit protection circuitry, internal input filtering, and mini-sized Molex style I/O connectors. They operate over ambient temperature range of 0-50°C without forced cooling or output power derating. All are approved to EN60950/UL1950 safety specifications.

Draper Inc.    Spiceland, IN 47385 0425

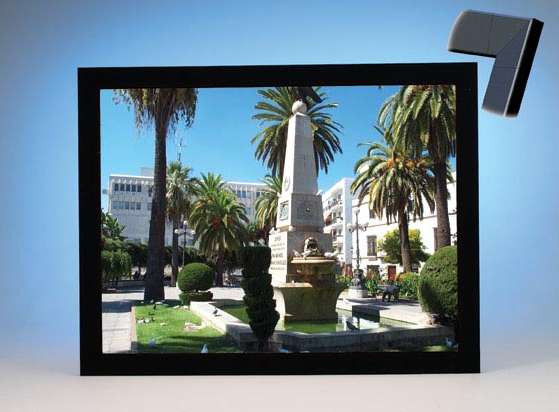

Dec 01, 2003 Onyx permanently-tensioned projection screen features 4 in. wide beveled trim frame that keeps viewing surface flat and prevents overscan. Unit has no snaps and allows 1½ in. of horizontal and vertical adjustment. Flexible white, grey, acoustically transparent, or rear projection surfaces are available. Onyx offers aspect ratios of 16:9 or 4:3 and is suited for home theaters, conference rooms, and convention centers.

French Technology Press Office, Inc.    Chicago, IL 60601
Dec 01, 2003 With max speed of 164 fpm and 40 kW spindle running at 24,000 rpm, HEXAPODE CMW 380 corrects geometrical errors of support machine. When milling in successive meshes, head of machine moves, while support machine remains fixed. It enables high-speed machining of large items in 5 axes with no modification of support machine. When milling in successive strips, unit moves at same time as support machine, enabling milling of strips of up to 3.3 ft wide.

ROMER/CimCore    Farmington Hills, MI 48331

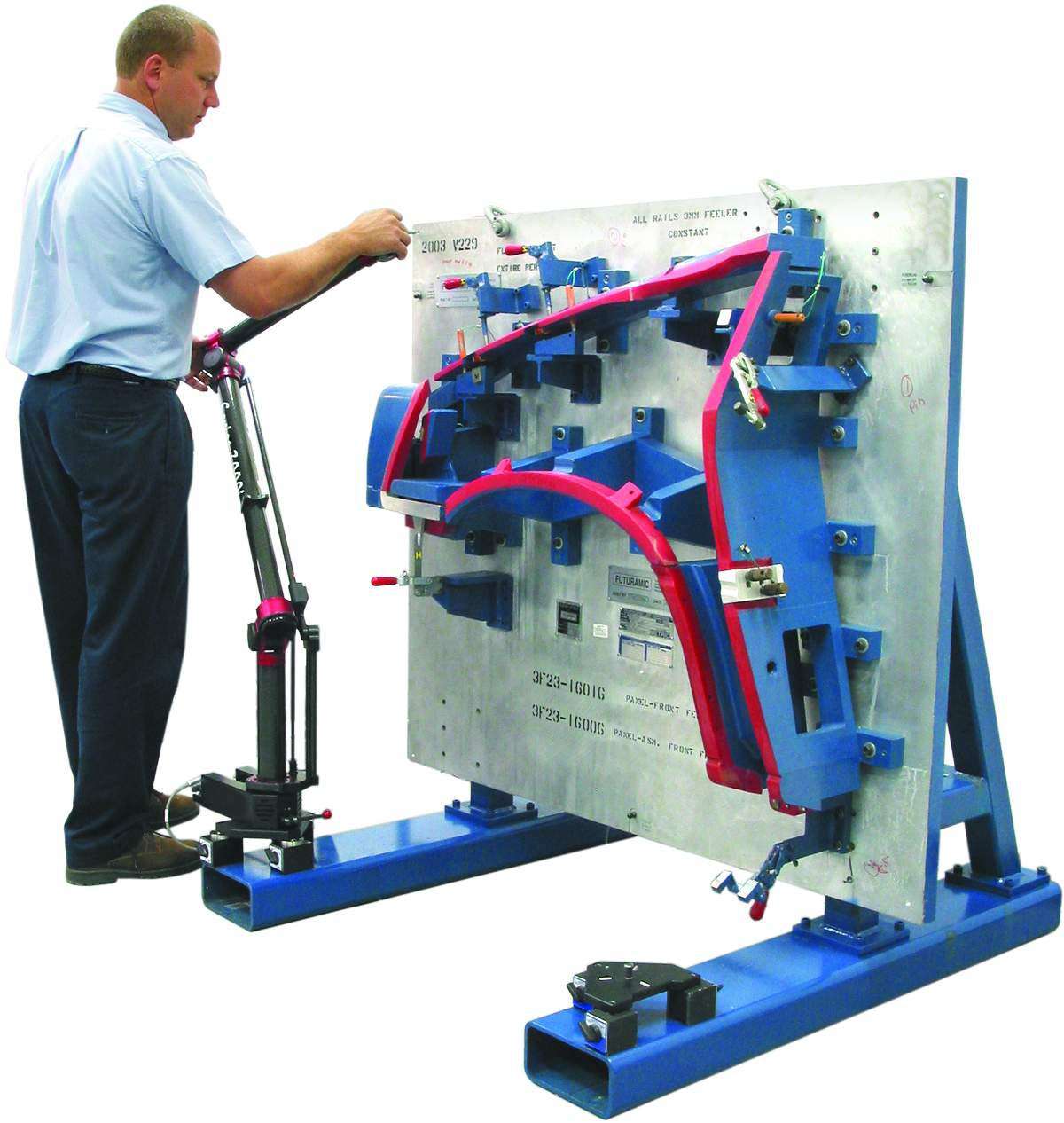

Dec 01, 2003 TooLOKâ„¢ automates inspection of tools, fixtures, and parts to increase portable CMM throughput. Operator contacts 3 pre-qualified points on part, tool, or fixture with portable CMM probe to launch TooLOK. It instantly recognizes and aligns part, loads CAD file and inspection routine, and tells operator where to begin measuring. Software also enables users to pre-qualify parts, tools, or fixtures using TooLOK wizard.

UltraVolt Inc.    Ronkonkoma, NY 11779 9002
Dec 01, 2003 HV Rack features preset before and during bias, digital display readouts, multiple output channels, local and remote controls, and universal AC input. It is configurable with up to 4 independent, individually controlled channels, each ranging from 0–62 V through 0–40 kV between 4–250 W. Unit also offers constant-voltage-regulation/constant-current-regulation auto-crossover and simultaneous voltage and current monitoring of all channels.

Niagara Plastics Co.    Erie, PA 16509
Dec 01, 2003 RF Series rectangular flat-end grips are available with inside thickness measurements from 1/16–1 in. and inside widths from 3/8 to 4 in. Max length ranges from 2–4½ in. RE Series rectangular round-end grips are offered with inside thickness measurements from 1/16–5/8 in. and inside widths from 0.31–2.115 in. Max length ranges from 1–4½ in. VC Series round grips are available with 0.187–4¾ in. inner diameters and 5.5 in. max length.

ProSoft Technology Inc.    Bakersfield, CA 93311
Dec 01, 2003 DIN-rail-mountable RadioLinx Modem operates in 2.4 GHz frequency range and offers dual antenna support for adverse locations. Unit can serve as master, remote, or repeater with local control. Industrial grade packaging and design meet CE0122, CSA, and cUL certifications. RadioLinx technology enables up to 32 network channels per site, each with up to 78 repeaters and 2,000 modems. Network security is ensured by hardened ARC4 data encryption with 40/128 bit keys.

Seco-Larm    Irvine, CA 92606-5012
Dec 01, 2003 Model E-9622-4B25 is 22 in. high with 4 beams, while Model E-9644-6B25 is 44 in. high with 6 beams. Both are programmable and will trigger when any single beam is broken or 2 adjacent beams are broken. Anti-tamper circuit triggers alarm if power is cut or end cap is removed. Units feature NO/NC 1 A relay output and LED alignment indicator. No synchronizing wires are required. L-bracket and mounting hardware is included.

Tiger Optics, L.L.C.    Warrington, PA 18976-2426
Dec 01, 2003 Model MTO-1000-CH4, based on Cavity Ring-Down Spectroscopy, detects trace amounts of methane down to 2 ppb in milliseconds. Unit offers plug-and-play operation and can measure up to 4 sample gases. Applications include semiconductor fabrication and tools, specialty gas production, UHP gas production, component and system testing, and auto emissions testing.

MicroE Systems    Bedford, MA 01730
Dec 01, 2003 Mercury(TM) SmartSignal(TM) Encoders allow resolution to be set in integer steps from x4 to x4096. Max linear resolution is 5 nm and max rotary resolution is 67.1 million counts/revolution. Output is A-quad-B and high-speed serial word. Encoders provide programmable alarms, programmable output bandwidth up to 28.8 million quadrature states/sec, programmable alarm thresholds, and diagnostics. All models have miniature sensor heads and work in linear and rotary applications.

Dustvent, Inc.    Addison, IL 60101 5108
Dec 01, 2003 Cyclone Model 15Q1½ with after filter delivers 1,000 cfm under load with 1½ hp motor. SparkTrap® provides fire protection for collector and is available with cleanout drawer for access during dust disposal. Model 2.3x3S/D multi-function smoke/dust collector collects smoke from welding operation and converts to downdraft bench for finishing operations.

Aremco Products, Inc.    Valley Cottage, NY 10989
Dec 01, 2003 Corr-Paint™ CP2070 high-temperature, epoxy-novolac paint is a 2-part, gray-pigmented, 100% solids system used to protect steel components and structures. It is resistant to wide range of chemicals, and provides thermal shock, salt spray, and UV resistance. Mixed viscosity is 800–1000 cp. Applied by spray equipment, brush, or roller, coating dries and cures fully at room temperature in 24 hr. Typical film thickness is 5–7 mils for single coat.

Eriez Magnetics    Erie, PA 16506
Dec 01, 2003 Superpower Plate Magnets, measuring 8 in. in size, capture large metal contamination from heavy-duty applications as material cascades down sloped chute. They project 2-3 in. field into burden to remove chunks of tramp metal such as tools or large nuts and bolts.

AEMC Instruments    Foxborough, MA 02035
Dec 01, 2003 Model CA847 passes electric current through 2 electrodes to measure impedance variation due to moisture in material. For wood, measurement is expressed as % of H₂O between 6 and 100%. For other construction materials, such as plaster and roughcast, meter determines Wood Moisture Equivalency. Unit features two 20-LED display scales, replaceable electrodes, and auto ON/OFF. Shockproof, dirt-resistant holster is included.

CyberResearch, Inc.    Branford, CT 06405 2932
Dec 01, 2003 Via use of adapter plates, CYRAQâ„¢ 21 LCD display may be mounted in industrial 19 in. rack in landscape or portrait orientation, in panel or on swivel arm. TFT LCD display uses 1.5 in. high, stainless-steel, raised-bezel design and combines 250 nits with 1600 x 1200 pixel resolution and 500:1 contrast ratio. Pivot Pro® software is included, so users can rotate screen contents to appropriate direction.
