Agilent Technologies, Inc.    Santa Clara, CA 95051
Jan 08, 2004 Suited for double data rate 2, synchronous dynamic random access memory buses, Agilent FSI-60075 DDR2 memory-bus analysis probe utilizes verticle, low-profile interposer design. Operating at full DDR2-533 speeds, probe can be inserted into target memory socket while accepting memory module in extender DIMM slot that supports all DIMM types. Straddle-mount DIMM slot and right-angle Samtec connectors help minimize electrical and mechanical intrusion.

Ortronics, Inc.    New London, CT 06320
Jan 08, 2004 Angled Clarity® Patch Panels help direct cords to vertical rack or cabinet cable management within lower profile. Exceeding all TIA Category 6 component requirements, Angled Clarity6 units use dual reactance technology with center tuning, providing nearly transparent signal path. Angled Clarity5E panels utilize center-tuning concept to perform above Category 5e channel requirements, while exceeding TIA Category 5e component requirements.

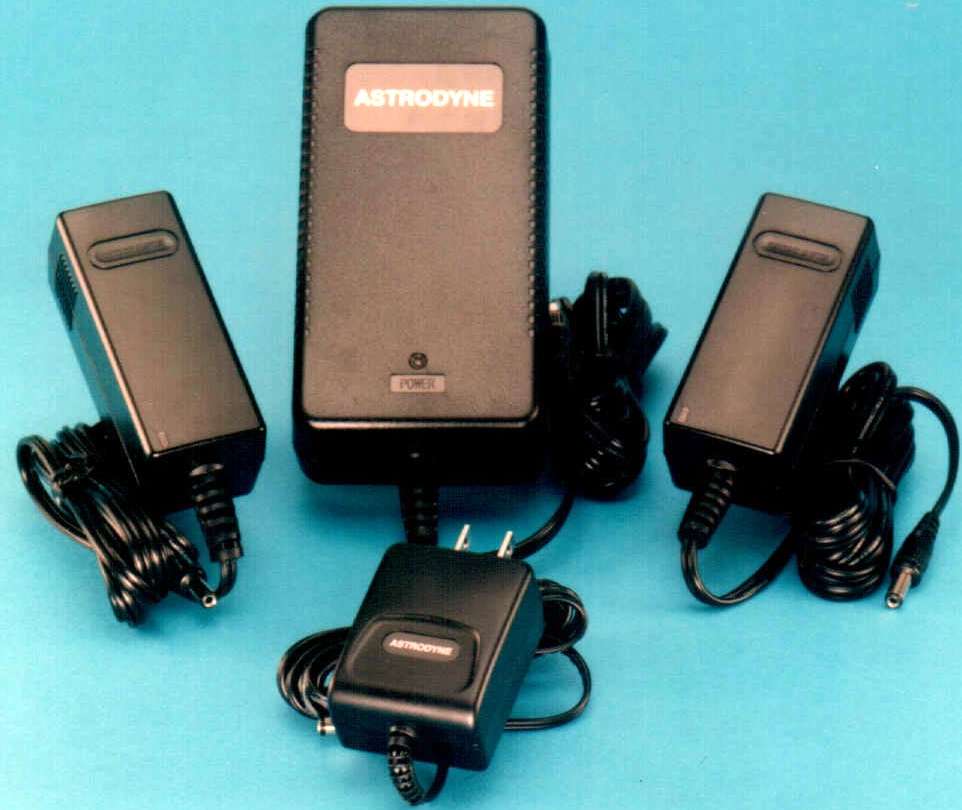

Astrodyne Corp.    Mansfield, MA 02048
Jan 07, 2004 Operating at efficiencies to 80%, adapters are available with single, dual, and triple outputs in voltages from 5-48 Vdc and Auto-Switching Universal Input of 90-264 Vac. They provide Line/Load Regulation of ±2-5%, Ripple/Noise of 1%, and overvoltage and overcurrent protection. Providing 1,500 Vac Input-to-Output Isolation, products have full UL, CSA, and IEC safety certification and meet VDE/FCC Part 15/Level B EMI/RFI requirements.

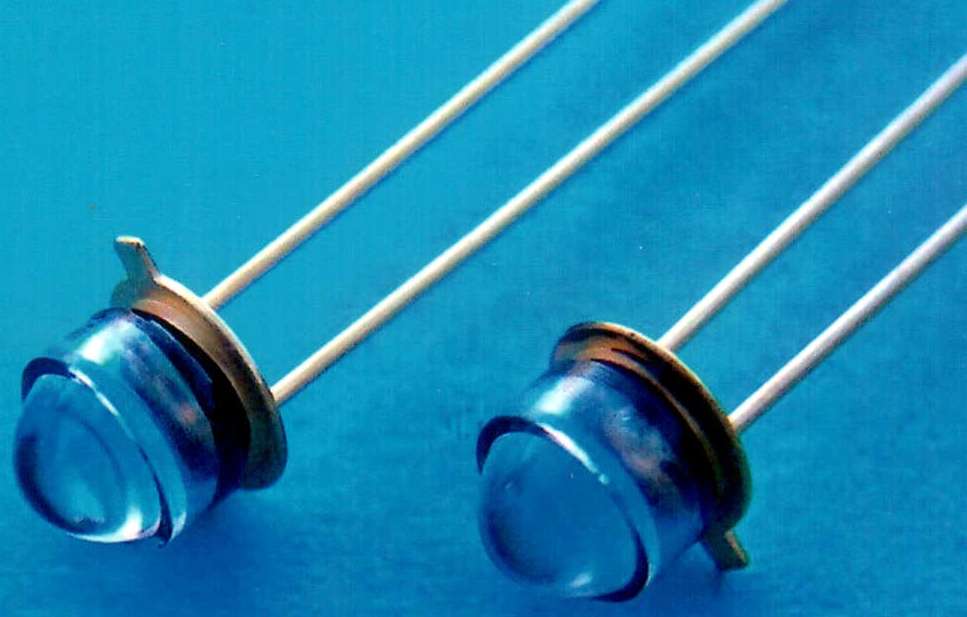

Clairex Technologies, Inc.    Plano, TX 75074
Jan 07, 2004 Models CLE331P and CLE335P are TO-46, 850 nm IREDs suited for applications requiring uniform output radiation patterns. They feature custom plastic lenses and can be operated at up to 3 A when pulsed at 10 µs, 100 pps. Maximum operating temperature is 100°C. Model CLE331P contains AlGaAs Point Source die with 50 micron dia junction. Model CLE335P contains AlGaAs DDH die.

Phoenix Contact    Harrisburg, PA 17111 0100
Jan 07, 2004 DIN-rail mount RAD-DATA-BUS systems enable monitoring and control at low point count remote sites while eliminating need for PLC where local logic is not required. Each transceiver consists of master, slave, and store-and-forward repeater/slave. Data radios not only move RS-232, RS-422 and RS-485 for serial data from PLC or controller with MODBUS and Allen-Bradley DF1 protocols, but also allow users to read and write analog and digital I/O from remote locations.

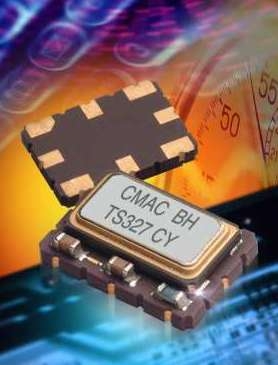

C-MAC Microtechnology    Durham, NC 27709-2548
Jan 07, 2004 Series CFPT-125 consists of 7 x 5 mm, SMD TCVCXOs that withstand peak reflow soldering temperature of 260°C for 10 sec. Standard frequency stability is ±0.9 ppm over temperature range of -20 to +70°C. Crystal resonator within oscillator is packaged in hermetically sealed container, virtually eliminating contamination. Operating from 3.3 V supply, units draw 3 mA and offer frequencies from 10-40.0 MHz. Frequency is adjustable by external control voltage.

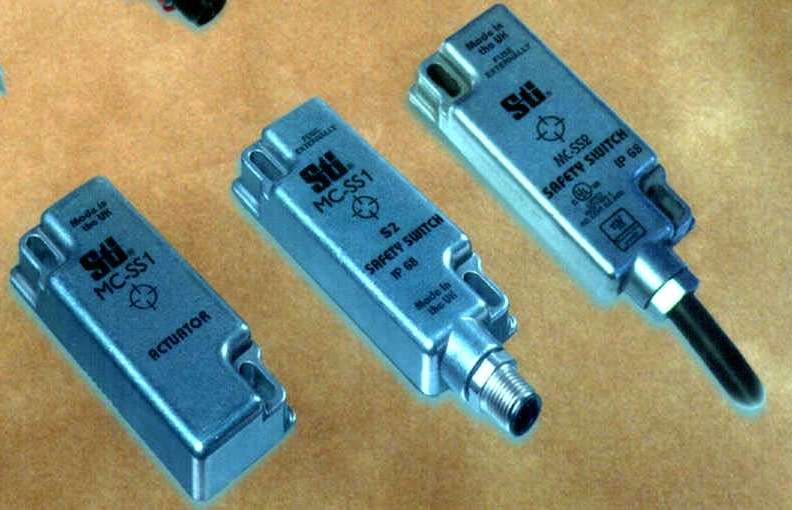

Scientific Technologies Inc.    Fremont, CA 94555
Jan 07, 2004 MC-S Series compact coded magnetic safety interlock switch consists of tamper-resistant, non-contact switch that operates with control unit that provides motor contactor monitoring and/or manual reset function. Switch and control unit act as fully monitored, dual channel system. Series is available in 3 sizes with plastic or stainless steel NEMA 6 enclosure suited to harsh environments. Single control unit monitors and indicates up to 6 MC-S switches.

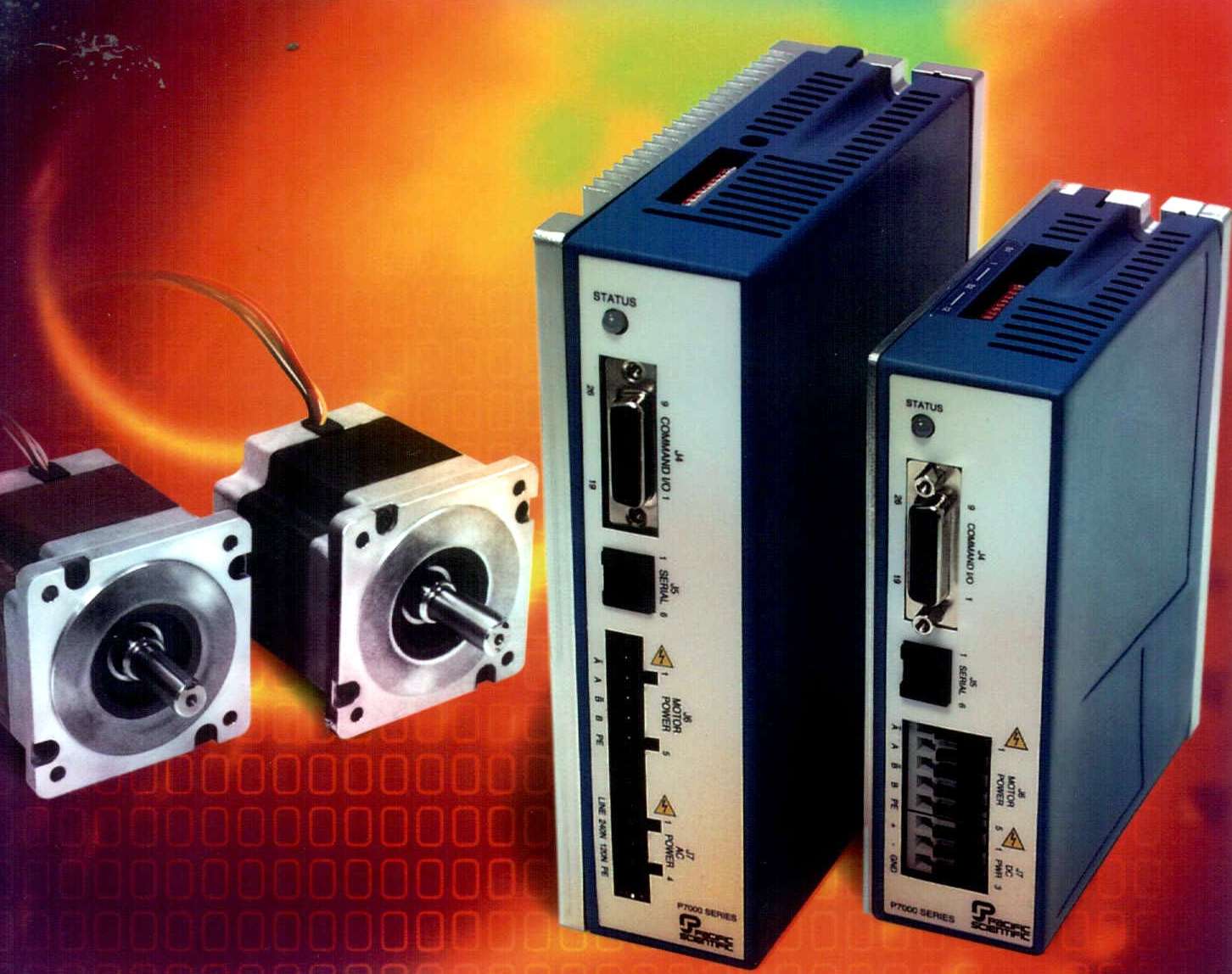

Danaher Motion MCD    Amherst, NY 14228
Jan 07, 2004 Series P7000 Drives use multi-step positioning to convert full step indexing commands into smooth microstepping resolution. They provide Encoderless Stall Detectionâ„¢, down to and including rest, without use of separate feedback device. Available for AC or DC operation, Series P7000 can power any 2-phase NEMA step motor. Current auto-tuning techniques make units suited for single or multi-axis applications that require high-speed performance or low speed smoothness.

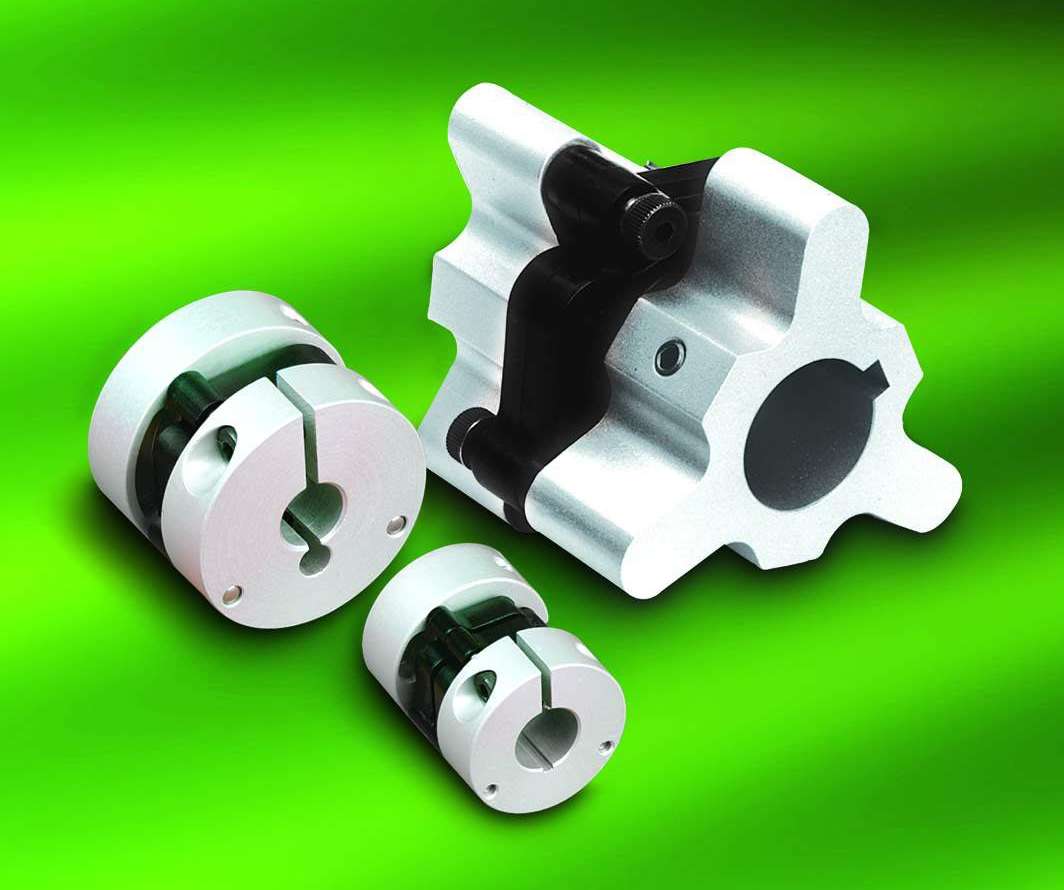

Zero-Max, Inc.    Plymouth, MN 55441 5509
Jan 07, 2004 Control-Flex® Couplings feature parallel linkage flexible disc that provides parallel, angular, and axial misalignment capability and maintains constant transmission of torque and angular velocity in system. Couplings provide electrical isolation of system components, making them suited for encoder applications. Max bore size for single and double disc clamp models is .375–1.50 in. Setscrew models range from 1.00–2.00 in.

Moody Tools, Inc.    East Greenwich, RI 02818 0230
Jan 07, 2004 Double Ended 25 mil Probes feature needle-sharp, stainless steel points combined with blue anodized aluminum for clean room use. Configurations include straight by double bend, single bend by triple bend, single bend by hook, and triple bend by hook.

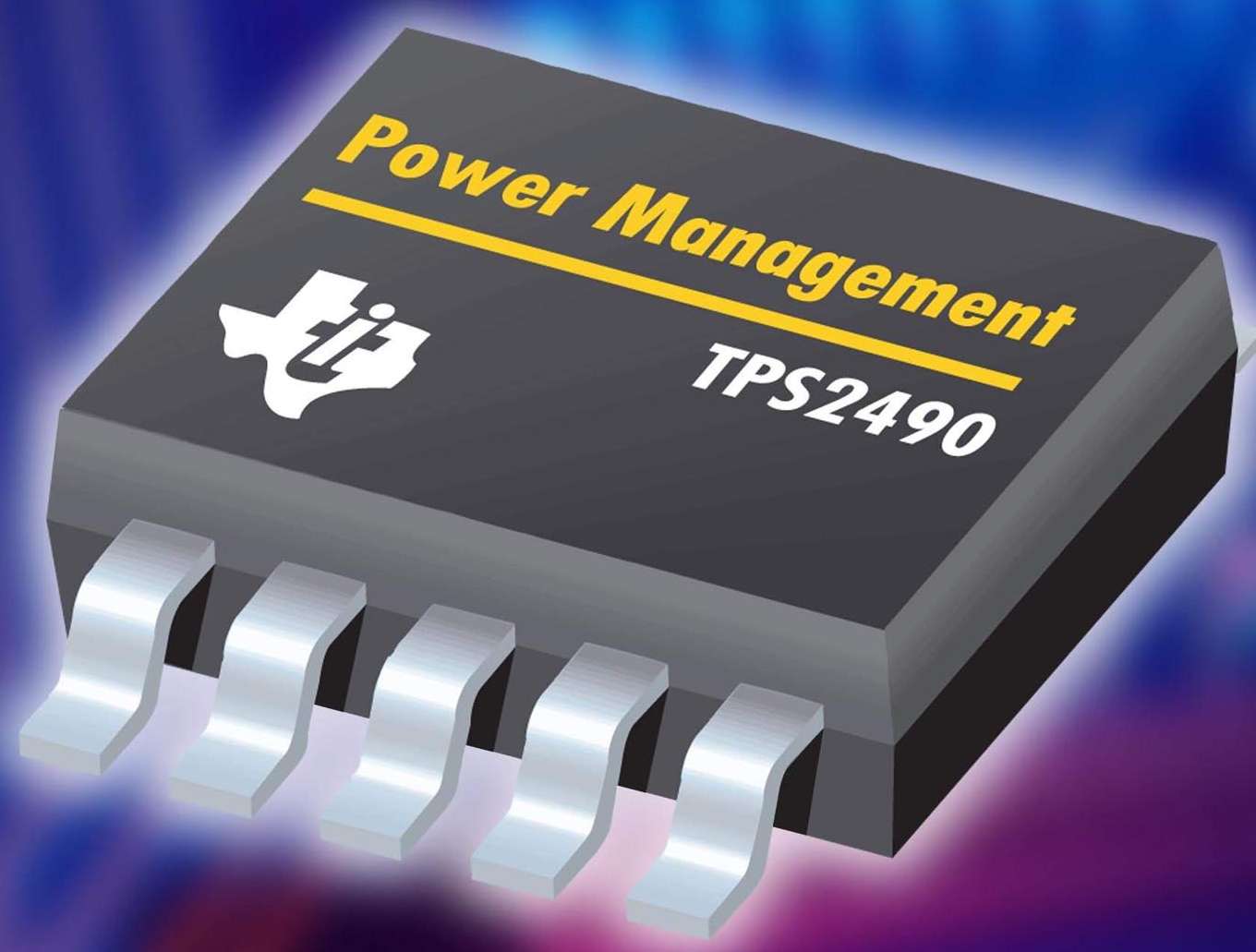

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Jan 07, 2004 Packaged in 10-pin MSOP, models TPS2490 and TPS2491 positive high-voltage hot-swap power managers incorporate programmable power and current limit functions. They measure 3 x 5 mm and utilize 0.7 µm silicon-on-insulator analog process to ensure complete MOSFET safe operating area protection. Products support and protect positive voltage distributed power systems operating from 9–80 V and offer latched operation (TPS2490) and automatic retry (TPS2491).

CyberResearch, Inc.    Branford, CT 06405 2932
Jan 07, 2004 URDAQ series modules, equipped with DB-25M connectors for all A/D, D/A, and DIO lines, offer 14-bit resolution on A/D and D/A channels, 250 kHz A/D speed, and 500 Hz D/A speed. Additional features include 16-sample channel-gain queue, software-selectable gains from 0.25–100, and digital I/O lines for control and monitoring. Products come with DataWinâ„¢ for Windows®, EDRE applications builder, and drivers for LabVIEW®, TestPoint®, and Agilent VEE®.

STMicroelectronics    Lexington, MA 02421
Jan 07, 2004 Single-chip Model STm8000 is an audio-video, full-duplex codec with open architecture that brings audio/video encoding to DVD or HDD recording products. It offers analog TV recording, digital free-to-air broadcast support, time shifting, DV movie transfer-to-disc, memory-card reading, DivX decoding, WMA decoding, and DVD audio. Unit addresses all DVD recorder formats, including DVD+RW, DVD-RW, and DVD-RAM.

Space-Ray    Charlotte, NC 28236

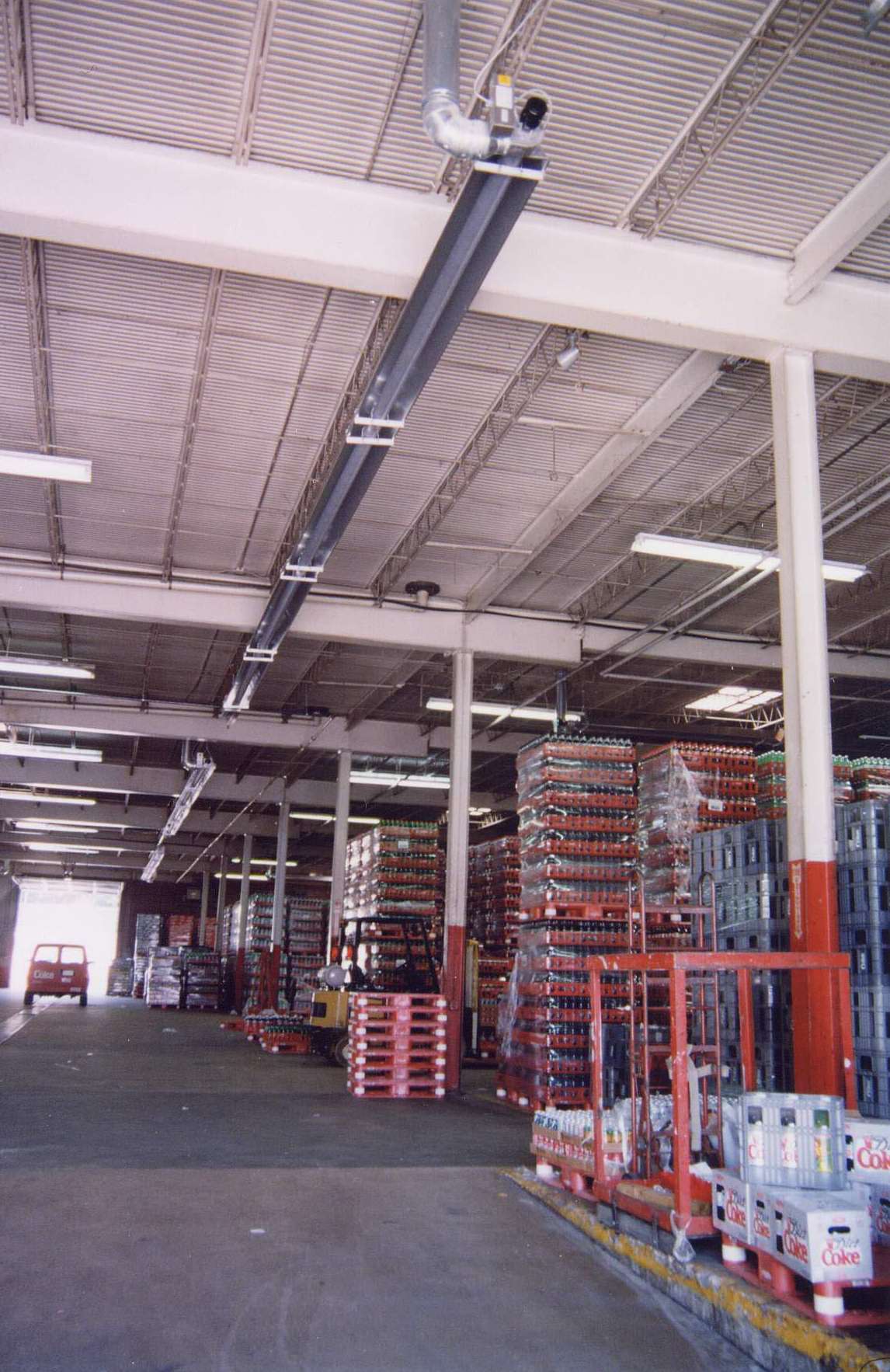

Jan 07, 2004 Available in natural and propane gas, Series ETS/ETU Low-Intensity Infrared Heaters vary in length from 15-50 ft and can be used with 5 or 10 ft body assemblies. Series ETS offers multiple configurations, while Series ETU comes in U-shape configurations for spot and area heating. Systems include heavy-duty ball bearing motor and enclosed, pull-through draft inducer, which rotates 45 or 90°. Heaters can be common vented or individually direct vented.

Space-Ray    Charlotte, NC 28236
Jan 07, 2004 Rated at up to 130,000 BTU/hr each, Series LTU130 Low Intensity U-Tube Heaters incorporate self-contained draft inducer and calorized steel emitter tubes. Step opening combustion gas valve allows quiet ignition, and direct spark ignition system offers 100% safety shutoff control. Available in natural gas or propane, heaters are CSA certified for horizontal and vertical venting, and are suited for high air change environments.

Exact Software North America    Andover, MA 01810
Jan 07, 2004 Coupled with browser-enabled mobile device, e-Mobile Software allows users to access central location for monitoring, evaluating, and acting on critical events in business as they occur. Executives can access information about employees, customers, products, and business transactions taking place between these business pillars. Software let users monitor key financial performance indicators and direct preemptive actions to avoid crises.

Mott Corporation    Farmington, CT 06032 3159
Jan 07, 2004 GasShield Gasket Filter is compatible with inert and specialty gases and provides filtration in gas flows as low as 1 slpm. It protects particle-sensitive gas control components and withstands extreme operating conditions. Unit fits inside ¼ in. face seal fittings, porous element is 1 in. long, and it can be installed without design change to gas delivery system. All-metal filter, available in NanoMetal® Nickel Media, provides 0.003 µm filtration.

Innovative Solutions, LLC    Naugatuck, CT 06770-2224
Jan 07, 2004 Bag-In-A-Box Series L250AD provides monitoring and dispensing of packaged food or medical liquids. With spring-loaded adjustable collar, vertically-mounted level control may be equipped for 1 or 2 level positions and can provide alarm switch contact as low as 4.7 mm. Available in FDA approved polypropylene or polysulfone materials, Series L250AD may be customized to fit any container or cap size.

Beta Dyne Inc.    Bridgewater, MA 02324
Jan 07, 2004 Isolated, 10 W DC/DC converters, offered in single- and dual-output models, incorporate low-switching noise techniques at input and output sections. Output noise is reduced to 5 mVpp via use of LDO linear regulators. Products offer standard 2:1 input voltage range, efficiencies to 86%, soft start, and adjustable outputs. They also provide short circuit protection, 5 µS transient response time, 6-sided shielding, and 1 mA off state current.

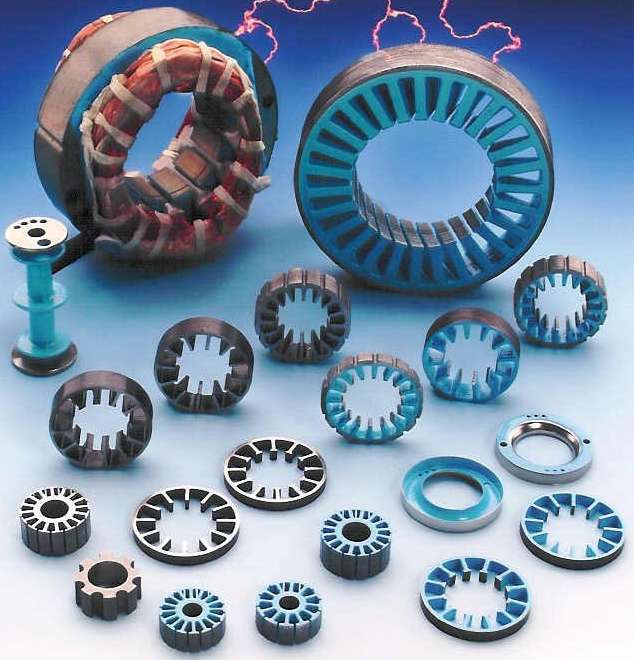

Applied Plastics Co.    Norwood, MA 02062
Jan 06, 2004 Stacking, Laminating, Bonding, and Coating Service produces parts with electrical insulation to 2,000 V and up to 1,000 V/mil thickness, depending upon configuration. Process is capable of applying 0.002–0.005 in. thick coating in one pass that meets MIL specifications. It is designed for multi-laminate stacking, bonding, and coating of gyroscopes, small motors, and stators. Lamination alignment is held to ±.0005 in.
