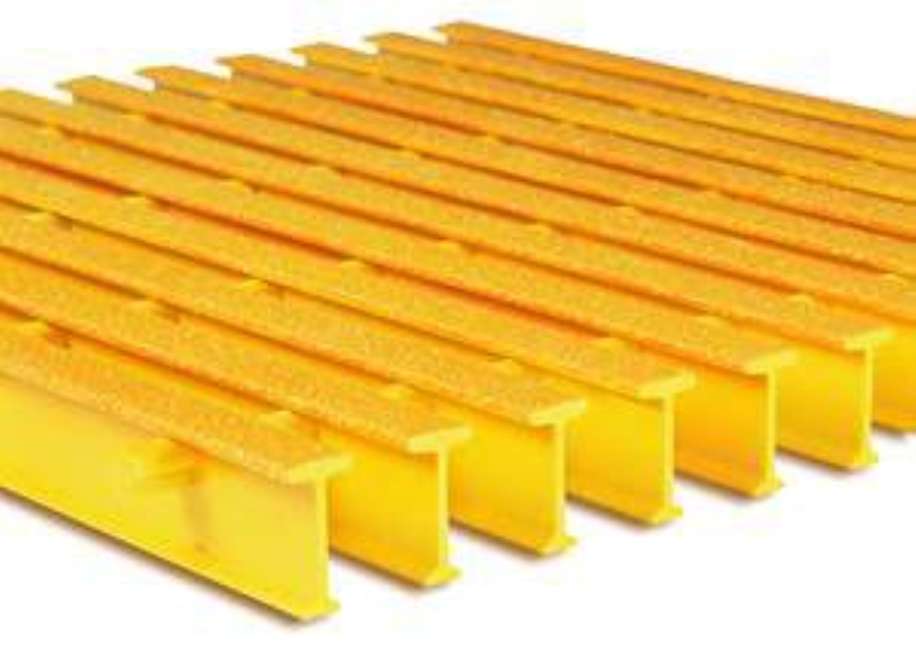

Fibergrate Composite Structures Inc.    Addison, TX 75001-4223
Jan 12, 2004 Molded and pultruded grating features slip-resistant concave or grit-top surfaces that deliver positive traction, even where lubricants and other slippery liquids are present. Designed to replace metal grating in slippery, hazardous and corrosive environments, product helps prevent slips and falls and is suited for catwalks, flooring, platforms, trench covers, screens, and media support.

Seco Tools Inc    Troy, MI 48083

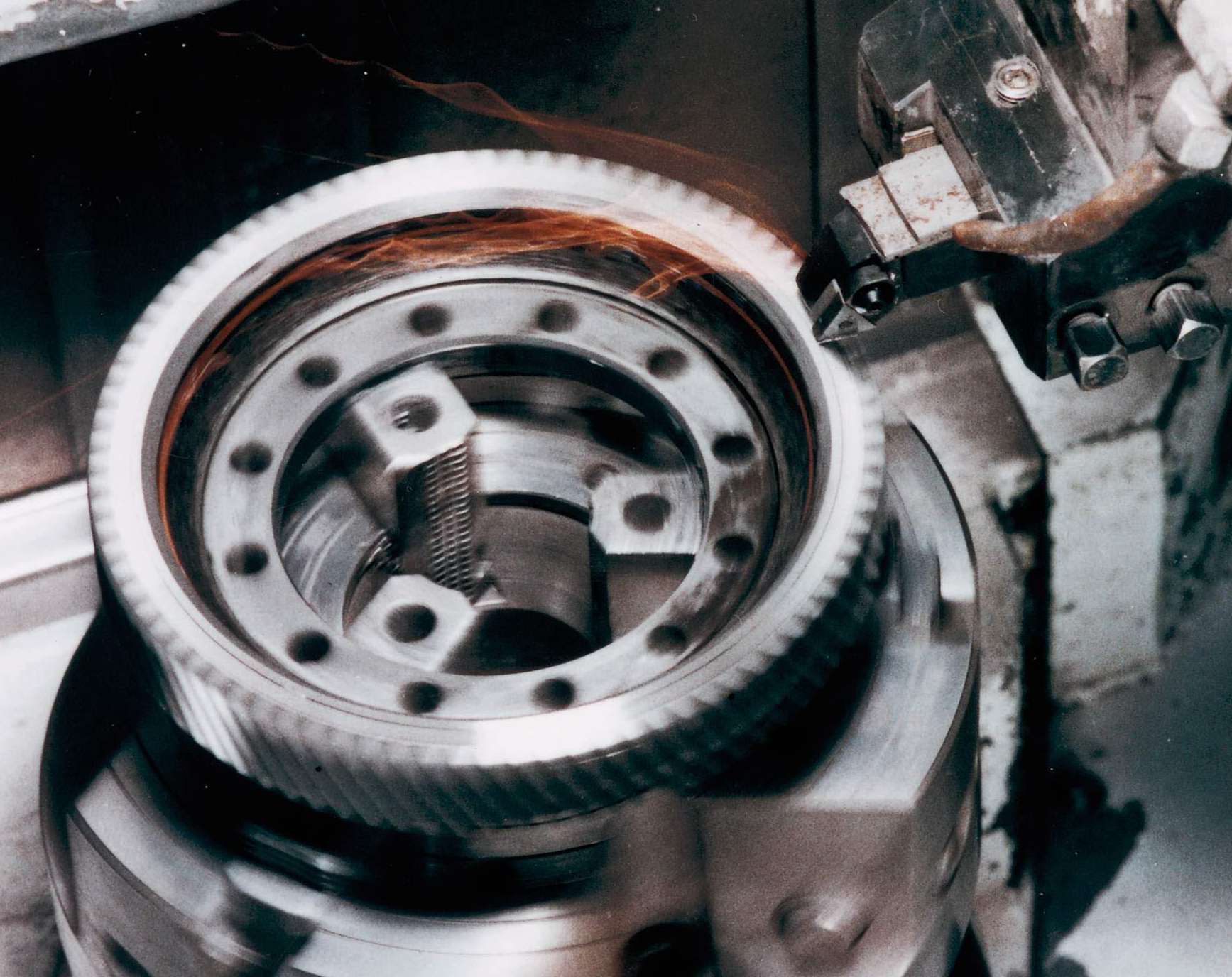

Jan 12, 2004 Series CBN350 Solid Inserts, available in round or square shaped models, offer reduced chipping and edge flaking in difficult-to-machine materials. Able to perform at fast feed rates and low cutting speeds, inserts are suited for machining chilled or white cast irons and manganese steel components.

Linear Technology Corp.    Milpitas, CA 95035
Jan 12, 2004 Models LTC1407A and LTC1407 are 14-bit and 12-bit Analog-to-Digital Converters with 2 simultaneous sampling inputs. Ten-pin MSOP package allows design of compact high-speed data acquisition systems. Powered from single 3 V supply with power dissipation of 12 mW, Model LTC1407A achieves 73.5 dB SINAD and guarantees 14-bit no missing codes. When device is not converting, power dissipation can be reduced to 3.3 mW in NAP mode, with 2.5 V reference remaining active.

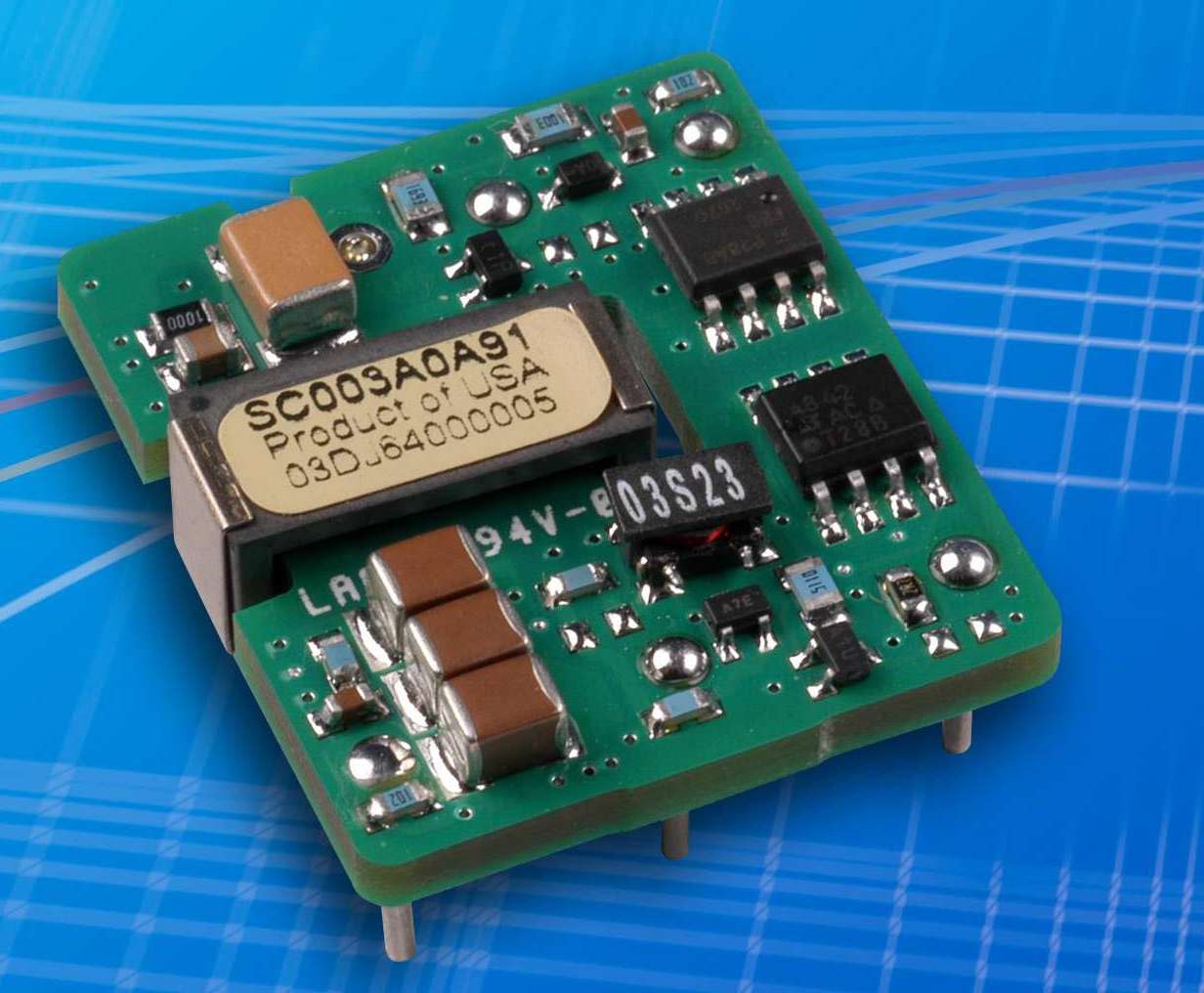

Tyco Electronics Power Systems    Mesquite, TX 75149
Jan 12, 2004 Series SCâ„¢ Modules, available in through-hole or surface-mount packages, convert nominal 24 V input to precisely regulated output voltage from 3.3–12.0 V. Output is fully isolated from input, enabling versatile polarity configurations and grounding connections. Full load efficiency is 85% at 5.0 Vout. Measuring only 1.10 x 0.96 x 0.335 in., units feature open-frame construction, remote on/off, and operating temperature of -40 to +185°F.

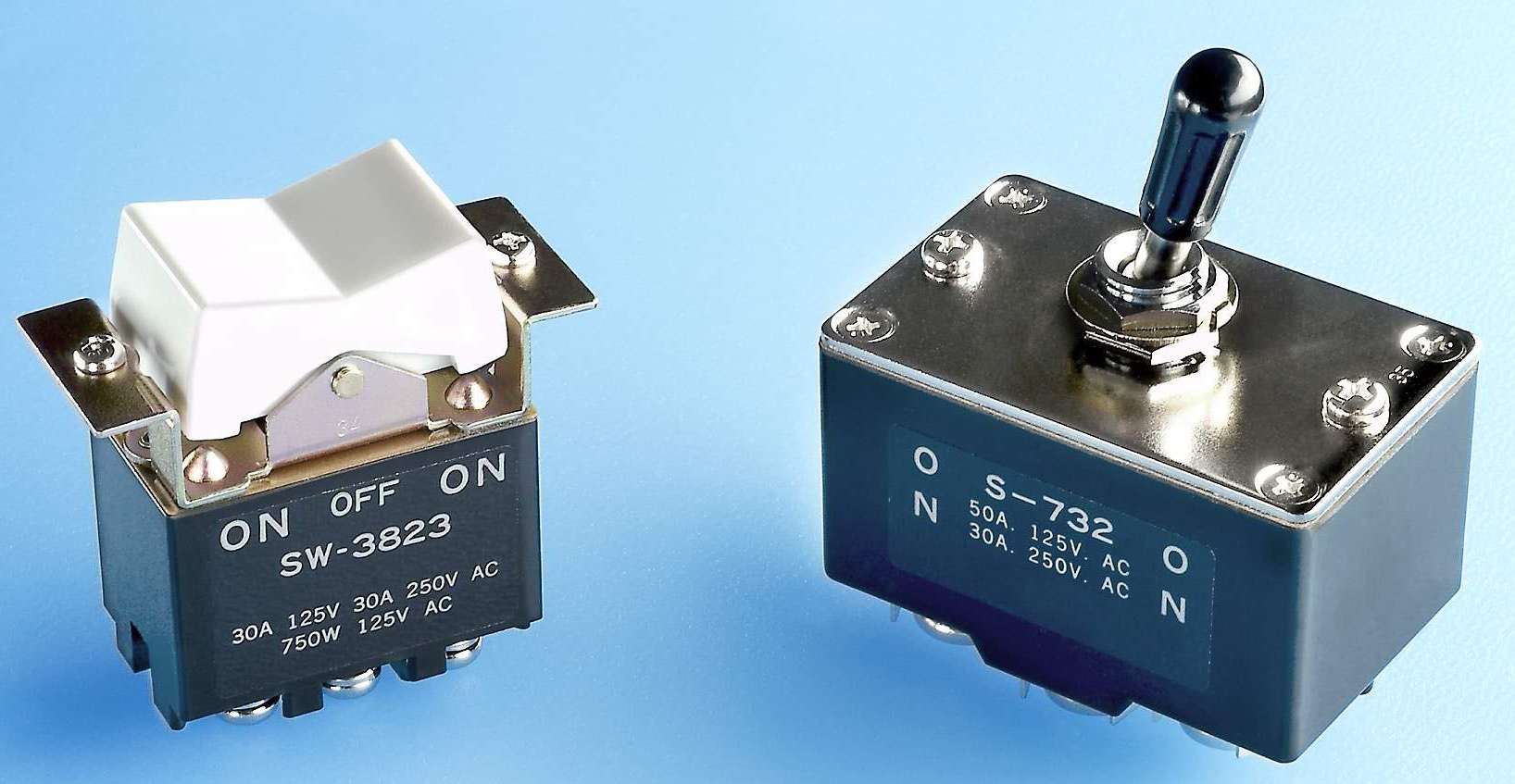

NKK Switches    Scottsdale, AZ 85260-3420
Jan 12, 2004 Toggle-actuated S800 and S800D series devices are available in 2- and 3-pole circuit configurations, both offered with 2 or 3 positions. All circuits are maintained and have dielectric strength of 2,000 Vac (min) for 1 min. Offered in DPDT configuration, S700 series devices are supplied with toggle with black phenolic resin cap. Rocker-actuated SW3800 and SW3800D series devices are offered in 2 or 3-pole models with single or double throw circuits.

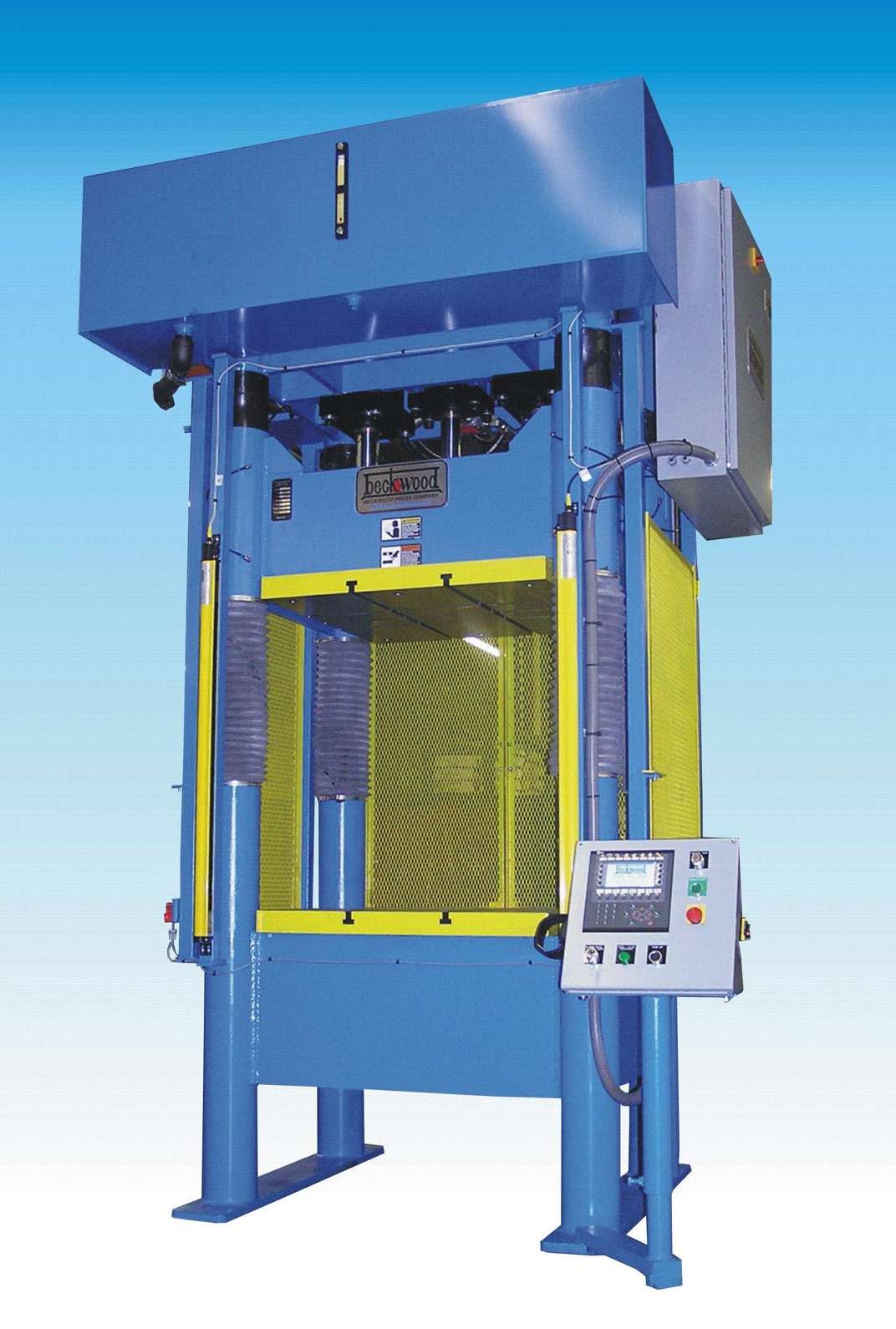

Beckwood Press Co.    Saint Louis, MO 63026 2405
Jan 12, 2004 Hydraulic Presses, engineered to suit customer specifications, feature heavy-duty steel weldments and guiance system that produces minimal deflection.

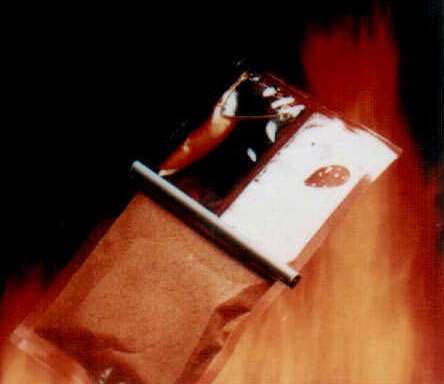

Tra-Con, Inc.    Bedford, MA 01730
Jan 12, 2004 Tra-Bond 813J01 offers thermal conductivity constant of 1.1 W/M/°K, making is suited for encapsulating heat generating devices such as transformers, thermistors or power sources, and pour-in-place heat sinks. Operating temperature is 260°C, but with Tg of -120°C, Tra-Bond 813J01 can deal with stress issues and mismatched CTEs. It can be cured at room temperature, or in only minutes at elevated temperatures. Working life is 100 min.

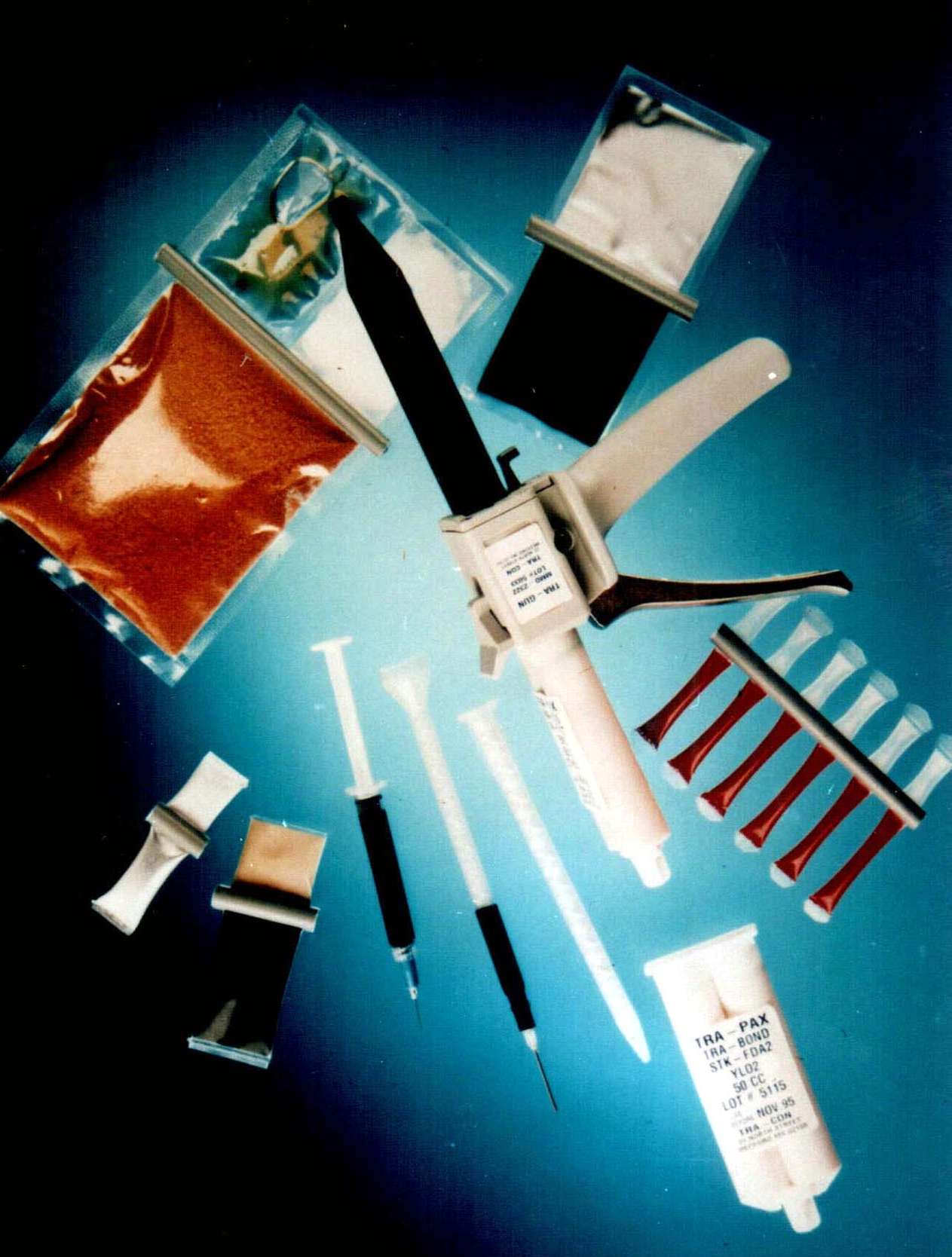

Tra-Con, Inc.    Bedford, MA 01730
Jan 12, 2004 Clear, medium-viscosity Tra-Bond 2105 contains no solvents or other additives that could be harmful to environment or users. It bonds to glass, ceramics, most plastics, and metals. Product can be heat or room temperature cured and passes cytotoxicity ISO elution method. It is recommended for applications such as repair of fiber optic connectors, electronic and aerospace systems, medical device assembly, and structural laminating applications.

UDT Sensors, Inc.    Hawthorne, CA 90250
Jan 12, 2004 Plastic encapsulated photodiodes incorporate short pass filter, which blocks wavelengths longer than 700 nm. Many standard and custom combinations are available. Miniaturization of these photodiodes assists engineers with development of micro-technology.

MLDesign Technologies, Inc.    Palo Alto, CA 94303
Jan 12, 2004 MLDesigner 2.4.r03 lets designers make critical architectural tradeoffs using performance analysis, develop comprehensive functional specifications, evaluate proposed changes to architectural and functional specifications, and create executable specifications. It includes tools that facilitate loading models, compiling models for simulation, and closing models after simulations. User can specify time interval to trigger automatic saving of all open modified models.

Empresa Solutions    Phoenix, AZ 85044-6475
Jan 12, 2004 Integrating with collaboration capabilities provided by Cimmetry Systems's AutoVue product, eChange Solutions v3.1.1 facilitates viewing through expanded file formats, redline and markup file management, and ability to view multiple files simultaneously. It incorporates AutoCAD 2004 connector as well as Inventor 8 and Mechanical Power Pack 6.0. Software.

Linden EMB    Cuyahoga Falls, OH 44223
Jan 12, 2004 PlantProcessVu has tools to capture and analyze data from manufacturing processes throughout plant to show what is happening at any point in production process. GlobalProcessVu captures data from multiple plants and provides data to enable analysis at any level of production process. Remote monitoring allows for alarms to be sent to maintenance personnel via pager or PDA when variations in processing parameters are detected.

SWF Machinery    Sanger, CA 93657
Jan 12, 2004 With servo-controlled motions, DP 260C combination case packer is designed for flat and vertical case/tray packing of products packaged in flexible bags. Reaching speeds up to 240 bags/min (flat packing) and 70 bags/min (vertical packing), unit employs compact design with single infeed conveyor. It accommodates multiple pack patterns and offers PLC changeover option from flat to vertical packing via the touch of a button.

MSC.Software Corporation / MSC.Mechanical Solutions    Costa Mesa, CA 92626
Jan 12, 2004 MSC.Simulation Data Management 2004 provides managed approach to simulation processes and captures all intermediate and resulting data. It enable users to set-up simulation processes, conduct simulations, evaluate results, iterate through several design what-if scenarios, and provide feedback to design team. Features include Trade Study Conductor, Report Generator, GUI with capability for multi-lingual portals, and inclusion in MSC.MasterKey Licensing System.

Schroff, Inc.    Warwick, RI 02886
Jan 12, 2004 Designed for indoor use, Minirack and Eurorack 19 in. cabinets are suited for packaging electronics in various applications. Former measures 16 U x 22 in. x 24 in., while latter measures 38 U x 24 in. x 24 in. Both incorporate self-supporting inner frame construction with aluminum die cast top and bottom bolted to 4 extruded aluminum uprights. Capacities range from 440-880 lb, and open top and bottom facilitate cable management and cooling.

Woodhead L.P., Woodhead Electrical    Northbrook, IL 60062
Jan 09, 2004 Suited for construction sites and commercial garages, Pro-Yellow® creates 13 W light output and minimum 4,100° Kelvin lamps. No-outlet and non-switch versions assure code compliance in commercial garages. Built to meet industrial and construction site requirements, Safety Yellow® lamp features hook design and provides 26 W output and 4,100° Kelvin lamps. Both offer natural color rendering, impact-resistant guard, non-conductive exterior, and non-slip elastomer grip.

PIAB Vacuum Products    Hingham, MA 02043
Jan 09, 2004 Portable 304 Stainless Steel Stand allows conveyor to be placed over drums of 17–22 in. diameter with drum height between 14–35 in. Sanitary casters undergo process after fabrication to insure removal of embedded contaminants and exterior stresses. Resulting finish provides less porous surface that is impervious to dirt. Stand is suited for chemical factories, food production facilities, pharmaceutical houses, and other wash-down environments.

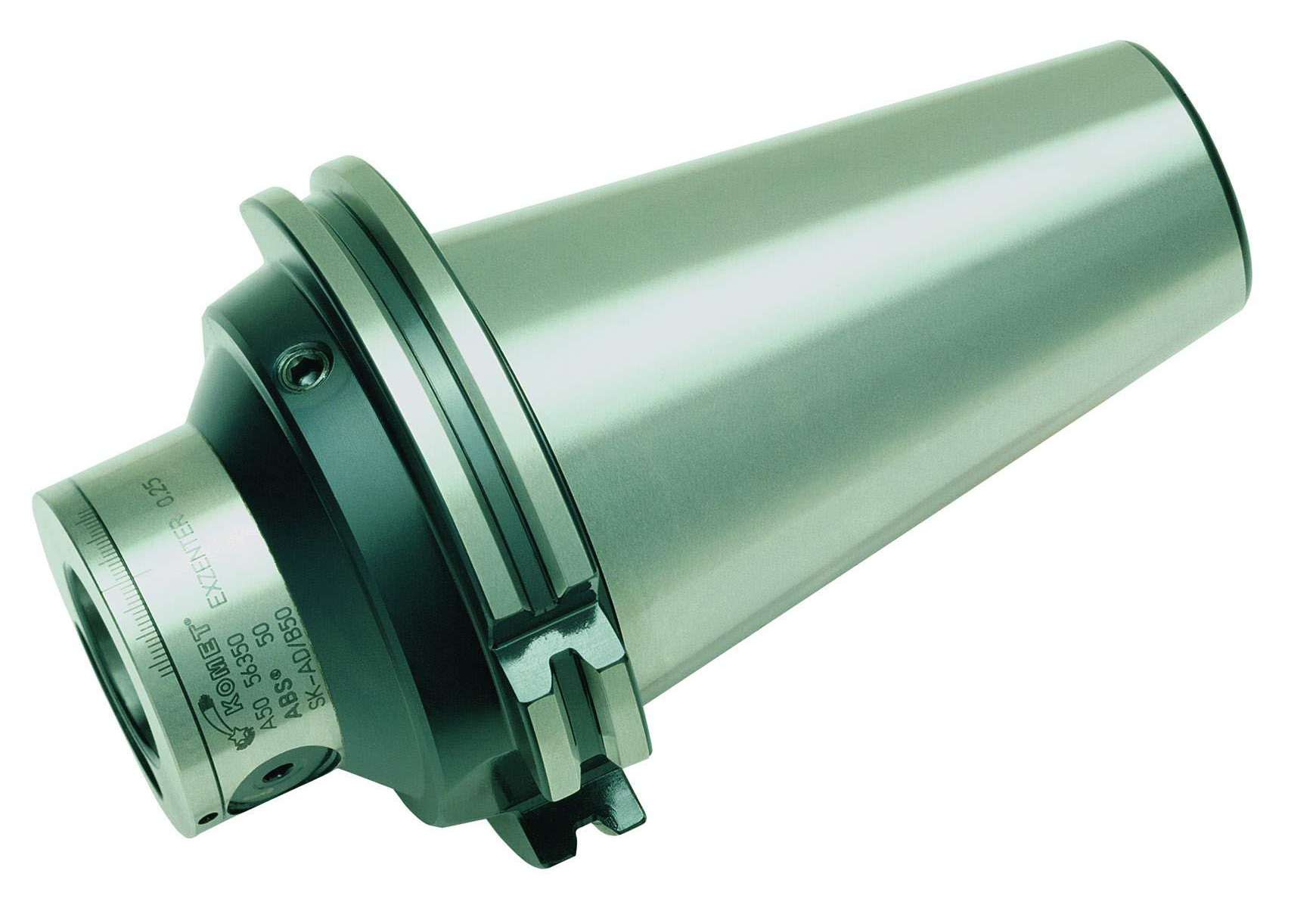

Komet Of America, Inc.    Schaumburg, IL 60193 4544
Jan 09, 2004 ABS® Eccentric Adjusting Holders, by means of integral eccentric sleeve in ABS® connection, allow sensitive setting of both fine boring and solid drilling tools for purpose of adjusting diameter. Incremental graduation is equal to 0.02 mm/0.0008 in. on diameter and total adjustment is ±0.25 mm/0.0098 in. on diameter. Compact design of holders facilitates use for single and multi-spindle machine tools.

Unidex    Warsaw, NY 14569
Jan 09, 2004 Stainless steel PH Mobile Table is designed for ergonomic lifting and transfer of loads up to 500 lb. It is equipped with foot-pedal hydraulic system, 24 x 24 in. table top, and standard start height of 28 in. with lift strokes of 14 or 16 in. Table has adjustable down-speed control, four 5 in. locking casters, and single post lifting column. Optional features include rotating table top with 4 index positions, tilt table, and ball or conveyor transfers.

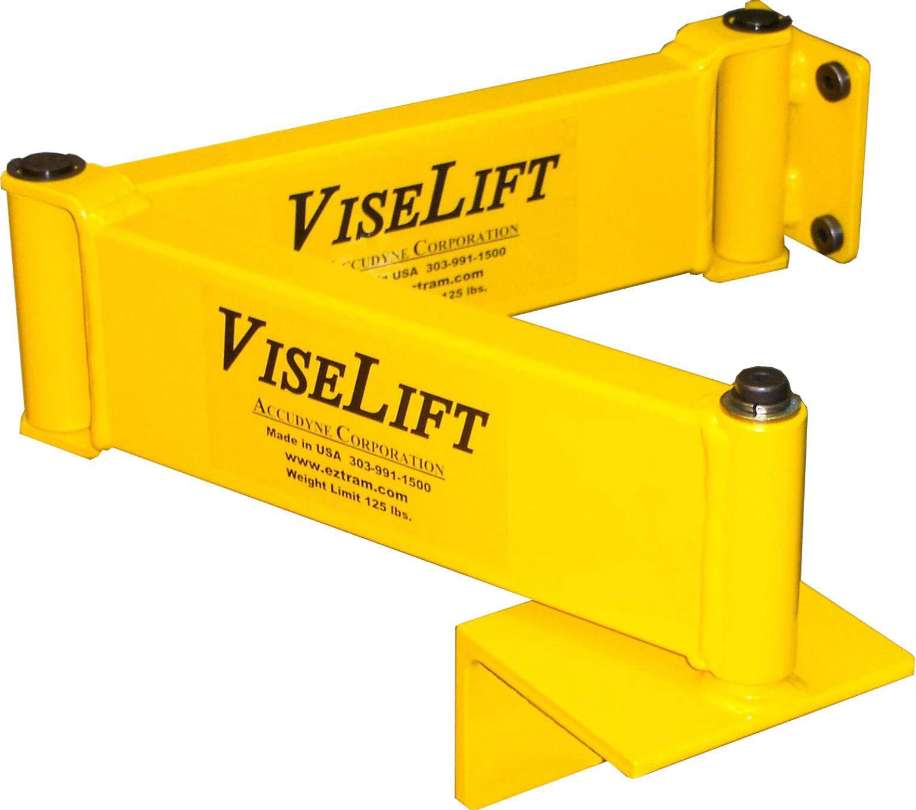

Accudyne Corp.    Palm Bay, FL 32909
Jan 09, 2004 VISE LIFT allows for removal or installation of machine vise on mill table. With 125 lb load capacity, product mounts directly to milling machine on either side of column and is suited for shops with limited bench space. Tool also reduces damage to vise and mill table by eliminating sliding motions during set-up or removal and permits access for cleaning when vise is off machine.
