Hayward Industrial Products, Inc.    Elizabeth, NJ 07207

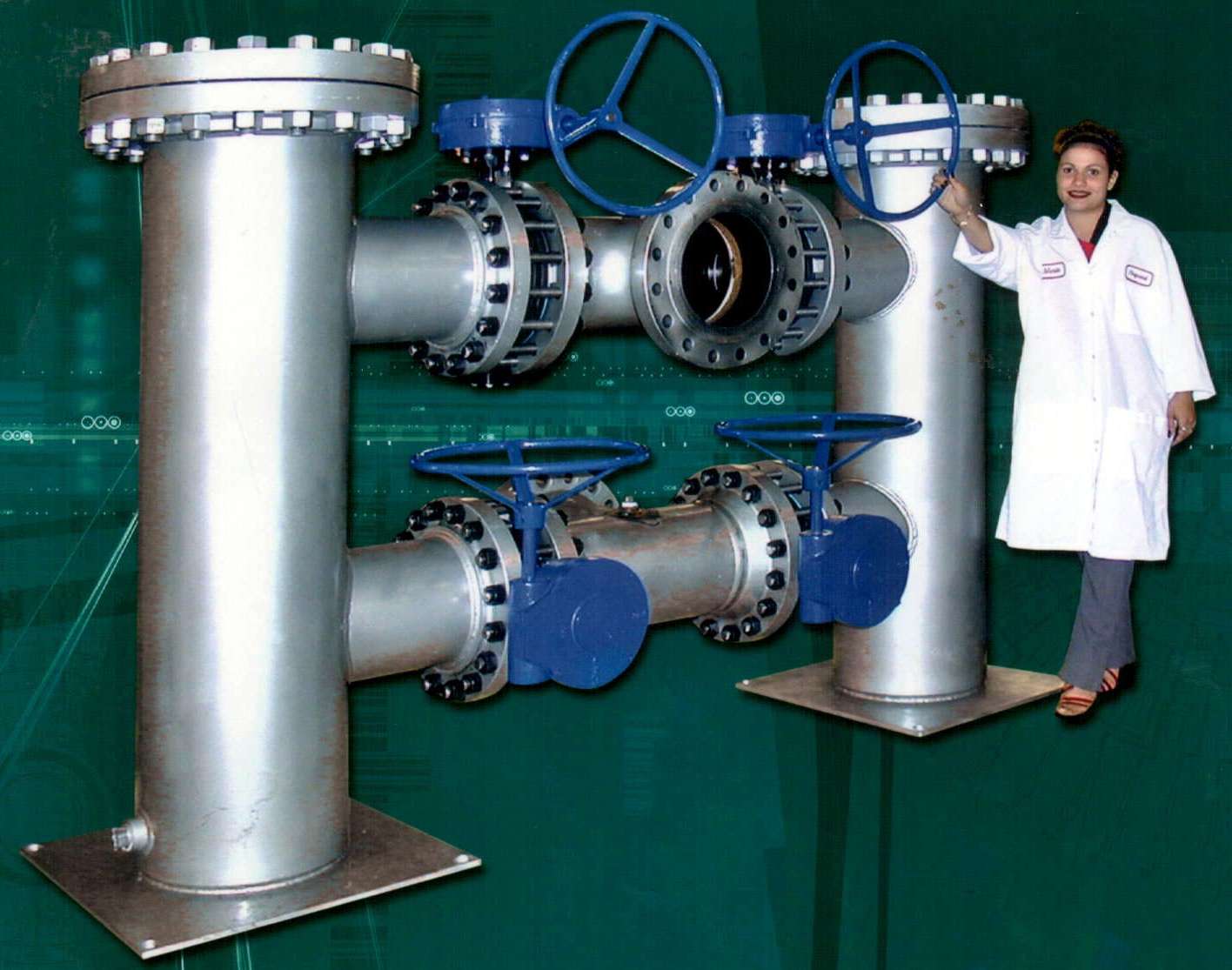

Dec 02, 2003 Model 950 Fabricated Duplex Pipeline Strainer continuously removes particulate matter from ½" down to 45 microns. Manufactured in carbon or stainless steel for 2–36 in. pipeline, it may be modified to unique applications' requirements. Valve assembly links 2 strainer element chambers, and operating valves diverts flow from one chamber to other without flow being shut down. Automatic operation is possible via addition of electric/pneumatic valve actuators.

Spirax Sarco, Inc.    Blythewood, SC 29016

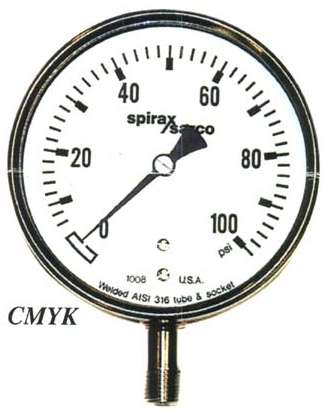

Dec 02, 2003 All-welded Type 316 stainless steel pressure gauge withstands vibration, pulsation, and mechanical shock. With 4 in. dia, instrument is available with single-scale pressure ranges of 0–30, 0–60, 0–100, 0–160, and 0–200 psig. Compound scale model is available in 30 Hg–60 psig pressure range, while vacuum version is available in 30–0 Hg. It suits chemical process, pharmaceutical, and paper manufacturing industries.

Advance Transformer Co.    Rosemont, IL 60018 5625
Dec 02, 2003 Dry metallized-film capacitors can be used with all HID ballasts for metal halide, high-pressure sodium, mercury vapor, and low-pressure sodium lamps utilizing capacitors rated 400 V or less. Features include compact size, thermoplastic construction, no exposed live parts, and UL/CSA approval.

KineticSystems Co., LLC    Lockport, IL 60441-2200

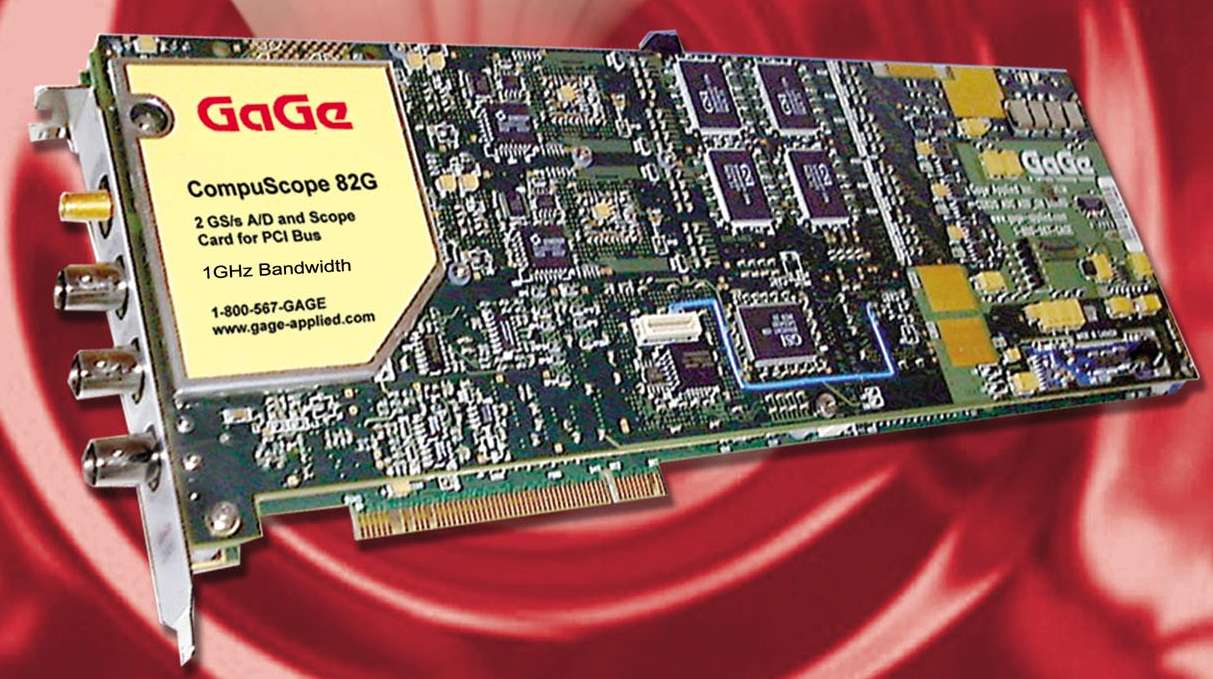

Dec 02, 2003 CompuScope 82G-1GHz minimizes distortion of high-frequency components, improving characterization of transients from laser pulses and high-speed electronic signals. While sampling at 2 GS/s, unit allows under-sampling up to Nyquist frequency of continuous periodic signals to extract spectral information. Available for PCI and cPCI/PXI buses, it can be equipped with 2, 8, or 16 MB on-board acquisition memory.

Lift Products, Inc.    Elm Grove, WI 53122 0349

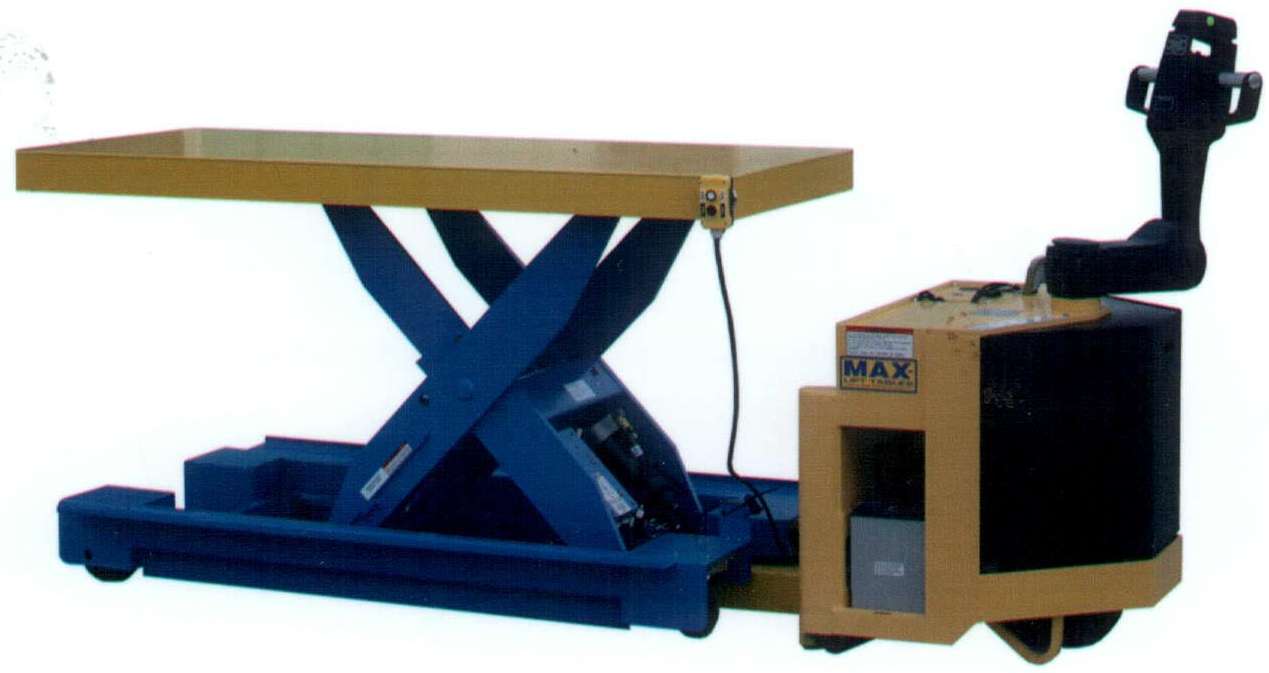

Dec 02, 2003 Custom built to user requirements, MGV (Manually Guided Vehicle) moves products in assembly process from station to station and places them at ideal height. This increases throughput and offers optimized ergonomic positioning. Offered as alternative to AGVs (Automated Guided Vehicles), unit is suited for small- and medium-volume assembly applications.

Landa Water Cleaning Systems    Camas, WA 98607

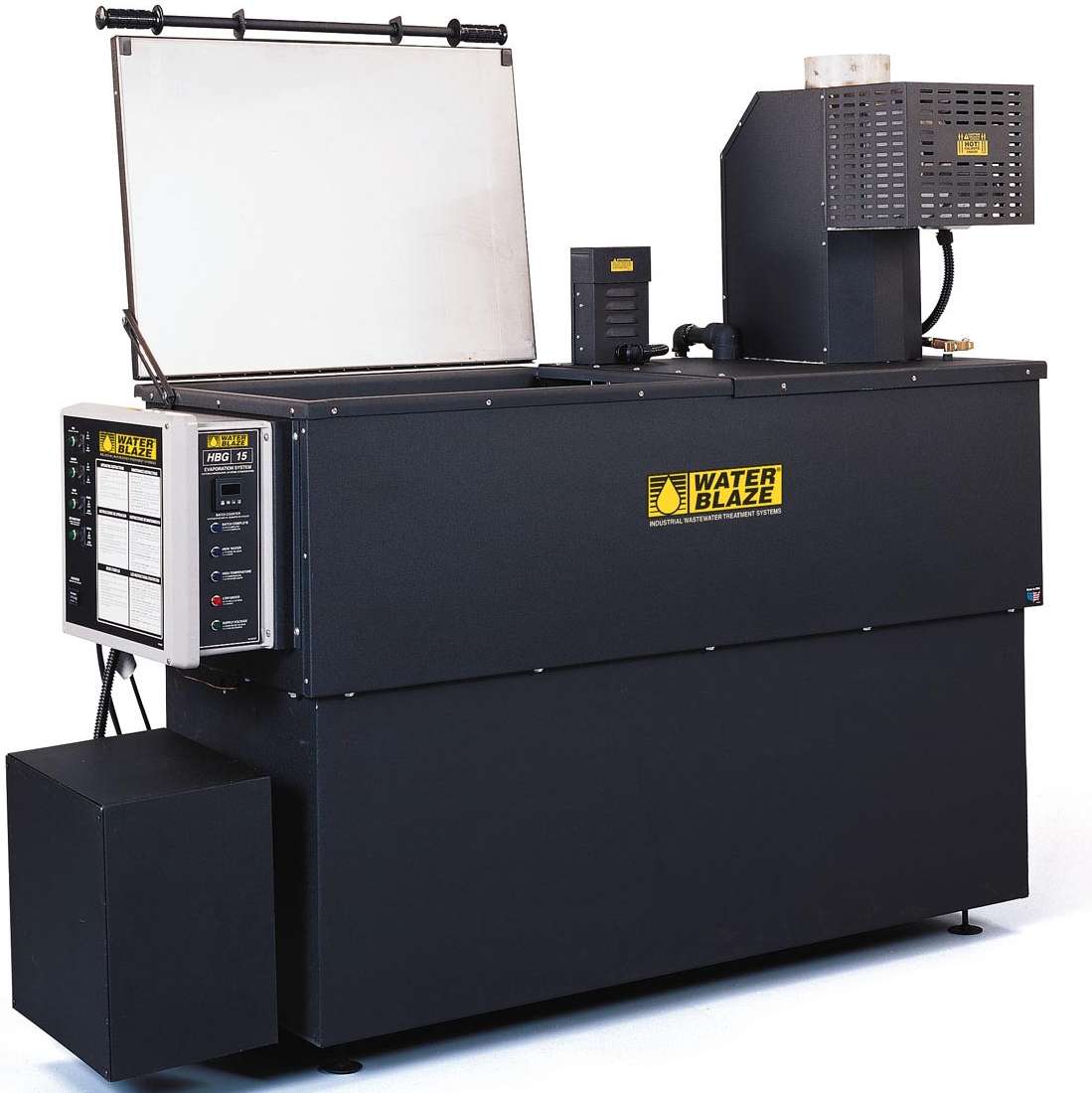

Dec 02, 2003 Natural gas-heated HBG wastewater evaporator, adaptable for liquid propane, features 60% larger combustion chamber design than previous model. Double-lid design offers access to tank. Using high-density refractory ceramic, combustion box requires 400,000 BTUH to evaporate up to 30 gal/hr. Unit provides extra 20 gal of tank capacity and reduces waste stream by up to 98%.

Amacoil Inc.    Aston, PA 19014
Dec 02, 2003 Level Winding System uses sensors to detect wire at spool flanges and to control traverse reversal points, eliminating need for operator to set end stops on Uhing rolling ring traverse assembly. Sensor pulley assembly is supported by linear slide, which protects bearings from overload. Motor that drives spool rotation is linked to traverse drive shaft by belt and pulley system, automatically synchronizing linear movement with spool rotation.

Aaeon Electronics, Inc.    Hazlet, NJ 07730
Dec 02, 2003 E-Series System-On-Modules (SOMs) are component-like system boards with PC functionality that plug into application-specific baseboards through high-density, surface-mount connectors. Connectors carry bus signals to and from CPU modules and baseboards. SOMs help deliver rapid development of semi-custom solutions for embedded applications.

Ircon Inc.    Niles, IL 60714
Dec 02, 2003 Model X2EEAP provides protection for Maxline 2 Thermal Imaging Camera by keeping lens clean and electronics cool. Air-purge feature uses plant air to create curtain of flowing air that prevents dust from reaching camera lens. Cooling jacket uses circulating water to keep heat from penetrating beyond outer jacket to camera electronics, protecting camera from ambient temperatures to 356°F. All exposed portions of enclosure are stainless steel or powder-coated aluminum.

ACCPAC International Inc.    Santa Rosa, CA 95401
Dec 02, 2003 Simply Accounting® 2004 Basic provides complete accounting system, including payroll and e-commerce features, while Simply Accounting 2004 PRO adds multi-user, multi-currency, and time and billing capabilities. Both provide industry-specific productivity tips, user interface, search capabilities, and account reconciliation features. Also offered are small business services, including direct deposit and Dun and Bradstreet® credit check capabilities.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Dec 02, 2003 Isostrate® J-Series dielectric thermal interface materials provide low thermal impedance of .48°C-in²/W, high cut-through resistance, and dielectric ratings of 4000 V/mil. Volumetric expansion at 60°C phase change temperature aids wetting action and eliminates voids and gaps due to mounting surface irregularities. Thixotropic properties prevent problems associated with migration and eliminate process issues associated with grease.

Network Simplicity    Richmond, BC V7A 5H9
Dec 02, 2003 Suited for small- to medium-sized businesses, Meeting Room Manager 2004 provides way to schedule and manage meetings at any office over network, Intranet, or Internet. Companies can automate entire process, from reserving meeting rooms, requesting equipment, and sending invitations. With MRM 2004, companies can assign authority to book rooms, get detailed information on attendees, and track inventory required for given meeting.

Aonix    San Diego, CA 92121
Dec 02, 2003 ObjectAda® for Sun/Solaris cross PowerPC/LynxOS v4.x provides real-time features for developers with full Ada 95 support. ObjectAda Real-Time for LynxOS incorporates development environment complete with optimizing compiler, library manager, run-time kernel, and productivity tools. Open systems approach to LynxOS development supports standards that extend toolset's capabilities for developing and deploying interoperable, portable applications.

Ember Corporation    Boston, MA 02210
Dec 02, 2003 Model EM2420 combines transceiver with embedded networking software that can run on low-power microprocessors. It operates on 16 channels in 2.4 GHz ISM band with hardware-based, AES 128-bit encryption for secure communications. EmberNet networking protocol stack provides sending and receiving over low bitrate wireless networks. Unit is ZigBee ready and complies with 802.15.4 standard, which makes wireless communication possible in demanding environments.

Emerson Process Management, Intellution Division    St. Louis, MO 63136 8506
Dec 02, 2003 AMSâ„¢ Machinery Health Manager v4.81 utilizes online and portable vibration, oil analysis, and infrared thermography to support optimum maintenance decisions and plant availability. It is fully integrated with AMS Suite: Asset Portal, which unifies data on condition of equipment and automates flow of information to those that run business. Through AMS Asset Portal, managers can view current and historical data on condition of assets to expedite decision-making.

CertainTeed Corp.    Valley Forge, PA 19482-0860
Dec 01, 2003 Non-ceramic FlameChekâ„¢ ^Plus2 blanket provides 2 hr fire rating in single-layer application. Flexible 2 in. thick wrap saves critical building space, allowing for zero clearance to combustibles at overlap or collar, and meets requirements defined by NFPA for fire-rated grease ducts. Glass-fiber blanket is completely encapsulated in UL-classified, fiber-glass-reinforced foil facing. It is available in 20 ft rolls, in 2 and 4 ft widths.

Komatsu America International Company    Vernon Hills, IL 60061
Dec 01, 2003 Offered with electronically controlled hydrostatic transmission, WA320-5 is powered by turbocharged Komatsu SAA6D102E-2-A air-to-air aftercooled engine, has net output of 166 hp, and complies with Tier II regulations. Variable Shift Control lets operator set max speed from 0–8.1 mph, while traction control reduces tire slippage in sandy or wet conditions. Other features include hydraulic braking system, equipment monitoring system, and sealed DT connectors.

Thermo Electron Corp.    Waltham, MA 02454-9046
Dec 01, 2003 SampleManager PIMS 2003 provides real-time management of laboratory and process information. SampleManager LIMS (Laboratory Information Management System) integrated with PIMS (Process Information Management Systems) enables timely delivery of quality data for plant- and enterprise-wide monitoring and analysis purposes and ensures process integrity. Results can be sent to PIMS in secure manner, allowing operator to analyze and track data trends.

Hytrol Conveyor Co., Inc.    Jonesboro, AR 72401
Dec 01, 2003 Plastic Belt Conveyor, Model PSB is utilized where conventional fabric type belts will not work. It can be used as transport belt on conveyors with right angle pusher/pull-offs to maintain belt tracking. Conveyor also provides non-marring accumulation and transport in beverage industry.

Garon Products, Inc.    Wall, NJ 07719 1924
Dec 01, 2003 FASTCUREâ„¢ coating systems utilize rapid-cure formula that sets up in temperatures as low as 45°F in as little as 10-12 hr and attains full chemical-resistance in 3 days (min). Impact-resistant, low-odor epoxy systems are VOC and OSHA compliant, USDA authorized, and EPA approved. They provide glossy finish and are packaged in kits that include all necessary components and detailed application instructions.
