Scientifics, A Division of Edmund Scientific    Tonawanda, NY 14150-6711
Dec 09, 2003 Point-and-click, non-contact thermometer measures surface temperatures in a fraction of a second. Temperature range is -5 to +572°F. Thermometer includes 4 cell batteries, strap, and soft storage case.

Bosch Rexroth Corp., Pneumatics Div.    Lexington, KY 40511
Dec 09, 2003 With flat, circular design, RWT index table combines mechanical and pneumatic drives, providing accurate positioning via continuous stepwise rotation. Double-acting, piston-type ratchet and gear mechanism provides accuracy up to ±0.2°, and table has plane-mounting surface with threaded mounting holes. Available in 6 step versions that are also prepared for inductive sensors, series includes 45°, 60°, or 90° index angles with right or left rotation.

Bosch Rexroth Corp., Pneumatics Div.    Lexington, KY 40511
Dec 09, 2003 Employing vane-type principle, RAN Series offers multiple front and side mount options, protective inner surface finish, formed seals, and oil-infused metal bearings. Non-lubricated product is offered in 5 sizes with torques from 0.16–7 Nm and 270° max turning. Available with single and double shafts, RAP Series rack and pinion type employs double-rack operating principle, which achieves backlash-free, non-leak design. It is suited for when 360° swing is required.

Duel Systems    San Jose, CA 95112
Dec 09, 2003 Available in 2 sizes, ExpressCard(TM) 34 is approximately half the size of PCMCIA card, and ExpressCard 54 is slightly smaller than standard card. Each measures 5 mm thick, can be fitted with extended backs, and fits into universal slot with one common connector size. Guidance feature ensures proper insertion. Hot-pluggable device has sonically-welded housing and 26-position beam on blade connector and supports USB 2.0 and PCI Express interfaces.

Accurate Technology Inc.    Shrewsbury, MA 01545

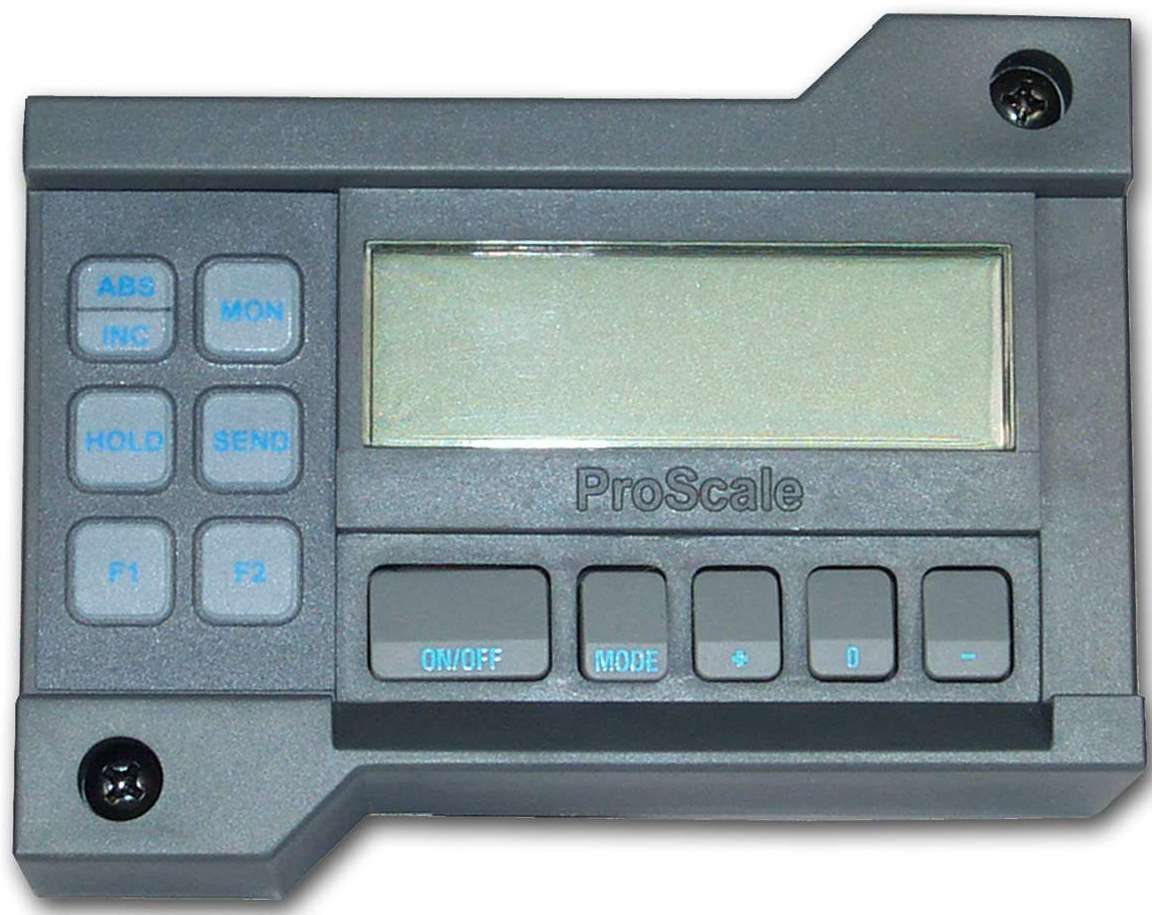

Dec 09, 2003 Dual Input Display shows measurements from 2 ProScale systems, each of which is independently programmable. Functions include A + B, A - B, A x B, Arc Tangent, Arc/Radius, and 2 function keys for custom OEM programming. It is equipped with RS232 and SPC outputs. Operating on 24 Vdc or 2 AA batteries, General Purpose Display offers front panel programmability, 4 independent station settings, monitor/limit mode, and measurement scaling.

Beijer Electronics, Inc.    Schaumburg, IL 60173

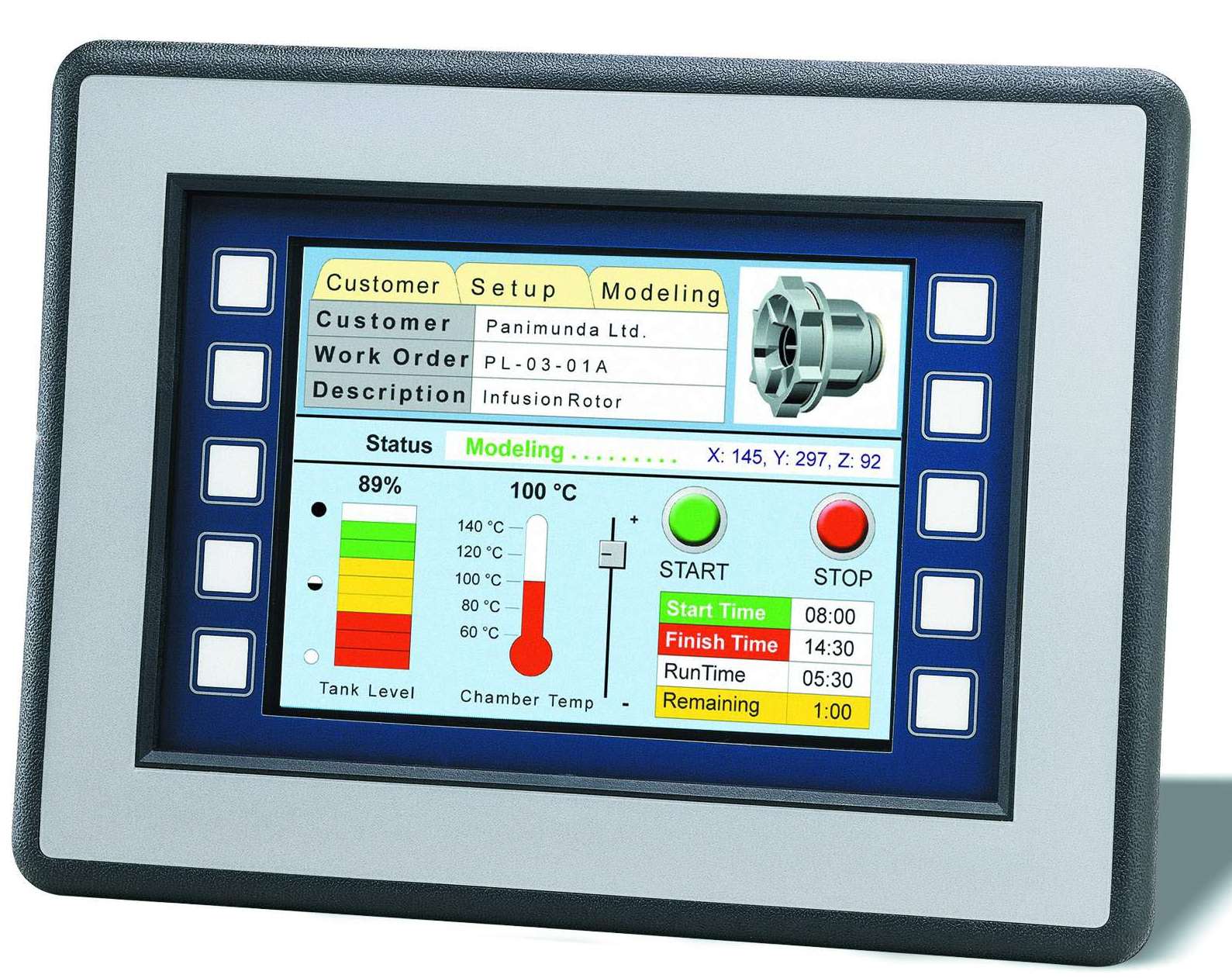

Dec 09, 2003 Model QTERM-G70 is available with IEEE 802.3af, which combines power and data on same CAT5 Ethernet cable. This allows replacement of older proprietary power sources and eliminates need to run 115 Vac power to devices on wired LAN. Ethernet-enabled unit is based on Qlarity(TM) object-based graphic terminal programming language. Features include 320 x 240 LCD display, touch screen with optional PS/2 keyboard connection, and 4 Mbytes Flash/16 Mbytes RAM.

Hoffer Flow Controls, Inc.    Elizabeth City, NC 27909

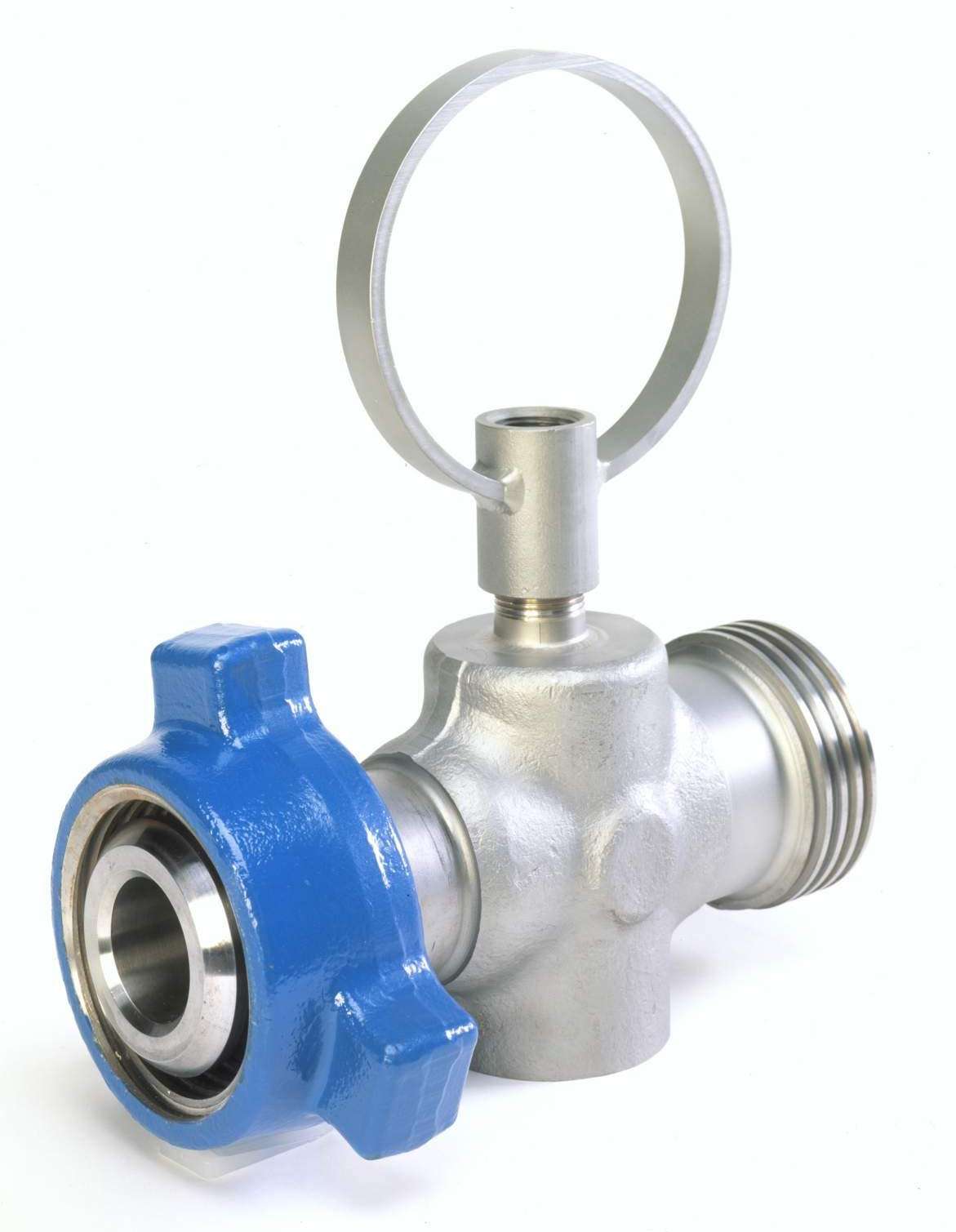

Dec 09, 2003 Wing Nut High Pressure Flowmeters handle pressures up to 15,000 psi and supply accurate flow measurement of ±0.5% for liquids and ±1% for gases. Sizes of 1 and 3 in. are offered with variety of pickup coils. Typical applications include oil well fracturing and mud pump drilling fluid flow measurement. Units handle water, liquid carbon dioxide, cement/sand slurry, and nitrogen gas.

Fuji Electric Corp. Of America    Saddle Brook, NJ 07663
Dec 09, 2003 Model PYL can be configured as high-limit or low-limit controller. It features universal input, timer to clock duration time the set-point has been exceeded, and register to retain max temperature. Two alarm outputs, including retransmission output and communication function, are available as options. Controller comes in 1/16 DIN package with splash-proof and dust-proof front panel and 4-digit LED display.

Saelig Co., Inc.    Pittsford, NY 14534
Dec 09, 2003 Model FT2232C dual-port USB-to-serial/parallel I/O IC is based on USB UART/FIFO FT232BM (USB-serial) and FT245BM (USB-parallel). Each of the dual ports configure independently in several different modes. Full modem hardware and software handshaking is offered in serial mode, with Automatic Transmit Enable control for RS485 applications. FTDI protocol allows galvanically isolated designs to communicate synchronously with FT2232C, using 2 dual optoisolators.

Saelig Co., Inc.    Pittsford, NY 14534
Dec 09, 2003 Model DLP-TH1 digital temperature, humidity, and dew point sensor features temperature range of -40 to 123°C with ±2% accuracy and humidity range of 0-100% RH with ±3% accuracy. It uses fully-calibrated capacitive polymer sensing element for RH and band-gap digital temperature sensor for long-term stability. Calibration coefficients are stored in digital memory within module. Windows software lets user chart results to PC screen and log data to hard drive.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Dec 09, 2003 Available with ratings of 30 A at 277 Vac and 2 hp at 250 Vac, Series WJ115F3 comes in panel mountable package and includes quick connect terminals. Contact configurations include 1A, 1B, and 1C. UL recognized unit offers choice of AgCdO or AgSnO₂ contacts for high inrush loads, and is available with standard epoxy sealing for wave soldering.

Birchwood Casey    Eden Prairie, MN 55344 2138

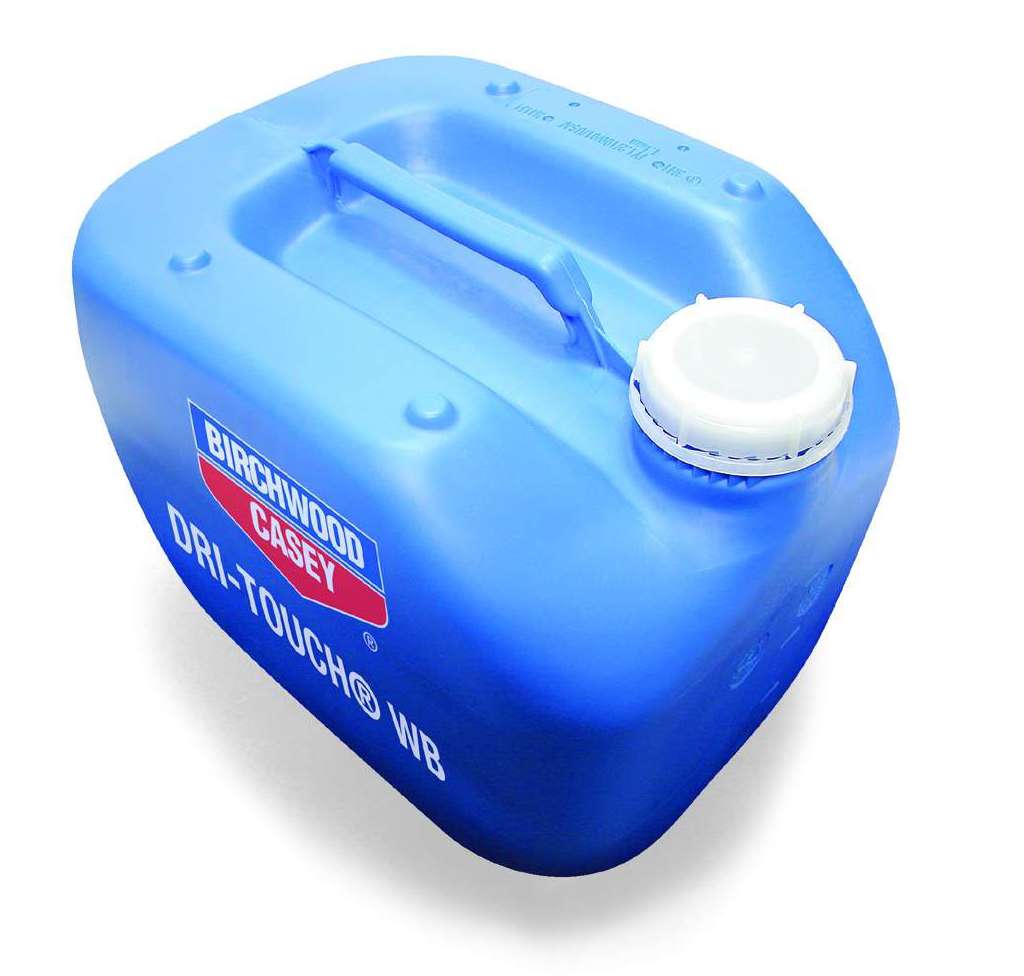

Dec 09, 2003 Water-based Dri Touch® WB provides corrosion protection in manufacturing cells without contaminating metalworking fluids with solvents or other polluting oils. Odorless liquid mixes with water, forming effective rust preventive barrier on metal parts after machining. It dries quickly to colorless film, sealing out corrosion with no oil or VOC content. Solution can be applied to parts by dipping or spraying.

Gage Applied Technologies, Inc    Lachine, QC H8T 3H7  Canada

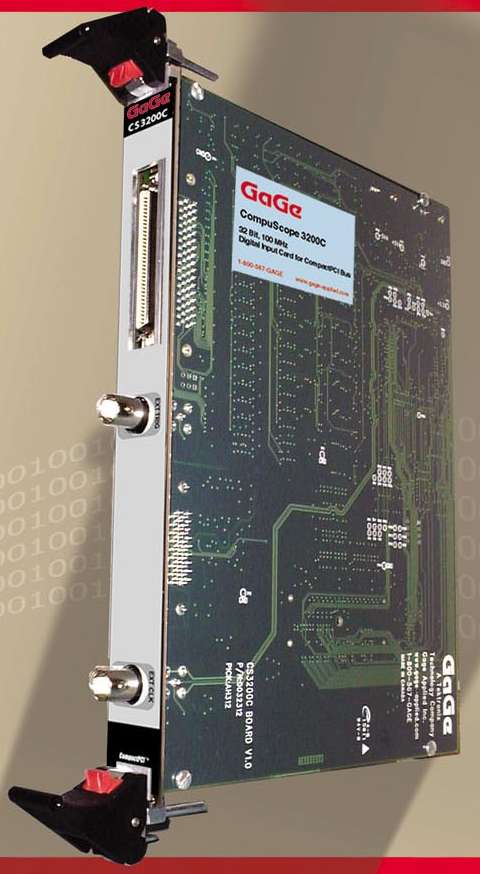

Dec 09, 2003 Occupying one slot of 6U CompactPCI/PXI format, CompuScope 3200C enables logic analyzer functionalities, mixed-mode test and measurements, as well as impulse-response testing applications. Users choose between single-ended or differential ECL signaling, and modular logic analyzer enables users to add analysis routines. Features include 100 MHz digital capture for 32 bits wide words, total memory of 2 MB, and External Clock and External Trigger capabilities.

Tamron USA Inc.    Commack, NY 11725

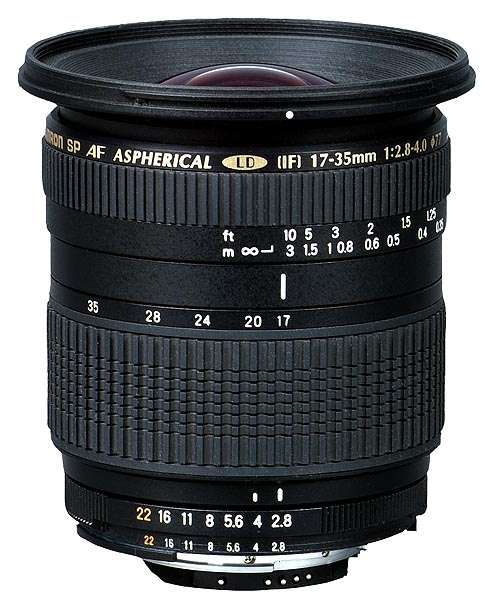

Dec 09, 2003 Model A05 SP AF17-35mm F/2.8-4 Di LD Aspherical Lens covers focal length of 17–35 mm. With maximum magnification ratio of 1:5.4 at 35 mm setting, at 30 cm minimum object distance, ultra wide-angle zoom enables dramatic close-up shots. Maximum open aperture of F/2.8 at 17 mm setting allows shooting in dimly-lit conditions and helps prevent camera-shake. Image distortion and spherical aberrations are corrected and eliminated through large compound aspherical elements.

RIDGID    Elyria, OH 44035

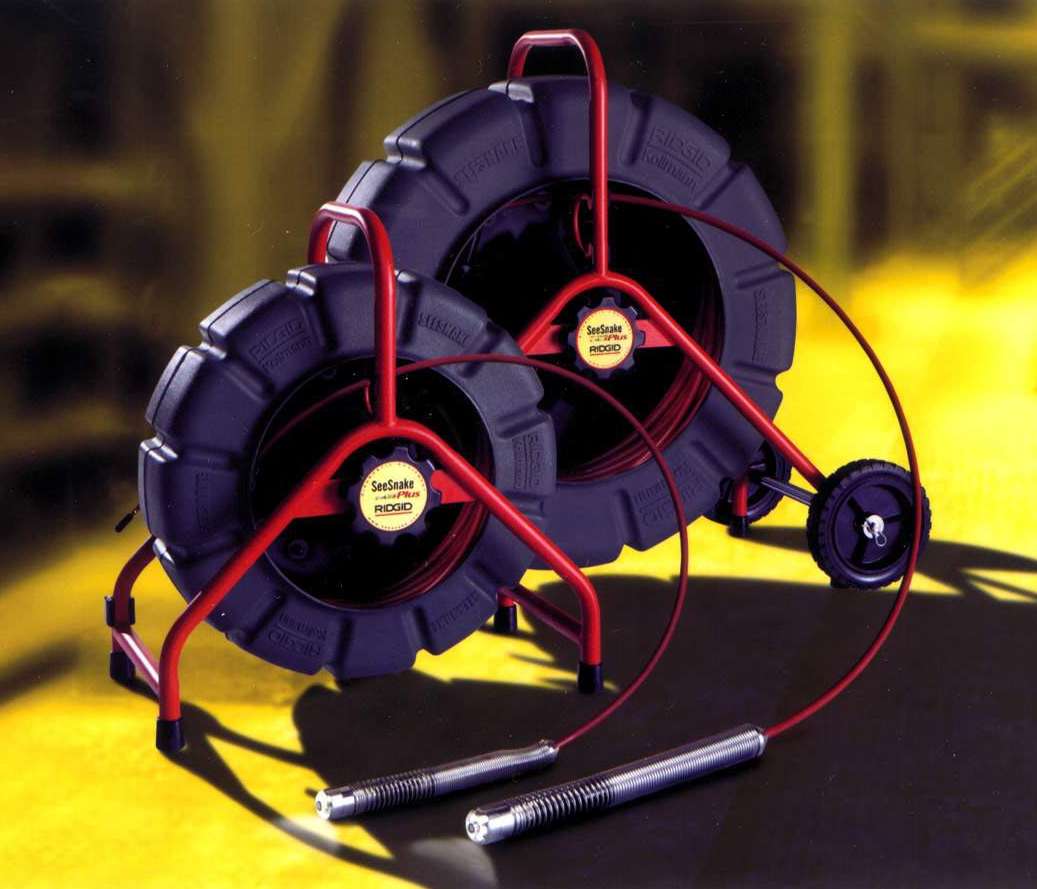

Dec 09, 2003 Made of 100% stainless steel, waterproof SeeSnake(TM) Plus features thick light shield for wear resistance. Push-rod assembly moves camera through multiple 90° bends, in ¼ to 8 in. lines and in 2-12 in. lines, depending on model. Factory-installed 512 Hz transmitter makes unit compatible with NaviTrack(TM) line locator, making it easier to locate in underground pipe. Video monitor shows blockage, while in-line transmitter pinpoints location of problem.

Tamron USA Inc.    Commack, NY 11725

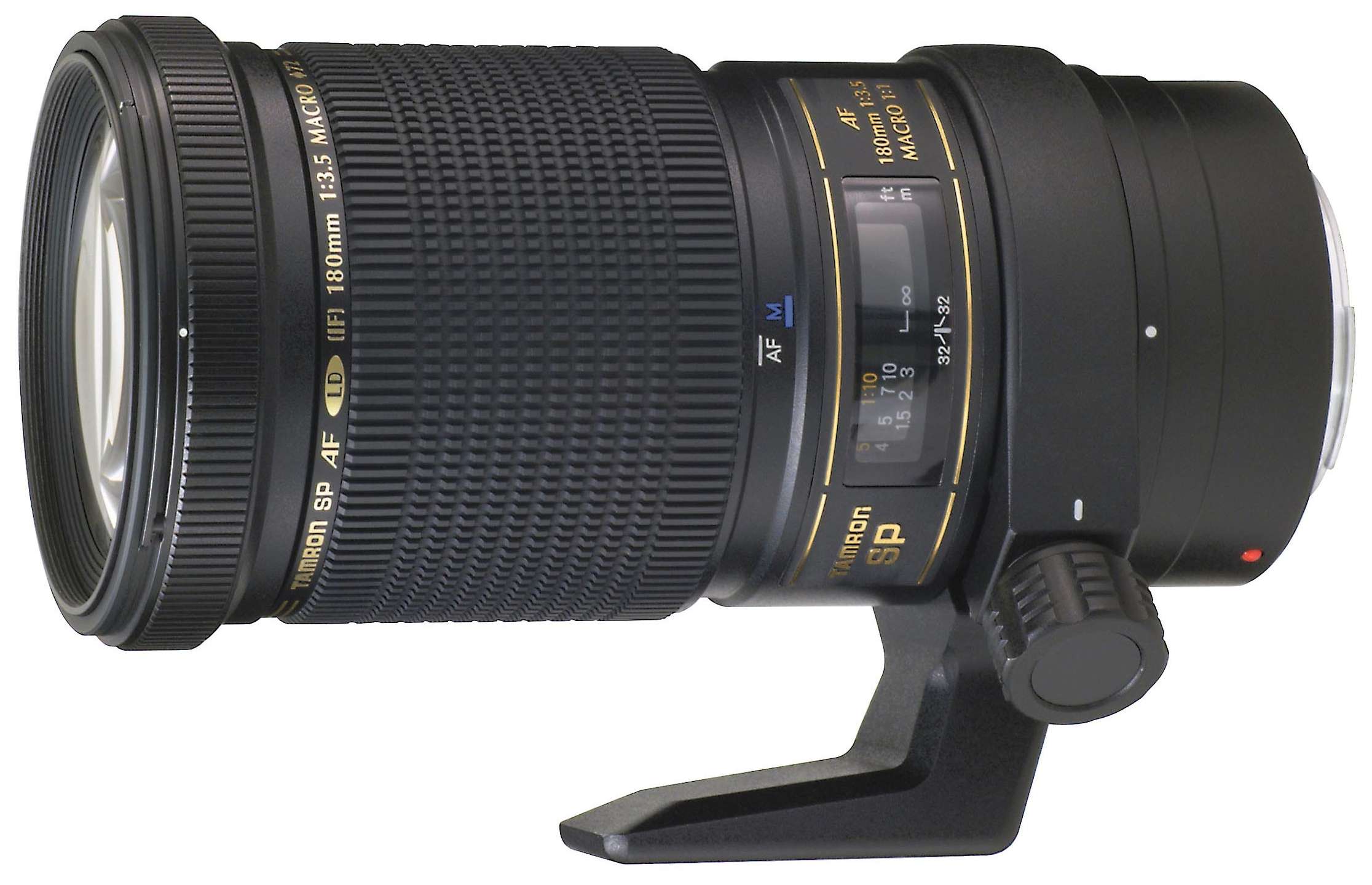

Dec 09, 2003 With respective min and max apertures of f/32 and f/3.5, SP AF180mm F/3.5 Di LD [IF] MACRO 1:1 (Model B01) features floating internal focus, which enables constant lens length. With min object distance of 18.1 in., 1:1 macro shooting can be carried out at working distance of 9.4 in. from front of lens. Additional features include 2 low dispersion lens elements, 7-blade diaphragm, rotation of polarizing filters, and focus ring switching feature.

United Receptacle, Inc.    Pottsville, PA 17901-0870

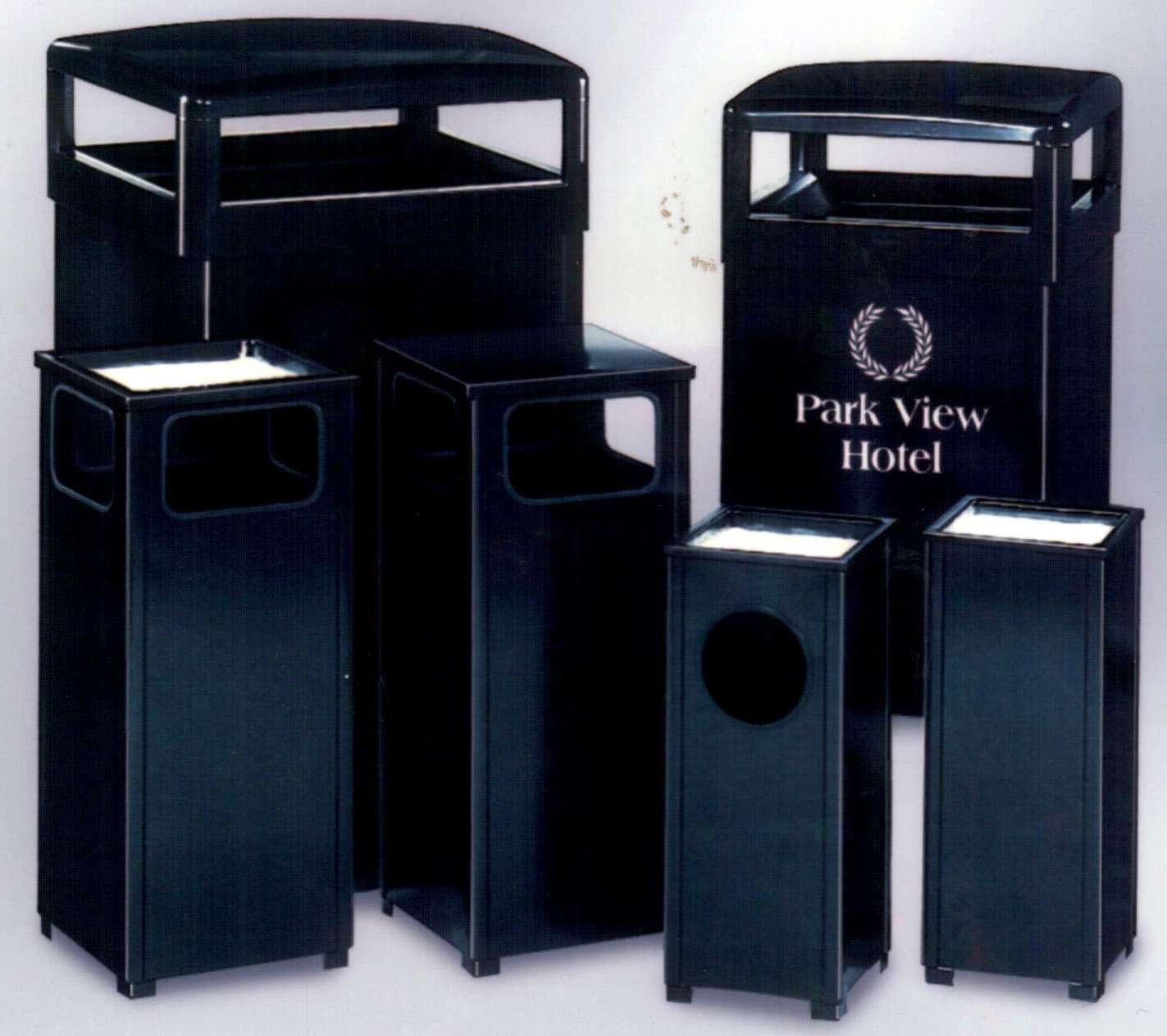

Dec 09, 2003 Howard Products low-maintenance receptacles, available with Black Uni-Koat powder coated finish, are designed for indoor and outdoor use. Able to withstand hard, constant use and endure harsh weather conditions, fire-safe receptacles are constructed from heavy gauge steel, and Uni-Koat powder coated finish is UV stabilized to resist fading. Sizes range from 2½-48 gal. Large capacity street models feature hinged tops and 5 in. high disposal opening.

PRO Design Solutions, LLC    Parrish, FL 34219

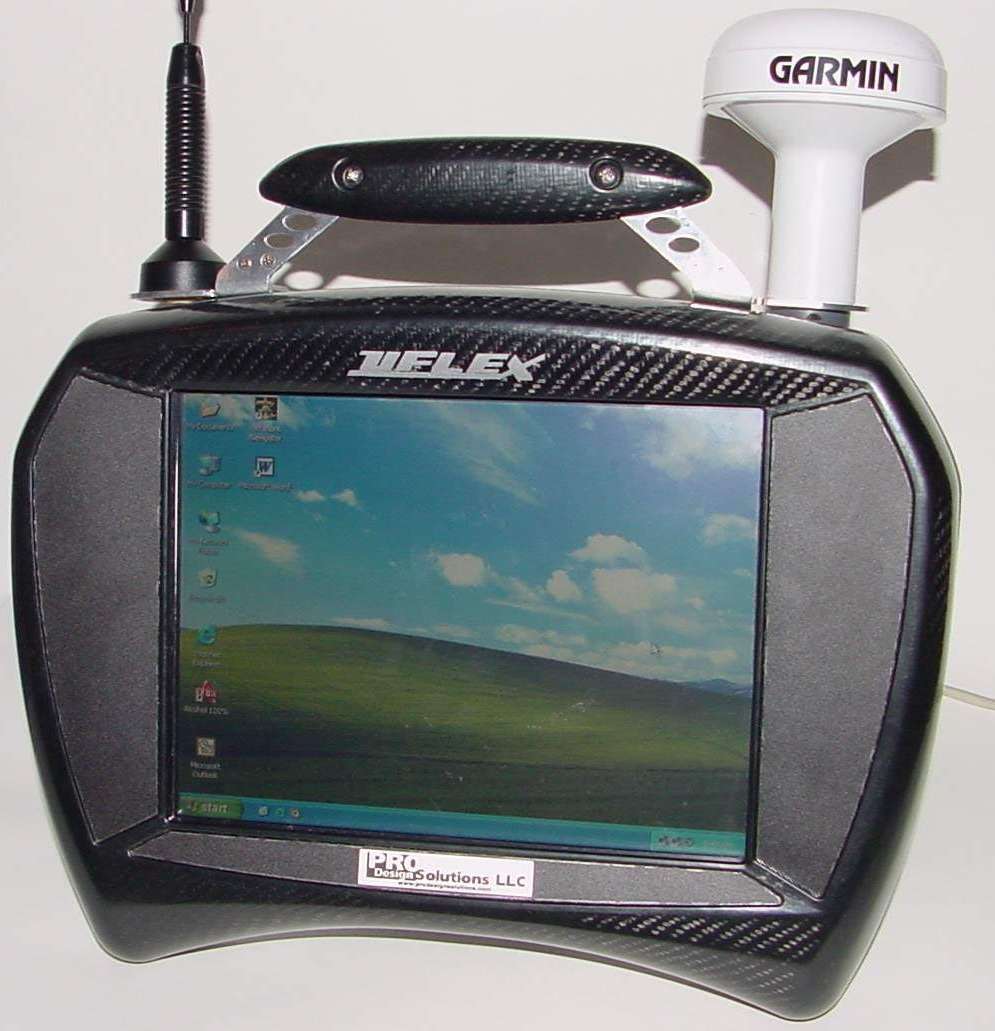

Dec 09, 2003 Capable of withstanding up to 300 Gs and submersible 10-30 ft, CARBONTEK(TM) 104 handheld, fixed- or flush-mounted, carbon fiber computer includes modular processor system with options from Pentium I to 2.4 GHz Pentium 4. Standard version includes MS Windows 2000/XP Pro/XP Embedded and 40 GB spinning hard drive. System can be networked wirelessly or via tethered LAN and includes 10.4 in., sunlight-readable display with resistive touch screen.

Sprinter Marking, Inc.    Zanesville, OH 43701 4604
Dec 09, 2003 Sprinter Benchmount incorporates standard Sprinter Model 88 mounted in inverted position. Code marks such date codes, product codes, shift codes, and lot numbers can be applied to variety of products. Model 88 applies up to 3 lines of type, each 1 in. wide. Individual rubber dies with alpha/numeric characters or molded messages can be employed to provide desired text. Portable system requires only compressed air for operation.

Fisnar Inc.    Wayne, NJ 07470

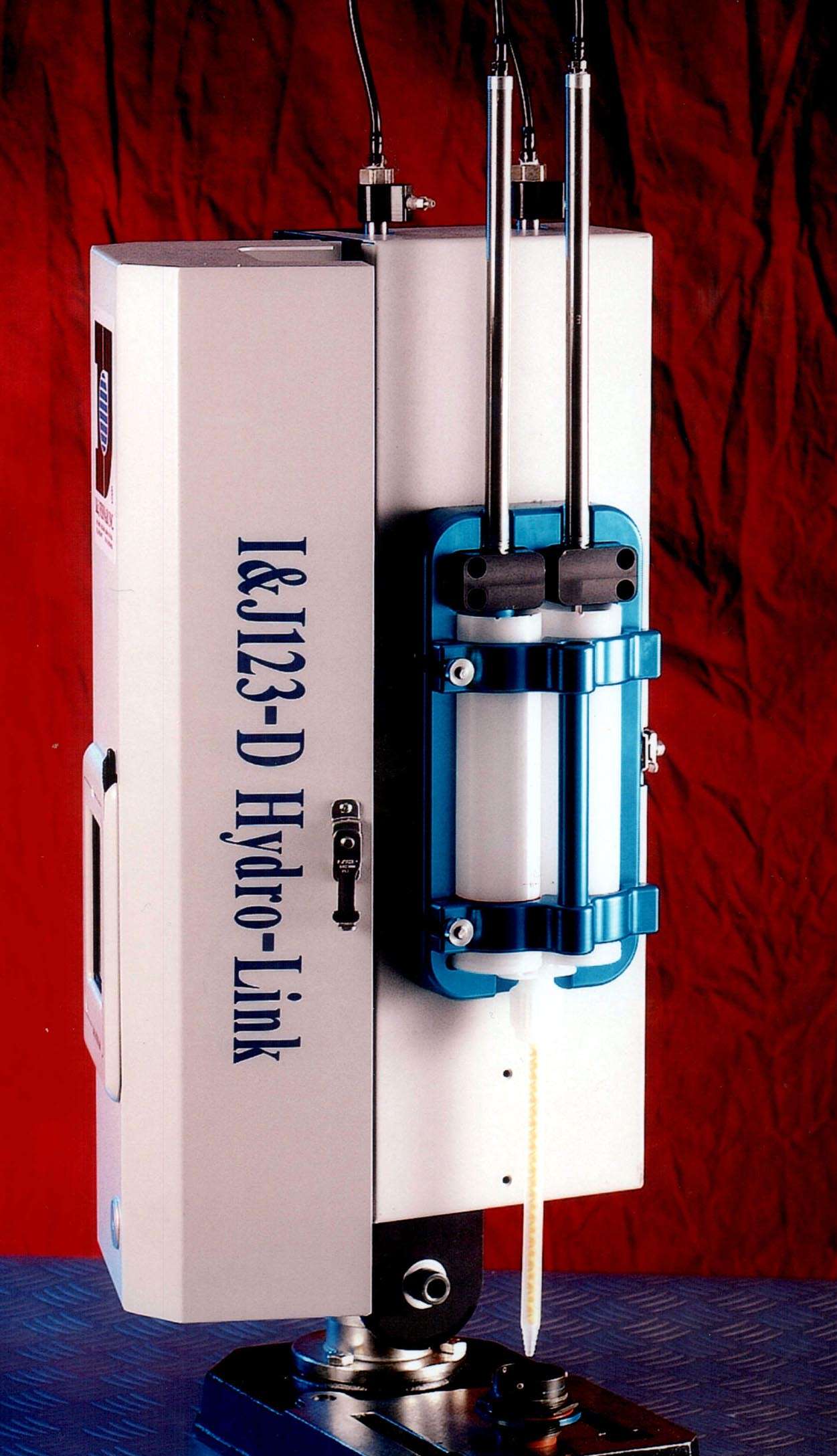

Dec 09, 2003 Model I&J123-DMIX mechanical dispense system dispenses 200, 400, and 600 ml cartridges with ratios of 1:1, 2:1, and 10:1. Any ratio can be programmed into 1:1 twin-pack or two 6 oz SEMCO® type cartridges. System incorporates 2 on-board computers driving 2 independent stepping motor rams that attach to barrier pistons in cartridge and are able to grip and pull back to prevent drooling of material. Two 200 lb drives supply power to move high viscosity materials.
