Proton Energy Systems, Inc.    Rocky Hill, CT 06067
Dec 08, 2003 HOGEN H Series hydrogen generator produces safe, pure, reliable hydrogen 24/7 at output rates from 80–240 ft³/hr. Suited for use in power generation, semiconductor, electronics, and heat-treating fields, it can incorporate additional cell stack modules to increase hydrogen output without increasing the unit's compact footprint.

ERNI Electronics, Inc.    Midlothian, VA 23112
Dec 08, 2003 Pressfit versions with lead-free surface are intended for applications where automated SMT assembly is not possible, subsequent placement of connector is required, or connectors are pre-mounted in housing and board is pressed in. Insertion forces are absorbed by form-fitting contacts in insulating body made of high-temperature resistant thermoplastics, and bolt anchoring ensures stability. They are available with 9, 15, 25, and 37 pins in 7.3 and 3.6 mm mounting heights.

SI Systems    Easton, PA 18040
Dec 08, 2003 SI Auto-Height Cart adds onboard intelligence and automated ergonomic-adjustment capabilities to LO-TOW® in-floor towline cart. RF communication with PLC controller is incorporated to facilitate assembly workflow and adjust work to proper ergonomic settings. RF transmitter reads worker's ID and adjusts incoming cart to required height and work position.

HSI Sensing, Inc.    Chickasha, OK 73023
Dec 05, 2003 With built-in relay contacts, PRX+4000 sensors respond to proximity of ferrous material and report relative position of elements that require continuous monitoring. No power is required for sensors to operate and no physical contact is required for activation. Features include SPST Form A contact arrangement, switching ratings of 120 V, and operating distances of 0.250-0.400 in. Construction resists contaminants, moisture, and vibration.

Richco, Inc.    Chicago, IL 60680

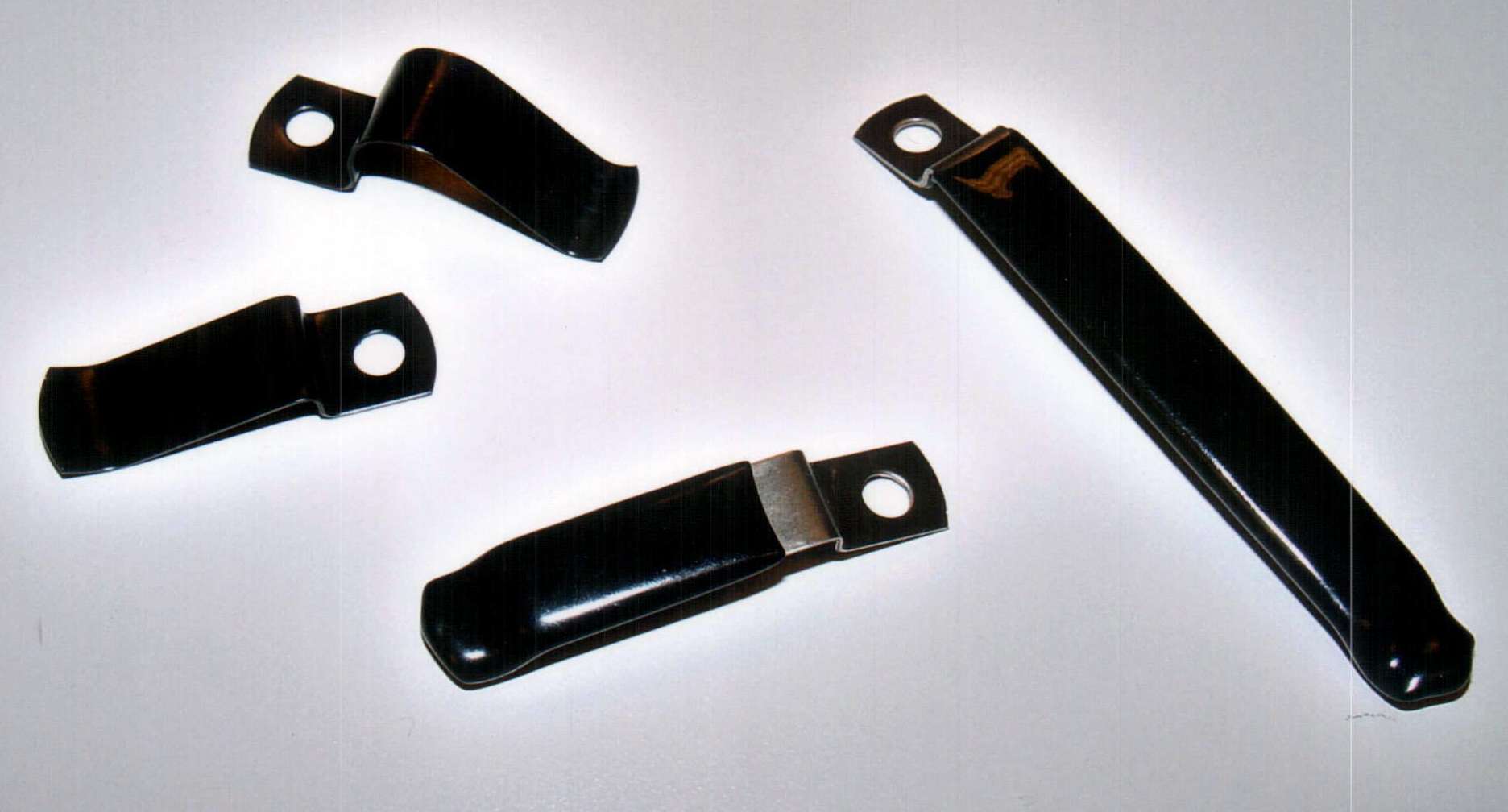

Dec 05, 2003 Series STC and STCV steel tension clips are suited for routing round and flat wires and cables. Clamps offer optional vinyl coating and are resistant to abrasion, radiation, weathering, corrosion, and temperature extremes. Clamps are installed with #6 screw or rivet. Clamps also hold flat item such as signs.

Proper Storage Systems, Inc.    Seguin, TX 78155

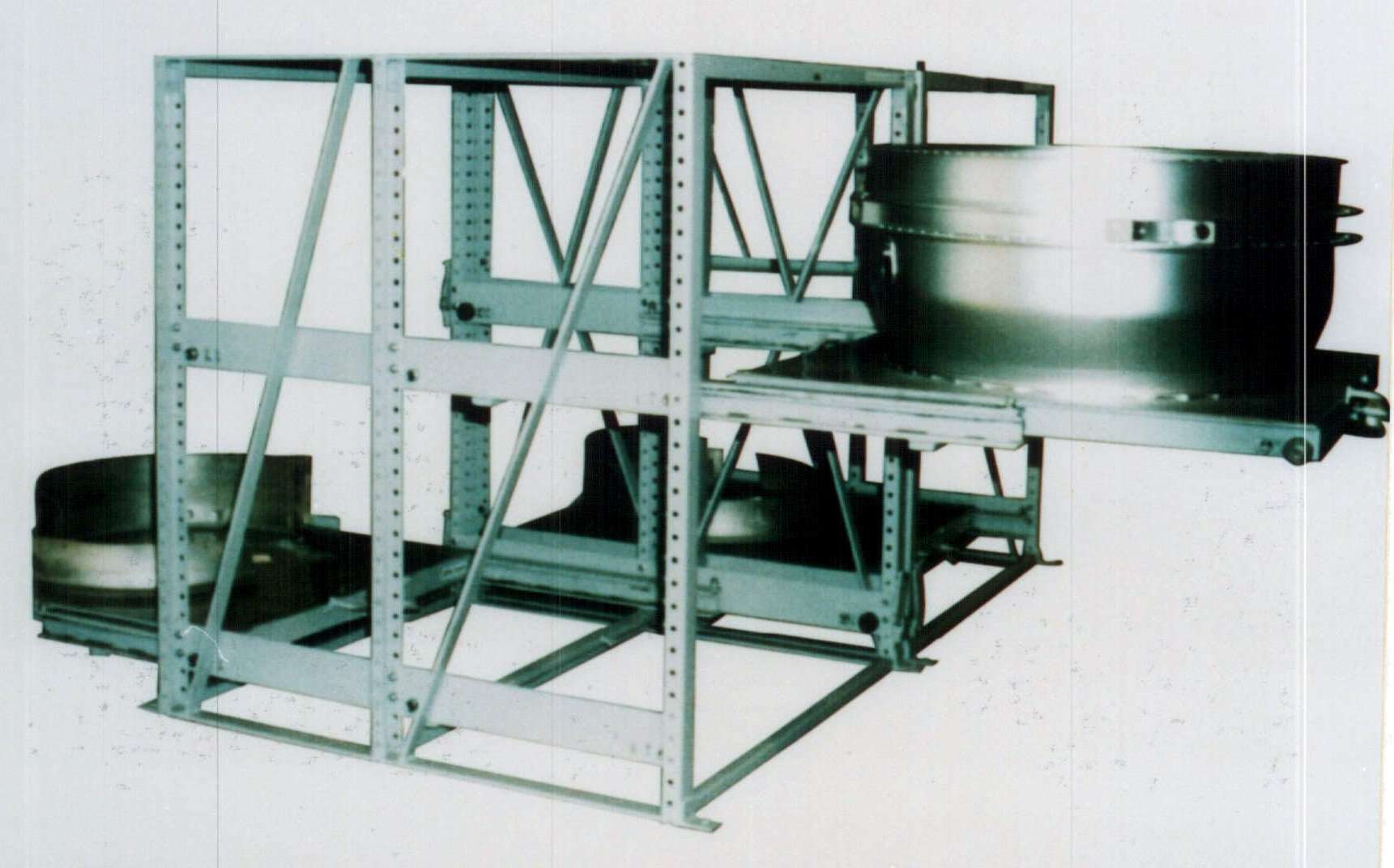

Dec 05, 2003 Pass-thru units are suited for cell areas between crane bays or between machines. Each shelf has full extension in both directions for easy accessibility from either side. Shelf sizes are up to 120 in. long and up to 60 in. deep, with capacities from 200–2,000 lb per shelf.

Jerguson Gage & Valve, A Div. Of The Clark-Reliance Corp.    Strongsville, OH 44136
Dec 05, 2003 Mini-Magnicatorâ„¢ suits light-duty applications and features 316SS flags, each with ceramic magnet. It allows clear visual indication from extended viewing distance and does not allow glass to come in contact with process fluid. Gauge has operating pressure of 400 psi and operating temperature of 500°F. Styles include side flanged, side threaded, side socket weld, end flanged, end/side flanged, end flanged/side threaded, and end flanged/side socket weld.

Fairchild Semiconductor    South Portland, ME 04106

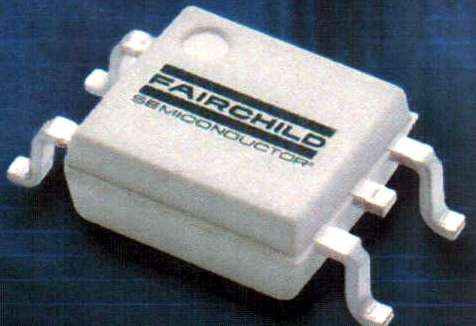

Dec 05, 2003 Offered in 4-pin, mini-flat packages (MFP), random-phase optocouplers consist of IR LED, optically coupled to silicon bilateral switch. They allow power triac to be triggered at any point on ac voltage waveform and offer peak blocking voltages of 250, 400, and 600 V. Available with trigger current options of 5, 10, and 15 mA, units have steady-state isolation voltage of 3,750 Vrms; full pitch, 2.54 mm lead spacing; and 2.4 mm max standoff height.

Motorola, Inc.    Schaumburg, IL 60196 4041
Dec 05, 2003 Advisor II one-way pager provides 80 character display per line, and can zoom in on 2 lines for larger view. Unit is synthesized, enabling user to program specific frequency in the field. It includes Optimax® EL Electra Light for readability, as well as personal and mail drop notebook areas. Available in UHF or VHF models, pager displays data and time of day and has 52 messages slots for storing multiple pages.

Printek, Inc.    Benton Harbor, MI 49022
Dec 05, 2003 Built with protective thermoelastic overmold, Mt2 Series 2 in. thermal receipt printer weighs 16 oz and meets demands of mobile printing applications. Clamshell print-head facilitates paper loading, and optional Bluetooth wireless connectivity option allows for natural operation. It also offers RS-232 serial interface and IrDA with optical communication. Unit is suited for use with most portable computing platforms and form factors.

Canon U.S.A. Inc.    Lake Success, NY 11042-1113
Dec 05, 2003 Made of porous carbon material, AB Series minimizes air flow and friction and is suited for head testing and media certification applications. Model AB-36RV has axial load of 4.2–5.0 Kgf, radial load from 3.8–5.0 Kgf, and radial and axial stiffness of 2.5 Kgf and 2.8 Kgf/µm respectively. Model AB-50RV model features axial load from 7.2–9.0 Kfg, radial load from 5.0–6.3 Kgf, and radial and axial stiffness of 2.5 and 3.6 Kgf/µm respectively.

Bimba Manufacturing Co.    Monee, IL 60449 0068
Dec 05, 2003 Model NPA, Narrow Profile Air Table, incorporates recirculating ball rail mounted above cylinder bore to provide precise load guiding. Available in 12, 20, and 32 mm bore sizes, it features anodized-aluminum external components, stroke lengths to 120 mm, and 2 bearing options. Standard model includes single-bearing block carrier. Second block is available for higher loads and reduced endplay.

Control Company    Friendswood, TX 77546
Dec 05, 2003 Traceable® Flip-Stick Thermometer incorporates stainless-steel probe that may be positioned at any angle. Fold-up protected probe permits carrying on wrist strap or in pocket. With ¾ in. high display, unit is shockproof in drop tests up to 5 ft and includes °F/°C switch, min and max memory readings over any time period, and HOLD switch. Range covers 99% of routine temperature measurements from -58 to +572°F. Reading is updated every second.

Minarik Corp.    Glendale, CA 91201 2011
Dec 05, 2003 Mounted on unanodized chassis, EC2 series SCR drive provides features for driving 90 Vdc brush motors up to 5 A with 115 Vac power supply. Start-stop control is available through inhibit terminals, and set-up is accomplished using on-board trimmer pots to adjust for min speed, max speed, IR compensation, current limit, and acceleration/deceleration. Applications include conveying, material handling, and packaging, sorting, and printing machinery.

Autonics USA, Inc.    Vernon Hills, IL 60061
Dec 05, 2003 CT series counter/timer combines functionality of both counter and timer. As counter, it features high-speed input of up to 10K cps, input scaling, and single or dual presets. As timer, it is classified as multi-mode and multi-range. Unit is available in 48 x 48 and 74 x 72 mm packages with 4- and 6-digit dual displays.

Carlo Gavazzi Electronic Packaging    Brockton, MA 02301-5548
Dec 05, 2003 Series RJ Solitrons can replace electromechanical contactors in high switching frequency applications. They may be snapped onto DIN-rail or mounted to back chassis. Units include LED indication of control input and over-voltage protection. Installation is via self-lifting connection clamps and 2 terminal layouts. Relays are offered in Mini style for switching up to 30 A at 600 Vac, Midi for switching 75 A, and Power for switching up to 90 A at 600 Vac.

Minarik Corp.    Glendale, CA 91201 2011
Dec 05, 2003 Series DC500 PWM Drive includes runaway and rollaway protection, battery under-voltage control, and protection from overheating. Programmable safety parameters are set via any terminal program on Windows-based PC. Temperature sensor on heatsink triggers warning signal with field current boosting and armature cutbacks at 60°C to keep drive below shutdown temperature of 85°C. Applications include golf carts, electric utility vehicles, carts, and bikes.

MidTel Technologies    Arlington Heights, IL 60004
Dec 05, 2003 Model MPT-500 Crimp Terminal Pull Tester certifies quality of crimp-on solderless lug, ring, funnel barrel, tongue, and spade terminals to wire. Hand-held ratchet-action tester exerts up to 200 lb of force to make destructive pull type force measurements. Digital display shows exact fail force in ½ in. high digits, tests are N.I.S.T. traceable, and accuracy is ±0.5% of reading plus least significant digit. Unit measures 2 x 9.5 x 6.25 in. and weighs 2.5 lb.

Logic Beach, Inc.    La Mesa, CA 91942
Dec 05, 2003 Model HLP-10 HyperLoggerâ„¢ PowerPlusâ„¢ Data Logging System monitors and records air-compressor power data combined with pressure, mass air flow, and other compressor operating parameters. Power Sensing Harness transmits data via low-power isolated serial link, allowing HLP-10 to be located at safe distance from high-voltage connections. Self-contained system simplifies calculation of compressor efficiency by analyzing power consumption along with compressor output.

Kaeser Compressors, Inc.    Fredericksburg, VA 22404
Dec 05, 2003 Omega G Series Rotary Blower features double piston ring and hardened-steel gas and oil seals. Input shaft has double lip type seals with oil barrier to prevent air ingress and fugitive emissions. Mounted and piped reservoir provides visual indication of seal failure. Seal vents may be purged or piped back to suction. Blower is available with flows to 5,400 icfm at pressures to 15 psid, and vacuum to 15 in. Hg.
