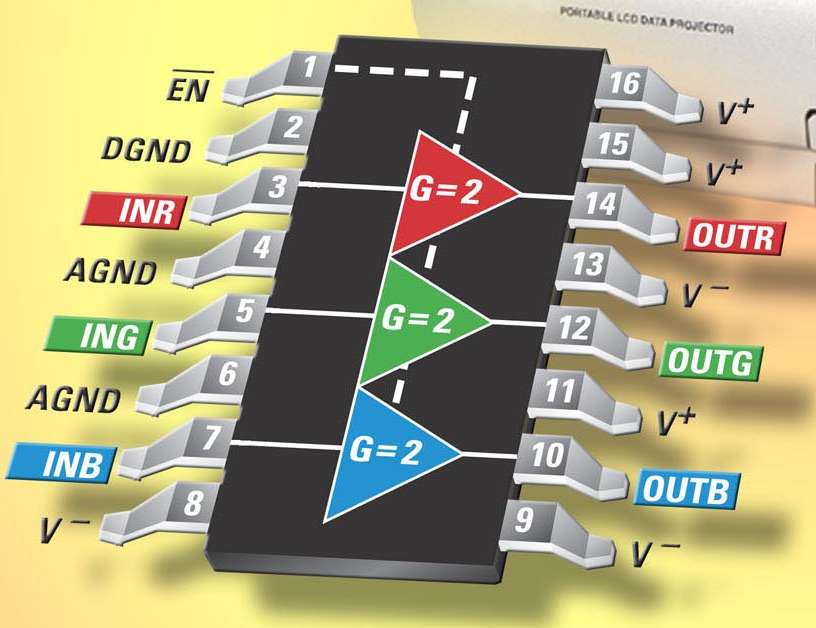

Linear Technology Corp.    Milpitas, CA 95035
Jan 28, 2004 Model LT6553 eliminates need for external gain setting resistors. It features -3 dB bandwidth of 650 MHz, slew rate of 2,500 V/µs, and 6 ns settling time, resulting in sharp video images. Differential phase of 0.01° along with differential gain of 0.01% provide linearity, maintaining signal integrity. Model LT6553 is suited for SXGA and UXGA LCD projectors and monitors, scanners, automotive display systems, digital cameras, and CCD imaging systems.

SKF Magnetic Actuators    Olney, IL 62450
Jan 28, 2004 RUNNER Linear Actuators provide high push/pull force with capability to lift loads up to 12 kN. Speeds at full load range from 4.5-7.5 mm/sec, and stroke lengths range from 100-700 mm. Systems incorporate first failure safe control unit for operation of up to 3 actuators. Standard models include safety nut, limit switches, and Jack-plug as added safeguards. With safety factor of 4 for stroke length up to 250 mm, RUNNER actuators are suited for medical settings.

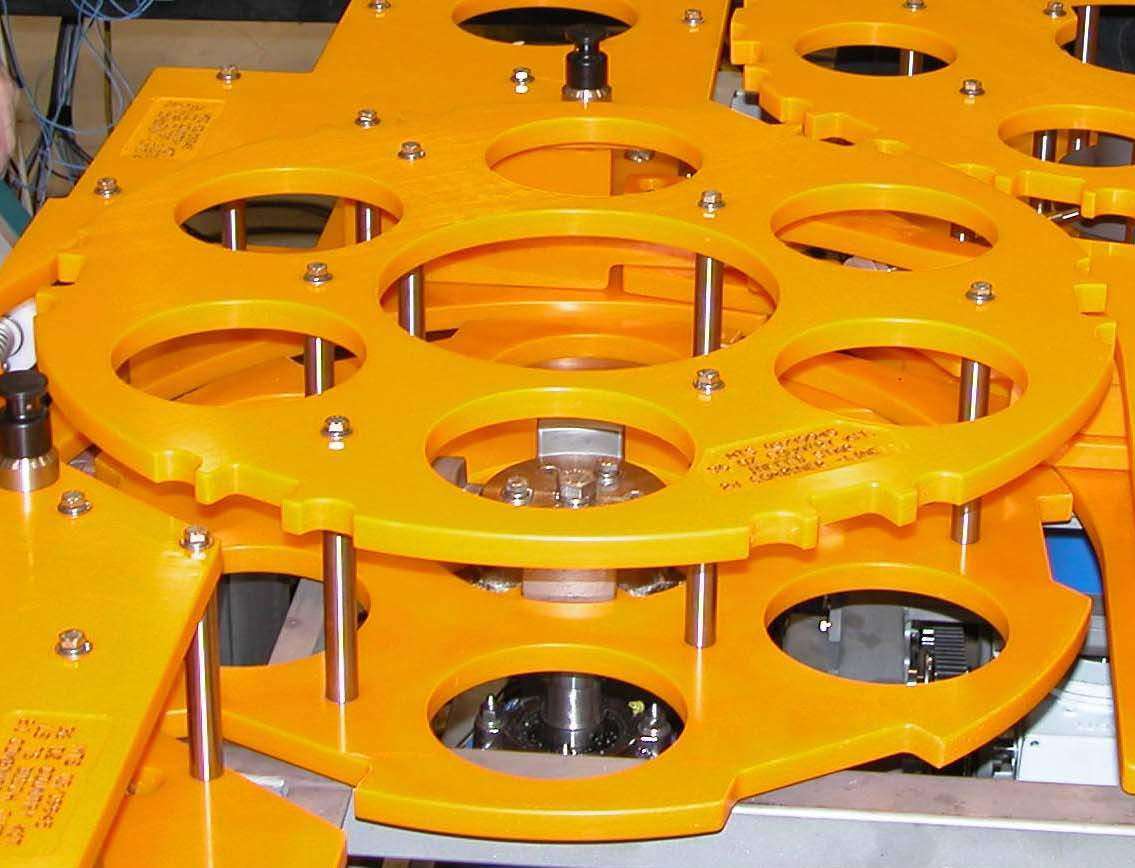

Morrison Timing Screw Co.    Gleenwood, IL 60425
Jan 28, 2004 Quick Change Dual Acceptance Starwheel can receive center neck containers with handles pointed in any direction and smoothly transfer them to next production line function. Design helps prevent jams and enables customers to fulfill various line functions before sending containers through orienter. Unit is part of Quick Change set, and can be formulated for new or retro-fit machines.

Adhesives Research, Inc.    Glen Rock, PA 17327
Jan 28, 2004 ARclean® 90178 and 90176 are 0.0035 and 0.005 in. thick non-corrosive tapes that provide perimeter spacer bonding in resistive touch screen and other similar electronic devices. They utilize electronically-clean, acrylic acid-free adhesive, and have low outgassing of VOCs. Tapes offer resistance to aging with ability to withstand temperature and humidity extremes. Both have polyester film carrier as dielectric barrier between bonded conductive surfaces.

Artesyn Communication Products Inc.    Madison, WI 53717
Jan 28, 2004 Optimized for distributed multiprocessing, PmPPC2750 Processor PMC card enables telecom OEMs to add processing power to systems equipped with PMC expansion sites. It features two 800 MHz IBM PowerPC PPC750FX processors, each with 512 kbytes of L2 cache; Marvell Discovery GT-64260B PCI bridge with 133 MHz Processor Bus; and up to 512 MBytes of shared SDRAM. Unit also provides two 10/100 BaseT Ethernet ports, 2 serial ports, 8-channel DMA controller, and I²C bus controller.

Greenheck Fan Corp.    Schofield, WI 54476 0410
Jan 28, 2004 Inline, centrifugal Model TCB is available with UL 762 listing for grease exhaust in restaurant applications. It features welded steel housing with formed inlet and outlet flanges, grease-tight silicone gaskets, and internal labyrinth seal that keeps contaminated air out of gasketed bearing chamber. Easy Access Panel allows cleaning of housing interior and wheel. Model TCB meets NFPA 96 Ventilation Control and Fire Protection of Commercial Cooking Operations.

E-T-A Circuit Breakers    Mount Prospect, IL 60056 6060
Jan 28, 2004 Model 5140 is suited for 400 Hz, 3-pole applications from 20-50 A. It is temperature compensated, providing consistent trip curve characteristics from -55 to +90°C. Typical life is 5,000 mechanical cycles and 2,500 inductive cycles. Circuit breaker meets requirements of commercial and military aircraft applications, as well as rugged ground vehicles and boats.

Crescent/Stonco    Union, NJ 07083
Jan 28, 2004 Wall-mounted Series 600 offers full cut-off optics compliant with Dark Sky ordinances. Units feature cast aluminum architectural shape, large shade that conceals light source, and computer-designed specular metal reflector. Illumination is provided by single metal halide, Pulse-Start metal halide, high-pressure sodium, or compact fluorescent sources, in range of voltages and wattages. Luminaires are suited for site, perimeter, security, and accent lighting.

Creative Manager, Inc.    Lakewood, NJ 08701
Jan 28, 2004 Creative Manager Pro v6 supports calendar and contact sharing using Outlook on Windows, and iCal and AddressBook on Apple's Mac OS X Panther. Intuitive, web-based system streamlines entire firm, from developing new business, to staffing, managing, and executing projects through to accounting and financial reporting. It is suited for design firms, ad agencies, in-house creative departments, and creative service firms.

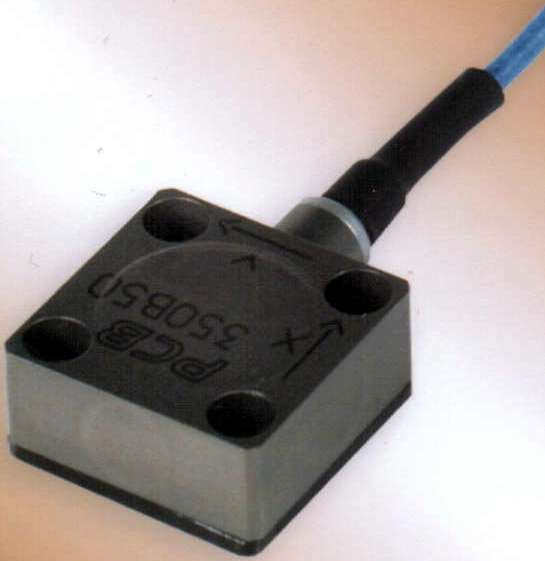

PCB Piezotronics Inc.    Depew, NY 14043 2495
Jan 27, 2004 Model 350B50 ICP® accelerometer combines three 10,000 g sensing elements in one housing and features built-in, second order, low pass filter between sensor element and amplifier. Sensor contains built-in signal conditioning circuitry that can be powered by 2–20 mA constant current, regulated DC voltage of 18–20 VDS. Sensor is suited for high amplitude random vibration testing, qualification of aerospace components, and shock measurements.

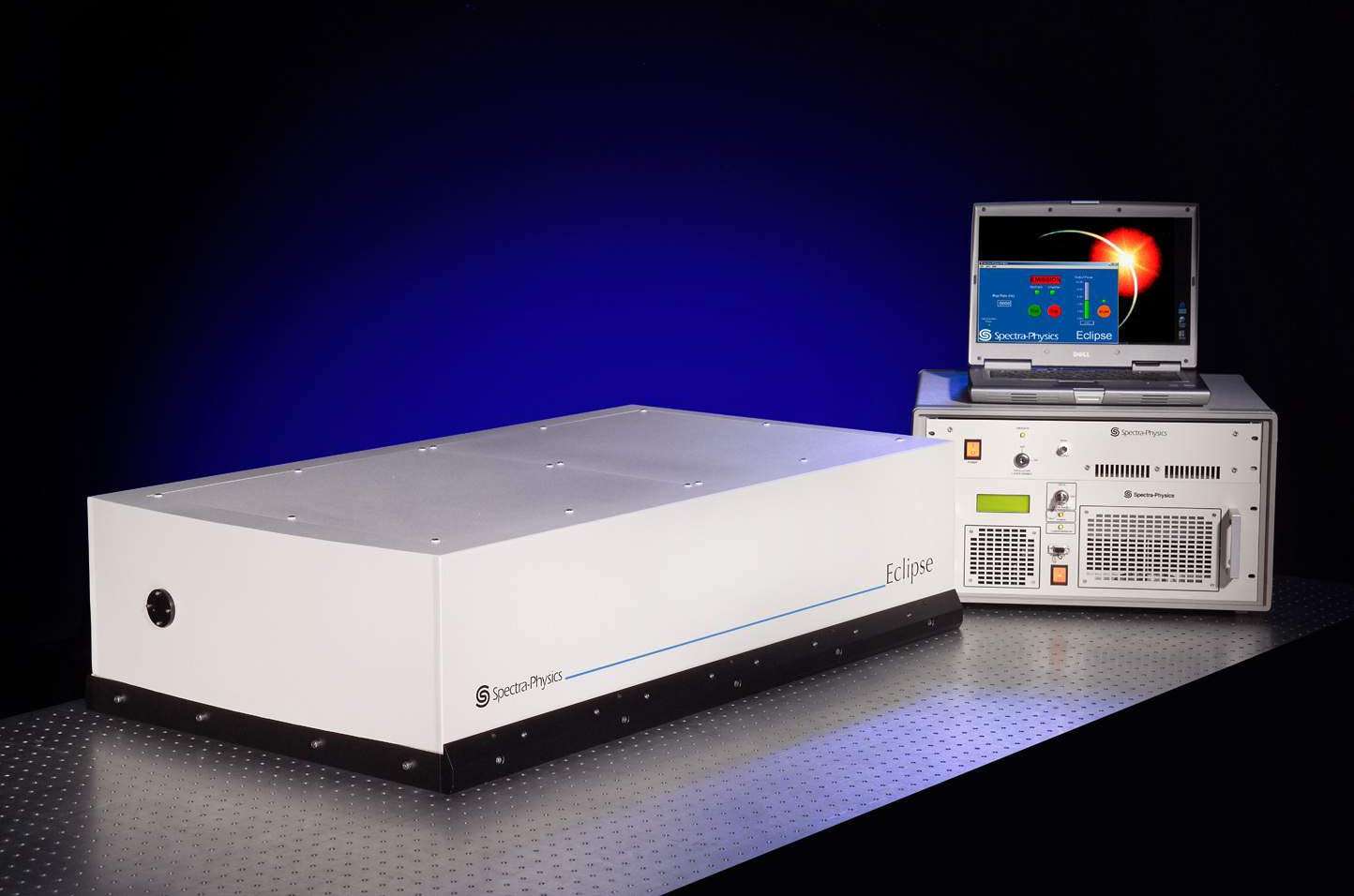

Spectra-Physics, Inc.    Mountain View, CA 94043
Jan 27, 2004 Based on Ytterbium tungstate, Eclipseâ„¢ femtosecond amplified laser operates at pulse repetition rates up to 7 kHz and generates pulse widths of less than 500 femtoseconds. Equipped with optional frequency doubler module, Eclipse delivers output power up to 1.5 W at 524 nm. Laser head utilizes modular design in single compact housing, including directly diode-pumped, monolithic low power seed oscillator and regenerative amplifier.

Linear Technology Corp.    Milpitas, CA 95035
Jan 27, 2004 Dual micropower Model LT3463 features internal 250 mA, ±42 V switches that deliver 40 and -40 V output from input voltage of 2.3-15 V. Burst Mode® Operation enables ultra-low supply current of 40 mA for both channels, while shutdown current is less than 1 mA. Low off-time of 300 ns permits use of tiny inductors and capacitors. Converter is suited for biasing TFT LCDs as well as digital camera CCDs from inputs ranging from Li-Ion to multiple cell alkaline/NiMH batteries.

Watlow Gordon    Richmond, IL 60071
Jan 27, 2004 Microprocessor-based Series CV provides basic on/off control. Operator interface allows user to view or adjust application's desired set point temperature value while controller is operating in normal steady state. Operators depress Push-to-Set key while rotating Set Point Selection knob to desired set point value. Controllers come in square 1/8 DIN panel mount, DIN-rail mount, or open board configurations. They are UL® and C-UL® listed, and CE approved.

Colder Products Co.    St. Paul, MN 55114
Jan 27, 2004 Series APC panel mount coupling bodies are injection molded from acetal thermoplastic and resistant to mild chemical solutions. They withstand max temperatures of 180ºF and pressures from vacuum up to 120 psi. Units enable tubing to be connected and disconnected from panel during use and maintenance. Terminations include hose barbs and ferruleless polytube compression fittings. Plastic thumb latch allows quick, one-handed disconnects.

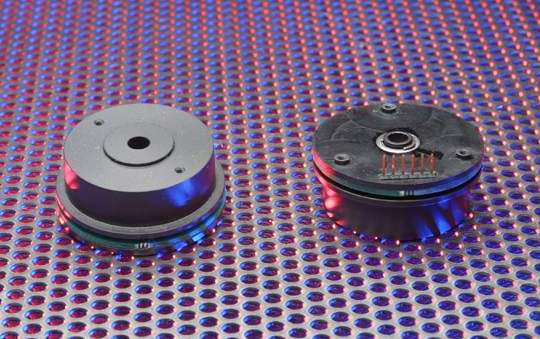

Servo Magnetics Inc.    Canoga Park, CA 91303
Jan 27, 2004 At 4 V, low inertia, outer-rotor DC motor draws less than 100 mA at 1,400 rpm. Measuring 1.85 in. diameter by 0.75 in. tall, unit features through-hole design, optional integral drive electronics, and integral encoder option. Low-profile provides space-efficient, direct coupling interface in many applications. Motor is suited for portable or battery-operated polygon scanners as well as diagnostic equipment requiring speed stability.

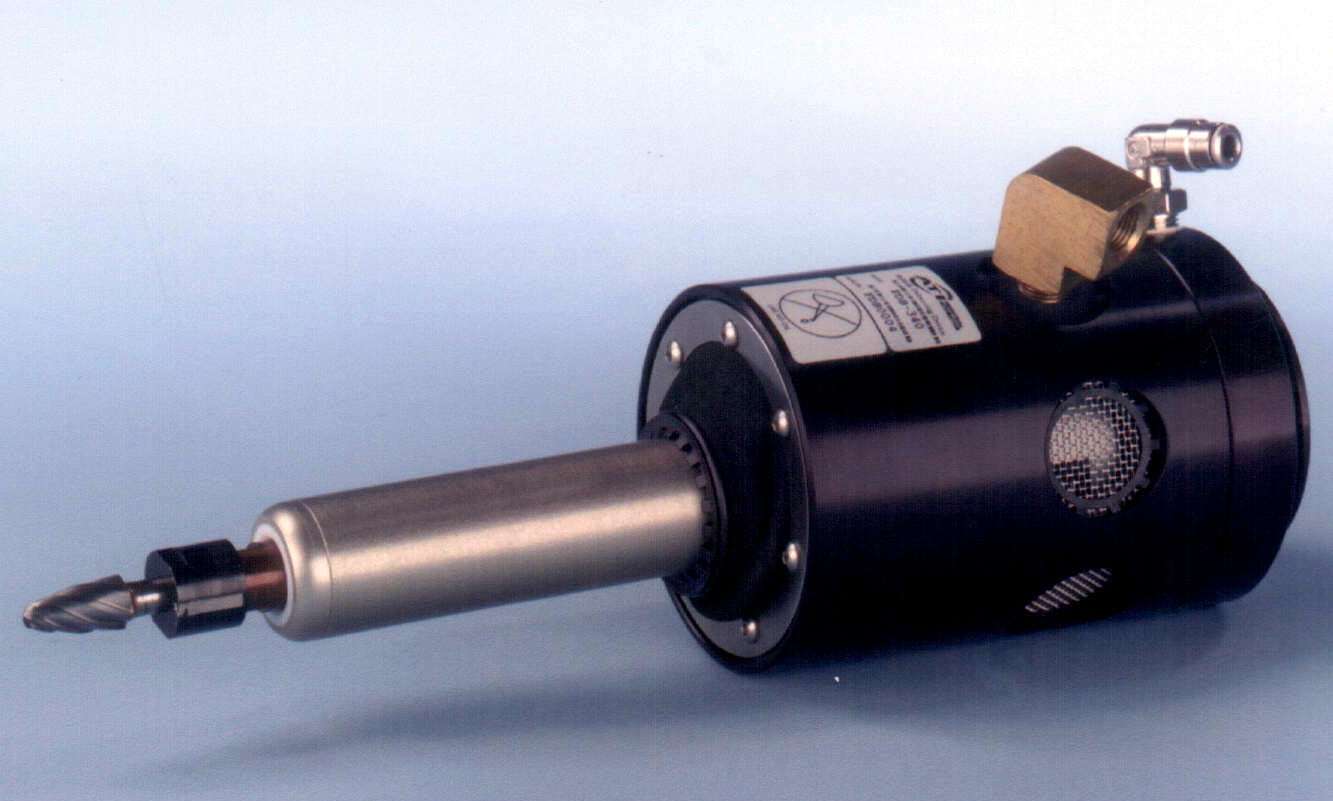

ATI Industrial Automation    Apex, NC 27639
Jan 27, 2004 Flexdeburr(TM) 340 features floating motor and spindle arrangement that provides deburring tip's radial compliance to perform consistently on irregular part patterns. It is mounted to robot or CNC machine and requires clean, dry, filtered, non-lubricated air. Tool uses one air connection at 90 psi to spin cutting file, and second at 60 psi to apply radial force. Motor's internal governor maintains spindle speed of 40,000 rpm. Compliance force is 0.9-9.5 lb at 2-60 psi.

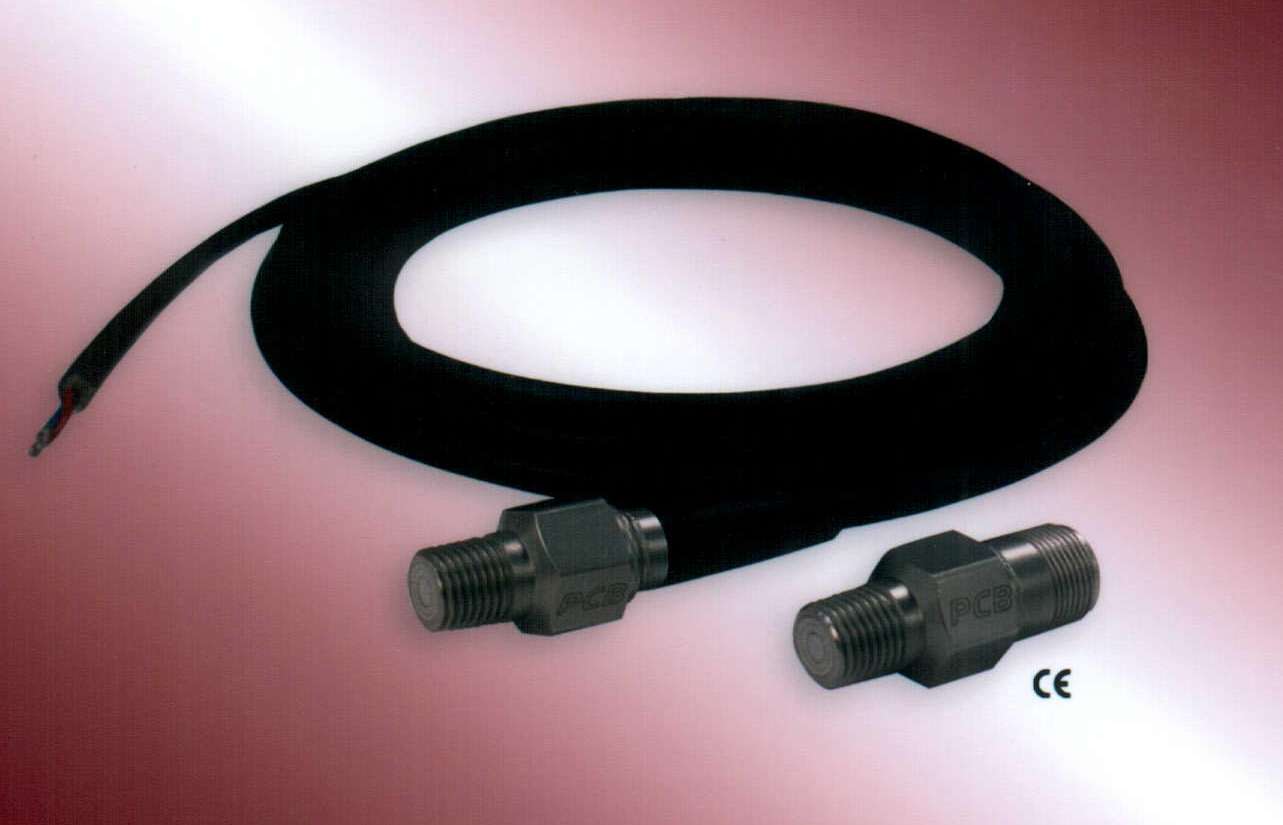

PCB Piezotronics Inc.    Depew, NY 14043 2495
Jan 27, 2004 Series 121A20/30 industrial dynamic ICP® pressure sensors are hermetically-sealed, all-welded, stainless steel units featuring ¼ NPT pressure fitting and built-in microelectronic circuitry for clean voltage output signal. Electrical case isolation provides shielding from electromagnetic fields and eliminates ground loop problems. Two-pin military connector or molded, submersible cable assembly is available. All sensors conform to CE directives.

PolyPhaser Corp.    Minden, NV 89423 9000
Jan 27, 2004 Model MDS+24-F-F is suited for broadband wireless and satellite applications from 300–2,500 MHz. It utilizes cascaded protection circuit resulting in let-through voltage of 48 Vpk and throughput energy of 1,000 µJ for 3 kA at 8/20 µs waveform. Unit provides low insertion loss of 1 dB and RF power of 50 W. Featuring 75 ohm F female connectors, flange mountable lightning protector passes telemetry frequencies of 10–150 kHz and 10–100 MHz.

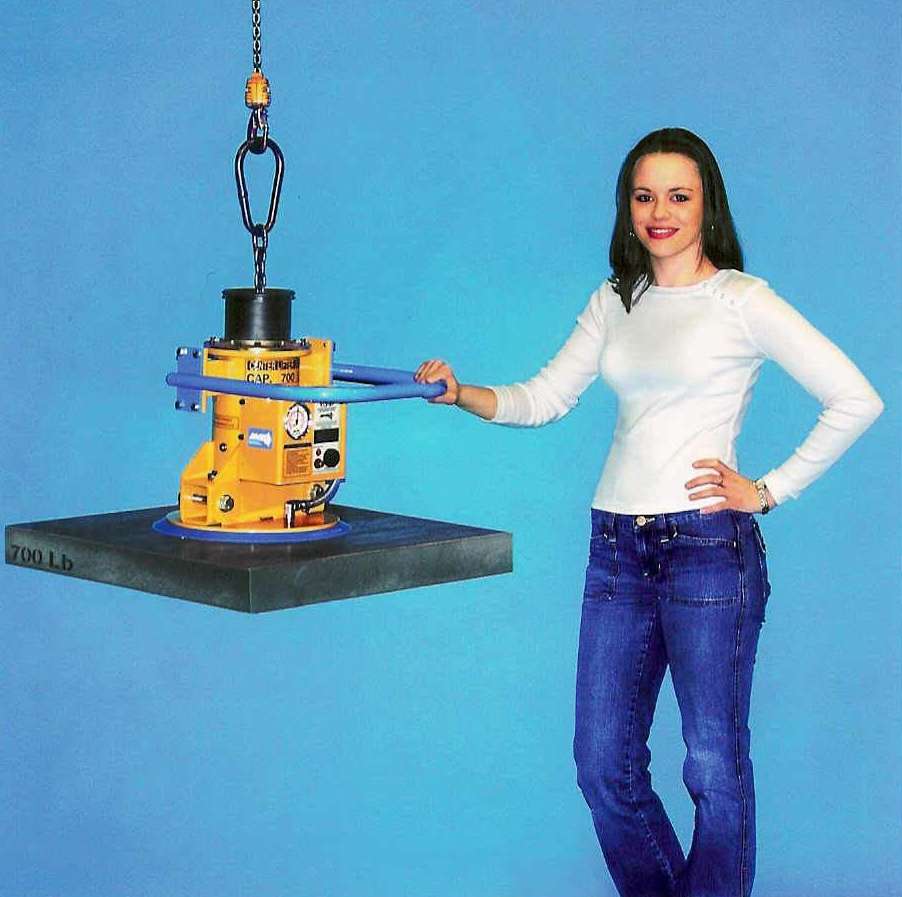

Anver Corp. - Anver.Com    Hudson, MA 01749 3214
Jan 27, 2004 Self-Contained Mechanical Lifter features self-cycling valve and piston that creates suction when lowered from crane onto load until chain slackens completely and is raised again. Eliminating hooks, grabs, magnets, noise, and pollution, only rubber vacuum pad touches load, which prevents damage. Lifter is safe to use around CNC equipment because there are no electromagnetic fields. Single- and multiple-pad configurations offer capacities up to 15,000 lb.

Convertech    Wharton, NJ 07885 1800
Jan 27, 2004 Carbon Fiber Lug Shafts, for rewind and unwind applications, produce less deflection than comparable steel shafts. They include long-life bladders, aluminum or steel spring return lugs, and plain carbon or aluminum clad covering.
