Material Transfer & Storage, Inc.    Allegan, MI 49010 0218
Dec 30, 2003 Unit accepts free-flowing cereal product loaded at floor level with pallet jack, seals top rim of container against stainless steel pour hood with hydraulic Lift & Sealâ„¢ system, then rotates and discharges product into feed hopper. Stainless steel butterfly valves on pour hood and hopper inlet ensure product purity during product transfer, and washdown-duty tubular 304 stainless steel construction is free of pockets, has continuous TIG welds, and No. 4 finish.

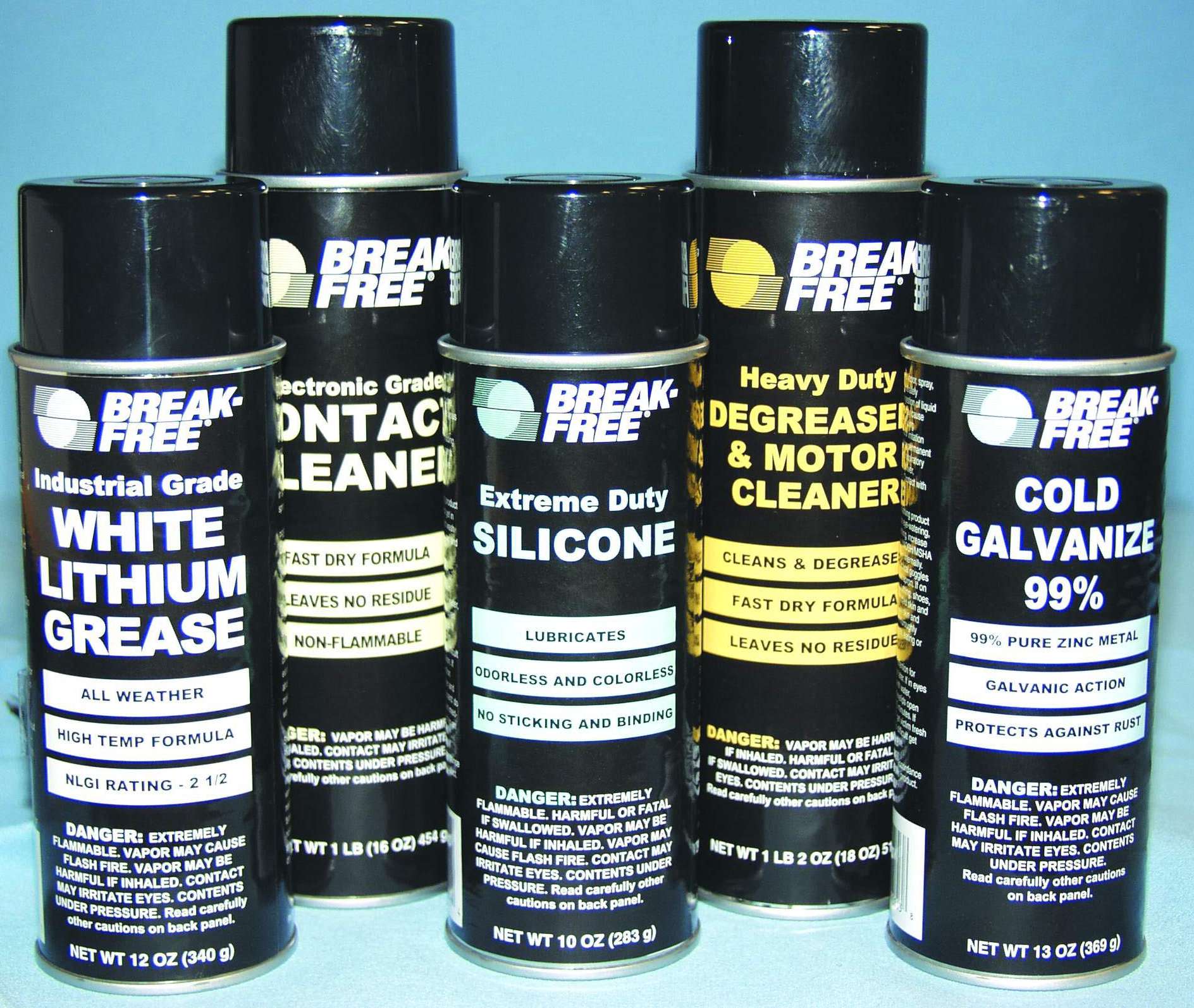

Break-Free, Inc.    Jacksonville, FL 32218
Dec 30, 2003 Cold Galvanize 99% protects against rust and corrosion on ferrous bar metal and previously galvanized surfaces. White Lithium Grease multi-purpose, all-weather, penetrating lubricant is water-resistant and contains rust and oxidation inhibitors. Extreme Duty Silicone helps eliminate sticking, binding, and squeaking. Heavy Duty Degreaser and Motor Cleaner helps clean electrical components and motors. Electric Grade Contact Cleaner degreases and cleans delicate mechanisms.

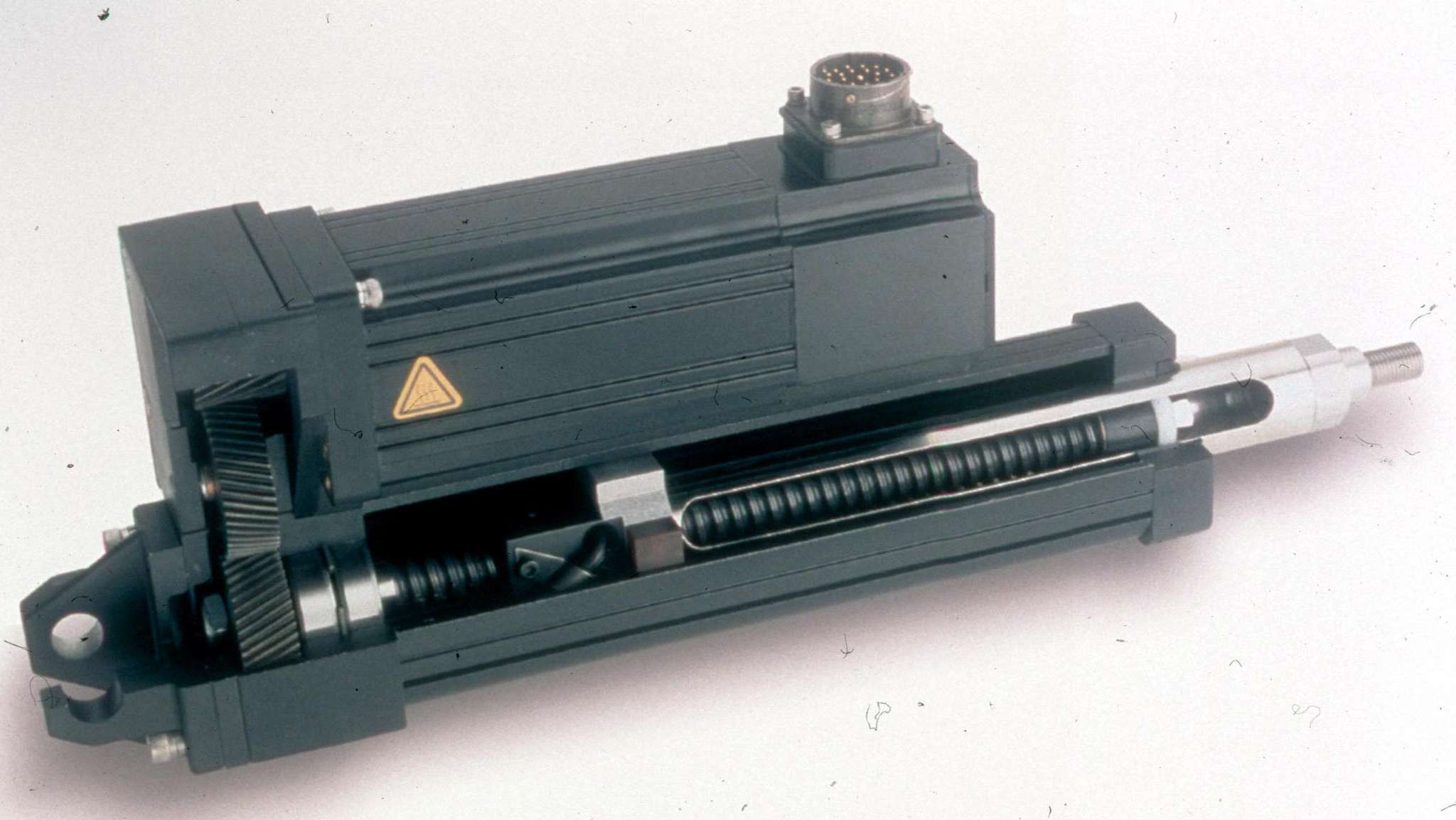

Deltran Pt A Danaher Motion Co.    Amherst, NY 14228
Dec 30, 2003 Thomson(TM) TN Series offers standard stroke lengths to 18 in. with dynamic load capacities to 600 lb. Model TN-D features 24 Vdc motor and provides extend-retract motion. Featuring stepper motor, Model TN-S/P is suited for applications that require in-position holding, open-loop operation, and repeatable positioning to 0.0005 in. Model TN-B has brushless servo motor and offers high acceleration and duty cycle for demanding motion applications.

Astrodyne Corp.    Mansfield, MA 02048
Dec 30, 2003 Open-frame Series MPM meets space and performance needs in medical and dental instrumentation. It accepts universal input from 85-265 Vac and offers single, dual, and triple outputs from 5-24 Vdc. Approved to EN60601-1 and UL2601 medical low-leakage specifications, product offers integral power-good LED indicator, output adjustment potentiometer, over-voltage and short-circuit protection circuitry, and internal input EMI filtering.

Thales Computers Corp.    Raleigh, NC 27610
Dec 30, 2003 PowerEngine7 SBCs feature single or dual PowerPC-750FX processors operating at 700 MHz, while drawing 14 W of power for entire board. Units are equipped with up to 512 Mbytes SDRAM memory, 128 Mbytes of flash memory, twin PMC slots, 2 Ethernet interfaces, and 6 serial lines. Air-cooled RA version operates from -40 to 167°F, while conduction-cooled RC version operates from -40 to 185°F. Both are suited for data processing applications in harsh environments.

ePlus    Herndon, VA 20170
Dec 30, 2003 Content+ Supplier Portal includes features that expedite supplier cooperation in eCatalog production and maintenance. It incorporates administrative dashboard, functionality for viewing and approving catalog updates, and full audit tracking. Other features include support for quantity discounts, promotional pricing, pre-loading of catalog changes for activation on a designated date, and product or catalog expiration dates.

Dow Corning Corp.    Midland, MI 48686 0994
Dec 30, 2003 Molykote® P-1900 mineral oil-based paste can lubricate sliding surfaces and friction contacts exposed to heavy loads, especially at low to medium speeds. It offers water resistance, low coefficient of friction, and service temperature of -30 to 300°C. Molykote P-1900 is available in 400 g cartridges, 1 kg cans, 25 kg pails, and 180 kg drums.

Tecnomatix Technologies, North America    Novi, MI 48167
Dec 30, 2003 Tolerance management and statistical process control (SPC) product, eM-Insight, enables users to share and distribute parts inspection data throughout organization. With secure, Web-based data access model, product promotes collaboration to identify and solve mission-critical manufacturing quality issues. It allows use of Web browsers to share and graphically review parts inspection data, perform root-cause analysis, and chart historical data trends.

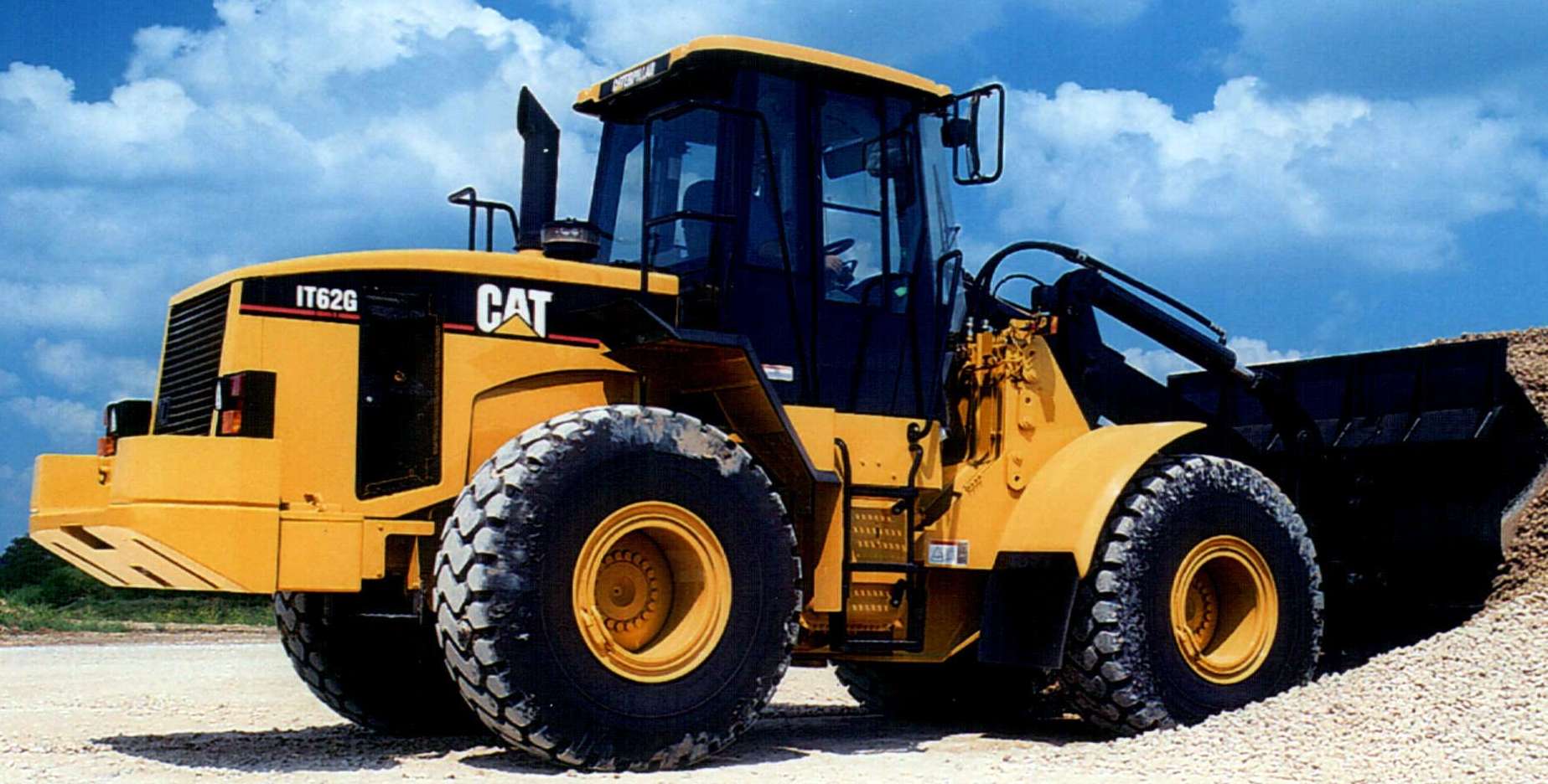

Caterpillar, Inc.    Peoria, IL 61629
Dec 29, 2003 IT38G Series II and IT62G Series II Integrated Toolcarriers are equipped with parallel lift linkages and integral quick couplers to handle material handling and digging tasks. Wheel loader-based machines feature electronically controlled engines that aid in fuel efficiency and reduce emissions. They also employ variable shift control, instrument cluster, machine health monitoring system, and cooling system with on-demand fan. Horsepower ratings range from 160–204 net hp.

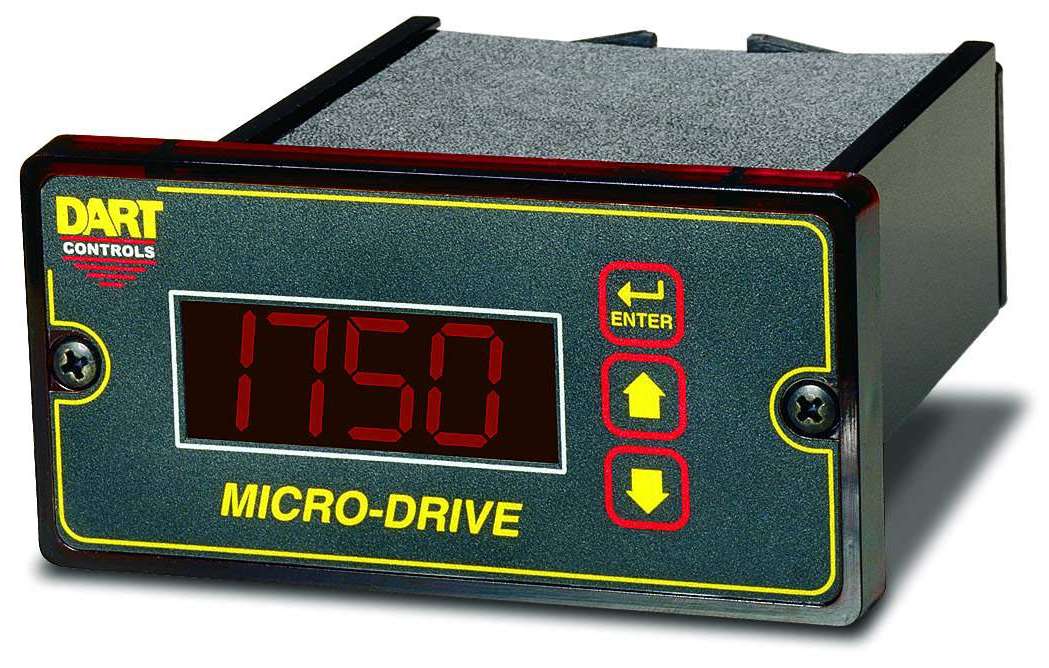

Dart Controls, Inc.    Zionsville, IN 46077
Dec 29, 2003 Proximity sensor input feature on Digital DC Speed Controls is available as (-3) field install option board capable of accepting sine wave signal inputs from magnetic style pickups. Option can be used with MD Series digital closed loop DC drives, ASP Series digital closed loop controller, and DM8000 Series Tachometer/Process Meter. Controls come standard with capability to accept digital square wave input signal.

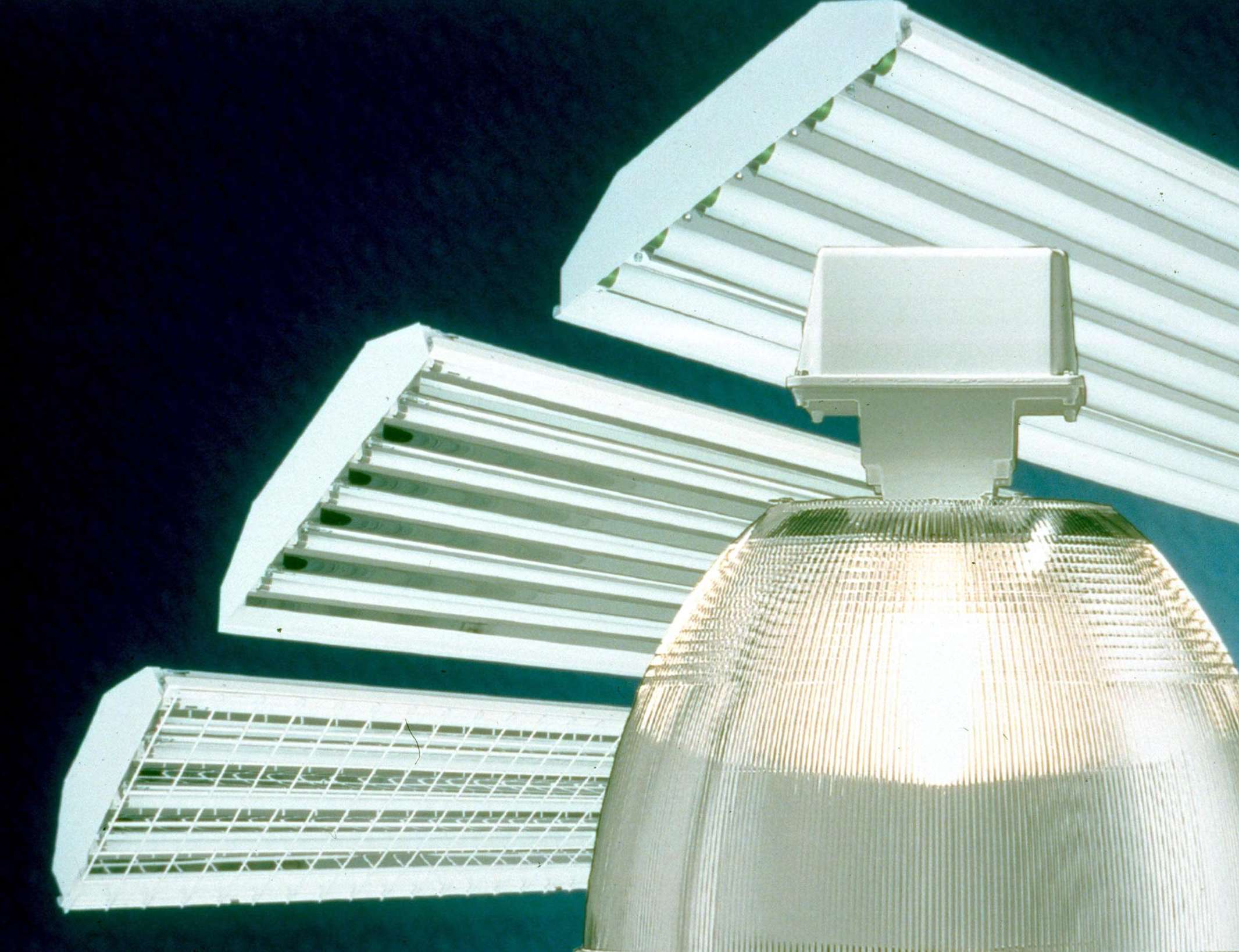

Crescent/Stonco    Union, NJ 07083
Dec 29, 2003 FluoroLyter® Series is comprised of ceiling or pendant-mounted linear fluorescent and PL compact fluorescent high-bay light fixtures. Linear Fluorescent models offer 2-, 4-, or 6-light T5 or T-8 lamps, both with hinged end caps and hinged drop-down reflectors. Advanced Miro(TM) 4 optics deliver up to 19,000 usable lumens. FluorLyter PL units offer 2, 4, 6, or 8 PL compact fluorescent sources. They have locking sockets and can be specified with hook, plug, loop, or conduit mounting options.

Linear Technology Corp.    Milpitas, CA 95035
Dec 29, 2003 Housed in TSSOP-28 package, LT1943 adjustable switching regulator is suited for 22 in. and larger TFT LCD applications. It operates from 4.5-22 V input range, delivering independent outputs for VLOGIC, AVDD, VON, and VOFF. Unit contains 2.4 A buck regulator, 2.6 A boost regulator, TFT biasing output, and inverter. All switchers are synchronized to internal 1.2 MHz clock. It also offers Panel Protect(TM) feature, PNP transistor, PGOOD output, and soft start option for all channels.

Weigh-Tronix, Inc.    Fairmont, MN 56031
Dec 29, 2003 Comprised of 7 models in 10 x 10, 14 x 14, and 18 x 18 in. sizes, 3700LP Series scales measure 3.2 in. high or less and offer weighing capacities from 10–250 lb. Features include AC power operation; remote, backlit, 6-digit LCD display with ½ in. characters; soft-touch Zero; Units and Print keys; and RS232 interface. Suited for industrial and general purpose weighing, scales have 16 gauge stainless steel wrap around shroud with aluminum or mild steel base.

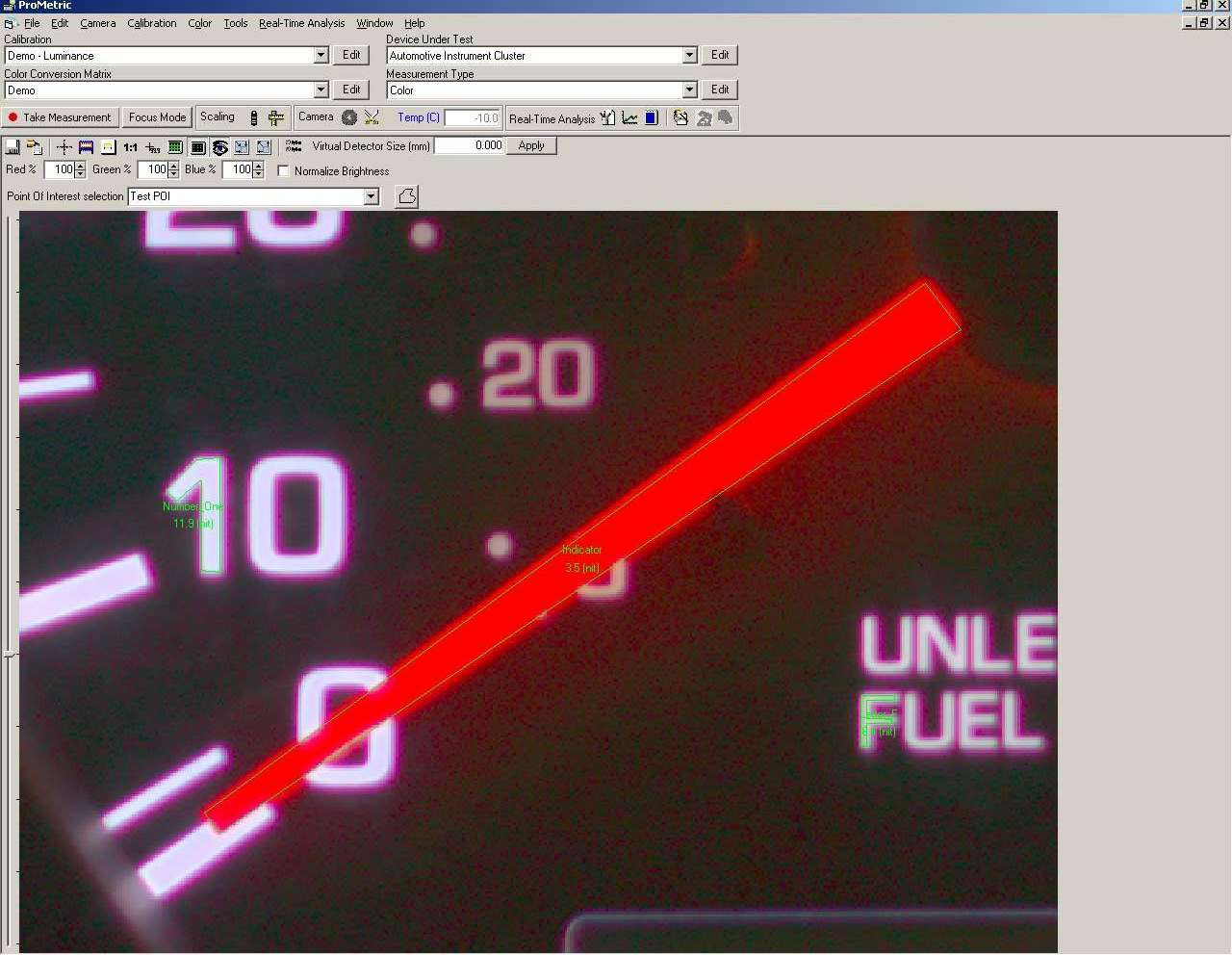

Radiant Imaging Inc.    Duvall, WA 98019
Dec 29, 2003 ProMetric v8.0 display metrology software helps developers make precise, in-depth measurements of prototypes and new products. Three-color calibration routine provides accurate measurements of luminance and illuminance on RGB displays, such as CRTs, LCDs, and LED displays. User can define complex, freeform measurement regions of interest. ProMetric 8.0 shows chromaticity data utilizing standard CIE chromaticity diagrams, as well as color and luminance histograms.

Greenheck Fan Corp.    Schofield, WI 54476 0410
Dec 29, 2003 Part of total kitchen ventilation system, direct-drive Model KSFD comes in 2 housing sizes to provide air volumes from 400–2,000 cfm. Belt-drive Model KSFB also offers 2 housing sizes and provides air volumes from 1,000–10,500 cfm. Both are available with standard or extended weather hood to meet NFPA-96 requirements when used with CUBE fan, or as stand-alone units.

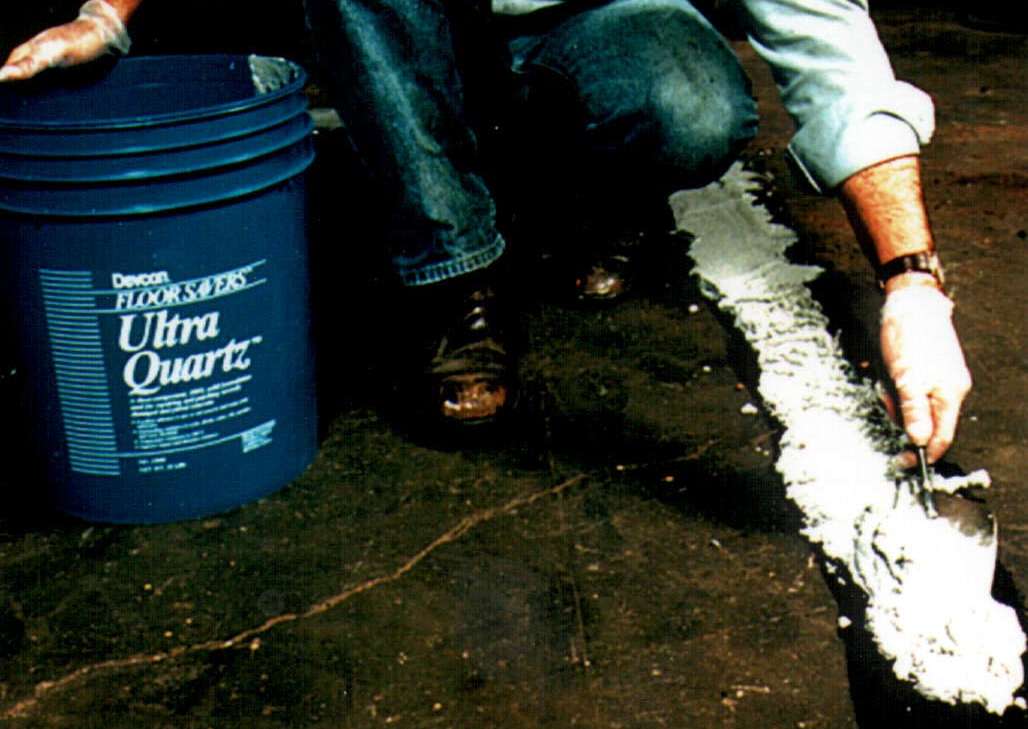

Devcon    Danvers, MA 01923
Dec 29, 2003 Resistant to chemicals and abrasion, heavy-duty Ultra Quartz(TM) is trowelable to smooth, nonporous finish and attains compression strength of 9,000 psi. It offers protection against acids, alkalis, water, oils, solvents, and other industrial chemicals. Product can be built up to 1 in. thick on damaged or pitted concrete floors and will not sag, drip, or run. This 100% solids, silica-filled epoxy putty cures at room temperature within 16 hr.

Hypertherm, Inc.    Hanover, NH 03755 0010
Dec 29, 2003 With FineCutâ„¢ Consumables, hand- and machine-torch operators cutting thin-plate, mild and stainless steel will obtain narrow kerf and small heat affected zone. FineCut also eliminates secondary operations such as dross removal. Consumables are used on Powermax 380, 600, 1000, 1250, and 1650, as well as comparable legacy systems. Starter kit includes 5 nozzles, 2 swirl rings, 5 electrodes, deflector cap, 5 O-rings, and tube of silicone lubricant.

Northwestern Tools Inc.    Dayton, OH 45429 3938
Dec 29, 2003 Similar to knurled head hand retractable plunger in function, product has threaded handle end that enables users to add threaded star type knob, round ball knob, t-handle, soft grip knob, or any other type of handle. This allows operators to use handles they are most comfortable with. It is available in 5 diameters from 10-32 thru ½â€“13 in 2 spring pressures.

Northwestern Tools Inc.    Dayton, OH 45429 3938
Dec 29, 2003 Product uses same body as press fit ball plunger combined with spring plunger nose, allowing for interchangeability of ball and nose type press fits. Spring plunger nose is used when longer travel is needed. Plunger can be used when threaded adjustments are not required. It is available in 6 diameters from 1/8–½ in. with 2 spring pressures, steel or stainless steel.

SMC Networks    Irvine, CA 92618
Dec 29, 2003 EZ Connectâ„¢ Models SMC2621W-P and SMC2621W-U are 2.4 GHz, 11 Mbps wireless print servers that provide connectivity to parallel printing devices and USB devices, respectively. Both allow access to printer through regular wired Ethernet LAN connection or by 802.11b wireless LAN connection. Used as wireless enabled print servers, units support Ad-Hoc mode and Infrastructure mode. Web-based interface and remote management utilities are included.
