Filtration Products Corp.    Hamel, MN 55340

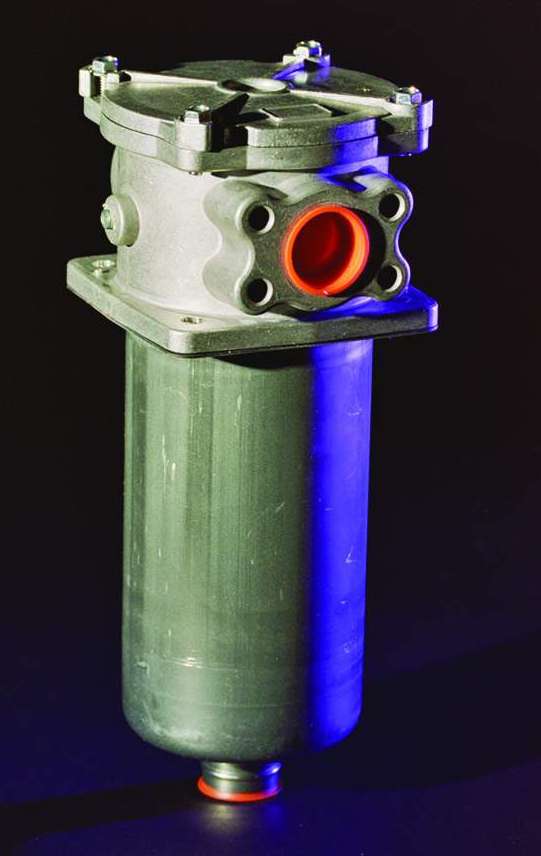

Dec 31, 2003 Series 22 Tank-Mounted Filter is nominally rated at 100 gpm and available with wide range of porting and media options. Lid design eliminates tendency for debris or snow and ice to accumulate on top of housing, making replacement of filter element easier in extreme outdoor environmental conditions. Tank-mount design eliminates leak points. Filter is suited for both mobile and industrial applications.

FKI Logistex North America    St. Louis, MO 63132
Dec 31, 2003 Library Mate(TM) return and sortation system accepts library materials up to 16 x 12 x 4 in. weighing up to 11 lb and has integral bar code/RFID scanner. Cross-belt design ensures gentle handling of delicate and mixed materials such as books, magazines, CDs, and DVDs, while maintaining sorting capacity of up to 4,500 items/hr. Unit can empty into compact sorter, which sorts and stacks materials into Crisplant Ergo Carts(TM) with proper orientation.

National Instruments Corp.    Austin, TX 78759-3504

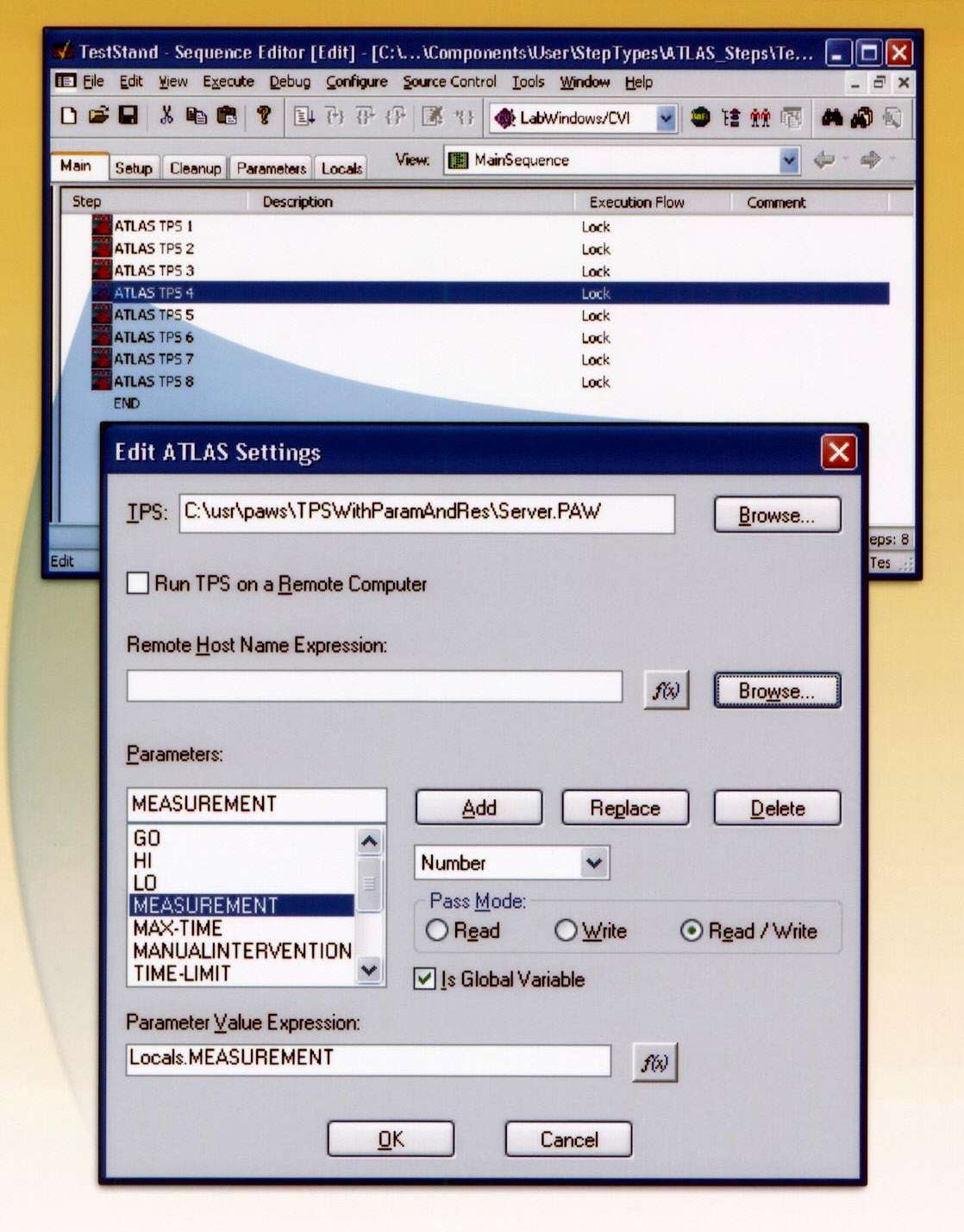

Dec 31, 2003 TestStand v3.0 helps engineers migrate test systems written in legacy test environments. PAWS ATLAS interface features ability to browse and select PAWS ATLAS TPS files, specify parameters, and perform remote control. Runtime features deliver full compliance of TPS Server state transitions, such as attaching, loading, and detaching; parameter reading and writing; global locking; handling of manual TPS intervention; and ability to pause and terminate sequence execution.

National Instruments Corp.    Austin, TX 78759-3504
Dec 31, 2003 Models NI PCI-6509/6514/6515 are isolated digital I/O boards with programmable power-up states, programmable input filters, and digital I/O watchdogs. High-channel-density voltage output board Models NI PCI-6722 and NI PCI-6723 deliver 13-bit static or low-speed waveform generation and are capable of multichannel simultaneous updates. NI-DAQmx software includes automatic code generation for creating applications in NI LabVIEW, C, Microsoft Visual Basic .NET, and C#.

National Instruments Corp.    Austin, TX 78759-3504

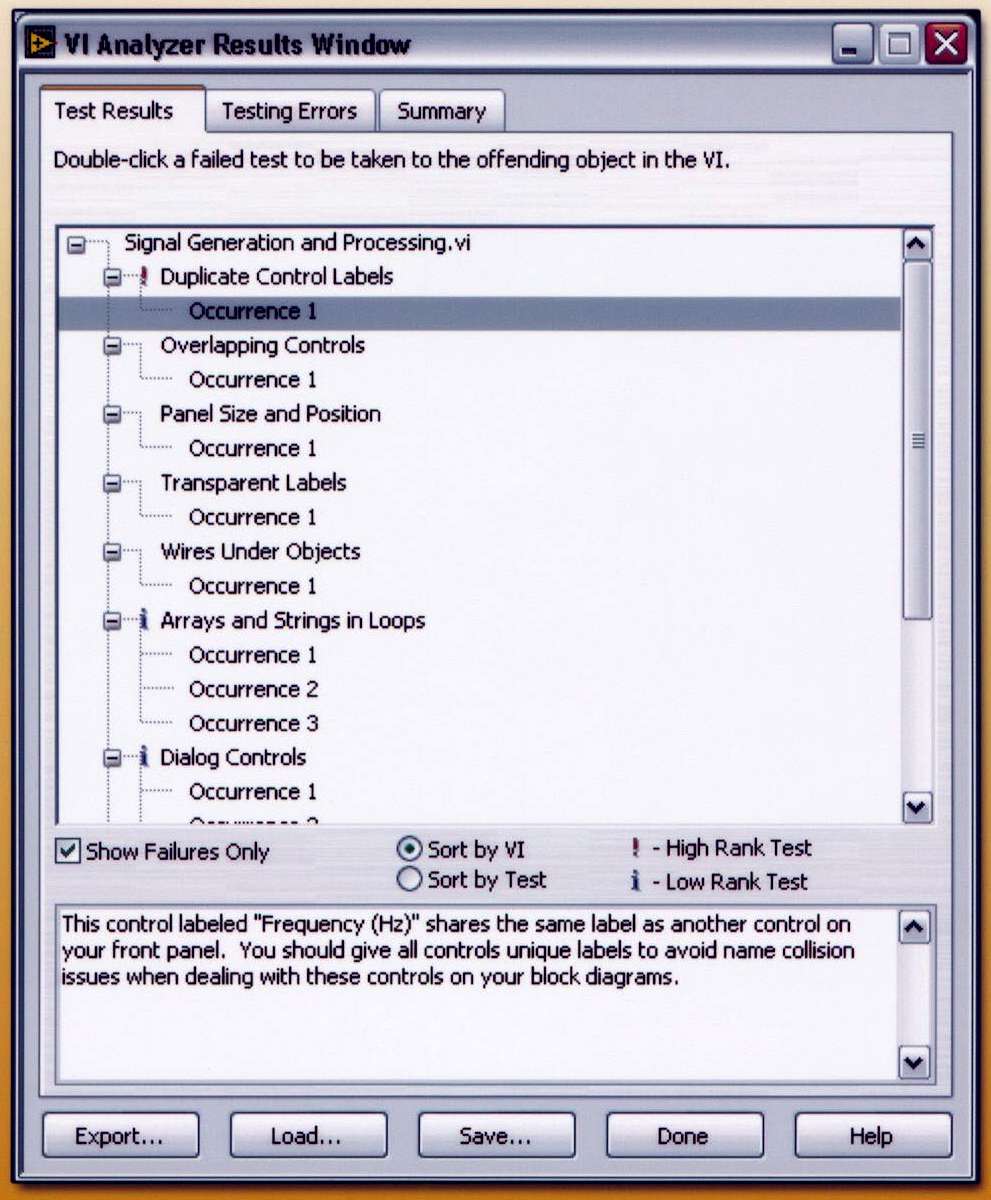

Dec 31, 2003 LabVIEW VI Analyzer Toolkit identifies design flaws, recommends improvements, and helps developers enhance code performance, memory usage, style, and clarity. It features 58 automated tests that examine LabVIEW VI front panel, block diagram, and documentation. Software generates reports to help improve coding practices over time. Users can save test settings for each project and use programmatic interface to automate testing of applications.

Kistler Instrument Corp.    Amherst, NY 14228 2119

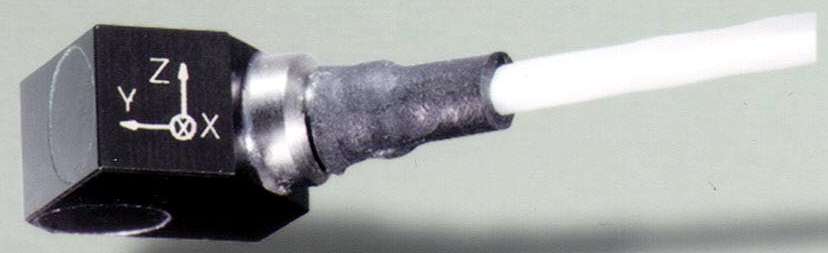

Dec 31, 2003 Model 8764A500 triaxial accelerometer weighs 1.3 g and incorporates shear element construction, assuring immunity from base strain and thermal transients. Measuring range is ±500 g in x, y, and z axes, and piezoelectric ceramic elements have sensitivity of 10 mV/g per axis. Momentary events can be captured due to 2–10 kHz frequency response capability. Hard anodized aluminum housing and 1 m cable provide ground isolation and electrical shielding.

Air Technical Industries    Mentor, OH 44060
Dec 31, 2003 Double Scissor Lift, made of all welded steel, is lightweight for portability. Lowered heights are 6 or 7 in. and table sizes range from 15–24 in. x 19–48 in. For stationary operations, electric 110 Vac is available as well as air-operated hydraulic system for spark-proof, hazardous operations. Lift can also be battery-powered and equipped with wheels and casters for mobility. Optional accordion style safety skirts are available on 1, 2, or all 4 sides.

Spirax Sarco, Inc.    Blythewood, SC 29016

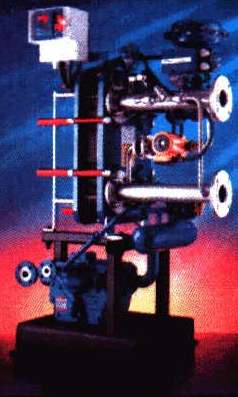

Dec 31, 2003 EasiHeatâ„¢ steam heat exchanger packages, offered in standard and custom configurations, are designed for process, domestic, and hydronic water heating applications. Modular packages employ Alfa Laval's plate and frame heat exchangers, designed for steam service, as well as all control instrumentation necessary for heat transfer and condensate removal. With quick response, packages eliminate need for hot water reservoirs.

Menardi    Trenton, SC 29847

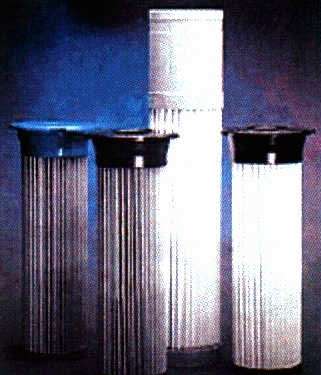

Dec 31, 2003 Offered in bag or cartridge configurations, Mikro-Pleatâ„¢ filters are made of spunbond nonwoven filter media that is resistant to temperature, moisture, and abrasion. Their density promotes surface filtration of dust and release of collected particulate. Surface treatments include metalized, oil- and water-repellent, and Mikrotex© PTFE laminate finishes. Where static discharge is an issue, versions with stainless steel or copper ground wires are available.

Danfoss VLT Drives    Loves Park, IL 61111
Dec 31, 2003 Covering 10-150 hp range, MCD 200 Series Soft Starters offer heat dissipation, eliminating need for extra ventilation or bypass connectors, which simplifies installation and minimizes panel space requirements. Model MCD 201 offers timing voltage ramp functionality, and MCD 202 provides current limit soft start, timed voltage ramp down, and motor protection. Add-on modules are available to provide additional capabilities.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Dec 31, 2003 Corrosion Detection Transmitters allow user to monitor, online, effectiveness of corrosion inhibitors, and to detect and correct corrosion issues through preventive maintenance. They feature 2-wire, loop-powered, 4-20 mA signal with HART protocol. Suited for direct or remote mounting, transmitters can be located in general-purpose and hazardous locations. Probes are available in various styles and materials so they satisfy most applications.

EADmotors/Eastern Air Devices, Inc.    Dover, NH 03820
Dec 31, 2003 Model D404 uses constant current bi-polar chopping with full on-board programmability to drive and control hybrid stepper motors. Rated at 40 Vdc input and 4 A/phase output, unit can be configured for full-step, ½-step, ¼-step, and 1/8th step. Thirteen inputs including 2 configurable I/O ports allow drive to receive and respond to signals from external system components. Programming language allows user to create and store motion profiles.

Kin-Tek Laboratories    LaMarque, TX 77568 4202
Dec 31, 2003 Span Labâ„¢ Cal Cart creates complex, trace concentration mixtures and can be moved between various analyzer stations. Designed around Model 491M Modular Gas Standards Generating System, unit accommodates up to 6 modules with supporting dilution gas cylinders. It can also be configured with up to 6 independently-controlled permeation ovens, allowing generation of complex mixtures. NIST traceable permeation tubes dispense analyte vapors for blending ppm and ppb mixtures.

GEI International, Inc.    Syracuse, NY 13217 6849
Dec 31, 2003 Models ONS-0080 and ONS-0082 feature 8x power magnification with double acrylic lens system. Clear, plastic bases permit light entry from all directions, enabling units to be used effectively in ambient lighting conditions. Model ONS-0080 features adjustable focus lens, while Model ONS-0082 offers fixed focus lens. Both are 2 in. high and 1 in. in diameter with 1 in. diameter lens.

Hernon Mfg., Inc.    Sanford, FL 32771

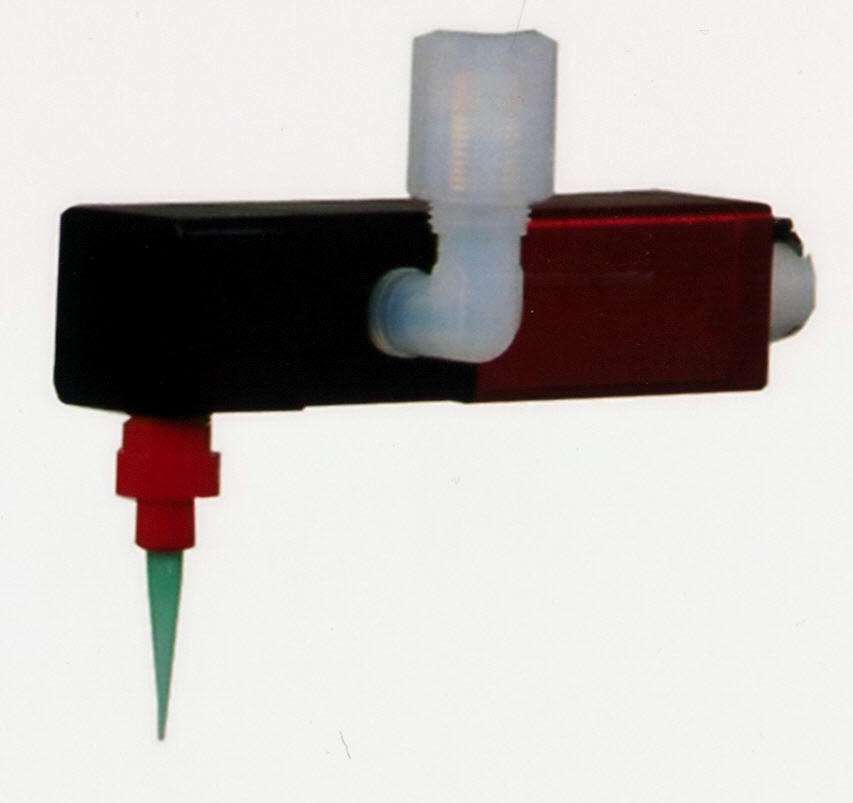

Dec 31, 2003 Sure Shot Valves provide automated application of materials including adhesives, sealants, greases, inks, and other liquids. They can handle difficult-to-dispense products including cyanoacrylate and anaerobic adhesives. Snuff back function draws small portion of dispensed material back into valve to prevent thixotropic materials from stringing. Anodized aluminum valves feature Teflon dispensing bodies, positive shutoff, and standard Luer lock and NPT connections.

SymCom, Inc.    Rapid City, SD 57709
Dec 31, 2003 Model 460 Three Phase Voltage Monitor protects motors from phase loss and reversal, overvoltage, undervoltage, voltage unbalance, and phase/frequency shift. It combines motor protection and control with finger-safe wiring and LED fault indication. Its 4 adjustable settings are nominal voltage, restart delay time, unbalance percentage trip point, and trip delay time. Product also offers DIN rail compatibility and auto-ranging design.

Lambda Solutions, Inc.    Waltham, MA 02452
Dec 31, 2003 Model NIR-H is a 10 cm probe with gun-handle grip. Model NIR-HT includes gun-handle grip, built-in trigger, LEDs, and serial port interface for connection to computer. Model NIR-MB offers probe head lengths up to 30 cm and features torpedo-shaped barrel grip. All are stainless steel with sapphire windows and solvent-resistant fittings. Standard fiber length is 2 m. Probes interface with most existing FTIR, AOTF, and Dispersive Spectrometers.

Create!form International (CFI)    Canoga Park, CA 91303
Dec 31, 2003 Create!streamâ„¢ v3.0 enables organizations to copy, split, redistribute, and bind documents from existing business applications. Intelligent delivery function employs user-defined rules, which enable splitting of single large spool file into numerous documents. User can extract data from documents for other applications to use, then distribute documents to multiple queues for printing, e-mailing, faxing, and archiving.

Micron Technology Inc.    Boise, ID 83707 0006
Dec 31, 2003 Capable of achieving CCD image quality, 2 megapixel (MT9D001) and 3 megapixel (MT9T001) DigitalClarity CMOS products are optimized on low-leakage 0.15 and 0.18 µm DRAM processes, respectively. Model MT9D001 UXGA-format, ½ in. CMOS digital image sensor utilizes 4.2 µm pixels in Bayer RGB pattern. Model MT9T001 CMOS progressive scan, active pixel sensor utilizes 3.2 µm pixels in Bayer RGB pattern resulting in ½ in. optical format.

Emerson Electric Co.    St. Louis, MO 63136 8506
Dec 31, 2003 AMS(TM) Optimizer v3 is a modular application that combines plant modeling, data reconciliation, and real-time optmization in single package. It optimizes operations on-line, based on changing plant conditions and business constraints. Software supports web services, allowing integration with AMS Suite: Asset Portal decision support application, which provides secure real-time access to information on health and performance of equipment through web browser.
