Norstat, Inc.    Rockaway, NJ 07866
Jan 14, 2004 Made of shock-proof technopolymer with double insulation, Series CC features EN 418 compliant, mushroom head pushbutton and double break, positive opening NC contacts. One bottom and two side conduit entry knockouts allow for installation in any orientation. Boxes carry IP 65 protection rating and will operate from -25 to +70°C, making them suited for indoor, outdoor, or harsh conditions.

Agilent Technologies, Inc.    Santa Clara, CA 95051

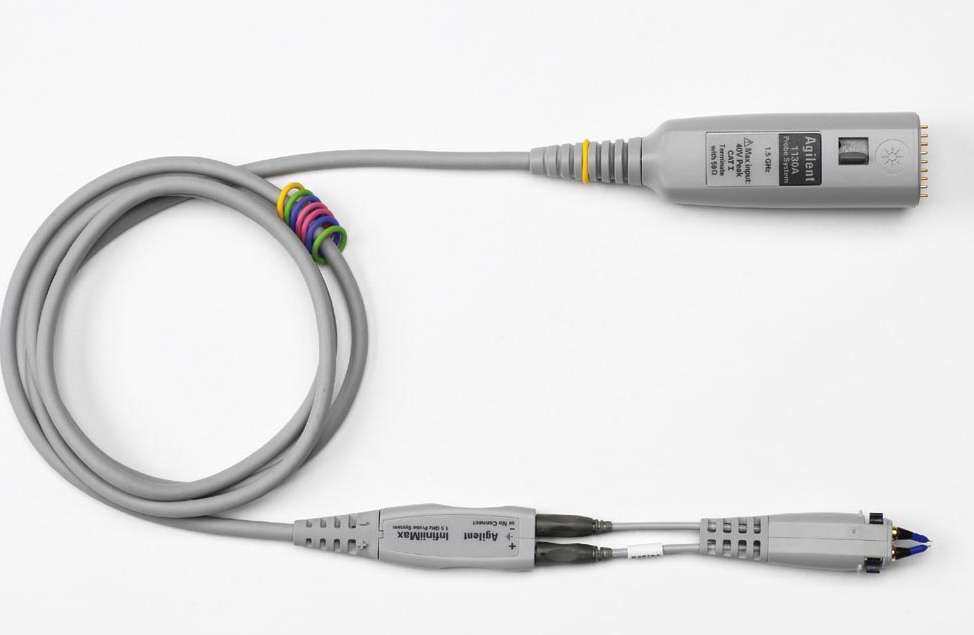

Jan 14, 2004 When InfiniiMax 1130A 1.5 GHz differential probe is paired with Infiniium mixed signal and digital signal oscilloscopes, system validates and verifies performance of high-speed digital product designs. Controlled transmission-line probe heads provide flat frequency response over entire bandwidth. Resistor tip technology compensates for inductance and capacitance. Variable span between signal tips lets engineers adapt probes to design.

Pro-Line    Haverhill, MA 01835

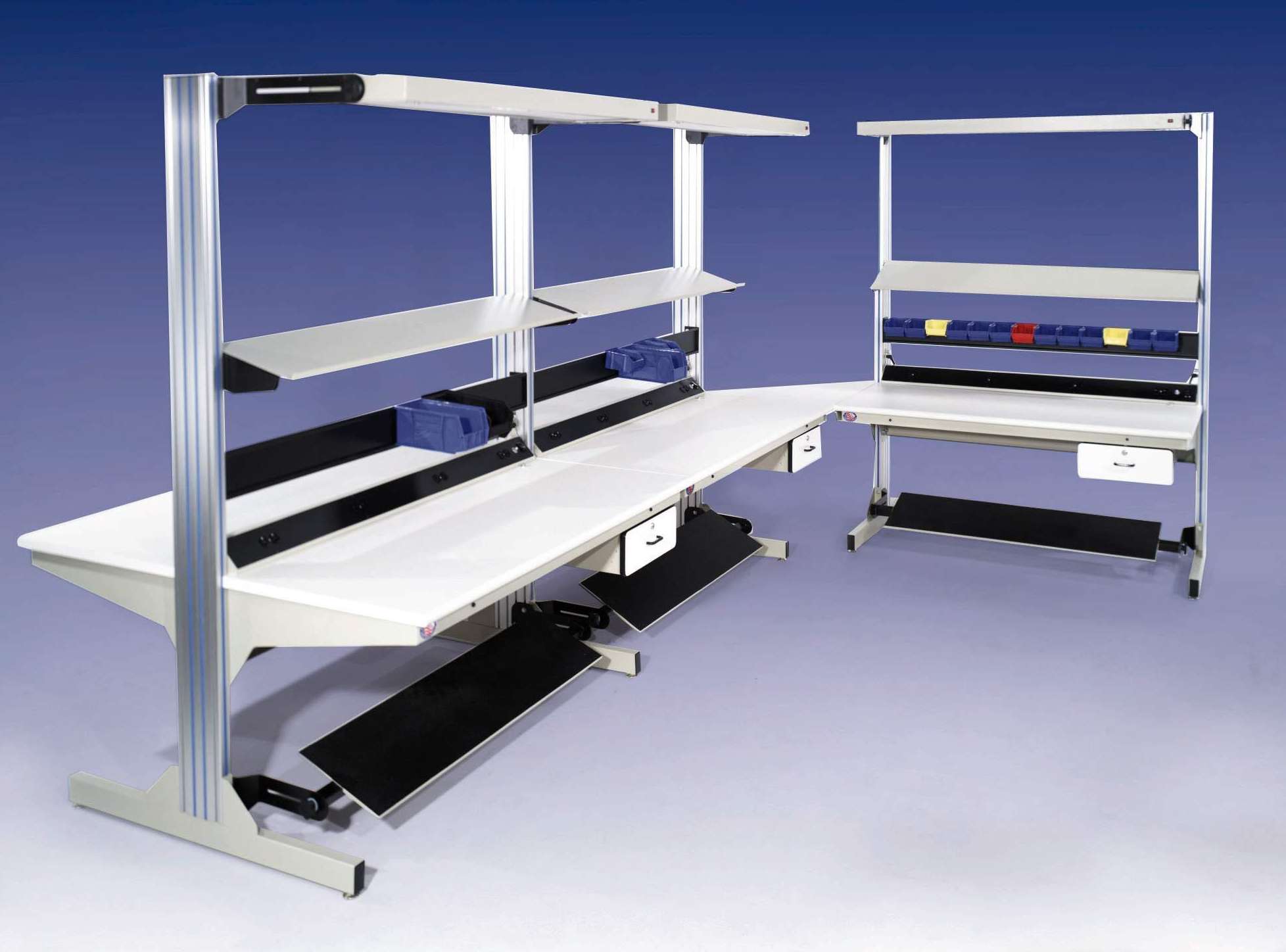

Jan 14, 2004 Suited for assembly and manufacturing environments, Dimension Next expandable work stations feature overall height of 82 in. and are offered in single-sided and double-sided versions. Heavy-gauge steel frame bolts to top supports, adding strength to work surface and lateral support to entire station. Sizes include 48 x 30, 60 x 30, and 72 x 30 in. Optional modular accessories let user configure each station to meet their needs.

French Technology Press Office, Inc.    Chicago, IL 60601

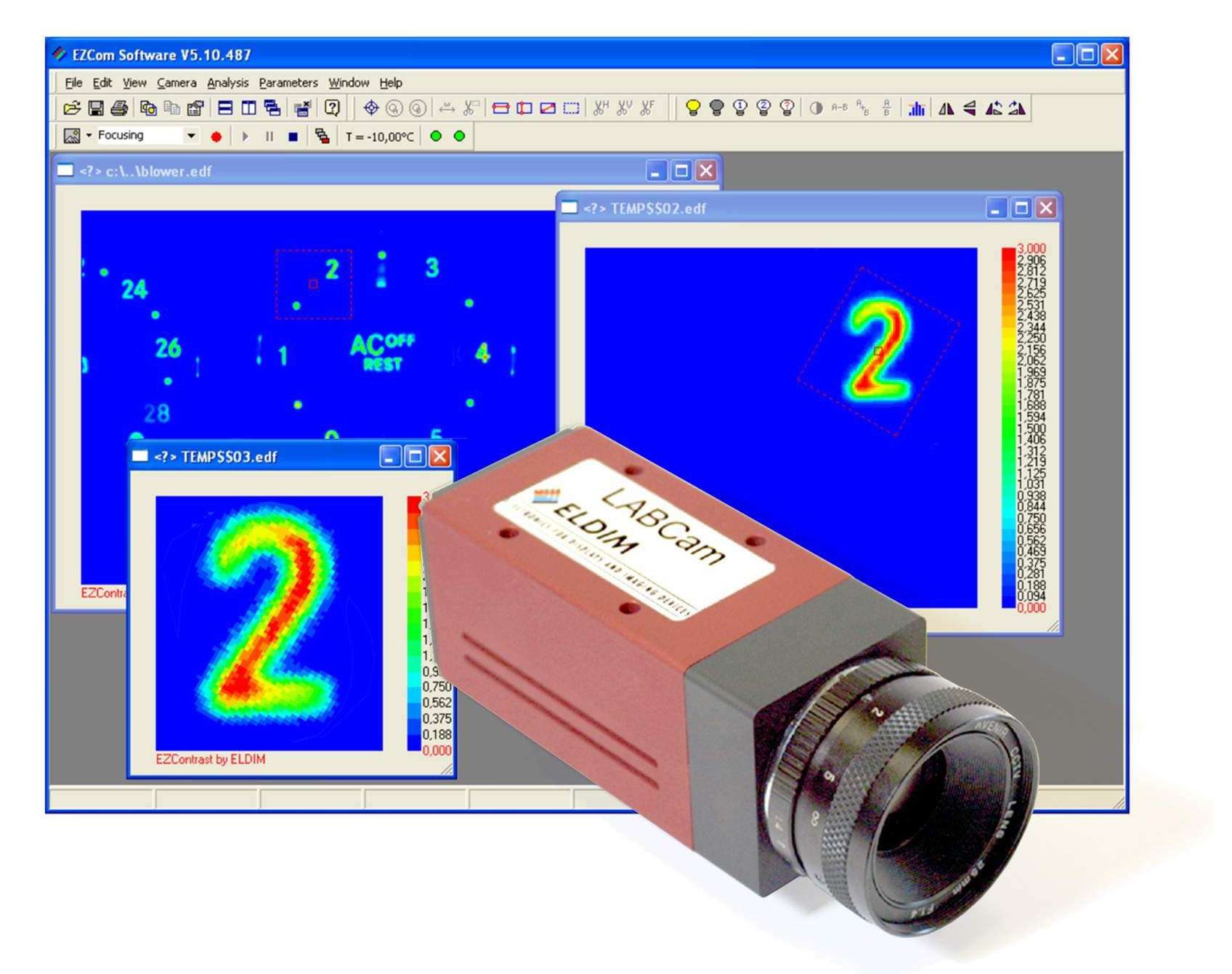

Jan 14, 2004 Using CMOS imaging technology, LABCam offers 1 mega-pixel resolution and allows individual pixel addressing via dedicated processor. User can control sensor saturation and exposure, and zoom in on region of interest while acquiring samples or full images. Camera's 10-bit per pixel sensor provides rapid acquisition while USB 2.0 interface speeds data transfer rates to 480 Mbits/s. Camera is suited for optical metrology applications.

Danaher Motion MCD    Amherst, NY 14228

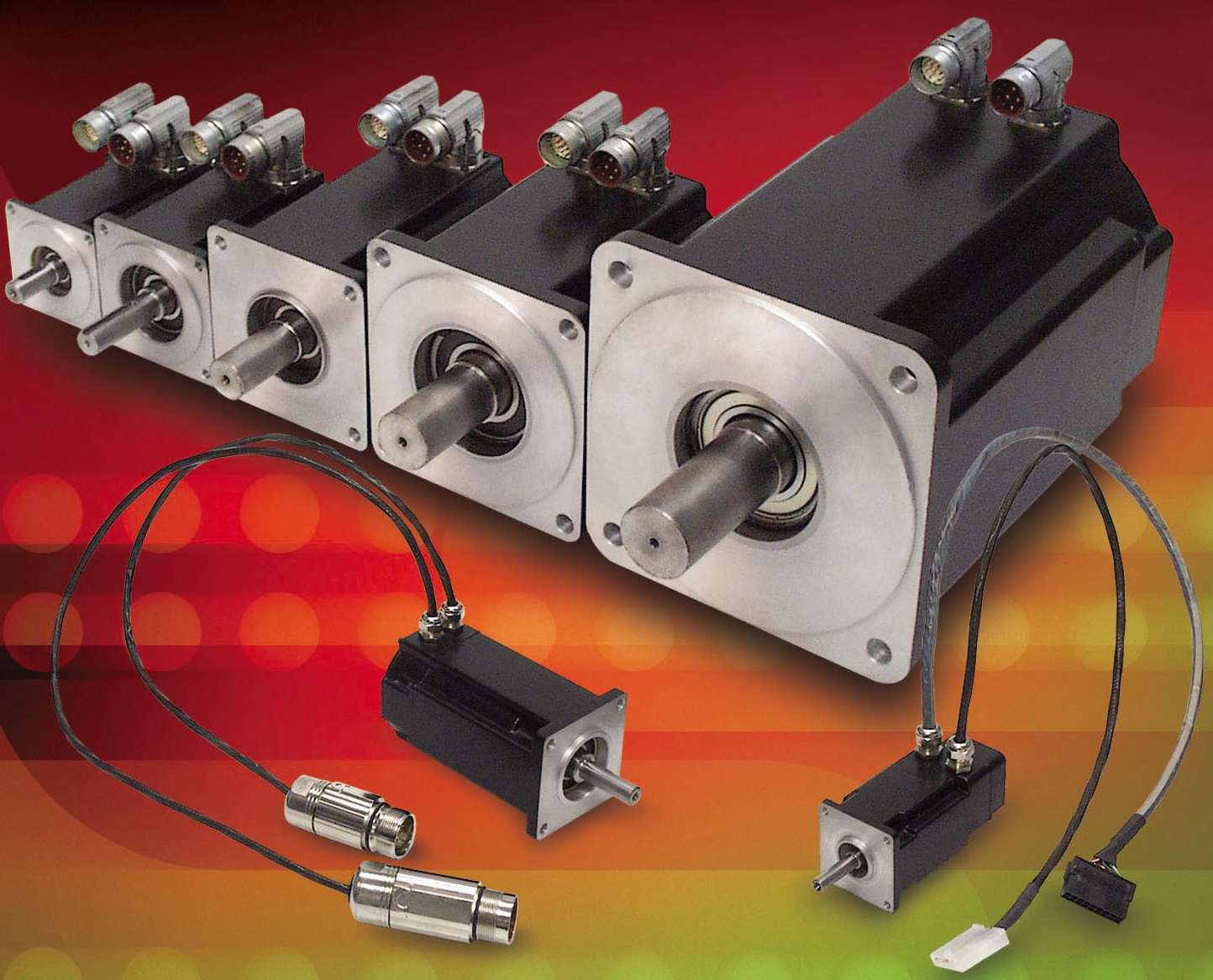

Jan 14, 2004 Available in 12,000+ standard offerings, Kollmorgen AKM servomotors utilize electromagnetic design with global feature set. Motors are wound with non-overlapping coils, reducing potential for phase-to-phase shorting, and assemblies are potted and IP65 sealed. Products are available in 7 frame sizes with 25 stack/frame combinations, 77 standard windings, and 19 mounting patterns. They provide continuous torque range from 0.2–53 Nm and speeds to 8,000 rpm.

Sealant Equipment & Engineering, Inc.    Plymouth, MI 48170-0965

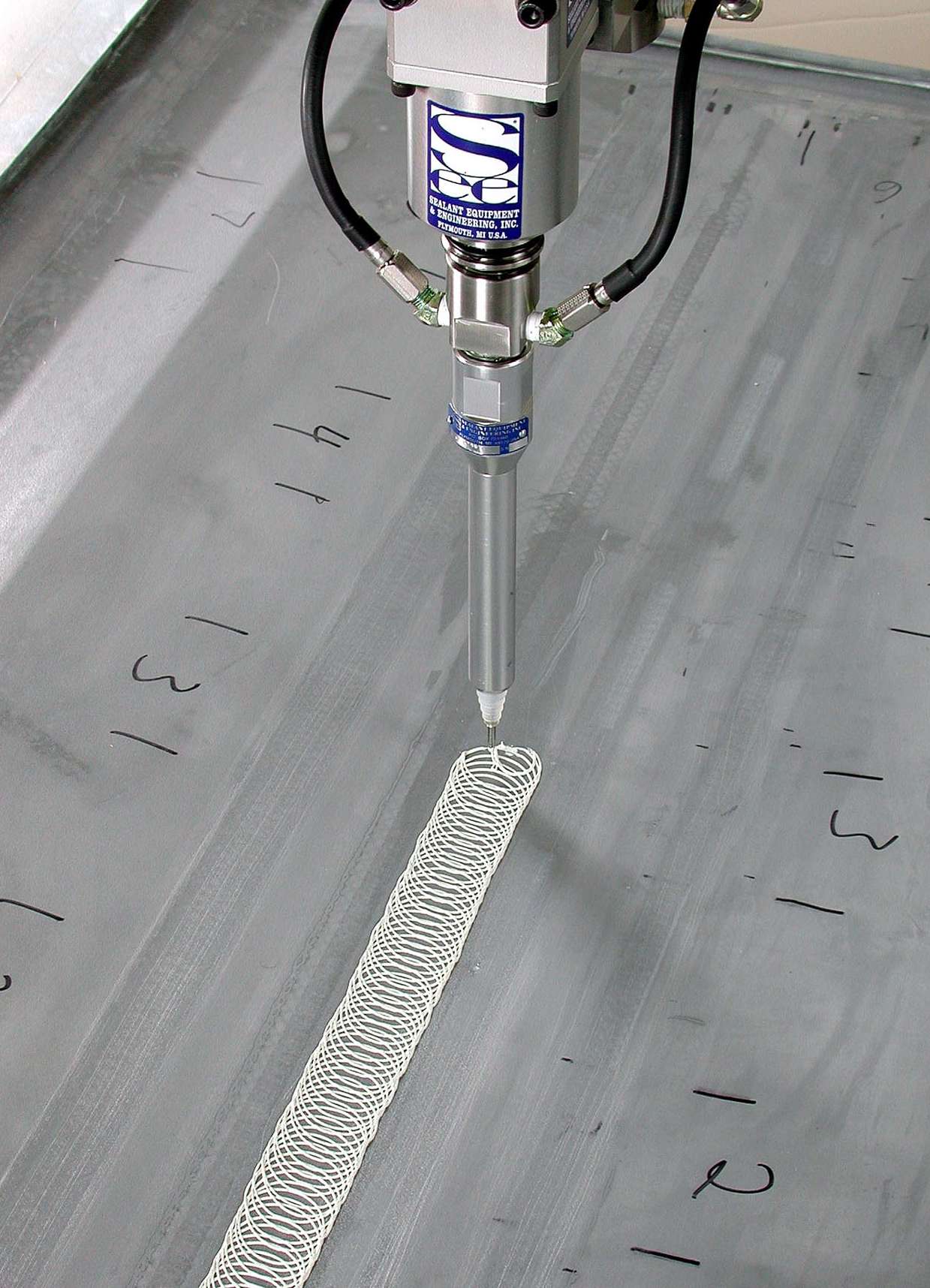

Jan 14, 2004 Program-A-Swirl® dispenses adhesives or sealants in circular swirling pattern or continuous bead. Swirling is achieved by oscillating nozzle assembly, creating concentric circular pattern. Assembly self-centers its action, allowing tool to alternate on-the-fly between dispensing swirl pattern and consistent bead path. System can be used with standard nozzle for single-component materials or with static mixer nozzle to dispense 2-component, reactive resin materials.

Metalcraft, Inc.    Mason City, IA 50401 1468
Jan 14, 2004 Suited for extreme conditions or repeat exposure to paint use, Teflon®-Coated Nameplates resist incidental or intermittent contact with strong acids and caustics as well as temperatures to 500°F. Permanent Paint-Resist Labels combine laminate that resists multiple paint applications and grease with polyester material that is flexible enough to work on variety of surfaces. Paint-Mask Labels have removable paint-mask and are suited for 1-time use.

RIDGID    Elyria, OH 44035

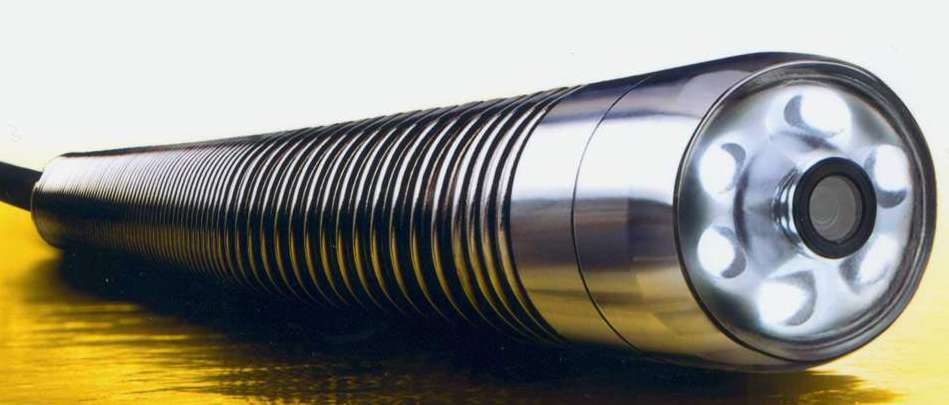

Jan 14, 2004 Designed for use with proprietary video inspection system, compact SeeSnake® Plus provides video image in upright position with water flowing along bottom of pipe. Product has 1.365 in. dia and is 2 in. long, enabling it to fit into tight spots. Features include 512 Hz transmitter, stainless steel construction, and waterproof camera housing. Applications include use in drain lines and piping in order to determine cause and location of blockages.

American-Lincoln    Bowling Green, OH 43402

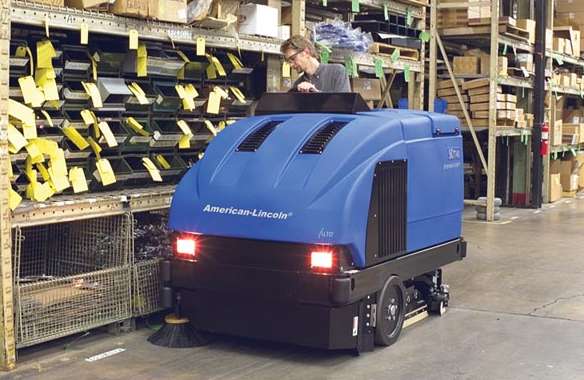

Jan 14, 2004 Model SC7740 features independent sweeping system in front that picks up dirt and debris before scrubbing, and dust control system that prevents stirring up of dust. Double-scrub brush for disk scrubbing offers aggressive cleaning action. All brooms and brushes raise and lower with switch for 1-pass sweeping and scrubbing. Machine includes power steering, easy drain and clean-out system, hydraulic brush drive motors, and Accu-Trackâ„¢ break-away squeegee.

Glacier Computer    Amherst, NH 03031

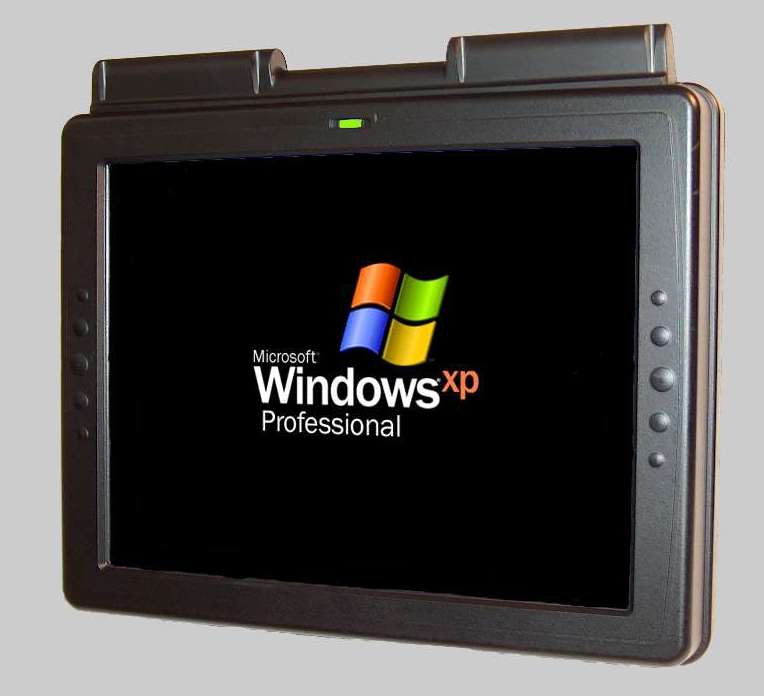

Jan 14, 2004 Suited for fixed-mount data collection, Model GX-1500 features 15 in. LCD resistive touchscreen, 1.2 GHz Pentium III processor, and 256 MB DRAM, which is upgradeable to 512 MB. It offers minimum 20 Gig hard drive, 10/100 Ethernet, optional 2.4 GHz wireless, and multiple industry standard I/O. Computer supports 32-bit bus configuration allowing for high data rate 802.11 A, B, and G wireless radios. Thin enclosure mounts in space-constrained locations.

Mocon    Minneapolis, MN 55428

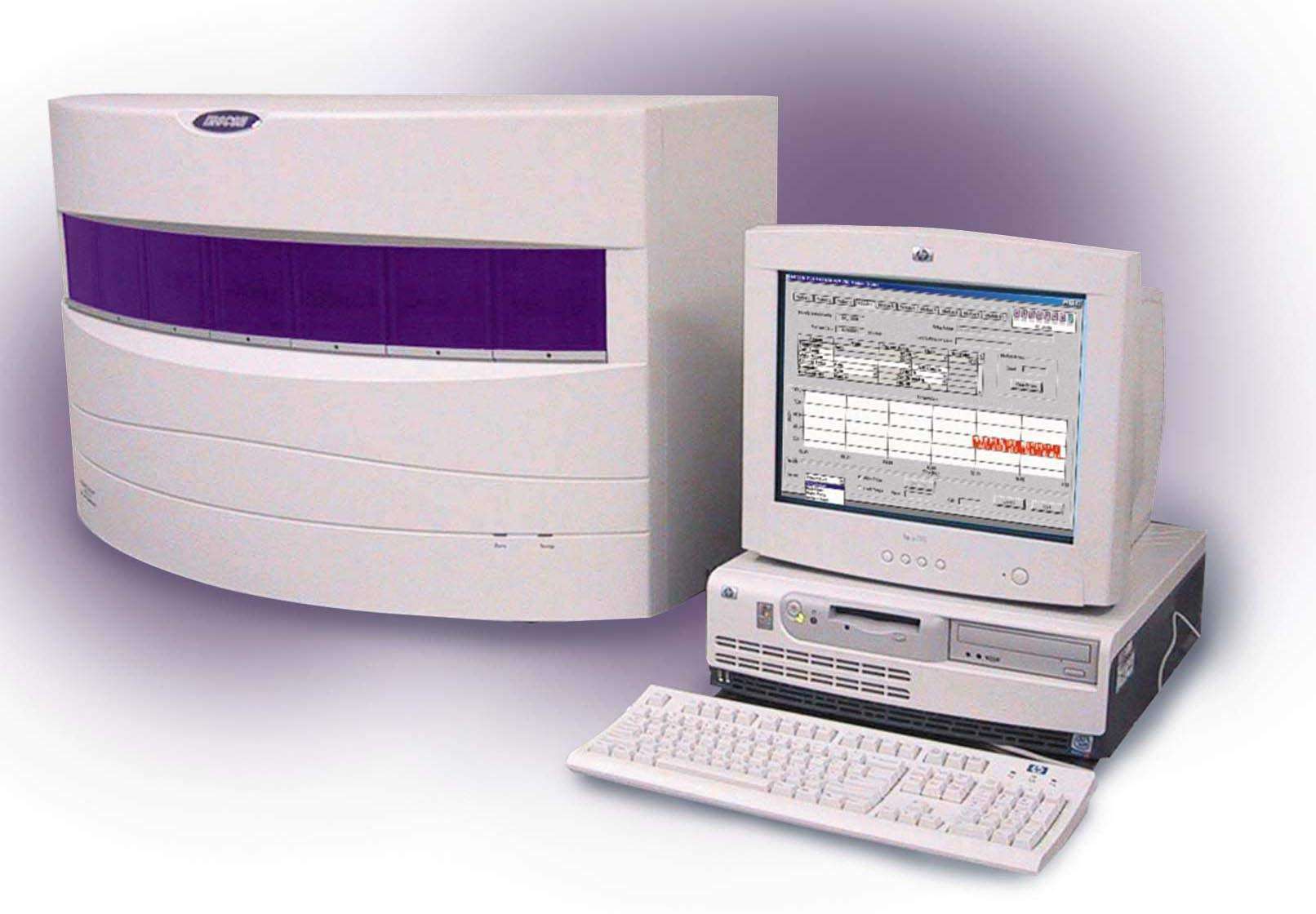

Jan 14, 2004 OX-TRAN® Model 702 and PERMATRAN-W® Model 700 feature COULOX® coulometric-type sensor for measuring oxygen and modulated infrared sensor for measuring water vapor. Seven-cell configuration allows 7 different structures to be tested independently. Pushbutton-actuated, pneumatic clamping device facilitates loading of material into cell and provides consistent pressure. Systems are suited for packaging applications where product is subjected to degradation by oxygen or moisture.

Norgren    Littleton, CO 80120

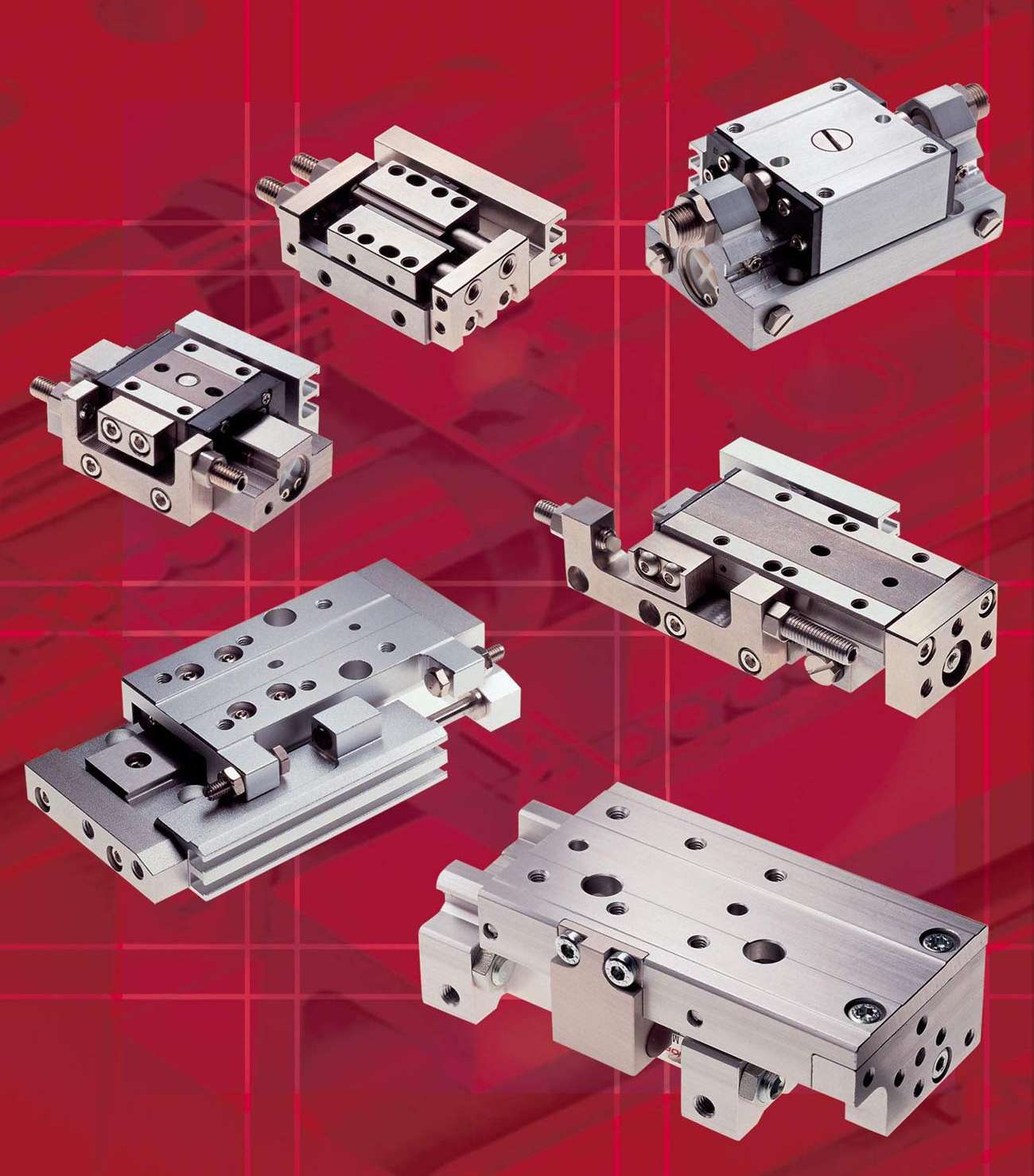

Jan 14, 2004 Linear Slide Tables, available in compact, precision, low profile, synchronous, and adjustable formats, offer port sizes from 6–32 mm. Standard models are magnetic with adjustable stroke. Units are suited for applications that require transportation of loads over short distances such as pick and place, fluid dispensing, and product testing machines.

Mate Precision Tooling    Anoka, MN 55303

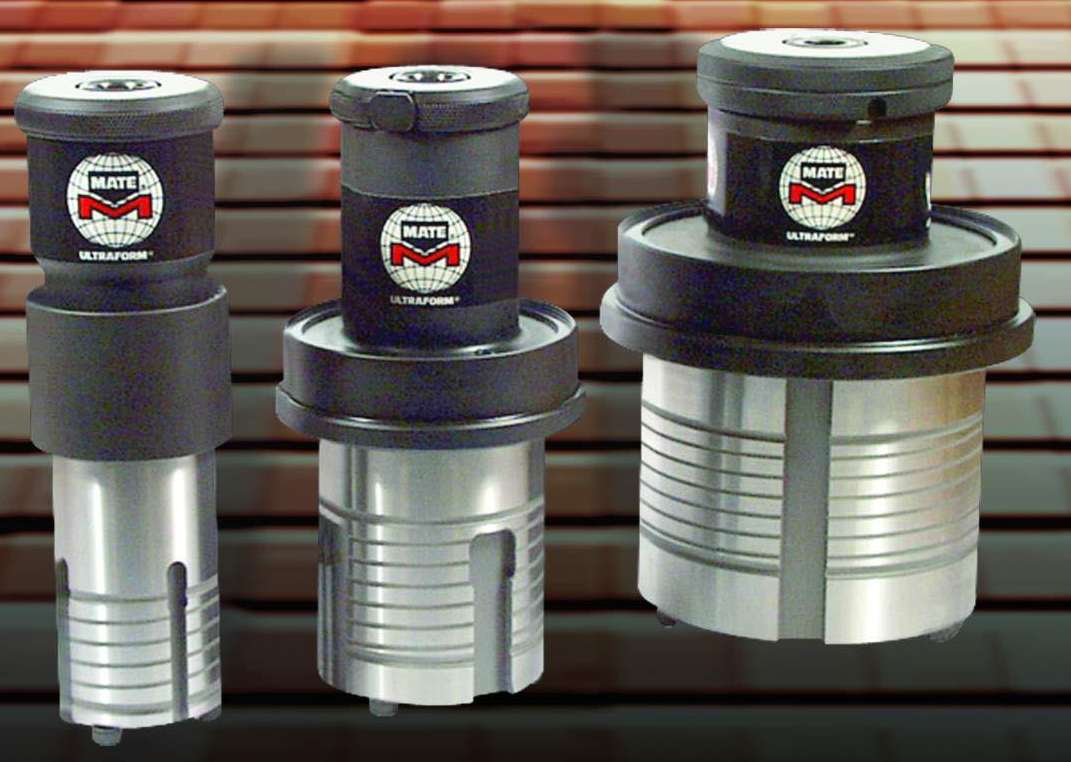

Jan 14, 2004 GapMaxâ„¢ turret saver forming system guide enables production of maximum height forms in thick turret punch presses without risk of damage to tool, machine, or successive forms in sheet metal. It protects machine turret while using entire turret gap for forming applications and eliminates potential for collision between press ram and tool during tool changes. Product allows for length adjustment of tool in .002 in. increments between guide shoulder and point of form.

Topper Industrial    Sturtevant, WI 53177
Jan 14, 2004 Low Rider Cart can be tipped up to 60°, while pivot point takes cart within 9 in. of floor. Variable stops at 15, 30, 45, or 60° are controlled by foot pedal. Cart can also have fixed stop, depending upon height of box. When container is empty, counter-balance automatically pivots box upright. Worker can position cart loaded to full 2,000 lb capacity using just 35 lbs of force. Unit includes six 8 in. casters with no-maintenance sealed bearings.

Pelican Products, Inc.    Torrance, CA 90505

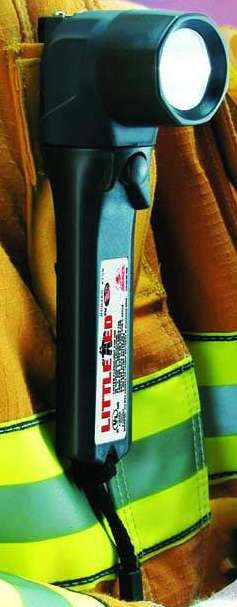

Jan 14, 2004 Little Edâ„¢ right angle flashlight, based on StealthLiteâ„¢ 4 AA body and lamp assembly, features housing that redirects lens 90° to body. Heavy-duty, stainless steel spring-clip and hang ring provide industrial users and firefighters with hands-free use. Product is available with alkaline battery with 4 hr burn time or rechargeable with 1.5 hr burn time.

Strong Hold Products, Div. of Fabricated Metals LLC    Louisville, KY 40214

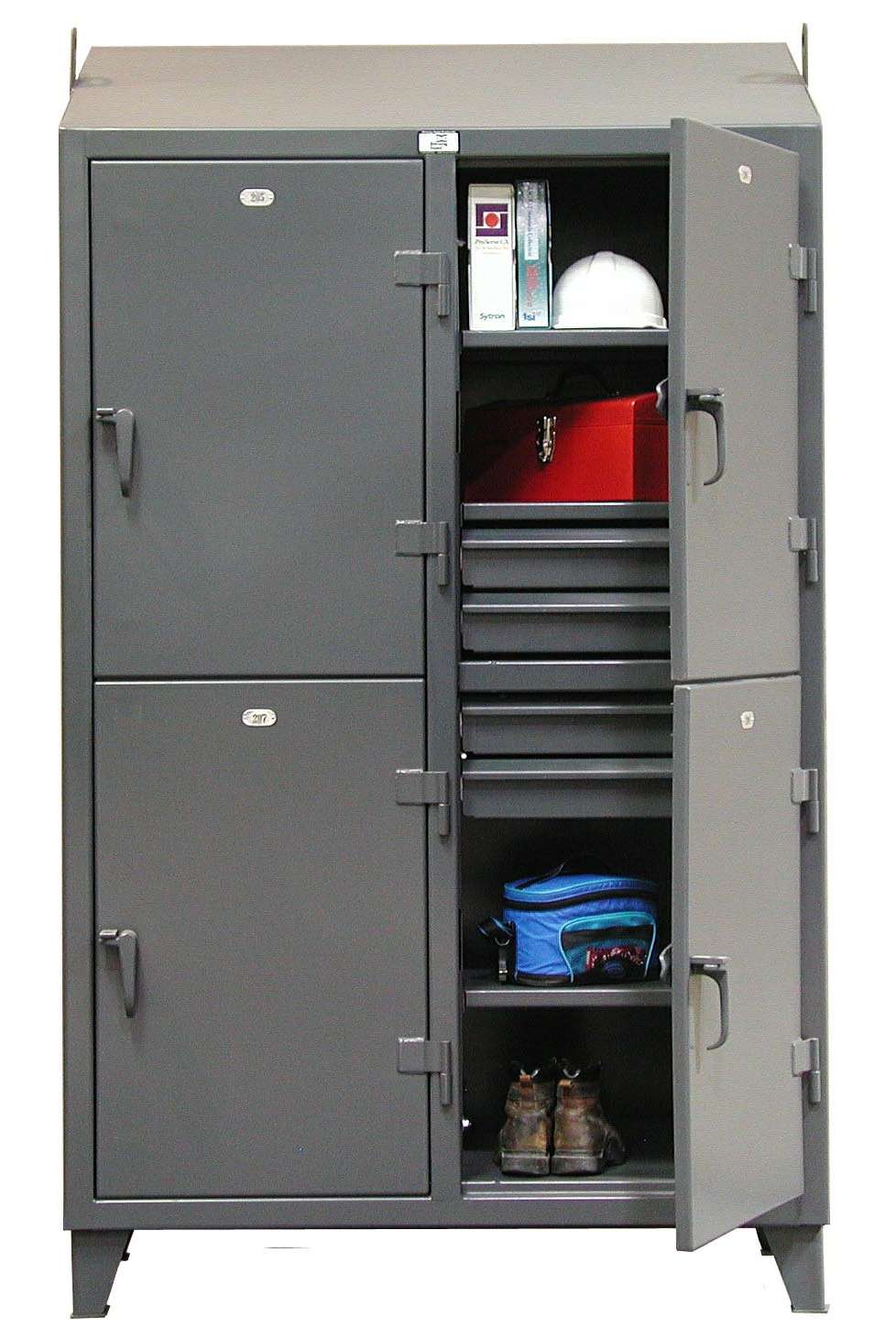

Jan 14, 2004 All-welded personal locker is constructed from 12-gauge steel and measures 48 in. wide x 24 in. deep x 72 in. high. Each unit has 4 openings, and each opening has 2 drawers with 250 lb load capacity and 2 adjustable shelves. Each door has number plate, and cabinet features sloped top and lifting lugs.

Aladdin Systems, Inc.    Watsonville, CA 95076 4159
Jan 14, 2004 The Big Mix(TM) includes Audio Hijack(TM), which lets users record any sound played by applications on computer, and Disco(TM) DJ mixing software. It is also available with Doggiebox(TM) drum machine and GrooveMaker® music software for creating electronic dance tracks in real-time. Making More Music tool helps users compose music, while iPodRip(TM) facilitates song transfer from iPod to Mac. Additional tools include iTunes Publisher, MP3 Rage(TM), and Spark LE(TM).

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jan 14, 2004 Model ENA-L provides capabilities needed for characterization of active and passive components, and PNA-L microwave/millimeter-wave network analyzer provides S-parameter measurement and frequency-offset capabilities for evaluating frequency conversion devices. Both are equipped with Windows® interface. Model ENA-L has 4 measurement channels and 10.4 in. color LCD display with optional touch-screen capability, and PNA-L offers 32 measurement channels.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Jan 14, 2004 Available in 5-pin, SOT-23 package, TPS723xx low-dropout linear regulators (LDOs) incorporate ceramic capacitors and offer thermal shutdown and over-current protection. With 65 dB @ 1 kHz power supply rejection ratio and 60 µV(RMS) output noise, they support battery-powered applications as well as applications with noise-sensitive circuitry. Products have operating voltages from -10 to -2.7 V and support output voltages from -10 V to -1.2 V.

Men Micro Inc.    Lago Vista, TX 78645-4160
Jan 14, 2004 Embedded System Module EM04N includes 266 or 400 MHz Kahlua II PowerPC processor and Altera Cyclone FPGA with 250,000 gates. FPGA accommodates TFT display controller, touch-screen controller, 2 CAN controllers, and 8 UARTs. Module features slot for SO-DIMM with 256 MB DRAM and slot for CompactFlash memory. Two RS232 channels and 2 Fast Ethernet ports can be accessed on front of board. Applications include machine controls, man/machine interfaces, and embedded terminals.
