CMS Mfg. Systems, Inc.    Nashville, TN 37221
Jan 15, 2004 Multi-Layered Architecture combines IBM eServer iSeriesâ„¢ ILE-RPG platform with full function, Java-based presentation layer. It gives customers options for accessing, managing, and enhancing CMS applications across enterprise as well as capabilities for incorporating user and handheld devices into manufacturing IT environment.

Severn Trent Services    Fort Washington, PA 19034-2707
Jan 15, 2004 Using High-Resolution Gas Chromatography/Mass Spectrometry (HR GC/MS) instrumentation, company analyzes Polybrominated Diphenyl Ether (PBDE) congeners in soils, sediment, water, tissue, solvents, and air. PBDEs are persistent, bioaccumulative, and toxic contaminants used as fire retardants in production of consumer products such as furniture, insulation, textiles, and plastics.

Makita U.S.A., Inc.    La Mirada, CA 90638
Jan 15, 2004 Series eLuminateâ„¢ Models 14835F and 1835F are 14.4 and 18 V, nickel-metal hydride batteries rated at 3.0 Ah. Built-in LEDs light work area for more than 10,000 hours, while requiring almost zero power from battery. Batteries feature individual on/off switch and retractable, 4-position light beam angle setting. They are suited for variety of cordless tools including driver-drills, impact drivers, and impact wrenches.

Scapa North America    Windsor, CT 06095
Jan 15, 2004 Pressure-sensitive Medifix® 6016/868 consists of soft, conformable, 0.4 mm, transparent polyurethane film coated on one side with medical-grade acrylic adhesive. Product, supplied on 80 gsm white glassine release liner, can also be provided with or without polyethylene delivery film. Applications include wound and IV care, consumer dressings, and cutaneous attachment of medical devices.

Hendrickson International    Woodridge, IL 60517-4904

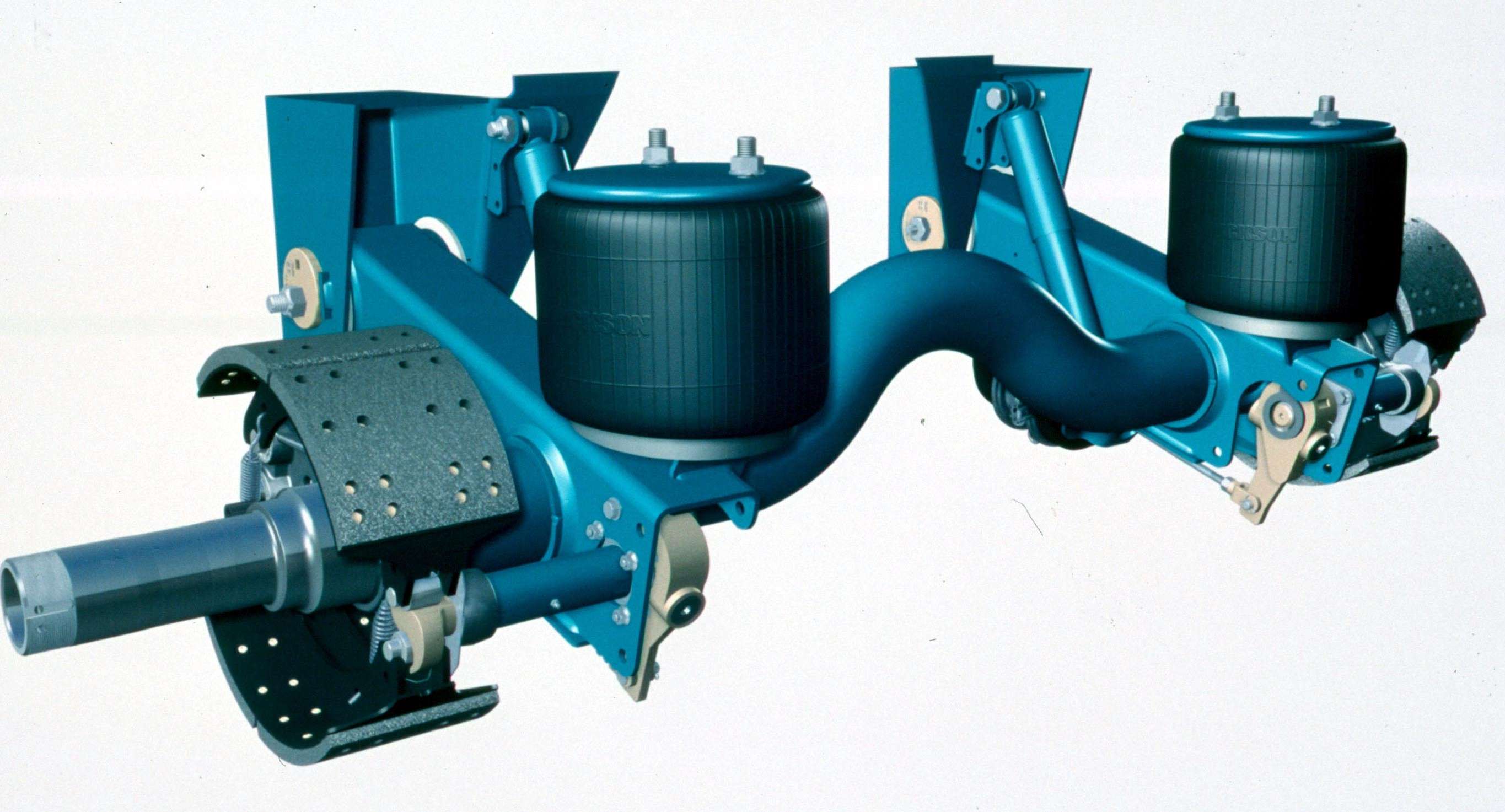

Jan 14, 2004 Raised-center-INTRAAX® offers benefits of integrated trailer suspension system to rear-discharge tankers. System offers 23,000 and 25,000 lb capacity models for 77.5 and 71.5 in. tracks in top-mount configurations and ride heights from 13.5–19 in. It features standard trailer Cam Tube Systemâ„¢ to reduce S-cam maintenance and can be customized with READY-TO-ROLL® options.

Axsys Technologies Inc. / Precision Systems Group    Rochester Hills, MI 48309 4600

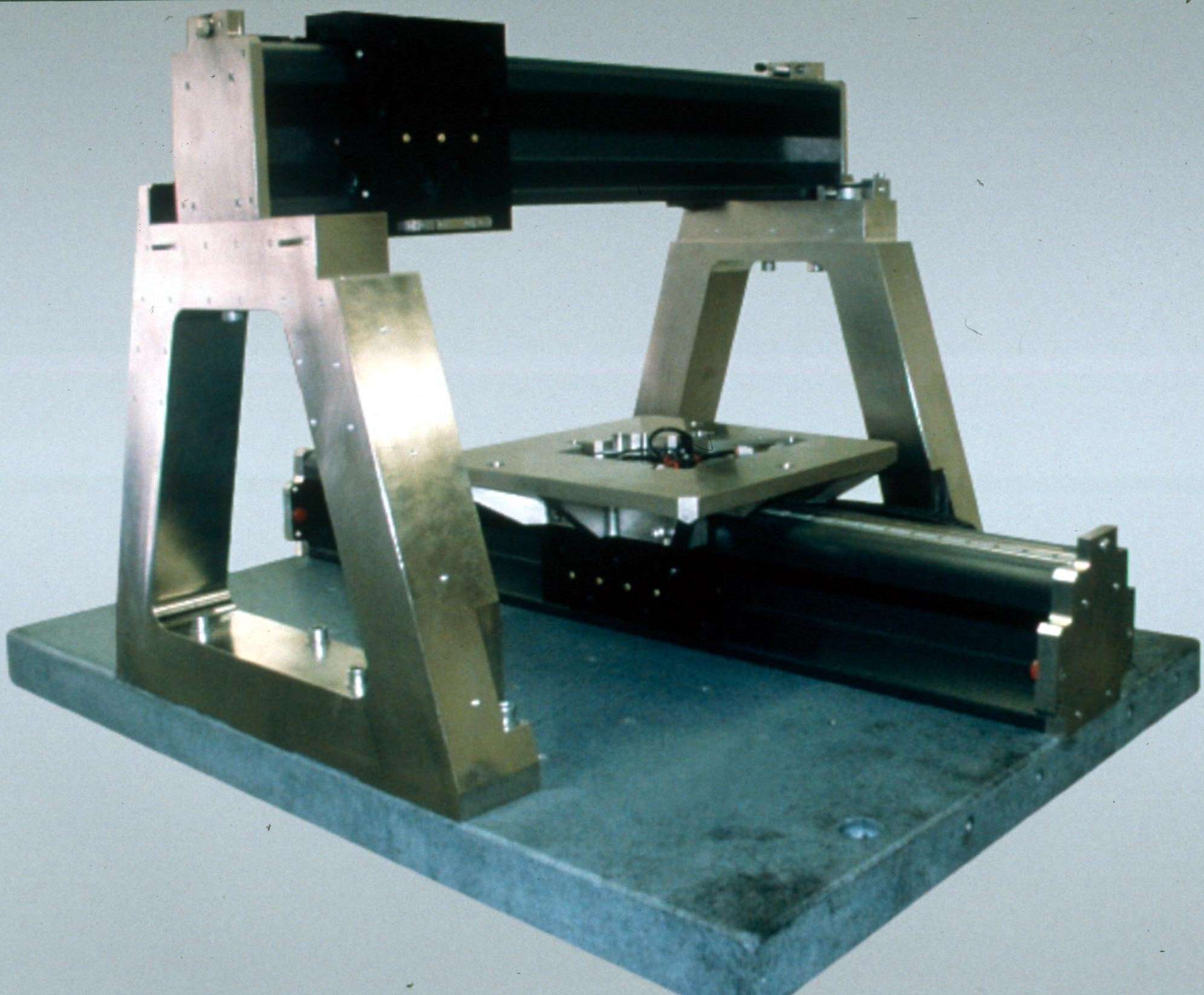

Jan 14, 2004 With travel lengths from 50–300+ mm, Monorail platform features air-bearing surfaces coupled with direct drive linear motor technology. Non-contact design permits low-velocity ripple during motion without need for lubricants. Turnkey solution provides horizontal, vertical, and angular stiffness up to 1 million lb/in. Features include open carriage design, centerline motor, and analog or digital encoder positioning systems.

Moyno Inc.    Springfield, OH 45501 0960

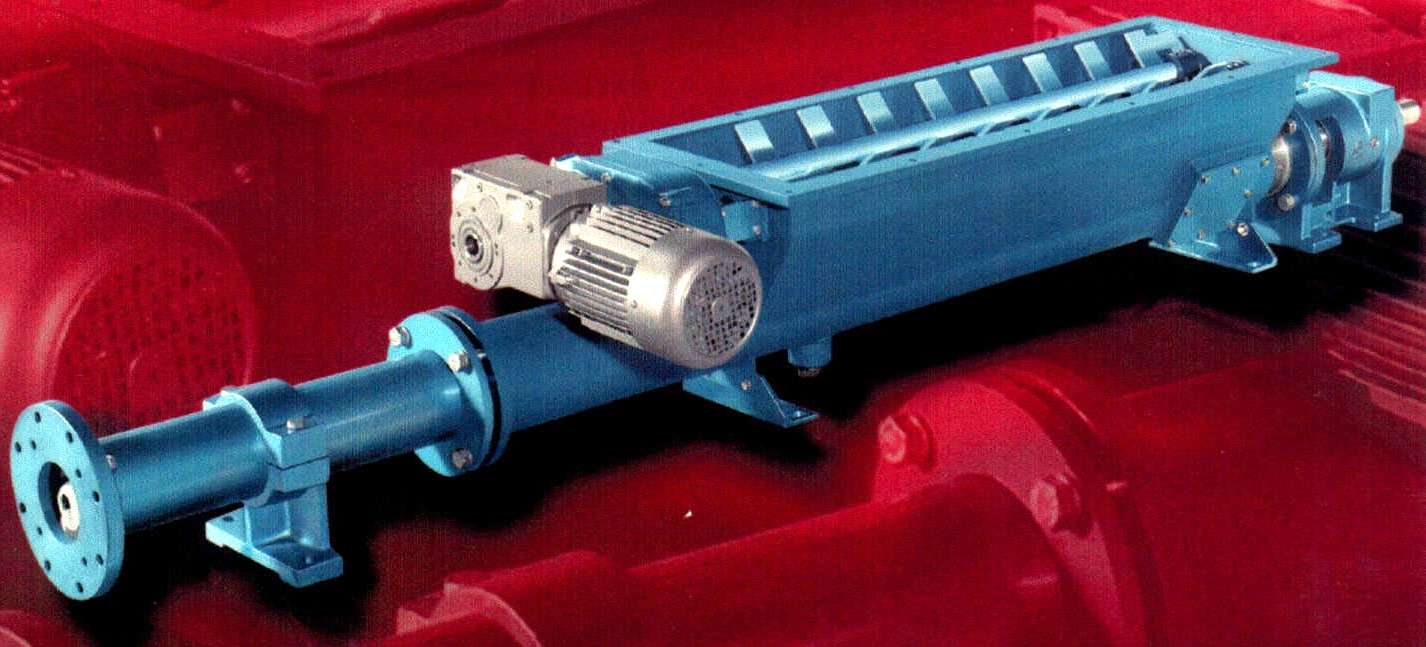

Jan 14, 2004 Incorporating proprietary Moyno Ultra-Technologies®, 2000 G3 Pump features bridge breaker anti-bridging mechanism, which operates at speeds independent of pump's rotational speed to optimize fluid feed control. Single auger feed mechanism moves product through extension tube to pump element, ensuring product is fed directly into cavity. It suits medium- to high-viscosity, high-solids content applications where bridging is of significant concern.

Scientific Technologies Inc.    Fremont, CA 94555

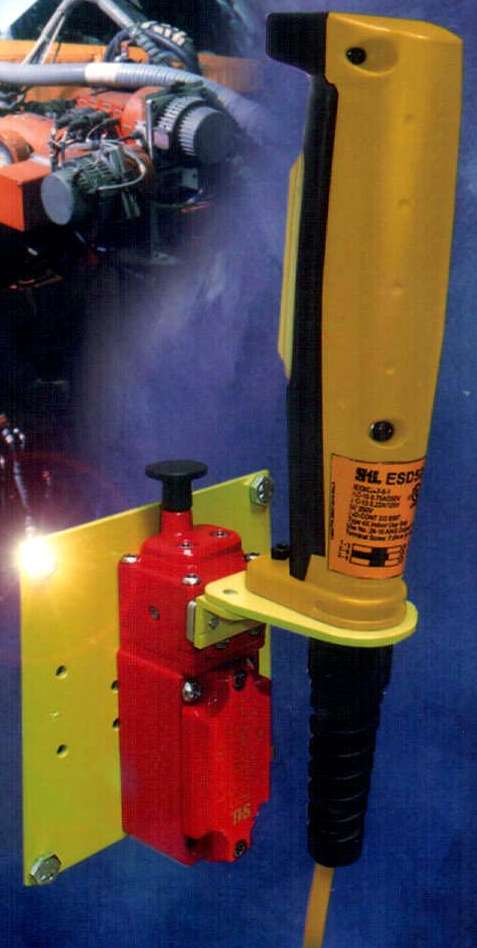

Jan 14, 2004 CE listed to all applicable standards, ESD5020 provides margin of safety needed during troubleshooting, set-up, programming, or servicing of robotic or automated machinery. Dual 3-position enabling switches are integrated into trigger to provide operator with constant control. Trigger has recognizable, middle enabled position, while redundant switch contacts ensure that machinery can be stopped by releasing or squeezing trigger.

Computer Conversions Corp.    East Northport, NY 11731

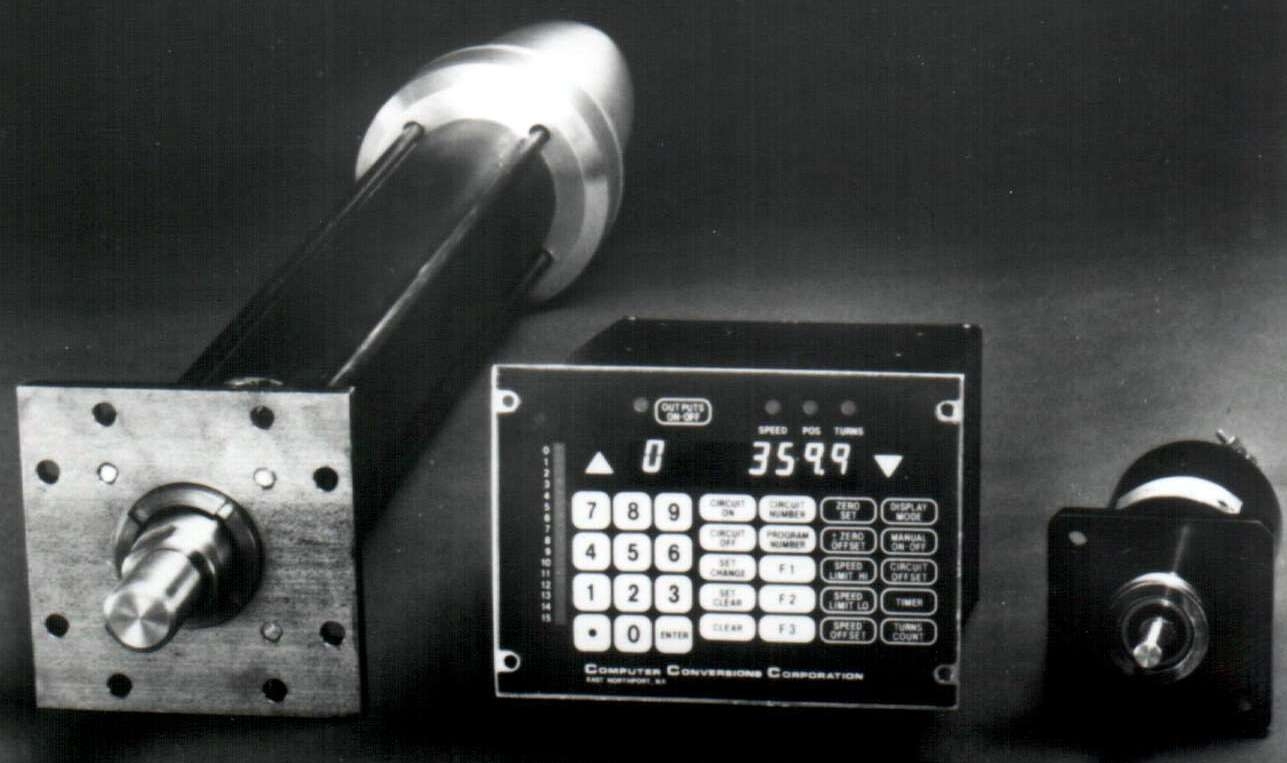

Jan 14, 2004 Compact PLS1000 provides remote control of timing and dwell settings in machine applications. Microcomputer-based limit switch uses brushless resolvers for absolute position feedback, with 8 inputs and 16 function programmable outputs. Repeatability is .088° with 5 µsec throughout operation to 3,000 rpm. Up to 10 independent programs can be stored, changed, and initiated with splash-proof, tactile keyboard or via RS232C serial communication ports.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Jan 14, 2004 Equipped with 64-element thermopile array sensor and compact body, isquare 2D infrared thermometer allows users to view and verify measurement subject on LCD screen while simultaneously measuring temperature at 64 points. It can display and save data with graphic representation of temperature distribution overlaid on image of test subject. To save data, users line up object being measured in LCD monitor and press Save button.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Jan 14, 2004 Model RX-7000a automatic digital refractometer features manual calibration, up to 30 user-programmable scales, and flash memory capable of recalling 30 previously measured values. Product measures refractive index from 1.3250-1.7000 nD and has brix range of 0.0-95.0%. Unit utilizes thermo-module and offers controlled measurement temperature range from 5 to 70°C.

Watlow    St. Louis, MO 63146

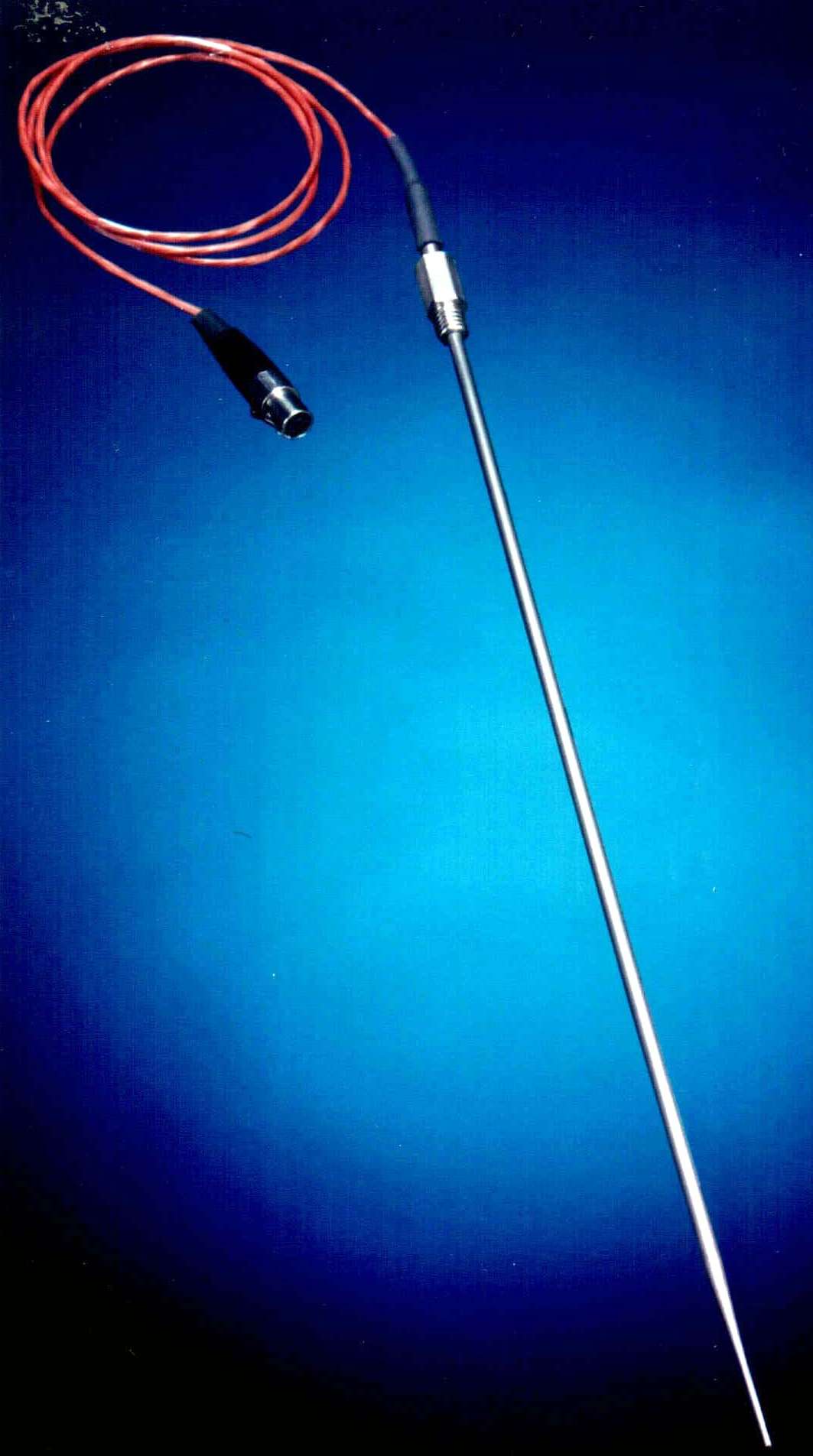

Jan 14, 2004 Made of alloy 600 and nickel-silicon, WATCOUPLE is based on IEEE 1451.4 smart sensor technology, which enables unit to communicate individual voltage table, calibration, manufacturing, and traceability information. WATCOUPLE is available in all standard sizes and configurations. Applications include power generation, chemicals, mining and glass processing, semiconductor, and test stands.

StockCap    Arnold, MO 63010

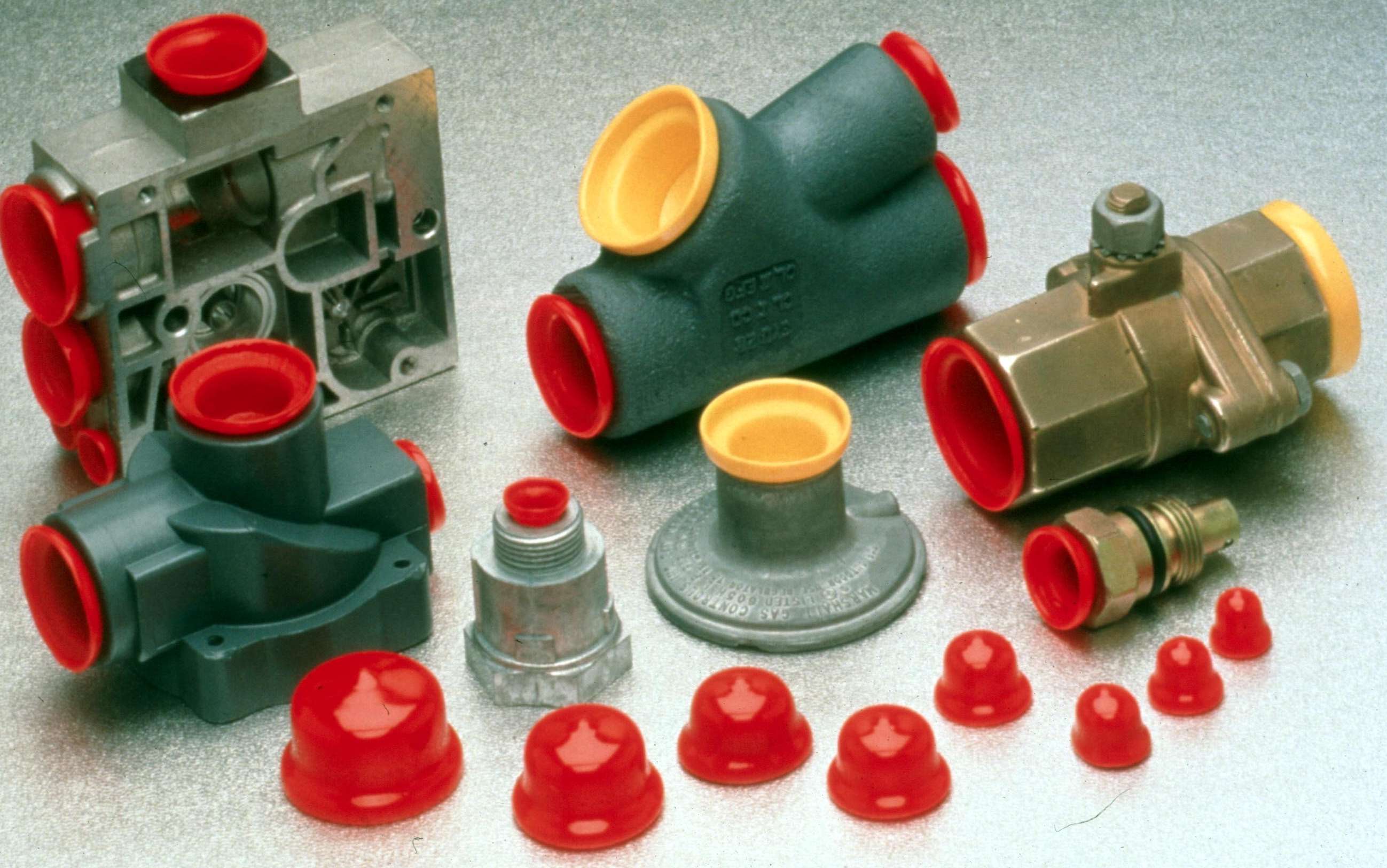

Jan 14, 2004 Flexible Vinyl Plus Dip-Molded Plugs can fit multiple ports and conform to internal threads to prevent movement during manufacturing and shipping. They provide barrier to moisture and contamination and will not shred, split, or crack. Available in variety of sizes, plugs are also suited for masking applications.

Aaeon Electronics, Inc.    Hazlet, NJ 07730

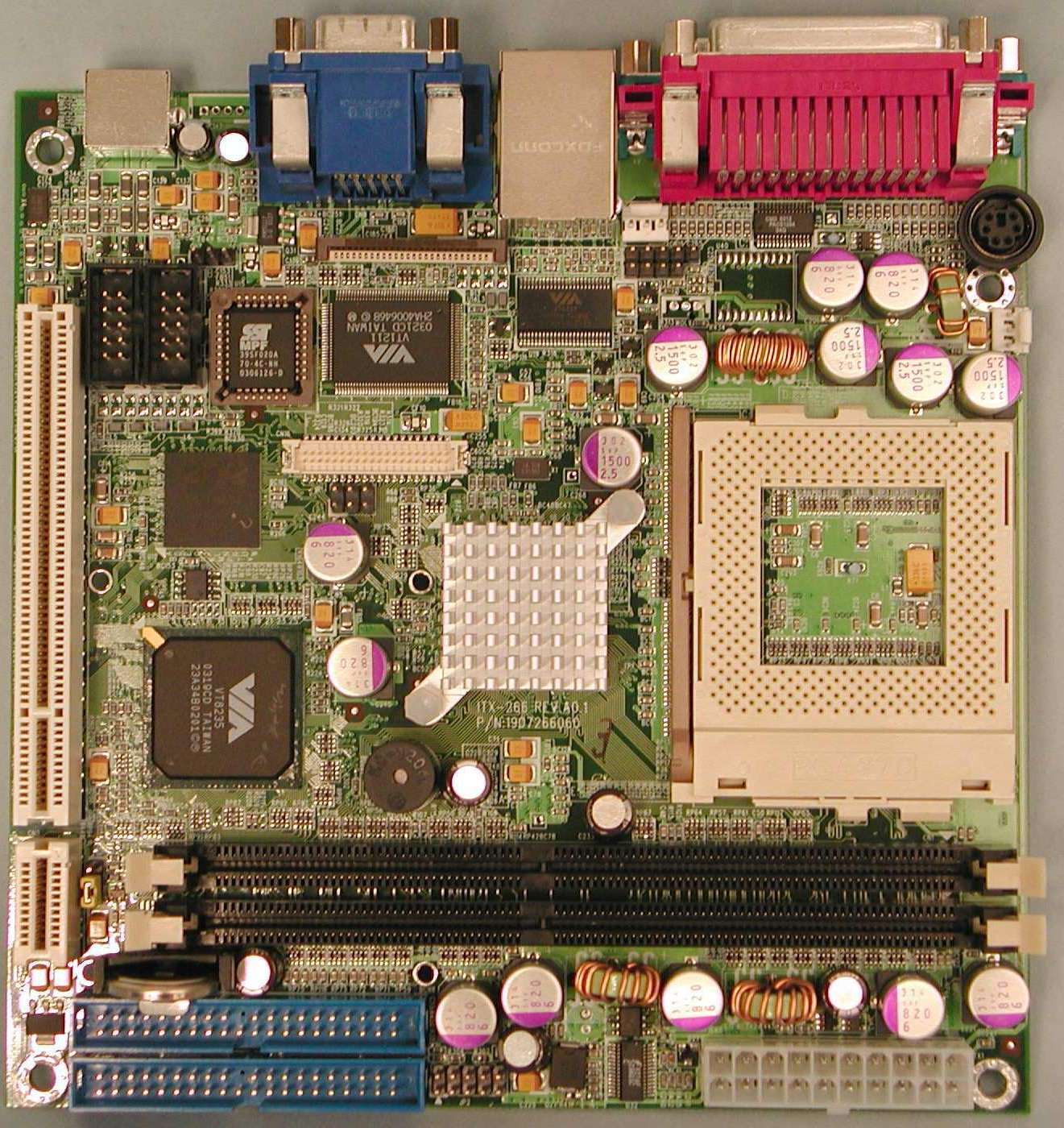

Jan 14, 2004 Powered by Intel® Pentium III/Celeron processors, ITX-266 embedded Mini ITX motherboard suits POS/POI, kiosk, and gaming applications. It uses VIA’s CLE266 chipset, which supports processing speeds from 533 MHz to 1.4 GHz (Pentium III) and 566 MHz to 1.4 GHz (Celeron). Measuring 6.69 x 6.69 in., board has memory capacities to 2 GB DDR SDRAM with 2 sockets; 2 IDE channels; and VIA VT8623 North Bridge and VT8235 South Bridge for bus and I/O control.

Norstat, Inc.    Rockaway, NJ 07866
Jan 14, 2004 Made of shock-proof technopolymer with double insulation, Series CC features EN 418 compliant, mushroom head pushbutton and double break, positive opening NC contacts. One bottom and two side conduit entry knockouts allow for installation in any orientation. Boxes carry IP 65 protection rating and will operate from -25 to +70°C, making them suited for indoor, outdoor, or harsh conditions.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jan 14, 2004 When InfiniiMax 1130A 1.5 GHz differential probe is paired with Infiniium mixed signal and digital signal oscilloscopes, system validates and verifies performance of high-speed digital product designs. Controlled transmission-line probe heads provide flat frequency response over entire bandwidth. Resistor tip technology compensates for inductance and capacitance. Variable span between signal tips lets engineers adapt probes to design.

Pro-Line    Haverhill, MA 01835
Jan 14, 2004 Suited for assembly and manufacturing environments, Dimension Next expandable work stations feature overall height of 82 in. and are offered in single-sided and double-sided versions. Heavy-gauge steel frame bolts to top supports, adding strength to work surface and lateral support to entire station. Sizes include 48 x 30, 60 x 30, and 72 x 30 in. Optional modular accessories let user configure each station to meet their needs.

French Technology Press Office, Inc.    Chicago, IL 60601
Jan 14, 2004 Using CMOS imaging technology, LABCam offers 1 mega-pixel resolution and allows individual pixel addressing via dedicated processor. User can control sensor saturation and exposure, and zoom in on region of interest while acquiring samples or full images. Camera's 10-bit per pixel sensor provides rapid acquisition while USB 2.0 interface speeds data transfer rates to 480 Mbits/s. Camera is suited for optical metrology applications.

Danaher Motion MCD    Amherst, NY 14228
Jan 14, 2004 Available in 12,000+ standard offerings, Kollmorgen AKM servomotors utilize electromagnetic design with global feature set. Motors are wound with non-overlapping coils, reducing potential for phase-to-phase shorting, and assemblies are potted and IP65 sealed. Products are available in 7 frame sizes with 25 stack/frame combinations, 77 standard windings, and 19 mounting patterns. They provide continuous torque range from 0.2–53 Nm and speeds to 8,000 rpm.

Sealant Equipment & Engineering, Inc.    Plymouth, MI 48170-0965
Jan 14, 2004 Program-A-Swirl® dispenses adhesives or sealants in circular swirling pattern or continuous bead. Swirling is achieved by oscillating nozzle assembly, creating concentric circular pattern. Assembly self-centers its action, allowing tool to alternate on-the-fly between dispensing swirl pattern and consistent bead path. System can be used with standard nozzle for single-component materials or with static mixer nozzle to dispense 2-component, reactive resin materials.
