Rubber Industries, Inc.    Shakopee, MN 55379

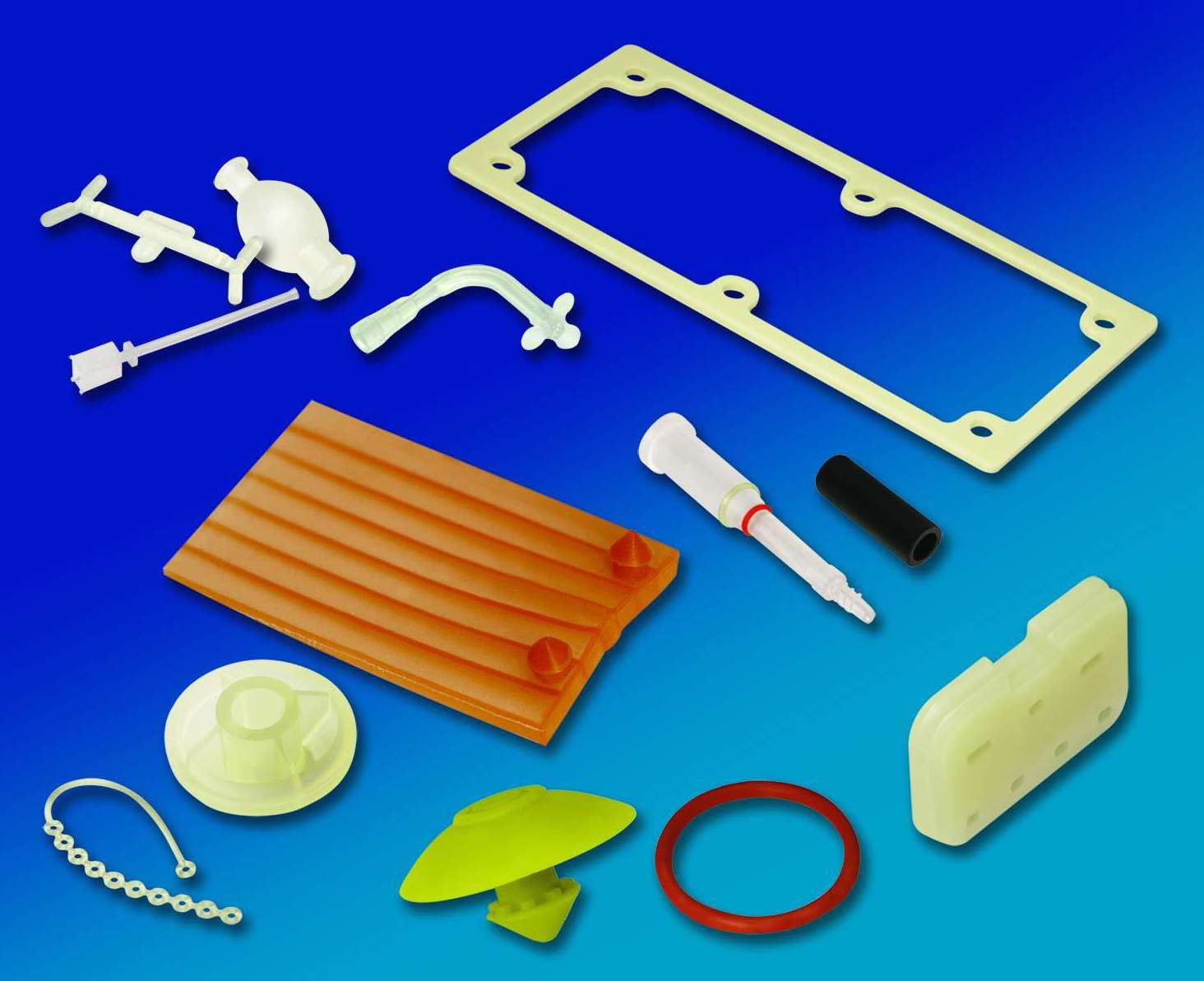

Feb 20, 2004 Liquid Injection Molding Service produces clear and colored silicon parts. Twenty-four ton Boy Presses can handle mold sizes of 10 x 12 in. and max shot size of 65 g. Molding systems utilize modular mold base, which is set up to receive cavity blocks of 4 x 4, 6 x 6, and 8 x 8 in. Liquid Silicone Rubber features temperature range of -94 to +400°F with resistance to sunlight and ozone. Typical components include seals, insulators, diffusers, valves, gaskets, and bellows.

Flomerics Inc.    Marlborough, MA 01752

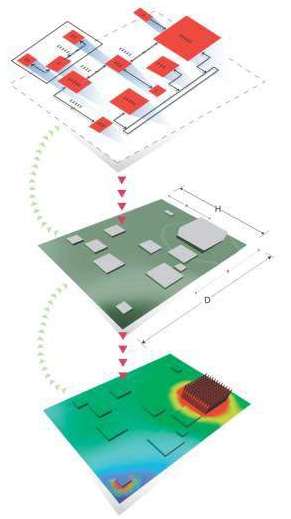

Feb 20, 2004 Suited for optimizing conceptual design of PCBs, FLO/PCB enables users to directly take account of thermal design constraints. Software promotes conceptual design process that enables collaboration in common design environment. Changes made in one view are reflected in all other views to keep team members current and let them contribute to design concept development in real-time. Software also predicts 3D airflow and temperatures in minutes for both sides of board.

Danfoss VLT Drives    Loves Park, IL 61111

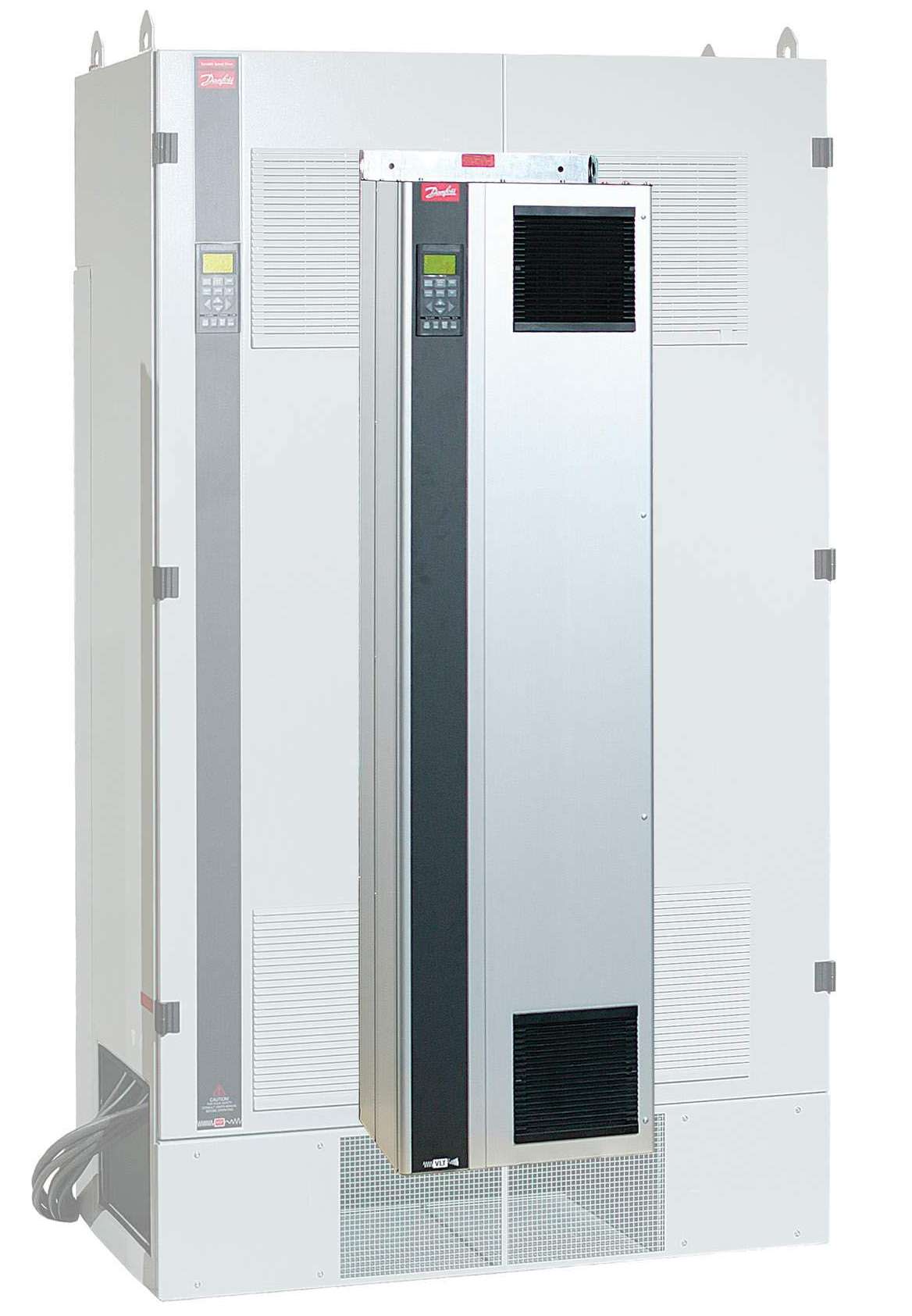

Feb 20, 2004 Models VLT 5122/5302 are 90-200 kW, 125-300 hp drives are available with built-in RFI performance to EN 55011 class B. Power termination design accepts single box lug or dual cable legs. Logic routing includes tie-down provisions to simplify installation and protect against noise disturbance. Ambient temperature ratings are 40-45°C in VT mode, 50°C with changes in switching pattern.

ID Technology Corp.    Fort Worth, TX 76106

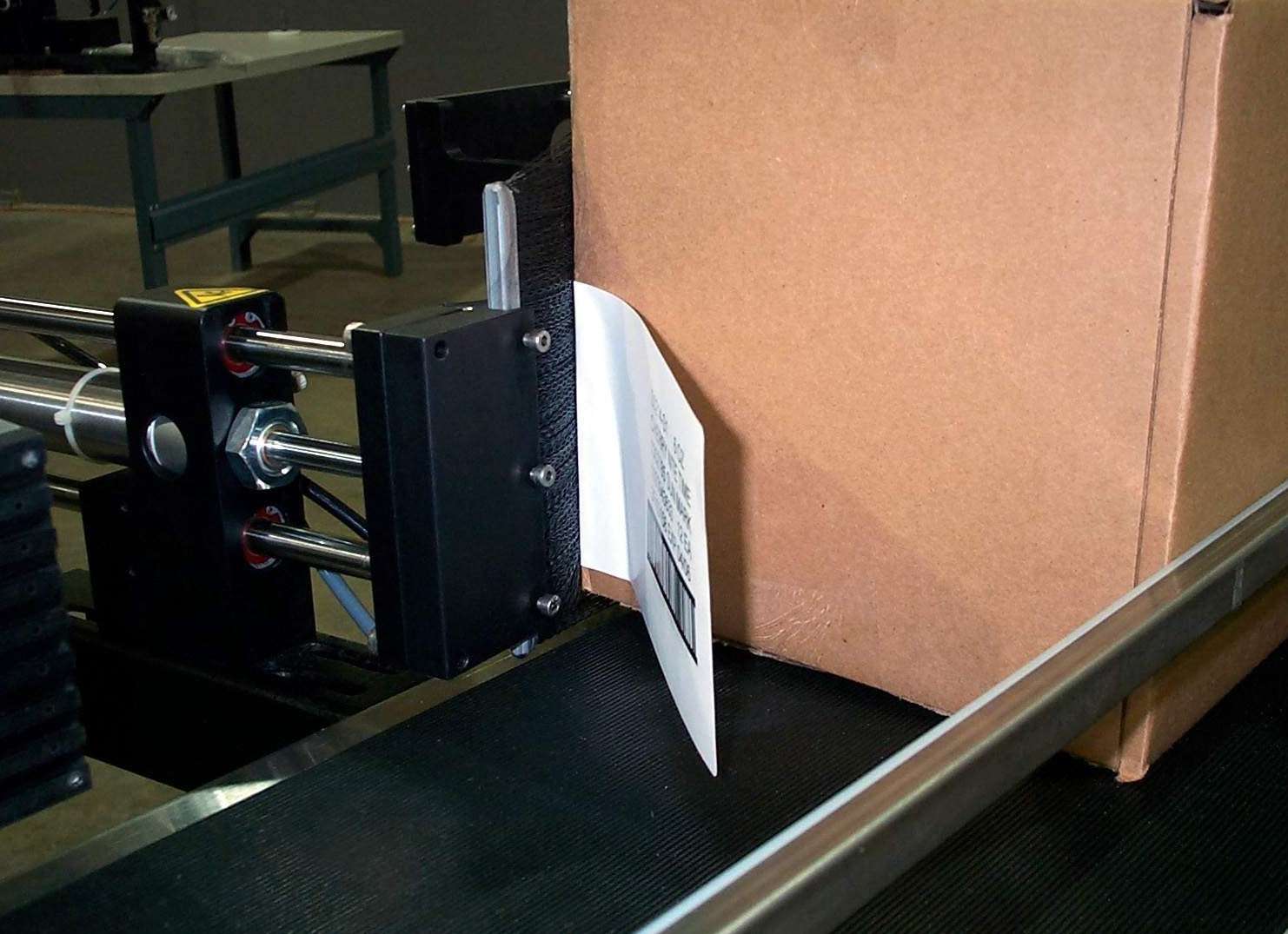

Feb 20, 2004 Labeling System prints and applies variable information labels to trailing corner of cases and cartons. Model 250 prints and applies labels, while secondary tamp tamps label to side of carton and wipes it around trailing edge corner. Scanner Interface verifies barcode and lets case continue down line or rejects it. Integrated, stainless steel conveyor features variable speed DC drive motor. Vertical Post and Slide Base Assembly enable X and Y-axis movement.

ETCO Incorporated    Warwick, RI 02888 1501
Feb 20, 2004 Made from nickel-plated steel, tinned brass, and brass, U-Band and Autoband Splices make in-line connections and butt splices with solid/stranded wires using automatic applicators. Dimples, serrations, and ribs increase holding force between wire and wire ear, and products improve electrical performance by mechanically disrupting oxides during crimping. They come in sizes for combined wire and splice cross-sections from 200–12,800 circular mills.

TURCK, Inc.    Plymouth, MN 55441

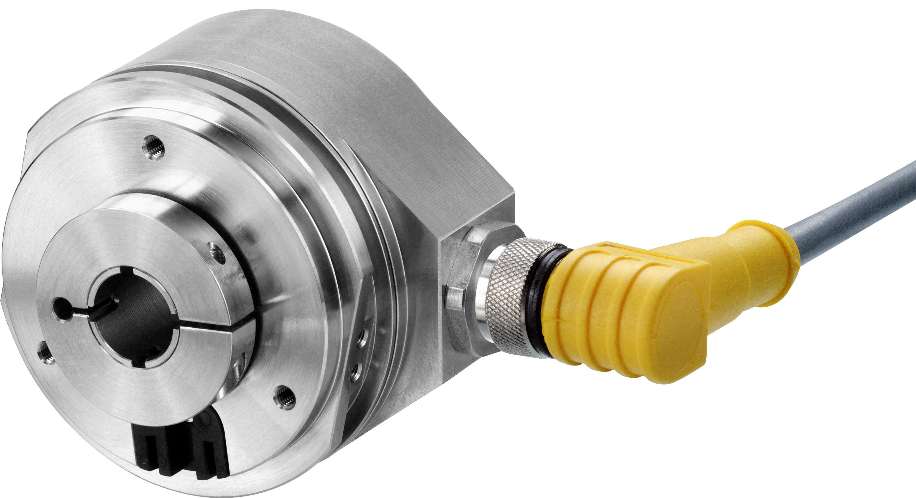

Feb 20, 2004 Incremental or absolute position sensing Kübler by TURCK encoders incorporate hollowshaft construction and stainless steel bodies with M12 eurofast® quick disconnect. Housings, in conjunction with shaft seals, provide environmental rating of IP 66. Available with flange, bore, and output circuit styles, units incorporate Intelligent Sensing Technology and Integrated Technology, which enable shock loads to 250 gs and resistance to EMI.

Amerlux Lighting Solutions    Fairfield, NJ 07004-2527
Feb 20, 2004 Available in electronic and magnetic ballast versions, Murro II evenly delivers wall wash beam spread with custom-configured, textured reflector and specially designed lens. Low-profile design and die-cast aluminum construction achieves precise optical alignment of lamp, reflector, and lens, while eliminating light leaks. Aiming angle indicator, adjustable from 0–90°, enables precise aiming of track head on specific product displays.

Taiyo Yuden (USA), Inc.    Schaumburg, IL 60173
Feb 20, 2004 Available in 20, 23, and 25 mm dia, MLS series multilayer ceramic piezoelectric speakers are manufactured to standard thickness of 0.7 mm. Products require no magnets for operation, have volume of 0.27–0.39 cm³, and provide sound output rated from 74–79 dB min. Products are suited for use in 3G cell phones, MPEG players, laptops, digital cameras, PDAs, and other portable electronic devices.

Schneider Electric    Palatine, IL 60067-7399

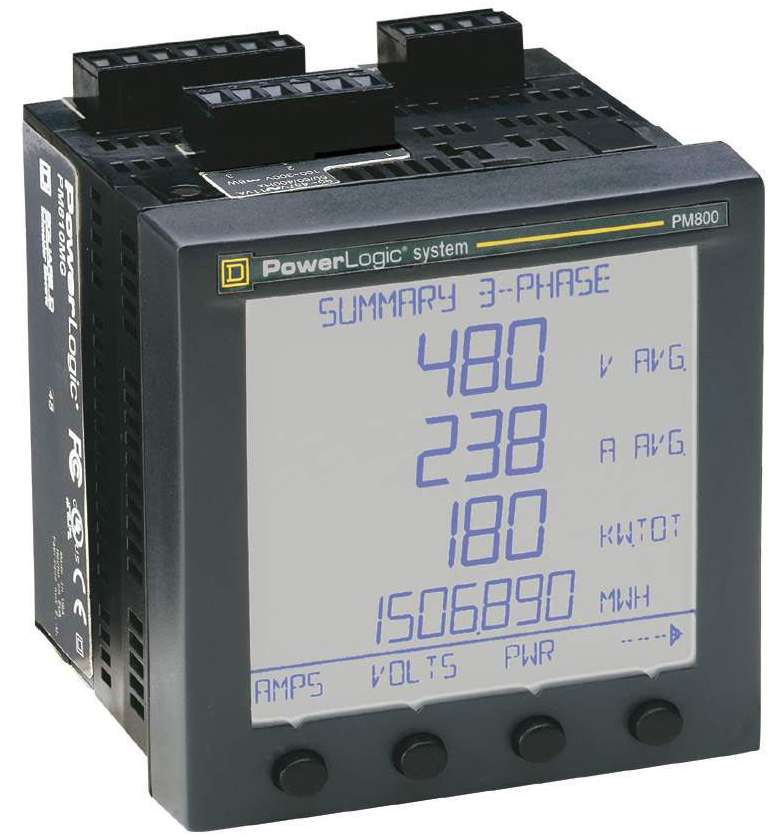

Feb 20, 2004 Power Meter 800 I/O modules are available in 2 models: PM8M2222 provides 2 digital outputs and inputs and 2 analog outputs and inputs, while PM8M26 provides 2 digital outputs and 6 digital inputs. By linking several analog and digital I/O inputs to one PM800 device, users can oversee transformer temperatures, generator fuel levels, equipment status, or usage of utilities such as water and steam.

Elma Electronic Inc.    Fremont, CA 94538

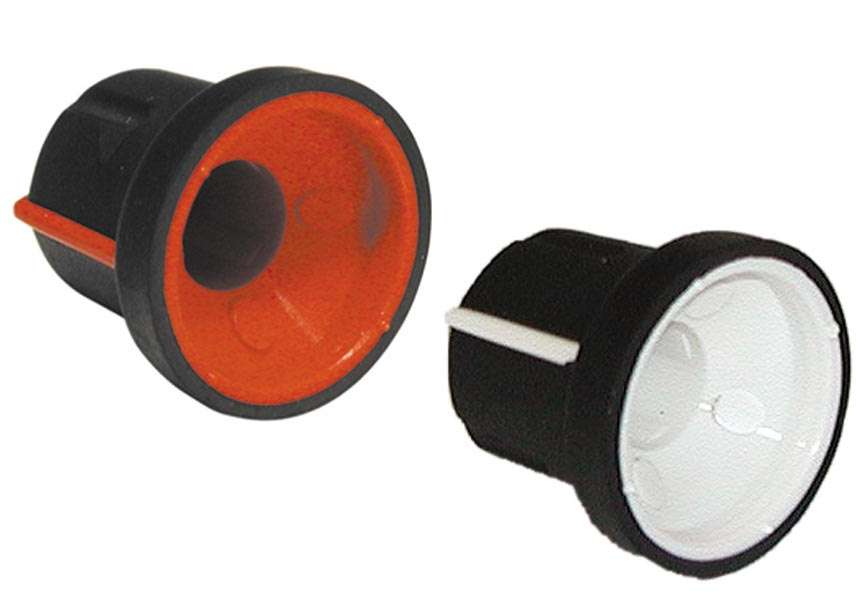

Feb 20, 2004 Bell-Shaped, 16 mm Knobs come in soft touch or hard plastic and accept standard, pan European D-shape for 6 mm shafts with 4.5 mm flat. Indicator lines come in various orientations including flat or shaft to 0, 90, 180, and 270°. Knobs are pressed into place over encoder or switch and 2 internal pressure ridges keep them in place. Units employ 2-shot injection design, where one layer of molding covers second layer. Soft touch versions utilize firm rubberized material.

Servo Magnetics Inc.    Canoga Park, CA 91303

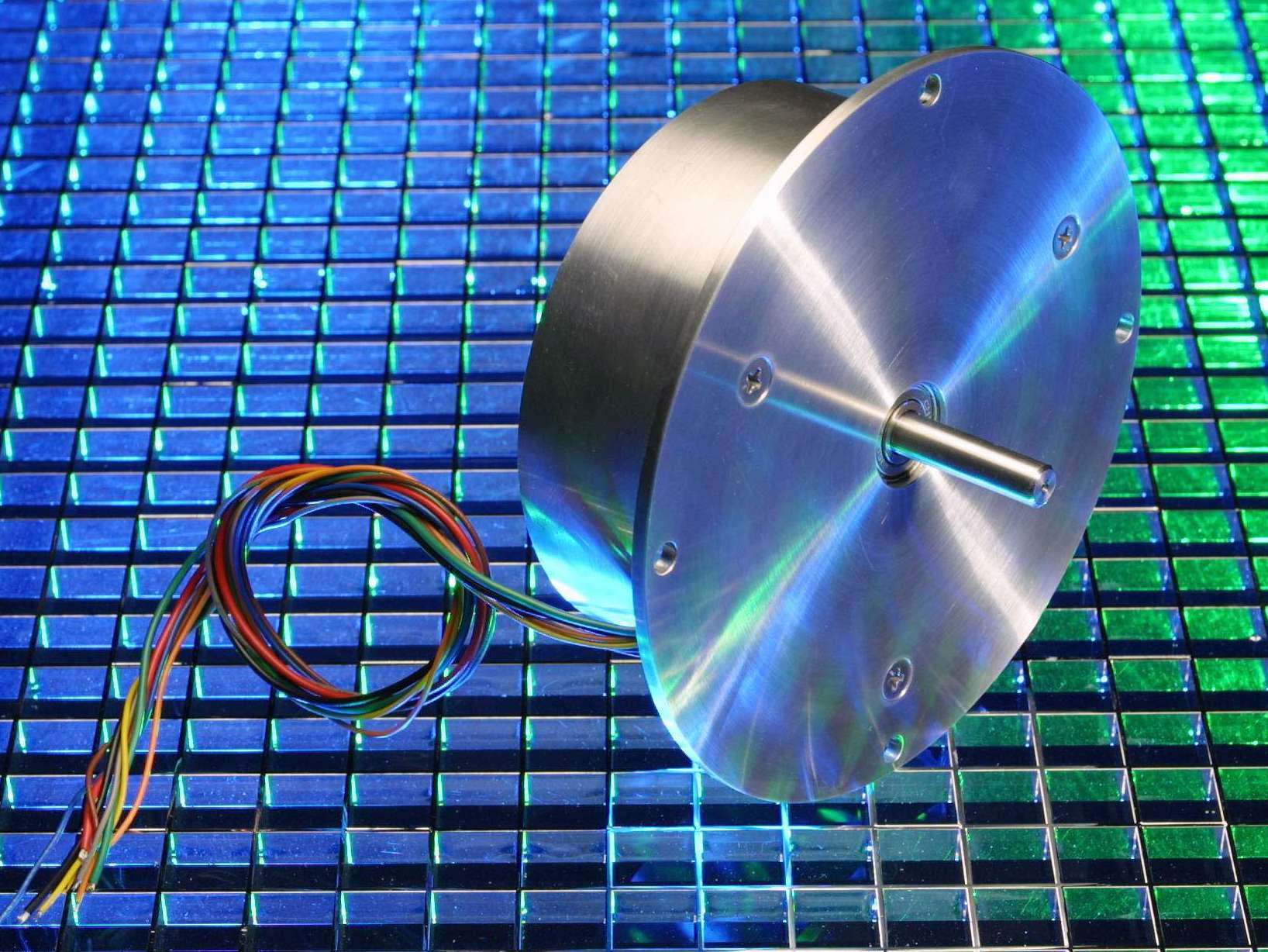

Feb 20, 2004 With operating voltage of 28 V, Model 000-0362 is capable of delivering in excess of 45 oz-in. of continuous torque. It features 1.85 in. profile and 4.2 in. diameter. Motor utilizes Hall-Effect sensors and achieves 85% efficiency at load point. Custom mounting configurations and variety of electrical options are available to meet specific requirements.

SMC Networks    Irvine, CA 92618
Feb 20, 2004 EZ Connectâ„¢ g wireless SMC2862W-G 2.4 GHz Adapter connects laptop/desktop computer with USB port to IEEE 802.11g or 802.11b wireless network. Adapter handles data rates up to 54 Mbps in 802.11g mode, and USB 2.0 interface provides top speed potential of 480 Mbps. Built-in site survey scanning utility detects and displays available wireless access to locate networks. Connections are secured via 64/128 bit WEP encryptions, WPA support, and 802.1x user authentication.

RBP Chemical Technology, Inc.    Milwaukee, WI 53214 0069
Feb 20, 2004 MAGNASTRIP 500 removes fully-cured, liquid photoimageable, acrylic-based masks from printed circuit boards. It works quickly, completely removing mask with no attack on circuitry or laminate. Product is effective on such masks as Coates Imagecure, Enthone DSR-3241, DSR-3242 Q, Vantico Probimer 77, Taiyo, and Electra LPI.

Simrit, A Div. Of Freudenberg-NOK    Plymouth, MI 48170
Feb 20, 2004 Simrit Xpressâ„¢ uses CNC milling machine, integrated with computer software, to custom produce seals, usually in one day. Customers can design products online, choosing from standard designs, including hydraulic seals, pneumatic seals, and O-rings. In online pricing module, users can change materials, view design limits based on material, and input dimensions. Once order is created, it can be processed immediately or saved for review or purchase at later date.

Mitsubishi International Corp., Textile Div.    New York, NY 10022 4223
Feb 20, 2004 Fiber/DVI Plug and Play Cables are offered in 10, 20, 30, 50, 70, and 100 m lengths powered by adaptor or internally. They transmit free of EMI/RFI interference at any distance within specification. All electronic and optical aspects of product are built within cable connectors. Cables can transmit video signals consisting of SXGA-1,280 x 1,024 at 75 Hz and UXGA-1,600 x 1,200 at 60 Hz without need for signal regeneration between PC and peripherals.

Aonix    San Diego, CA 92121
Feb 20, 2004 ObjectAda® Real-Time Linux cross PowerPC/LynxOS provides real-time features developers need with full Ada 95 language support. It integrates set of LynxOS features that collectively support development of complex networked applications. Software offers PosixWorks interoperability, LynxOS kernel threads, LynxOS MMU, Graphical Motif IDE, TCP/IP networking, and language-sensitive tools. Ada 95 validated compiler supports Annex A, B, C, and D.

Square D Co.    Palatine, IL 60067
Feb 20, 2004 Based on open, standardized technology, Telemecanique® Vijeo Look v2.0 entry-level SCADA solution provides historical and real-time trending, data logging, alarming, and communication capabilities. It includes graphics for custom libraries and objects such as PID loops and conveyors. Software database management tools enable size and age limitation, purging, and archiving capabilities, while standardized tools help develop customized applications.

Vonage    Edison, NJ 08817
Feb 20, 2004 Leveraging power of existing broadband connections, phone service offers unlimited local and long distance calling and includes features such as call waiting, call forwarding, and voicemail. Users near Santa Fe Plaza Depot can keep their current numbers or choose telephone numbers within 254 area code. Additional services include call hunt, return, and transfer; caller ID and caller ID block; repeat dialing; and Web-based account management.

Nicholson Steam Trap    Walden, NY 12586 2000
Feb 20, 2004 Series NFT Free Float Steam Traps are available in sizes ½ through 2 in. with flanged, screwed, or socketweld end connections, for pressures to 650 psig and temperatures to 750°F. Stainless steel internal components protect against erosion and corrosion, and there are no mechanical components to repair or replace. Optional SLR Orifice provides continuous condensate bleed, which prevents flash steam lockup when it is impossible to install trap at low point in system.

IDEAL Scanners & Systems, Inc.    Rockville, MD 20852
Feb 20, 2004 ScanOS multi-function scanner operating system enables users to scan, store, and index images with one field for ease of retrieval. It also supports direct printing to Windows-compatible devices. ScanDEX Pro builds on ScanOS functionality and includes multi-field indexing on unlimited number of fields. Both programs offer color and black and white image support in addition to support for IDEAL/Contex Large Format Scanners.
