Wavetek Meterman Test Tools    Everett, WA 98206-9090
Jan 23, 2004 Meterman® ELS2 AC Line Splitter works with any ac current clamp or clamp meter to measure residential current without splitting ac line cords. Rated for 120 V at 15 A, unit provides 10 times current magnifying loop for accurately measuring low current. Built-in jacks are provided for voltage sag testing. Splitter includes nylon carrying case and is useful to residential, commercial, and industrial electricians and homeowners.

XiMeta Technology, Inc.    Irvine, CA 92618
Jan 23, 2004 With 250 GB of storage, NetDiskOfficeâ„¢ connects via Ethernet or USB 2.0 and allows users to access data, such as office work, MP3s, videos, and photos from any computer on LAN. It offers simultaneous mirroring for secure backup and file sharing with everyone on network. Hibernation Switch is included to conserve on power when not in use. Weighing less than 5 lb, portable NetDiskOffice eliminates need for servers and administrative management.

Tork    Mount Vernon, NY 10550 2401
Jan 23, 2004 Single-channel Series E100A offers multi-voltage input capability of 120/208–277 Vac. Housed in trim non-metallic, indoor/outdoor enclosure, models are available in 24-hour, skip-a-day, and 7-day versions. Programming can be done from AC or battery back-up power enabling off-site setting. Seven-day models are available with super capacitor power outage back up.

PCB Piezotronics Inc.    Depew, NY 14043 2495

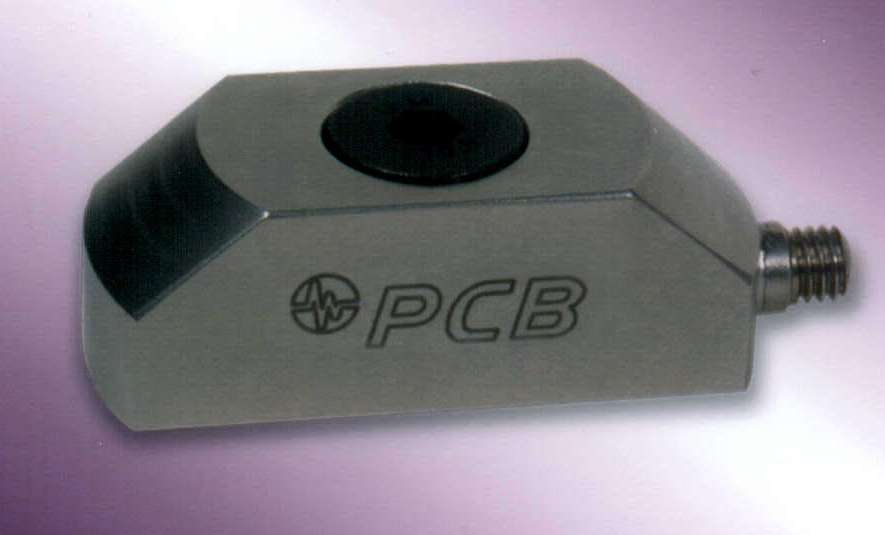

Jan 23, 2004 Series M240 Dynamic ICP® Strain Sensors utilize piezoelectric sensing elements to measure dynamic and quasi-static stress on stationary and moving machinery. Single screw installs units in non-invasive manner on machinery surfaces including mechanical presses, machine tools, fast-running production machinery, and automatic assembly machines. Solid-state sensors feature integrated microelectronic signal conditioning and perform in harsh environments.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Jan 23, 2004 Model 685A01 is a 24 Vdc powered, electronic vibration switch with explosion-proof housing. It provides early warning of machine deterioration and will shut machine down when trip level is exceeded. Unit includes Form C relay, adjustable trip point, local and remote reset, and continuous or latch relay operation. Operating range is 0–10 g's from 10–1,000 Hz, making it suited for pumps, fans, blowers, compressors, and gearboxes.

Lin Engineering    Santa Clara, CA 95054

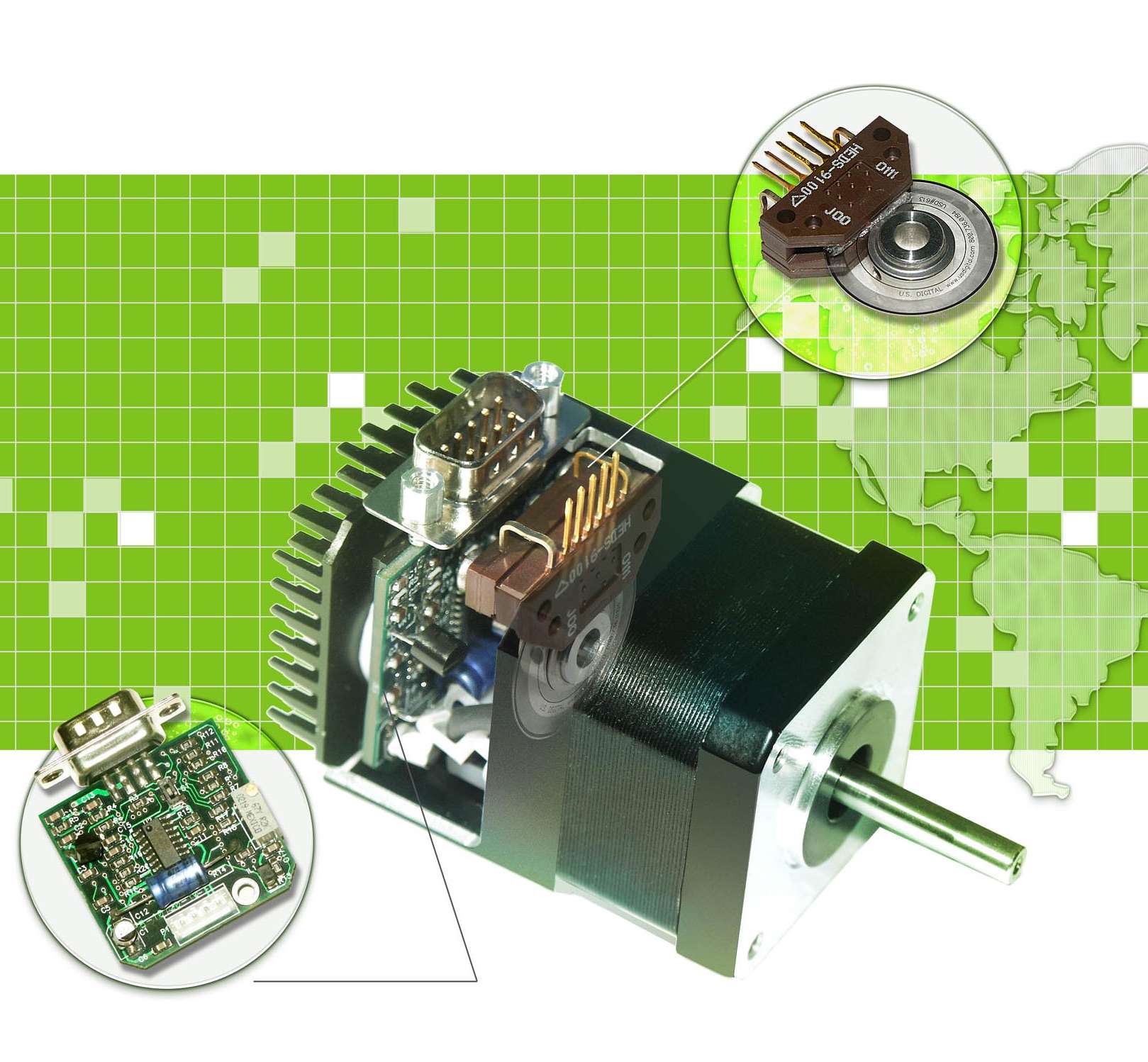

Jan 23, 2004 SilverPak 17 is a NEMA size 17, 2-phase, 1.8° bipolar step motor with integrated microstepping driver. It features selectable step resolution from full step, ½ step, ¼ step, to 1/8 microsteps. Step, direction, and disable inputs are optically isolated. Offered in body lengths of 2.69, 2.92, and 3.24 in., unit operates on 12–24 Vdc and provides up to 85 oz in. holding torque. Standard front shaft extension length is 0.94 in. and standard shaft diameter is 0.1968 in.

Ideal Industries, Inc.    Sycamore, IL 60178
Jan 23, 2004 MAG-TAPEâ„¢ 25 ft measuring tape features magnetic tip that sticks to metal surfaces, acting as second person. Thick rubber boot provides non-slip grasp while protecting case from harmful drops. Built-in stopper absorbs impact of returning tape to prevent case from being damaged. Nylon-coated steel blade is resistant to abrasion and rust and features oversized graphics for readability. Smooth retraction is assured by strong spring.

Igus, Inc.    East Providence, RI 02914 0349

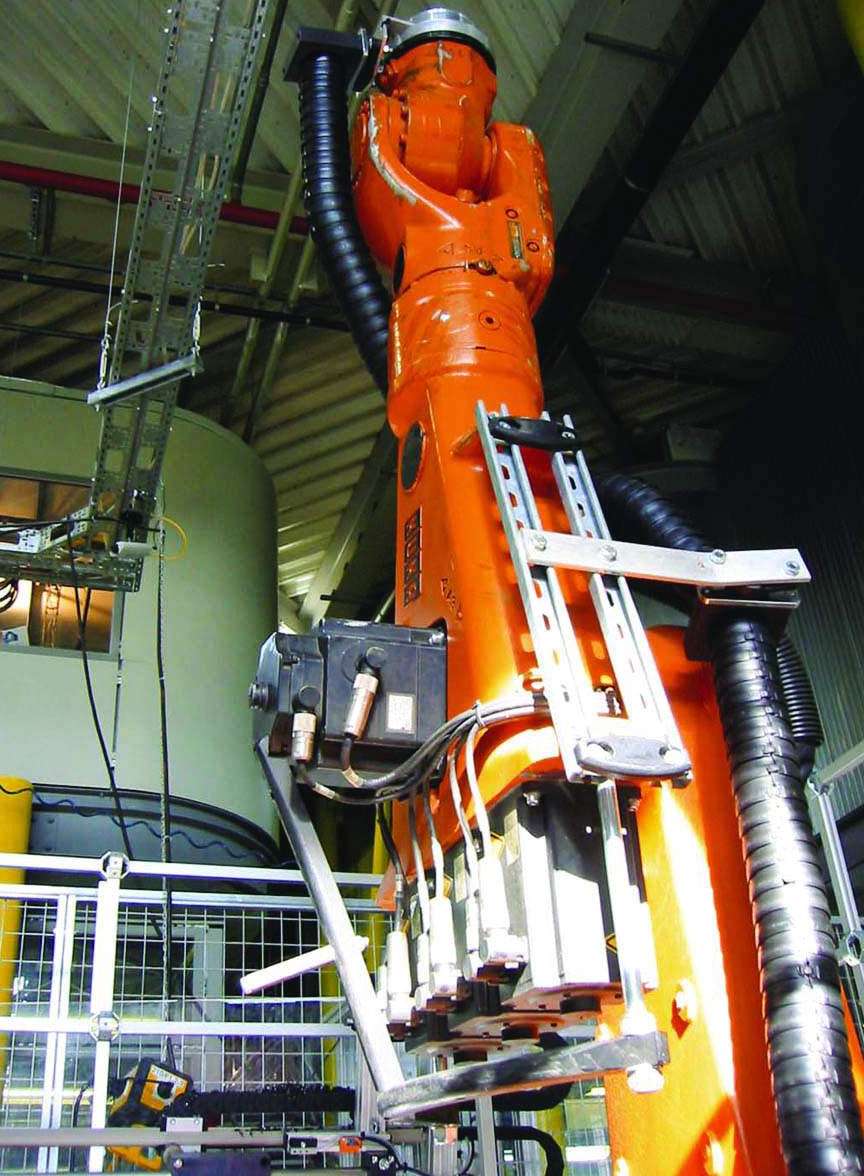

Jan 23, 2004 Triflex® R Energy Chains® move multi-dimensionally on x, y and z axes and twist up to 380°/yd. Trailer-hitch style modular assembly delivers high tensile strength without need for steel cables. Chains protect moving cables and hoses attached to automated robotic machinery by providing impact resistance, contamination protection, and abrasion resistance. Smooth tubular design enables carriers to glide over robot without catching or tilting.

Kennametal Inc., Advanced Materials Div.    Latrobe, PA 15650-0231
Jan 23, 2004 Models SE254HPC, SE255HPC, and SE256HPC run at 525 sfm in ductile irons and 700 sfm in gray cast iron. Physical vapor deposition coating with high hot hardness shields cutting edge from heat generated at high speeds. A 135° point with 45° corner chamfer reduces tool pressure upon hole exit and prevents breakout in gray cast iron. Double-margin design provides four-margin contact over entire hole cross-section. Inch and metric sizes are available.

Kennametal Inc., Advanced Materials Div.    Latrobe, PA 15650-0231
Jan 23, 2004 Offered in diameters from 0.97 to 8 in., Mill 1 indexable insert end mills are engineered to have consistent and repeatable insert location. Tools are suited for making holes with end mill, eliminating need for multiple drilling and boring operations. Coated grade options include KC725M titanium carbonitride, KC935M aluminum oxide, KC522M titanium aluminum nitride, and KC410M titanium composite.

Thales Computers Corp.    Raleigh, NC 27610
Jan 23, 2004 Single-wide Model PMC-DPDP provides high-speed data acquisition in VME or CompactPCI SBCs used for digital signal processing. It is based on PLX PCI 9656 chip, which provides 32/64-bit, 33/66 MHz PCI bus master/slave interface with linked list DMA engine, enabling data throughput speeds greater than 100 Mbytes/sec. Control logic is handled by user-programmable Altera EP1S10 FPGA, with 64 Kbytes integrated FIFO. Air-cooled and rugged air-cooled versions are available.

Radius Power, Inc.    Orange, CA 92867
Jan 23, 2004 Model R1005 is a single 12 V output power supply rated at 180 or 350 W with power inputs of 120 or 240 Vac. Output is adjustable from 12-14 Vdc. Unit is ETL certified to meet UL/CSA standards for spa and hot tub usage, providing power needed for water-resistant audio, communication, and control equipment. Shielded and grounded transformer eliminates shock hazards, and weather-sealed enclosure delivers added protection from wet, humid environment.

AssetPoint    Greenville, SC 29615
Jan 23, 2004 TabAnyWare for Mobile Inventory Management allows inventory management functions to be performed at point of issue. It gives storeroom personnel immediate access to data for recording inventory updates, issues, part movements, warehousing data, and stock levels. TabAnyWare supports single or multi-warehouse management, on demand inventory counts for full physical inventory or random cycle counts, and bar code scanning to ensure part number accuracy.

CAM Development    Bellport, NY 11713-0945
Jan 23, 2004 Business Card Designer Plus v7.5.5.0 includes tools to add text, graphics, shapes, barcodes, shadows, arc text, and other effects to design. Using built-in Personal Database to store information, user can create individual cards for each person in organization. Software runs on Windows 95/8, NT, ME, Windows 2000, and Windows XP. Both US and Metric business card stock are supported.

Renishaw, Inc.    Hoffman Estates, IL 60192
Jan 22, 2004 Non-contact RM series consists of 10, 11, and 12-bit miniature magnetic rotary encoders that deliver positioning with 4,096 count resolution to over 9,000 rpm with accuracy to 0.4°. Designed for integration, they include component, modular, and packaged shaft-style models. Outputs include absolute versions with parallel or serial data formats, as well as versions with incremental, analog, linear voltage and linear current outputs.

Roto-Disc Co.    Cincinnati, OH 45226
Jan 22, 2004 Roto-Tabâ„¢ Valve features gentle closing action of rotating dome valve that slows flow of pills to a dribble. Dribbling pills are trapped against dome by expanding elastomer seal with compressed air. Flow of capsules or tablets is completely shut off without damage. Pressure regulator ensures minimum force against pills. Valve sizes range from 3-12 in. inlet opening. Maximum tablet or capsule size is 0.8 in.

Onset Computer Corp.    Bourne, MA 02532
Jan 22, 2004 HOBOwareâ„¢ supports variety of HOBO U12 loggers for measuring temperature, relative humidity, light intensity, and other indoor environmental conditions. It can display data in 3 viewing formats: graphical plot, tabular, and deployment statistics. Product includes ability to view multiple channels from single logger on 1 graph, zoom tools for close-up viewing of data, and 1-click conversion of data for upload into spreadsheets and other programs.

FKI Logistex North America    St. Louis, MO 63132
Jan 22, 2004 Accuzone(TM) accumulation conveyor allows for zero-pressure and true-zero-contact accumulation. Able to accumulate products at more than 15° pitch, it is suited for use on inclines and declines. Combination of belted technology and Accuzone conveyor system can start and stop packages and eliminate package sliding. System offers conveying rates to 30 cartons/min and handles carton weights to 75 lb in flat zones.

Glenro, Inc.    Paterson, NJ 07501 1799
Jan 22, 2004 Automated system employs Radround(TM) IR heater rated at 2 kW and mounted on vertical axis. Heater has cylindrical inner quartz core that produces uniform IR heat, while thermocouple feedback control loop allows for temperature control. System measures 11 x 2.75 x 2.5 ft and accommodates motorized mandrel/cable hoist to automate product feed. Integral control system is mounted in a NEMA 12 enclosure, and PLC supervises control logic.

Elo TouchSystems, Inc.    Fremont, CA 94555
Jan 22, 2004 Model 1947L is a 19 in., pure glass, LCD touch monitor with IntelliTouch or vandal-resistant SecureTouch surface-wave touchscreen technology, which deliver precise touch performance that never needs recalibration. It offers multilingual on-screen dislay as well as worldwide power and agency approvals. Injection-molded minibezel with watertight seal makes monitor suited for public access and industrial applications. Variety of mounting options are available.
