Walchem Corp.    Holliston, MA 01746 1460
Mar 04, 2004 Constructed with glass electrode that is not prone to chemical attack, WDS Series differential pH and ORP sensors transmit signals up to 3,000 ft and are resistant to ground loop problems. Sensors can be replaced if reference solution becomes contaminated or salt bridge becomes clogged. Reference electrode is constructed from pH glass and is embedded in pH 7 buffer within sensor behind porous, replaceable salt bridge.

Oriental Motor U.S.A. Corp.    Torrance, CA 90502

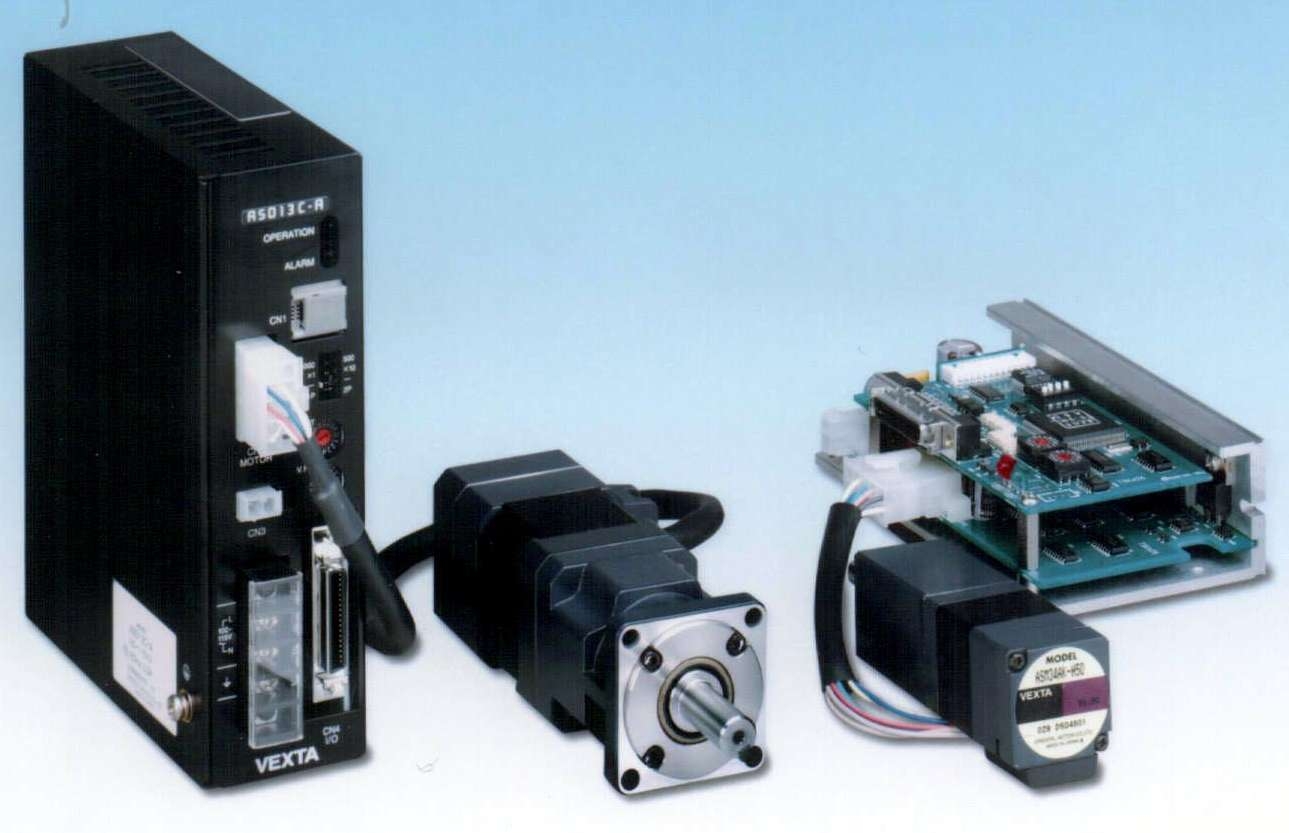

Mar 04, 2004 AlphaStep Series stepping motor and driver packages with built-in feedback devices are available with harmonic (HG) gearhead. Delivering zero-backlash performance, HG gearhead enables 1.65 in.² and 1.1 in.² motor models to produce max holding torque from 22-35 and 13-17 lb-in., respectively. AlphaStep Series uses microstep control and built-in feedback device that constantly monitors motor shaft to detect and correct for loss of synchronism.

Thermadyne Industries, Inc.    St. Louis, MO 63017

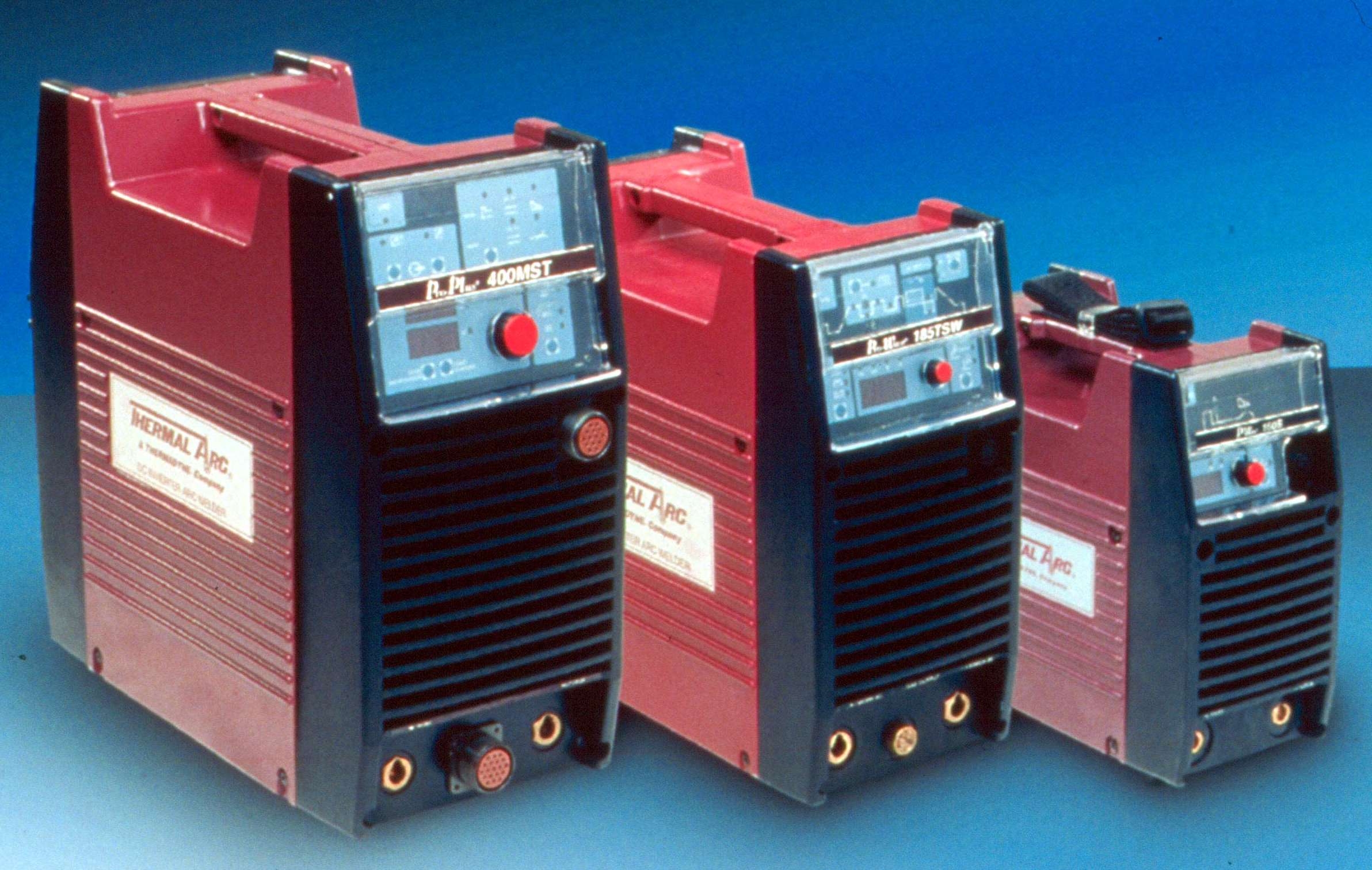

Mar 04, 2004 Thermal Arc® Next Generation Power Supplies are stackable units that range in weight from 19-63 lb. They include control panel covers to protect against elements, voltage reduction safety for STICK welding, and full digital controls. Units are suited for STICK, DC TIG, AC/DC TIG, and MIG applications.

Hendrickson International    Woodridge, IL 60517-4904
Mar 04, 2004 COMPOSILITE FXâ„¢ measures 23.5 in. from front edge of hanger to centerline of axle and delivers axle travel of 13.5 in. with 10 in. lift. In-line air springs provide maximized packaging space and remove risk of possible driveline interference. Weighing less than 850 lb, suspension features aluminum beams and zero torsion bushing, which spins freely to eliminate bushing windup.

Thermadyne Industries, Inc.    St. Louis, MO 63017

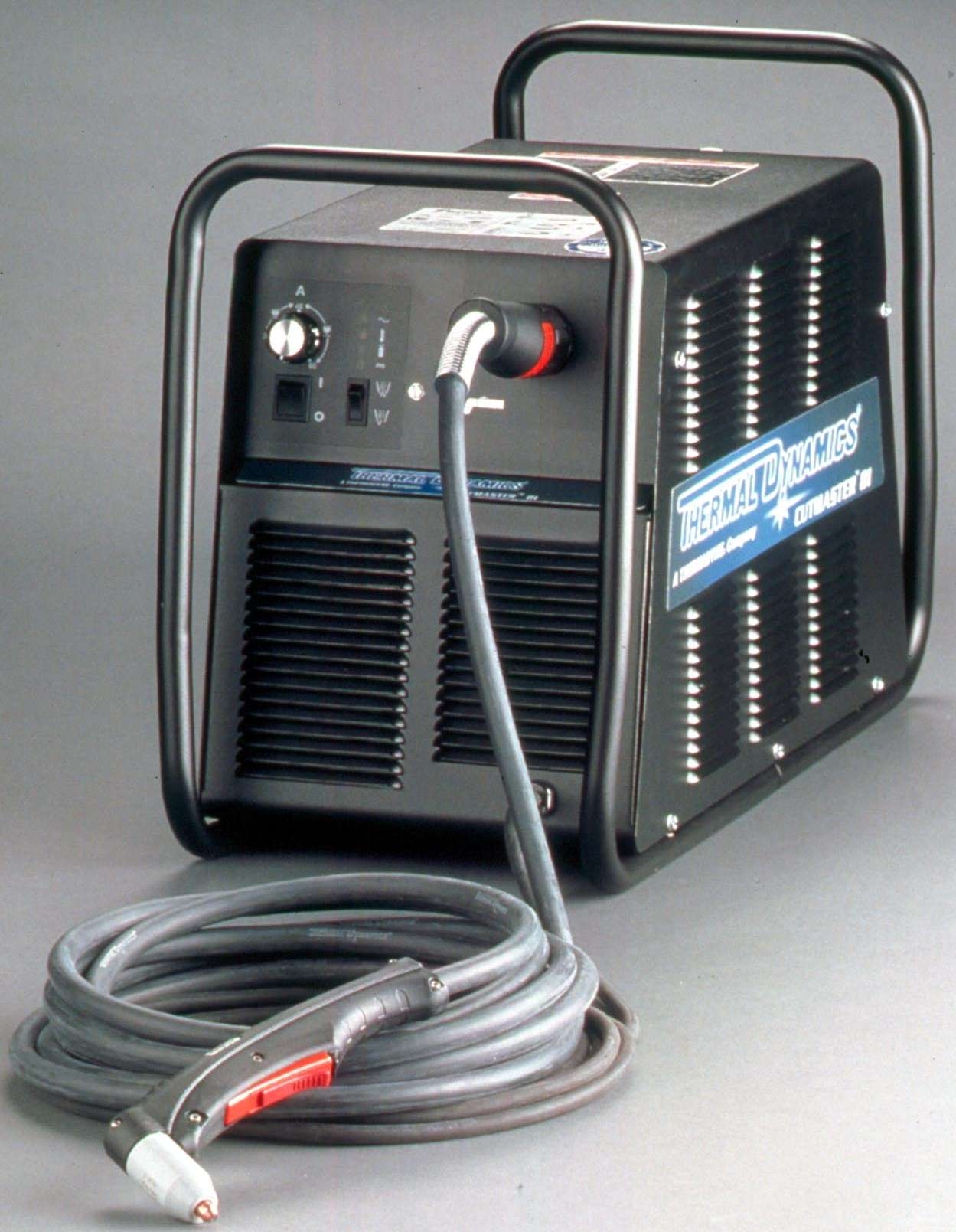

Mar 04, 2004 Equipped with 1Torch(TM) plasma torch and ATC(TM) (Advanced Torch Connector) quick disconnect, CUTMASTER(TM) 81 lets operator switch torches between hand and machine torch applications, replace damaged equipment, and add or remove lead extensions to match job requirements. It features 60 A cutting power and 1Series start technology. Rated for 1 in. max cut capacity, system is suitable for cutting aluminum and stainless or mild steel.

Advance Lifts, Inc.    St. Charles, IL 60174
Mar 04, 2004 Model 2400 enables workers to switch out dock leveler for dock lift when level loading is required at loading dock. It replaces dock leveler ramp, and features 5,000 lb capacity, 72 x 86 in. platform, 10 in. lowered height, and 40 in. vertical travel. Lift comes equipped with 5 HP motor as well as hinged bridge and handrails for safety.

Minarik Corp.    Glendale, CA 91201 2011

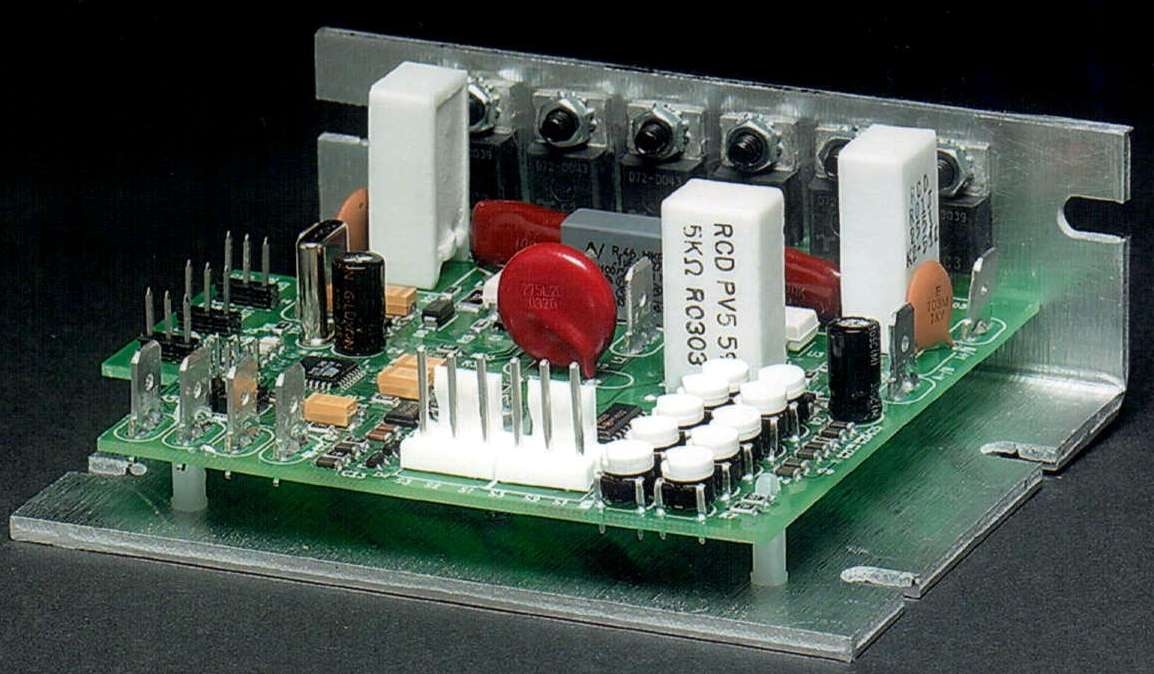

Mar 04, 2004 Microprocessor-based M2 drive can operate 2 DC motors at same time in independent or speed ratio mode. In independent mode, each side of M2 can be controlled with different trimmer pot settings and speeds; user chooses speed or torque control. In speed ratio mode, one speed potentiometer sets main speed while other determines ratio of speeds between motors. Drive is rated for 1 1/8 hp @ 115 Vac and can be set up with jumpers to choose modes.

Duo-Fast Corp.    Huntley, IL 60142 6700
Mar 04, 2004 Model NSF-350F1 mainFRAME® Strip Nailer utilizes round head nails in smooth, ring, and screw shank styles in lengths from 2–3½ in. and diameters of .113, .120, and .131 in. Magazine is in line with grip centerline for control during sheathing and decking work. Unit includes 2-finger trigger, rubber grip handle, and 70-nail capacity strip. Aggressive toe nail safety grips workpiece, while 360° adjustable diffuser cap allows air to be directed away from user.

Emerson Power Transmission Corporation / Gearing Division    Maysville, KY 41056
Mar 04, 2004 Interactive eP.T. University provides product, application, and drive design training with 35 lessons grouped into 6 courses covering power transmission fundamentals such as belt drives, chain drives, gearing, bearings, and couplings. Each module provides product overview, industry nomenclature, product construction, plus features and benefits as they apply to application. Learner Management System enables students to track progress and knowledge level.

Men Micro Inc.    Lago Vista, TX 78645-4160

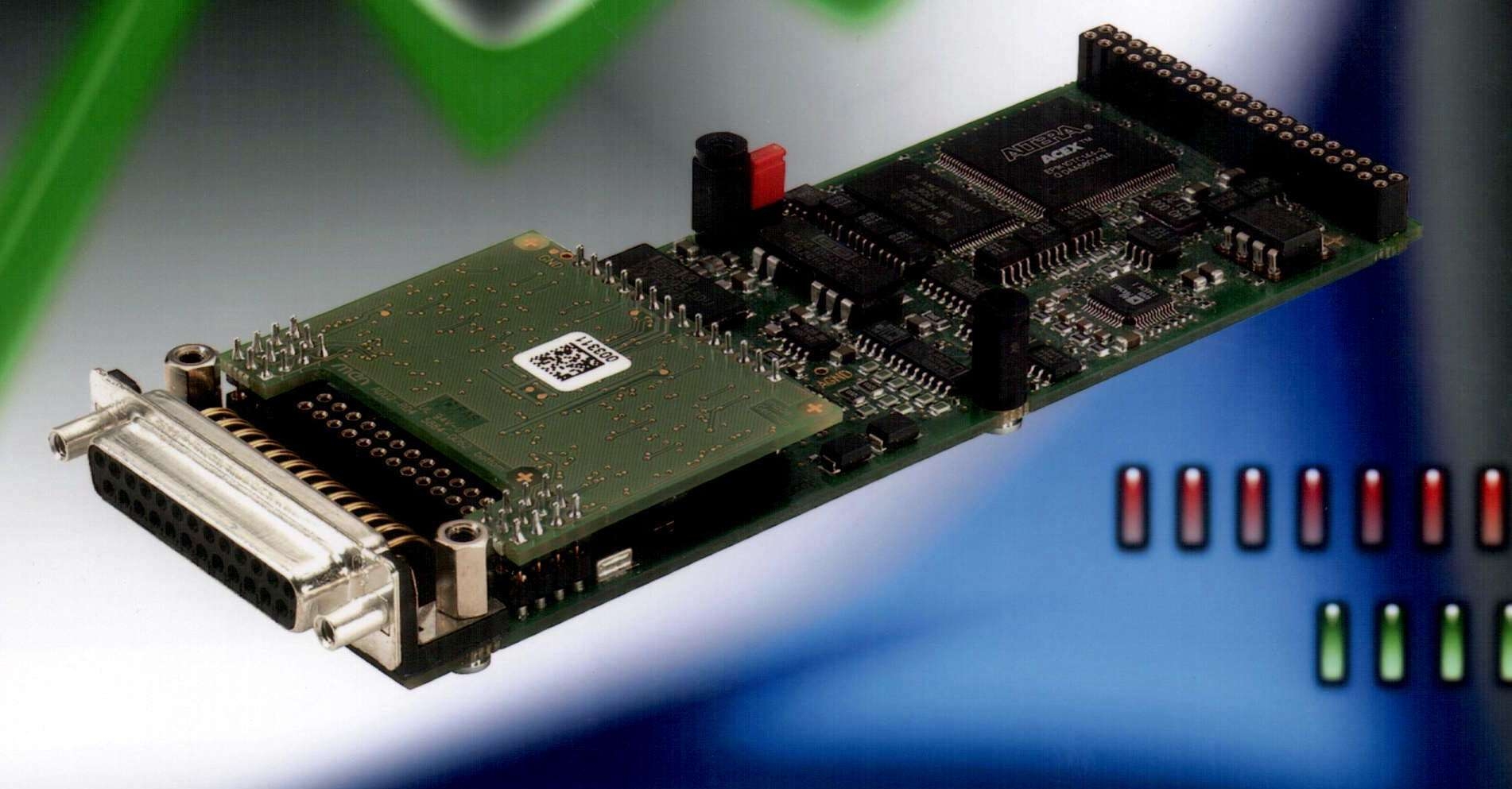

Mar 04, 2004 M-Module M35N can be configured with 16 single-ended, or 8 differential voltage or current analog channels, each with acquisition time of 5 µs with 14-bit resolution. Analog inputs are optically isolated from digital computer bus. M-Module is suited for open bus systems, such as those based on CompactPCI, PCI, PM, or VME. It can also be deployed in standalone, busless embedded computer systems. Extended temperature version operates over -40 to +85°C.

Men Micro Inc.    Lago Vista, TX 78645-4160

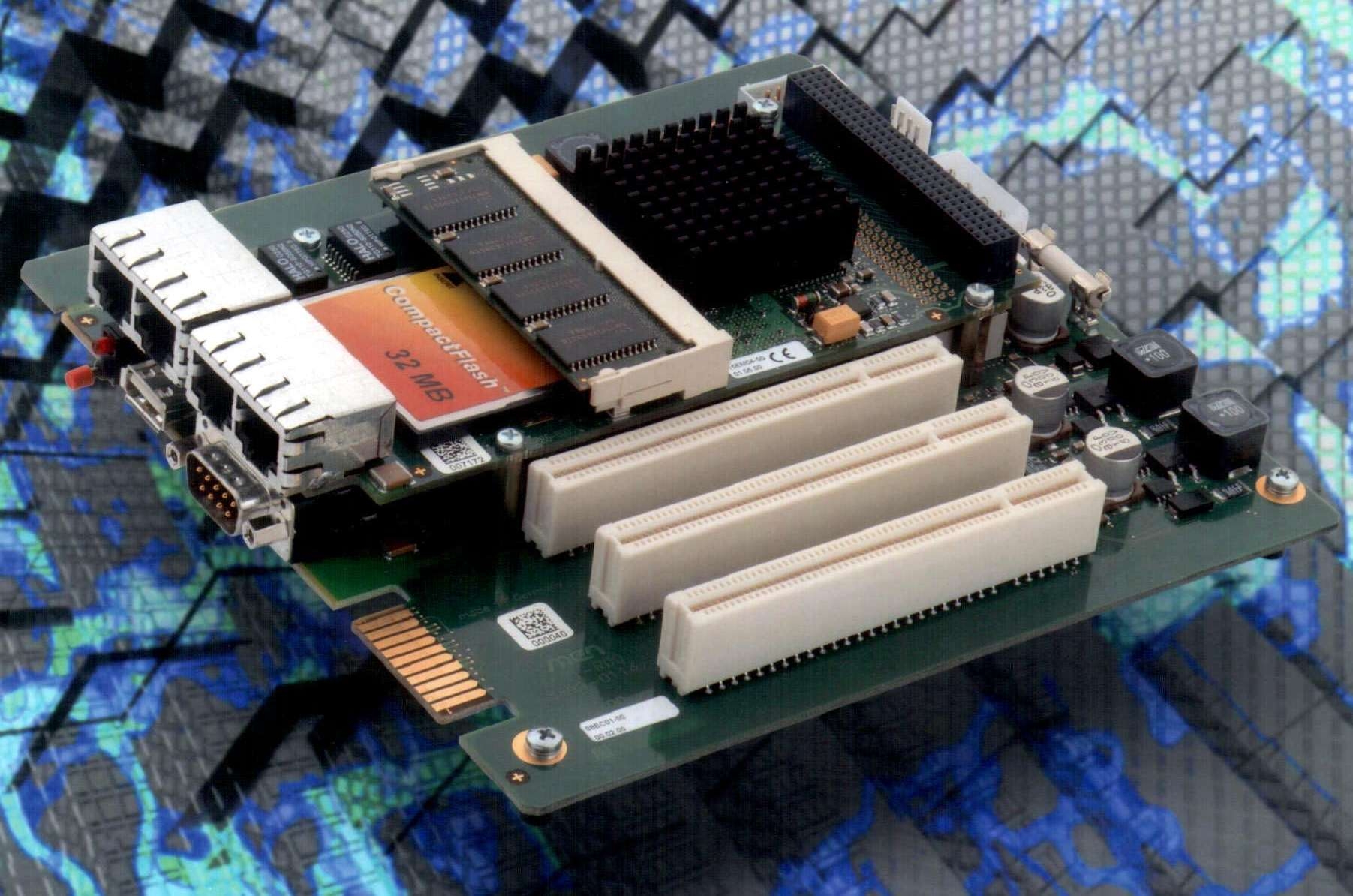

Mar 04, 2004 Embedded System Module Starter Kit features ESM mezzanine card, universal ESM carrier card for power and I/O interfaces, and all cables and linking connectors needed to start development. Kit can be ordered with ESM based on Motorola PowerPC or one of several Intel x86 processors. Module includes memory, system I/O, and I/O connectors. Carrier card on which ESM is mounted provides additional I/O, 9-pin port, floppy disk connector, and TFT display port.

PennEngineering® (Penn Engineering)    Danboro, PA 18916

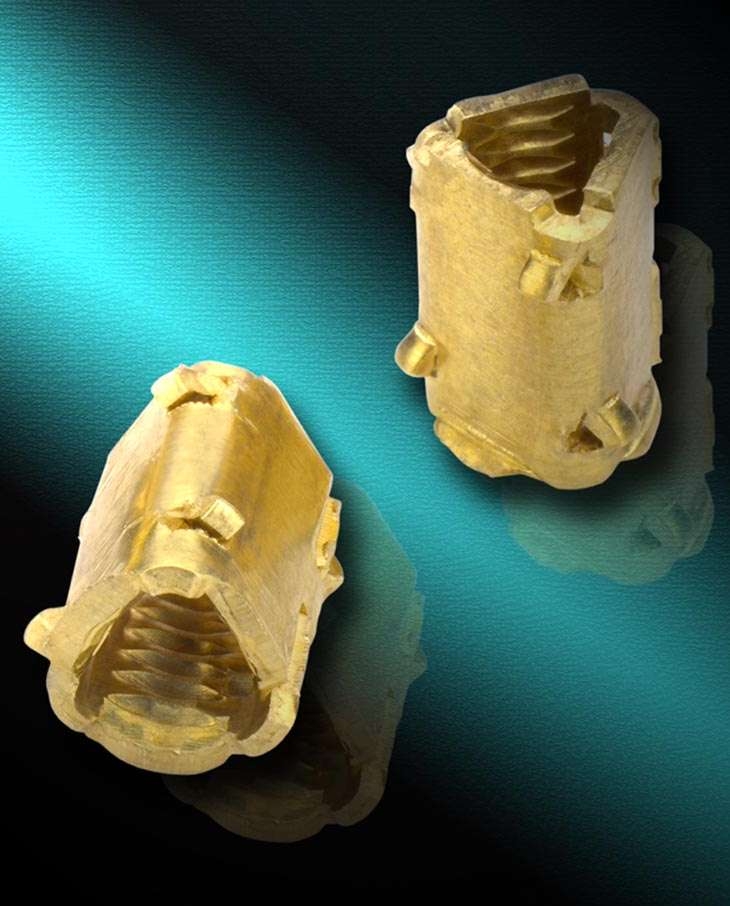

Mar 04, 2004 Triangular-shaped, brass DeltaForm(TM) Inserts for plastics offer alternative to traditional inserts or thread-forming screws. Retention barbs facilitate insertion in round holes and prevent spin upon installation. Flange tabs on either end orient insert in hole before installation and form flush surface with plastic component when installation is complete. With thread size of #6-32, inserts are available loose or on carrier strip to accommodate handling requirements.

MTS Systems Corp.    Eden Prairie, MN 55344

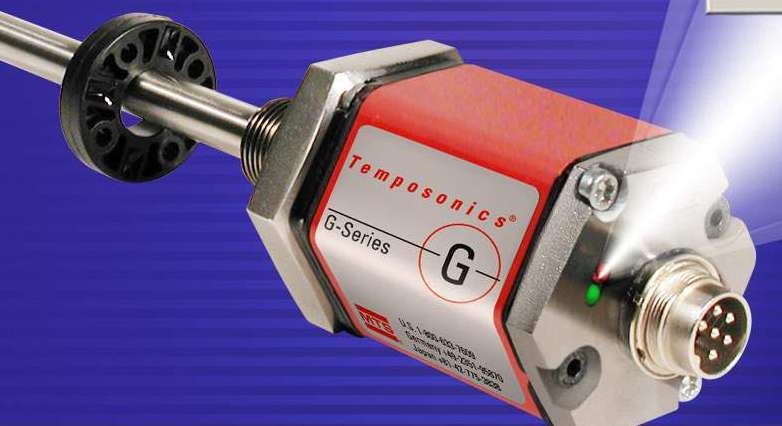

Mar 04, 2004 Temposonics® Magnetostrictive G-Series includes programmable set-up and diagnostics for installation and troubleshooting in the field. Red and green LEDs on sensor may be monitored for errors such as missing magnets, weak signals, and insufficient input power. Electronics provide EMI immunity, while packaging offers shock and vibration resistance. In-line pushbutton or PC software programming may be accomplished via serial communications link.

MTS Systems Corp.    Eden Prairie, MN 55344

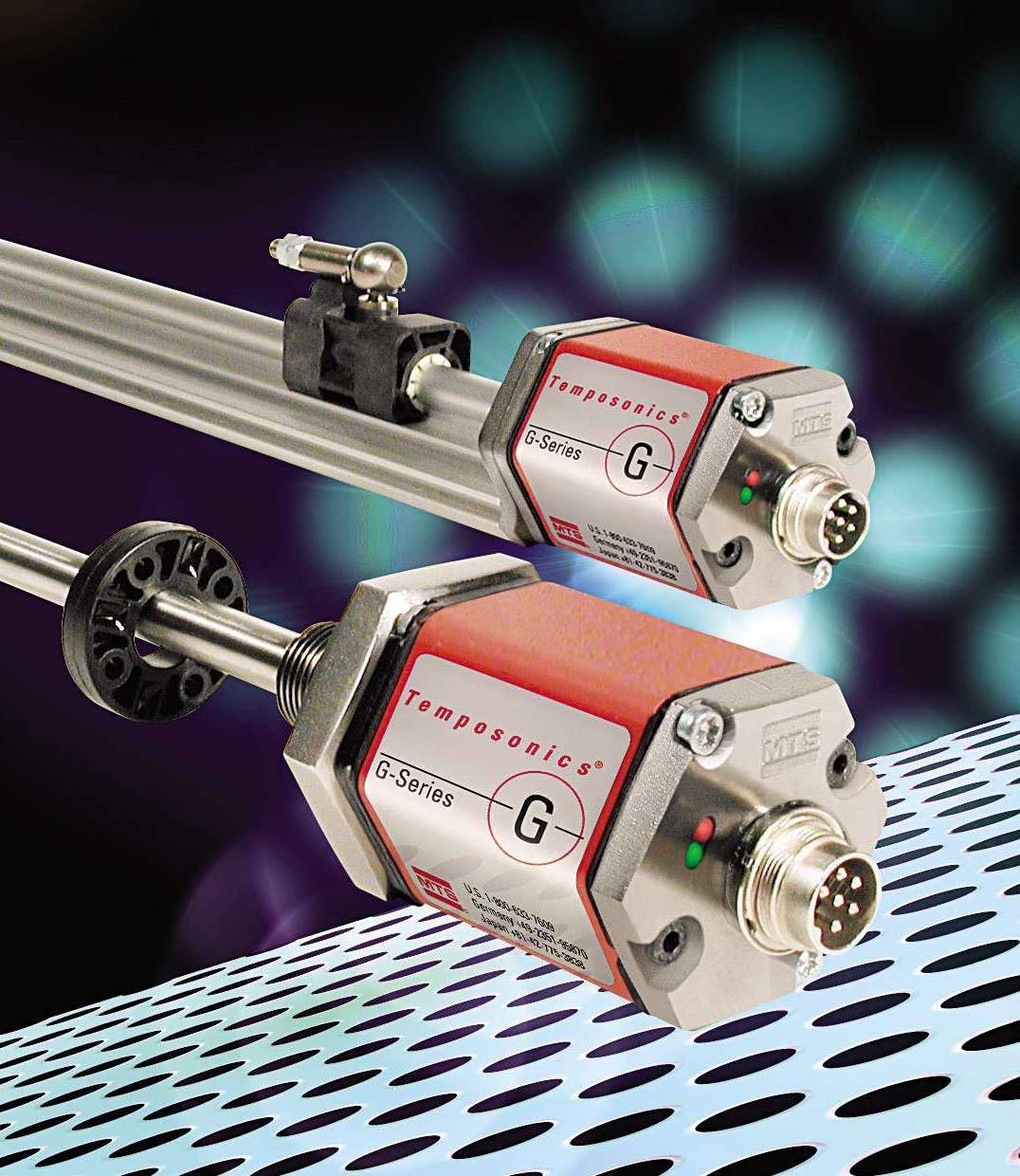

Mar 04, 2004 Temposonics® G-Series magnetostrictive, shock- and vibration-resistant position sensors utilize red and green LED indicator lights to aid in installation and maintenance troubleshooting. Mounted directly on top of sensor, LEDs indicate status of each sensor, including normal operation, programming mode, and errors. Information communicated through serial communications may also be viewed via computer monitor for remote diagnostic capabilities.

MTS Systems Corp.    Eden Prairie, MN 55344

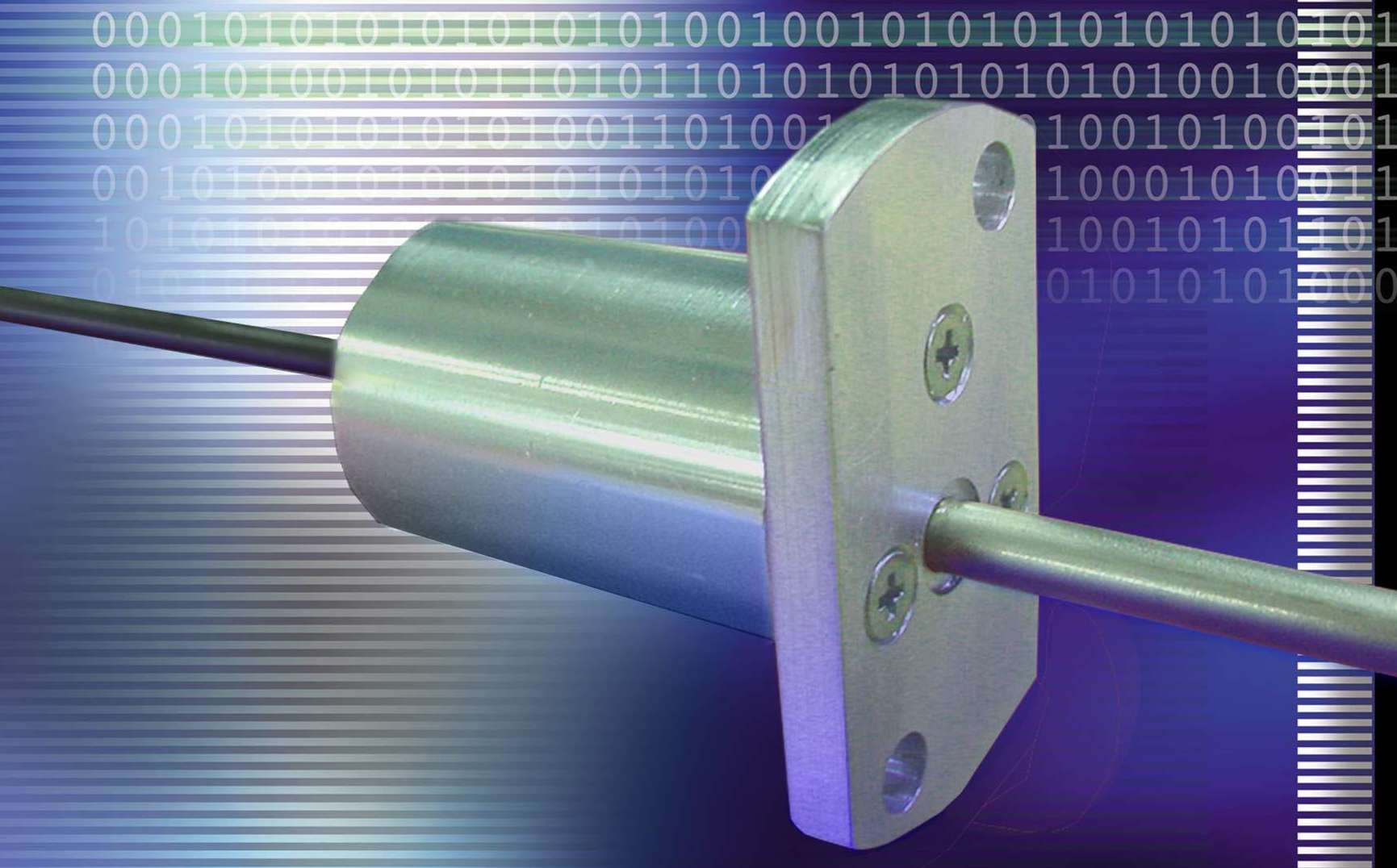

Mar 04, 2004 Available for commercial sensor products (CSP) for high-pressure environments, kit consists of flange with fitted O-ring and 3 screws. Flange kit fits onto all CSP metal sensor heads, making it suitable for high-pressure applications such as hydraulic or air operated devices. Sensor line is manufactured with stainless steel sensor tube and is shielded to prevent signal interruption. Each sensor provides analog and pulse width modulated outputs.

Advantech Automation Corp.    Cincinnati, OH 45240
Mar 04, 2004 ADAM-6000 series consists of optimized solutions with Ethernet communication interfaces. ADAM-6022 dual PID loop control module; ADAM-6015, 7-channel RTD input module; and ADAM-6018, 8-channel thermocouple input module provide temperature measurement and control solutions and include built-in web pages and web I/O to allow access to module status through web browser. Temperature modules support Modbus/TCP, TCP/IP & UDP Ethernet protocols.

Advantech Automation Corp.    Cincinnati, OH 45240
Mar 04, 2004 Stainless Steel FPM Series feature bezels that are corrosion resistant and conform to NEMA 4X rating. Model FPM-3150 provides 15 in. XGA TFT LCD with 1024 x 768 resolution, model FPM-3175 offers 17 in. SXGA TFT LCD with 1280 x 1024 resolution, and model FPM-3190 provides 19 in. SXGA TFT LCD with 1280 x 1024 resolution. All monitors enable direct VGA signal transmission, allowing regular VGA control card to be used. VESA patterns allow mounting on wall, arm, and panel.

Advantech Automation Corp.    Cincinnati, OH 45240
Mar 04, 2004 UNO-2160 incorporates Celeron 400 MHz processor and provides 2 embedded Operating Systems. Two PC/104 slots offer expansion possibilities and can be used for data acquisition or communication modules. Four serial ports and several other networking interfaces support diverse communications requirements. Platform can also be used as controller, communication gateway, or thin client. Watchdog timer and battery backed SRAM ensures safe storage of critical data.

Lapp USA    Florham Park, NJ 07932

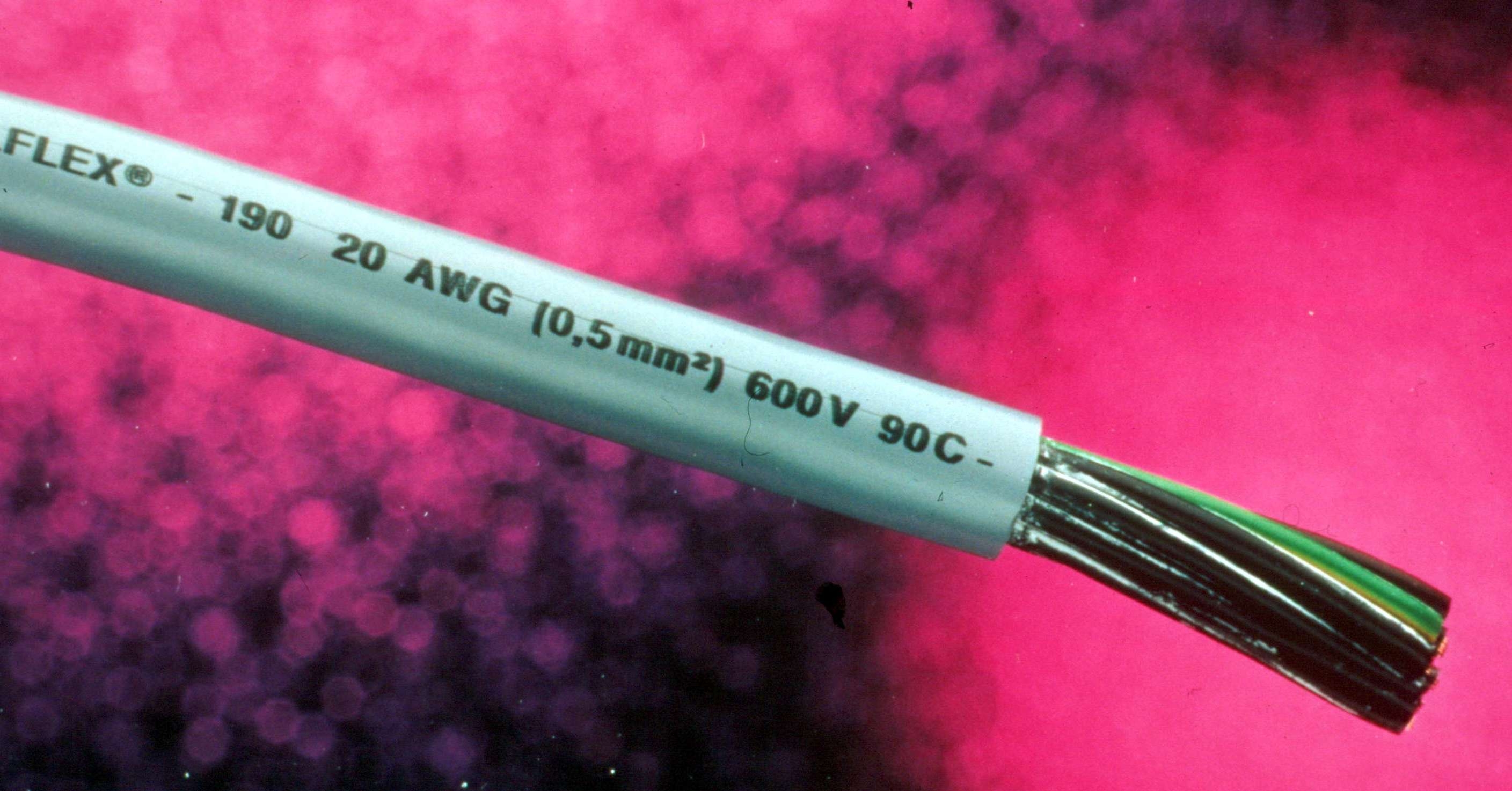

Mar 04, 2004 CE-conforming, OLFLEX® 190 multi-conductor cables provide resistance to mineral oils, synthetic oils, and water-based coolant. Jacket passes stringent requirements of Oil Res I and II, plus UL Style 21098. Shielded OLFLEX 190 CY incorporates tinned copper braid for isolation from electrical interference. Cables feature working voltage of 600 V, temperature range of -40 to +90°C, and bending radius of 4x cable OD. Conductor sizes range from 20–2 AWG.

Tailored Label Products, Inc.    Menomonee Falls, WI 53051

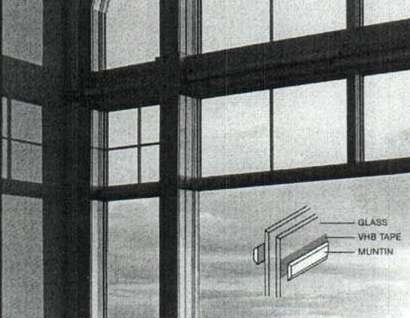

Mar 04, 2004 Model 3M(TM) VHB(TM) Tape can join dissimilar materials like plastic and metal, glass and metal, and aluminum and steel. It disperses pressure along entire length of seam, unlike rivet or joint where stress is concentrated in certain points. When bonding 2 unlike materials, it can resist differing co-efficients of thermal expansion. Tape prevents galvanic corrosion between metals and provides moisture seal as well as smooth, clean surface.
