Master Bond, Inc.    Hackensack, NJ 07601
Mar 10, 2004 With 1:1 mix ratio, EP51ND 2-component epoxy adhesive can be applied on vertical surfaces without dripping or flowing. It spreads evenly and smoothly, and only contact pressure is required for cure. Product gels in ~5 min and cures fully at ambient temperatures. Bonded parts can be safely handled within ½ hr. Adhesive exhibits thermal shock and chemical resistance, and hardened product acts as electrical insulator. Service operating temperature is -100 to 250°F.

FARO Technologies, Inc.    Lake Mary, FL 32746 6204
Mar 10, 2004 CAM2 Measure v4.0 features user interface that shares common look and feel with FARO Gage Software. Measurement commands include Torus, Torus Segment, Rectangular Toroid, and Extruded Rectangle. Tubing functionality enables users to measure bends of 180° or greater on round and rectangular tubes. Cross-Section Measuring automatically compares stream of data to CAD surface. Data from Laser Tracker measurements can be copied and pasted into tertiary programs.

Stanley Works, The    New Britain, CT 06053
Mar 10, 2004 FatMaxâ„¢ Short Blade Chisels provide extra strength in neck area where common breakage occurs. Blade is hardened and tempered high chrome, carbon alloy steel. Bi-material, high-impact handles feature steel striking cap, allowing user to work with steel-headed hammer. Full-length blade protector acts as safeguard during storage. Ranging in size from ¼ to 2 in., chisels come in 3- or 6-piece sets or as 9 single chisels.

Gardner Bender    Milwaukee, WI 53209
Mar 10, 2004 Made of heat-treated aluminum, BIG BENâ„¢ hand benders incorporate dual sight-line system that allows bending on floor or in air. They include highlighted Benfieldâ„¢ markings and are available in sizes of ½, ¾, and 1 in. Other features include Vise-Mateâ„¢ conduit vise; bend-back channel that corrects over-bends; Benfield-style, 30° bend when handle is straight up; sight-down arrows; and sight-across marks.

Stanley Works, The    New Britain, CT 06053
Mar 10, 2004 FatMax® High Tension Hacksaw features adjustable thumb-dial tension mechanism that provides tension memory and one-piece design that permits tension settings up to 330 lb. Power load sliding tension mechanism increases leverage and provides greater control when releasing blade, while 24 tpi, bi-metal blade allows for flush cutting with 4.75 in. depth cutting capacity. Die-cast, slope-nosed hacksaw has slip-resistant, textured grip and front grip with thumb rest.

Festo Corp.    Hauppauge, NY 11788
Mar 10, 2004 Available in 3 body sizes, D-Series Air Preparation Units feature optimized internal flow paths that enable flow capacities from 24-406 scfm, depending on style and size. Products are offered in inch and metric series with port sizes from 1/8-1 in. NPT and G 1/8-1 ISO. Made of zinc and aluminum, die-cast units incorporate polycarbonate filter bowels and metal bowl guards. Filtration levels are 40, 5, 1, and 0.01 µm.

Stanley Works, The    New Britain, CT 06053
Mar 10, 2004 Available in 15 and 20 in. sizes, FatMax® Saw with SharpToothâ„¢ design includes Blade Armorâ„¢ composite coating, which provides abrasion and corrosion protection. Features include induction-hardened teeth and handle with ergonomically designed, slip-resistant grip for comfort and control. Saw is suited for cutting wet and immature wood, plasterboard, large timbers, and other abrasive composite materials.

Festo Corp.    Hauppauge, NY 11788
Mar 10, 2004 Handheld programming device for CPX Valve Terminal enables users to carry out parameter settings, configurations, and diagnostics for module and channel-oriented faults. No programming is required, and no additional software is neeeded. Unit provides clear-text display for commissioning, status display, and search for current faults. Find function identifies causes of sporadic faults using diagnostic history of last 40 fault events with time stamps.

Valenite, Inc.    Madison Heights, MI 48071 9636
Mar 10, 2004 ValTURNâ„¢ ProGRIPâ„¢ has spring-loaded clamp design that allows insert to be gripped in 2 directions. Inserts can be changed despite holder position, and interchangeability of clamping components allow same toolholder shank to be used for carbide, ceramic, or CBN insert designs. Product is available in 98 different insert and lead angle shank styles to accommodate cast iron, steel, stainless steel, and heat-treated material applications.

Beta Dyne Inc.    Bridgewater, MA 02324
Mar 10, 2004 Models FS2S and FS2D are single and dual output converters with input voltages of 5, 9, 12, 15, and 24 Vdc. Output voltages are 3.3, 5, 9, 12, 15, and 24 Vdc for Model FS2S and ±3.3, ±5, ±9, ±12, ±15, and ±24 Vdc for Model FS2D. Both come in SIP package with minimum isolation voltage of 3,000 Vdc, max efficiency of 80%, and operating temperature of -40 to +85°C. Converters feature ±5% output voltage accuracy, line and load regulation, and short circuit protection.

Delcam USA    Salt Lake City, UT 84111

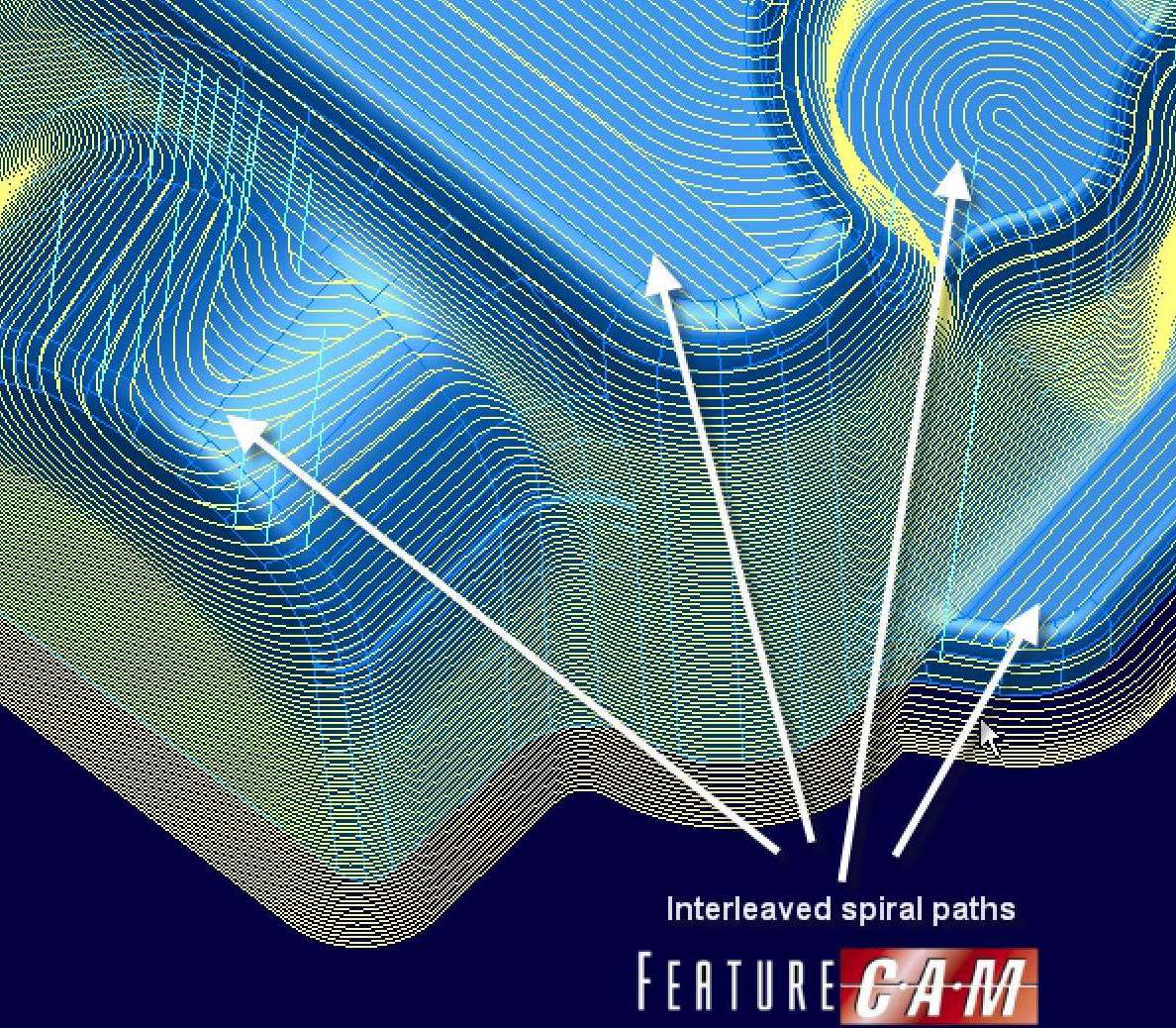

Mar 10, 2004 FeatureCAM delivers Interleaved Spiral toolpath that uses single pass technique for finishing complex surfaces. Toolpath intelligently applies spiral cutting passes that are interleaved between Z levels based on desired scallop height and shape of part. FeatureCAM analyzes slope and shape of part surfaces and then uses scallop height constraint to calculate whether spiraling passes are needed between Z levels to produce appropriate surface finish.

Stanley Works, The    New Britain, CT 06053
Mar 10, 2004 Magnesium-framed, Bostitch® RN46 delivers 410 lb-in. of driving power at 100 psi. Lockout feature prevents cycling nailer when out of fasteners. Positive stop depth adjustment allows user to set proper nail depth for variety of roofing materials and helps prevent overdrives. Accommodating 1 to 1¾ in. x .120 coil roofing nails, pneumatic nailer features tool-less shingle guide and single-action side canister for one-handed loading.

Air Technical Industries    Mentor, OH 44060

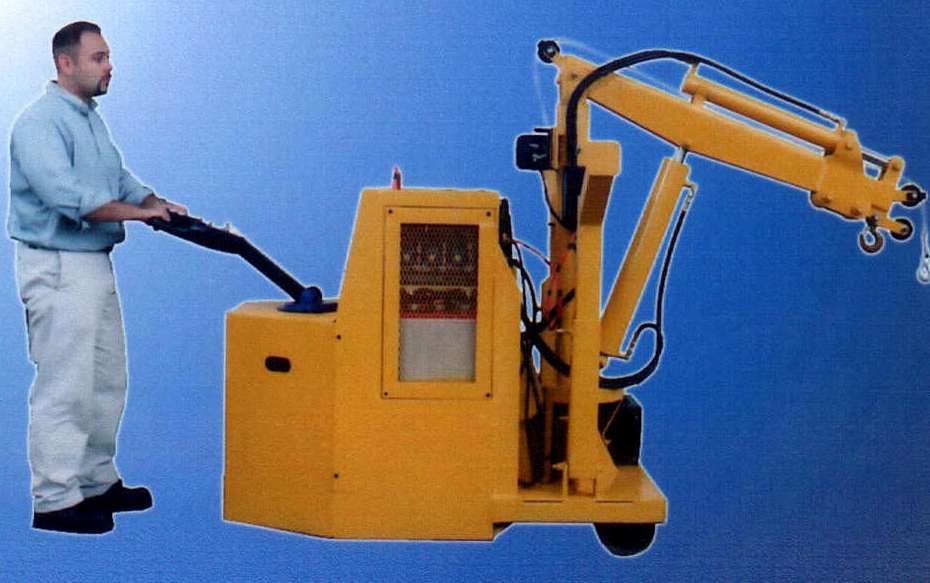

Mar 10, 2004 Designed for reaching above and beyond obstacles, counterweighted, all-steel crane has reach that extends beyond wheels in order to handle large containers or parts without requiring stabilizer legs. Lift and telescopic boom action is hydraulically operated, and propulsion is electro-mechanically operated and battery driven. Crane is offered in capacities from 1,000–20,000 lb with lift heights to 180 in. and has top speed of 4 mph.

Haydon Switch & Instrument, Inc.    Waterbury, CT 06705 3910

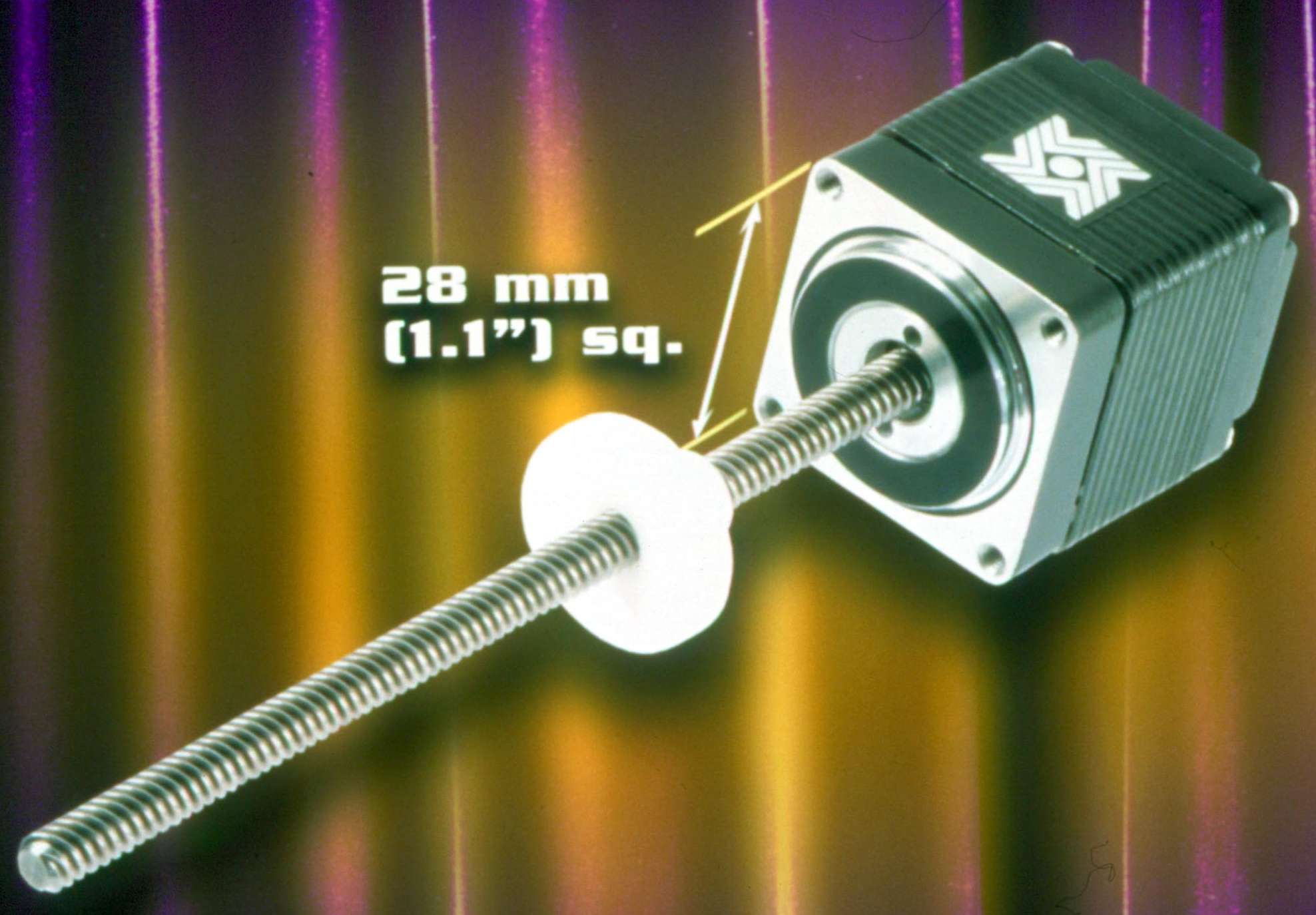

Mar 10, 2004 Size 11 hybrid actuator has rotating stainless steel acme lead screw incorporated into rotor and mating nut translating along screw. As motor steps, lead screw rotates but does not advance. Available in resolutions from 0.000125–0.002 in. per step, it delivers thrusts of up to 25 lb and has 4 in. of visible lead screw. Lead screw length, coil termination, and external nut can be customized to fit unique requirements.

Tolco Corp.    Toledo, OH 43624
Mar 10, 2004 Designed to brace against sway and seismic disturbances, Figure 4L in-line longitudinal sway brace attachment employs one-piece design that permits swivel in only one direction. Break-off head bolt is used to verify proper installation torque. Made of carbon steel, attachment comes with plain, electro-galvanized, or HDG finishes and is rated for 2,015 lb horizontal design load. It is available in sizes from 2½â€“8 in. IPS and is UL and cUL listed.

Stanley Works, The    New Britain, CT 06053
Mar 10, 2004 IntelliLaserâ„¢ Pro Laser Line Level/Stud Finder functions as level, stud finder, and vertical/horizontal layout tool. It provides 20 ft laser layout line and 180° pivoting laser plane with level and plumb vials. Stud detector finds studs and joists through up to 1½ in. of drywall and has continuous live wire detection up to ¾ in. depth. LCD display with graphics shows user proximity of stud. Two hang pins allow mounting of unit to work surface.

Fiber Optic Center, Inc.    New Bedford, MA 02740 6322
Mar 10, 2004 AngstromBond® AB9271 room temperature curing polymer has 1:1 mix ratio with 20–30 min gel time. It cures into tough, flexible compound with mechanical and thermal shock resistance. Product is both toxicologically and environmentally safe. Composed of 100% solids, it will not cause inhalation or skin irritations. AngstromBond AB9271 is supplied in cartridges to facilitate application.

Control Company    Friendswood, TX 77546

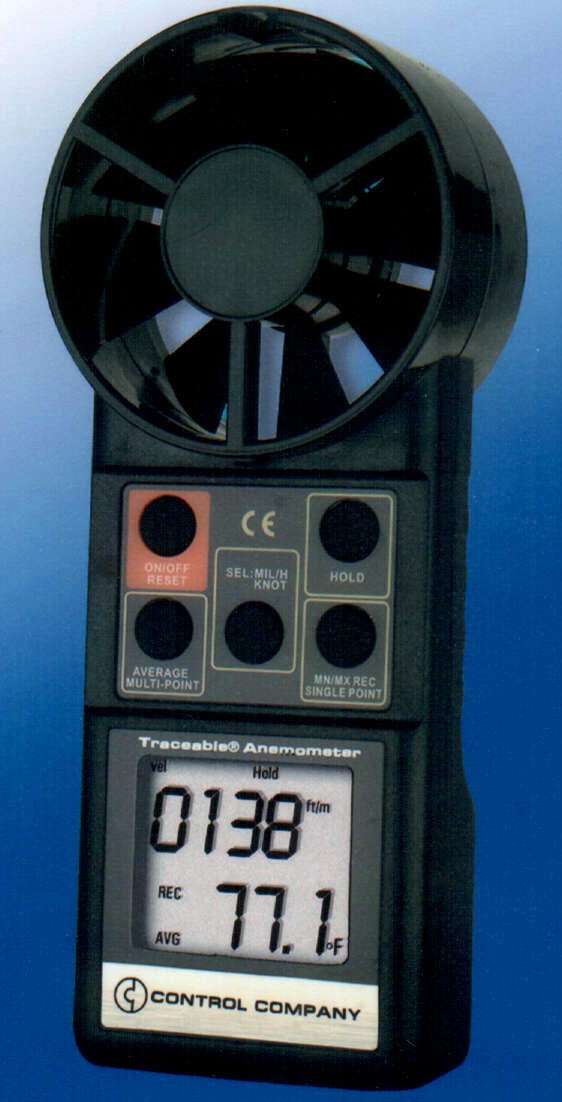

Mar 10, 2004 Suited for use in harsh lab, plant, or outdoor environments, Traceable® Anemometer/Thermometer has anemometer accuracy of ±3% FS and thermometer accuracy of ±1°C. Reading is updated instantly, and memory key allows unit to recall highest and lowest readings. Hold key freezes display of current reading, and average key automatically averages 2-8 readings. Supplied with RS-232 serial output jack, unit can connect directly to computer.

Retsch, Inc.    Newtown, PA 18940

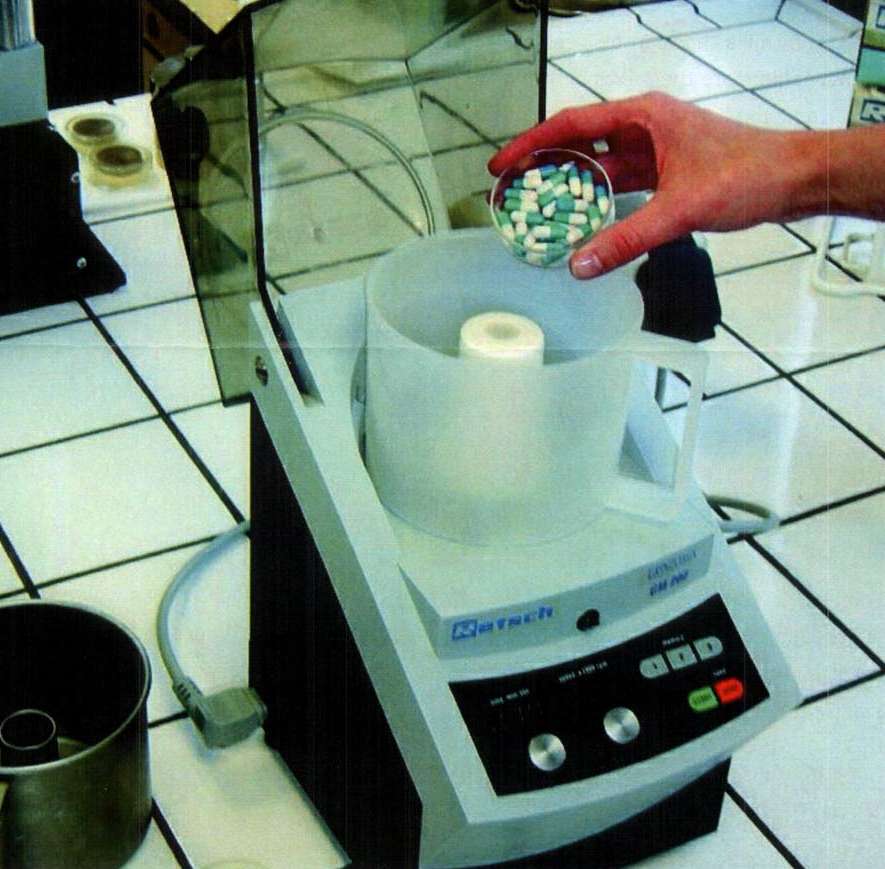

Mar 10, 2004 Grindomix GM 200 is able to grind 20 gelatin-coated tablets in a few seconds, providing homogenous sample for analysis. It features feed size of 10–40 mm and produces final fineness down to approximately 0.3 mm. Parameters can be set for reproducible results. Grindomix GM 200 is particularly suitable for grinding larger tablets and plants with high fat or moisture content.

Unibar Inc.    Rochester Hills, MI 48309
Mar 10, 2004 Multi-platform Barcode 2000 server-based software prints bar-coded shipping and other production labels. Product integrates with applications and databases and suits single-server systems as well as large users and VARs who support multiple platforms or printers types. With shell, command line, and XML interfaces, BARCODE 2000 supports 1D and 2D bar codes, including retail compliance and automotive label requirements.
