ITW Vortec    Cincinnati, OH 45242-4719
Mar 11, 2004 With no moving parts, Cold Air Tubesâ„¢ convert compressed air into low pressure stream of cold air that reaches temperatures as low as -20°F. They kill heat buildup that can slow production or create problems on parts and equipment. At less than 10 in. long, maintenance-free cooling component is adaptable for numerous applications, with 3 models available offering different cooling capacities. Tubes provide quiet operation and instant on/off.

Ametek Solidstate Controls    Columbus, OH 43085
Mar 11, 2004 Series FPB ensures that single faulted circuit will not adversely affect other branches or critical loads by clearing faults in ¼ cycle or less. UL-listed unit utilizes semiconductor, current-limited fuses in series with molded-case circuit breaker. Semiconductor fuse provides protection from potentially catastrophic short circuits generated by fault, while breaker provides long-term sustained overload protection. Panelboards are suited for UPS and inverter applications.

Viking Industries L.L.C.    Lake Forest, IL 60045
Mar 11, 2004 Heavy-duty Model V323 features 3/8 in. drill chuck, rear-exhaust design, and direct-drive, 4-vane motor. Optional kit includes pneumatic oil, flap wheels, 2 different size stones, and several carbide burrs.

HV Component Associates Inc.    Farmingdale, NJ 07727 2484

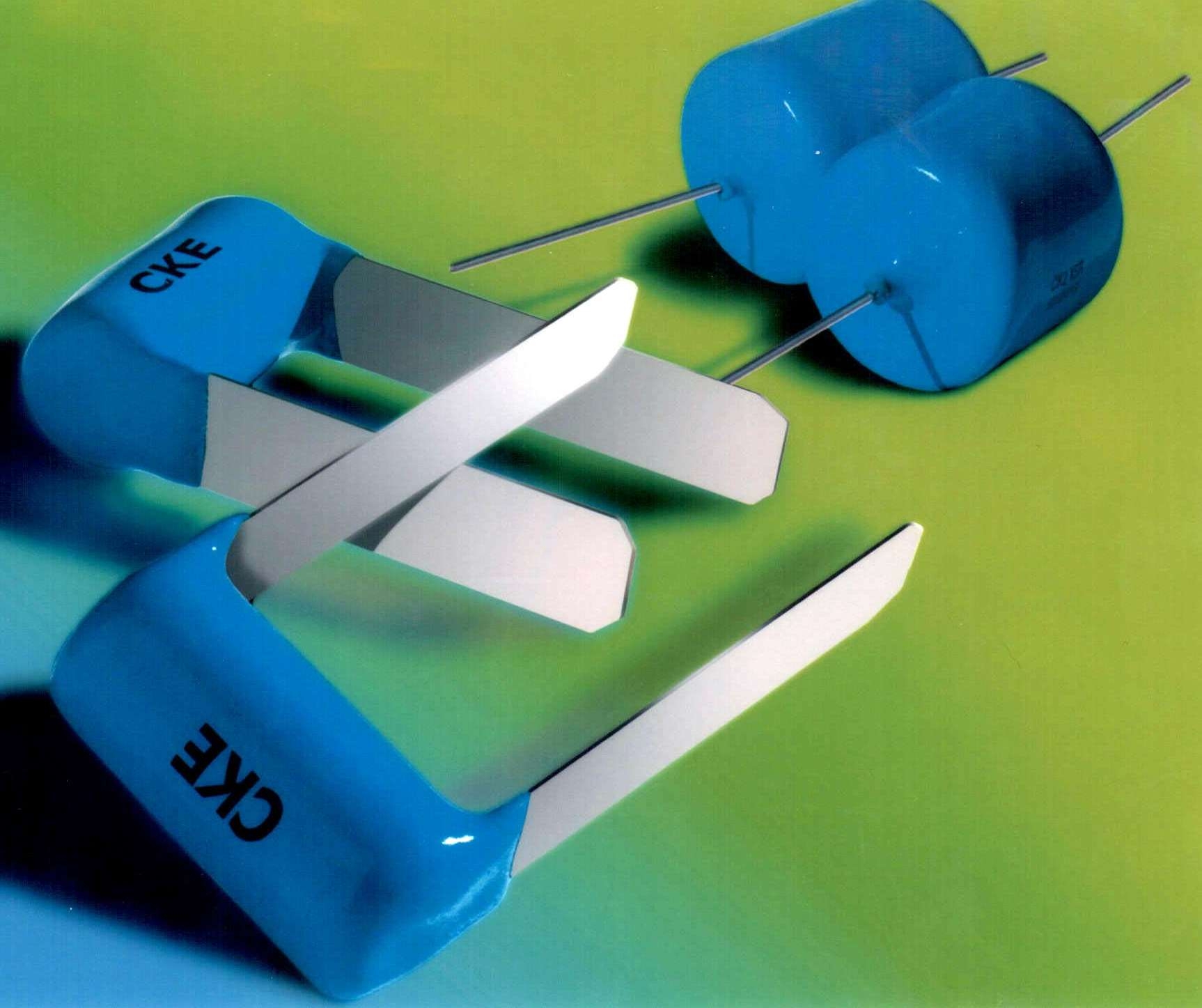

Mar 11, 2004 CH Series Capacitors use high dielectric constant (greater than 4,000) ferroelectric materials based on barium and strontium titanate. Available in voltages to 60 kV and capacitance values to 500 pF, products are coated with flame-retardant, dry fluid-bed epoxy for reliable voltage and frequency performance as well as predictable change of capacitance with time. Leads include 22 AWG wire (standard), low inductance strap, and axial egress wire.

CJWinter Machine Technologies    Rochester, NY 14611
Mar 11, 2004 Suited for thread rolling applications on CNC tuning centers and Swiss and Multi-Spindle machines, Model 190 features single-piece front-plate design that provides thread roll protection. Utilizing engraved scale, it features micro-adjustable thread pitch diameter and permits on-the-machine adjustments. Roll-locating mechanism that consists of single carbide bushing for each roll eliminates use of needle bearings. Attachment comes with ¾ in. square shank holder.

Linear Technology Corp.    Milpitas, CA 95035
Mar 11, 2004 Current-mode, synchronous-boost, 500 kHz Model LTC3429 provides inrush current limiting. Internal 0.35 and 0.45 ohm switches provide 600 mA current limit and deliver output voltage up to 5 V from input voltage of 0.5-4.4 V. Unit delivers loads up to 100 mA of continuous output current from single alkaline cell. Synchronous rectification enables efficiencies up to 96%, while Burst Mode® operation lowers quiescent current to 20 µA.

UTICOM SYSTEMS, INC.    Coatesville, PA 19320
Mar 11, 2004 Threat Advisory warning signs provide highly visible, easy-to-change postings of current National Homeland Security alerts. Made from 1/8 in. thick Lexan®, signs are weather and sun resistant. Five interchangeable panels correspond to color-coding threat levels. Panels slide into aluminum tracks and are button snapped to secure them from wind and vibration. Standard size main sign is 14 x 21 in. Location of attachment hole locations and sizes can be customized.

Coherent Inc., Laser Group    Santa Clara, CA 95054-1112

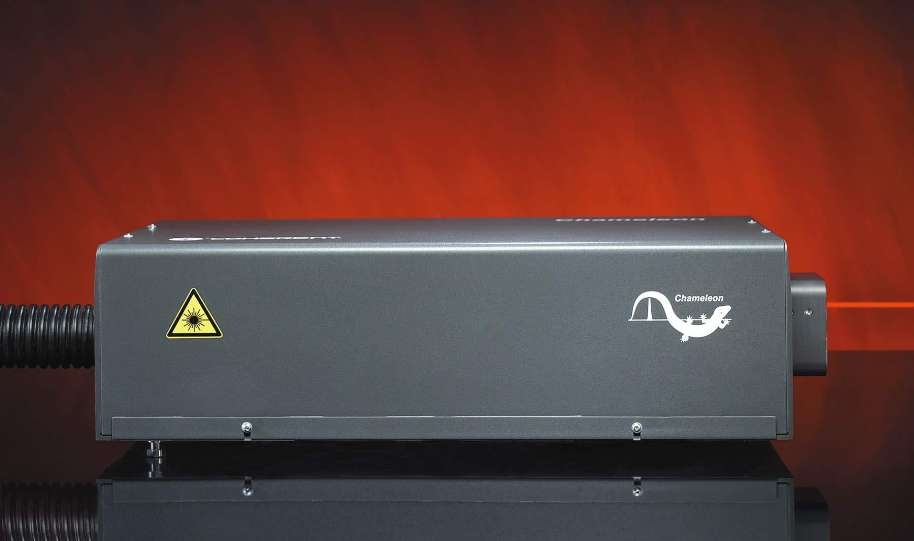

Mar 11, 2004 Chameleon-XR produces femtosecond pulses with greater than 1 W average output power. Patented PowerPulseâ„¢ dispersion-balanced tuning mechanism optimizes output power and pulse width automatically. Miniature closed-loop air recirculator allows users to access wavelengths above 920 nm without requiring external purge. Its 720-980 nm tuning range makes it suitable for time-resolved photoluminescence, non-linear spectroscopy, fluorescence upconversion, and quantum chemistry.

Cincinnati Incorporated    Cincinnati, OH 45211 0111
Mar 11, 2004 Autoform+ CNC Forming Center combines press brake platform with PC-based control. Bend simulation graphics provide visual instructions and guidelines, while screen displays show each step and change in part shape produced with full 360° rotation. Fast Part Programming format allows jobs to be programmed, run, and edited from one screen and Autoform+ software provides calculations of ram reversal position and gage allowance values.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079

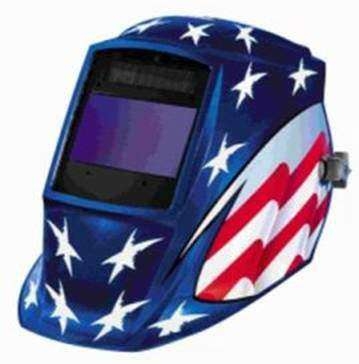

Mar 11, 2004 Big Window Eliteâ„¢ Series of auto-darkening helmets feature 4 independent arc sensors for out-of-position welding, and large window for maximum viewing capability. Replaceable, battery/solar assist, Performance Seriesâ„¢ lens technology permits 3,000 hours of operating time before batteries need replacing. Form-fitting, foam rubber cushion attaches to back of head gear for comfort. Helmet comes in black, 2 flame patterns, and Stars and Stripes design.

Advantech Automation Corp.    Cincinnati, OH 45240

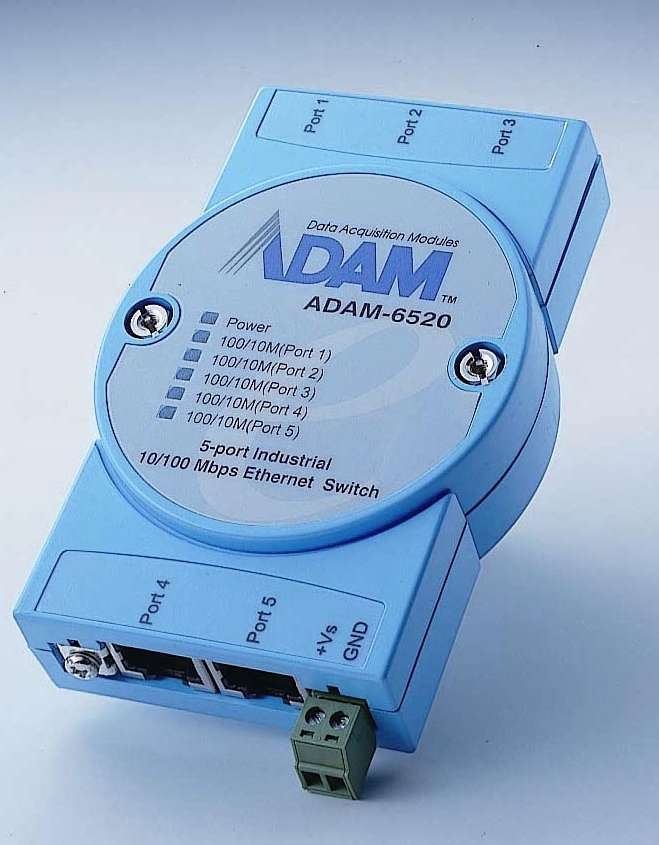

Mar 11, 2004 Model ADAM-6520-B features solid screw terminal design that ensures power lines are fully secured. It supports voltage range of 10–30 Vdc and operating temperature range of -10 to +70°C. Mounting options include wall, panel, piggyback, cabinet, and DIN rail. With ESD protection and solid screw terminals, switch is suited for assembly lines, semiconductor factories, warehouses, and automated factories.

Torrey Pines Scientific, Inc.    Carlsbad, CA 92010
Mar 11, 2004 Model RT10 is capable of mixing 50, 0.5 ml and 48, 1.5 ml centrifuge tubes with snap-on caps or screw down caps in end-over-end motion. Rotator operates from wall-mounted universal power supply, which provides 12 Vdc to unit. Speed control has off position fully counter-clockwise with 270° of rotation between off and full on. Sample holders are available for 16, 15 ml or 6, 50 ml centrifuge tubes that are rotated horizontally.

Moyno Inc.    Springfield, OH 45501 0960

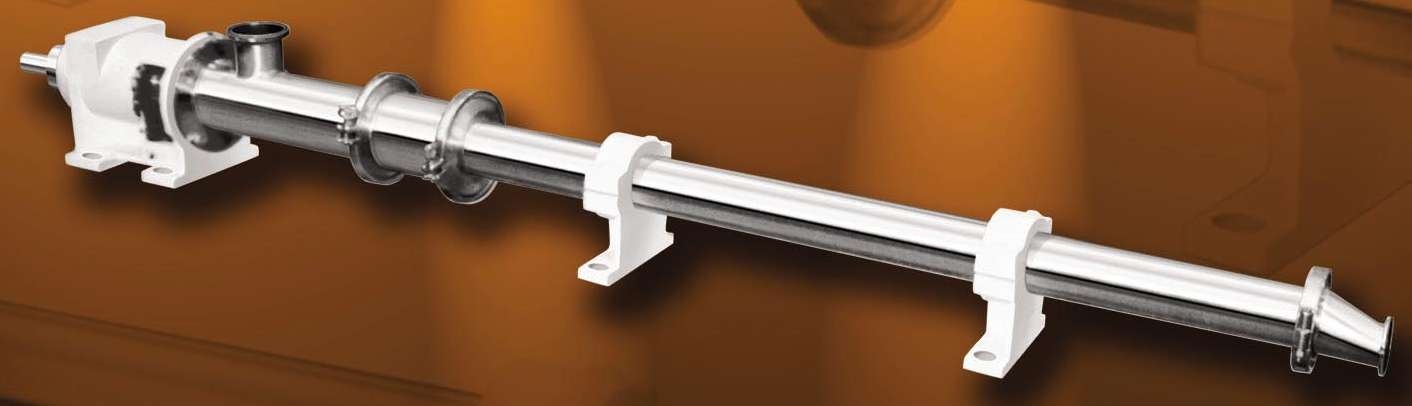

Mar 11, 2004 Sanitary High Pressure Pump employs progressing cavity design, which results in pulseless discharge with low product shear and ability to transfer materials with viscosities up to 1,000,000 cps. Engineered to 3A and BISSC standards, pump offers precise metering capabilities and generates max flow rate of 225 gpm. Unit, built with FDA-approved contact materials, preserves integrity of particulates and handles entrained air and gases without vapor locking.

Cooper Crouse-Hinds Molded Products    La Grange, NC 28551
Mar 11, 2004 Used in applications where HID high bay and low bay lighting fixtures are used, sheet steel flexible swivel fixture hangers are suited for use ½ or ¾ in. fixture conduit stems. They permit conduit stem of fixture to swing in any direction and attach via 2 screws. Hangers are available in 2 styles: for attachment to octagon or round steel boxes, and for attachment to 4 in. square steel boxes. UL listed products are finished with zinc chromate.

Honeywell Sensing and Control    Golden Valley, MN 55422

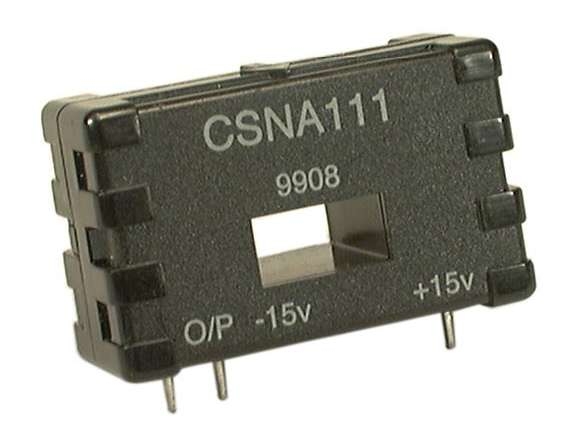

Mar 11, 2004 Closed loop, linear current sensor, Model CSNA111 is based on Hall effect principles and null balance or zero magnetic flux method. It provides ac, dc, or impulse current sensing up to 70 A with no limitation on measured current waveform. Thru-hole sensing allows signal to be sensed using non-invasive connection, while rapid response time of less than 1 µs allows output signal to closely track input signal.

OpenNetwork Technologies    Clearwater, FL 33762
Mar 11, 2004 Universal Identity Platform v5.1 centralizes management of identities and security policies, secures access to protected resources, and delivers automated workflow and provisioning into enterprise. Thirteen connectors automate provisioning and de-provisioning of user accounts and ongoing password management. Software leverages data synchronization capabilities of Microsoft Identity Integration Server to enable role-based provisioning across enterprise resources.

FinePrint Software, LLC    San Francisco, CA 94133
Mar 11, 2004 Offered as alternative solutions for creating Adobe Portable Document Format (PDF) files, pdfFactory and pdfFactory Pro address inconvenience of constantly switching between print drivers to produce printed and electronic copies of PDF files. Print button enables application to be used as default print driver by allowing printing document to paper, creating PDF for electronic distribution, or both.

Altera Corp.    San Jose, CA 95134-1941
Mar 11, 2004 With instant-on, single-chip, non-volatile characteristics, MAX® II complex programmable logic devices (CPLDs) range in density from 240–2,200 logic elements (LEs). Look-up table-based architecture is manufactured on TSMC’s 0.18 micron embedded flash process and utilizes staggered ring of I/O pads. Features include real-time ISP and Quartus II v4.0 software support.

CREDANT Technologies    Addison, TX 75001
Mar 11, 2004 CREDANT Mobile Guardian v3.5 security and management software platform includes ability to control use of camera, microphone, Instant Messaging, and Bluetooth on smartphones and PDAs. It also enables encryption of data on RIM Blackberry devices in addition to self-service password reset for Research in Motion devices. Other features include single sign-on for Windows Mobile Pocket PC and Palm-based devices and lock down smartphone and PDA touch screen and keys.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Mar 11, 2004 Standards-based, Visual Engineering Environment Pro v7.0 facilitates development of measurement and control, analysis, test-system, and data acquisition applications. Access within Microsoft® .NET Framework expands customization capabilities. Software supports direct LAN and USB connected instrumentation using industry-standard protocols. Development tools include undo and redo, panel editing, and property editing for making changes to design or user interface control properties.
