Pro-Line    Haverhill, MA 01835

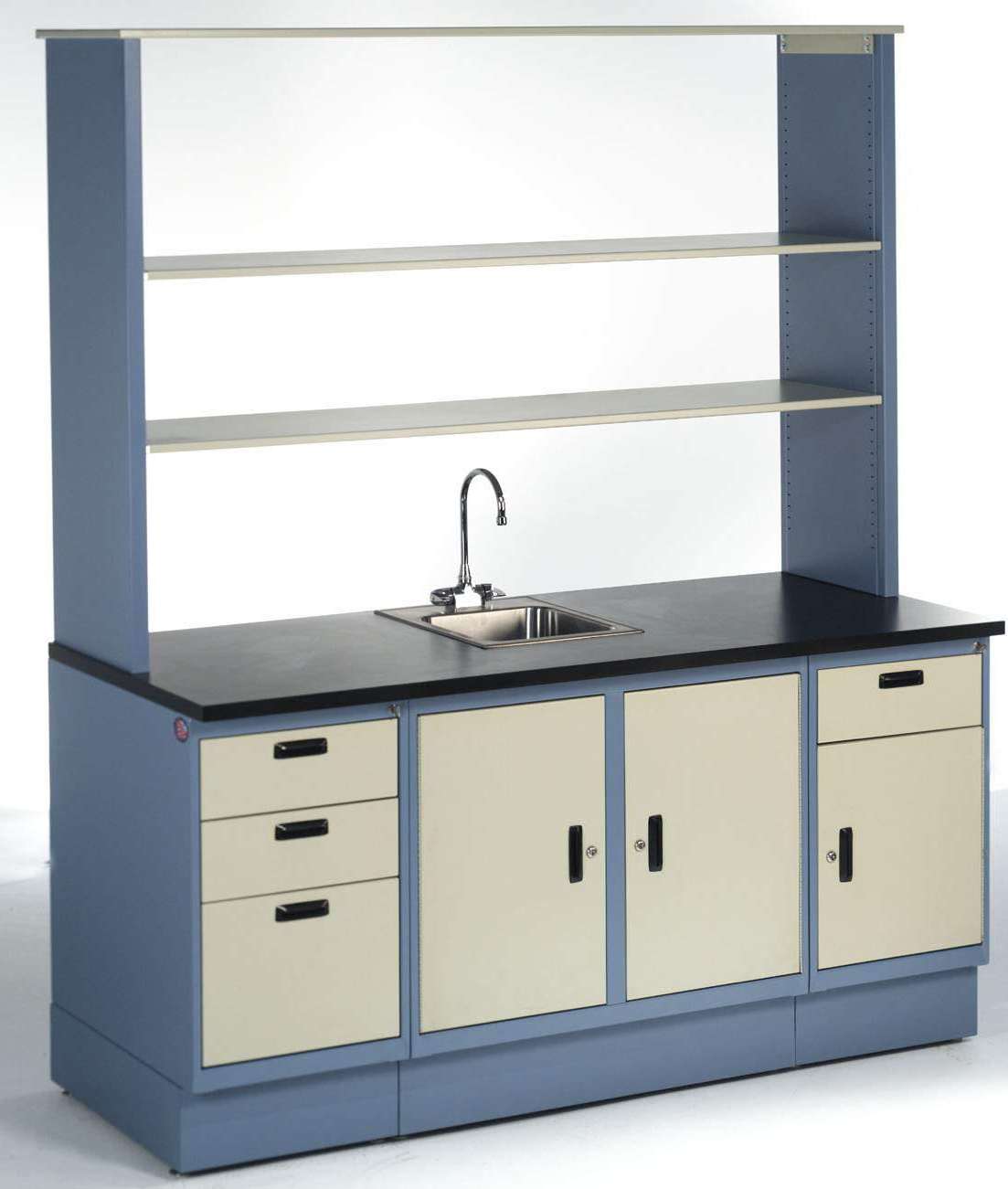

Feb 18, 2004 Constructed from 16-gauge steel, Pro-Lab Series modular laboratory workspace systems can be configured to meet unique laboratory application needs. Elements include heavy-duty pedestal cabinets with multiple drawer and door configurations, various work surfaces, and multi-tiered adjustable shelving above surface. Stations accommodate overhead light fixtures, power strips, overhead sliding door cabinets, and sink bases with varied depths.

ZL Engineering Plastics    Peekskill, NY 10566
Feb 18, 2004 Natural copolymer acetal plate and black copolymer acetal plate, measuring 48 x 96 x ¼ in., are suited for applications with temperatures below 180°F that require parts with close tolerances or moderate wear resistance in wet environment. Parts machined from acetal offer low water absorption and dimensional stability. Material is used in bearings, bushings, gears, material handling equipment parts, electronic components, and parts in pump assemblies.

LightPath Technologies, Inc.    Orlando, FL 32826
Feb 18, 2004 Standard and custom large beam collimators are available in 7 beam diameters from .97-12.7 mm and are mounted in ruggedized, stainless steel housing. Outfitted with choice of fiber connectors, products withstand power needed for 1064 nm industrial applications and are suited for use in high-power Nd:YAG beam delivery units, including fiber lasers. Custom designs are also available.

Vishay Intertechnology, Inc.    Malvern, PA 19355 0988
Feb 18, 2004 High-Temperature, Weldable Strain Gages are free-filament wire units pre-bonded to shim stock with flame-sprayed alumina. Bonded wire design resists fatigue, making gages suited for dynamic, impact, or vibratory strain measurements. Devices come with choice of Nichrome V or Pt8W sensor alloys and either of 2 types of pre-attached, high-temperature, insulated cable. All feature nominal resistance of 120 ohms and sensor gage length of 0.25 in.

Vibra-Metrics    Princeton Junction, NJ 08550

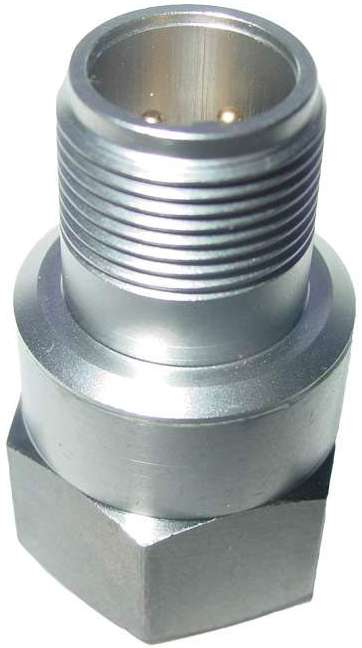

Feb 18, 2004 Standing 1.5 in. high, model 6050 vibration sensor is constructed of 3166 stainless steel with welded hermetic seal and ¼-28 mounting stud. General-use, industrial accelerometer has 2 Hz to 20 KHz frequency response (3 dB) with 100 mV/g (±10%) sensitivity.

Interroll Corp.    Wilmington, NC 28405
Feb 18, 2004 Compact 138EMB consists of 60 x 60 mm solid stainless steel square shaft extension that fits standard modular belt sprockets. It can be installed on shaft without extra tooling or modification and delivers up to 0.5 hp. Unit drives modular belts for conveying, positioning, drying, wash-down, and frosting processes. Available with 17.71–47.24 in. roller lengths, it is powered by 230/460 V, 60 Hz, 3-phase AC motor.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608

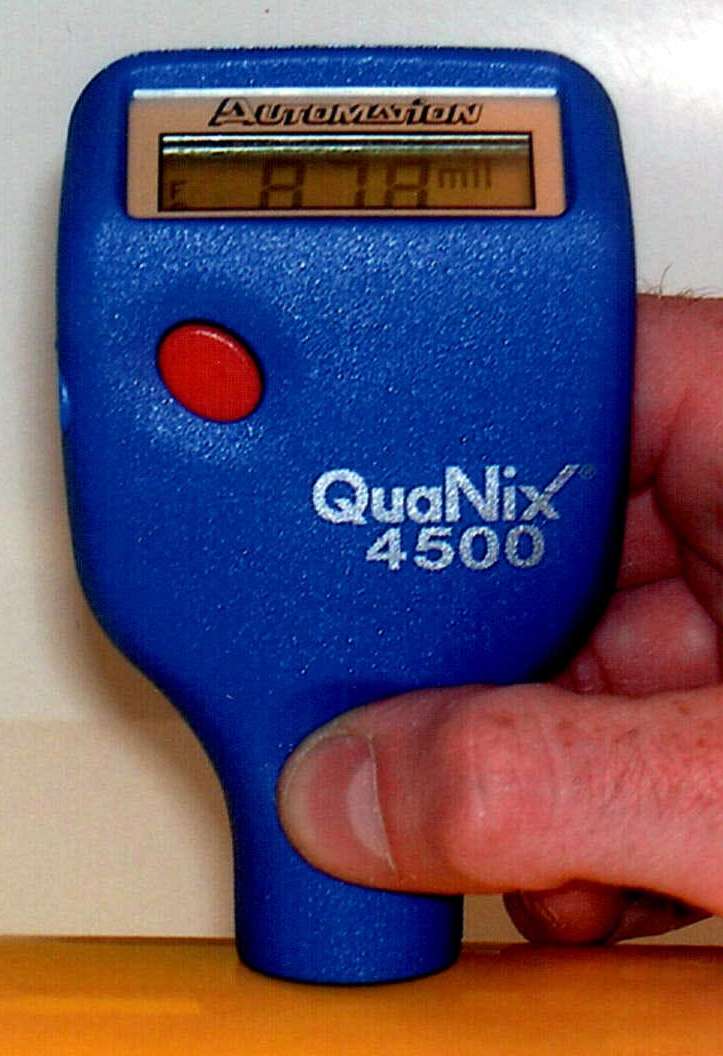

Feb 18, 2004 QuaNix 4200 measures over steel or iron, while QuaNix 4500 measures over steel and aluminum. Hall effect technology allows measurements in heat and cold or over wet vehicle surface. With integrated ruby sensor, gages feature measuring range of 0-40 mils and 0-999 microns. They include substrate indicator, low battery indicator, and audible signal to confirm measurement. Units are suited for assessing paint work on automobiles and inspecting outdoor structures.

Scapa North America    Windsor, CT 06095
Feb 18, 2004 Scapa 512 pressure-sensitive splicing tape consists of polyester film, single-coated with silicone adhesive for use on silicone and other surfaces. Product can withstand prolonged exposure to temperatures as high as 350°F; for shorter periods of time, Scapa 512 withstands temperatures up to 400°F.

United Receptacle, Inc.    Pottsville, PA 17901-0870

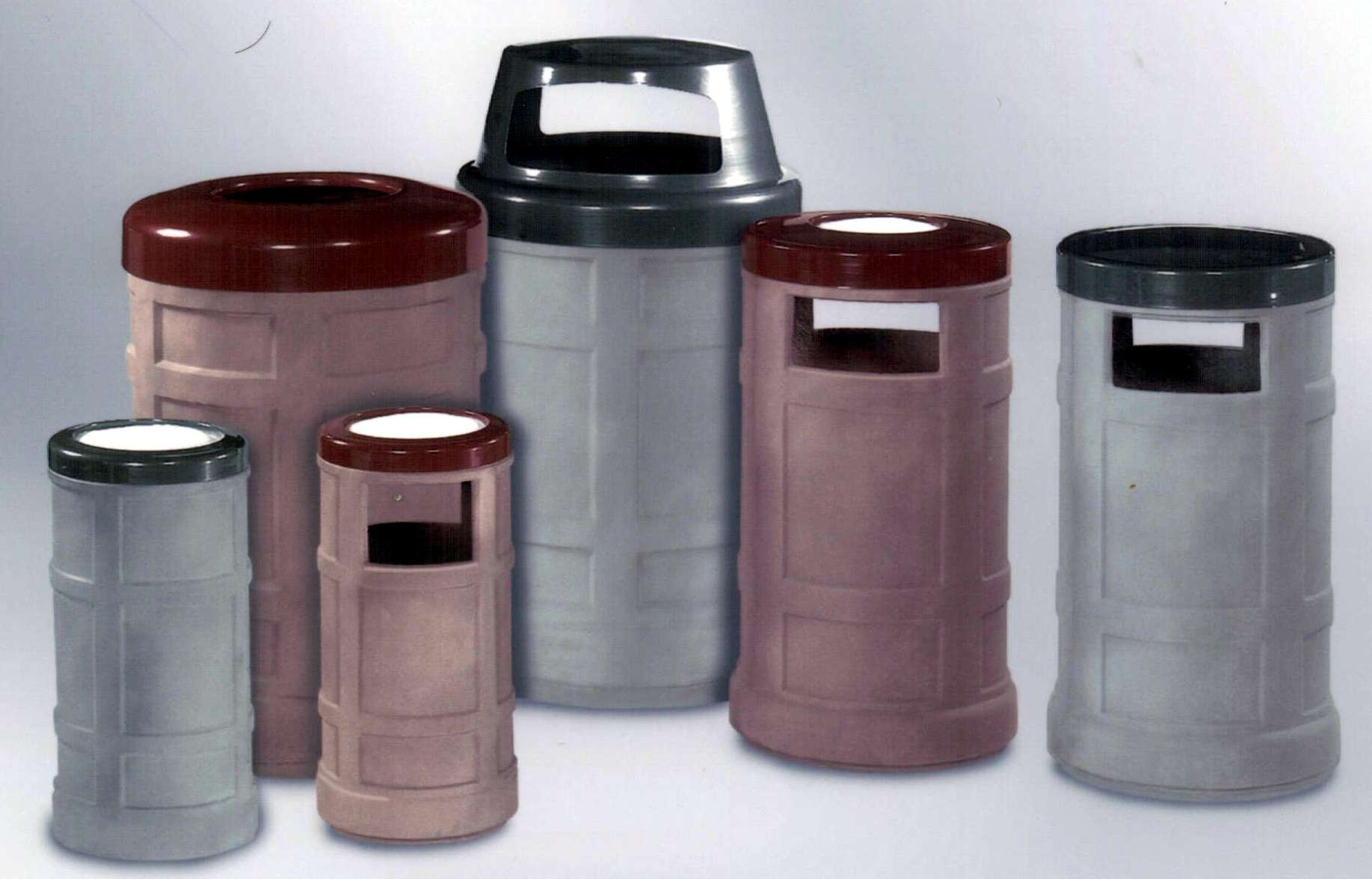

Feb 18, 2004 Keystone Series(TM) Light Concrete Receptacles, made from fiberglass-reinforced concrete, have recessed panel design. Color combinations include Anthracite with Natural Light Concrete or Adobe with Southwest Light Concrete. All models come with heavy-gauge, hot-dipped galvanized, fire-safe steel tops and leak-proof, rigid plastic liners. Optional custom graphic panels are available.

Nordson Corporation    Amherst, OH 44001

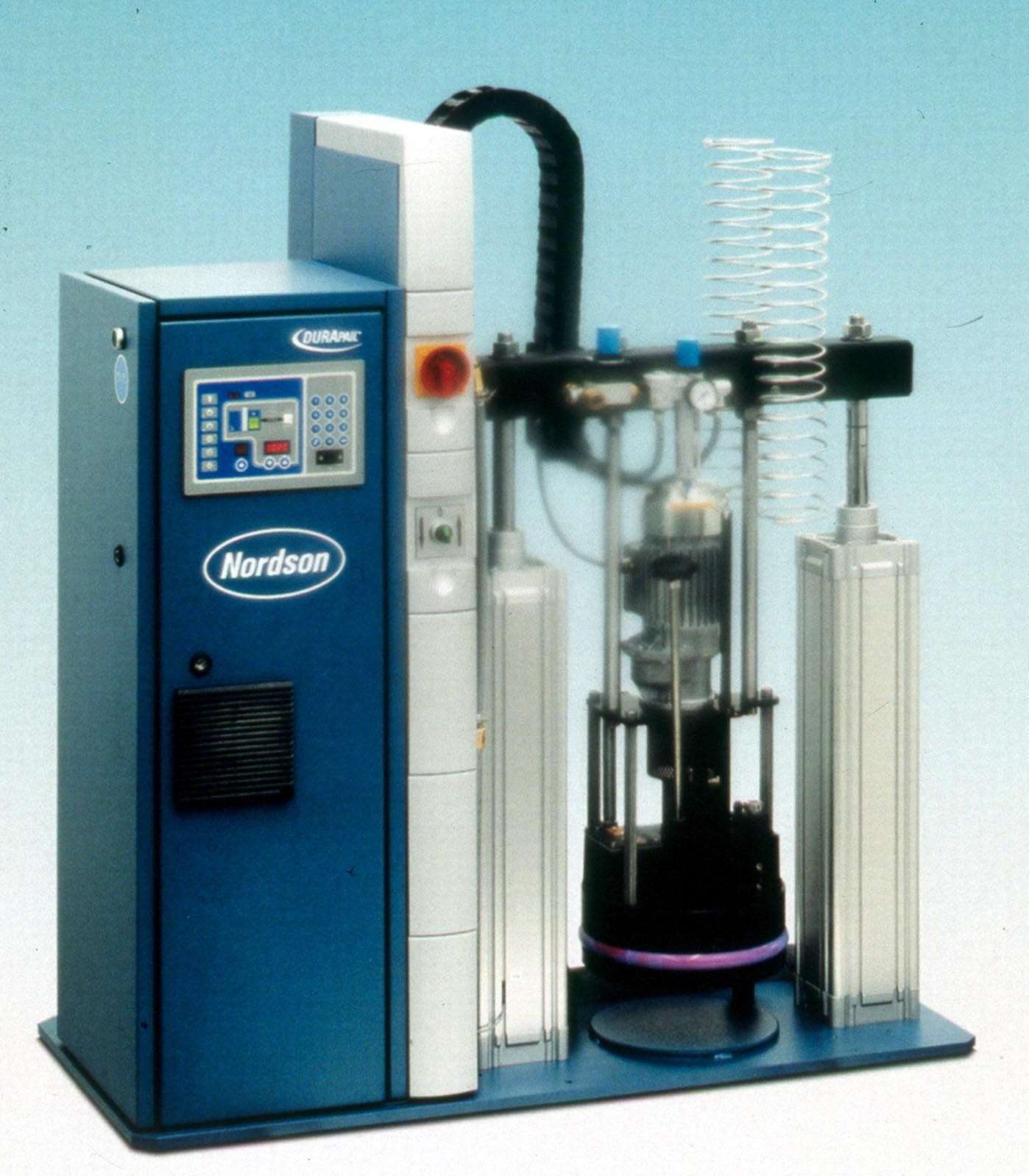

Feb 18, 2004 DuraPailâ„¢ Bulk Melters deliver hot melt adhesives, sealants, and butyls from 20 liter or 5 gal pails. They include manual pressure control, blow-off valves, and status-at-a-glance indicators. Seven-day clock allows automatic daily startup and shutdown. Choice of gear pumps and preset fixed motor speeds meet varied production requirements. Operation is facilitated with handgun trigger connections and single-side access for controls and pail changes.

Bivar, Inc.    Irvine, CA 92618 2593
Feb 18, 2004 Made from UL-rated, 40% glass-filled Polyphenylene Sulfide, insulators come in shoulder design, flush low-profile, and dual-sided, low-profile configurations with stand-offs for added ventilation of mounted devices. Accommodating screws up to 0.125 in. dia, units provide grounding protection in applications up to 260°C and are chemically inert with oxygen rating index over 45%. Applications include power supplies, inverters, transistors, and discretes.

Ophir Optronics, Inc.    Danvers, MA 01923
Feb 18, 2004 Compatible with thermal, pyroelectric, and photodiode heads, Nova II measures power or energy from pJ and pW to hundreds of Joules and thousands of Watts. It provides laser tuning, graphing, normalize, power or energy density units, attenuation scaling, and max/min limits. Unit offers non-volatile data storage of up to 50,000 points and includes USB and RS232 outputs. NIST traceable and CE marked, meter can be operated by battery or AC source.

QuadTech, Inc.    Maynard, MA 01754

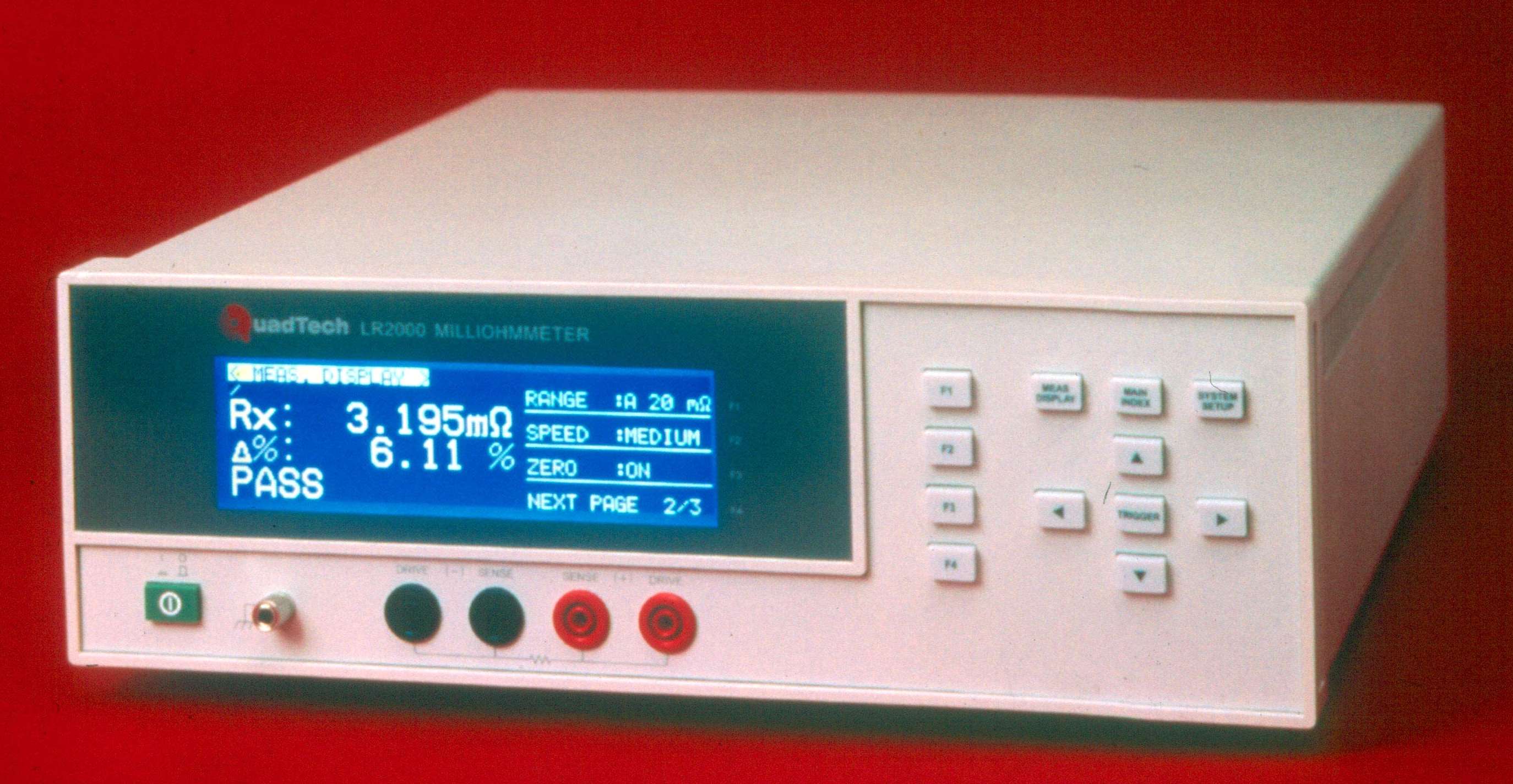

Feb 18, 2004 Model LR2000 offers measurement range from 1 µohm to 2 Mohms with accuracy of 0.05% and resolution down to 1 µohm. With 9 measurement ranges, instrument selects appropriate range while providing menu interface and graphical display for setup, programming, and viewing results. It includes 4-terminal Kelvin connection, auto zeroing, programmable Hi/Lo comparator function, and 8 sorting bins for pass/fail testing and categorization of devices.

Pressure Controls Inc.    Belleville, NJ 07109
Feb 18, 2004 Model F-109 provides adjustable flow range from 1/10 to 300 gpm, which can be controlled or sensed. Stainless steel, in-line unit features 1 in. NPT inlet and outlet ports, max operating temperature of 300°F, and burst pressure of 35,000 psi. Applications include machine cooling, instrument cooling, batch mix, and flow controls.

Flexicon Corporation    Bethlehem, PA 18020 8006

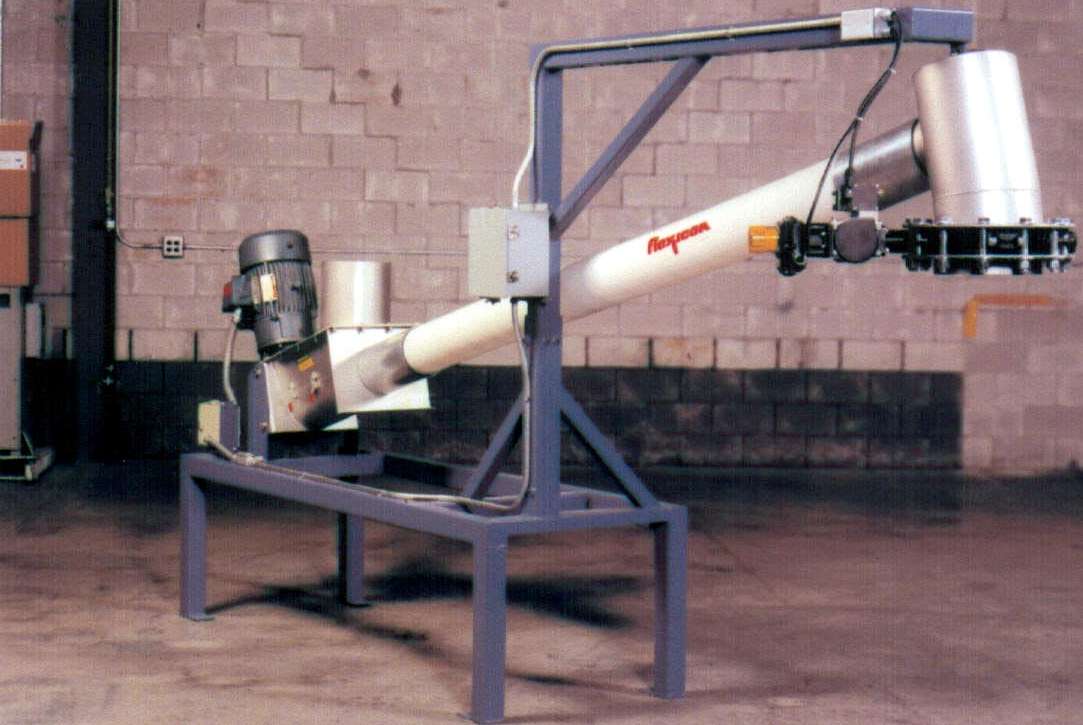

Feb 18, 2004 Low Profile, Flexible Screw Conveyors position motor drive at inlet end of conveyor tube, allowing discharge end to fit within limited headroom areas. Enclosed, dust-free conveyors can move material vertically, horizontally, or at any angle, through small holes in walls or ceilings, and can handle products ranging from sub-micron powders to large pellets. Removable screw and tube interior are smooth and crevice-free, allowing rapid, thorough cleaning.

Midac Corp.    Irvine, CA 92614 6016
Feb 18, 2004 Titan FTIR Systems provide real-time, multi-component extractive gas phase analysis. Spectrometer is packaged with externally-mounted, corrosion-resistant gas cells, with cell pathlengths ranging from 1 cm to 30 m. Thermal isolation from spectrometer allows operation from ambient to 240°C, allowing moist sample streams to be analyzed without condensation. AutoQuant Pro(TM) software provides simultaneous display of trend charts, IR spectra, and concentration tables.

Aremco Products, Inc.    Valley Cottage, NY 10989

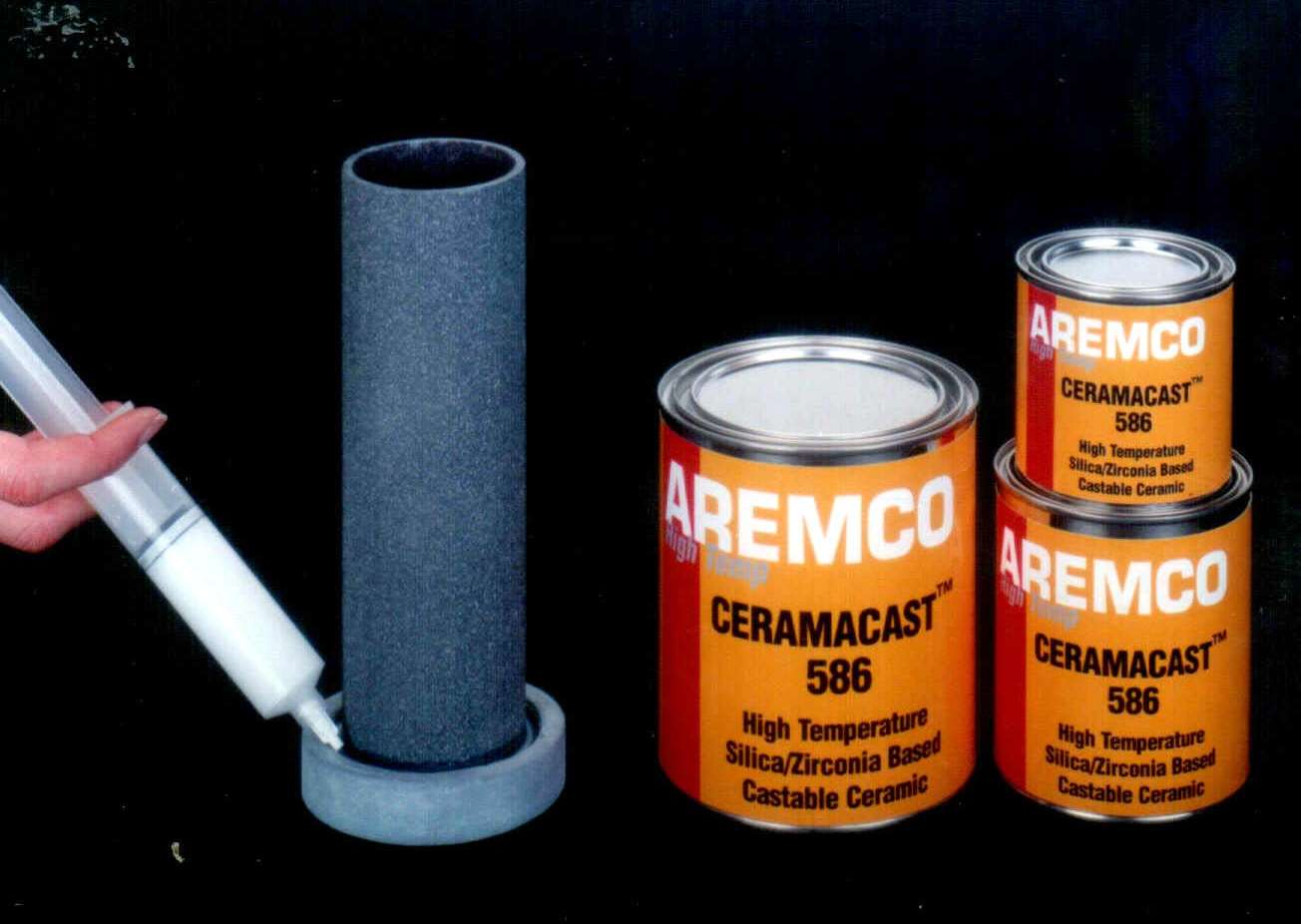

Feb 18, 2004 Ceramacastâ„¢ 586 is a zirconium-silicate based, phosphate-bonded, chemically-setting ceramic compound suited for bonding and potting infrared heaters, gas igniters, and filters in applications to 2800°F. Product is supplied as powder and mixed with water to paste-like consistency. Pneumatically-dispensed adhesive provides 1-hr pot life and hardening time of 6-8 hr. Dielectric strength and volume resistivity are 220 V/mil and 10¹¹ ohm-cm, respectively.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Feb 18, 2004 Intended for dust collection and pneumatic conveying control systems, Series DCT1000DC eliminates need for external devices such as pressure switches, relays, and timers. Indicating light on control board notifies operators when solenoid valve fails to operate. Controller accepts 10-30 Vdc and comes in 6, 10, and 22 channel models. Modular design allows for use as continuous cleaning control or on-demand cleaning control using optional DCP plug-in pressure module.

Fox Electronics    Fort Myers, FL 33905 5022

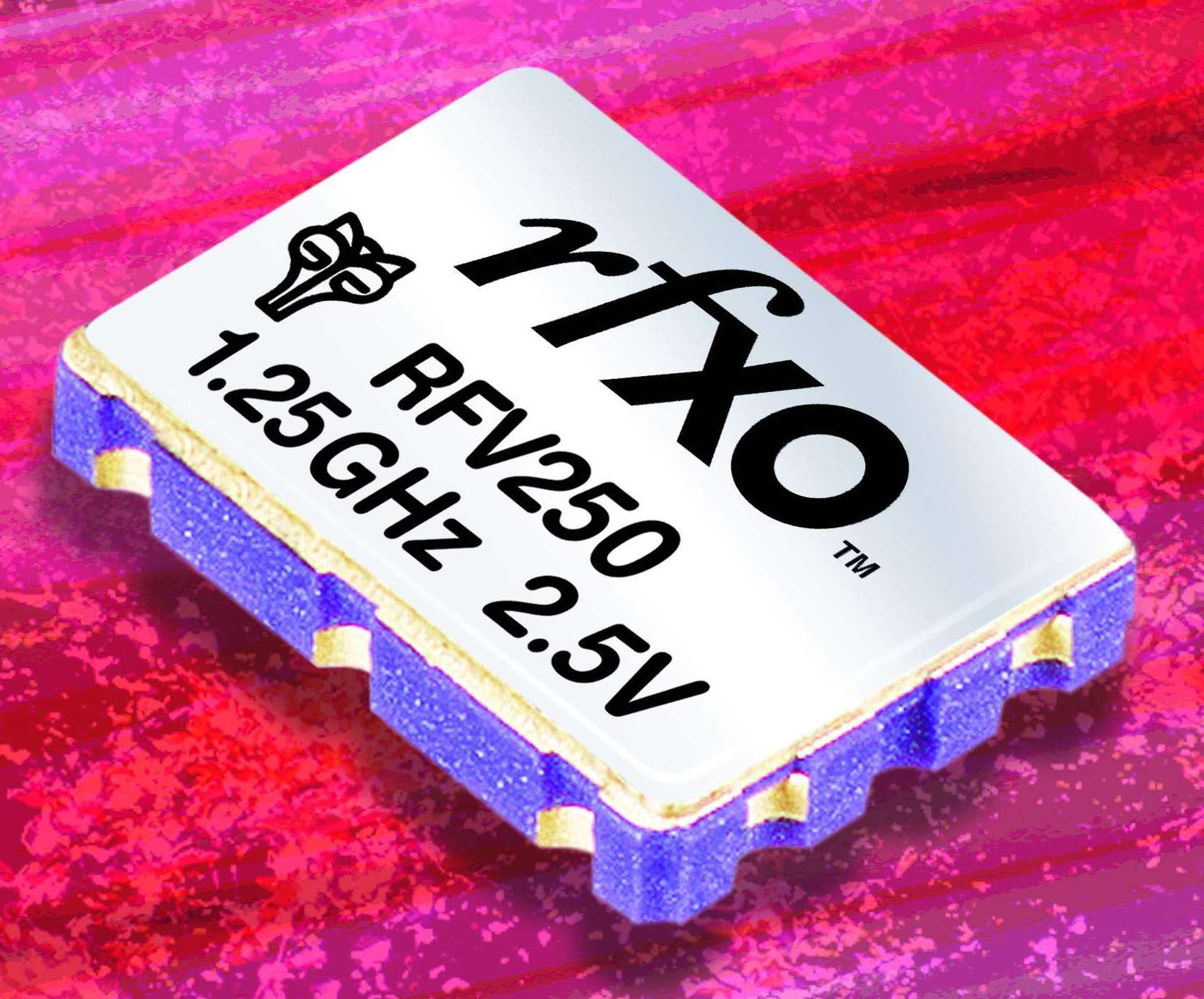

Feb 18, 2004 Models RFX250 and RFV250 are 2.5 V, radio frequency crystal oscillators offering frequency range from 600 MHz to 1.25 GHz. Model RFX250 XO has standard operating temperature of -20 to +70°C with ±20 ppm stability, while Model RFV250 VCXO offers ±50 ppm Absolute Pull Range over operating temperature of -40 to +85°C. Housed in 7.5 x 5.0 x 1.5 mm ceramic package, units are suited for SONET, ATM, SDH, Gigabit Ethernet, and WAN applications.

Locus Inc.    Madison, WI 53711-5377
Feb 18, 2004 Model OS2400-HSE can simultaneously function as access point, bridge, and repeater radio. Any PC with PCMCIA card can access HSE network through single HSE radio, send and retrieve data from linked device such as PLC, and send data back to another Ethernet backbone. DIN rail-mountable radio operates in 2.4 GHz ISM band and features 20 mile range at greater than 10 MB/s. If radio loses link, it searches for alternate route to maintain connectivity.
