Clean Air Products    Minneapolis, MN 55445 1828

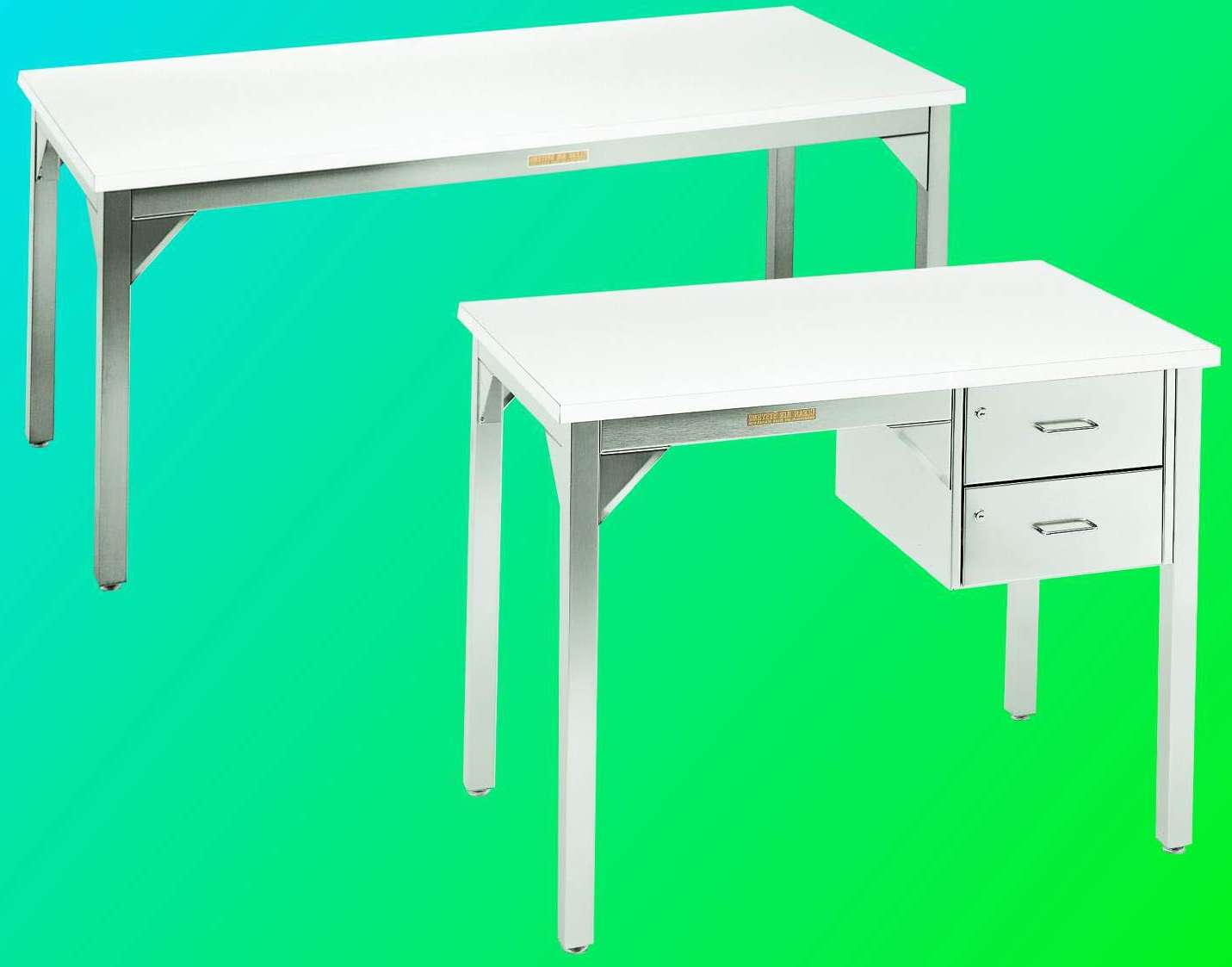

Feb 17, 2004 Rated for use in cleanrooms from Class 100,000 to Class 10, Series 61 Formica tables feature heavy-duty design for corrosion-resistant operation. Tabletop measures 1.125 in. deep and features solid wood core completely covered with high-pressure plastic laminate. Work surface, mounted on stainless steel support frame, has square tubular steel support legs and adjustable leg-leveling guide. Static dissipative models are also available.

Valco Instrument Co., Inc.    Houston, TX 77255
Feb 17, 2004 Cheminert Nanovolume HPLC Injectors and Switching Valves feature .004 in. bore that is uniform throughout flowpath, creating less than 25 nl of port-to-port volume. Individual fingertight fittings work with PEEK, fused-silica, and 1/32 in. electroformed-nickel tubing. Microelectric actuator, operating at 100 msec, determines accurate positioning without limit switches or customer adjustment. Computer control is facilitated via RS-232 or RS-485 interface.

Delta F Corp.    Woburn, MA 01801 1087

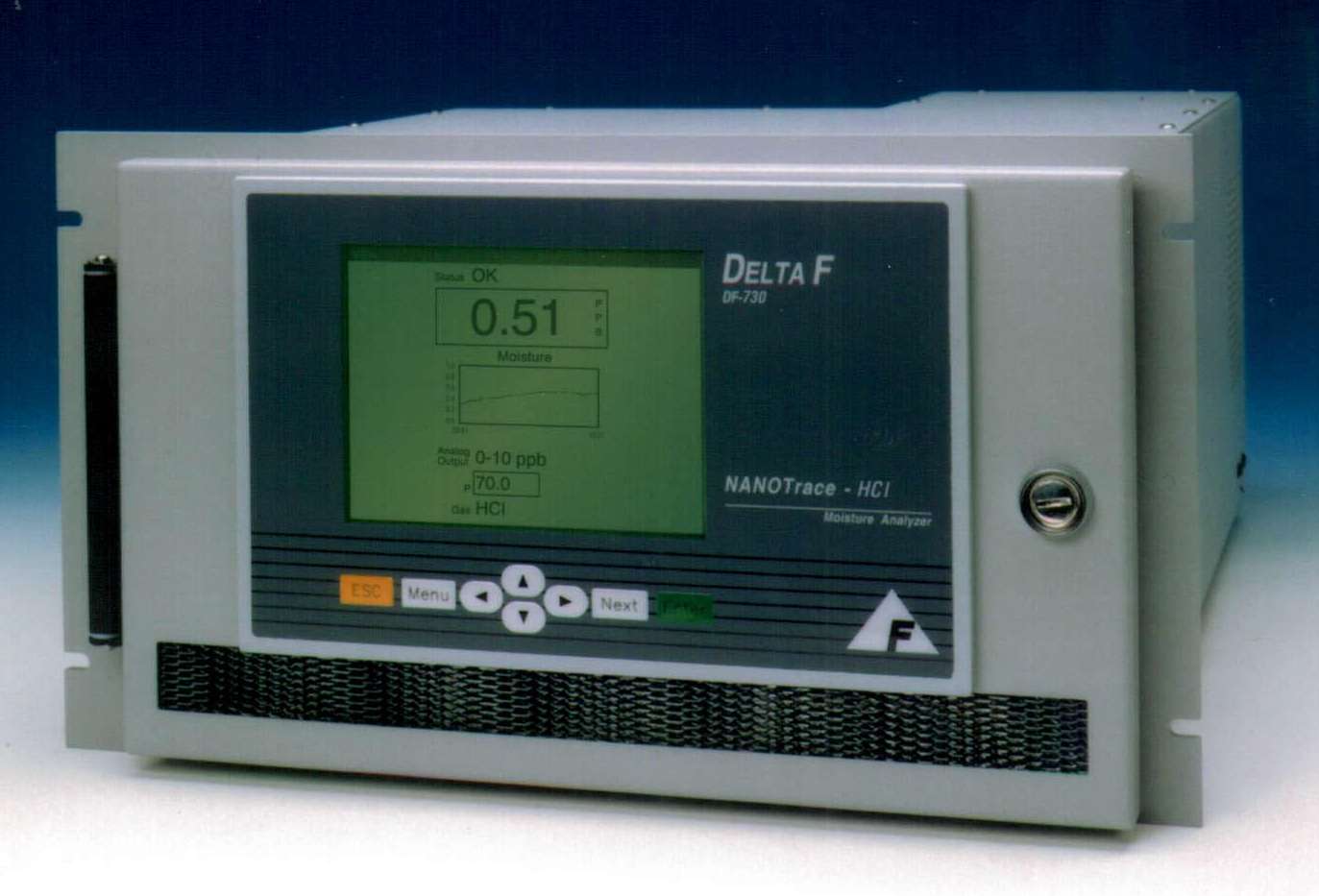

Feb 17, 2004 Tunable Diode Laser Absorption Spectroscopy Moisture Analyzer measures moisture levels in gaseous hydrochloric acid with lowest detection level of 1.0 ppb. Governed by Beer's Law, measuring intensity of laser before and after absorption by moisture allows user to determine number of moisture molecules in sample. HCI does not interfere with measurement and there is no beam splitting for reference purposes, which can result in inaccuracies.

Diamond America Corp.    Tallmadge, OH 44278

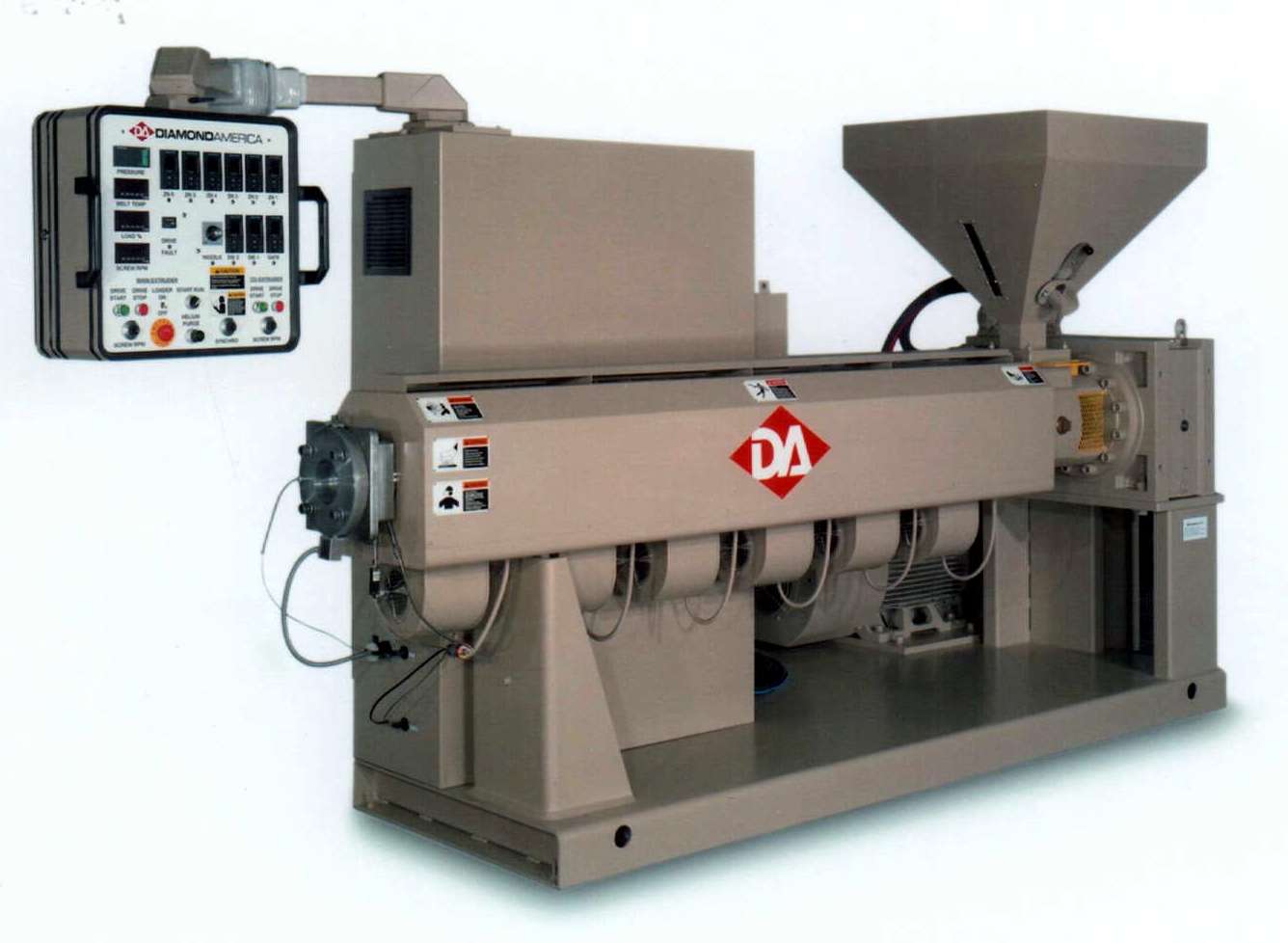

Feb 17, 2004 Model TL-350 is a 3.5 in., 30:1 extruder with 4-bolt swing gate, spill-proof hopper drain, and heavy-duty front barrel support with bi-directional adjustment. Swing-arm arrangement permits operator to work at die area while simultaneously programming extruder. When used in co-extrusion applications, co-extrusion controls are located in same panel as main extrusion controls. Machine is suited for profile extrusion, pipe, hose, and co-extrusion applications.

Cooper B-Line    Highland, IL 62249-1331
Feb 17, 2004 Armafix® Clamps retard heat gain and control condensation drip from cold-water plumbing, chilled water, and refrigeration lines. Closed-cell, elastomeric foam prevents flow of moisture vapor, while foam-to-foam bond prevents gaps in insulation system. Clamps help eliminate ceiling damage by preventing water staining or sagging caused by condensation drips at hanger locations. Non-skid strut clamps and nylon lock nuts ensure minimal pipe movement after installation.

Hayward Industrial Products, Inc.    Elizabeth, NJ 07207
Feb 17, 2004 DUOLINEâ„¢ Bag Filters consist of 2, double length, single bag filter housings linked together with ball or butterfly valve switching system. When bag in one filter housing requires changing, flow can be diverted to other housing by opening and closing valves. Single movement of operating handle opens and closes 4 valves at once, so there is no danger of flow being shut down. Filters come in carbon steel or stainless steel with 2 or 3 in., 150 lb ANSI flanged connections.

WAGO Corp.    Germantown, WI 53022
Feb 17, 2004 Model 750-655 AS-i Master network interface module allows seamless integration of AS-i bus protocol as sub-network to other bus protocols such as Ethernet, PROFIBUS, DeviceNet, and MODBUS. Housed in 12 mm wide package, unit can support up to 62 A/B slave devices and offers flexibility to wire network in star, line, branch, or tree configuration. It includes diagnostics to indicate errors, status indication, and short circuit/overload protection.

Bohle, L.B., Inc.    Bristol, PA 19007
Feb 17, 2004 Fully Integrated NIR System monitors blend homogeneity and end-point determination during powder blending operations in real-time. Fully closed, turnkey system eliminates physical sampling requirements and incorporates NIR spectroscopy with 21CFR Part 11 compliant software that remotely transfers immediate, reliable data to PC. System employs vibration-resistant design and prevents contact with potent products during testing.

Mule Lighting Co., Inc.    Providence, RI 02908
Feb 17, 2004 Offered in cool white, warm white, amber, red, green, and blue, LEDelierâ„¢ Bulbs generate little heat and provide usable life up to 100,000 hr. Solid-state electronic circuitry is vibration-resistant, and can be used in indoor and outdoor applications. Each bulb consumes less than 1 W of power, and comes in voltages from 12 Vdc to 277 Vac, with 120 Vac being standard. They include internal TVS surge protection and are suited for wall or floor lighting.

Spence Engineering Co., Inc.    Walden, NY 12586-0230

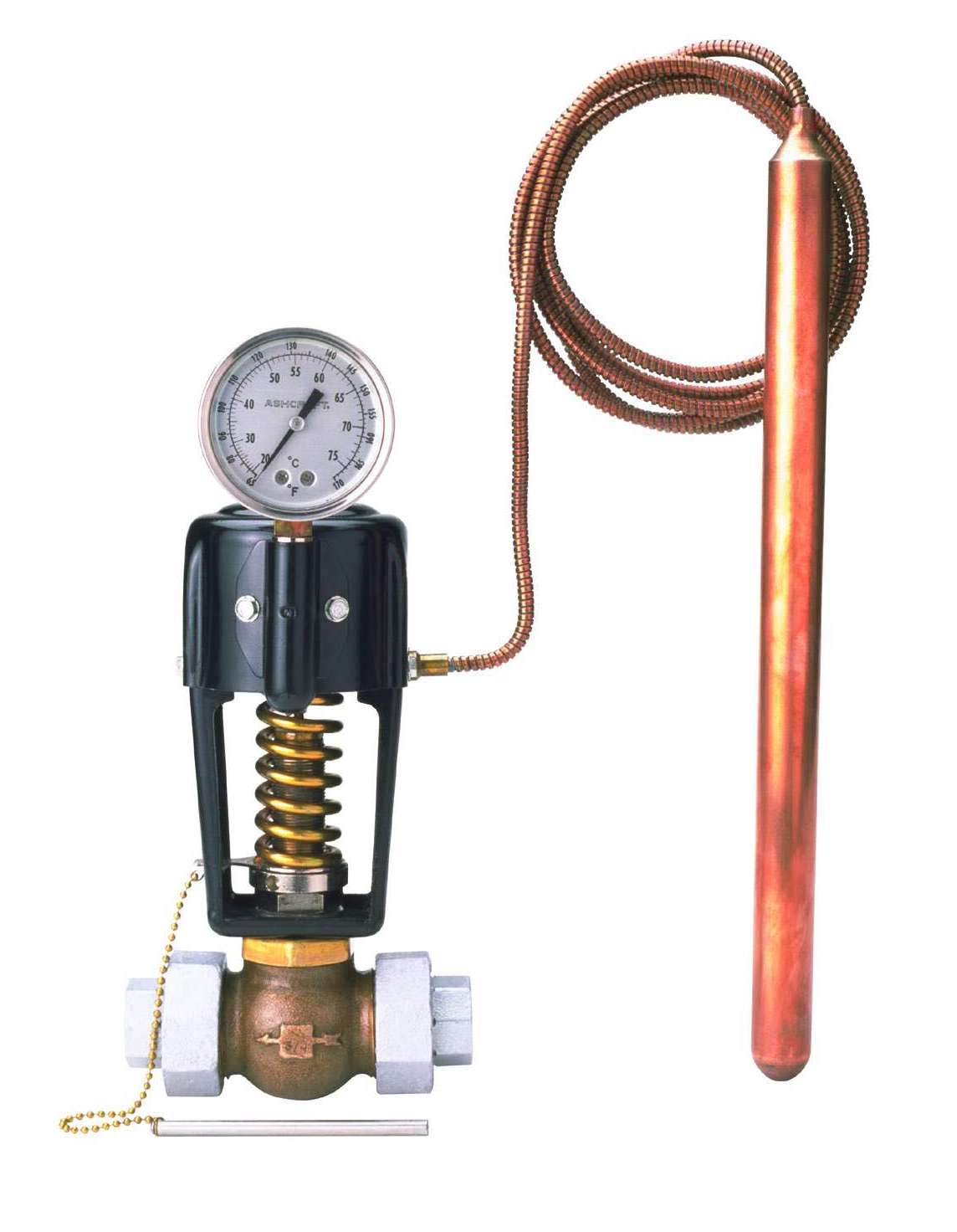

Feb 17, 2004 Self-operated Series 2000 features 1-piece, hardened stainless steel plug and shaft; full ported and full flow bronze bodies; galvanized iron union ends; and copper bulb with 8 ft armored capillary. Spring-loaded, self-adjusting packing assembly includes Teflon® chevron type packing. Sizes range from ½ to 2 in. with single or double seats, direct or reverse acting, and 2 or 3-way operations. Units handle pressures to 250 psig and temperature from -15 to +400°F.

Electronic Development Laboratories, Inc.    Danville, VA 24540

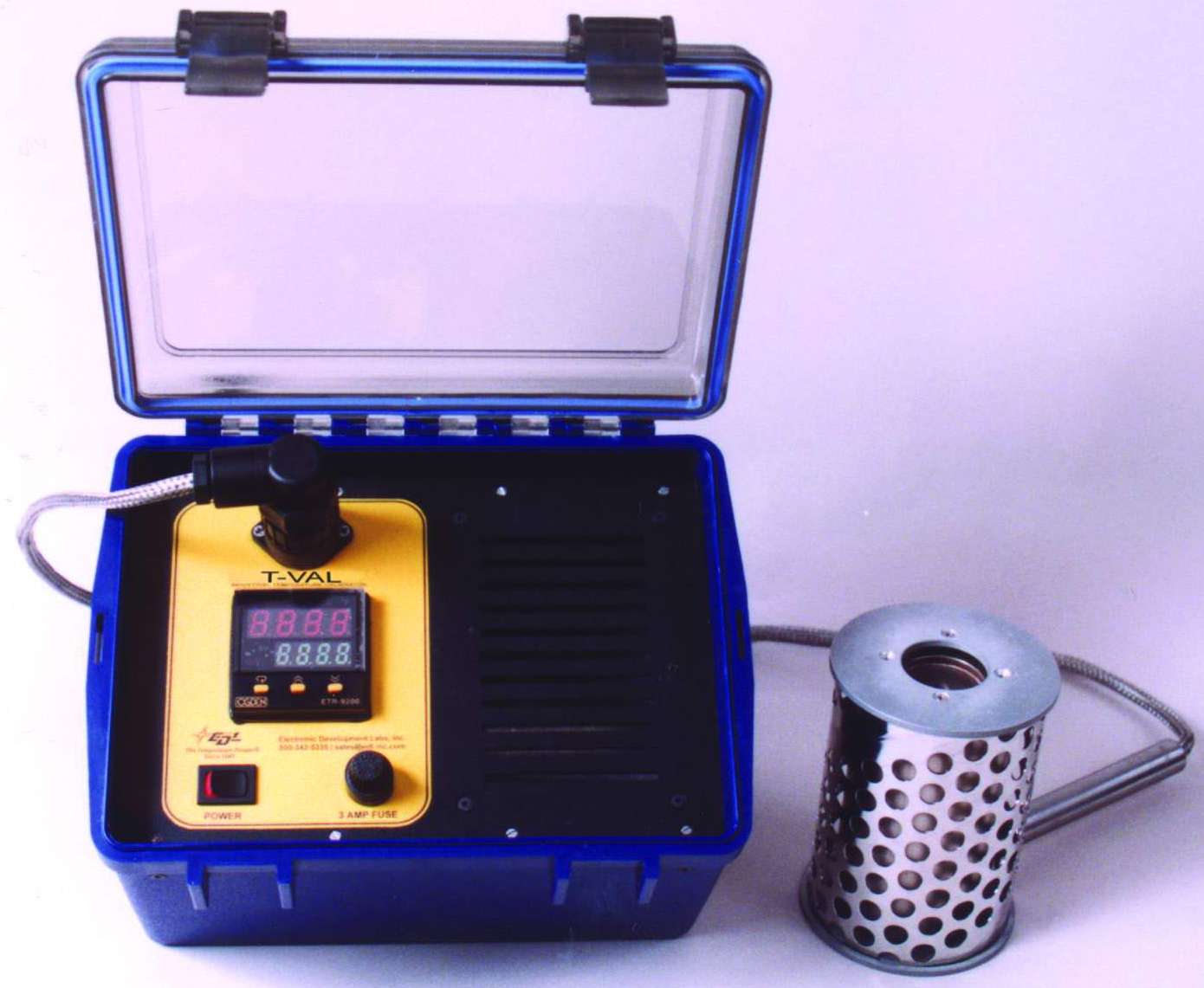

Feb 17, 2004 T-VAL facilitates onsite calibration of immersion/insertion sensors and includes hot zone components constructed of 304 Stainless Steel. Internal wiring is rated for continuous use at greater than 250°C, and internal insulation is rated for use at 1,000°C. Standard hot zone accommodates 0.250 in. dia sensors and has insertion depth of 2 in. Unit features stable temperature control with smart logic PID loop, 6 ft connecting lead, and 2-line display.

Vishay Intertechnology, Inc.    Malvern, PA 19355 0988
Feb 17, 2004 Sealed Weldable Strain Gages are pre-bonded with adhesive to thin, 0.005 in. stainless steel carrier. Each is fully encapsulated with protective coat for moisture resistance. Three leadwire configurations are available to provide best fit for application, environment, or installation. All units feature nominal resistance of 350 ohms, nominal gage factor of 2.0, gage length of 0.125 in., and shielded vinyl leadwire. Operating temperature range is 32–180°F.

Gamewell Co., The    Ashland, MA 01721

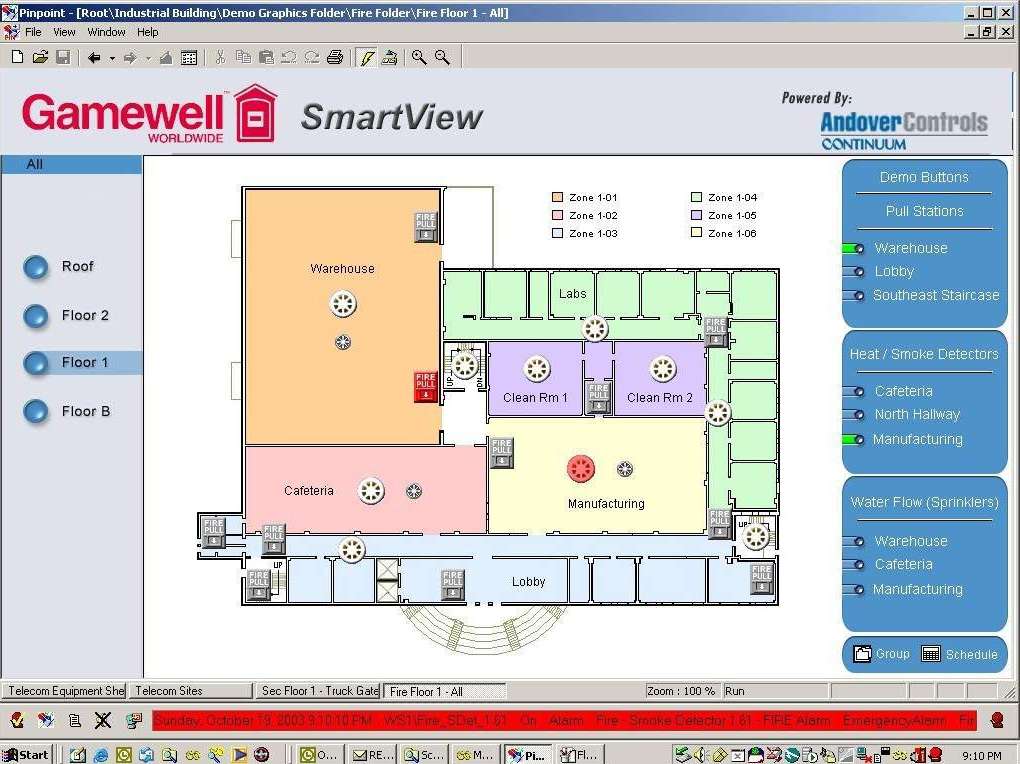

Feb 17, 2004 SmartViewâ„¢ is for use with Series 600 addressable fire alarm control panels. It presents information through graphical menu system and color display while operating over high-speed Ethernet LAN/WAN or single-user network. Each alarm or supervisory event is displayed on color-coded display or with floor plan pinpointing alarm location and point-specific information. User actions and events are logged and recorded for creation of customized reports.

FCI/Burndy Products    Manchester, NH 03108
Feb 17, 2004 QIKSLEEVEâ„¢ features all-aluminum, open design that allows visual inspection, does not trap water, and eliminates corrosion issues due to dissimilar metals. Anti-reverse clip assists in initial installation of connector, while visual indicator verifies installation. Field re-adjustment capability helps eliminate potential of scrapping incorrectly applied splices. QIKSLEEVE meets ANSI C119.4 Standard and heavy-duty AA high temperature current ratings.

LightPath Technologies, Inc.    Orlando, FL 32826

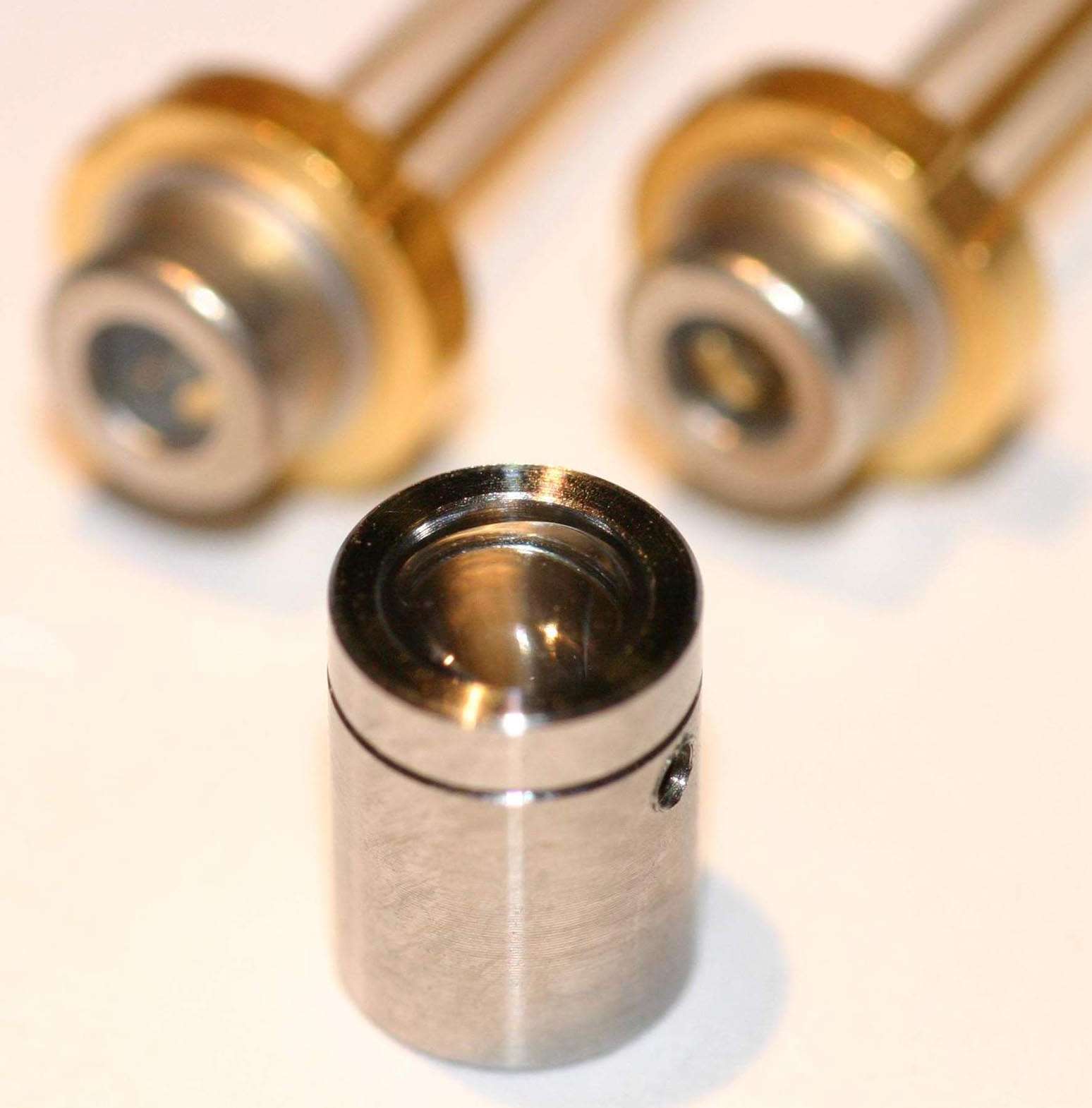

Feb 17, 2004 Mounted externally on diode laser package, CircuLight(TM) circularizes elliptical Red and Blue diode lasers. Small form factor unit enables transmitted power through lens to exceed 90%. With beam diameters of 2.5 mm CircuLight(TM) optics are manufactured in metal housing that can be incorporated in customer's assembly. Fields requiring circular and collimated beams include biomedical, industrial, test and measurement, and defense.

LEDtronics, Inc.    Torrance, CA 90505
Feb 17, 2004 Series M400 CobraHead-Styled LED Streetlights shine light at ground level, eliminating unwanted glare, light trespass, energy waste, and sky glow. Containing 400 Warm Incandescent-White LEDs, cluster lamps draw 19 W, emit 3,200 K, and offer over 100,000 hr of life. Type 1 lamps have to be hardwired into cobra head fixtures, while Type 2 lamps feature male 39 mm mogul bases that screw into socket of fixture. Standard voltage is 120 Vac.

Empire Magnetics, Inc.    Rohnert Park, CA 94927 1908

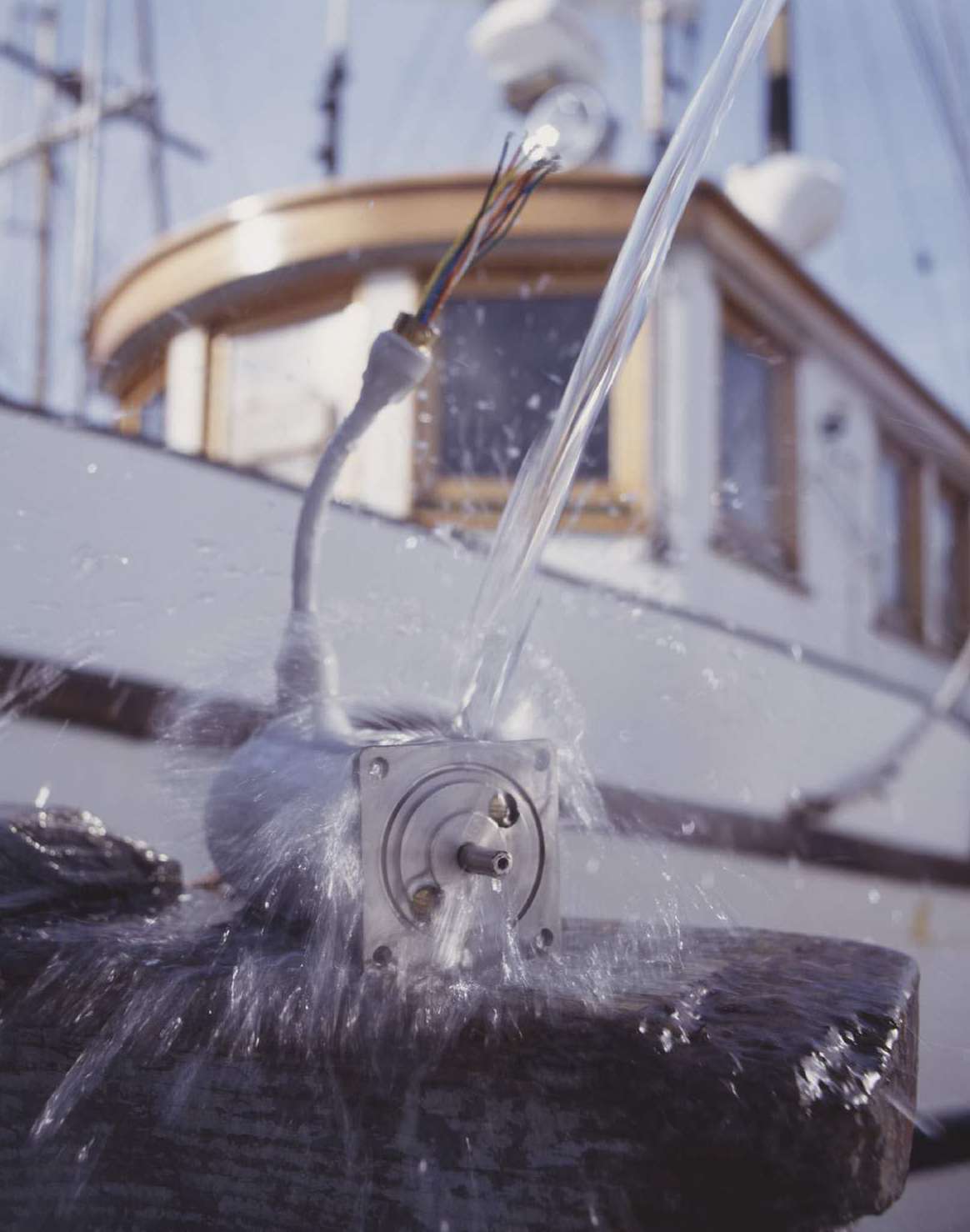

Feb 17, 2004 Submersible Series Stainless Steel Step Motors are internally sealed, eliminating corrosion and motor failure in fluid processing, washdown, and submersion environments. Standard washdown motors are partially filled with oil to prevent liquid ingress, while motors intended for complete submersion are filled with oil and are pressure-compensated. Submersible motors come in 23, 34, and 42 frame sizes with static torque ranging from 60-1,600 oz-in.

Transtector Systems    Hayden Lake, ID 83835
Feb 17, 2004 Measuring ¾ x 2 x 3.5 in., Series I2R Storm Suppressors will protect at 330 and 500 V on 120 and 240 Vac systems, respectively. DIN rail mount units can carry surge current ratings in excess of 5 kA and can be configured in normal and common mode for single, split, and 3-phase systems. Featuring isolated contacts in European-style terminal plug for remote indication in event of failure or fault, Storm suppressors meet IEC Class II and IEEE C2 specifications.

Huntsman Advanced Materials    Los Angeles, CA 90039
Feb 17, 2004 Offering 55 min work life, UV-absorbing Araldite® AAY-8591 resin/HY-8591 hardener system cures after 60 min at 158°F, 20 min at 212°F, or 5 min at 302°F. With elevated temperature cure, it exhibits lap shear strength of ~2,200 psi and Shore hardness of 65D. Low-viscosity, easy-to-spread epoxy bonds glass to glass and metals to ceramics. It is suited for manufacturing welding helmets and other products in which UV transmission issues are important.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Feb 17, 2004 ThinkPad® X40 system upgrades with 40 GB Mini Hard Drive, with features such as 4200 rpm performance, small 1.8 in. form factor, 9.5 mm height, and low power consumption. Four-Cell or Eight-Cell Li-Ion Battery recharges in 3.5 and 4.3 hr, respectively. Combination of 4-cell or 8-cell battery with Series X40 Extended Life Battery provides additional 3.5 hr of charge time. Combination with Series X4 UltraBase Dock provides one-touch desktop expansion.
