Jones, R.A., & Co., Inc.    Cincinnati, OH 45201
Mar 02, 2004 Meridian cartoners employ metric, multi-purpose design and are available in right and left hand configurations. Overall base frame does not exceed 16 ft in length for either center configuration. Featuring smooth rotary feed, cartoners reach speeds from 160–200 cpm and handle carton sizes from 4–8 or 11 x ½â€“6 x 4.5–12 in., depending on center size. Machines are available with 2, 3, or 4 chain adjustable carton transports with adjustable buckets.

STMicroelectronics    Lexington, MA 02421
Mar 02, 2004 Available in SOT23/5L, TSSOP8, and SO-8 packages, TSH8x series op amps offer negative input rail combined with rail-to-rail output stage. Models TSH80, TSH81, and TSH82 are single, single with stand-by, and dual-voltage feedback op amps, respectively. Each features gain/bandwidth product of 100 MHz, slew rate of 100 V/µsec, and output stage optimized for driving 150 ohm load. Total harmonic distortion figure is -61 dB at 4 MHz with one 5 V supply.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Mar 02, 2004 Loctite® 4500(TM) and 4501(TM) surface insensitive cyanoacrylate adhesives bond metal, plastic, and elastomeric materials with acidic, porous, and absorbent surfaces. Single-component gel cyanoacrylate Loctite 4500 has consistency that prevents adhesive flow on vertical applications. Wicking viscosity, single component cyanoacrylate Loctite 4501 maintains cure speed for extended time period. Both maintain liquid performance properties over entire shelf life.

Artesyn Communication Products Inc.    Madison, WI 53717
Mar 02, 2004 Pentium M-based AM7501 Advanced Mezzanine Card (AMC) provides hot swappability and integrated system management, which enable individual AMC modules to be remotely monitored, controlled, and replaced in field. Suited for use as control plane processor for optical and wireless infrastructure, card features server-class E7501 North Bridge, dual Gigabit Ethernet channels, and I2C-based Intelligent Platform Management Interface.

Flextek Electronics    Carlsbad, CA 92008
Mar 02, 2004 With CLOZDâ„¢ Loop Controller, user selects desired control configuration through pin settings and closes loop around power supply, motor drive, heater, lamp, fan, valve, or TEC. Output drive is automatically adjusted until measured feedback signal matches desired setpoint command. System time constants ranging from 128 µS to 1,074 sec can be controlled with 12-bit resolution. Output drive is pulse-width-modulated from 0-100% at 488 Hz to 62.5 kHz.

Mine Safety Appliances Company / Instrument Division    Pittsburgh, PA 15230
Mar 02, 2004 Available with aspirator assembly that may be used with up to 25 ft of sample line, Solarisâ„¢ Multigas Detector performs simultaneous monitoring of up to 4 gases, including LEL, O₂, CO and H₂S. Calibration cap assembly and Waterstop® Sample System must be used with aspirator assembly as well.

Blue Ridge Numerics Inc.    Charlottesville, VA 22901
Mar 02, 2004 Offered with Solid Motion Module that provides virtual prototyping environment, CFdesign v7.0 Upfront CFD software integrates rotational, solid-body linear, and curvilinear motion simulation within MCAD environment. It puts native 3D solid components and assemblies in motion, showing interaction and effects between physical device and its fluids environment. Software generates optimal mesh and first iteration simulation results within minutes.

Actify, Inc.    San Francisco, CA 94108
Mar 02, 2004 Targeted for manufacturers and their supply chain partners, SpinFire Professional 2004 provides 3D and 2D CAD visualization capabilities without requiring CAD system. It enables access, communication, and distribution of multiple CAD formats throughout enterprise and supply chain. Requiring no firewall configurations, Actify® Server 2004 empowers enterprises to host, control, and distribute CAD data, office documents, and image files.

Data I/O Corporation    Redmond, WA 98073-9746

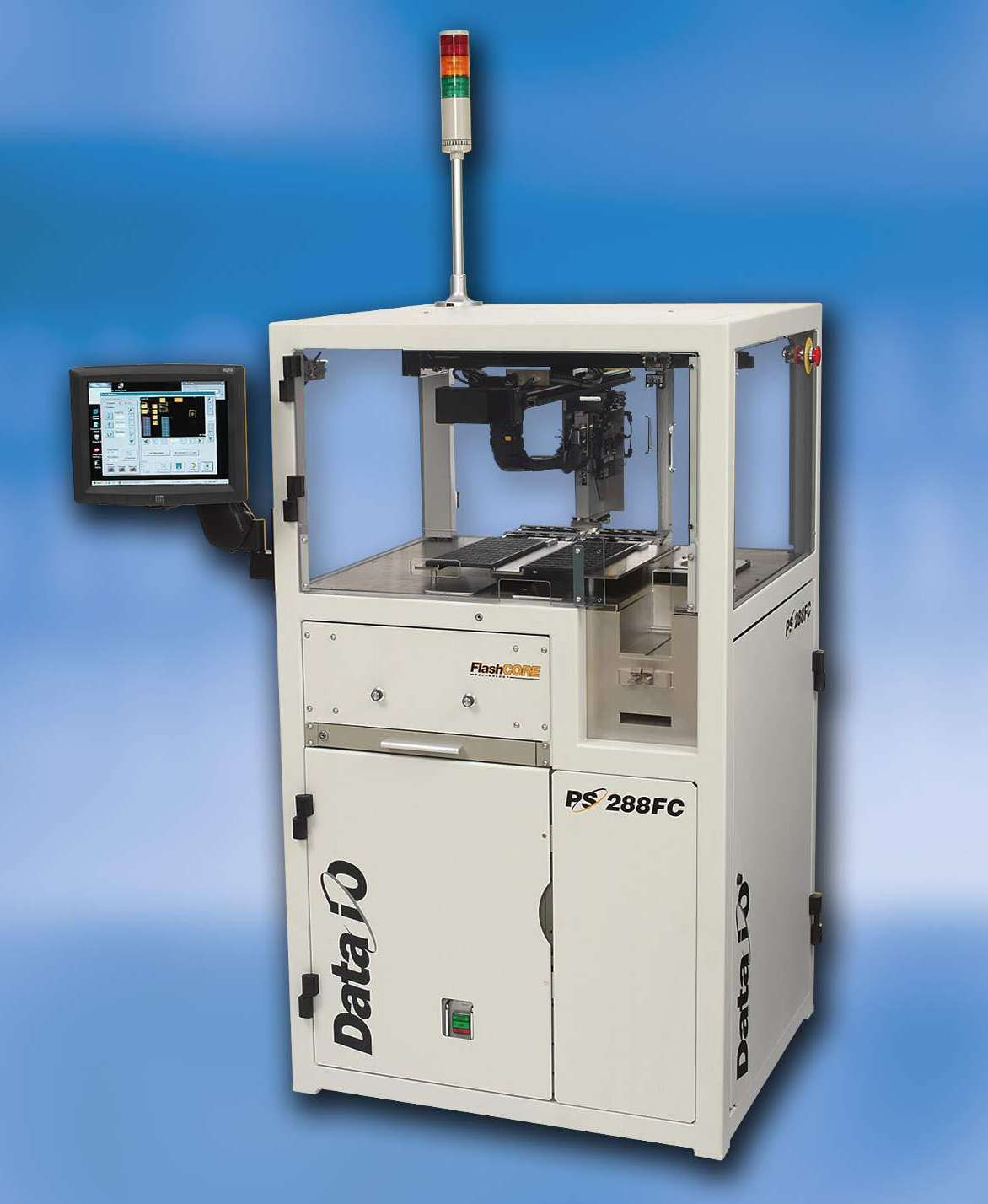

Mar 01, 2004 Modular PS288FC Automated Device Programming System is compatible with manufacturer's PS300 family of modular automated programmers. Utilizing FlashCOREâ„¢ high-speed architecture to support high density devices, compact unit is optimized to enable fast product changeover and offers high volume functionality. Capable of programming 16 sites simultaneously, the system supports a variety of packages and device types.

Lyon Workspace Products    Aurora, IL 60507
Mar 01, 2004 Mobile Storage Cabinet measures 60 in. wide x 24 in. deep x 82 in. high. Features include 4 heavy-duty 6 in. casters, 14 gauge all-welded construction, and per-shelf load capacity of 1,450 lb. Offered in Dove Gray finish, unit has 3/8 in. dia. lock bar that engages cabinet in 3 locations for security purposes.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Mar 01, 2004 Series ML3 thru-beam photoelectric sensor provides response time faster than 1 ms. With ultra-miniature housing of 22 x 8 x 11 mm, model offers long-range sensing with operating range of up to 1.5 m. Other features include NPN and PNP outputs and tamper-free setup with no potentiometers. Separate transmitter and receiver housings and wide range of aperture accessories allow beam adjustment to suit needs of various applications.

TE Connectivity Ltd.    Berwyn, PA 19312
Mar 01, 2004 With average insertion losses of less than 0.05 dB, randomly mated, Ultra Low Loss Singlemode SC Cable Assemblies enable systems to accommodate multiple subscribers/connections, provide long distance interconnections without need of amplification, and increase stability.

A and A Mfg. Company, Inc.    New Berlin, WI 53151
Mar 01, 2004 Series ATD Automatic Door Openers open and close machine tool doors, protecting operators from repetitive motion injuries. They automatically reverse when objects are detected in their path. Input and output commands can be wired into machine's controller to close door, or on-off circuit can be used. Model ATD 50 offers 30 lb max pull force and 32 lb-in. max drive torque, while Model ATD 101 features 56 lb max pull force and 63 lb-in. max drive torque.

TE Connectivity Ltd.    Berwyn, PA 19312

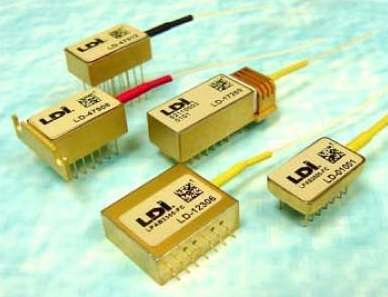

Mar 01, 2004 Service provides custom packaging for optoelectronic devices that meet specifications for commercial, industrial, and military fiber optic applications. Packages include DIL, Mini-DIL, Butterfly, Coaxial, and TO styles requiring hermetic environmental sealing. Device packaging of customer-supplied devices in bare chip form, or on sub-mount, include MIL-Spec qualifiable lasers, ELEDs, and various detector products.

TE Connectivity Ltd.    Berwyn, PA 19312
Mar 01, 2004 LDPF and LDPW series PINFET Optical Receivers integrate PIN photodiode and discrete transimpedance amplifier stage. Light is coupled into detector stage through multimode optical fiber pigtail that allows coupling with either single or multimode fiber systems. Sensitivity and dynamic range can be customized to meet user requirements. Equipped with automatic gain control, LDPW series provides dynamic range operation up to 0 dBm.

TE Connectivity Ltd.    Berwyn, PA 19312
Mar 01, 2004 Offered in singlemode and multimode models, each circular Expanded Beam insert comes in 3 geometric shapes of large, medium, and miniature-sized interconnections containing 1, 2, or 4 fibers. Units provide precision coupling of fiber optic signal without making physical contact at fiber-to-fiber optical interfaces. They are suited for high vibration and thermal extremes encountered in avionics, field applications, and harsh environments.

Walbro Engine Management    Tucson, AZ 85704-6342
Mar 01, 2004 Electronic Governor incorporates electronic and mechanical functions in integrated system. Electronic module processes engine speed information and sends appropriate signals to stepper motor on carburetor throttle shaft. Unit dictates movement of throttle with steps as small as 0.2°. It eliminates droop experienced while engine is under load, and can automatically adjust spark timing. Governor features precise cut-in and idle stability feedback.

Nexen Group, Inc.    Vadnais Heights, MN 55127
Mar 01, 2004 Series SA and TA are Straight and Tapered-Bore Brakes that provide thermal dissipation and tension control for unwind brake applications. Air pressure is supplied to increase or decrease brake torque during unwind process of paper, film, foil, or fabric. High temperature O-rings and bearings allow units to run at max thermal capacity. Self-contained SA brakes are fully-assembled and mounted onto unwind shaft. Series TA brakes use standard QD® bushing for mounting.

ENM Company    Chicago, IL 60646 6135
Mar 01, 2004 Series T54 Hour Meters are turned on by natural vibration of lawnmower, diesel engine, compressor, or any device that has some vibration. Attached with double-sided tape or other mounting options, units will measure total hours that device is running. Self-contained battery provides approximately 10 years of life. Meters are waterproof and sealed against shock and vibration.

Dresser Instrument Headquarters, Ashcroft Pressure & Temperature Instrument Operation    Stratford, CT 06614 5145
Mar 01, 2004 Housed in thermoplastic case with cam lock ring or aluminum case with threaded ring, 4½ in. Ashcroft® digital industrial gauge comes apart by twisting front ring. Once batteries are installed, gauge can be hand tightened to fit securely back in correct position. Unit is powered by 2 C-cell batteries that fasten into place with velcro behind key pad. Features include IP65 weatherproof case and 0.25% FS terminal point accuracy.
