APCON, Inc.    Wilsonville, OR 97070
Feb 24, 2004 Designed to maintain availability of business-critical applications and databases, POWERSWITCH v6.0 continuously monitors primary and secondary server operations to ensure automated, rapid recovery from system failures. When primary server failure is detected, secondary server is automatically brought on-line to permit access to data. Software also serves as automated, remote data protection solution, supports drag-and-drop GUI, and offers Windows® XP and Server 2003 compatibility.

NAVCO    Houston, TX 77241
Feb 24, 2004 Magnevibe employs pneumatic piston vibrator with magnetic mounting head that allows it to stick firmly to ferrous surfaces. Ferrous mount pad stickers are available to enable product to work with plastic and stainless steel hoppers. Single unit may be moved around as needed to any bin or hopper location where flow is restricted. Product is suited for use on small storage vessels.

STMicroelectronics    Lexington, MA 02421
Feb 24, 2004 Operating on 2.7-3.6 V, LIS3L02D includes single MEMS sensor chip and calibrated interface chip that senses changes in capacitance in sensor and translates them into SPI or I2C serial digital outputs. It has equivalent noise acceleration of better than 500 millionths of 1 g. Unit is suited for use in handheld terminals to implement motion-based user interfaces, allowing one-handed operation without styli, thumb keyboards, or other input devices.

STMicroelectronics    Lexington, MA 02421
Feb 24, 2004 Triple-Band GSM/GPRS Transceiver Modules combine Silicon-Germanium radio frequency BiCMOS and Integrated Passive and Active Device technologies to simplify terminal design. Model STw3100 addresses European bands, while Model STw3101 targets US GSM850, DCS1800, and PCS1900 bands. Housed in 1.4 x 7 x 7 mm BGA package, modules integrate all key functions, requiring only 26 MHz crystal and power amplifier to build triple-band solution from antenna to baseband interface.

PCB Piezotronics Inc.    Depew, NY 14043 2495

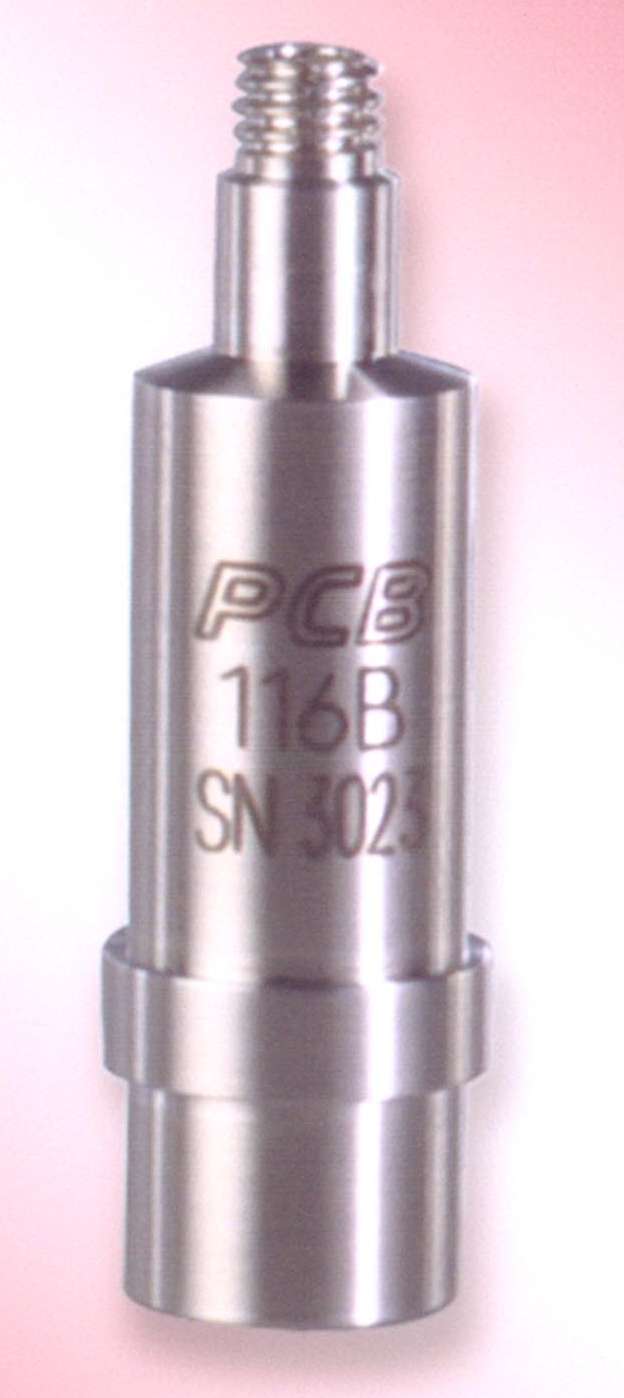

Feb 23, 2004 Series 106 and 116 measure low-level pressure and high-intensity sound pressure levels - acoustic and ultrasonic. Hermetically sealed, piezoelectric microphones detect pressure transients, pulsations, turbulence, noise, and spikes for troubleshooting equipment and tuning processes. ICP® versions feature on-board electronics to provide conditioned output signal. Sensors have solid-state construction, stainless steel housings, and sensitivity to 5,000 mV/psi.

IMI Sensors, Div. of PCB Piezotronics    Depew, NY 14043-2495

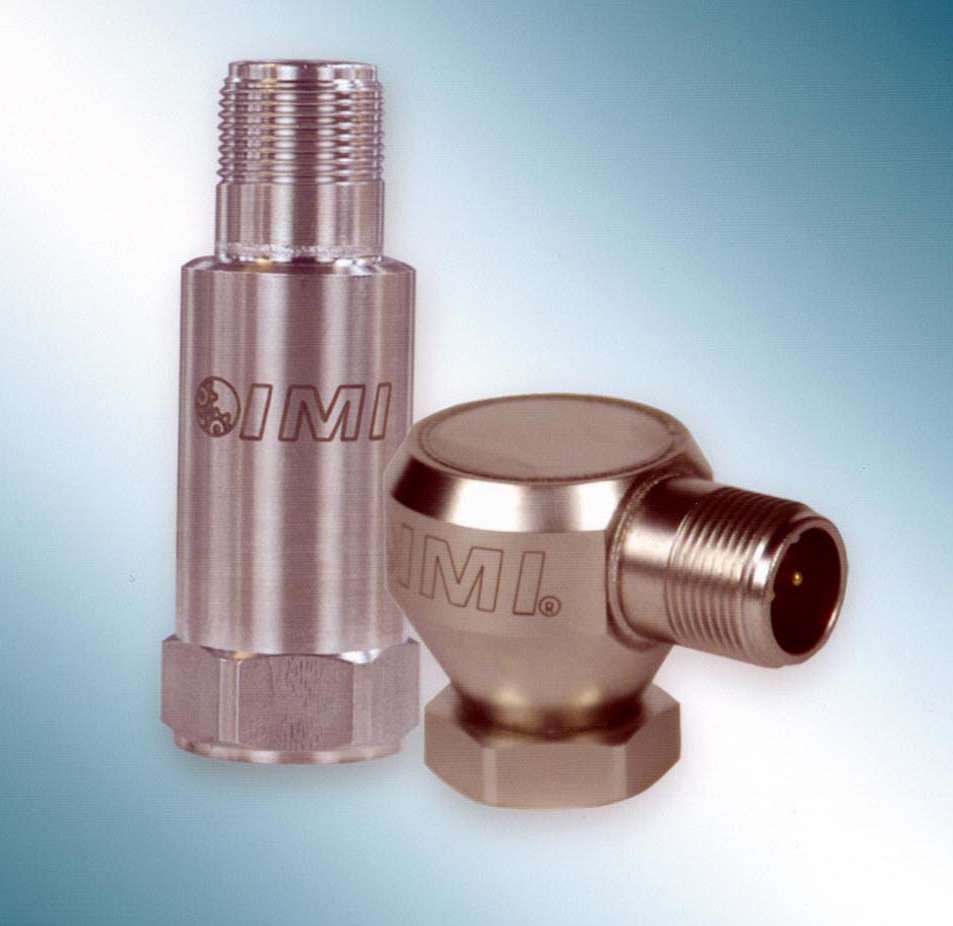

Feb 23, 2004 Series 640B 2-wire, loop-powered, current-output sensors are available in top- or side-exit models with 360° swivel-mount technology. Units interface with alarm, control, and monitoring systems such as PLCs, DCS's, and SCADA systems. Optional temperature range is -40 to +185°F, with vibration signal offered in peak velocity, rms velocity, and rms acceleration versions. Sensors include RF filtering and withstand exposure to harsh environments.

Dwyer Instruments, Inc.    Michigan City, IN 46361

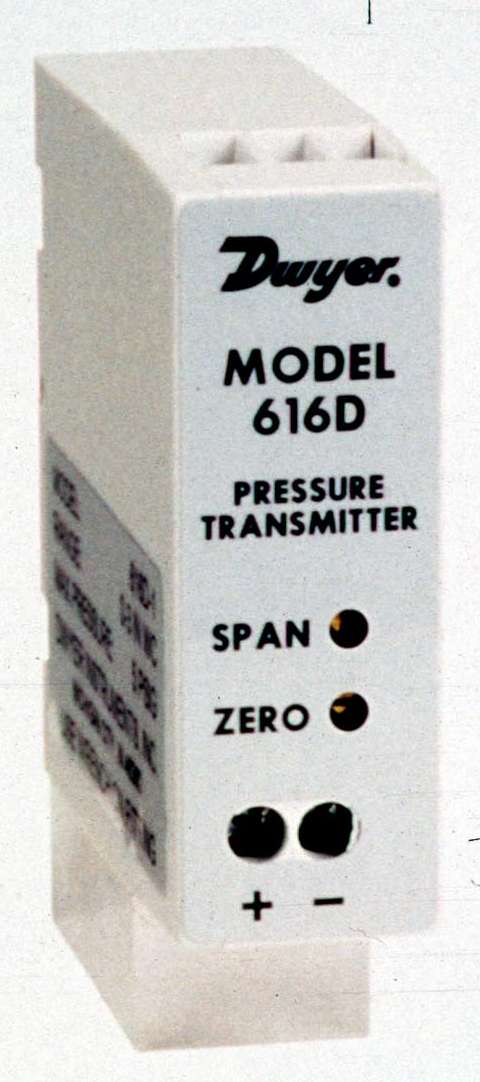

Feb 23, 2004 With housing designed to mount on 35 mm DIN rail in a panel, Series 616D Differential Pressure (DP) Transmitter sends 4-20 mA output signal. It contains DP sensor that offers 0.25% FS accuracy on ranges from 3 in. wc to 100 psid for air and compatible gases. Several units can be installed closely together, reducing required space.

Material Transfer & Storage, Inc.    Allegan, MI 49010 0218
Feb 23, 2004 Unit includes Mantisâ„¢ bag hanger, Flo-Masterâ„¢ bag massaging system, Power-Floâ„¢ mid-bag impactor system, Seal-Masterâ„¢ spout access chamber, Sure-Sealâ„¢ spout seal system, and Flo-Lockâ„¢ spout closure system. Load cells provide loss-in-weight discharging, while custom air-purged bearing system, on air cylinders and pivot bearings, extends equipment life. Dust take-off system allows negative air to be drawn from spout access chamber and discharge transition for maximum dust control.

Leica Microsystems, Inc.    Buffalo Grove, IL 60089
Feb 23, 2004 LCS MicroLab supports biological and medical researchers' need to analyze molecular interactions. Solution provides application wizards covering FRAP (Fluorescence Recovery After Photobleaching) methods, FRET (Fluorescence Resonant Energy Transfer) applications, Sensitized Emission, and Acceptor Bleaching. This enables user to acquire insight into molecular distances, interactions, and diffusion processes. Final results are provided in report.

Directed Perception Inc.    Burlingame, CA 94010
Feb 23, 2004 Computer-controlled Model PTU-D46 provides dynamic position control of 0.012857° resolution. Measuring less than 5.2 x 3.6 in., unit features payload capacity up to 9 lb. and is rated for millions of moves. Direct control of Model PTU-D46 is plug-and-play using RS-232 terminal. Built-in RS-485 multidrop network capabilities allow single host port to control up to 30 pan-tilt devices. Self-calibration upon reset ensures absolute positioning.

Diversified Technology Inc.    Ridgeland, MS 39157

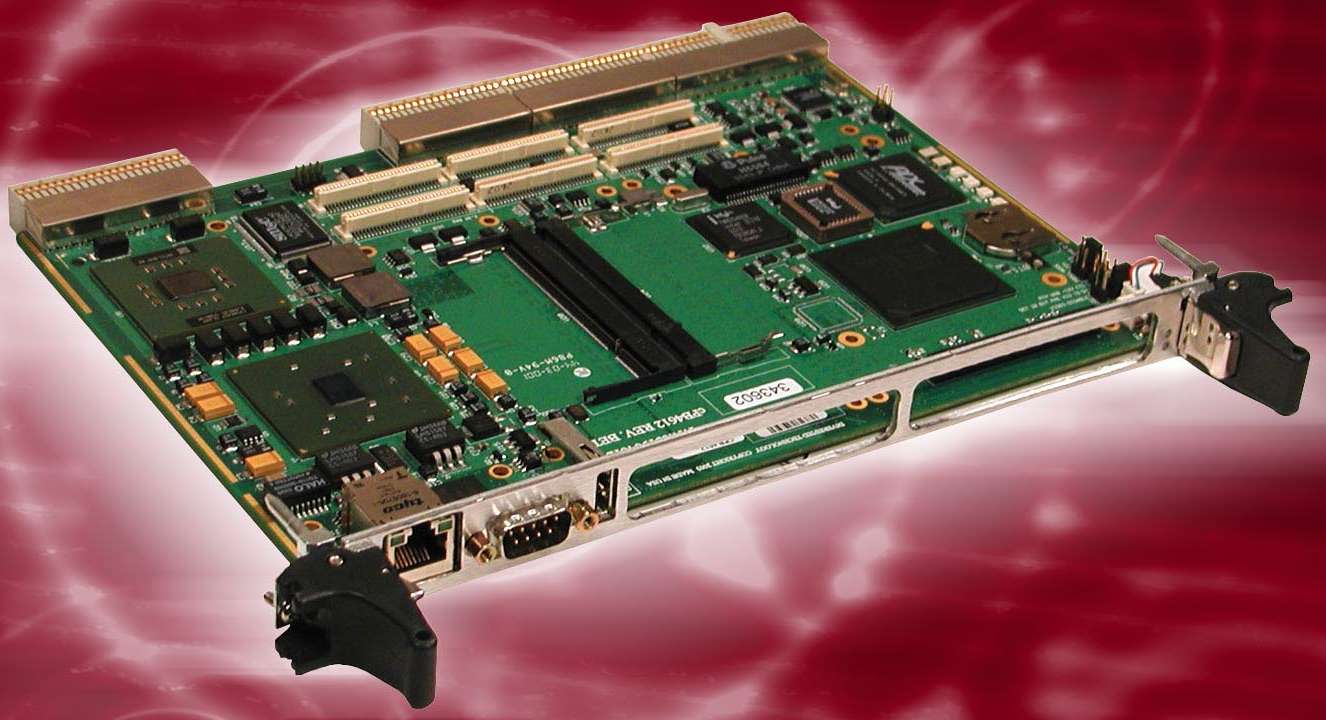

Feb 23, 2004 Equipped with 1.7 GHz Intel® Pentium® M processor and Intel 855GME chipset, cPB-4612 CompactPCI Blade is available with 1 MB L2 cache and complies with PICMG® 2.16 standard. System memory of up to 2 GB is supported via two PC-2700 SO-DIMMs, and product has three 10/100/1000 MBPS Ethernet controllers, Ultra-ATA IDE interface, Serial ATA, 2 PMC sites, serial ports, and floppy interface. It also offers 2-stage watchdog timer and universal PCI bridge to backplane.

Micro/Sys, Inc.    Glendale, CA 91020

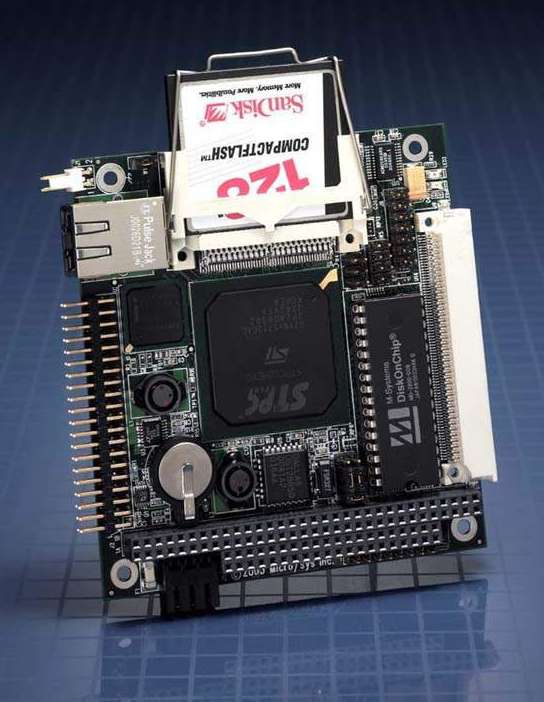

Feb 23, 2004 Based on 485/586 core, Model SBC1495ET provides SVGA and dual serial ports, 100BASE-T Ethernet support, up to 64 MB of SDRAM, and CompactFlash in PC/104 footprint. Unit is implemented with STPC Atlas processor, which offers speeds up to 133 MHz, on-chip cache, 64-bit DRAM access, digital I/O, and AT-compatible EIDE. SuperVGA includes hardware acceleration, and drives CRT monitors and LVDS TFT flat panel displays with resolutions to 1024 x 1024.

Linear Technology Corp.    Milpitas, CA 95035
Feb 23, 2004 Offered in 10-Pin MSOP package, LTC1403 consists of 14-bit, 2.8 Msps, serial Analog to Digital Converter (ADC) that offers AC and DC performance of 73.5 dB SINAD, ±4 LSB INL. Unit draws 5 mA when sampling at 4 Msps with 3 V supply; low power design and footprint allow use in instrumentation sensors or probes, minimizing analog transmission line errors. Features include 80 dB common mode input rejection, microcontroller, and DSP-compatible 3-wire SPI serial interface.

Carver, Inc.    Wabash, IN 46992 0544
Feb 23, 2004 Auto-Four bench top press has 4-post design with cast iron bolsters and meets requirements for molding test plaques in Class 5 polyethylene materials. Available in two models with 15 or 30 ton clamp force, press fulfills ASTM D4703 Procedure C demands with electrically heated 12 x 12 in. platens designed for automatic cooling with closed loop water or air cooled chiller systems. Integral hydraulic power unit is self-contained and electrically operated.

Airmaster Fan Co.    Jackson, MI 49203
Feb 23, 2004 Heavy Duty Air Circulators are available with 3-speed, 115 V, oscillating and non-oscillating motors and single-speed, 3-phase explosion proof motors. Propeller produces low noise levels and is self-cleaning due to highly polished surface. Complete selection of mounting accessories is available.

Diagraph Corp.    St. Charles, MO 63304

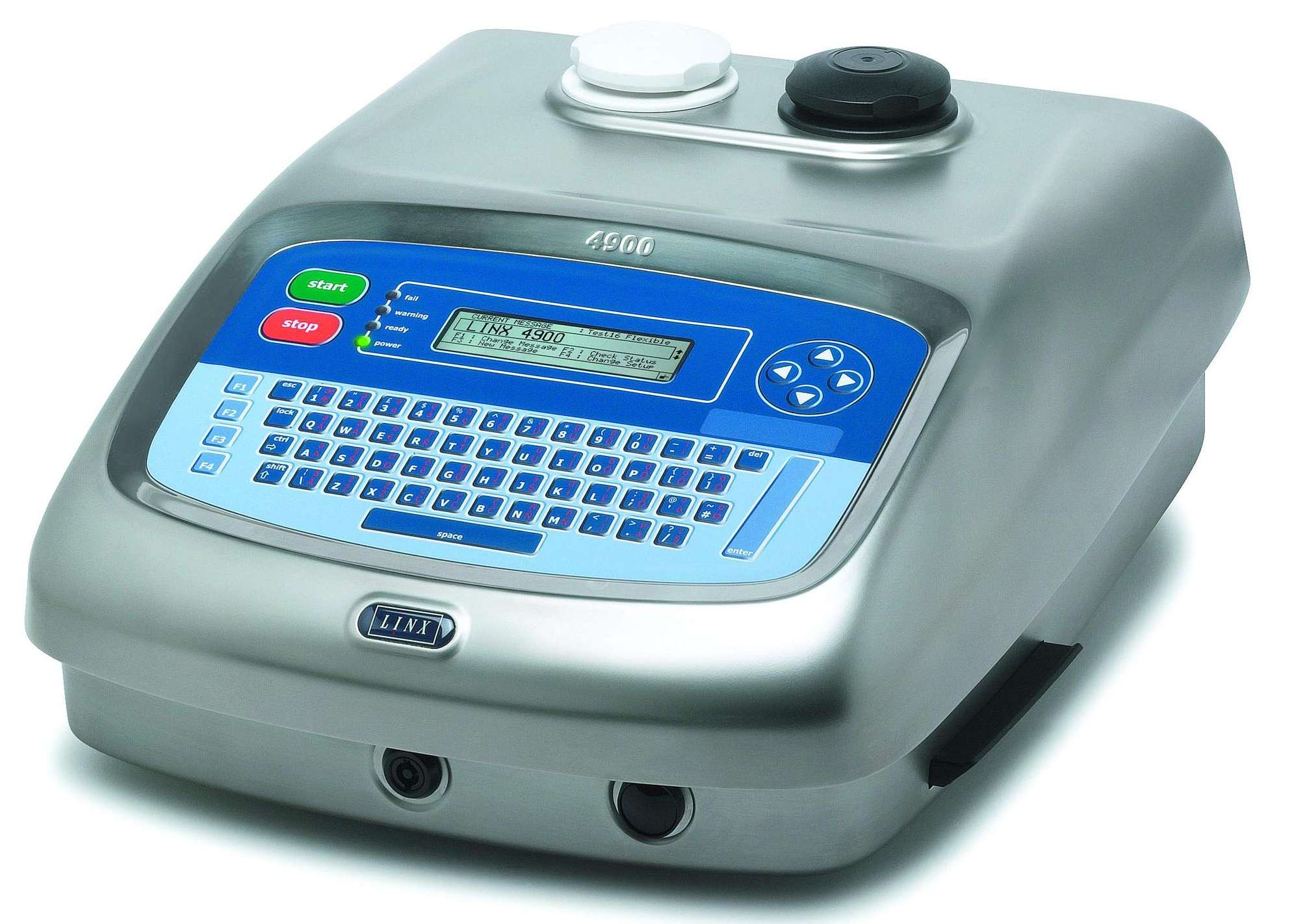

Feb 23, 2004 With IP55 rating, LINX 4900 Small Character Continuous Ink Jet Printer utilizes sealed printhead, designed for 2-line printing, which uses intelligent jet control system for maintaining print quality. Printhead temperature, time of flight, and ink pressure are managed by printer and displayed via clear, on-screen diagnostics. Stainless steel cover has no dirt traps and repels liquid, and autoflush of printer and conduit occurs at shutdown.

Monarch Instrument    Amherst, NH 03031 2334

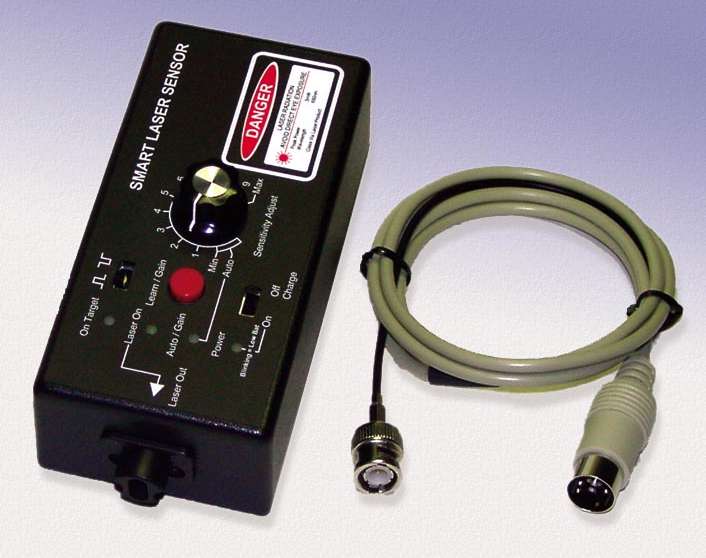

Feb 23, 2004 Non-contact Smart Laser Sensor has 60 ft range using visible laser sensor and is suited for speed measurements where equipment cannot be stopped. TTL output interfaces with panel meters, controllers, portable vibration data collectors, and balancers. Self-powered sensor can be handheld or tripod mounted. RS-232 output provides ASCII information to PC.

Linear Technology Corp.    Milpitas, CA 95035
Feb 23, 2004 Offered in Tiny ThinSOT(TM), DFN, SO-8 and SSOP packages, operational amplifiers feature rail-to-rail outputs and are specified for 3.3 V operation. Models LT®6233/4/5 are single/dual/quad rail-to-rail output, unity gain stable op amps that feature 1.9 nV/rtHz noise voltage, 60 MHz gain bandwidth, and 17 V/µs slew rate and draw 1.15 mA of supply current per amplifier. Models LT6230/1/2 offer 215 MHz gain bandwidth and 1.1 nV/rtHz voltage noise and draw 3.4 mA of supply current.

Parvus Corp.    Salt Lake City, UT 84115 2913
Feb 23, 2004 Built around 75 MHz 486DX or 40 MHz 386SX architecture, SpacePC® 2200, 2110, and 2100 compact CPU Boards measure 3.550 x 3.775 in. and feature fanless operation, onboard, soldered RAM memory, and 3–7 W power consumption. All models offer PC peripheral interfaces, integrated for non-volatile Flash DiskOnChip® memory, and preloaded ROM-DOSâ„¢ kernel. Additional features include serial ports, IDE controller, and general-purpose DIO depending on model.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Feb 23, 2004 BladeCenter HS40 Blade Server includes 4-way, SMP-capable 2.8 GHz processors with 400 MHz front-side bus and 4 Intel Gb Ethernet connections with failover support. Up to seven 4-way blade servers are supported in BladeCenter chassis. Server features 2 GB system memory with Chipkillâ„¢ ECC support, offering up to 16 GB max; integrated management processor, monitoring critical components for remote and local systems management; and SCSI expansion connector.
