Calypto Design Systems    Santa Clara, CA 95054
Mar 13, 2012 Bus Interface Libraries connect hardware subsystems implemented with High Level Synthesis (HLS) product, Catapult® Synthesis, with AMBA® AXI(TM) bus interfaces. Libraries include master and slave interfaces with both transaction level modeling and HLS views, allowing interplay between TLM 2.0 platform and HLS implementation flow without degrading simulation performance. Parameterizable AXI interface supports range of configurations including burst modes, bus width, and auxiliary control signals.

FIKE Corporation    Blue Springs, MO 64015 4263
Mar 13, 2012 As foundation for Mass Notification (MNS) or Emergency Communication (ECS) Systems, Integrated Voice Messaging system is designed for distributed intelligence and survivability and listed to UL2572 MNS standard. Solution brings together communications technology to deliver time-sensitive information. While providing flexibility to deliver specific communications for different types of emergency situations, system also supports optional Local Operating Console or remote microphone.

Acuity Brands Lighting    Conyers, GA 30012
Mar 13, 2012 Available in Passive Infrared (PIR) and Dual Technology (PDT) versions, Sensor Switch® WSD NGX with convertible neutral/ground exchangeable (NGX) feature provides contractors with universally code compliant solution regardless of job site wiring requirements. Wall switch sensor can use neutral conductor or ground connection, providing solution to meet neutral/ground wiring requirements under NEC 2011 requirements without acquisition of dedicated unit.

Konica Minolta Business Solutions U.S.A., Inc    Ramsey, NJ 07446
Mar 13, 2012 Available in 2 RoHS-compliant models, T-10A Series is capable of measuring PWM controlled light sources. Model T-10A is equipped with detachable receptor head allowing for multiple point measurements. Model T-10MA, featuring mini receptor with 1 m cable, can be used for illuminance measurements in narrow spaces where standard receptor head would not fit. Model T-10MA can also be installed on various types of equipment or jigs for light level measurements.

Amphenol Industrial Operations    Sidney, NY 13838
Mar 13, 2012 Designed with 90- and 120-color and keyway positions of different polarity, Amphe-SP3 ensures safety during operation. Single pole plastic power connector features RADSOK technology, which uses hyperbolic, stamped grid configuration providing large, coaxial, face-to-face surface area engagement to maximize heat dissipation. Carrying up to 120 A, connector features max operating voltage of 600 Vac with contact resistance of 5 mW.

Control Co.    Houston, TX 77258 8307
Mar 13, 2012 Using artificial intelligence, Traceable® Humidity/Temperature/Dew-Frost Point Meter provides response time of less than 10 seconds and takes samples 1.5 times/sec. Memory recalls MIN/MAX readings and HI/LO alarms are programmable. When out-of-range condition is sensed, alarm sounds and display flashes. Computer output captures, transfers, stores, and prints data. Housed in 5½ x 3½ x 1¼ in. ABS plastic case, unit includes 7 in. probe, 54 in. cable, 9 V battery, and Traceable® Certificate.

Lanner Electronics Inc.    Sijhih City Taipei 221  Taiwan

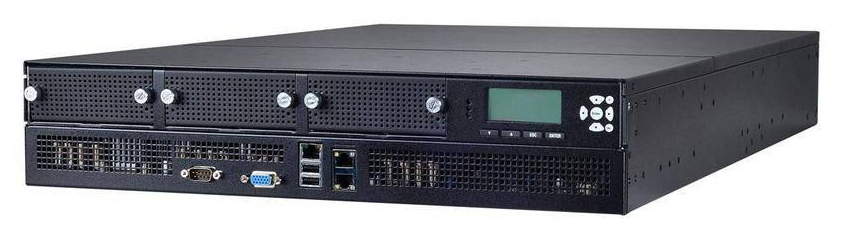

Mar 12, 2012 Supporting server-grade motherboards with 2-3 year life cycle, FX-5210 features 4 Intel® Xeon® 7500 series CPUs, 256 GB of memory via DDR3 1,333/1,066/800 MHz DIMMs, 3 Ethernet modules, and redundant 910 W power supplies. Machine Check Architecture Recovery, included, lets silicon work with OS and VM manager to recover from otherwise fatal system errors. Each CPU supports 4 full-width Intel QPI links, supporting up to 25.6 GT/s per QPI link and data transfer rate to 6.4 GT/s per direction.

Semaphore    Nashua, NH 03063
Mar 12, 2012 Designed for remote monitoring and SCADA system applications, T-BOX LT and T-BOX MS are available with cellular modems that are compatible with GSM quad band and UMTS triple band 3G cellular networks worldwide. T-BOX LT Ethernet RTU provides up to 32 I/O points, while modular T-BOX MS can accommodate up to 20 communications ports and over 800 I/O points. Decentralized architecture enables integration of programmable automation, alarm management, data logging, and IP telemetry.

STMicroelectronics    Lexington, MA 02421

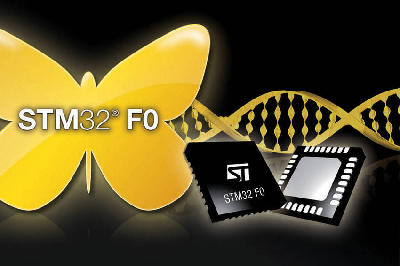

Mar 12, 2012 Based on ARM® Cortex(TM)-M0 embedded processor core running at 48 MHz, STM32 F0 Series provides up to 7 timers, suited for controlling heaters or motors. Series also integrates hardware support for consumer electronics control (CEC) included in HDMI interface. CEC kernel can be independently clocked by low-speed 32 kHz external clock or internal 8 MHz clock. Additional on-chip features include analog block comprising c12-bit 1 MS/sec ADC, 12-bit DAC, and 2 programmable I/O analog comparators.

TE Connectivity Ltd.    Berwyn, PA 19312
Mar 12, 2012 Combining bimetal protector in parallel with polymeric positive temperature coefficient device, MHP-SA50-400-M5 provides overcharge protection in multi-cell lithium battery applications. Resettable Metal Hybrid PPTC device has 50 A/400 Vdc max rating and 50 A hold current on main line. With Smart Activation feature, device can be activated electronically with as little as 3 A via signal line. Applications include cordless power tools, light electric vehicles, and energy storage systems.

Zero-Max, Inc.    Minneapolis, MN 55441 5537
Mar 12, 2012 Available in models capable of handling up to 37,000 foot-pounds (50,000 Nm) of torque, Torque Limiters protect drive trains, gearboxes, and generators from excessive peak loads, minimize risk of breakdowns, and help extend system life. Features include factory preset torque and max bore sizes up to 5½ in. or 140 mm with or without keyway. Operational from -40 to +80°C, maintenance-free products are available in custom designs for all OEM applications.

Kin-Tek Laboratories    LaMarque, TX 77568 4202
Mar 12, 2012 Using Trace Source(TM) Permeation Tube, Span Pac(TM) H2O - SD adds concentration of water vapor into flow of dry matrix gas to create calibration standards for trace moisture monitors. Second dilution stage takes adjustable aliquot of primary mixture and dilutes it further with matrix gas. Two-stage dilution allows output concentration of trace moisture to be varied seamlessly over range of up to 10,000:1 from one permeation tube. System adds water vapor concentrations from 100 ppb to 5,000+ ppm.

Toray Plastics (America)    North Kingstown, RI 02852

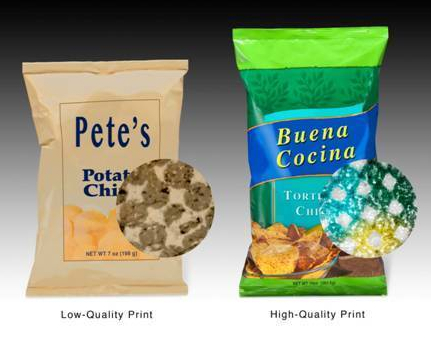

Mar 12, 2012 Addressing needs of consumer-goods companies and converters, Torayfan® F63 heat-sealable BOPP film employs proprietary technology that promotes adhesion of water- and solvent-based inks on print side. Product, developed for use as print web, is especially suited for use with white inks when opacity is desired. Seal-initiation temperature for lap seals enables fast processing on high-speed form-fill-seal equipment.

Wilden Pump & Engineering Co.    Grand Terrace, CA 92313

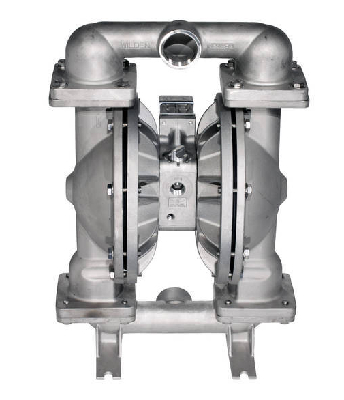

Mar 12, 2012 With 2 in. flow path and threaded 2 in. horizontal fluid connections, PX800 Advanced(TM) Series is suited for liquid-transfer applications where product containment and high flow rates are required. Center-ported units feature bolted construction with 316 stainless steel wetted path, BSPT or NPT threaded inlet/discharge connections, and variety of elastomer options, including neoprene, Buna®-N, EPDM, PTFE, and Viton®. Pumps deliver flow rates up to 176 gpm at operating pressures up to 125 psig.

BlueLevel Technologies, Inc.    Rock Falls, IL 61071

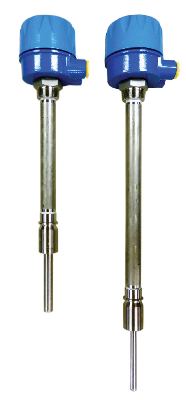

Mar 12, 2012 With overall insertion length from 18-118 in., Model VHS is suited for top mounting installations where advantages of no calibration and solid-state technology are desirable. Sensor, utilizing piezoelectric technology, will operate with dry and free-flowing powders as well as free-flowing granular materials. Unit has built-in SPDT relay that is fail-safe on power failure, local bi-color LED indicator of normal/alarm status, all stainless steel wetted parts, and NEMA 4X enclosure.

Stafford Mfg. Corp.    Wilmington, MA 01887
Mar 12, 2012 Stafford Plastic Hinged Mounting Collars feature integral hinge with stainless steel clamping screw and one flat section with hole suited for mounting tube to surface or for attaching another device to tube or pipe. Available in 7/8, 1, and 1 ¼ in. ID sizes, injection molded collars facilitate assembly and setup for various attachment tasks. For applications requiring high-strength, these hinged collars are also available in aluminum, steel, and stainless steel.

Goff's Enterprises, Inc.    Pewaukee, WI 53072
Mar 12, 2012 Constructed with viscoelastic acoustic damper, Sound Curtains can reduce noise by up to 45 dB with typical STC of 26 within coverage area. Outer 18 oz vinyl material, available in 9 color options, resists water, mildew, and rot. Panels can be hung from sliding style hardware or attached to portable extruded aluminum frame. Fan fold design allows user to enclose area during loud noise processes and open space back up after task is complete.

Eriez Magnetics    Erie, PA 16506
Mar 12, 2012 Available from 100-10,000 gallons/day, Reverse Osmosis Systems remove up to 98% of dissolved minerals and virtually 100% of colloidal and suspended matter. Pure mineral-free water optimizes performance of water-miscible cutting and grinding fluids. Supplied with multi-stage centrifugal pump, pre-filtration cartridge, and low-pressure switch, water treatment systems feature 3-11 pH range within temperatures of 33-100°F.

Dumore Corp.    Mauston, WI 53948

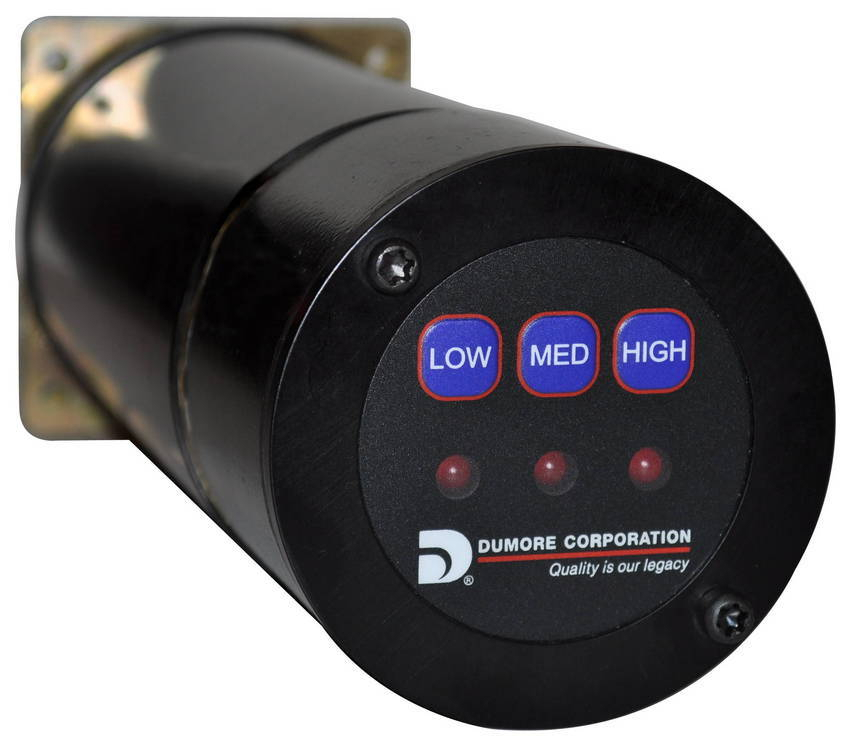

Mar 12, 2012 Serving as integral part of DC motor or gear motor, Dumore Motors Series DM4400 PWM single quadrant microprocessor DC electric motor controllers are available for 12 Vdc and 120 Vac input voltage applications. Integral onboard motor controls eliminate challenges in remote placement of motor control and associated wiring. Additional features include adjustable IR compensation, current limit and 3 speed button settings, and external inhibit input.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Mar 12, 2012 Constructed with 304 stainless steel housings and brass wetted parts for chemical compatibility, Series SGY offers wide variety of ranges from full vacuum to 1,000 psi. Units have dual psi and bar scales and are available with bottom or back connections. Designed to pop open without being entirely removed or cut, plug on top allows liquid filled units to breath, relieving any built up internal pressures.
