Meller Optics, Inc.    Providence, RI 02940

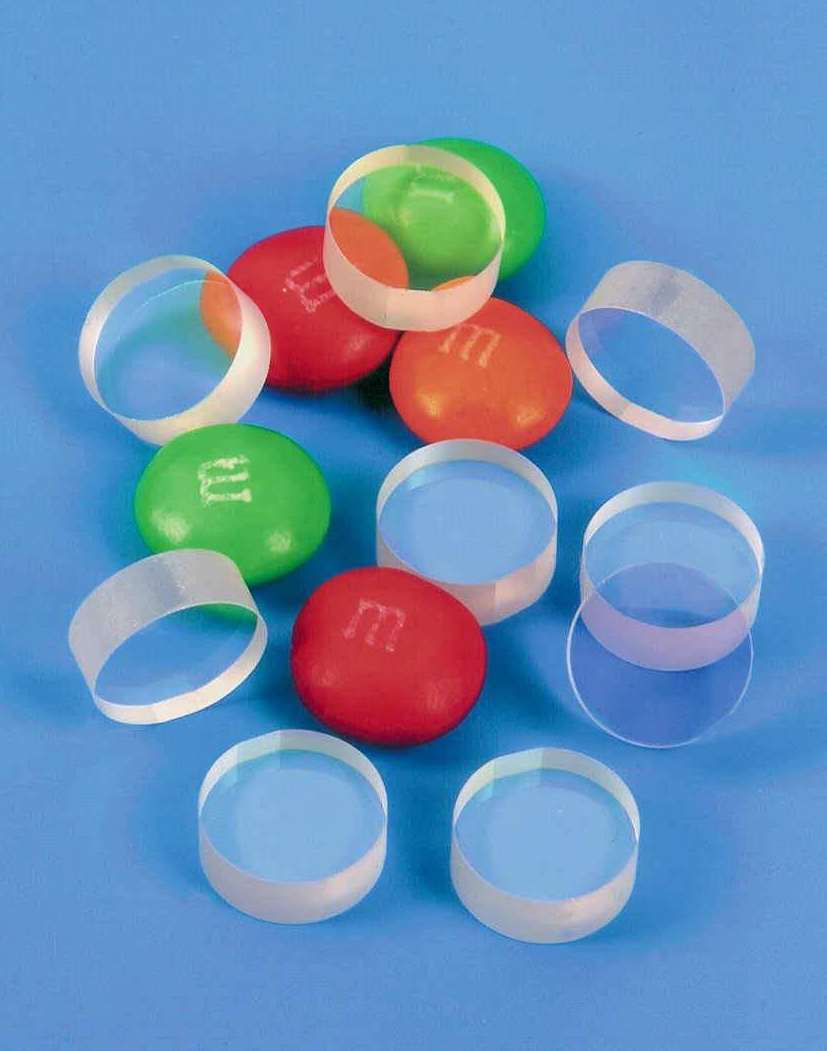

Mar 10, 2004 Custom-manufactured Sapphire Waveplates are suited for any laser that transmits 2.8–4.7 mm. Offered in ½- and ¼-wave, in both multiple and zero order configurations, they can be thinner than quartz waveplates because of intrinsic Moh 9 hardness. Featuring 10-5 scratch-dig surface quality and less than or equal to 1 arc/sec parallelism, waveplates are offered in 10–30 mm dia sizes with V-coat or broadband A/R coatings at less than or equal to 0.25% R per surface.

Zephyr Development Corporation    Houston, TX 77046
Mar 10, 2004 Designed for Microsoft Windows XP/2000, PASSPORT WEB TO HOST 2004 Software integrates 3270, 5250, VT220, and SCO/ANSI terminal emulation within framework of Internet Explorer and is commonly used within intranet portals to access host applications. PASSPORT supports SCO ANSI UNIX terminal emulation in both 7-bit and 8-bit mode, and can be deployed from any Microsoft or Java-based application server.

Newport Corp.    Irvine, CA 92606
Mar 10, 2004 Offered with choice of spectral ranges to cover UV through NIR spectral regions, OSM-400 self-contained spectrometer uses 12-bit A/D converter and features on-board, 32-bit processor; color LCD and GUI; and touch-screen control. It can be used to carry out local data analysis in real-time, and data can be stored, archived, and transported on removable SmartMedia memory cards. Detector array has 2048 elements, enabling unit to offer resolutions to 1 nm.

Riegl USA, Inc.    Orlando, FL 32819

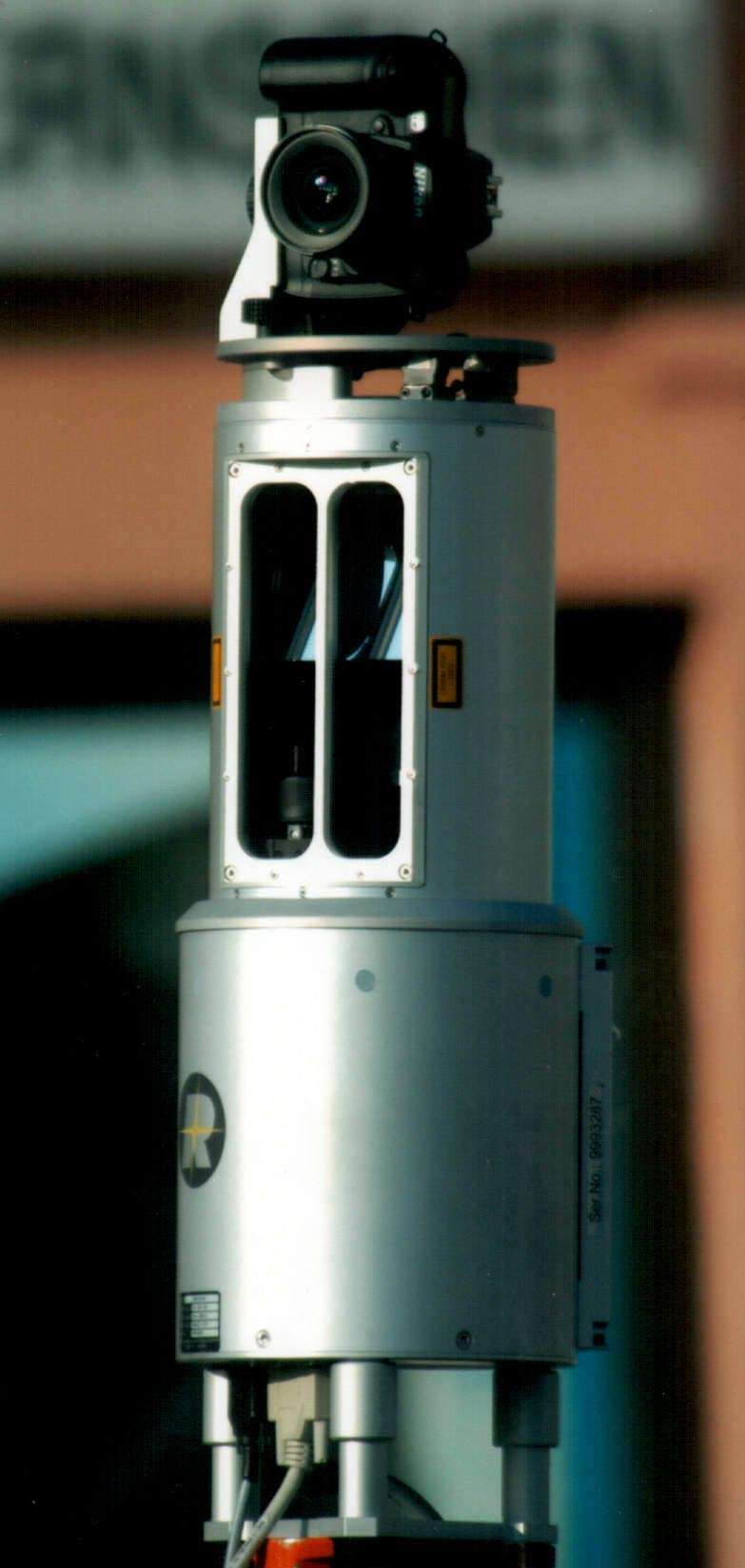

Mar 10, 2004 Digital Camera can be applied to 3D scan data for true photogrammetric registration of 6 megapixel photo information with 3D point cloud data. It seamlessly meshes high-resolution photo pixel information with scan data coordinate information gathered at one or more scanner positions. Camera mounts on any Riegl 3D Scanner and is calibrated using 3D RiSCAN PRO software. Software provides data acquisition, visualization, manipulation, and archiving.

SpaceAge Control, Inc.    Palmdale, CA 93550

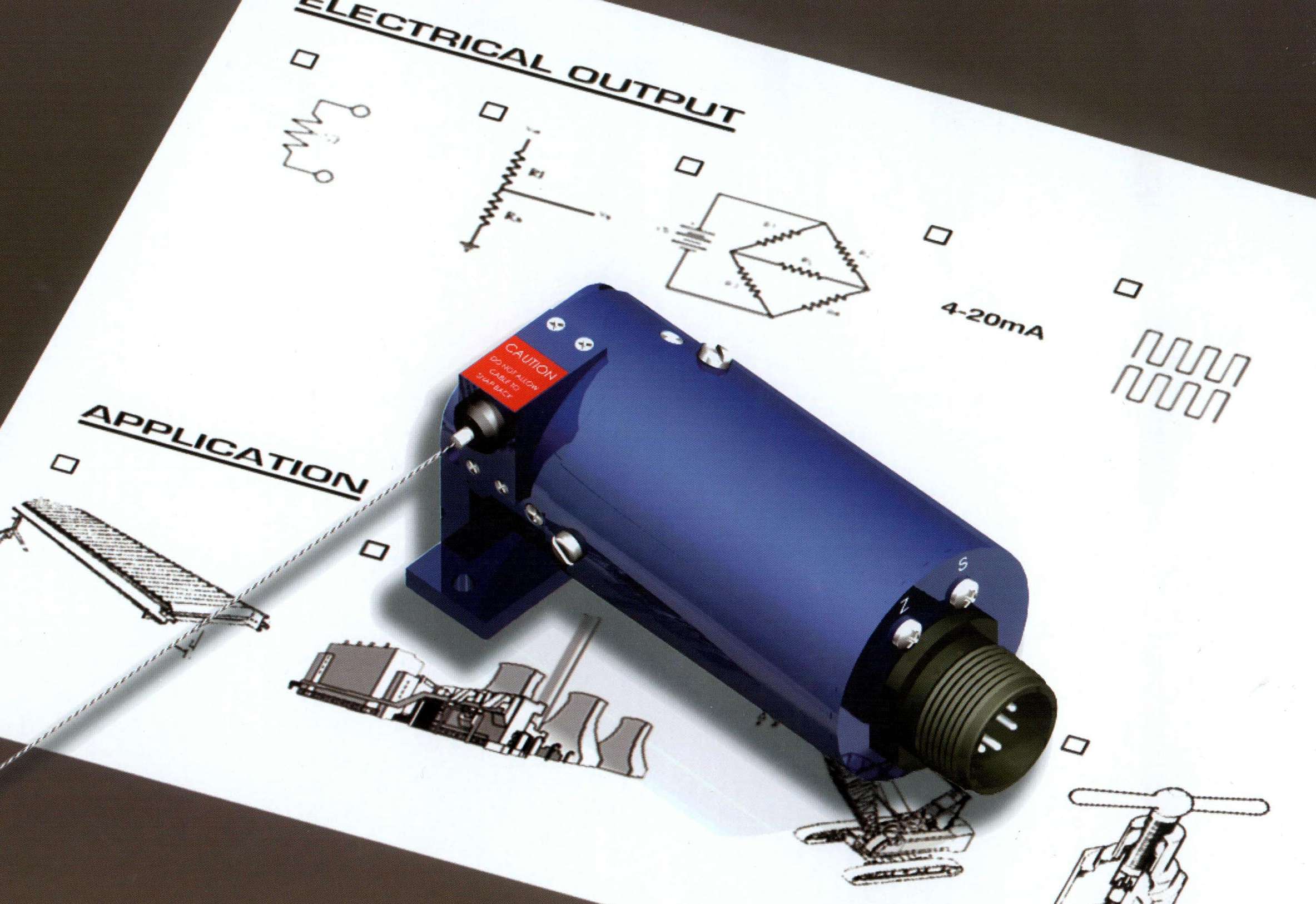

Mar 10, 2004 With ability to monitor up to 85 in. of displacement, Series 6 miniature transducers offer FlexSignalâ„¢ electrical outputs including 4–20 mA, low-level bridge, voltage conditioner, standard and high-resolution digital, or voltage divider. Voltage conditioner output allows for 12–40 Vdc input and provides user-settable outputs such as 0-5, 0-10, ±5, and ±10 Vdc. Reverse polarity protection is provided along with choice of increasing or decreasing signal output.

Airguard Industries, Inc.    Louisville, KY 40218

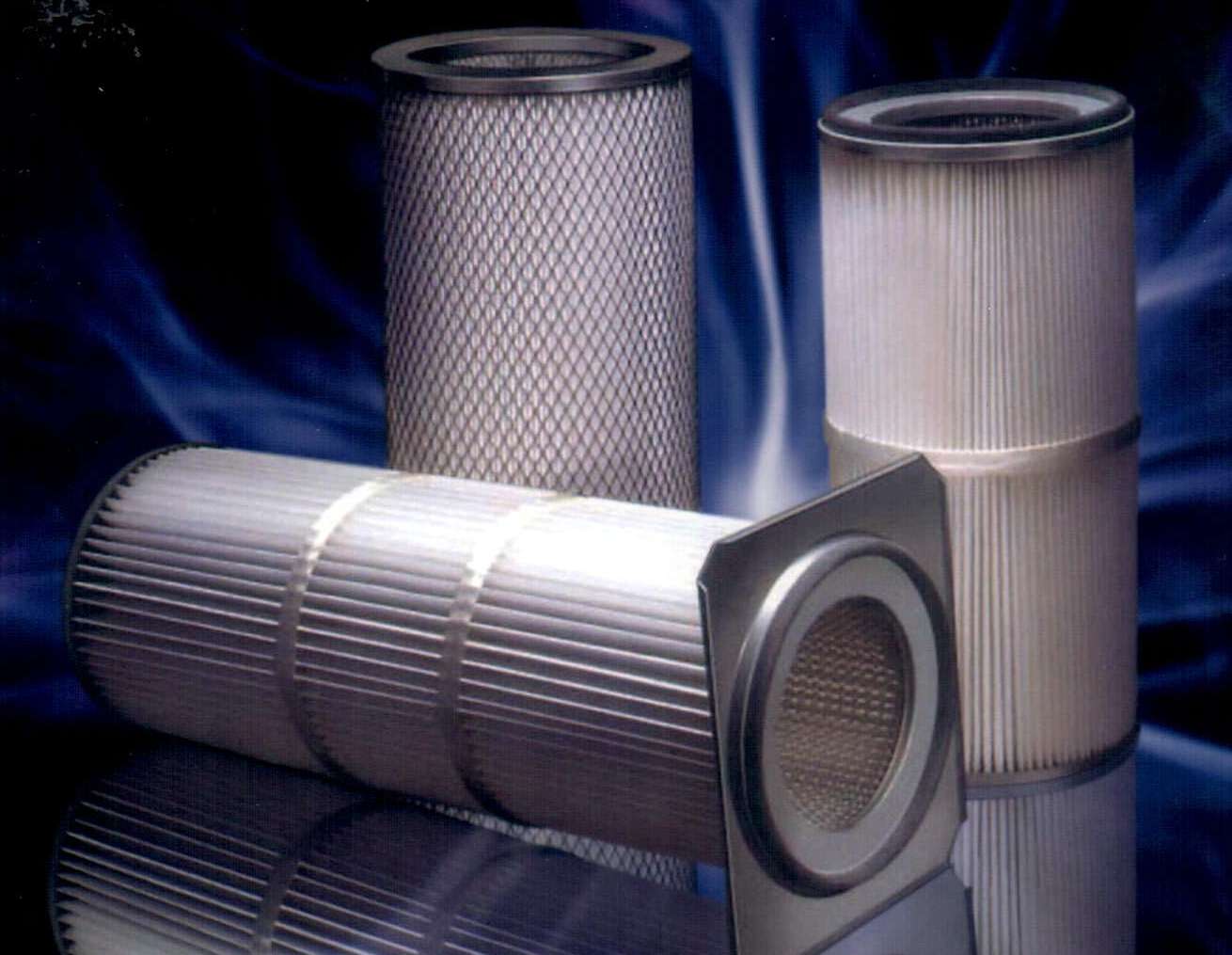

Mar 10, 2004 Dust Cartridges for Pulse Jet dust collectors are washable for repeated use and resist most chemicals, including acids, alkalis, oxidizing agents, and solvents. Media is long-wearing, resistant to abrasion, and provides dust cake release characteristics. Aluminized media is offered for static dissipation and for cartridges used in powder coating operations. PTFE laminated media is suited for dusts with high moisture content.

Stanley Works, The    New Britain, CT 06053
Mar 10, 2004 Micro FatMax® 16 ft Tape Rule features 1¼ in. wide, Mylar® polyester film-wrapped steel blade and rubber/ABS plastic case. BladeArmorâ„¢ thermoplastic coating helps eliminate breakage during uncontrolled retractions. Heavy-duty spring provides smooth recoil. Blade hook is fastened by corrosion-resistant rivets and protected by oversized bumper. Available in metric and metric/English versions, rule is suited for homeowners working on small to medium size projects.

Parvus Corp.    Salt Lake City, UT 84115 2913

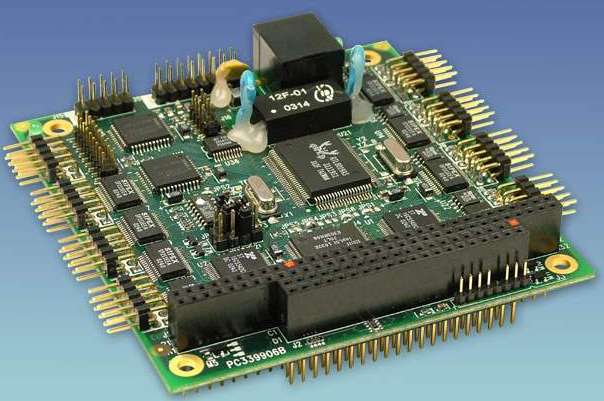

Mar 10, 2004 MultiCommâ„¢ serial controller module delivers 8 independent asynchronous serial channels, 10 Mbps Ethernet, and 2 CAN ports for embedded PC/104 computer systems running Windows®, Linux®, and real-time operating systems. Serial ports, 16C550C-compatible, operate at up to 921.6 kbps and are configured in pairs as 8 RS-232 or 4 RS-232 and 4 RS-422/485 ports capable of controlling up to 132 devices in multi-drop environment. Board also has TP and AUI outputs.

Stanley Works, The    New Britain, CT 06053
Mar 10, 2004 FatMaxâ„¢ 25 in. Professional Tool Box features latchless handle and lock mechanism. With adjustment in one smooth motion, 3-stage aluminum handle either slides into locked position for carrying or unlocked position for accessing tools. Dual material design of box combines steel and high-impact resin to withstand harsh conditions. To protect level, tool box has 24 in. level holder. Removable full-size tray provides additional storage, and padlock eye keeps tools secure.

Computer Conversions Corp.    East Northport, NY 11731
Mar 10, 2004 Measuring 1.12 x 2.12 x .4 in., transformer isolated converter modules mount on PCBs and track input rates up to 600 RPS with no added error. They convert Synchro or Resolver inputs 50 Hz to 5 KHz to 10–16 bit parallel binary output, representing angle with accuracy up to 2 arc min. No external transformers or components are required. Velocity and fault outputs are standard. Digital outputs are TTL/CMOS compatible, and units accept bi-directional input data.

Schroff, Inc.    Warwick, RI 02886

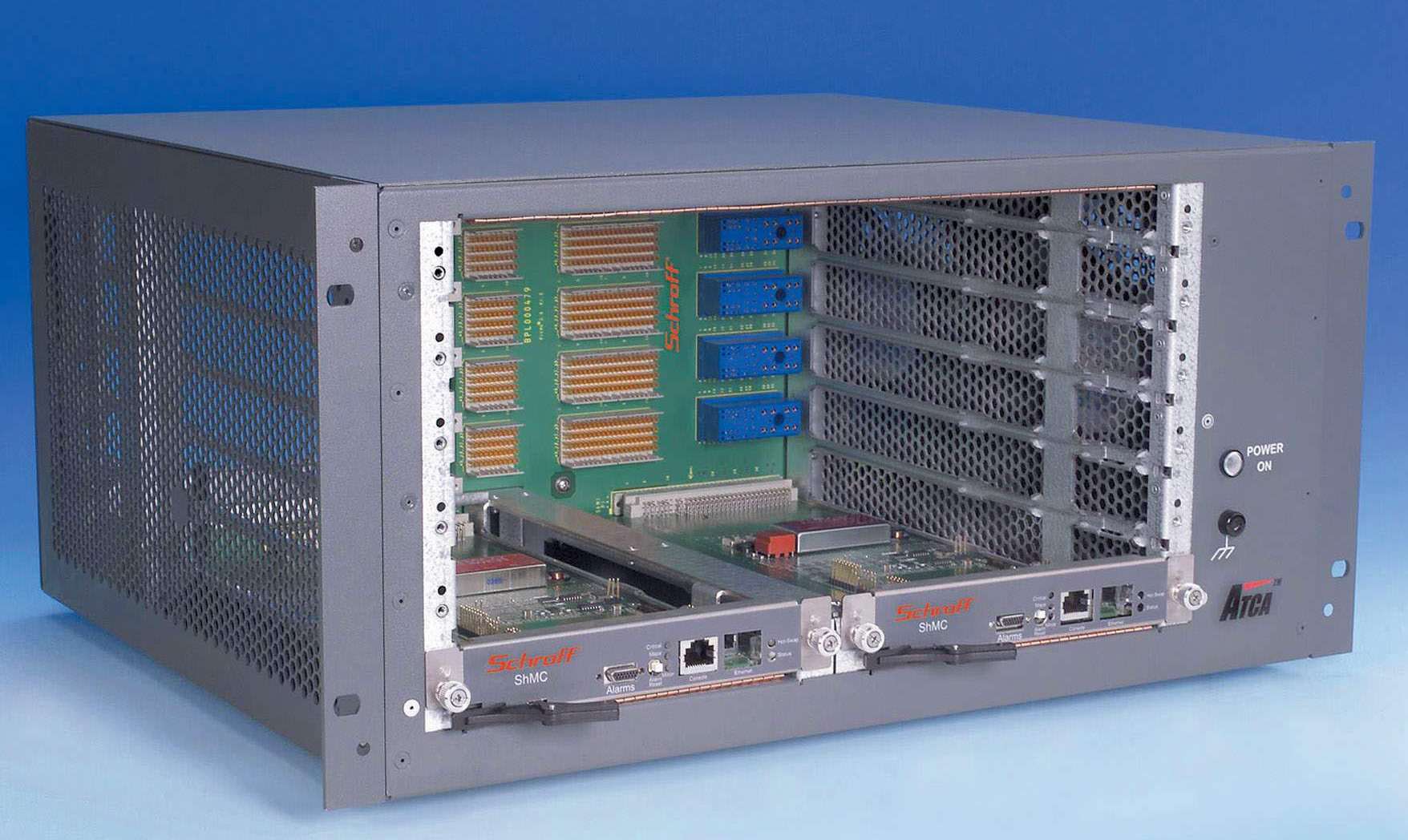

Mar 10, 2004 AdvancedTCA(TM) Systems feature 5-slot full mesh backplane with 2 hub slots, and independent fan controller that interfaces to temperature sensor on air exhaust and supports up to 200 W per slot. One configuation supports dual 4U high shelf managers, which are hot swappable and provide bussed IPMB interface. Chassis include dual 48 V inputs on rear, shielding, and 19 in. rackmount capability. AC versions are available with power options up to 750 W.

Master Bond, Inc.    Hackensack, NJ 07601
Mar 10, 2004 With 1:1 mix ratio, EP51ND 2-component epoxy adhesive can be applied on vertical surfaces without dripping or flowing. It spreads evenly and smoothly, and only contact pressure is required for cure. Product gels in ~5 min and cures fully at ambient temperatures. Bonded parts can be safely handled within ½ hr. Adhesive exhibits thermal shock and chemical resistance, and hardened product acts as electrical insulator. Service operating temperature is -100 to 250°F.

FARO Technologies, Inc.    Lake Mary, FL 32746 6204

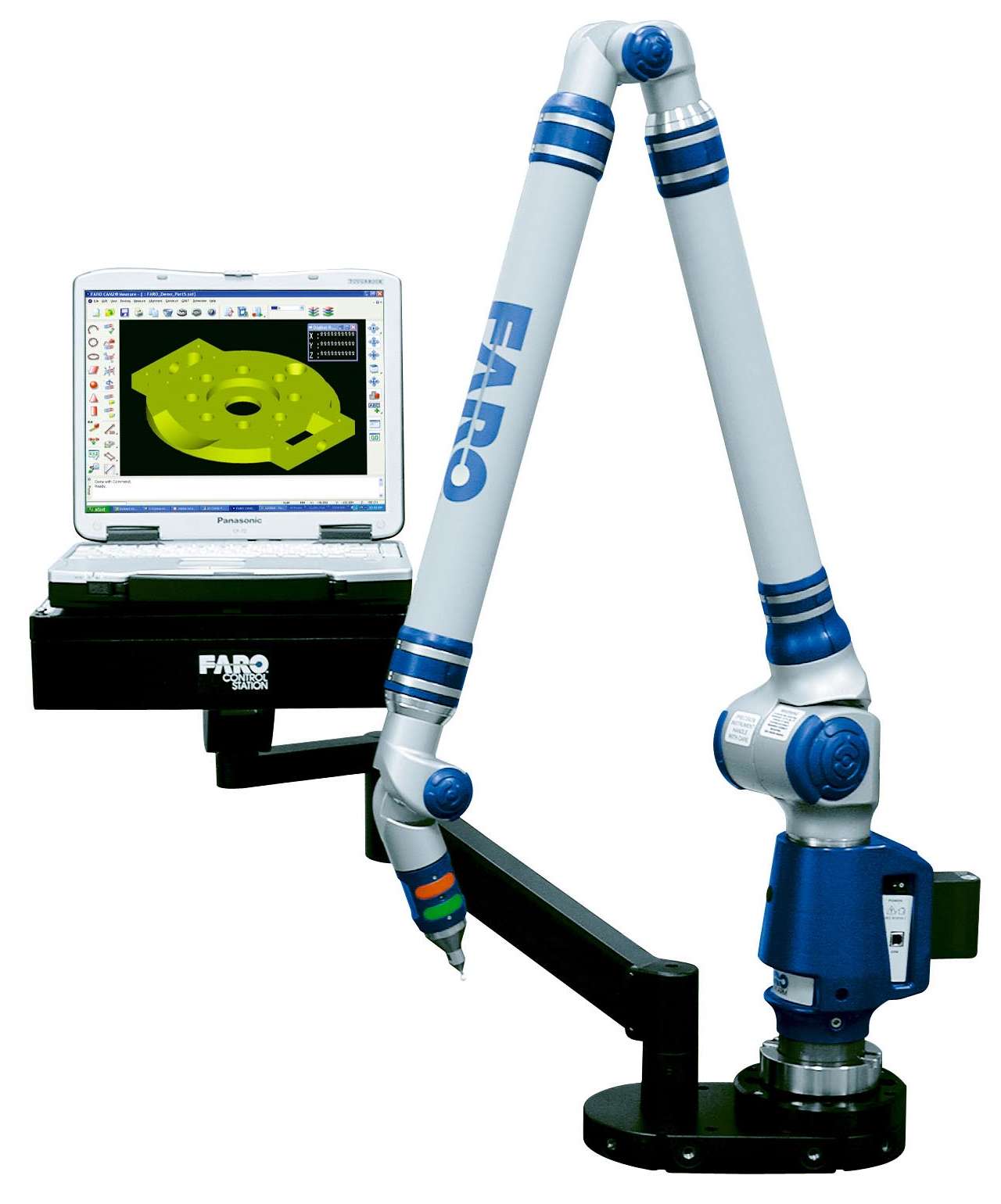

Mar 10, 2004 CAM2 Measure v4.0 features user interface that shares common look and feel with FARO Gage Software. Measurement commands include Torus, Torus Segment, Rectangular Toroid, and Extruded Rectangle. Tubing functionality enables users to measure bends of 180° or greater on round and rectangular tubes. Cross-Section Measuring automatically compares stream of data to CAD surface. Data from Laser Tracker measurements can be copied and pasted into tertiary programs.

Stanley Works, The    New Britain, CT 06053
Mar 10, 2004 FatMaxâ„¢ Short Blade Chisels provide extra strength in neck area where common breakage occurs. Blade is hardened and tempered high chrome, carbon alloy steel. Bi-material, high-impact handles feature steel striking cap, allowing user to work with steel-headed hammer. Full-length blade protector acts as safeguard during storage. Ranging in size from ¼ to 2 in., chisels come in 3- or 6-piece sets or as 9 single chisels.

Gardner Bender    Milwaukee, WI 53209
Mar 10, 2004 Made of heat-treated aluminum, BIG BENâ„¢ hand benders incorporate dual sight-line system that allows bending on floor or in air. They include highlighted Benfieldâ„¢ markings and are available in sizes of ½, ¾, and 1 in. Other features include Vise-Mateâ„¢ conduit vise; bend-back channel that corrects over-bends; Benfield-style, 30° bend when handle is straight up; sight-down arrows; and sight-across marks.

Stanley Works, The    New Britain, CT 06053
Mar 10, 2004 FatMax® High Tension Hacksaw features adjustable thumb-dial tension mechanism that provides tension memory and one-piece design that permits tension settings up to 330 lb. Power load sliding tension mechanism increases leverage and provides greater control when releasing blade, while 24 tpi, bi-metal blade allows for flush cutting with 4.75 in. depth cutting capacity. Die-cast, slope-nosed hacksaw has slip-resistant, textured grip and front grip with thumb rest.

Festo Corp.    Hauppauge, NY 11788

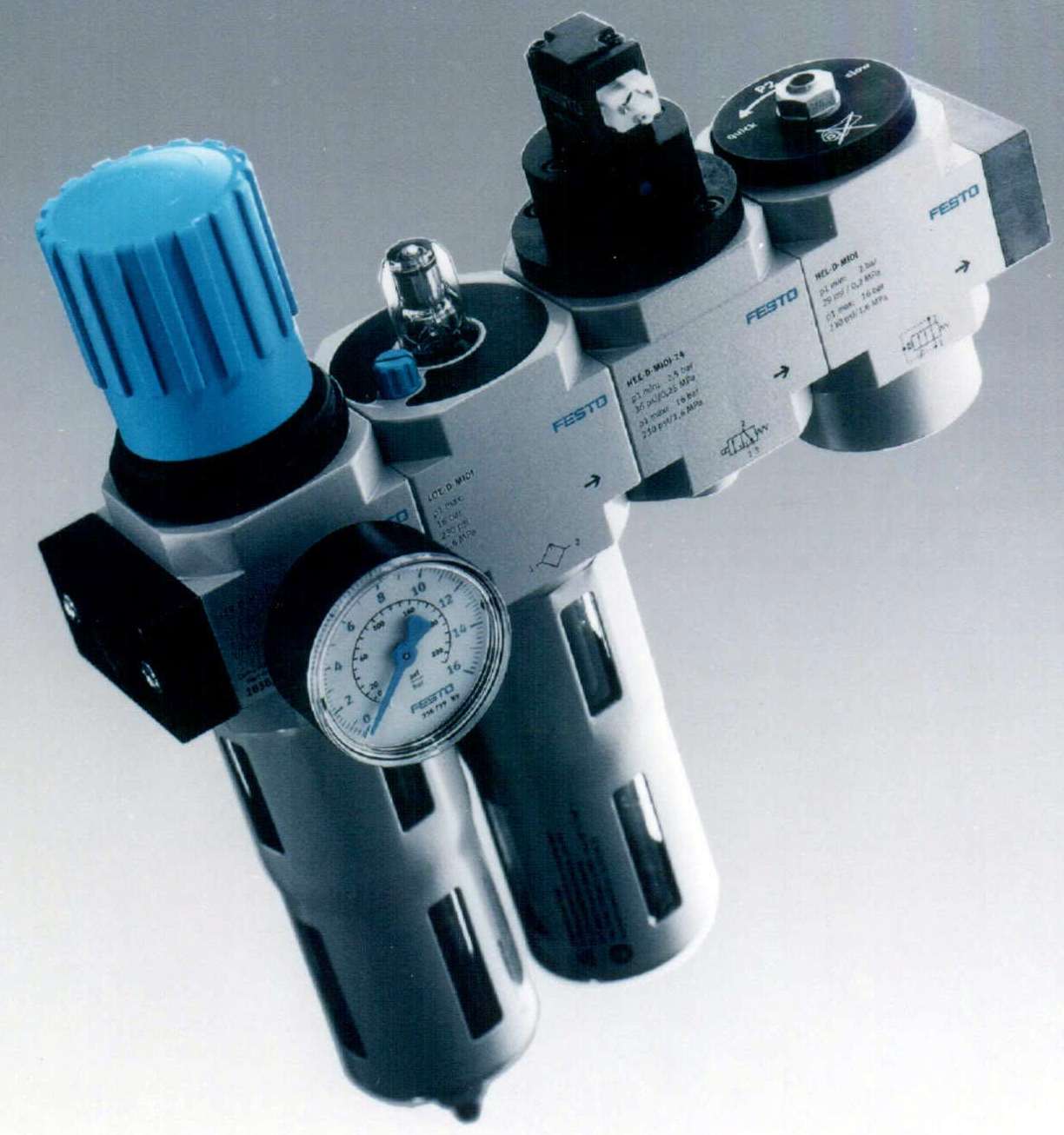

Mar 10, 2004 Available in 3 body sizes, D-Series Air Preparation Units feature optimized internal flow paths that enable flow capacities from 24-406 scfm, depending on style and size. Products are offered in inch and metric series with port sizes from 1/8-1 in. NPT and G 1/8-1 ISO. Made of zinc and aluminum, die-cast units incorporate polycarbonate filter bowels and metal bowl guards. Filtration levels are 40, 5, 1, and 0.01 µm.

Stanley Works, The    New Britain, CT 06053
Mar 10, 2004 Available in 15 and 20 in. sizes, FatMax® Saw with SharpToothâ„¢ design includes Blade Armorâ„¢ composite coating, which provides abrasion and corrosion protection. Features include induction-hardened teeth and handle with ergonomically designed, slip-resistant grip for comfort and control. Saw is suited for cutting wet and immature wood, plasterboard, large timbers, and other abrasive composite materials.

Festo Corp.    Hauppauge, NY 11788

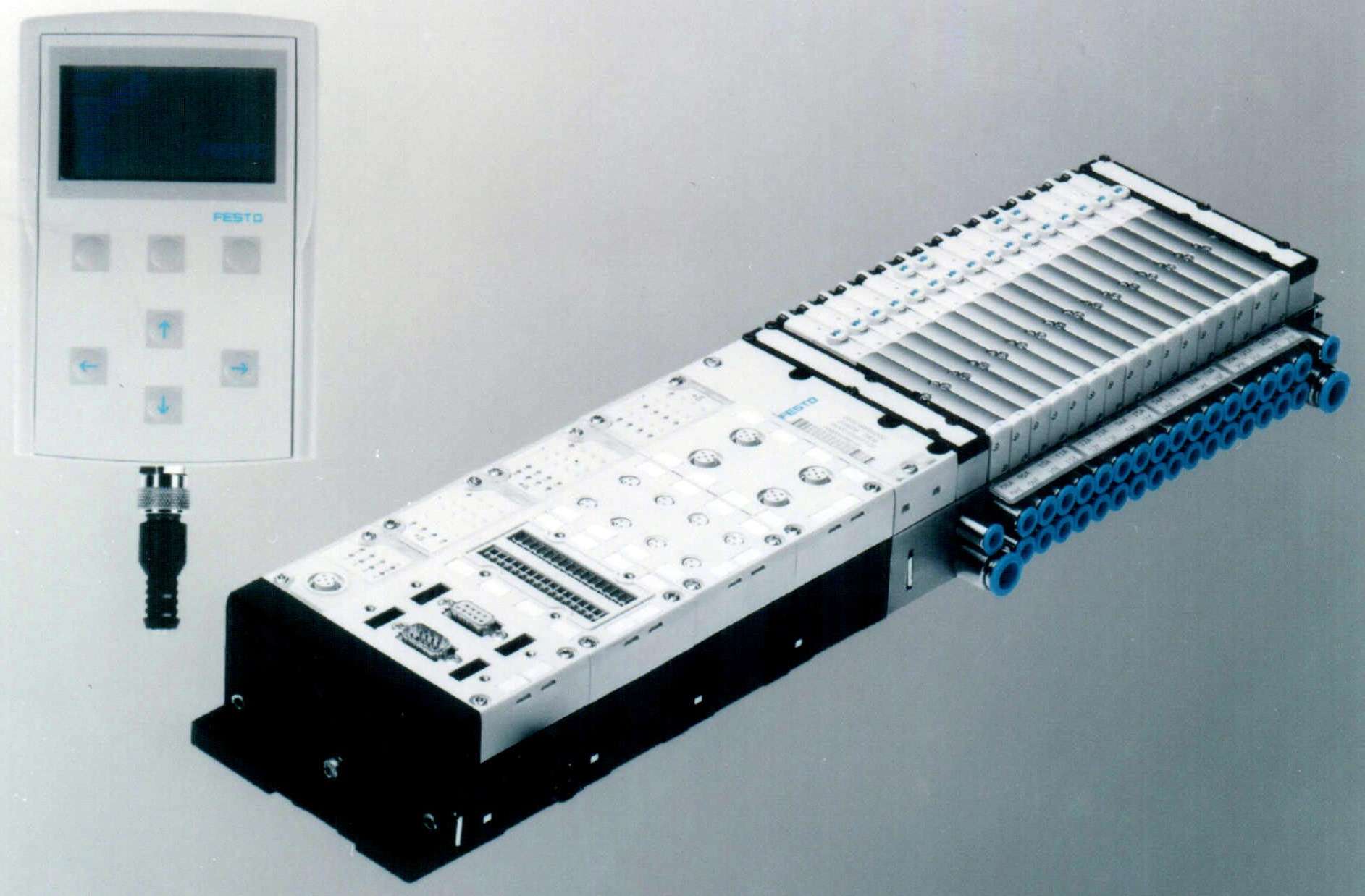

Mar 10, 2004 Handheld programming device for CPX Valve Terminal enables users to carry out parameter settings, configurations, and diagnostics for module and channel-oriented faults. No programming is required, and no additional software is neeeded. Unit provides clear-text display for commissioning, status display, and search for current faults. Find function identifies causes of sporadic faults using diagnostic history of last 40 fault events with time stamps.

Valenite, Inc.    Madison Heights, MI 48071 9636
Mar 10, 2004 ValTURNâ„¢ ProGRIPâ„¢ has spring-loaded clamp design that allows insert to be gripped in 2 directions. Inserts can be changed despite holder position, and interchangeability of clamping components allow same toolholder shank to be used for carbide, ceramic, or CBN insert designs. Product is available in 98 different insert and lead angle shank styles to accommodate cast iron, steel, stainless steel, and heat-treated material applications.
