Minarik Corp.    Glendale, CA 91201 2011
Mar 11, 2004 Rated to withstand 1 G of vibration, RG60U-T controls motors up to 2 hp and utilizes speed/torque adder card that enables velocity or torque control of motor. Enable and Inhibit terminals may be inverted, and invert jumpers choose whether drive runs or stops when terminals are opened or closed. Other features include choice of tachometer or armature feedback, 9 trimmer pots, and independently adjustable torque and acceleration pots for forward and reverse.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Mar 11, 2004 Compact AP-100 features automatic measurement and digital display of selectable measurement readings, which include Angle of Rotation, International Sugar Scale, Specific Optical Rotation, Concentration, and Purity. Operation requires user to place sample tube in unit and press start. Flash memory stores 30 most recent measurement readings, and out-of-range measurements are indicated instantly by graphic display. Polarimeter may be calibrated manually.

Dresser Instruments, Ashcroft & Heise Instruments    Stratford, CT 06614 5145
Mar 11, 2004 Ashcroft® Type 310 Mini Diaphragm Seal, with pressure ratings to 2,500 psi, offers male connections in sizes from 1/8–1 NPT, in addition to threaded NPT connections. Suited for small spaces, seal protects transducers, mini switches, and 3½ in. or smaller pressure gauges from corrosive media, plugging, or freeze-up. All-welded unit prevents process media from leaking and may be ordered in 316L stainless steel, Hastelloy C, Tantalum, and Monel wetted parts.

Sanborn Technologies, North American Filtration of Massachusetts, Inc.    Walpole, MA 02081
Mar 11, 2004 Pioneer integrated on-site coolant recovery system includes disc centrifugation and flash pasteurization to end rancidity, coolant odor, and dermatitis caused by coolant contact. Reduction of bacteria in coolants helps prevent development of endotoxins. Unit removes solids to 1 micron and tramp oil to 0.25%, and processes water-soluble and semi-synthetic coolants. It can return 95% of recoverable fluids for reuse.

QuadTech, Inc.    Maynard, MA 01754
Mar 11, 2004 Microprocessor-controlled electrical safety testers are designed for testing Class I and II medical electronic devices and appliances. Portable Model 277 has built-in printer, while bench top Model 299 is packaged for medical device manufacturing production environment. Both offer automatic, semi-automatic, or manual operating modes and store up to 2,500 test results. Features include keypad, LCD display, and RS-232 and parallel interfaces.

CyberResearch, Inc.    Branford, CT 06405 2932
Mar 11, 2004 Rated NEMA 4X/IP65, MPP 15 (15 in.) and MPP 18 (18 in.) flat-panel monitors with optional resistive touch-screens are sealed to panel with compression collar and elastomeric gasket. Front bezel and sealing system make both models resistant to corrosives. Displays, rated at 250 nit, are resistant to shock loads as high as 30 g half-sine for 11 ms max. Backlight MTBF is 50,000 hr on 18 in. monitor and 35,000 hr on 15 in. unit.

Bel-Art Products    Wayne, NJ 07470
Mar 11, 2004 Scienceware® Touch Free(TM) Automatic Waste Can keeps users safe from potentially dangerous contents of hazardous waste container. Wave of hand automatically opens container lid to accept refuse; after a few seconds lid automatically closes, keeping contents secure. Three models include white 2.5 gal, gray 7.3 gal with gray top, and stainless steel 12 gal with black top. White 2.5 gal model is suited for benchtop use and includes removable rigid liner.

Spiroflow Systems, Inc.    Monroe, NC 28110
Mar 11, 2004 Conveyor system, which consists of rope and disk assembly enclosed in carbon or stainless steel tubes, works with inherently sticky, cohesive materials by fluidizing them in air stream. Product can be configured in terms of distance and angles, does not require outside air supply, and can be used with other process equipment. PLC-friendly system options include bag dump stations, air purge cleaning, food grade components, and multiple inlets/outlets.

Martel Electronics    Windham, NH 03087
Mar 11, 2004 BetaGauge PI Digital Pressure Test Gauge has adjustable reading sample rate to match type of measurement. Setup is accomplished via menu-driven display, and readings are shown on 5½ digit, 0.65 in. high digital display and percent-of-range bar graph. Accuracy is ±0.05% of FS readings of pressure, displayed in any one of 18 standard engineering units or user-defined custom units. Damping can be set to integrate readings to accommodate pulsating sources.

Flexicon Corporation    Bethlehem, PA 18020 8006
Mar 11, 2004 Half Frame Bulk Bag Discharger eliminates upper frame components, instead relying on user's forklift or plant hoist to suspend bag above unit during operation. Bag-to-hopper interface consists of Spout-Lockâ„¢ clamp ring positioned atop pneumatically actuated Tele-Tubeâ„¢ telescoping tube, allowing dust-tight connections, unrestricted flow between bag spout and hopper, and automatic tensioning. Flow-Flexerâ„¢ activators raise and lower bottom edges of bag, loosening compacted materials.

Sun Coast Industrial    St. Joseph, MI 49085
Mar 11, 2004 Hydro-Pressure Wash Cabinet utilizes combination of heated detergent and 400 psi pressure to blast away stubborn dirt and grime imbedded in tiny crevices and holes. Heater, rated at 1,500 W, provides constant supply of heated detergents, while 12 gal reservoir features baffle system that traps dirt and oil. Foot operated switch activates manual and auto spray modes to allow for 2-handed operation. Over 14 ft³ of elbow room is provided inside cabinet.

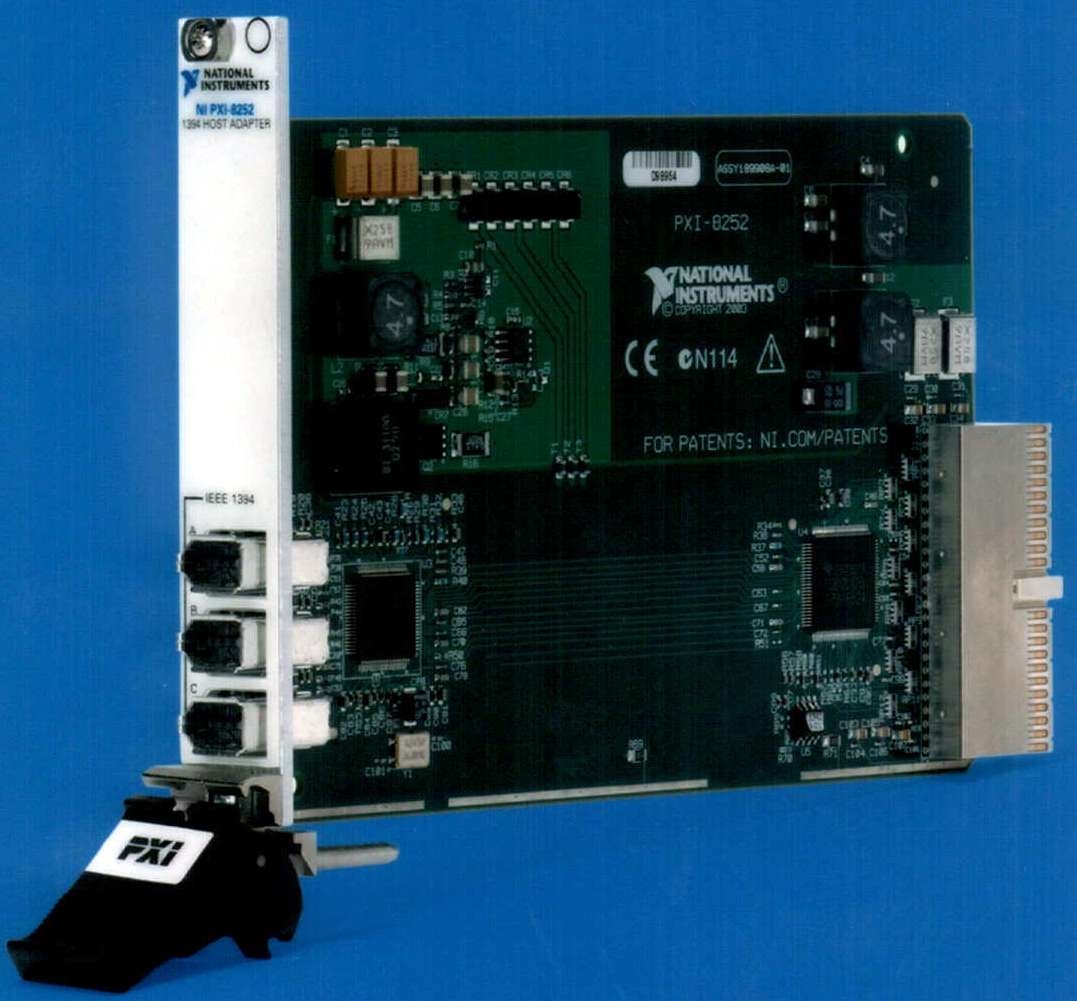

National Instruments Corp.    Austin, TX 78759-3504
Mar 11, 2004 Model PXI-8252 consists of IEEE 1394 host adaptor that delivers PXI/CompactPCI connectivity to industrial machine vision cameras. Module features 3 IEEE 1394 ports, delivers 12 W of power, and supports data rates to 400 Mb/s. Along with NI-IMAQ for IEEE 1394 driver software, it creates interface for image acquisition in various software environments. Platform enables use of PC technology and tools in measurement and automation applications.

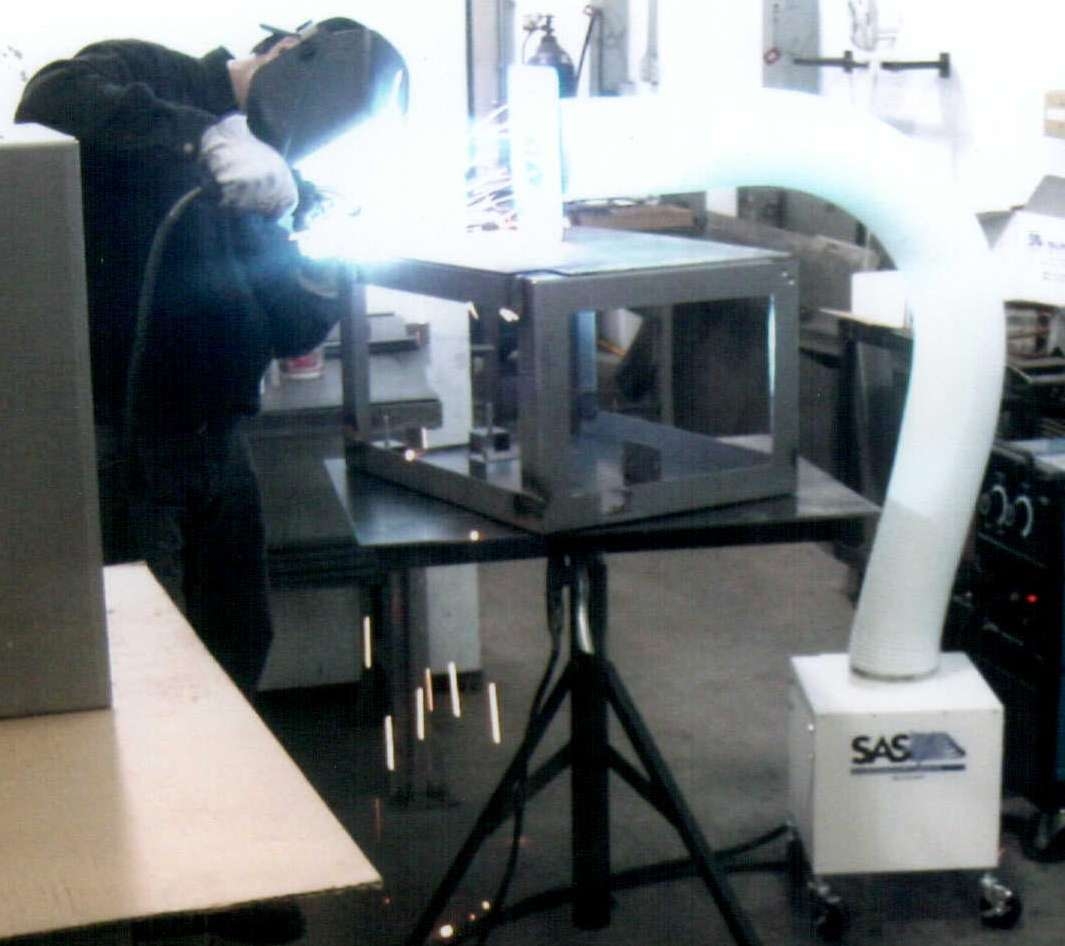

Sentry Air Systems    Houston, TX 77092
Mar 11, 2004 Protecting welders from inhalation problems associated with toxic metallic fumes, Sentry Portable Welding Fume Extractor draws and filters irritating/dangerous fumes away from welding work stations. Freestanding fan/filter unit achieves air volume of 50–350 cfm. Constructed of 16 ga. carbon steel, modular unit incorporates 6 in. round, 58 in. long, self-supporting flex arm. Unit achieves efficiencies to 99.97% @ .3 microns with HEPA filters.

ACE Controls, Inc.    Farmington, MI 48335
Mar 11, 2004 Miniature industrial shock absorber models MA 30M and MC 30M allow for energy absorption in confined spaces. Adjustable MA 30M has weight range of .5–31 lb and energy per cycle rating of 31 lb-in. Features include integral mechanical stop and stainless steel piston rod. Available in 3 weight ranges, self-compensating MC 30M handles changing energy conditions without need for adjustment. Applications include linear slides, instrumentation, and robotics.

Viking Corp., The    Hastings, MI 49058 9706
Mar 11, 2004 COIN(TM) Quick Response, Combustible Interstitial Space Sprinkler is tested and listed for specific light hazard combustible and non-combustible concealed horizonal spaces requiring sprinkler protection per installation standards. With coverage listings for spacing up to 12 x 12 ft, unit can be used with wet or dry pipe systmes. It has 4.2 K-factor, starting pressure of 11.8 psi at max spacing, and .1 gpm/ft² density. Minimum starting pressure is 8 psi.

Dresser Instrument    Stratford, CT 06614-5145
Mar 11, 2004 Fully submersible, ebro® EBI 85 measures, monitors, and validates cold-chain management applications. It measures temperatures from -85 to +85°C with resolution of 0.1°C. Accuracy is ±2.0°C for temperatures from -85 to -40°C and ±0.3°C for ranges of -39 to +85°C. Logger can hold up to 18,000 readings in memory and is compatible with Ebro® WINLOG 2000 software. Rated to IP 68, unit has compression strength of 20 bar and is suited for dry-ice applications.

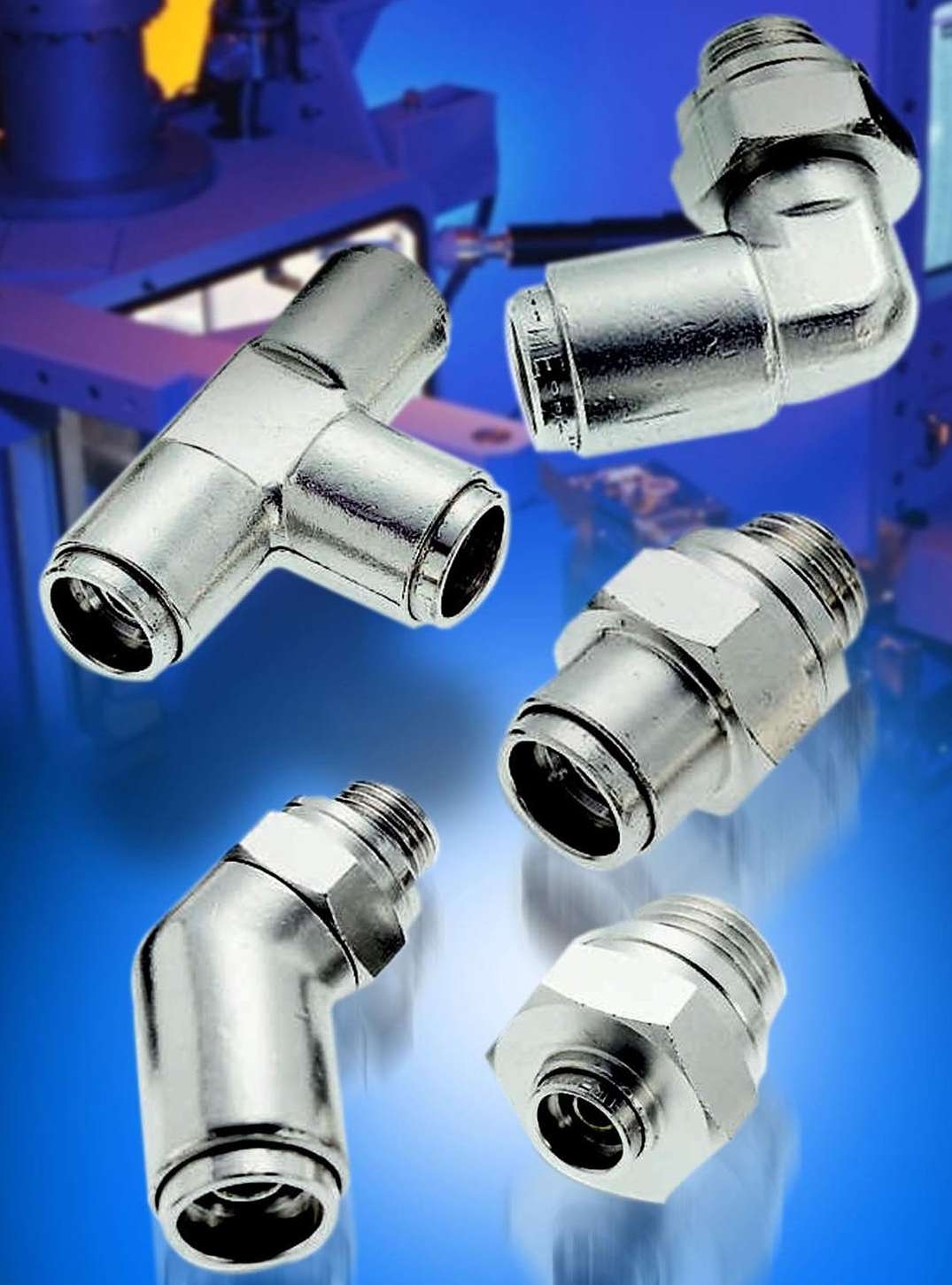

Norgren    Littleton, CO 80120
Mar 11, 2004 All-metal WeldFit fittings help reduce assembly times and provide quick disconnection to enable re-tubing of system if it needs to be changed. Nickel-plated products feature silicone free O-rings and provide system protection from weld spatter. Rated for operating temperatures from –20 to 160°F, fittings are used in conjunction with WeldTube. Counterbored collet head provides complete protection to inner tube.

Norstat, Inc.    Rockaway, NJ 07866
Mar 11, 2004 With IP 53 or IP 65 protection ratings, foot switches are designed for safety and automation marketplaces. PA and PX series are available as single switch models, while PC series allows up to 4 units to be connected together via connector kits. PA Series comes as unprotected switch, and PX series employs plastic cover for actuator protection. Switches are offered with slow or snap action contact elements as well as various contact block configurations.

ITW Vortec    Cincinnati, OH 45242-4719
Mar 11, 2004 With no moving parts, Cold Air Tubesâ„¢ convert compressed air into low pressure stream of cold air that reaches temperatures as low as -20°F. They kill heat buildup that can slow production or create problems on parts and equipment. At less than 10 in. long, maintenance-free cooling component is adaptable for numerous applications, with 3 models available offering different cooling capacities. Tubes provide quiet operation and instant on/off.

Ametek Solidstate Controls    Columbus, OH 43085
Mar 11, 2004 Series FPB ensures that single faulted circuit will not adversely affect other branches or critical loads by clearing faults in ¼ cycle or less. UL-listed unit utilizes semiconductor, current-limited fuses in series with molded-case circuit breaker. Semiconductor fuse provides protection from potentially catastrophic short circuits generated by fault, while breaker provides long-term sustained overload protection. Panelboards are suited for UPS and inverter applications.
