Elscint Automation    Pune 411026  India
Mar 12, 2004 Suited for automobile industry, Model 400 separates assembled and semi-assembled, 5-part radiator valves without need for vision system. It offers feed rate of 150 pieces/minute.

Seiko Instruments U.S.A., Inc.    Torrance, CA 90505
Mar 12, 2004 Self-contained Model DPU-30 flush-mounts in panel and provides front access for paper loading. It accommodates paper width up to 58 mm, and prints up to 8 dots/mm with speed of 20 or 55 mm/s, depending on power supply. Unit prints bar codes, test patterns, characters, and graphics. Line and character spacing, character position, character tone, and print density can be customized. Printer is suited for kiosk, vending, voting, medical, and parking applications.

Sun Coast Industrial    St. Joseph, MI 49085
Mar 12, 2004 Hand-held Sand Blast System features 4 scfm nozzle/air-jet combo and flat bottom for handling and storing. To operate, user connects 90–110 psi air supply and pulls trigger on cast aluminum gun. System provides continuous 2 minute blast without refilling reservoir.

Alden Products Co., Metal Fabrication    Brockton, MA 02301-3996
Mar 11, 2004 Pulse-Lok® PL-900 Medical Instrumentation Connectors feature push and click auto-latching mechanism, which provides tactile and visual confirmation that connector pair is securely engaged. Units come in .0009 diameter package in both disposable and reusable models. Termination options include multi-contact solder pads, as well as crimp and poke stamped contacts. Connectors are EtO, gamma, and steam sterilizable and are sealed to IP-67 standards.

Hirschmann Engineering USA, Inc.    Schaumburg, IL 60173
Mar 11, 2004 Model H80R.NC integrated A-axis, for horizontal use on wire EDMs, uses Fanuc encoder which measures 1 million pulses per revolution. Encoder is mounted directly to axis spindle to ensure optimal accuracy. Axis housing is made from single block of corrosion-resistant stainless steel and precision ground to axis.

Directed Light, Inc.    San Jose, CA 95134

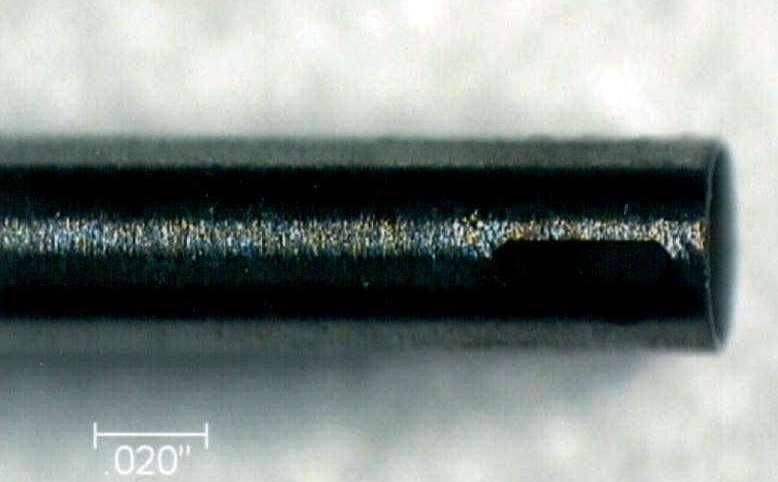

Mar 11, 2004 Direct Light Inc. utilizes Lee® Nd:YAG laser with CNC motion system, which provides sub-micron XY and rotary positional resolution. Parts are processed using statistical process control and x-bar/r charts, and process histograms are supplied to customers. Full service capabilities range from research and development and short-run jobs to full 24/7 production.

Schneeberger, Inc.    Bedford, MA 01730

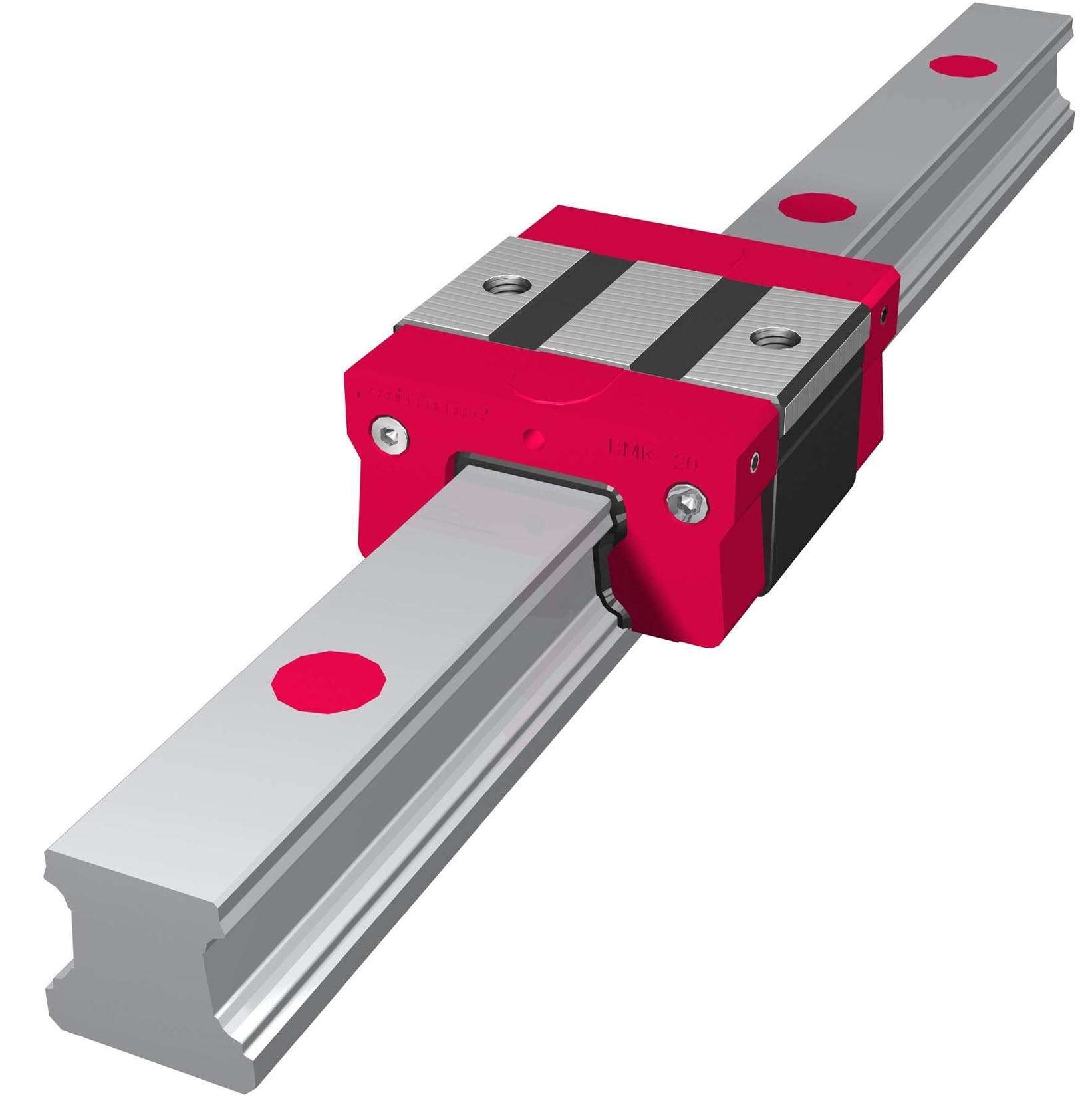

Mar 11, 2004 Ball Monorail Carriages, Models BMK 15/20, range from 24–28 x 34–44 x 37–47.7 mm. Static loading capacities are from 8,500 N for size BMK 15 and 13,100 N for BMK 20, while dynamic loading capacities range from 5,200 N for BMK 15 and 8,400 N for BMK 20. MONORAIL BM comes in 3 preload categories, 4 accuracy grades, and has single rail lengths up to 6,000 mm. Max speeds of 5m/s and accelerations of 100m/s² can be achieved. Operating temperature is –40 to +80°C.

Pressure Systems, Inc.    Hampton, VA 23666

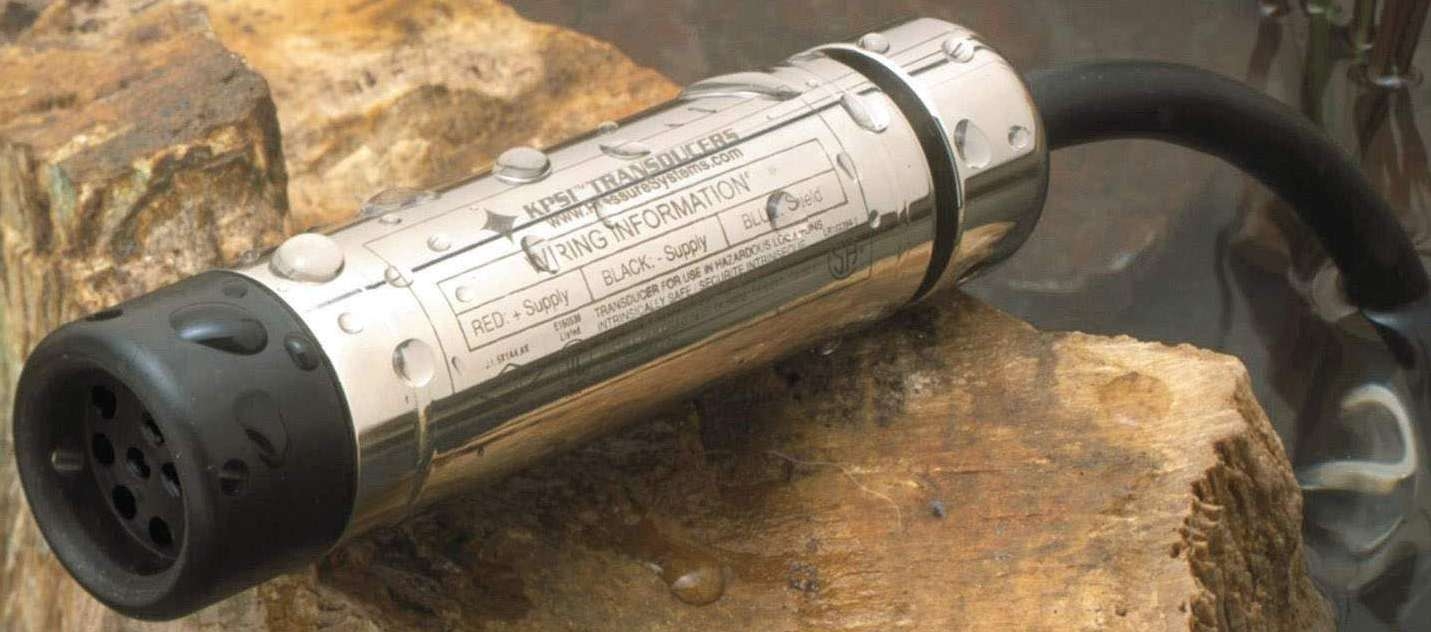

Mar 11, 2004 Model 772 submersible, hydrostatic level transducer fully compensates for sensor errors due to temperature. Span and zero terminal readings are adjustable at any turndown using re-ranging tools and Windows-based software, and users can turn down full-scale output by as much as 10:1. Offering level ranges up to 230 ft, transducer can be furnished with welded 316 SS or titanium construction and incorporates vent filter that prevents moisture from entering vent tube.

Parker Hannifin Corp., Hose Products Division    Wickliffe, OH 44092 1797
Mar 11, 2004 Providing crimp-able, permanent connection, Series 26 all-brass, one-piece fittings exhibit corrosion resistance that withstands 1,200 hr of sea salt spray with no indication of rust. Products, available in multiple configurations, are offered as alternatives to 2-piece, stainless steel, field-attachable fittings. Sizes range from ¼â€“¾ in.

Motorsoft Inc.    Lebanon, OH 45036

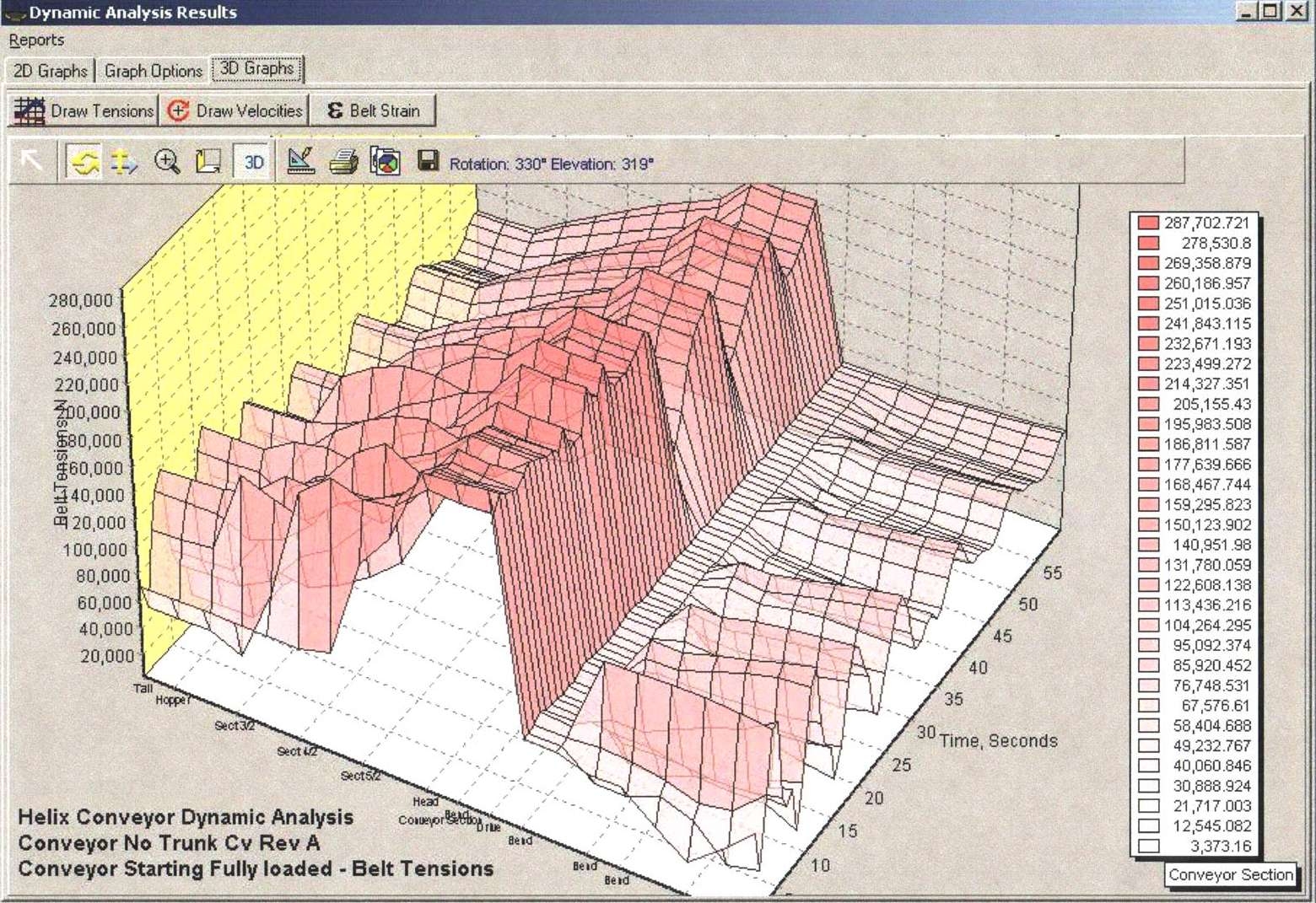

Mar 11, 2004 Conveyor Dynamic Analysis Design Program calculates transient belt tensions and velocities during starting and stopping of conveyor. User can input any number of drives, brakes, and pulleys in addition to drive torque/speed curves, delay times, braking torques, flywheels, and inertia effects. User can also view and print 2D and surface plot 3D graphs of tensions/velocities for all points along conveyor.

Minarik Corp.    Glendale, CA 91201 2011

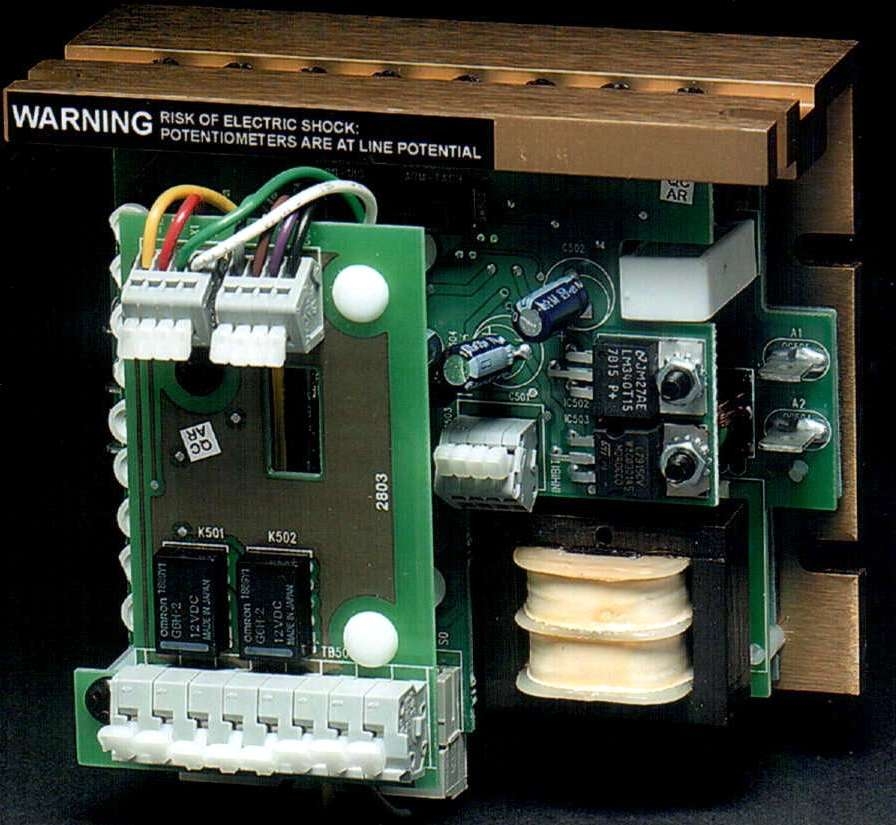

Mar 11, 2004 Rated to withstand 1 G of vibration, RG60U-T controls motors up to 2 hp and utilizes speed/torque adder card that enables velocity or torque control of motor. Enable and Inhibit terminals may be inverted, and invert jumpers choose whether drive runs or stops when terminals are opened or closed. Other features include choice of tachometer or armature feedback, 9 trimmer pots, and independently adjustable torque and acceleration pots for forward and reverse.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Mar 11, 2004 Compact AP-100 features automatic measurement and digital display of selectable measurement readings, which include Angle of Rotation, International Sugar Scale, Specific Optical Rotation, Concentration, and Purity. Operation requires user to place sample tube in unit and press start. Flash memory stores 30 most recent measurement readings, and out-of-range measurements are indicated instantly by graphic display. Polarimeter may be calibrated manually.

Dresser Instruments, Ashcroft & Heise Instruments    Stratford, CT 06614 5145

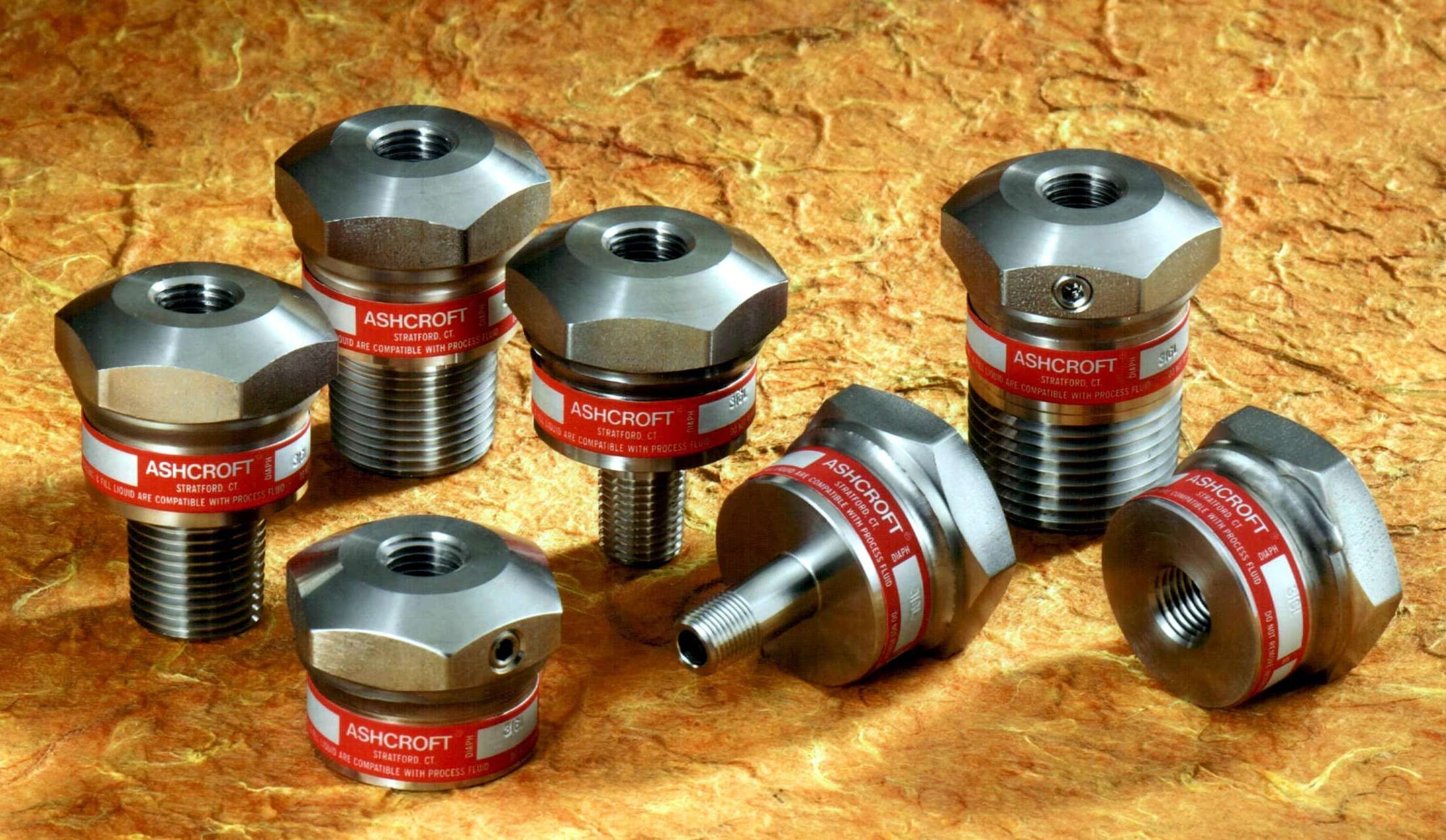

Mar 11, 2004 Ashcroft® Type 310 Mini Diaphragm Seal, with pressure ratings to 2,500 psi, offers male connections in sizes from 1/8–1 NPT, in addition to threaded NPT connections. Suited for small spaces, seal protects transducers, mini switches, and 3½ in. or smaller pressure gauges from corrosive media, plugging, or freeze-up. All-welded unit prevents process media from leaking and may be ordered in 316L stainless steel, Hastelloy C, Tantalum, and Monel wetted parts.

Sanborn Technologies, North American Filtration of Massachusetts, Inc.    Walpole, MA 02081

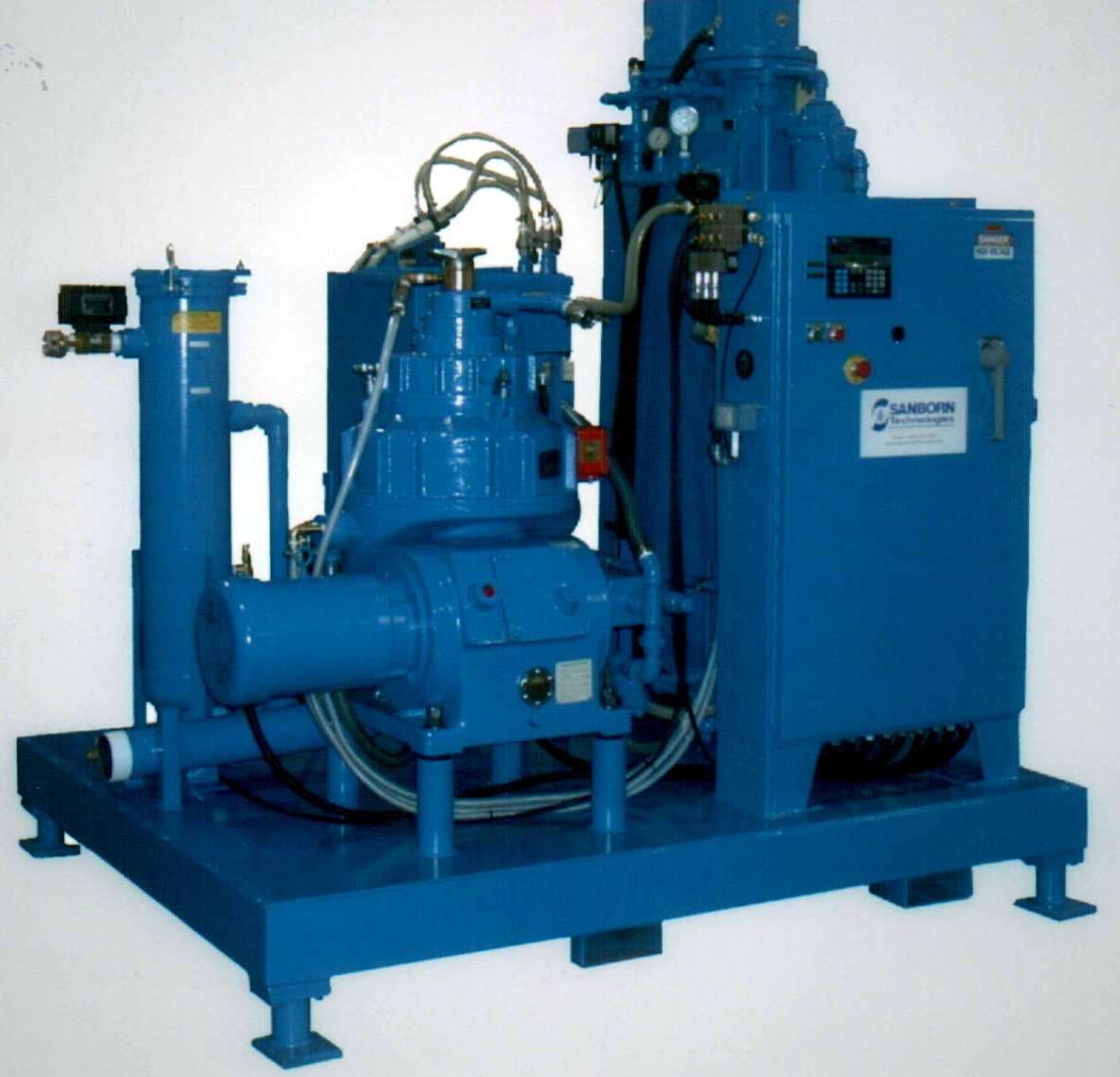

Mar 11, 2004 Pioneer integrated on-site coolant recovery system includes disc centrifugation and flash pasteurization to end rancidity, coolant odor, and dermatitis caused by coolant contact. Reduction of bacteria in coolants helps prevent development of endotoxins. Unit removes solids to 1 micron and tramp oil to 0.25%, and processes water-soluble and semi-synthetic coolants. It can return 95% of recoverable fluids for reuse.

QuadTech, Inc.    Maynard, MA 01754
Mar 11, 2004 Microprocessor-controlled electrical safety testers are designed for testing Class I and II medical electronic devices and appliances. Portable Model 277 has built-in printer, while bench top Model 299 is packaged for medical device manufacturing production environment. Both offer automatic, semi-automatic, or manual operating modes and store up to 2,500 test results. Features include keypad, LCD display, and RS-232 and parallel interfaces.

CyberResearch, Inc.    Branford, CT 06405 2932

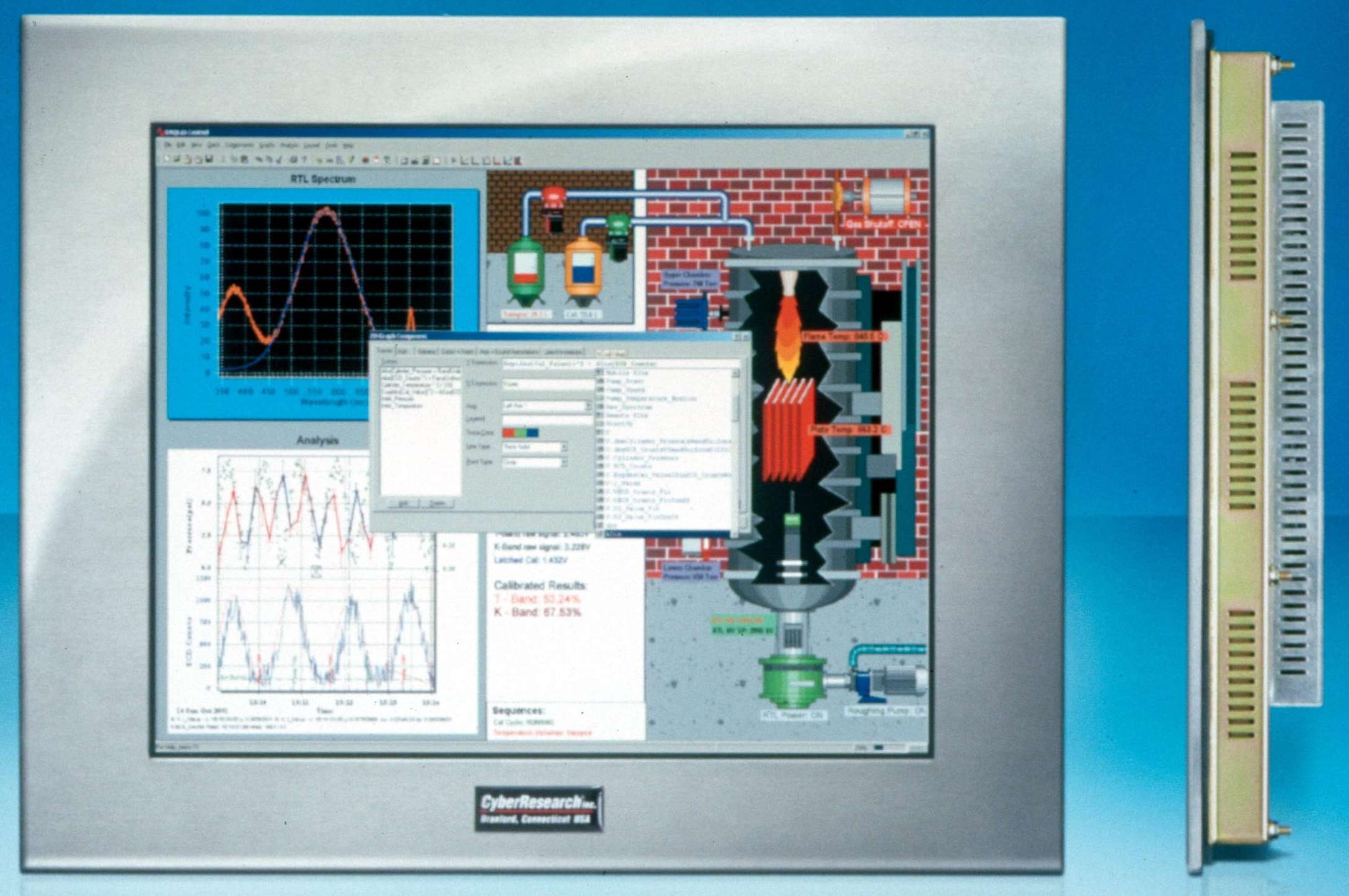

Mar 11, 2004 Rated NEMA 4X/IP65, MPP 15 (15 in.) and MPP 18 (18 in.) flat-panel monitors with optional resistive touch-screens are sealed to panel with compression collar and elastomeric gasket. Front bezel and sealing system make both models resistant to corrosives. Displays, rated at 250 nit, are resistant to shock loads as high as 30 g half-sine for 11 ms max. Backlight MTBF is 50,000 hr on 18 in. monitor and 35,000 hr on 15 in. unit.

Bel-Art Products    Wayne, NJ 07470
Mar 11, 2004 Scienceware® Touch Free(TM) Automatic Waste Can keeps users safe from potentially dangerous contents of hazardous waste container. Wave of hand automatically opens container lid to accept refuse; after a few seconds lid automatically closes, keeping contents secure. Three models include white 2.5 gal, gray 7.3 gal with gray top, and stainless steel 12 gal with black top. White 2.5 gal model is suited for benchtop use and includes removable rigid liner.

Spiroflow Systems, Inc.    Monroe, NC 28110

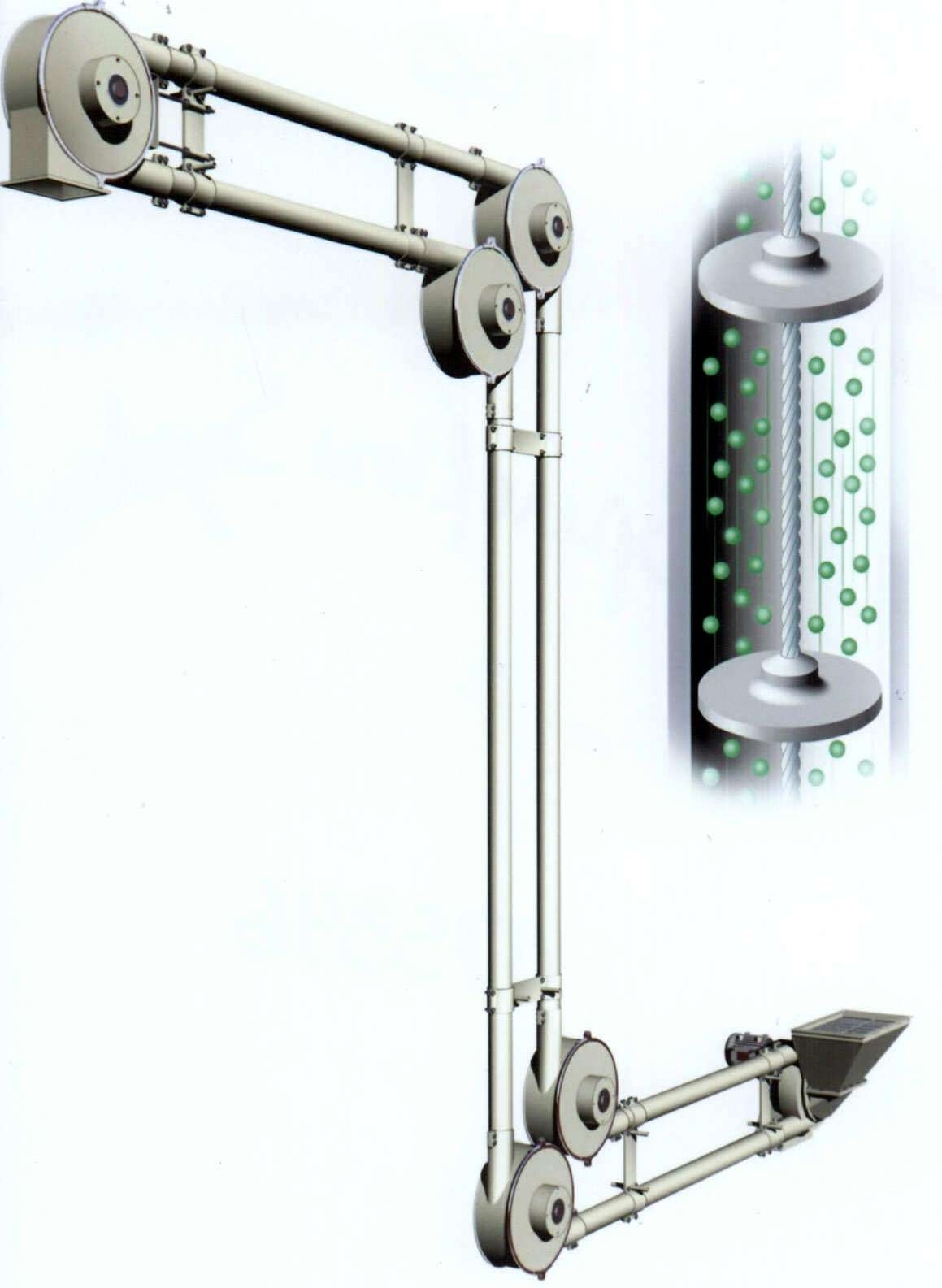

Mar 11, 2004 Conveyor system, which consists of rope and disk assembly enclosed in carbon or stainless steel tubes, works with inherently sticky, cohesive materials by fluidizing them in air stream. Product can be configured in terms of distance and angles, does not require outside air supply, and can be used with other process equipment. PLC-friendly system options include bag dump stations, air purge cleaning, food grade components, and multiple inlets/outlets.

Martel Electronics    Windham, NH 03087
Mar 11, 2004 BetaGauge PI Digital Pressure Test Gauge has adjustable reading sample rate to match type of measurement. Setup is accomplished via menu-driven display, and readings are shown on 5½ digit, 0.65 in. high digital display and percent-of-range bar graph. Accuracy is ±0.05% of FS readings of pressure, displayed in any one of 18 standard engineering units or user-defined custom units. Damping can be set to integrate readings to accommodate pulsating sources.

Flexicon Corporation    Bethlehem, PA 18020 8006

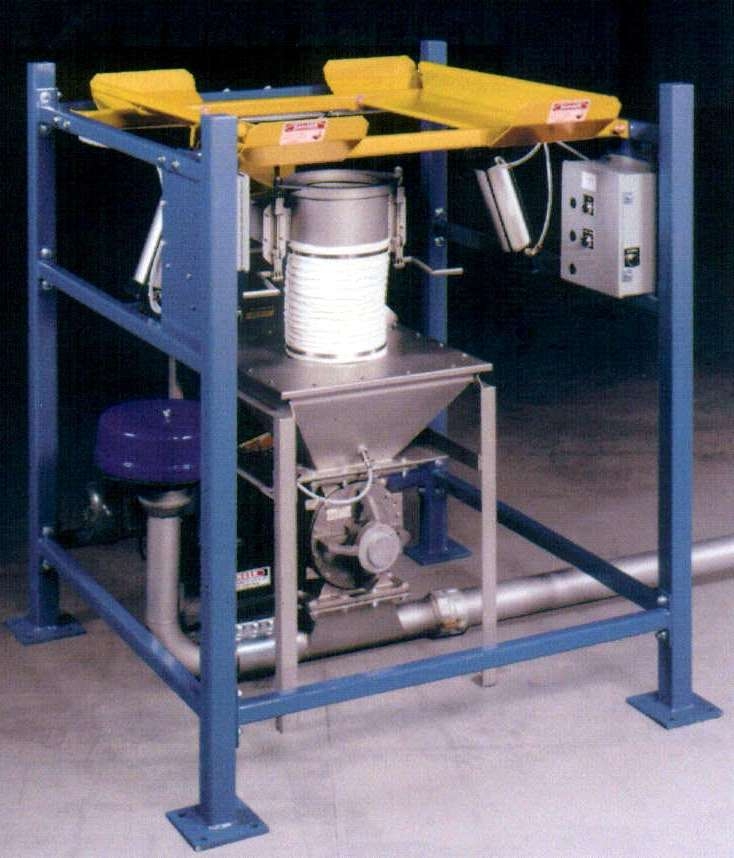

Mar 11, 2004 Half Frame Bulk Bag Discharger eliminates upper frame components, instead relying on user's forklift or plant hoist to suspend bag above unit during operation. Bag-to-hopper interface consists of Spout-Lockâ„¢ clamp ring positioned atop pneumatically actuated Tele-Tubeâ„¢ telescoping tube, allowing dust-tight connections, unrestricted flow between bag spout and hopper, and automatic tensioning. Flow-Flexerâ„¢ activators raise and lower bottom edges of bag, loosening compacted materials.
