Master Bond, Inc.    Hackensack, NJ 07601
Mar 16, 2004 Two-component, nickel-filled, electrically-conductive adhesive, Type EP76M features volume resistivity of 5-10 ohm-cm and thermal conductivity of 8-9 BTU/in./ft²/hr/°F. Product develops tensile shear strength of 2,000 psi when measured and cured at room temperature. Adhesive is 100% reactive, does not contain dilutents or solvents, and offers thermal shock and chemical resistance. Service operating temperature is -60 to +250°F. Cures can be accelerated by use of heat.

High Pressure Equipment Co.    Erie, PA 16505 3522
Mar 16, 2004 Hippo Piston Air Operators, available in NO and NC configurations, provide remote automatic on/off operation of valves with max operating pressure of 60,000 psi. Controlled via air regulator, electric solenoid, or manual low-pressure valve, both configurations have 1/8 in. NPT air inlet. Spring to open/air to close service requires air pressure from 30–100 psi, while air to open/spring to close service requires air pressure from 35–120 psi.

Rockwell Automation    Greenville, SC 29615-4617
Mar 16, 2004 Suited for washdown conditions of food/beverage industry, DODGE® E-Z KLEEN TIGEAR-2â„¢ single-reduction right angle worm speed reducer employs 13-step coating system, stainless steel output shafts or hubs, and stainless steel hardware. Interior is protected by 2-piece harsh-duty sealing system. Unit delivers up to 6,800 lb-in. torque and is available in sizes 13–40 in Quill, Adaptable, and Separate Input configurations as well as solid and hollow bore output configurations.

Himmelstein, S., & Co.    Hoffman Estates, IL 60195
Mar 16, 2004 Offered in accuracy grades of 0.08% and 0.13%, MCRT® Shaft Horsepower/kW-h Meters require no manual adjustments and feature bidirectional operation. Non-contact devices have full scale ranges from 5–76,000 hp, and measurements are valid to zero speed. Made with 200% and 400% torque overload ratings, they output ±10 V analogs of power, torque, speed, and energy as well as data in engineering units via resident com port.

Palomar Technologies    Vista, CA 92083-8341
Mar 16, 2004 Process Development and Prototyping Service provides design, program management, parts sourcing, process development, assembly, test, and product implementation for products such as optoelectronic packages, MEMS devices, hybrids, highbright LEDs, and fiber optic packages. FASTâ„¢ Optical Align and Attach products enable automation of active optical alignment and assembly of photonic components requiring laser weld and epoxy attachment.

Lincoln Electric Company, Inc., The    Cleveland, OH 44117

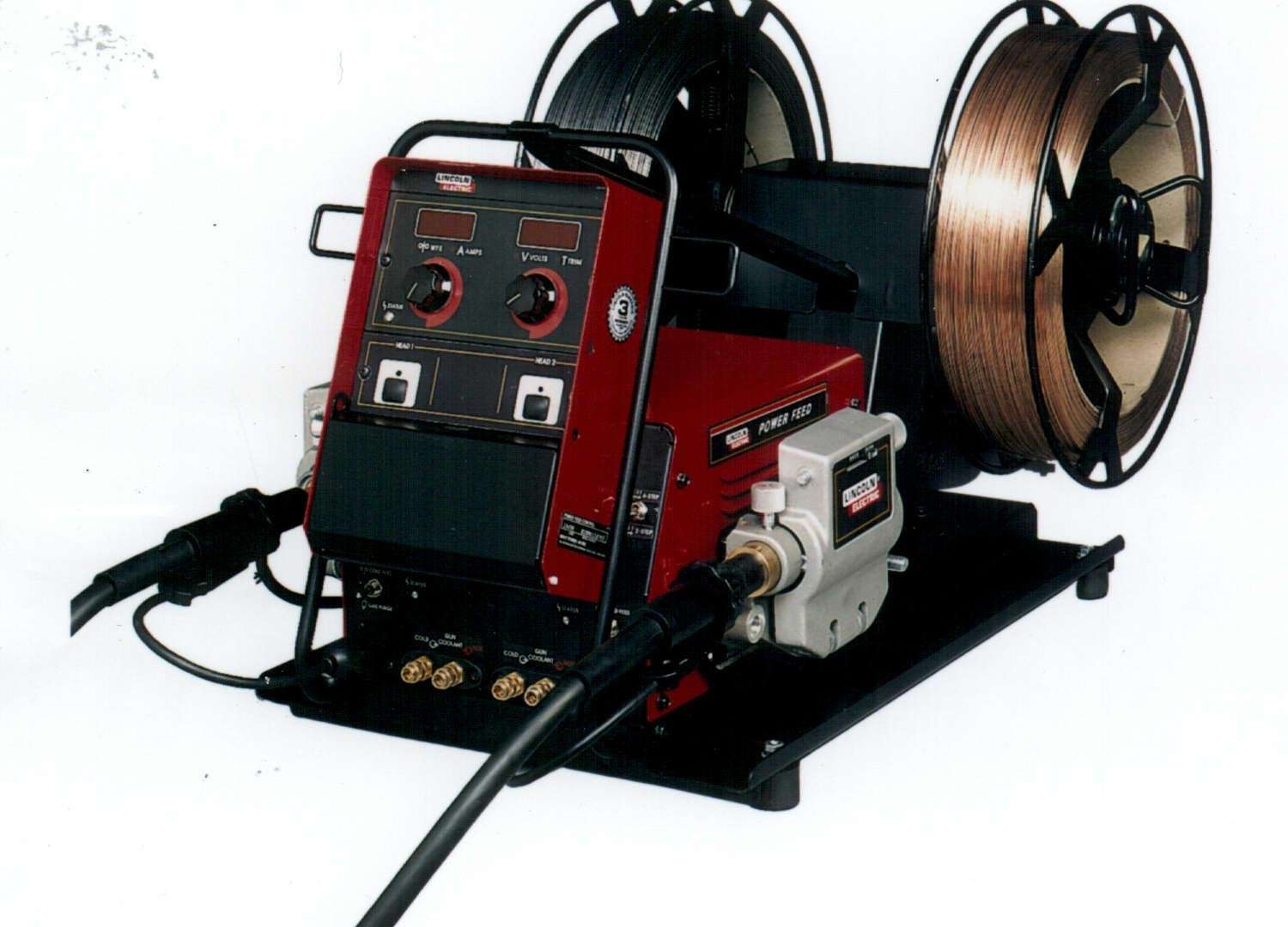

Mar 16, 2004 Semi-automatic Power Feedâ„¢ 10M Dual includes dual welding wire electrode drives, allowing for 2 separate welding processes, electrode alloys, or wire diameters. Model MSP4 interface controls all weld parameters in single display. With 4 drive rolls and optional push-pull capability for aluminum welding, Power Feed 10M Dual is suited for exotic alloys and hard-to-weld materials. Infrared port provides transfer of data to and from Palm® handheld computer.

BRECOflex Co., L.L.C.    Eatontown, NJ 07724
Mar 16, 2004 Model SM4 Universal Tension Meter measures frequency of all belt types, regardless of composition. It provides readings in range of 6–350 Hz ±5% and is suited for setting up belt drive systems. Meter helps eliminate belt under- and over-tensioning, reducing wear, vibration, noise, and friction.

Kistler Instrument Corp.    Amherst, NY 14228 2119

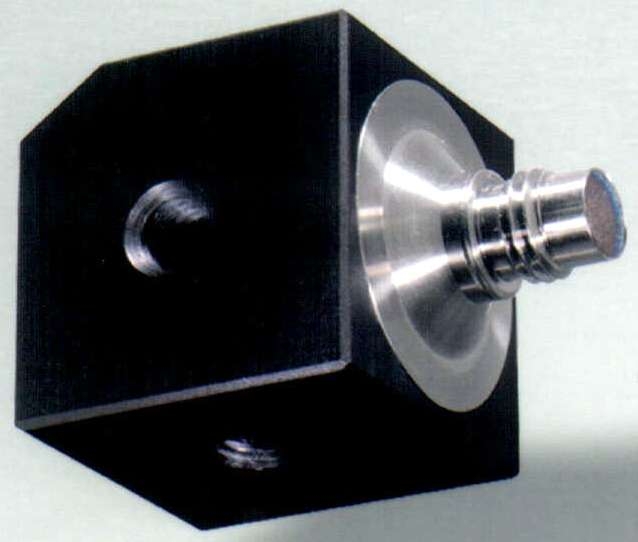

Mar 16, 2004 Simultaneously measuring vibration in 3 mutually perpendicular axes, 8762(X) M10 series incorporates TEDS smart sensor technology and uses ceramic shear sensing element. Compliant to IEEE 1451.4 directive, PiezoSmartâ„¢ circuitry permits reading of self-generating data sheet and enables writing to internal sensor memory. Series of 20 mm cube accelerometers includes 3 models with 5, 10, and 50 g measuring ranges and ground isolated housings.

Valco Instrument Co., Inc.    Houston, TX 77255
Mar 16, 2004 Rated for use at up to 10,000 psi liquid, Cheminert® C2XH series injectors feature 1/16 in. fittings and are available with .010 or .016 in. bore in 4, 6, and 10 port configurations, or .006 in. bore in 4 and 6 port versions. Internal volume injectors produce volumes from 10-50 or 20-100 nanoliters, depending on bore size. Versions with .004 and .006 in. bore using 1/32 in. fittings are available with pressure ratings to 20,000 psi.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Mar 16, 2004 Series 629 Wet/Wet Differential Pressure Transmitter senses differential pressure of compatible gases or liquids and sends 4-20 mA output signal. Unit, designed for wetted parts of 316 and 316L stainless steel, contains pressure sensor that offers 0.5% FS accuracy on ranges from 10-100 psid. It comes in NEMA 4X housing that withstands temperatures to 200°F and is suited for monitoring differential pressures on HVAC equipment.

Kintz Plastics, Inc.    Howes Cave, NY 12092

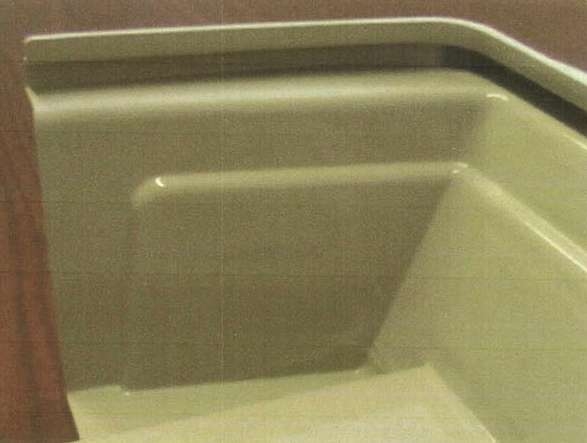

Mar 16, 2004 Pressure forming utilizes vacuum pressure to 22.5 psi to draw heated plastic into cavities of mold and positive air pressure to 100 psi to push it into recesses of mold. Combination of negative vacuum pressure pulling and positive air pressure pushing results in parts, panels, and components with sharp detail, precise surface texture, and tight radii. Process employs pneumatically activated molds with movable sections for product removal.

Aved Electronics, Inc.    Lowell, MA 01851-2729
Mar 16, 2004 RF Cable Assemblies are custom-manufactured using fully automated cutting, stripping, and connectorizing equipment. Available with BNC, TNC, LC, SC, SMA, and N type connector, units can include 50–150 Ohm cables up to 1 in. OD in varying lengths. Each is 100% electrically and mechanically tested and UL/CSA approved. Suited for inside- or outside-the-box applications, assemblies feature PTFE or PVC jackets with various types of insulation and water-tight construction.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214
Mar 16, 2004 Series TT Transfer Tubes instantly provide air movement when compressed air is applied. Transfer speed and output flow can be infinitely adjusted by regulating input pressure. Made from aluminum with anodized finish, units come in bore sizes from 0.375–1 in. ID, with airflow from 15–145 scfm. Straight-through bore design lets materials pass through without clogging. Tubes are suited for pneumatic conveying, loading hoppers or bulk bins, and dust and trim waste removal.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005

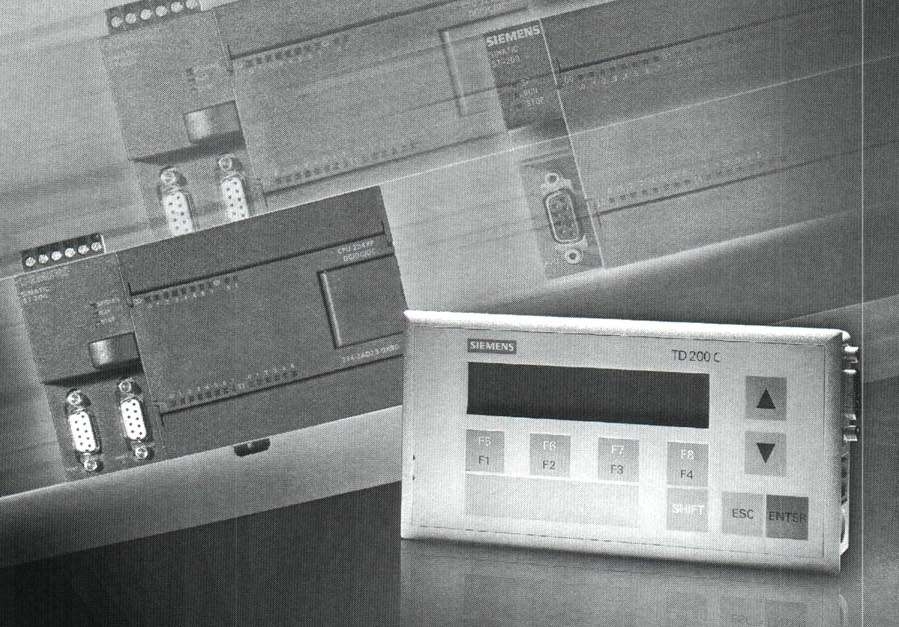

Mar 16, 2004 CPU Models 224 and 226 of Series S7-200 mini PLCs provide 24 kB program memory capacity and 10 kB data memory. Model 224 XP offers 16 kB program memory, 2 interfaces, 2 analog inputs, 1 analog output, two 100 kHz pulse outputs, and two 200 kHz counters. Model TD 200C text display is coordinated with Simatic S7-200 devices and performs HMI tasks. As many as 20 keys can be positioned as required and images, symbols, colors, and text can be freely designed.

Scientifics, A Division of Edmund Scientific    Tonawanda, NY 14150-6711
Mar 16, 2004 Pocket Digital Balance indicates overload, low voltage, and stability, and freezes when stable for 2 sec. If weight is added or subtracted, balance resumes measuring. Unit automatically calibrates to 100 g, and after 1 min of non-use it automatically shuts off to preserve battery life. Protective cover folds over balance for travel and slides out of the way to reveal stainless steel platform. Balance offers range up to 200 g, resolution to 0.1 g, and accuracy to 0.1 g.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005

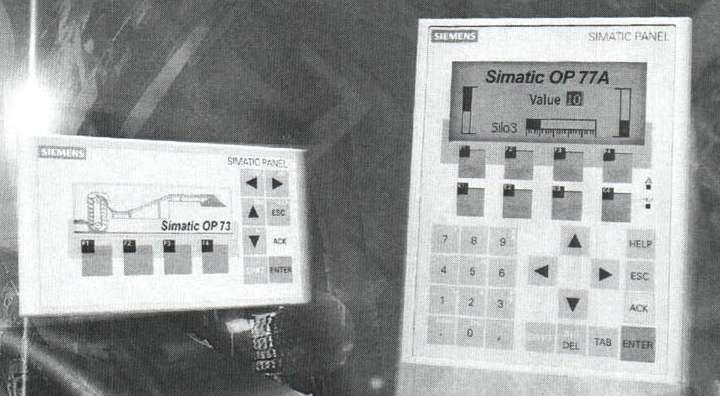

Mar 16, 2004 Simatic OP 73, OP 73micro, and OP 77A are equipped with 3 or 4.5 in. display with resolution of 160 x 48 or 160 x 64 pixels. Models OP 73 and OP 77A feature onboard Profibus DP interface capable of communicating at data rate of 1.5 Mbits/sec with Simatic S7 controller. Model OP 73micro communicates via PPI or MPI point-to-point connection with Simatic S7-200 mini PLC. Alarm system provides message history and freely definable message classes.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005
Mar 16, 2004 Transmag 11 electromagnetic flowmeter measures sludges, pastes, and slurries. It is suitable for custody transfer measurements and for pulsating media. Measuring range covers 10³ and unit measures reliably with large variations in pressure, temperature, density, electrical conductivity, and viscosity. It can be fitted directly in base of supply lines without requiring further enclosure. Unit offers protection rated at IP68.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005
Mar 16, 2004 The IQ-Sense optoelectronic and ultrasonic sensors have been integrated into the Moby-P RFID system. Sensors are individually parameterized simultaneously with production process to provide parameter, production and diagnostics data. Teach-in function copies the values set on a sensor to other sensors, while system diagnostics finds faults such as open-circuit, short-circuit or sensor failure. Anti-interference function prevents mutual influencing of sensors.

Dillon, Inc., A Div. Of Avery Weigh-Tronix    Fairmont, MN 56031-1439
Mar 16, 2004 Checkpoint models feature electromagnetic force restoration technology, offering precision to weigh, sort, or classify at throughput of 230 weighings per min. Optional rejection mechanisms automatically remove unsuitable packages from production flow. In-feed, weighing, and out-feed transport conveyors are provided. Touchscreen controls offer menu-guided operation, 80 product parameter settings, 20 automation channels, and password protection.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005

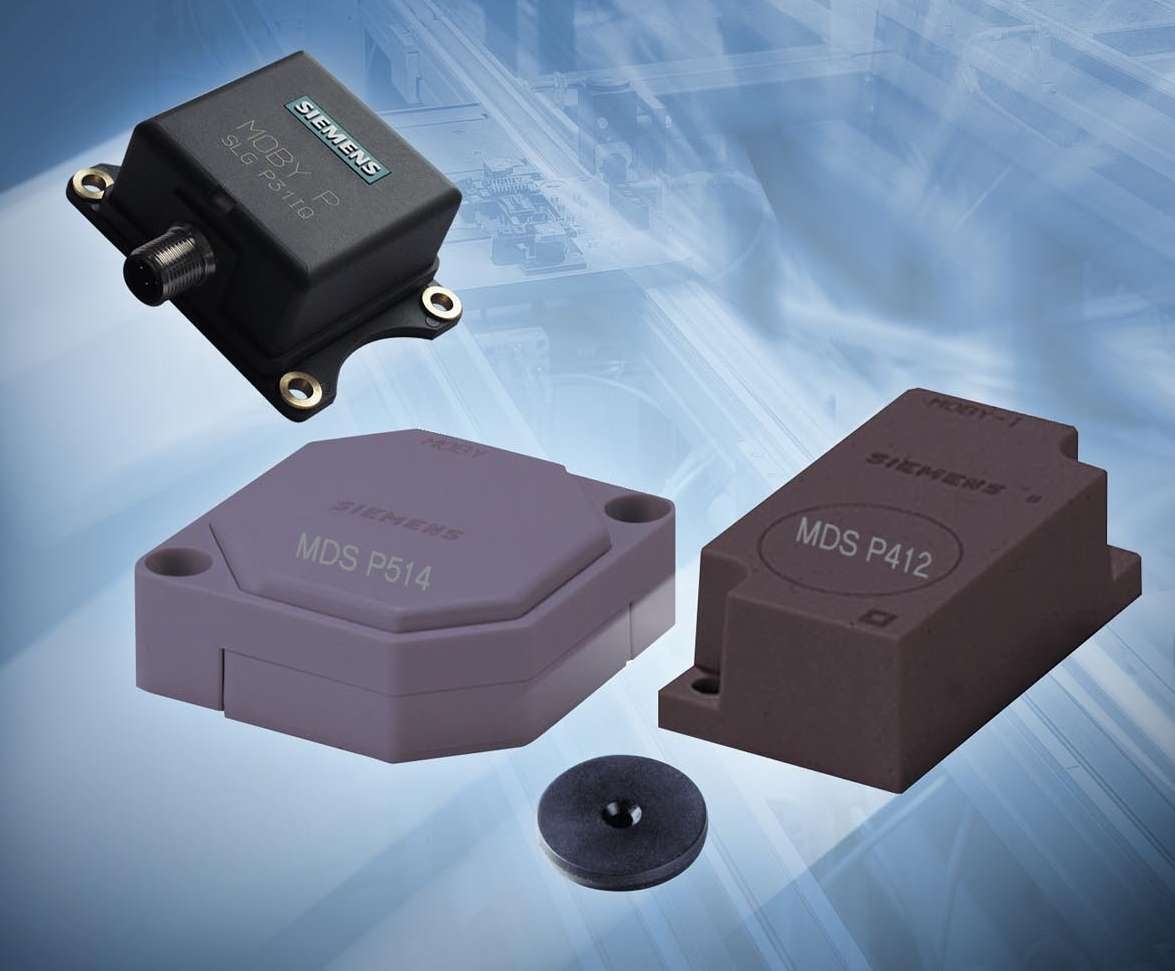

Mar 16, 2004 Moby P transmits data and energy on 13.56 MHz ISM radio frequency, suitable for production automation. Mobile data storages require no batteries, can store up to 64 KBytes, and attach directly to product. Transponders hold unique ID numbers centrally and complete production and quality data on distributed basis. Information and diagnostics system simplifies commissioning and fault clearance during operation. A read/write device, SLG, is also included for IQ-Sense sensors.
